Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
FCC Compliance Statement Compliance Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications that are not expressly approved by the manufacturer could void the user’s authority to operate the equipment. RF Exposure Information: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 8 inches during normal operation. RF Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This transmitter must be installed to provide a separation distance of at least 8 inches from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. ⚠ CAUTION - High Voltage - Disconnect power supply before servicing Operation temperature: 0-40°C For Control of Electronic Ballast, CFL, LED Lamps Type l Enclosure IP20 Pollution Degree 2 Impulse Voltage: 1500V Type l.B action Indoor use only. Welcome to Cync! You’ve chosen a great product to enhance your smart home living and entertainment. There are 3 ways to get started, which are outlined in this guide. Use the native Cync App to connect all of your Cync products and get the full range of features. Connect via Matter to streamline your smart products. Lastly, with a professionally installed Savant System, a pro can commission this Cync product in your Savant home. Learn more about all 3, and choose which set up is right for you. Indoor Smart Plug Quick Start Setup Guide GE is a trademark of General Electric Company, used under trademark license. IC Statement This device complies with RSS247 of Industry Canada. Cet appareil se conforme à RSS247 de Canada d’Industrie. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage prejudiciable, et (2) ce dispositif doit accepter tout brouillage recu, y compris un brouillage susceptible de provoquer un fonctionnement indesirable. This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. Cet équipement est conforme aux limites d’exposition aux rayonnements IC RSS-102 définies pour un environnement non contrôlé. Cet émetteur doit être installé pour fournir une distance de séparation d’au moins 20 cm de toutes les personnes et ne doit pas être colocalisé ou fonctionner en conjonction avec une autre antenne ou émetteur. Scan QR code to download the Cync app and complete set up: Enable all Cync featuresConnect with other smart products Professionally installed smart home Get Started With Matter NOTE: If you already have Cync devices in the Cync App, add your new device to the Cync App, then enable your voice assistant. Plug in and power on your Smart Plug. Open your preferred smart home app: • Google Home • Samsung SmartThings • Amazon Alexa • Apple Home and scan the Matter QR code or enter the 11-digit code on the device sticker to complete setup. Contact a professional installer to get started. A professionally installed smart home system unifies your connected environment into one integrated experience controlled by intuitive, award-winning software. • Climate • Lighting • Entertainment • Security • Energy Scan to learn more about Savant smart home and schedule a consultation. Professional installers: scan to access setup documentation. Get Started With SavantGet Started With Cync Plug in and power on your Smart Plug. For set up help, visit support.gelighting.com or call 1-844-302-2943 To learn more about Savant, visit www.savant.com Set up with Cync Set up with Matter Pro set up with Savant Set schedules & control away from home Connect to Amazon Alexa & Google Assistant Connect to Apple Home & Samsung SmartThings Personalized app experience Installation methodDIYDIYPRO 3 Ways to Get Started Please note: You may see a “set up using Matter” notification on your phone. To set up in the Cync App, powered by Savant, dismiss the notification. Use of the Works with Apple badge means that an accessory has been designe…
Text truncated - open the document above for the full version.
Savant Technologies LLC, dba GE Lighting, a Savant company 1975 Noble Road, East Cleveland, OH 44112 USA Covered Equipment Certification Attestation Letter 6/14/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: PUU-CPLGSTDBLW1S Savant Technologies LLC, dba GE Lighting, a Savant company (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Savant Technologies LLC, dba GE Lighting, a Savant company (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Paul Smith Title: Lead Systems Engineer – Safety & Regulatory Company Name: Savant Technologies LLC, dba GE Lighting, a Savant company Date: 6/14/2024
Savant Technologies LLC, dba GE Lighting, a Savant company 1975 Noble Road, East Cleveland, OH 44112 USA * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter June 14, 2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: PUU-CPLGSTDBLW1S Per section 2.911(d)(7) of the FCC rules, Savant Technologies LLC, dba GE Lighting, a Savant company (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: Savant Technologies LLC, dba GE Lighting, a Savant company Physical U.S. Company Address: 1975 Noble Road, East Cleveland, OH 44112 USA Agent name: Paul Smith Agent Email Address: [email protected] FRN: 0022026876 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Signed: Printed name: Paul Smith Title: Lead Systems Engineer – Safety & Regulatory Company Name: Savant Technologies LLC, dba GE Lighting, a Savant company Date: June 14, 2024 FRN Code: 0022026876
Savant Technologies LLC, dba GE Lighting, a Savant company 1975 Noble Road, East Cleveland, OH 44112 USA 11/25/2023 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint Kathy Wang (Audix Tec hnology (Shanghai) Co., Ltd.), to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Printed name: Paul Smith
Savant Technologies LLC, dba GE Lighting, a Savant company 1975 Noble Road, East Cleveland, OH 44112 USA June 14, 2024 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: PUU-CPLGSTDBLW1S Pursuant to Sections 0.457(d) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request permanent confidential treatment of exhibits identified as such in the table below and request they are permanently withheld from public review based on the documents containing trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. Exhibit Type of Confidentiality Requested Block Diagrams ☒Permanent ☐Short Term External Photos ------------------ ☐Short Term Internal Photos ☐Permanent*☐Short Term Operation Description ☒Permanent ☐Short Term Parts List & Placement/BOM ☐Short Term Tune-Up Procedure ☐Permanent☐Short Term Schematic Diagrams ☒Permanent ☐Short Term Test Setup Photos ------------------ ☐Short Term User’s Manual ☐Permanent*☐Short Term The asterisked items (*) require further information to be provided in this justification letter before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. Note: any documents held under the Short-Term confidentiality will automatically become public after the requested time if an appropriate extension request has not been received. Any exhibits (i.e., schematic diagrams) that may have already been requested to have “Permanent” confidentiality as shown above need not be repeated under Short-Term confidentiality request. Sincerely, Signed: Printed name: Paul Smith Title: Lead Systems Engineer – Safety & Regulatory Company Name: Savant Technologies LLC, dba GE Lighting, a Savant company ☒Permanent

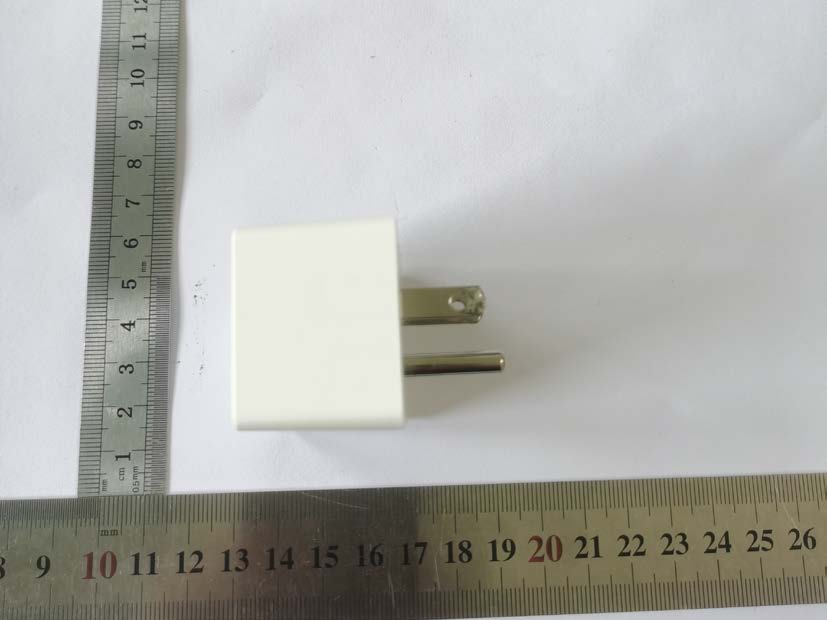

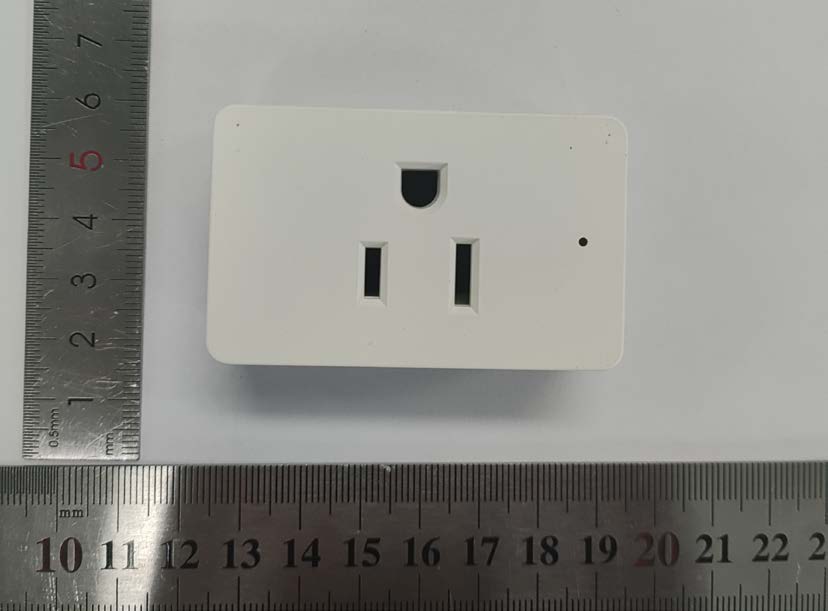

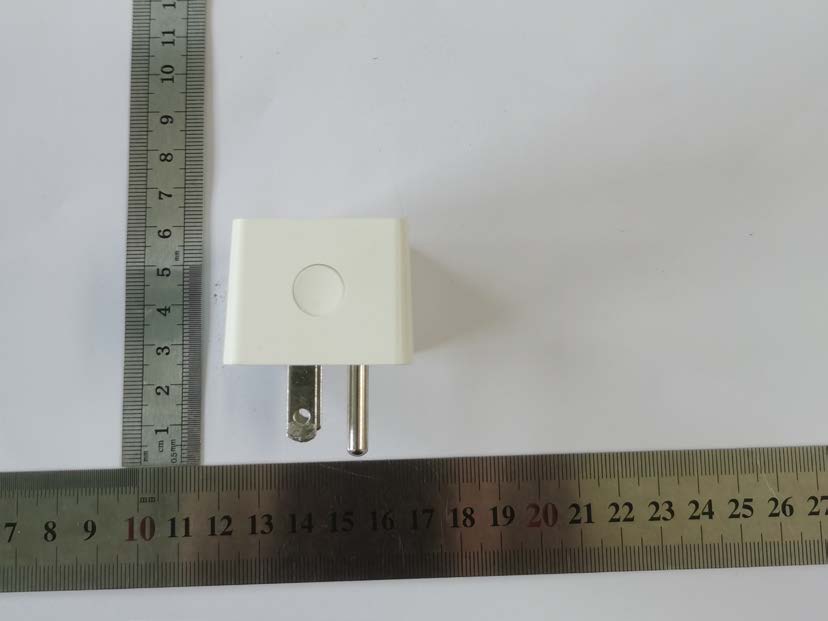

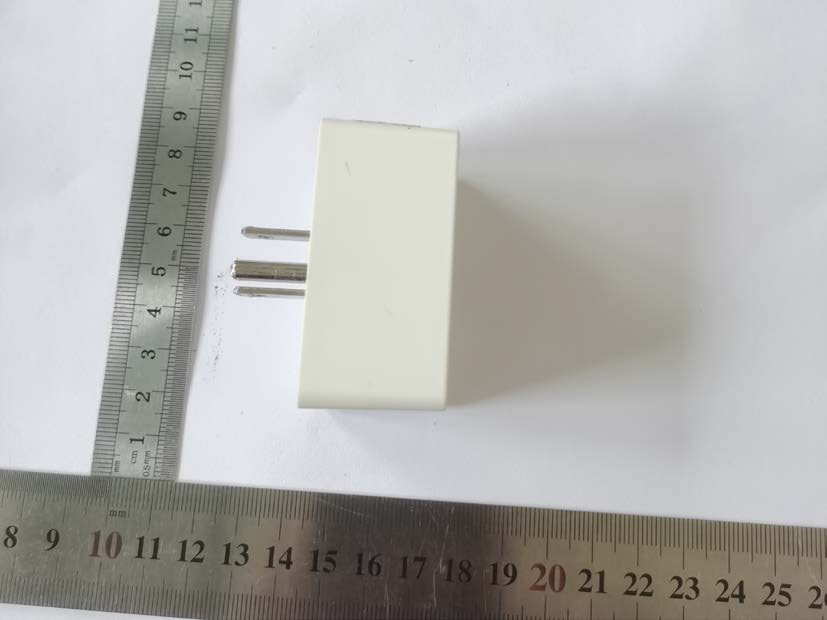

Appendix II Page 1 of 7 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24119 APPENDIX II P HOTOGRAPHS OF EUT Appendix II Page 2 of 7 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24119 FIGURE 1 ON/OFF SMART PLUG (M/N: CPLGSTDBLW1MS) G ENERAL VIEW F IGURE 2 ON/OFF SMART PLUG (M/N: CPLGSTDBLW1MS) BACK VIEW Appendix II Page 3 of 7 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24119 FIGURE 3 ON/OFF SMART PLUG (M/N: CPLGSTDBLW1MS) TOP VIEW F IGURE 4 ON/OFF SMART PLUG (M/N: CPLGSTDBLW1MS) BOTTOM VIEW Appendix II Page 4 of 7 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24119 FIGURE 5 ON/OFF SMART PLUG (M/N: CPLGSTDBLW1MS) LEFT VIEW FIGURE 6 ON/OFF SMART PLUG (M/N: CPLGSTDBLW1MS) RIGHT VIEW
27.4mm 4.1mm 4.1mm 2.5mm 19239CHMY为“YYDDDCHMY” 19是YY为年,239是DDD为一年中的第几日, CHMY为ChangHong MianYang 具体时间随订单要求时间变化 字体:Arial 字号:4.5pt 7mm 3mm 二维码尺寸大小为8X8mm; XXXXXXXXXXXX为MAC地址,字高1.1mm,总长12.7mm PC 3001 UL94V0 白色表面幼纹 镭雕二维码 技术要求: 1.镭射位置准确。 2.内容正确、不允许出现漏雕 、烧焦、白点、边沿模糊等不良现象。 4.公差+/-0.5mm 3.YY为年,DDD为日,CHMY为ChangHong MianYang,YYDDD需按订单要求时间变化。 WiFi MAC: CYNC Plug TM XXXXXXXXXXXX 1234 567 8910 5.5mm 2.7mm 13.7mm 4.1mm CONFORMS TO UL STD 60730-1 CERTIFIED TO ON/OFF Smart Plug Model:CPLGSTDBLW1MS Rating:120V AC 60Hz Max Load: General use 15A Motor 1/3HP FCC ID:PUU-CPLGSTDBLW1S IC:10798A-CPLGSTDXSW1 CAN ICES-003(B)/NMB-003(B) Designed in U.S.A. Made in China 19239CHMY gelighting.com/cync CSA STD E60730-1
Appendix II Page 5 of 7 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24119 FIGURE 7 ON/OFF SMART PLUG (M/N: CPLGSTDBLW1MS) C OVER REMOVED F IGURE 8 ON/OFF SMART PLUG (M/N: CPLGSTDBLW1MS) M AINBOARD FRONT Appendix II Page 6 of 7 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24119 FIGURE 9 ON/OFF SMART PLUG (M/N: CPLGSTDBLW1MS) M AINBOARD BACK F IGURE 10 ON/OFF SMART PLUG (M/N: CPLGSTDBLW1MS) RFBOARD FRONT Appendix II Page 7 of 7 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24119 FIGURE 11 ON/OFF SMART PLUG (M/N: CPLGSTDBLW1MS) RF BOARD BACK FIGURE 12 ON/OFF SMART PLUG (M/N: CPLGSTDBLW1MS) C HIP&CRYSTAL ON BOARD -END- Antenna
JXC32-18 ANTENNA SPECIFICATIONS Item Specifications Antenna Frequency Range 2400~2483.5MHz Polarization Linear Peak Gain 3.34dBi V.S.W.R <2.0 Impedance 50Ω Return Loss -10dB Connector Microstrip line connection Efficiency 35% Environmental Operating Temperature -10°C~+60°C Manufacturer Sichuan Hongrui Electric Co., Ltd Mianyan Export Processing Zone, Mianyan, Sichuan, China ANTENNA PATTERN Frequency (MHz) Gain (dBi) 2400 2.34 2410 2.35 2420 2.31 2430 2.44 2440 2.67 2450 2.99 2460 3.26 2470 3.34 2480 3.12 2490 2.88 Antenna Picture:
Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-CPLGSTDBLW1S Page 1 of 2 Audix Technology (Shanghai) Co., Ltd. RADIO FREQUENCY EXPOSURE EVALATION Evaluation Method KDB 447498 D04 Interim General RF Exposure Guidance v01 Applicable Standard: FCC CFR 47 §1.1307(b)(3)(i)(B): A single RF source is exempt if the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). P th is given by: Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-CPLGSTDBLW1S Page 2 of 2 Audix Technology (Shanghai) Co., Ltd. SAR evaluation: Mode Frequency Max output power Ant. Gain Max E.I.R.P P th MHz dBm mW dBi dBm mW mW BLE 2480 5.511 3.56 3.34 8.851 7.675 3060 802.11b 2437 14.59 28.77 3.34 17.93 62.087 3060 802.11g 2437 16.2 41.69 3.34 19.54 89.950 3060 802.11n20 2437 15.37 34.43 3.34 18.71 74.302 3060 802.11n40 2437 14.72 29.65 3.34 18.06 63.973 3060 Note1: For this EUT, and the separation distance is 20 cm. And the Bluetooth and WIFI can not transmit at the same time. Note2: The Conducted output power and Maximum EIRP both no greater than the threshold P th , that meets the exemption, the RF exposure evaluation is not required. -END-
Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-CPLGSTDBLW1S Page 1 of 49 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24120 Prepared For: Savant Technologies LLC, dba GE Lighting, a Savant company 1975 Noble Road Cleveland, Ohio United States 44112 Prepared By: Audix Technology (Shanghai) Co., Ltd. 3F, Building 34, No. 680 Guiping Rd., Caohejing, Hi-Tech Park, Shanghai 200233, China Tel: +86-21-64955500 File No. : C1D2404051 Report No. : ACI-F24120 Date of Test : 2024.06.28-07.08 Date of Report : 2024.07.15 TEST REPORT On behalf of Savant Technologies LLC, dba GE Lighting, a Savant company Product Name: ON/OFF Smart Plug Model No.: CPLGSTDBLW1S FCC ID: PUU-CPLGSTDB LW 1 S The statement is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does not permit the use of the test lab logo. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. TESTING NVLAP LAB CODE 200371-0 Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-CPLGSTDBLW1S Page 2 of 49 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24120 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 5 1.1 Description of Standards and Results ......................................................................................... 5 2 GENERAL INFORMATION .......................................................................................................... 6 2.1 Description of Equipment Under Test ........................................................................................ 6 2.2 EUT Specifications Assessed in Current Report ........................................................................ 7 2.3 Test Information ......................................................................................................................... 7 2.4 Duty Cycle Check ...................................................................................................................... 8 2.5 Sample Description .................................................................................................................... 9 2.6 Supported equipment .................................................................................................................. 9 2.7 Description of Test Facility ........................................................................................................ 9 3 CONDUCTED EMISSION TEST ................................................................................................ 10 3.1 Test Equipment ......................................................................................................................... 10 3.2 Block Diagram of Test Setup ................................................................................................... 10 3.3 Conducted Emission Limits (§15.207) ..................................................................................... 11 3.4 Test Configuration .................................................................................................................... 11 3.5 Operating Condition of EUT .................................................................................................... 11 3.6 Test Procedures ........................................................................................................................ 11 3.7 Test Results .............................................................................................................................. 12 4 RADIATED EMISSION TEST ..................................................................................................... 15 4.1 Test Equipment ......................................................................................................................... 15 4.2 Block Diagram of Test Setup ................................................................................................... 16 4.3 Radiated Emission Limit (§15.209) ......................................................................................... 17 4.4 Test Configuration .................................................................................................................... 17 4.5 Operating Condition of EUT .................................................................................................... 17 4.6 Test Procedures ........................................................................................................................ 17 4.7 Test Results .............................................................................................................................. 19 5 6 DB BANDWIDTH MEASUREMENT ...................................................................................... 32 5.1 Test Equipment ......................................................................................................................... 32 5.2 Block Diagram of Test Setup ................................................................................................... 32 5.3 Specification Limits (§15.247(a)(2)) ........................................................................................ 32 5.4 Operating Condition of EUT .................................................................................................... 32 5.5 Test Procedure .......................................................................................................................... 32 5.6 Test Results .............................................................................................................................. 33 6 MAXIMUM PEAK OUTPUT POWER MEASUREMENT ...................................................... 35 6.1 Test Equipment ...........................................................................................…
Text truncated - open the document above for the full version.
Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-CPLGSTDBLW1S Page 1 of 90 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24119 Prepared For: Savant Technologies LLC, dba GE Lighting, a Savant company 1975 Noble Road Cleveland, Ohio United States 44112 Prepared By: Audix Technology (Shanghai) Co., Ltd. 3F, Building 34, No. 680 Guiping Rd., Caohejing, Hi-Tech Park, Shanghai 200233, China Tel: +86-21-64955500 File No. : C1D2404051 Report No. : ACI-F24119 Date of Test : 2024.06.28-07.08 Date of Report : 2024.07.15 TEST REPORT On behalf of Savant Technologies LLC, dba GE Lighting, a Savant company Product Name: ON/OFF Smart Plug Model No.: CPLGSTDBLW1S FCC ID: PUU-CPLGSTDBLW1S The statement is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does not permit the use of the test lab logo. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. TESTING NVLAP LAB CODE 200371-0 Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-CPLGSTDBLW1S Page 2 of 90 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24119 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 5 1.1 Description of Standards and Results ......................................................................................... 5 2 GENERAL INFORMATION .......................................................................................................... 6 2.1 Description of Equipment Under Test ........................................................................................ 6 2.2 EUT Specifications Assessed in Current Report ........................................................................ 7 2.3 Test Information ......................................................................................................................... 7 2.4 Duty Cycle Check ...................................................................................................................... 8 2.5 Sample Description .................................................................................................................... 9 2.6 Supported equipment .................................................................................................................. 9 2.7 Description of Test Facility ........................................................................................................ 9 3 CONDUCTED EMISSION TEST ................................................................................................ 10 3.1 Test Equipment ......................................................................................................................... 10 3.2 Block Diagram of Test Setup ................................................................................................... 10 3.3 Conducted Emission Limits (§15.207) ..................................................................................... 11 3.4 Test Configuration .................................................................................................................... 11 3.5 Operating Condition of EUT .................................................................................................... 11 3.6 Test Procedures ........................................................................................................................ 11 3.7 Test Results .............................................................................................................................. 12 4 RADIATED EMISSION TEST ..................................................................................................... 15 4.1 Test Equipment ......................................................................................................................... 15 4.2 Block Diagram of Test Setup ................................................................................................... 16 4.3 Radiated Emission Limit (§15.209) ......................................................................................... 17 4.4 Test Configuration .................................................................................................................... 17 4.5 Operating Condition of EUT .................................................................................................... 17 4.6 Test Procedures ........................................................................................................................ 17 4.7 Test Results .............................................................................................................................. 19 5 99% OCCUPIED BANDWIDTH MEASUREMENT ................................................................ 50 5.1 Test Equipment ......................................................................................................................... 50 5.2 Block Diagram of Test Setup ................................................................................................... 50 5.3 Operating Condition of EUT .................................................................................................... 50 5.4 Test Procedure .......................................................................................................................... 50 5.5 Test Results .............................................................................................................................. 51 6 6 DB BANDWIDTH MEASUREMENT ...................................................................................... 56 6.1 Test Equipment ......................................................................................................................... 56 6.2 Block Diagram of Test Setup ...............................................................…
Text truncated - open the document above for the full version.
Appendix I Page 1 of 4 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24119 APPENDIX I P HOTOGRAPHS OF TEST Appendix I Page 2 of 4 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24119 Test Set-Up Photos 1. Conducted Test FRONT VIEW BACK VIEW Appendix I Page 3 of 4 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24119 2. Radiated Test (BELOW 1GHZ) FRONT (ABOVE 1GHZ) FRONT Appendix I Page 4 of 4 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24119 3. Antenna-port Conducted Test
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 2 | 15C | 2.41 GHz - 2.46 GHz | 41.70 mW |
