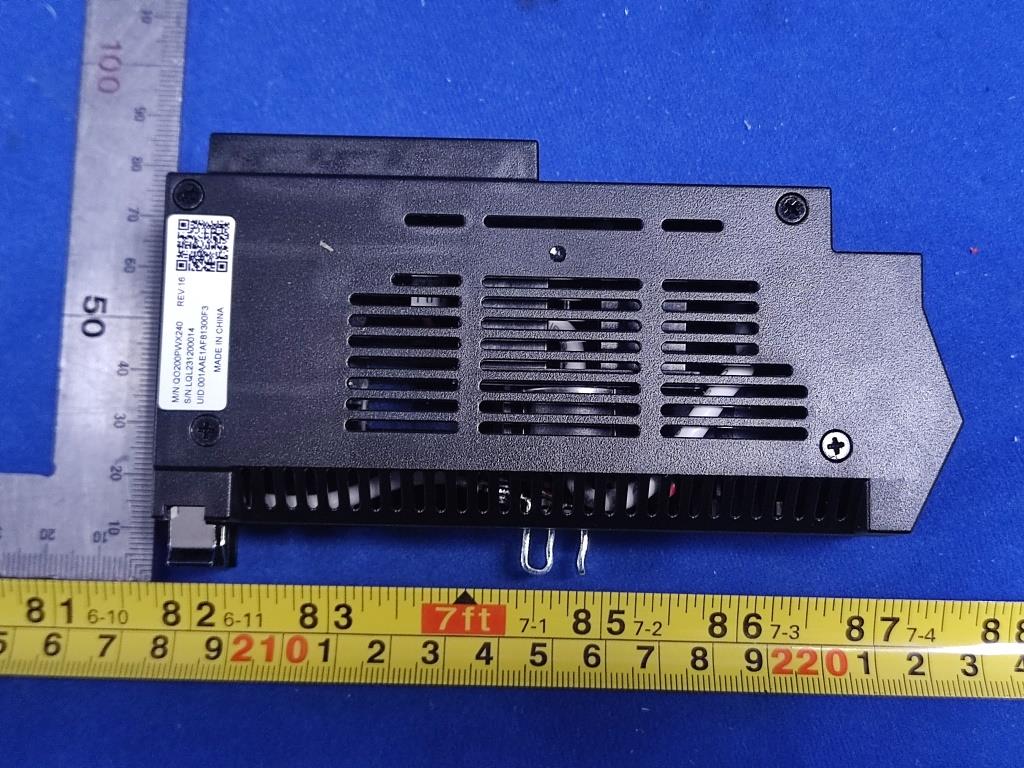

Appendix II Page 1 of 10 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24023 APPENDIX II P HOTOGRAPHS OF EUT Appendix II Page 2 of 10 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24023 FIGURE 1 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) F RONT APPEARANCE FIGURE 2 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) BACK APPEARANCE Appendix II Page 3 of 10 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24023 FIGURE 3 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) L EFT FIGURE 4 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) RIGHT Appendix II Page 4 of 10 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24023 FIGURE 5 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) T OP FIGURE 6 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) BOTTOM

Label Location: Label CC G F E D B A H I J D E F G H I J 12345678 ANY PRINTED COPY OF THIS DOCUMENT USED WITHIN SCHNEIDER ELECTRIC IS CONSIDERED UNCONTROLLED. PRINTS State: Number: Revision: Sheet: Scale: Tolerancing Standard : Units of measure : The information is highly confidential and is the exclusive property of Schneider Electric Group copyright reserved. This drawing must not be used for any purpose other than that expressly permitted in writing by the owners and must not be disclosed or reproduced in any way without permission from the owners in writing. This drawing must be returned to the owners when the purpose has ceased. [mm] IN 1:1 S1A1793900 FACEPLATE LABEL FACEPLATE LABEL NNZ9369701 04 1/1 QO200PWX240 LISTED 240 VAC 60Hz 2-Pole, 30A Max #14-8 AWG Min. 90°C CU ONLY -30°C to 50°C SQUARE D Control Relay S3 E523609 Type QO FCC ID: PUU-QOPWX30240 IC: 10798A-QOPWX30240 Module Input: 120VAC 60Hz Max Load : 240VAC 60 Hz RES 30A Motor 2HP Home Automation Equipment Indoor use unless installed in a NEMA 3R rated enclosure Load InLoad Out CUT LINE BLACKWHITE [34.1] 1.34 [46.3] 1.82 Released for Manufacturing Printed on 2024/01/26

Appendix II Page 5 of 10 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24023 FIGURE 7 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) C OVER REMOVE FIGURE 8 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) POWER BOARD FRONT Appendix II Page 6 of 10 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24023 FIGURE 9 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) P OWER BOARD BACK FIGURE 10 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) CHIP & C RY S TAL ON POWER BOARD Appendix II Page 7 of 10 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24023 FIGURE 11 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) M AINBOARD FRONT F IGURE 12 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) MAINBOARD BACK Appendix II Page 8 of 10 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24023 FIGURE 13 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) RF BOARD FRONT FIGURE 14 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) RF BOARD BACK Appendix II Page 9 of 10 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24023 FIGURE 15 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) RF BOARD VIEW F IGURE 16 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) CHIP&C RY S TAL O N RF BOARD Appendix II Page 10 of 10 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24023 FIGURE 17 240 VAC 30 A WISER CONTROL RELAY (QO200PWX240) A NTENNA -END-

Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-QOPWX30240 Page 1 of 2 Audix Technology (Shanghai) Co., Ltd. RADIO FREQUENCY EXPOSURE EVALATION Evaluation Method KDB 447498 D04 Interim General RF Exposure Guidance v01 Applicable Standard: FCC CFR 47 §1.1307(b)(3)(i)(B): A single RF source is exempt if the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). P th is given by: Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-QOPWX30240 Page 2 of 2 Audix Technology (Shanghai) Co., Ltd. SAR evaluation: <Passed> Mode Frequency Max output power Ant. Gain Max E.I.R.P P th MHz dBm mW dBi dBm mW mW Zigbee 2405 0.195 1.05 1.49 1.685 1.474 3060 Note1: For this EUT, that is a mobile devices, and the separation distance is 20 cm. Note2: The Conducted output power and Maximum EIRP both no greater than the threshold P th , that meets the exemption, the RF exposure evaluation is not required. -END-

Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-QOPWX30240 Page 1 of 48 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24023 Prepared For: Savant Technologies LLC, dba GE Lighting, a Savant company 1975 Noble Road, Cleveland, OH 44112 Prepared By: Audix Technology (Shanghai) Co., Ltd. 3F, Building 34, No. 680 Guiping Rd., Caohejing, Hi-Tech Park, Shanghai 200233, China Tel: +86-21-64955500 File No. : C1D2401014 Report No. : ACI-F24023 Date of Test : 2024.01.12-26 Date of Report : 2024.01.31 TEST REPORT On behalf of Savant Technologies LLC, dba GE Lighting, a Savant company Product Name: 240 Vac 30 A Wiser Control Relay Model No.: QO200PWX240 FCC ID: PUU-QOPWX30240 The statement is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does not permit the use of the test lab logo. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-QOPWX30240 Page 2 of 48 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24023 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 5 1.1 Description of Standards and Results ......................................................................................... 5 2 GENERAL INFORMATION .......................................................................................................... 6 2.1 Description of Equipment Under Test ........................................................................................ 6 2.2 EUT Specifications Assessed in Current Report ........................................................................ 7 2.3 Test Information ......................................................................................................................... 7 2.4 Duty Cycle Check ...................................................................................................................... 7 2.5 Sample Description .................................................................................................................... 8 2.6 Supported equipment .................................................................................................................. 8 2.7 Description of Test Facility ........................................................................................................ 8 3 CONDUCTED EMISSION TEST .................................................................................................. 9 3.1 Test Equipment ........................................................................................................................... 9 3.2 Block Diagram of Test Setup ..................................................................................................... 9 3.3 Conducted Emission Limits (§15.207) ..................................................................................... 10 3.4 Test Configuration .................................................................................................................... 10 3.5 Operating Condition of EUT .................................................................................................... 10 3.6 Test Procedures ........................................................................................................................ 10 3.7 Test Results .............................................................................................................................. 11 4 RADIATED EMISSION TEST ..................................................................................................... 14 4.1 Test Equipment ......................................................................................................................... 14 4.2 Block Diagram of Test Setup ................................................................................................... 15 4.3 Radiated Emission Limit (§15.209) ......................................................................................... 16 4.4 Test Configuration .................................................................................................................... 16 4.5 Operating Condition of EUT .................................................................................................... 16 4.6 Test Procedures ........................................................................................................................ 16 4.7 Test Results .............................................................................................................................. 18 5 6 DB BANDWIDTH MEASUREMENT ...................................................................................... 31 5.1 Test Equipment ......................................................................................................................... 31 5.2 Block Diagram of Test Setup ................................................................................................... 31 5.3 Specification Limits (§15.247(a)(2)) ........................................................................................ 31 5.4 Operating Condition of EUT .................................................................................................... 31 5.5 Test Procedure .......................................................................................................................... 31 5.6 Test Results .............................................................................................................................. 32 6 MAXIMUM PEAK OUTPUT POWER MEASUREMENT ...................................................... 34 6.1 Test Equipment ......................................................................................................................... 34 6.2 Bloc…

Text truncated - open the document above for the full version.

Antenna Specification Manufacture Savant Technologies LLC, dba GE Lighting, a Savant company Address 1975 Noble Road, Cleveland, OH 44112 Model GEL_52840 Operating Band 2400~2483.5MHz Antenna Type inverted F PCB antenna Polarization Linear Impedance 50Ω Antenna peak gain 1.49dBi Antenna picture (unit: mm) Antenna pattern (2D/3D)
