PUU-STRIP-DMFCC by GE Dual Mode Full Color Light Strip

Model No:CLED S TR20CD1 F CC ID:PUU- S TRI P -DM F C IC:10798 A -DM F C S TR CLEDSTR20CD1

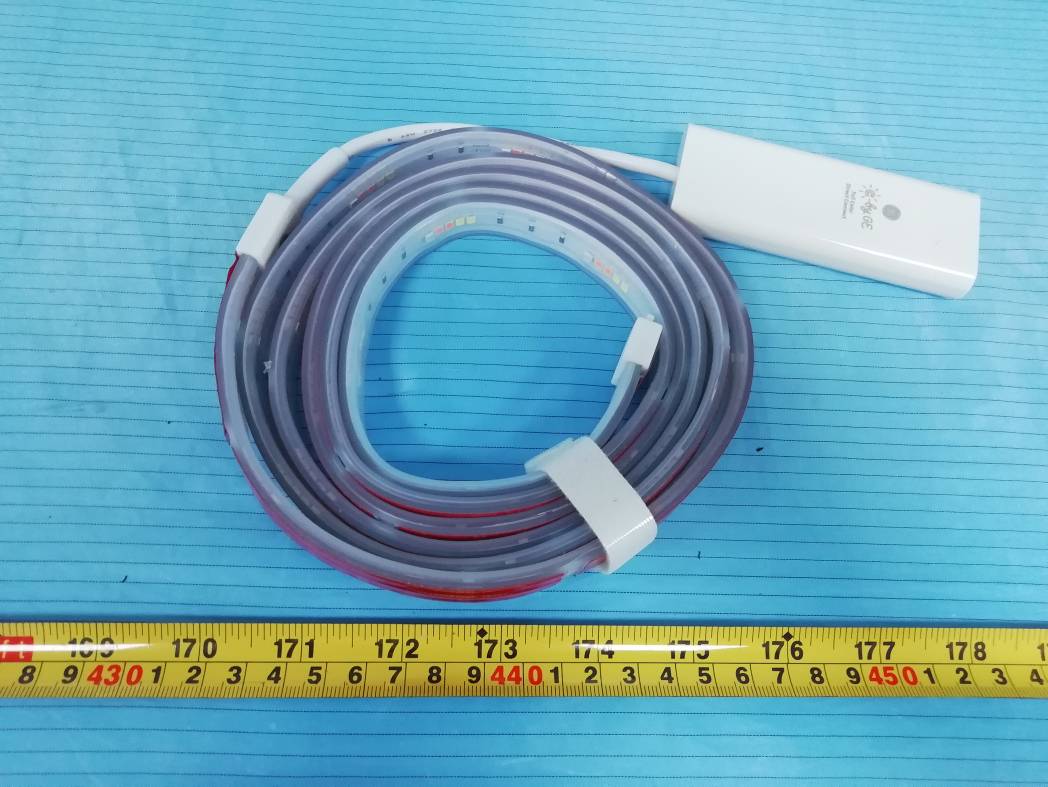

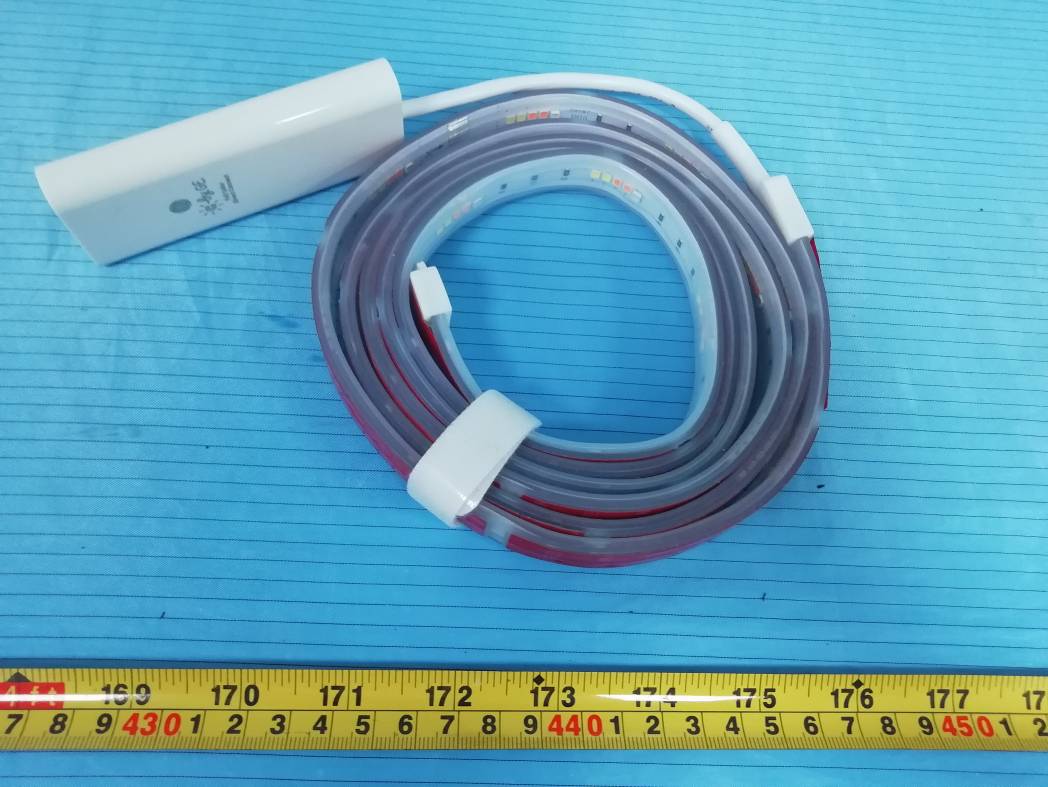

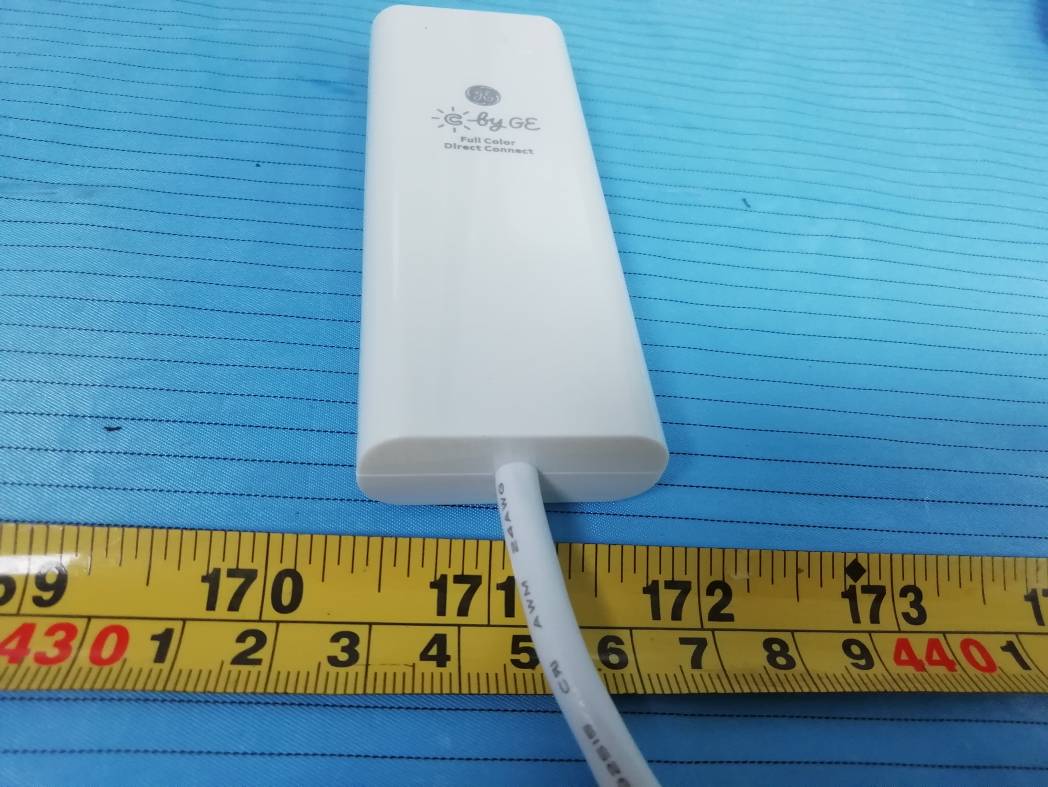

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

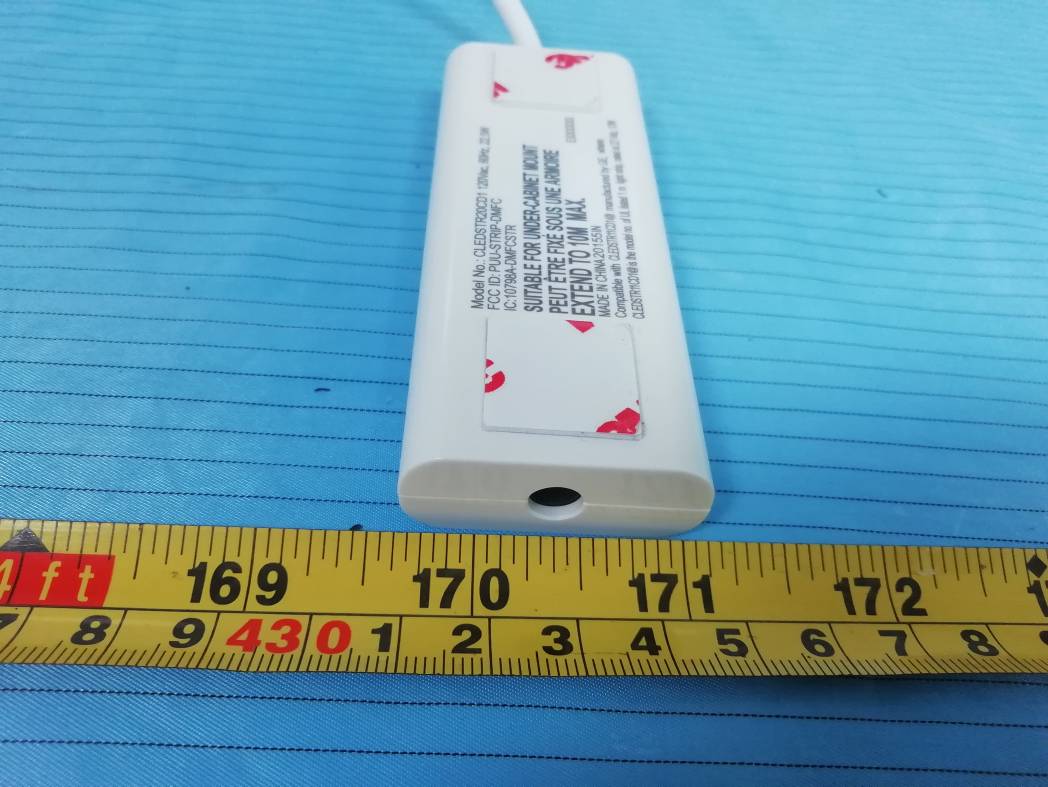

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Wi-Fi Antenna BLE Antenna

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For GE Lighting 1975 Noble Road Cleveland, OH 44112 United States FCC ID: PUU-STRIP-DMFC Report Type: Original Report Product Type: C by GE Full Color Direct Connect Light Strip Re port Number: RSZ200408552-00A Re port Date: 2020-06-28 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 2 of 36 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 DUTY CYCLE ................................................................................................................................................................ 8 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 8 EXTERNAL I/O CABLE .................................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................ 11 APPLICABLE STANDARD ............................................................................................................................................ 11 RESULT ...................................................................................................................................................................... 11 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 15 TEST RESULTS SUMMARY ......…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 1 of 15 AppendixA: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] Limit[MHz] Verdict LE 1M Ant1 2402 0.688 0.5 PASS 2440 0.692 0.5 PASS 2480 0.700 0.5 PASS LE 2M Ant1 2402 1.136 0.5 PASS 2440 1.132 0.5 PASS 2480 1.136 0.5 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 2 of 15 Test Graphs LE 1M_Ant1_2402 LE 1M_Ant1_2440 LE 1M_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 3 of 15 LE 2M_Ant1_2402 LE 2M_Ant1_2440 LE 2M_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 4 of 15 AppendixB: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] Limit[MHz] Verdict LE 1M Ant1 2402 1.039 --- PASS 2440 1.039 --- PASS 2480 1.039 --- PASS LE 2M Ant1 2402 2.058 --- PASS 2440 2.062 --- PASS 2480 2.062 --- PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 5 of 15 Test Graphs LE 1M_Ant1_2402 LE 1M_Ant1_2440 LE 1M_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 6 of 15 LE 2M_Ant1_2402 LE 2M_Ant1_2440 LE 2M_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 7 of 15 AppendixC: Maximum conducted Peakoutput power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict LE 1M Ant1 2402 8.19 <=30 PASS 2440 8.04 <=30 PASS 2480 7.88 <=30 PASS LE 2M Ant1 2402 8.19 <=30 PASS 2440 8.04 <=30 PASS 2480 7.85 <=30 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 8 of 15 AppendixD: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3kHz] Limit[dBm/3kHz] Verdict LE 1M Ant1 2402 -4.11 <=8 PASS 2440 -4.78 <=8 PASS 2480 -4.97 <=8 PASS LE 2M Ant1 2402 -8.22 <=8 PASS 2440 -9.00 <=8 PASS 2480 -9.18 <=8 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 9 of 15 Test Graphs LE 1M_Ant1_2402 LE 1M_Ant1_2440 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 10 of 15 LE 1M_Ant1_2480 LE 2M_Ant1_2402 LE 2M_Ant1_2440 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 11 of 15 LE 2M_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 12 of 15 AppendixE:Band edge measurements Test Graphs LE 1M_Ant1_Low_2402 LE 1M_Ant1_High_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 13 of 15 LE 2M_Ant1_Low_2402 LE 2M_Ant1_High_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 14 of 15 AppendixG: DutyCycle Test Result TestMode AntennaChannel TransmissionDuration [ms] Transmission Period [ms] Duty Cycle [%] LE 1M Ant1 2440 0.41 0.91 45.30 LE 2M Ant1 2440 0.20 0.90 22.22 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 15 of 15 Test Graphs LE 1M_Ant1_2440 LE 2M_Ant1_2440

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 1 of 22 AppendixA: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] Limit[MHz] Verdict 11B Ant1 2412 10.160 0.5 PASS 2437 10.160 0.5 PASS 2462 10.160 0.5 PASS 11G Ant1 2412 16.400 0.5 PASS 2437 16.400 0.5 PASS 2462 16.400 0.5 PASS 11N20 Ant1 2412 17.160 0.5 PASS 2437 17.360 0.5 PASS 2462 17.160 0.5 PASS 11N40 Ant1 2422 35.280 0.5 PASS 2437 35.440 0.5 PASS 2452 35.280 0.5 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 2 of 22 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 3 of 22 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 4 of 22 11N20_Ant1_2412 11N20_Ant1_2437 11N20_Ant1_2462 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 5 of 22 11N40_Ant1_2422 11N40_Ant1_2437 11N40_Ant1_2452 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 6 of 22 AppendixB: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] Limit[MHz] Verdict 11B Ant1 2412 14.985 --- PASS 2437 15.025 --- PASS 2462 15.025 --- PASS 11G Ant1 2412 16.464 --- PASS 2437 16.464 --- PASS 2462 16.464 --- PASS 11N20 Ant1 2412 17.662 --- PASS 2437 17.662 --- PASS 2462 17.662 --- PASS 11N40 Ant1 2422 36.044 --- PASS 2437 36.044 --- PASS 2452 36.044 --- PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 7 of 22 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 8 of 22 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 9 of 22 11N20_Ant1_2412 11N20_Ant1_2437 11N20_Ant1_2462 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 10 of 22 11N40_Ant1_2422 11N40_Ant1_2437 11N40_Ant1_2452 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 11 of 22 AppendixC: Maximum conducted output power(AVG) Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 10.26 <=30 PASS 2437 10.34 <=30 PASS 2462 10.42 <=30 PASS 11G Ant1 2412 10.20 <=30 PASS 2437 10.30 <=30 PASS 2462 10.42 <=30 PASS 11N20 Ant1 2412 9.99 <=30 PASS 2437 10.18 <=30 PASS 2462 10.23 <=30 PASS 11N40 Ant1 2422 9.86 <=30 PASS 2437 9.91 <=30 PASS 2452 9.98 <=30 PASS Appendix C: Maximum conducted output power (PEAK) Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 11.43 <=30 PASS 2437 11.83 <=30 PASS 2462 11.94 <=30 PASS 11G Ant1 2412 14.65 <=30 PASS 2437 14.59 <=30 PASS 2462 15.20 <=30 PASS 11N20 Ant1 2412 15.88 <=30 PASS 2437 16.07 <=30 PASS 2462 16.26 <=30 PASS 11N40 Ant1 2422 13.58 <=30 PASS 2437 13.56 <=30 PASS 2452 13.64 <=30 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 12 of 22 AppendixD: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -3.32 <=8 PASS 2437 -3.84 <=8 PASS 2462 -3.56 <=8 PASS 11G Ant1 2412 -16.15 <=8 PASS 2437 -16.22 <=8 PASS 2462 -15.94 <=8 PASS 11N20 Ant1 2412 -16.21 <=8 PASS 2437 -16.67 <=8 PASS 2462 -16.53 <=8 PASS 11N40 Ant1 2422 -20.26 <=8 PASS 2437 -20.42 <=8 PASS 2452 -20.05 <=8 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 13 of 22 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 14 of 22 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 15 of 22 11N20_Ant1_2412 11N20_Ant1_2437 11N20_Ant1_2462 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 16 of 22 11N40_Ant1_2422 11N40_Ant1_2437 11N40_Ant1_2452 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 17 of 22 AppendixE:Band edge measurements Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 18 of 22 11G_Ant1_Low_2412 11G_Ant1_High_2462 11N20_Ant1_Low_2412 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 19 of 22 11N20_Ant1_High_2462 11N40_Ant1_Low_2422 11N40_Ant1_High_2452 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 20 of 22 AppendixG: DutyCycle Test Result TestMode AntennaChannel TransmissionDuration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2437 12.38 12.56 98.57 11G Ant1 2437 2.05 2.20 93.18 11N20 Ant1 2437 1.90 2.05 92.68 11N40 Ant1 2437 0.92 1.07 85.98 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 21 of 22 Test Graphs 11B_Ant1_2437 11G_Ant1_2437 11N20_Ant1_2437 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408552-00A FCC Part 15.247 Page 22 of 22 11N40_Ant1_2437

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
