PUU-STRIP-DMFC-IICync Dual Mode Full Color Light Strip

Savant Technologies LLC, dba GE Lighting, a Savant company 1975 Noble Road, East Cleveland, OH 44112 USA 012916 – 09 Request for Confidentiality Date: __2021.02.01__ Subject: Confidentiality Request for: ____PUU-STRIP-DMFC-II____ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual Savant Technologies LLC, dba GE Lighting, a Savant company has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __0__ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: __________________________ _____ Paul Smith ______________ (Signature/Title 3 ) (Print name) 2 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

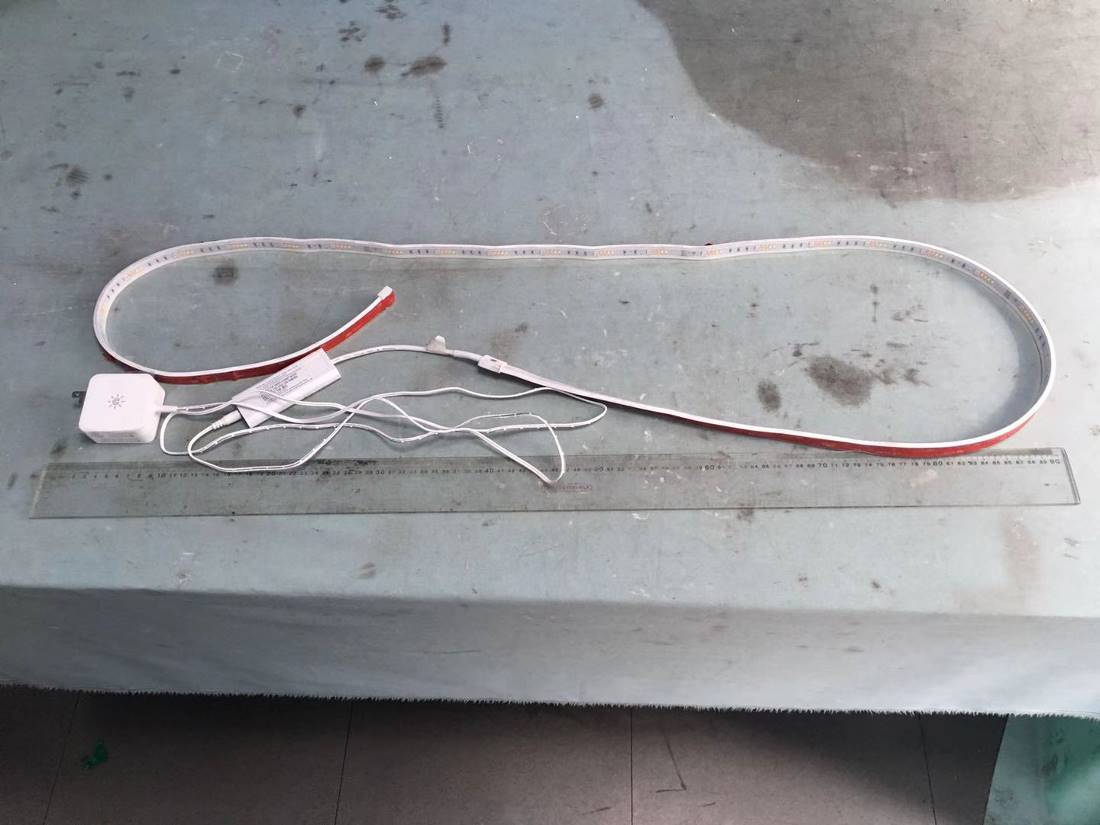

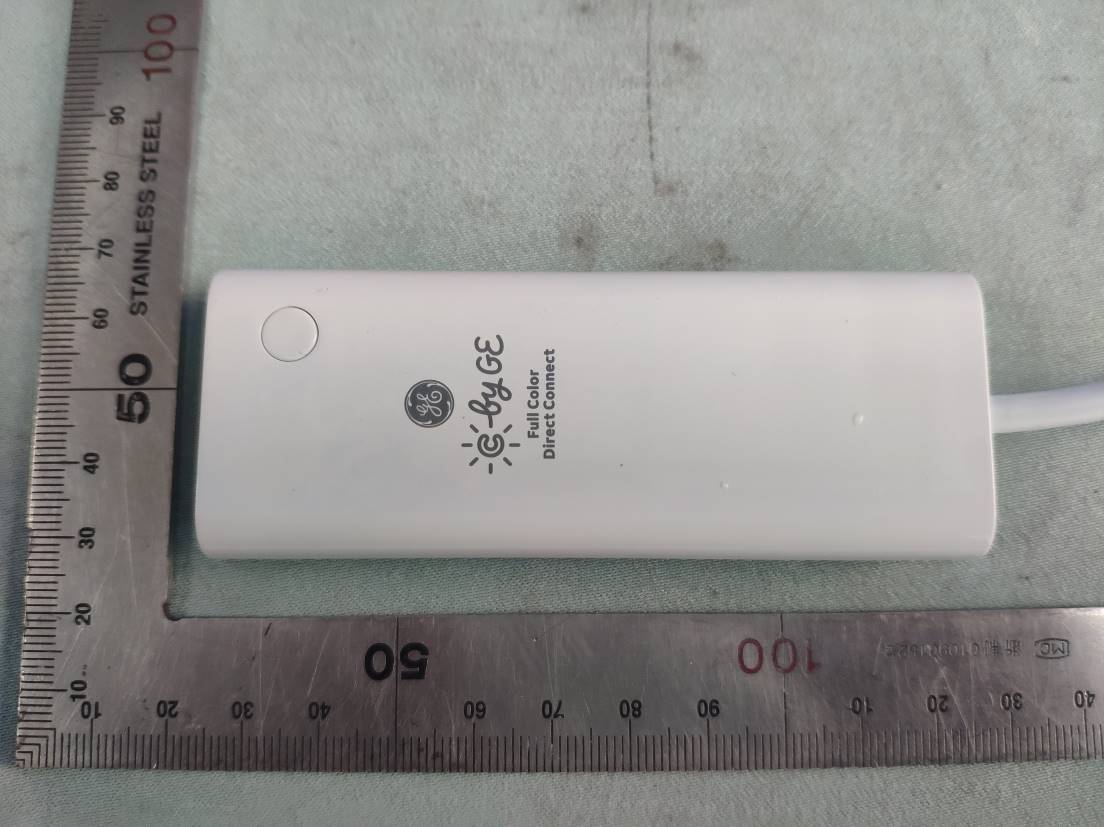

FIGURE 1 CYNC DUAL MODE FULL COLOR LIGHT STRIP (M/N: CLEDSTR20CD1) GENERAL APPEARANCE (TOP VIEW) F IGURE 2 CYNC DUAL MODE FULL COLOR LIGHT STRIP (M/N: CLEDSTR20CD1) GENERAL APPEARANCE (GENERAL VIEW) FIGURE 3 CYNC DUAL MODE FULL COLOR LIGHT STRIP (M/N: CLEDSTR20CD1) GENERAL APPEARANCE (BACK VIEW) F IGURE 4 CYNC DUAL MODE FULL COLOR LIGHT STRIP (M/N: CLEDSTR20CD1) ADAPTER LABEL (GENERAL VIEW)

Label Location Information Refer to the below red arrow: (For example) 电源模块驱动板下壳 镭雕 1:1 JUB8.080.1726 贺伟 V0 2020-12-15 镭雕 技术要求: 1.logo清晰、不允许出现漏印 、烧焦、白点、边沿模糊等不良现象。 2.公差+/-0.5mm 字高2 .5mm 字高3 .2mm 字高1 .6mm 7 m 23mm m 7 mm 24 mm24 mm 47.5mm 42.5mm CLEDSTR20CD1 CLEDSTR11CD1 CLEDSTR11CD1 “YYDDDCHVN” YY为年，DDD为一年中的第几日， CHVN为越南长虹的代码 具体时间随订单要求时间变化 CHVN VIETNAM FCC ID:PUU-STRIP-DMFC-II IC:10798A-DMFCSTRII HVIN:CLEDSTR20CD1T

FIGURE 1 CYNC DUAL MODE FULL COLOR LIGHT STRIP (M/N: CLEDSTR20CD1) GENERAL APPEARANCE (COVER REMOVED) F IGURE 2 CYNC DUAL MODE FULL COLOR LIGHT STRIP (M/N: CLEDSTR20CD1) MAIN BOARD (COMPONENT SIDE) FIGURE 3 CYNC DUAL MODE FULL COLOR LIGHT STRIP (M/N: CLEDSTR20CD1) MAIN BOARD (SOLDERED SIDE) F IGURE 4 CYNC DUAL MODE FULL COLOR LIGHT STRIP (M/N: CLEDSTR20CD1) CHIP&CRYSTAL MAIN BOARD (COMPONENT SIDE) FIGURE 5 CYNC DUAL MODE FULL COLOR LIGHT STRIP (M/N: CLEDSTR20CD1) BLE ANT (GENERAL VIEW) F IGURE 6 CYNC DUAL MODE FULL COLOR LIGHT STRIP (M/N: CLEDSTR20CD1) WLAN ANT (GENERAL VIEW) Antenna Antenna

Applicant: Savant Technologies LLC, dba GE Lighting, a Savant company Product Name: Cync Dual Mode Full Color Light Strip Model Number: CLEDSTR20CD1 FCC ID: PUU‐ STRIP‐DMFC‐II RADIO FRREQUENCY EXPOSURE COMPLIANCE RESULT: Test Standard: FCC CFR 47 §1.1310 : Radiofrequency radiation exposure limits. Note: (1) Occupational/controlled exposure limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when a person is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. (2) General population/uncontrolled exposure limits apply in situations in which the general public may be exposed, or in which persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. MPE Calculation Standard: MPEሺSሻ ൌ PG/ሺ4휋푅 ଶ ) where: S = power density (in appropriate units, e.g. mW/ cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Calculation Result: For this EUT, General population/uncontrolled exposure limits applied. The limit value 1.0mW/cm 2 is available for this EUT. Modulation Peak Output Power Antenna Gain MPE Limit Verdict (dBm) (mW) (dBi) (Numeric) (mW/cm 2 ) (mW/cm 2 ) 802.11b 18.71 74.30191 1.85 1.53109 0.02263 1.0 Compliant 802.11g 25.1 323.5937 1.85 1.53109 0.09857 1.0 Compliant 802.11n20 24.53 283.7919 1.85 1.53109 0.08644 1.0 Compliant BLE 7.837 6.077151 ‐0.12 0.972747 0.001176 1.0 Compliant Mixed: Modulation Mixed Limit Verdict Wi‐Fi BT (mW/cm 2 ) (mW/cm 2 ) 0.09857 0.001176 0.09974 1.0 Compliant For R = 20cm

Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-STRIP-DMFC-II Page 1 of 53 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F21022 Prepared For: Savant Technologies LLC, dba GE Lighting, a Savant company 1975 Noble Road, Cleveland, OH 44112 Prepared By: Audix Technology (Shanghai) Co., Ltd. 3F and 4F, 34Bldg, 680 Guiping Rd., Caohejing Hi-Tech Park, Shanghai 200233, China Tel: +86-21-64955500 File No. : C1D2012094 Report No. : ACI-F21022 Date of Test : 2021.01.09 – 19 Date of Report : 2021.02.07 TEST REPORT On behalf of Savant Technologies LLC, dba GE Lighting, a Savant company Product Name: Cync Dual Mode Full Color Light Strip Model No.: CLEDSTR20CD1 FCC ID: PUU-STRIP-DMFC-II The statement is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does not permit the use of the test lab logo. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. TESTING NVLAP LAB CODE 200371-0 Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-STRIP-DMFC-II Page 2 of 53 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F21022 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 4 1.1 Description of Standards and Results ......................................................................................... 5 2 GENERAL INFORMATION .......................................................................................................... 6 2.1 Description of Equipment Under Test ........................................................................................ 6 2.2 EUT Specifications Assessed in Current Report ........................................................................ 7 2.3 Test Information ......................................................................................................................... 7 2.4 Supported equipment .................................................................................................................. 7 2.5 Description of Test Facility ........................................................................................................ 7 3 CONDUCTED EMISSION TEST .................................................................................................. 8 3.1 Test Equipment ........................................................................................................................... 8 3.2 Block Diagram of Test Setup ..................................................................................................... 8 3.3 Conducted Emission Limits (§15.207) ....................................................................................... 9 3.4 Test Configuration ...................................................................................................................... 9 3.5 Operating Condition of EUT ...................................................................................................... 9 3.6 Test Procedures .......................................................................................................................... 9 3.7 Test Results .............................................................................................................................. 10 4 RADIATED EMISSION TEST ..................................................................................................... 14 4.1 Test Equipment ......................................................................................................................... 14 4.2 Block Diagram of Test Setup ................................................................................................... 14 4.3 Radiated Emission Limit (§15.209) ......................................................................................... 15 4.4 Test Configuration .................................................................................................................... 15 4.5 Operating Condition of EUT .................................................................................................... 16 4.6 Test Procedures ........................................................................................................................ 16 4.7 Test Results .............................................................................................................................. 17 5 6 DB BANDWIDTH MEASUREMENT ...................................................................................... 28 5.1 Test Equipment ......................................................................................................................... 28 5.2 Block Diagram of Test Setup ................................................................................................... 28 5.3 Specification Limits (§15.247(a)(2)) ........................................................................................ 28 5.4 Operating Condition of EUT .................................................................................................... 28 5.5 Test Procedure .......................................................................................................................... 28 5.6 Test Results .............................................................................................................................. 29 6 MAXIMUM PEAK OUTPUT POWER MEASUREMENT ...................................................... 32 6.1 Test Equipment ......................................................................................................................... 32 6.2 Block Diagram of Test Setup ................................................................................................... 32 6.3 Specification Limits ((§15.247(b)(3)) ..............................................................…
