PVQDSCAB004RF Keyless Entry System

Report No: BWS-04-RF-0014 FCC ID : PVQDSCAB004 Date of Test : May 6, 2004 Appendix 5. Block Diagram Drake Systems Co., Ltd. RF Keyless Entry System DTH-9000B

Report No: BWS-04-RF-0014 FCC ID : PVQDSCAB004 Date of Test : May 6, 2004 Appendix 3. External Photographs of EUT Front of EUT Rear of EUT Drake Systems Co., Ltd. RF Keyless Entry System DTH-9000B

Report No: BWS-04-RF-0014 FCC ID : PVQDSCAB004 Date of Test : May 6, 2004 Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Model No : DTH-9000B FCC ID : PVQDSCAB004 Drake Systems Co., Ltd. Made in Korea Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) FCC Drake Systems Co., Ltd. RF Keyless Entry System DTH-9000B

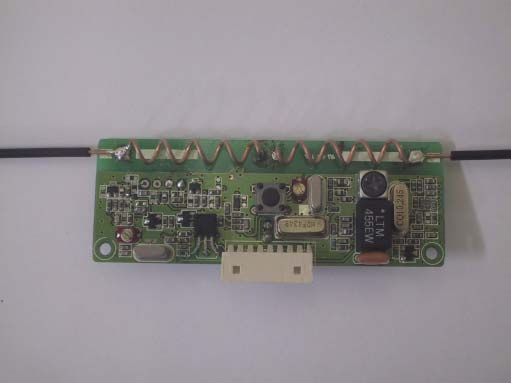

Report No: BWS-04-RF-0014 FCC ID : PVQDSCAB004 Date of Test : May 6, 2004 Appendix 4. Internal Photographs of EUT Drake Systems Co., Ltd. RF Keyless Entry System DTH-9000B Report No: BWS-04-RF-0014 FCC ID : PVQDSCAB004 Date of Test : May 6, 2004 Drake Systems Co., Ltd. RF Keyless Entry System DTH-9000B

BWS TECH Inc. 5 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-04-RF-0014 FCC ID : PVQDSCAB004 Date of Test : May 6, 2004 Drake Systems Co., Ltd. RF Keyless Entry System DTH-9000B 3. Product Information 3.1 Equipment Description The Equipment Under Test (EUT) is RF transmitter by the Drake Systems Co., Ltd. RF keyless entry system model: DTH-9000B (FCC ID: PVQDSCAB004). This product is transmitter that it controls locking and unlocking the door of a vehicle and alarm the horn by wireless remote controller. 3.2 General Specification - Carrier Frequency 433.92 MHz - Oscillation Method Crystal Oscillation - Modulation method FSK - Cooling Method Air-cooling - Operating Temperature -10 ~ +60 - Power Requirement 12VDC - Operating guidance LOCK in door, UNLOCK in door , Open the TRUNK , alarm the horn

Report No: BWS-04-RF-0014 FCC ID : PVQDSCAB004 Date of Test : May 6, 2004 Appendix 7. Circuit Diagram Drake Systems Co., Ltd. RF Keyless Entry System DTH-9000B

BWS TECH Inc. 1 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-04-RF-0014 FCC ID : PVQDSCAB004 Date of Test : May 6, 2004 Drake Systems Co., Ltd. RF Keyless Entry System DTH-9000B Electromagnetic Emission FCC MEASUREMENT REPORT FCC PART 15 SUBPART C FOR LOW POEWR TRANSMITTER PRODUCT : RF Keyless Entry System MODEL/TYPE NO : DTH-9000B FCC ID : PVQDSCAB004 TRADE NAME : DRAKESYSTEMS APPLICANT : Drake Systems Co.,Ltd. Acetechno 804, Yangpyung-dong,Youngdeungpo-Ku, Seoul, 150-103, Korea Attn. : Myung hwan , Jung / General Manager FCC CLASSIFICATION : DSC- Part 15 RF Control/Security device Transmitter FCC RULE PART(S) : FCC Part 15 Subpart C Section 15.231 FCC PROCEDURE : Certification DATES OF TEST : May 6, 2004 DATES OF ISSUE : May 12, 2004 TEST REPORT No. : BWS-04-RF-0014 TEST LAB. : BWS Tech., Inc. (Registration No. : 553281) This RF Keyless entry system has been tested in accordance with the measurement procedures specified in ANSI C63.4-2000 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart C Section15.231 I attest to the accuracy of data. All measurement herein was performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system, which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Kang, Bong Chul Chief of Laboratory Division BWS TECH Inc. BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 BWS TECH Inc. 2 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-04-RF-0014 FCC ID : PVQDSCAB004 Date of Test : May 6, 2004 Drake Systems Co., Ltd. RF Keyless Entry System DTH-9000B TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~9 6. Test Results 10~16 7. Sample Calculation and Other Information 18 8. Test Equipment List 19 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. Schematics Appendix 7. Operational Description Appendix 8. User Manual BWS TECH Inc. 3 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-04-RF-0014 FCC ID : PVQDSCAB004 Date of Test : May 6, 2004 Drake Systems Co., Ltd. RF Keyless Entry System DTH-9000B FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) 1. General Information Applicant Manufacturer z EUT Type : RF Keyless Entry System z Model Number : DTH-9000B z FCC Identifier : PVQDSCAB004 z S/N : Prototype z Freq. Range : 433.92 MHz z Channel : 1 ch z Modulation Method : FSK z FCC Rule Part(s) : Part 15 Subpart C Section 15.231 z Test Procedure : ANSI C63.4-2000 z Dates of Tests : May 06, 2004 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 z Test Report No. zBWS-04-RF-0014 Company Name : Drake Systems Co.,Ltd. Company Address : Acetechno 804, Yangpyung-dong,Youngdeungpo-Ku, Seoul, 150-103, Korea Phone/Fax : Phone : +82-2-2634-4700 Fax : +82-2-2634-4800 Company Name : Drake Systems Co.,Ltd. Company Address : Acetechno 804, Yangpyung-dong,Youngdeungpo-Ku, Seoul, 150-103, Korea Phone/Fax : Phone : +82-2-2634-4700 Fax : +82-2-2634-4800 BWS TECH Inc. 4 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-04-RF-0014 FCC ID : PVQDSCAB004 Date of Test : May 6, 2004 Drake Systems Co., Ltd. RF Keyless Entry System DTH-9000B 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10-meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission (Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000) was used in determining radiated emissions from the Drake Systems Co., Ltd.. RF keyless entry system Model : DTH-9000B. BWS TECH Inc. 5 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-04-RF-0014 FCC ID : PVQDSCAB004 Date of Test : May 6, 2004 Drake Systems Co., Ltd. RF Keyless Entry System DTH-9000B 3. Product Information 3.1 Equipment Description The Equipment Under Test (EUT) is RF transmitter by the Drake Systems Co., Ltd. RF keyless entry system model: DTH-9000B (FCC ID: PVQDSCAB004). This product is transmitter that it controls locking and unlocking the door of a vehicle and alarm the horn by w…

Text truncated - open the document above for the full version.

Report No: BWS-04-RF-0014 FCC ID : PVQDSCAB004 Date of Test : May 6, 2004 Appendix 1. Test Setup Photographs Radiated Emission Test Setup Drake Systems Co., Ltd. RF Keyless Entry System DTH-9000B
