PVQDSCAR002Car Alarm Remote Transceiver

USERS MANUAL DTH-3002R Operating Instructions 1. Unpacking and Checking Equipment Carefully unpack the equipment and its accessories. 1). Remote controller 2). Base communication module 3). Main controller 4). kinds of Harness Assembly 5). Shock sensor 2. Operation Instructions 3. FCC Information Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 4. FCC Label Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. DRAKE SYSTEMS ACE TECHNO 804, YANGPYUNG, YOUNGDEUNGPO , SEOUL 150-103, KOREA Tel : 82-2-2634-4700 Fax : 82-2-2634-4800 Printed in Korea

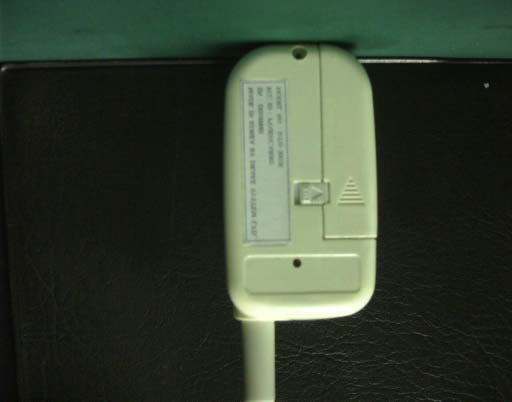

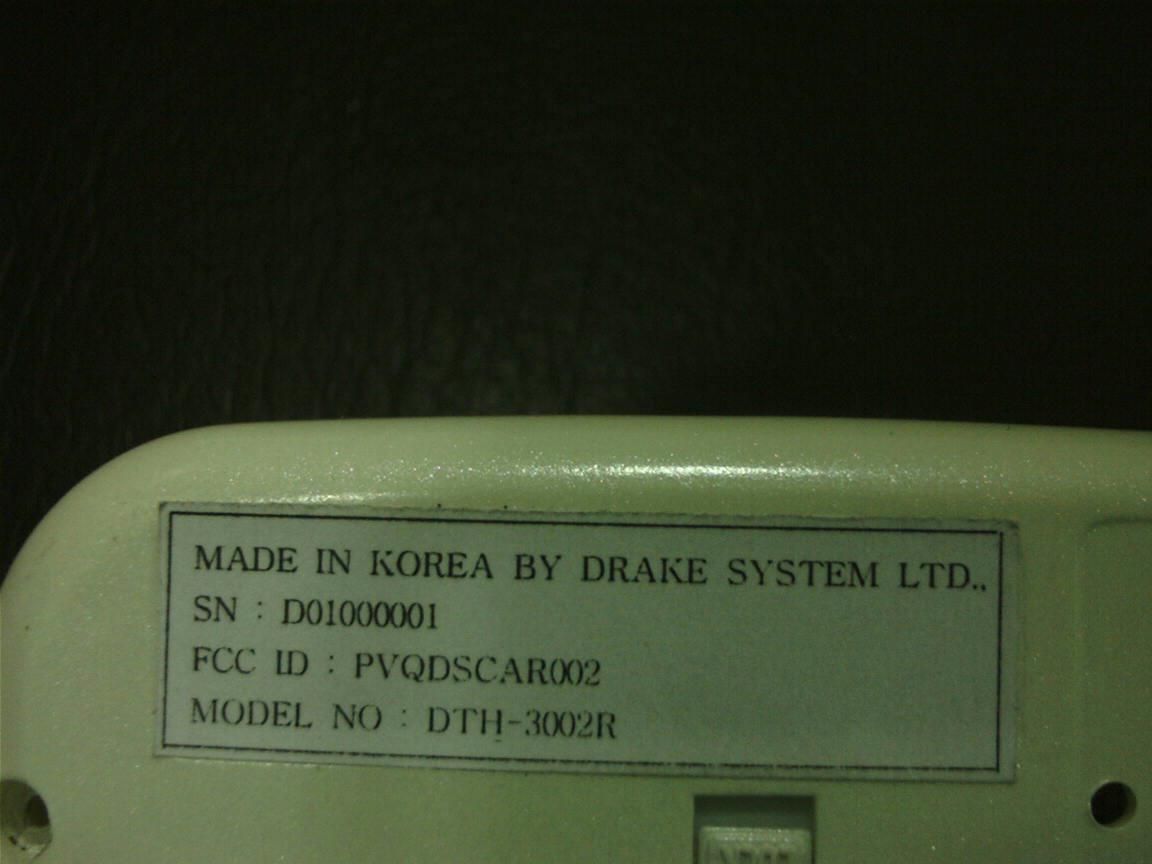

DTH-3002R PHOTO (TOP SIDE) DTH-3002R PHOTO (BOTTOM SIDE)

DTH-3002R PHOTO (RF PCB TOP SIDE) DTH-3002R PHOTO (RF PCB BOTTOM SIDE) DTH-3002R PHOTO (CPU PCB TOP SIDE) DTH-3002R PHOTO (CPU PCB BOTTOM SIDE) DTH-3002R PHOTO (ANTENNA)

’ ’ ’

433 MHz TWO WAY REMOTE 1.0 ( ) 3 40-2 ( 804 ) : 02)2634-4700, : 02)2634-4800 1 1 Wednesday, October 10, 2001 TitleSize Document Number R e v Date: Sheet of VCC (+3V) VCC(3V) VCC(3V) VCC(3V) VCC(+3V) VCC(+3V) VCC(+3V) VCC(+3V) VCC(+3V) VDD (+1.5V) VDD (+1.5V) VDD (+1.5V) VCC(+3V) VDD (+1.5V) VDD (+1.5V) VDD (+1.5V) VCC(+3V) VCC(+3V) VCC(+3V) RX DATA DTH-3002R VIBRATOR LAMP TX DATA TX DATA RX DATA POWER CONTROL POWER CONTROL MODE TRUNK START UNLOCK LOCK RX POWERCONTROL DIGITAL TOP GNDRX POWER CONTROLFM ?TX DATAFM ?1.5VRX DATAPWD3VGND SDP410D SDP410D SDS511 2SC5342SF 2SA979SF 2SA979SF 2SA1979SF 2SC5342SF 2SA1979SF ANT1 ANTENNA VDD (+1.5V)GND D1 KDS114 D6 RB411D C4147/4(T) + CH1100uH L11 12nH U3RH5RI302B VOUT ON/OFF VSS VIN EXT D3 KDS114 C42102 R251k Q5KTC3876 C40104 L327n R4270 CR1 423.22M R510K L45n6 L55n6 R61K2 L212nH CF1CQSF434M 3 2 1 R1150 R2470 Q1BFQ67W Q2 BFQ67W L7 12nH L918nH CR2 433.92M R8100 R7100 R11 0 TC18P R12 1K L1027nH Q3 KTA1505S R1410K R1310K R1010K Q6 KTA1505S R2033K L8 47nH R9680 L12 33nH R15470K D2 KDS160 C15 10/16(T) + C43 47/4(T) + S31187-3M R1833K BZ1 DC0901-B27 CF2 10.7M 3 2 1 S41187-3M R1933K S1 1187-3M X2 4.00M U1 UAA3220TS OGND 1 OSE 2 OSB 3 VCC 4 OSC 5 TEM 6 TN 7 TP 8 PWD 9 DEMO1 10 DEMO2 11 GND 12 CGND 13 DATA 14 CPA 15 CPB 16 CPC 17 RSSI 18 LFB 19 MIXIN 23 MGND 24 FA 22 VCCI 21 LIN 20 R2133K S21187-3M R27100 C44104 C8474 C6103 C7 332 C5473 C3102 C2N.C C16P C4102 C9102 C10680P C12104 C131.5P C168P C17102 C202P C18 N.C C215P C143P C24102 C25 102 C19150P C26102 C22 1P C233P C2733P C284P C347P C33N.C C294P C32680P C313P C302P C5722P C37104 C55102 R3710K R2610K j1rx test jumperj2tx test jumper C45104 R301K L1318nH C46470P Q7 BFQ67W R29120K C472P L1N.C C5033P C4833P C523P R280 C51104 L1433nH L1533nH .. C5312P R312.2K X132.768M C5422P S51187-3M R2233K U424LC02B (S0P) A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 C35104 LP1LAMP Q9KTC3876 R244.7K C39104 Q4KTA1505Y M1 MOTOR C38104 R23470 R171K C36104 R33100KR34100KR35100K R36470 R162.2K R3210 C60104 CON4 5PIN(P) 12345 CON2 5PIN(M) 12345 CON35PIN(P) 12345 CON1 5PIN(M) 12345 R3833K R4010KR3910K Q8KTA1505S C59N.C C58N.C R41N.C R42100K CON25PIN(P) 1 2 3 4 5 CON15PIN(P) 1 2 3 4 5 R43100K U2 PIC16LC924-04/PT RA4 1 RA5 2 RB1 3 RB0 4 RC3 5 RC4 6 RC5 7 C1 8 C2 9 Vlcd2 10 Vlcd3 11 VDD 12 VSS 13 OSC1 14 OSC2 15 RC0 16 RC1 17 RC2 18 Vlcd1 19 VLCDADJ 20 RD0 21 RD1 22 RD2 23 RD3 24 RD4 25 RE0 26 RE1 27 RE2 28 RE3 29 RE4 30 RE5 31 RE6 32 RF0 33 RF1 34 RF2 35 RF3 36 RF4 37 RF5 38 RF6 39 RF7 40 RG0 41 RG1 42 RG2 43 RG3 44 RG4 45 RG5 46 RG6 47 RD5 48 RD8 49 RD7 50 COM0 51 VDD 52 RB6 53 RB7 54 RB5 55 RB4 56 MCLR 57 RB3 58 RB2 59 RA0 60 RA1 61 VSS 62 RA2 63 RA3 64 LCD1LCD COM1 1 COM2 2 COM3 3 COM4 4 SEG00 5 SEG01 6 SEG02 7 SEG03 8 SEG04 9 SEG05 10 SEG06 11 SEG07 12 SEG08 13 SEG09 14 SEG10 15 SEG11 16 SEG12 17 SEG13 18 SEG14 19 SEG15 20 SEG16 21 SEG17 22 SEG18 23 SEG19 24

KTL Korea Testing Laboratory Page 1 of 14 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim , Senior Engineer Won-Seo Cho, EMC Team Leader KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 01-341-053-01 Name and address of the applicant Drake Systems Co., Ltd. Acetechno 804, Yangpyung-dong, Youngde ungpo-ku, Seoul, 150-103, Korea Standard / Test regulation FCC Part 15, Subpart C Test result Pass Incoming date : November 05, 2001 Test item( s) ; Low Powe r Transce ive r, Rx Ve rifie d (Car Alarm System) Model/type ref. ; DTH-3002R Manufacturer ; Drake Systems Co., Ltd. Additional information ; -Re quire d Aut ho riz atio n : Ce rtificatio n -FCC ID. : PVQDSCAR002 - Note : Te st re port(Ve rificatio n) of Re ce ive r po rtio n of t his unit is iss ue d o n Re f. Re port No. 01-341-053-02. Test date : November 27, 2001Issue date : November 30, 2001 Ref. Report No. 01-341-053-01 Page 2 of 14 TABLE O F CONTENTS I. GENERAL INFORMATION.......................................................................................3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Date of Measurement α. GENERAL REQUIREMENTS OF THE EUT..................................................................4 1. Labelling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) 4. Compliant Conditions (Section 15.231) β. RADIATED EMISSION MEASUREMENT (Section 15.231)...........................................6-12 1. Test Procedure 2. Photograph of the test configuration 3. Sample Calculation 4. Measurement Data 5. Reference Data χ. OCCUPIED BANDWIDTH MEASUREMENT (Section 15.231)..........................................13 δ. TEST EQUIPMENTS USED FOR MEASUREMENT.......................................................14 Ref. Report No. 01-341-053-01 Page 3 of 14 . GENERAL INFORMATION 1. Grantee’s Name and : Drake Systems Co., Ltd. Mailing Address Acetechno 804, Yangpyung-dong, Youngdeungpo-ku, Seoul, 150-103, Korea 2. Manufacturer's Name and : Drake Systems Co., Ltd. Mailing Address Acetechno 804, Yangpyung-dong, Youngdeungpo-ku, Seoul, 150-103, Korea 3. Equipment Descriptions 3.1 Operating Frequency : 433.92 MHz 3.2 Type of Emission : Pulse Code Signal 3.3 Power Supply: DC 1.5V(Battery) 4. Rules and Regulations: FCC Part 15, Subpart C 5. Measuring Procedure: ANSI C63.4-1992 6. Place of Measurement: Absorber-lined Room (KTL) 7. Date of Measurement 7.1 Line Conducted: Not Applicable 7.2 Radiated Emission : November 27, 2001 Ref. Report No. 01-341-053-01 Page 4 of 14 . GENERAL REQUIREMENTS O F THE EUT 1. Labelling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 10 of the attached manual for details. CA UT ION : A ny c ha nges or modifications i n cons truc tion o f this device w hich are not e xpressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the installation of the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 01-341-053-01 Page 5 of 14 4. Compliant Conditions (Section 15.231) 4.1 Was the EUT used for continuous transmissions, such as voice or video, and data transmission ? [ ] yes, [ x ] no 4.2 Was the EUT manually operated ? [ x ] yes, [ ] no If yes, did the EUT employ a switch that would automatically deactivate the transmitter within not more than 5 seconds of being released ? [ x ] yes, [ ] no 4.3 Was the EUT automatically activated ? [ ] yes, [ x ] no If yes, did the EUT cease transmission within 5 seconds after deactivation ? [ ] yes, [ ] no 4.4 Was the EUT used for periodic transmissions at regular predetermined intervals ? [ ] yes, [ x ] no Ref. Report No. 01-341-053-01 Page 6 of 14 . RADIATED EMISSION MEASUREMENT (Section 15.231) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconical antenna : 30 to 300 MHz, Log-periodic antenna : 200 to 1000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 1 meter from the EUT. An a tte mpt was made to ma xi mize the e mission level with the various confi gurations o f the EUT. Emission levels from the EUT with various configurations were examined on a spectrum analyzer connected with a RF amplifier and graphed by a plotter. 1.2 Final Radiated Emission Test at an Absorber-Lined Room The final measurement of radiated field strength was carried out in a KTL absorber-lined Room that was listed up at FCC according to the "Radiated Emissions Testing" proce…

Text truncated - open the document above for the full version.

Ref. Report No. 01-341-053-01 Page 7 of 14 2. Photograph of the test configuration 3. Sample Calculation The measured field strength was determined by averaging over one complete pulse train including blanking interval because the pulse train time of the EUT (= 86.0 msec) did not exceed 0.1 seconds (15.35(c)). See graphs of page 12 . With the resolution bandwidth set at 30 kHz, the EUT produces a pulse spectrum on the spectrum analyzer because the bandwidth of the analyzer is greater than or equal to the PRF (= 556 Hz). Therefore, as mentioned in HP Application Note 150-2 (page 11), the pulse desensitization( p ) equals zero and the display amplitude is essentially a peak level.
