PX99700WBWRugged Tablet PC

Winmate Inc.

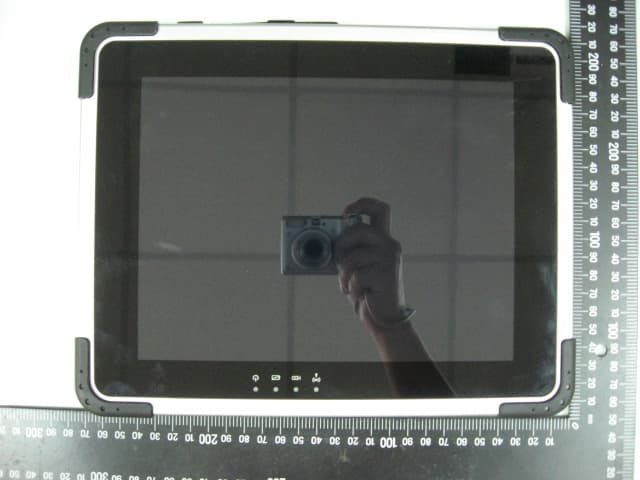

Rugged Tablet PC - FCC ID PX99700WBW - Winmate Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Nov 20, 2012
Application Purpose
Original Equipment
Date of Application
Nov 20, 2012
Equipment Note
Rugged Tablet PC
Frequency Range
2422.00000000 - 2452.00000000
Company
Winmate Inc.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Rugged Computing 1 M970D Rugged Tablet PC (Intel ® Atom Duo Core N2600 Based Tablet PC) USERS MANUAL Version: 1.2 9.7” Rugged Tablet PC Rugged Computing 2 IMPORTANT SAFETY INSTRUCTIONS Please read these instructions carefully before using the product and save for later reference. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning. Clean the product with a damp soft cloth. Do not use liquid or aerosol cleaners as it may cause permanent damage to the screen. Do not use this product near water. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company. This product is equipped with a 3-wire grounding type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. (For AC version only) Do not defeat the purpose of the grounding-type plug. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product. Do not attempt to service this product by yourself, as opening or removing covers may expose you to dangerous voltage points or other risks and will void the warranty. Refer all servicing to qualified service personnel. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: When the power cord or plug is damaged or frayed. If liquid has been spilled into the product. If rainy or water has been exposed to the product. If the product does not operate normally that the operating instructions are followed. Adjust only those controls that are covered by the operating instructions since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. If the product has been dropped or the cabinet has been damaged. If the product exhibited a distinct change in the performance, that indicates a need for service. Rugged Computing 3 Copyright Notice Copyright © 2012 Winmate Communication Inc., ALL RIGHTS RESERVED. No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. Disclaimer Winmate Communication Inc. reserves the right to make any product changes without notice, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Winmate Communication assumes no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright, or masks work rights to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified. Applications that are described in this manual are for illustration purposes only. Winmate Communication Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification. Warranty Winmate warrants that each of its products will be free from material and workmanship defects for a period of one year from the invoice date. If the customer discovers a defect, Winmate will, at its option, repair or replace the defective product at no charge to the customer, provided it is returned during the warranty period of one year, with transportation charges prepaid. The returned product must be properly packaged in it’s original packaging to obtain warranty service. If the serial number and the product shipping data differ by over 30 days, the in-warranty service will be made according to the shipping date. In the serial numbers the third and fourth two digits give the year of manufacture, and the fifth digit means the month (e. g., with A for October, B for November and C for December). For example, the serial number 1W08Axxxxxxxx means October of year 2008. Rugged Computing 4 Customer Service We provide service guide for any problem as follow steps:First, visit the website at http://www.winmate.com.tw to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance. You may have the following information ready before you call: ? Product serial number ? Peripheral attachments ? Software (OS, version, application software, etc.) ? Description of complete problem ? The exact wording of any error messages In addition, free technical support is available from our engineers every business day. We are always ready to give advice on application requirements or specific information on the installation and operation of any of our products. Please do not hesitate to call or e-mail us. Notice 1. Do not touch the LCD panel surface with sharp or hard objects. 2. Do not use abrasive cleaners, waxes or solvents for cleaning, use only a dry or damp, soft cloth. 3. Use only with a high quality, safety-approved, AC/DC power adapter. Rugged Computing 5 Safety Precautions Warning! Always completely disconnect the power cord from your chassis whenever you work with the hardware. D…

Text truncated - open the document above for the full version.

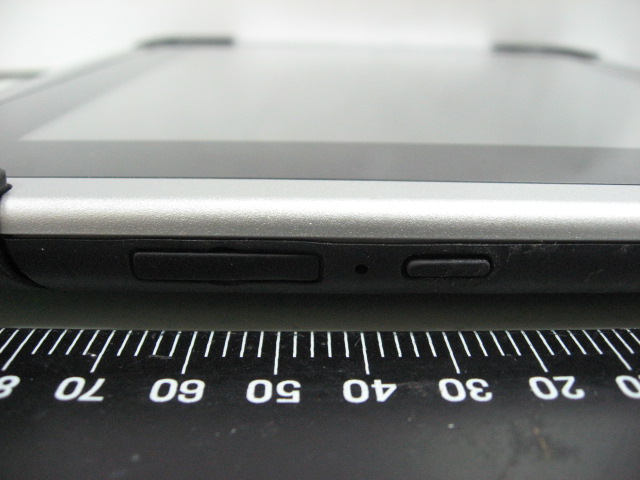

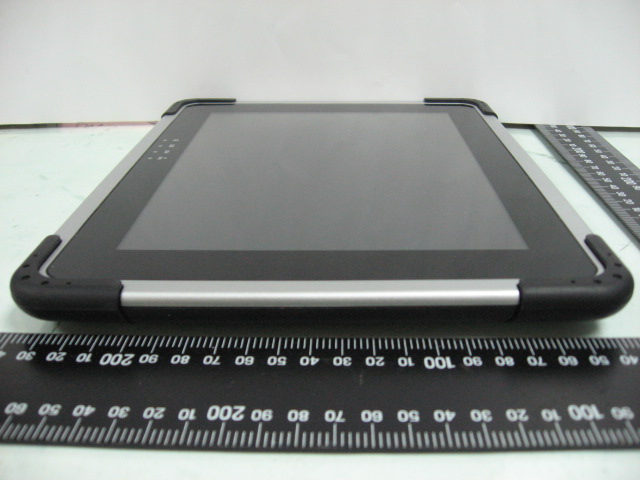

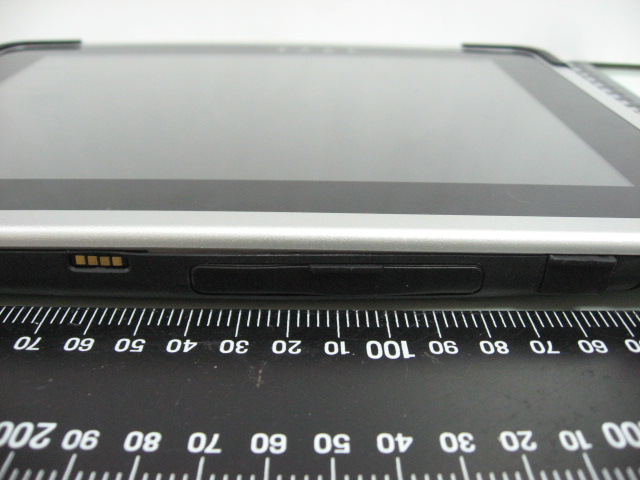

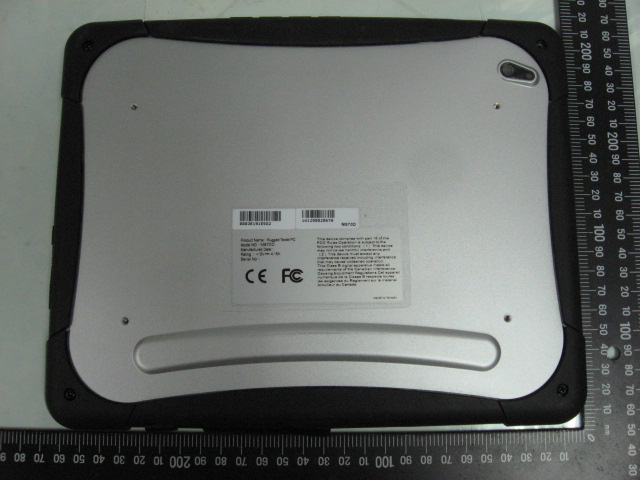

External Photos

ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 1 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT (A)EUT 1. 2. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 2 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 3. 4. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 3 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 5. 6. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 4 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 7. 8.

Internal Photos

ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 5 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 9. 10. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 6 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 11. 12. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 7 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 13. 14. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 8 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 15. 16. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 9 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 17. 18. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 10 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT (B) GPS Module 1. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 11 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 2. 3. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 12 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 4. 5. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 13 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT (C) GSM Module 1. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 14 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 2. 3. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 15 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 4. 5. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 16 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT (D) Panel 1. 2. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 17 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT (E) WIFI & BT Module 1. 2. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 18 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 3. 4. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 19 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 5. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 20 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT (F) Camara Module 1. 2. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 21 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT (G) 2G Memory Card 1. 2. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 22 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 3. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 23 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT (H) 32G mSATA SSD 1. 2. ETC Report No. : 12-10-RBF-007-06 FCC ID.:PX99700WBW IC ID.: 9911A9700WBW Sheet 24 of 26 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 3.

RF Exposure Info

Chunghwa Telecom CO., Ltd Telecommunication Laboratories Testing & Certification Center Report No:TSC-101-10-AP-07-1 (SAR ) Date of Issue:Nov. 15, 2012 TEL:+886 3 4244445 FAX:+886 3 4202444 ADDR.:No. 99, Dianyan Rd., Yang-Mei city, Taoyuan, Taiwan , R.O.C. E-mail:[email protected] http://www.chttl.com.tw SAR Test Report Device Under Test : Rugged Tablet PC Model No. : M970DXXXXXX (X=0-9, X=A-Z , Blank or any Character) Applicant : WINMATE Communication INC. This Test report applied to the tested sample only. This report shall not be reproduced in part without prior written permission of Telecommunication Laboratories Testing & Certification Center, Chunghwa Telecom Co., Ltd. Chunghwa Telecom CO., Ltd Telecommunication Laboratories Testing & Certification Center Report No:TSC-101-10-AP-07-1 (SAR ) 1 Applicant:WINMATE Communication INC. TEL.:886-2-66355758 Addr.:9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City, Taiwan Device Under Test:Rugged Tablet PC Trade name:WINMATE Model No.: M970DXXXXXX (X=0-9, X=A-Z, Blank or any Character) Manufacturer:WINMATE Communication INC. Applied Date:Oct. 16, 2012 Date of Sample Arrived:Oct. 16, 2012 Date of Finished:Nov. 13, 2012 Applied standard:IEEE 1528 2003, 47 CFR §2.1093, OET 65 Supplement C 01-01 Industry Canada RSS-210 Cited Document:KDB 447498, 450824, 616217, 248227 FCC DA02-1438 Test Equipment: Refer to page 22 Test Environment: 23°C, 50 ﹪R.H. Test results:IEEE 1528 2003 Complied Industry Canada RSS-210 Complied SAR 1g = 0.35 W/kg (Maximum), Refer to page 21 Approved by Reviewed by Test Engineer Ko Ming-Hong Chia-cheng Chang Shin-yen Du Chunghwa Telecom CO., Ltd Telecommunication Laboratories Testing & Certification Center Report No:TSC-101-10-AP-07-1 (SAR ) 2 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................ 3 1.1 EUT DESCRIPTION ........................................................................................................................... 3 1.2 TEST ENVIRONMENT ........................................................................................................................ 3 2. SAR MEASUREMENT SYSTEM .................................................................................................... 4 2.1 ALSAS-10U SYSTEM DESCRIPTION ................................................................................................ 4 2.2 ISOTROPIC E-FIELD PROBE ............................................................................................................... 5 2.3 BOUNDARY DETECTION UNIT AND PROBE MOUNTING DEVICE ....................................................... 7 2.4 DAQ-PAQ (ANALOG TO DIGITAL ELECTRONICS) .............................................................................. 7 2.5 AXIS ARTICULATED ROBOT ............................................................................................................. 7 2.6 ALSAS UNIVERSAL WORKSTATION ................................................................................................ 8 2.7 PHANTOM TYPES .............................................................................................................................. 8 3. TISSUE SIMULATING LIQUID...................................................................................................... 9 3.1 THE COMPOSITION OF THE TISSUE SIMULATING LIQUID .................................................................... 9 3.2 TISSUE CALIBRATION RESULT ......................................................................................................... 9 3.3 TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS ............................................ 10 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 11 4.1 SAR SYSTEM VALIDATION ............................................................................................................ 11 4.2 ARRANGEMENT ASSESSMENT SETUP ............................................................................................. 17 4.3 SAR MEASUREMENT PROCEDURE ................................................................................................. 17 5. SAR EXPOSURE LIMITS .............................................................................................................. 18 6. TEST EQUIPMENT LIST ............................................................................................................... 19 7. MEASUREMENT UNCERTAINTY .............................................................................................. 20 8 SAR TEST RESULTS ....................................................................................................................... 21 9. EUT PHOTOGRAPHS .................................................................................................................... 23 A. TEST CONFIGURATIONS AND TEST DATA .......................................................................... 30 A.1 TEST CONFIGURATION ........................................................................................................... 30 A.2 LIQUID LEVEL PHOTO ............................................................................................................. 33 A.3 TISSUE LIQUIDS DIELECTRIC PARAMETER .............................................................................. 34 A.3.1 2450 MHZ TISSUE LIQUIDS DIELECTRIC MEASUREMENT DATA ........................................... 34 A.4. TEST DATA ............................................................................................................................... 35 A.4.1 802.11B MODE .......................................................................................................................... 35 A.4.2 DIPOLE CALIBRATION DATA ...................................................................................................... 50 A.4.3 PROBE C…

Text truncated - open the document above for the full version.

Test Report

Rev. No 2.0 FCC Part 15 EMI TEST REPORT (Part 1 – 802.11b/g/n) of E.U.T. : Rugged Tablet PC Model No. : M970DXXXXXX(X=0-9, X=A-Z,Blank or any Character) FCC ID. : PX99700WBW IC ID : 9911A9700WBW for APPLICANT : WINMATE Communication INC. ADDRESS : 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 241 Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 12-10-RBF-007-06 ETC Report No. : 12-10-RBF-007-06 FCC ID: PX99700WBW IC ID.: 9911A9700WBW Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : WINMATE Communication INC. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 241 Taiwan Manufacturer : WINMATE Communication INC. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 241 Taiwan Description of EUT a) Type of EUT Rugged Tablet PC b) Trade Name Winmate c) Model No. M970DXXXXXX(X=0-9, X=A-Z,Blank or any Character) d) Power Supply : : : : Adapter: Input : 100~240V,1.8A,50-60Hz Output: DC12V , 4.16A Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Summary of Tests Test Results Radiated Emission Pass Conducted Emission Pass Hopping Channel Separation Pass Number of Hopping frequencies used Pass Hopping Channel Bandwidth Pass Dwell Time of each frequency Pass Output Power Requirement Pass 100 kHz Bandwidth of Frequency Band Edges Requirement Pass Out-of-Band Conducted Emission Requirement Pass ETC Report No. : 12-10-RBF-007-06 FCC ID: PX99700WBW IC ID.: 9911A9700WBW Rev. No 1.0 Date Test Item Received : Oct . 09, 2012 Date Test Campaign Completed : Oct. 23, 2012 Date of Issue : Nov. 08, 2012 Test Engineer : ( Vincent Chang, Engineer ) Approve & Authorized : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 12-10-RBF-007-06 FCC ID: PX99700WBW IC ID.: 9911A9700WBW Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE...................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 5 2.5 User Information .......................................................................................................................... 6 3. SYSTEM TEST CONFIGURATION .......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT .............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.5 Field Strength Calculation ......................................................................................................... 31 4.6 Photos of Radiation Measuring Setup........................................................................................ 32 5 CONDUCTED EMISSION MEASUREMENT ........................................................................ 33 5.1 Standard Applicable ................................................................................................................... 33 5.2 Measurement Procedure............................................................................................................. 33 5.3 Conducted Emission Data .......................................................................................................... 35 5.4 Result Data Calculation ..........................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

ETC Report No. : 12-10-RBF-007-06 FCC ID: PX99700WBW IC ID.: 9911A9700WBW Sheet 32 of 104 Sheets Rev. No 2.0 4.6 Photos of Radiation Measuring Setup ETC Report No. : 12-10-RBF-007-06 FCC ID: PX99700WBW IC ID.: 9911A9700WBW Sheet 38 of 104 Sheets Rev. No 2.0 5.6 Photos of Conduction Measuring Setup

Contact Information

Applicant

Lindon Lin(R&D Manager)
[email protected]886-2-85110288Fax: 886-2-85111108

Test Firm

Taiwan Testing and Certification CenterAnderson Ku
[email protected]886-2-26023052Fax: +886-2-26010910

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz25.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. This device and its antenna(s) must not be co-located or operated in conjunction with any antenna or transmitter not described under this FCC id, except in accordance with FCC multi-transmitter RF exposure procedures. The highest reported SAR is 0.35 W/kg.
