Please read these instructions carefully before using this product, and save this manual for future use. E500RM9 5” Rugged Mobile Computer ARM A73 x 4 (2.0 GHz) + A53 x 4 (2.0 GHz) User Manual Version 1.1 Document Part No. 9152050K1003 1 5” Rugged Mobile Computer E500RM9 User Manual Contents Chapter 1: Read Me First ........................................................................................................................... 4 1.1 Advisory Conventions ........................................................................................................................... 4 1.2 Safety Information ................................................................................................................................ 5 1.3 Handling and Maintenance ................................................................................................................... 7 1.4 Declaration of Conformity (DoC) ........................................................................................................... 8 1.5 Copyright Notice ................................................................................................................................. 10 1.6 Trademark Acknowledgement ............................................................................................................ 10 1.7 Disclaimer .......................................................................................................................................... 10 Chapter 2: Getting Started ....................................................................................................................... 11 2.1 Introduction ........................................................................................................................................ 11 2.2 Unpacking .......................................................................................................................................... 11 2.3 Description of Parts ............................................................................................................................ 12 2.4 First-Time Operation .......................................................................................................................... 13 2.4.1 Inserting Battery Pack ................................................................................................................ 13 2.4.2 Installing SIM and MicroSD Card ............................................................................................... 14 2.4.3 Connecting to Power Supply ...................................................................................................... 14 2.4.4 Charging the Battery .................................................................................................................. 14 2.5 Turning On and Off the Device ........................................................................................................... 15 2.5.1 Turning On ................................................................................................................................ 15 2.5.2 Turning Off ................................................................................................................................ 15 2.6 Resetting to Factory Defaults ............................................................................................................. 16 Chapter 3: Using the Device .................................................................................................................... 17 3.1 Using the Touch Screen ..................................................................................................................... 17 3.2 Waking Up the Phone ........................................................................................................................ 17 3.3 Using the Home Screen ..................................................................................................................... 18 3.3.1 Personalizing Home Screen ...................................................................................................... 18 3.3.2 Viewing other parts of the Home Screen .................................................................................... 20 3.4 Status and Notification Icons .............................................................................................................. 21 3.4.1 Notification Icons ....................................................................................................................... 21 3.4.2 Status Icons ............................................................................................................................... 21 3.5 Using the On-Screen Keyboard .......................................................................................................... 21 3.5.1 Entering Text ............................................................................................................................. 22 3.5.2 Editing Text ............................................................................................................................... 23 3.6 Display Settings.................................................................................................................................. 24 3.7 Audio Profile Settings ......................................................................................................................... 25 3.7.1 Sound Settings .......................................................................................................................... 25 3.7.2 Adjusting Volume ....................................................................................................................... 25 3.8 Language and Keyboard Settings ...................................................................................................... 26 2 5” Rugged Mobile Computer E500RM9 User Manual 3.9 Using the Phone .......................…

Text truncated - open the document above for the full version.

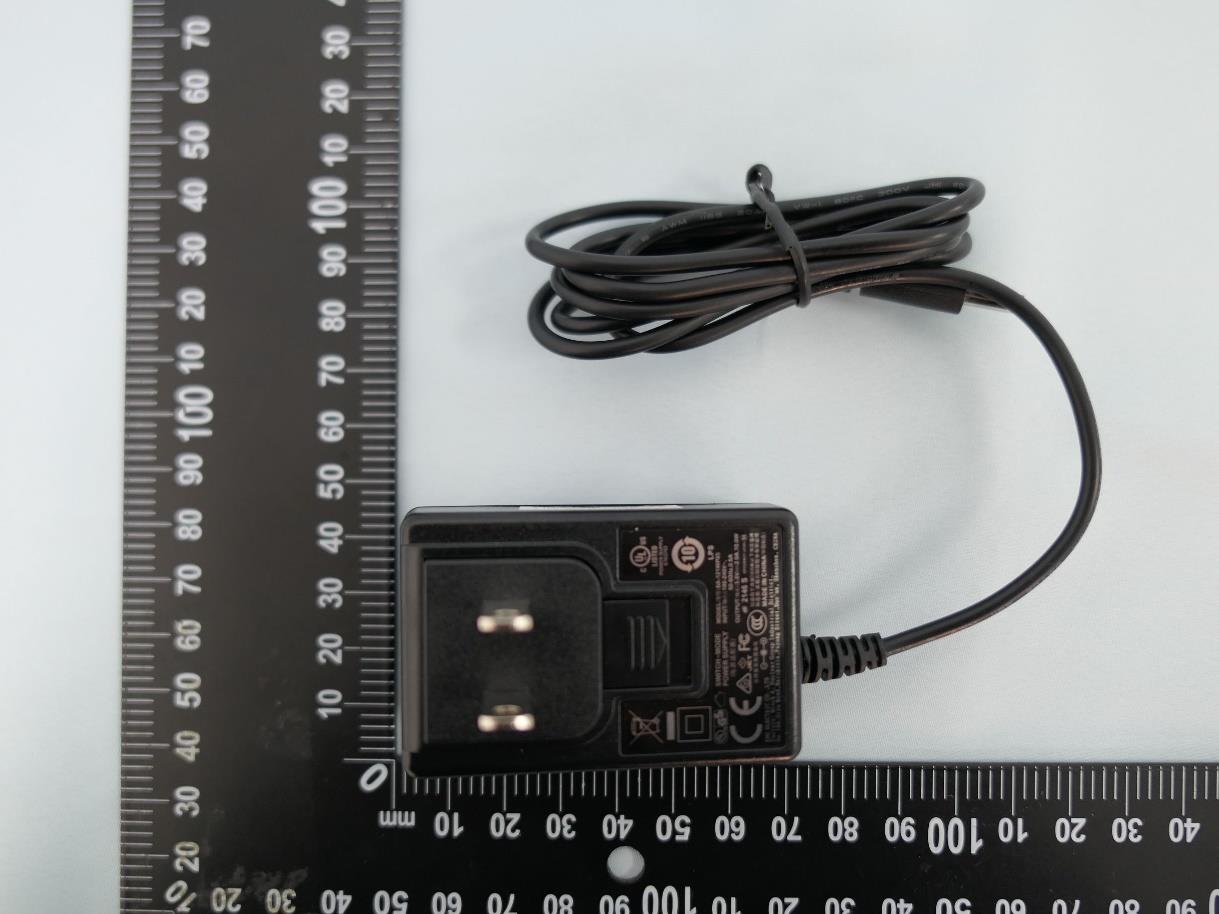

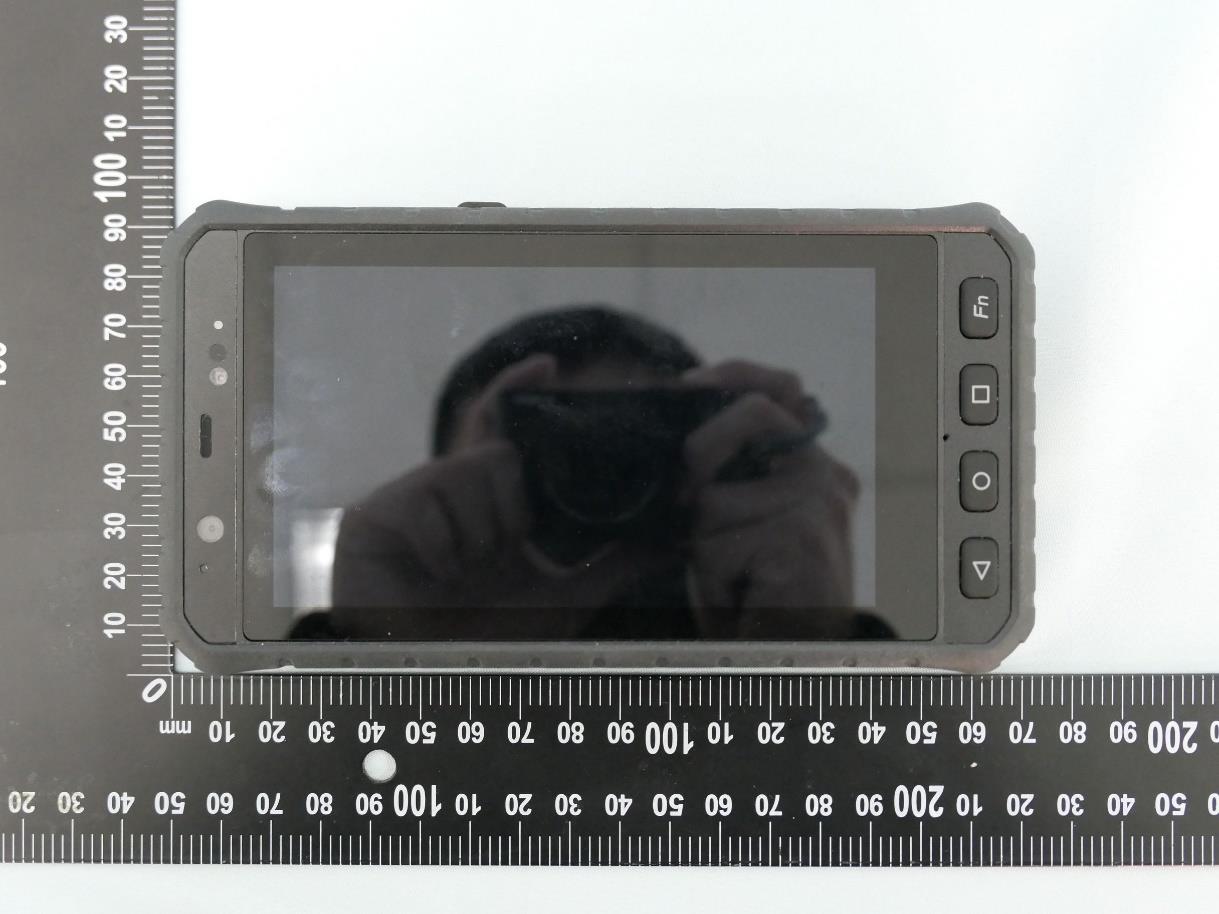

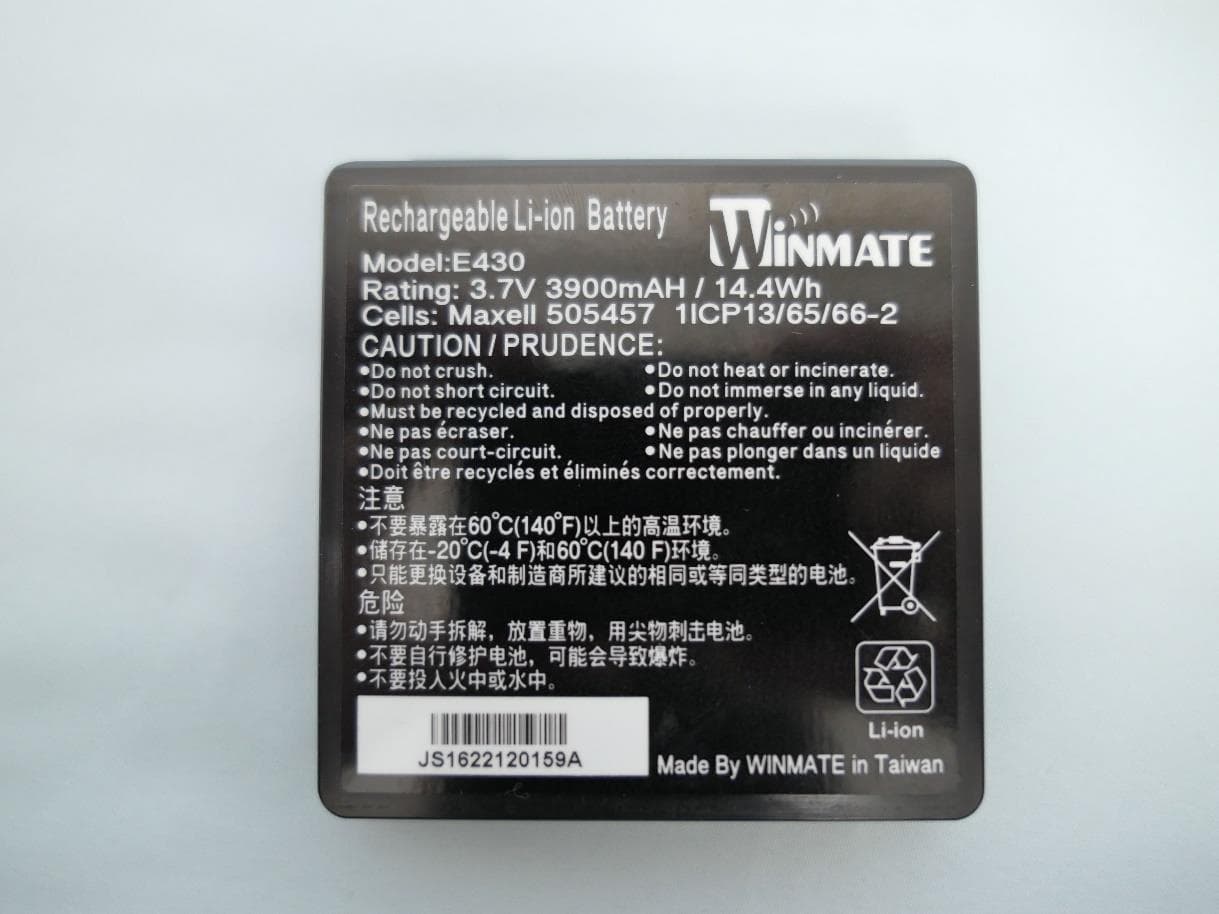

Report No.: 2302TW1401-UE Product: Rugged PDA Brand Name: Winmate Model Number: E500RM9 1 of 7 External Photograph ( 1 ) EUT Photo ( 2 ) EUT Photo Report No.: 2302TW1401-UE 2 of 7 ( 3 ) EUT Photo ( 4 ) EUT Photo Report No.: 2302TW1401-UE 3 of 7 ( 5 ) EUT Photo ( 6 ) EUT Photo Report No.: 2302TW1401-UE 4 of 7 ( 7 ) EUT Photo ( 8 ) EUT Photo(Brand: Winmate, M/N: E430) Report No.: 2302TW1401-UE 5 of 7 ( 9 ) EUT Photo(MRF: ENG ELECTRIC .,LTD,M/N: 6A-121WP05) ( 10 ) EUT Photo(MRF: ENG ELECTRIC .,LTD,M/N: 6A-121WP05) Report No.: 2302TW1401-UE 6 of 7 ( 11 ) EUT Photo(MRF: ENG ELECTRIC .,LTD,M/N: 6A-121WP05) ( 12 ) EUT Photo(MRF: ENG ELECTRIC .,LTD,M/N: 6A-121WP05) Report No.: 2302TW1401-UE 7 of 7 ( 13 ) EUT Photo(MRF: ENG ELECTRIC .,LTD,M/N: 6A-121WP05) ( 14 ) EUT Photo (MRF: ENG ELECTRIC .,LTD,M/N: 6A-121WP05)

Label Label location

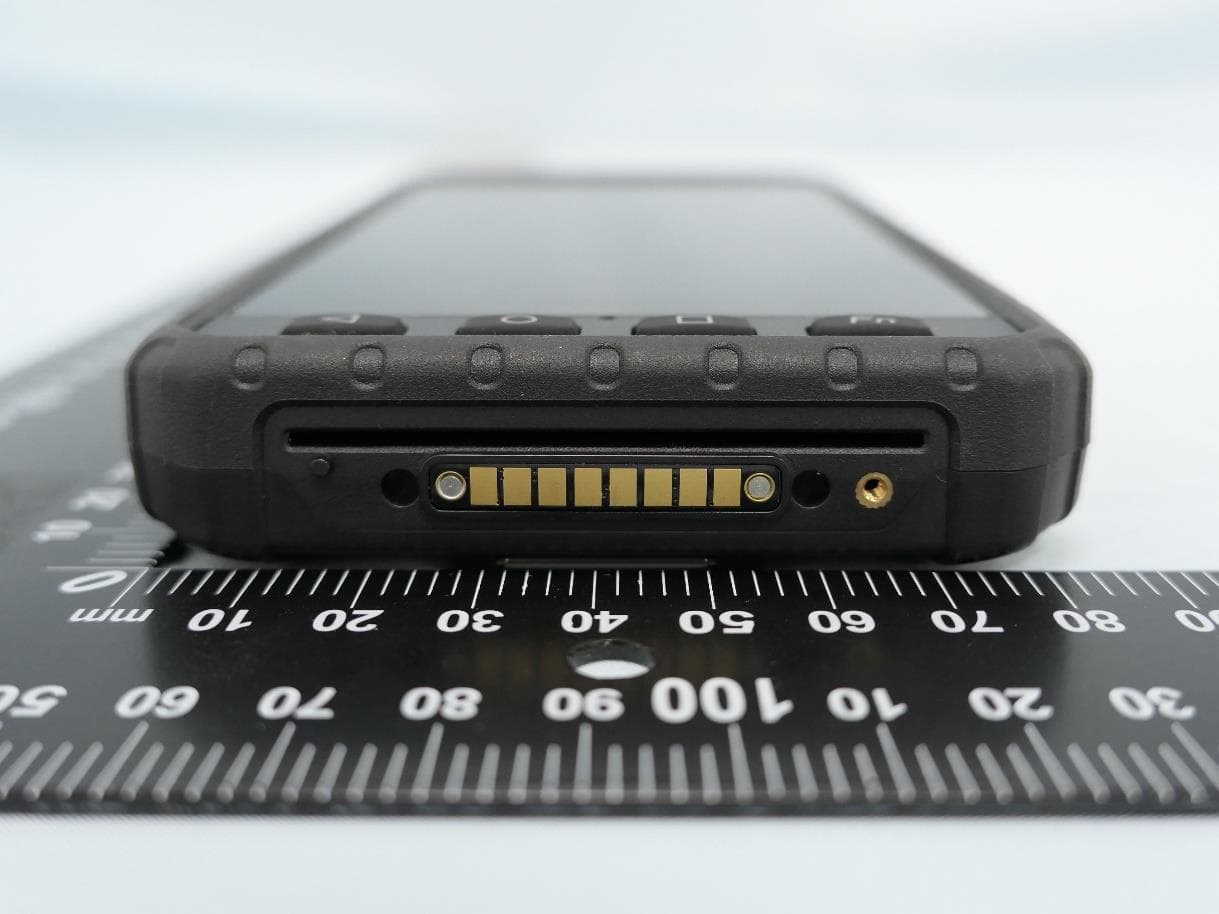

Report No.: 2302TW1401-UI Product: Rugged PDA Brand Name: Winmate Model Number: E500RM9 1 of 14 Internal Photograph ( 1 ) EUT Photo ( 2 ) EUT Photo Report No.: 2302TW1401-UI 2 of 14 ( 3 ) EUT Photo ( 4 ) EUT Photo Report No.: 2302TW1401-UI 3 of 14 ( 5 ) EUT Photo ( 6 ) EUT Photo Report No.: 2302TW1401-UI 4 of 14 ( 7 ) EUT Photo ( 8 ) EUT Photo Report No.: 2302TW1401-UI 5 of 14 ( 9 ) EUT Photo ( 10 ) EUT Photo Report No.: 2302TW1401-UI 6 of 14 ( 11 ) EUT Photo ( 12 ) EUT Photo Report No.: 2302TW1401-UI 7 of 14 ( 13 ) EUT Photo ( 14 ) EUT Photo Report No.: 2302TW1401-UI 8 of 14 ( 15 ) EUT Photo ( 16 ) EUT Photo Report No.: 2302TW1401-UI 9 of 14 ( 17 ) EUT Photo ( 18 ) EUT Photo Report No.: 2302TW1401-UI 10 of 14 ( 19 ) EUT Photo ( 20 ) EUT Photo Report No.: 2302TW1401-UI 11 of 14 ( 21 ) EUT Photo ( 22 ) EUT Photo Report No.: 2302TW1401-UI 12 of 14 ( 23 ) EUT Photo ( 24 ) EUT Photo Report No.: 2302TW1401-UI 13 of 14 ( 25 ) EUT Photo ( 26 ) EUT Photo Report No.: 2302TW1401-UI 14 of 14 ( 27 ) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2303RSU025-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2023-03-22 Template Version:0.0 1 of 49 SAR MEASUREMENT REPORT FCC ID: PX9E500RM9 Applicant: Winmate Inc. Product: Rugged PDA Model No.: E500RM9 Brand Name: Winmate FCC Rule Part(s): FCC 47 CFR Part 2.1093 Result: Complies Received Date: 2023-03-13 Test Date: 2023-03-20 Reviewed By: Jame Yuan Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in IEEE1528, KDB 447498 and KDB 865664. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2303RSU025-U1 2 of 49 Revision History Report No. Version Description Issue Date Note 2303RSU025-U1 V01 Initial Report 2023-03-22 Valid Report No.: 2303RSU025-U1 3 of 49 CONTENTS Description Page 1. General Information ................................................................................................................................. 5 1.1. Applicant ........................................................................................................................................ 5 1.2. Manufacturer .................................................................................................................................. 5 1.3. Testing Facility ............................................................................................................................... 5 1.4. Product Information ........................................................................................................................ 6 1.5. Radio Specification under Test ...................................................................................................... 6 1.6. Antenna Details .............................................................................................................................. 7 2. Summary of Test Result .......................................................................................................................... 8 2.1. Test Standards ............................................................................................................................... 8 2.2. Environment Condition ................................................................................................................... 8 2.3. RF Exposure Limits ........................................................................................................................ 8 2.4. Test Result Summary .................................................................................................................... 9 3. Specific Absorption Rate (SAR) ............................................................................................................ 10 3.1. Introduction .................................................................................................................................. 10 3.2. Definition ...................................................................................................................................... 10 4. DASY6 Measurement System................................................................................................................ 11 4.1. Introduction .................................................................................................................................. 11 4.2. DASY6 Measurement System Diagram ...................................................................................... 11 4.3. System Components Details........................................................................................................ 12 5. The SAR Measurement Procedure ....................................................................................................... 23 5.1. Measurement Process Diagram .................................................................................................. 23 5.2. Test Position Definition ................................................................................................................ 24 5.3. Test Procedure ............................................................................................................................ 27 6. System Verificaiton ................................................................................................................................ 30 6.1. Tissue Check ............................................................................................................................... 30 6.2. System Check .............................................................................................................................. 33 7. Analysis and Results ............................................................................................................................. 35 7.1. Antenna Location ......................................................................................................................... 35 7.2. Conducted Power ........................................................................................................................ 36 7.3. SAR Test Results ......................................................................................................................... 37 8. Simultaneous Transmission Analysis .................................................................................................. 39 9. Measuring Instrument ............................................................................................................................ 40 Report No.: 2303RSU025-U1 4 of 49 10. Measurement Uncertainty ......................................................................................…

Text truncated - open the document above for the full version.

Return Loss and Impedance Indicated By Head Tissue Meas. Items Original Value Current Value Deviation Return Loss(dB) -29.0 -27.73 -4.38% Impedance 53.7Ω - 0.01jΩ 51.46Ω - 1.61Ω -2.24Ω Real part -1.60Ω Imaginary part Test Date: 2022/05/18

CONFIDENTIAL Internal Specification - 1– Winmate Inc. AntennaSpecification Project :E500RM9 Version :20230105 Issue Date : 2023/01/05 CONFIDENTIAL Internal Specification - 2– Contents 1. ANTENNA PLACEMENT .................................................................................................................................................. 3 2. WI-FI MAIN ANTENNA SPECIFICATION ..................................................................................................................... 4 2.1. ELECTRICAL CHARACTERISTICS ................................................................................................................................. 4 2.2. MECHANICAL CHARACTERISTICS ............................................................................................................................... 4 2.3. ENVIRONMENTAL CHARACTERISTICS........................................................................................................................ 4 2.4. RF PERFORMANCE CHARACTERISTICS ...................................................................................................................... 5 2.4.1. SWR ....................................................................................................................................................................................... 5 2.4.2. GAIN / EFFICIENCY .......................................................................................................................................................... 6 2.4.3. RADIATION PATTERN...................................................................................................................................................... 7 2.5. DRAWING ............................................................................................................................................................................. 12 CONFIDENTIAL Internal Specification - 3– 1. Antenna Placement CONFIDENTIAL Internal Specification - 4– 2. Wi-Fi Main Antenna Specification Winmate Part Number: 90RF0500001X 2.1. Electrical Characteristics Frequency(MHz): 2400-2500 / 5150-6000 SWR: ≦1.39@2400-2500MHz ≦2.77@5150-6000MHz Peak Gain: 1.04dBi@2400-2500MHz 2.86dBi@5150-6000MHz Impedance: 50ohm Polarization: Linear 2.2. Mechanical Characteristics Cable: 50Ωφ0.81 RF cable Connector: MHF4 PCB: F R4 /Thickness 0.2mm Type:Monopole 2.3. Environmental Characteristics Operating Temperature: -30°C to 80°C CONFIDENTIAL Internal Specification - 5– 2.4. RF Performance Characteristics 2.4.1. SWR CONFIDENTIAL Internal Specification - 6– 2.4.2. Gain / Efficiency Frequency 2412 2422 2432 2442 2452 2462 2472 5180 5200 5220 Directivity (dBi) 4.52 4.65 4.58 4.61 4.55 4.35 4.29 5.17 5.08 4.85 Efficiency (dB) -3.49 -3.62 -3.66 -3.69 -3.76 -3.83 -3.88 -4.46 -4.50 -4.54 Efficiency (%) 44.77 43.48 43.04 42.78 42.10 41.41 40.93 35.84 35.45 35.15 Peak Gain (dBi) 1.03 1.04 0.92 0.92 0.79 0.52 0.41 0.72 0.58 0.31 Frequency 5240 5260 5280 5320 5500 5520 5540 5560 5580 5600 Directivity (dBi) 4.94 5.13 5.39 5.56 6.18 6.21 6.42 6.52 6.74 6.87 Efficiency (dB) -4.46 -4.28 -4.23 -4.40 -3.99 -3.98 -4.01 -4.06 -4.04 -4.01 Efficiency (%) 35.82 37.30 37.78 36.31 39.86 40.04 39.71 39.26 39.46 39.71 Peak Gain (dBi) 0.48 0.84 1.17 1.16 2.19 2.23 2.41 2.46 2.70 2.86 Frequency 5700 5805 Directivity (dBi) 7.17 7.18 Efficiency (dB) -3.78 -3.86 Efficiency (%) 41.92 41.16 Peak Gain (dBi) 2.40 2.32 CONFIDENTIAL Internal Specification - 7– 2.4.3. Radiation Pattern 2412MHz CONFIDENTIAL Internal Specification - 8– 2452MHz 2472MHz CONFIDENTIAL Internal Specification - 9– 5180MHz 5320MHz CONFIDENTIAL Internal Specification - 10– 5540MHz 5600MHz CONFIDENTIAL Internal Specification - 11– 5700MHz 5805MHz CONFIDENTIAL Internal Specification - 12– 2.5. Drawing Antenna Layout Drawing RF cable Drawing Antenna Assembly Winmate Part Number: 90RF0500001X

MRT Technology (Taiwan) Co., Ltd Report No.: 2302TW1401-U2 Phone: +886-3-3288388 Report Version: 1.0 Fax: +886-3-3288918 Issue Date: 2023-03-28 Web: www.mrt-cert.com Page Number: 1 of 112 FCC ID : PX9E500RM9 APPLICANT : Winmate Inc. Product : Rugged PDA Model No. : E500RM9, E500XXXXXXXXX(where “X” may be any alphanumeric character, blank or “-”) Brand Name : Winmate FCC Classification : (DTS) Digital Transmission System FCC Rule Part(s) : Part 15.247 Test Procedure(s) : ANSI C63.10-2013 Received Date : February 17,2023 Test Date : February 24~March 7 ,2023 MEASUREMENT REPORT Test By : ( Fran Chen ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results only relate to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2302TW1401-U2 Page Number: 2 of 112 Revision History Report No. Version Description Issue Date Note 2302TW1401-U2 1.0 Original Report 2023-03-28 Report No.: 2302TW1401-U2 Page Number: 3 of 112 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope .................................................................................................................................... 6 1.2. MRT Test Location ................................................................................................................ 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .......................................................................................................... 7 2.2. Working Frequencies for this Report ..................................................................................... 8 2.3. Test Mode ........................................................................................................................... 10 2.4. Test Software ...................................................................................................................... 10 2.5. Test Configuration ............................................................................................................... 11 2.6. EMI Suppression Device(s)/Modifications ........................................................................... 11 2.7. Labeling Requirements ....................................................................................................... 11 3. DESCRIPTION of TEST ........................................................................................................ 12 3.1. Evaluation Procedure .......................................................................................................... 12 3.2. AC Line Conducted Emissions ............................................................................................ 12 3.3. Radiated Emissions ............................................................................................................ 13 4. ANTENNA REQUIREMENTS ................................................................................................ 14 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 15 6. MEASUREMENT UNCERTAINTY ......................................................................................... 16 7. TEST RESULT ...................................................................................................................... 17 7.1. Summary ............................................................................................................................. 17 7.2. 6dB Bandwidth Measurement ............................................................................................. 18 7.2.1. Test Limit ......................................................................................................................... 18 7.2.2. Test Procedure used ....................................................................................................... 18 7.2.3. Test Setting ..................................................................................................................... 18 7.2.4. Test Setup ....................................................................................................................... 18 7.2.5. Test Result ...................................................................................................................... 19 7.3. Output Power Measurement ................................................................................................ 22 7.3.1. Test Limit ......................................................................................................................... 22 7.3.2. Test Procedure Used ....................................................................................................... 22 7.3.3. Test Setting ..................................................................................................................... 22 7.3.4. Test Setup ....................................................................................................................... 22 7.3.5. Test Result of Output Power ............................................................................................ 23 7.4. Power Spectral Density Measurement ................................................................................ 24 7.4.1. Test Limit ..........................................................…

Text truncated - open the document above for the full version.

Report No.: 2302TW1401-U2 Page Number: 51 of 112 EUT Rugged PDA Date of Test 2023-03-04 Factor BBHA 9120D & BBHA 9170 Temp. / Humidity 22C /44% Polarity Horizontal Site / Test Engineer AC1 / Todd Test Mode 802.11g_TX_CH 1_ANT 0 Test Voltage By Notebook PC No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 4824.000 37.05 3.65 40.69 -33.31 74.00 150 360 Peak 2 7236.000 34.70 11.80 46.51 -27.49 74.00 150 360 Peak 3 * 9648.000 33.22 15.77 48.99 -25.01 74.00 150 360 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2302TW1401-U2 Page Number: 52 of 112 EUT Rugged PDA Date of Test 2023-03-04 Factor BBHA 9120D & BBHA 9170 Temp. / Humidity 22C /44% Polarity Vertical Site / Test Engineer AC1 / Todd Test Mode 802.11g_TX_CH 1_ANT 0 Test Voltage By Notebook PC No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 4824.000 35.92 3.65 39.57 -34.43 74.00 150 360 Peak 2 7236.000 34.47 11.80 46.27 -27.73 74.00 150 360 Peak 3 * 9648.000 33.28 15.77 49.05 -24.95 74.00 150 360 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2302TW1401-U2 Page Number: 53 of 112 EUT Rugged PDA Date of Test 2023-03-04 Factor BBHA 9120D & BBHA 9170 Temp. / Humidity 22C /44% Polarity Horizontal Site / Test Engineer AC1 / Todd Test Mode 802.11g_TX_CH 6_ANT 0 Test Voltage By Notebook PC No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 4874.000 36.85 3.74 40.59 -33.41 74.00 150 360 Peak 2 * 7311.000 39.56 12.11 51.68 -22.32 74.00 150 360 Peak 3 9748.000 32.81 15.95 48.76 -25.24 74.00 150 360 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2302TW1401-U2 Page Number: 54 of 112 EUT Rugged PDA Date of Test 2023-03-04 Factor BBHA 9120D & BBHA 9170 Temp. / Humidity 22C /44% Polarity Vertical Site / Test Engineer AC1 / Todd Test Mode 802.11g_TX_CH 6_ANT 0 Test Voltage By Notebook PC No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 4874.000 38.72 3.74 42.46 -31.54 74.00 150 360 Peak 2 * 7311.000 40.45 12.11 52.56 -21.44 74.00 150 360 Peak 3 9748.000 34.08 15.95 50.04 -23.96 74.00 150 360 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2302TW1401-U2 Page Number: 55 of 112 EUT Rugged PDA Date of Test 2023-03-04 Factor BBHA 9120D & BBHA 9170 Temp. / Humidity 22C /44% Polarity Horizontal Site / Test Engineer AC1 / Todd Test Mode 802.11g_TX_CH 11_ANT 0 Test Voltage By Notebook PC No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 4924.000 36.04 3.83 39.87 -34.13 74.00 150 360 Peak 2 * 7386.000 38.12 12.42 50.55 -23.45 74.00 150 360 Peak 3 9848.000 33.56 16.14 49.70 -24.30 74.00 150 360 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2302TW1401-U2 Page Number: 56 of 112 EUT Rugged PDA Date of Test 2023-03-04 Factor BBHA 9120D & BBHA 9170 Temp. / Humidity 22C /44% Polarity Vertical Site / Test Engineer AC1 / Todd Test Mode 802.11g_TX_CH 11_ANT 0 Test Voltage By Notebook PC No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 4924.000 38.30 3.83 42.13 -31.87 74.00 150 360 Peak 2 * 7386.000 38.05 12.42 50.47 -23.53 74.00 150 360 Peak 3 9848.000 33.60 16.14 49.74 -24.26 74.00 150 360 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB). 3. Measurement (dBuV/m) = Reading(dBuV) + C.F (Correction Factor). 4. The emission levels of other frequencies are very lower than the limit and not show in test report. Report No.: 2302TW1401-U2 Page Number: 57 of 112 EUT Rugged PDA Date of Test 2023-03-04 Factor BBHA 9120D & BBHA 9170 Temp. / Humidity 22C /44% Polarity Horizontal Site / Test Engineer AC1 / Todd Test Mode 802.11n-20MHz_TX_CH 1_ANT 0 Test Voltage By Notebook PC No Frequency (MHz) Reading (dBuV) C.F (dB/m) Measurement (dBuV/m) Margin (dB) Limit (dBuV/m) Height (cm) Angle (deg) Remark (QP/PK/AV) 1 4824.000 37.01 3.65 40.66 -33.34 74.00 150 360 Peak 2 * 7236.000 41.43 11.80 53.23 -20.77 74.00 150 360 Peak 3 9648.000 33.32 15.77 49.09 -24.91 74.00 150 360 Peak Note: 1. " *", means this data is the worst emission level. 2. C.F (Correction Factor) = Antenna Factor (dB/m)+ Cable Loss (dB) – Preamplifier(dB). 3. Measurement (dBuV/m) = Reading(dB…
