PY9CARDREADERCard Reader

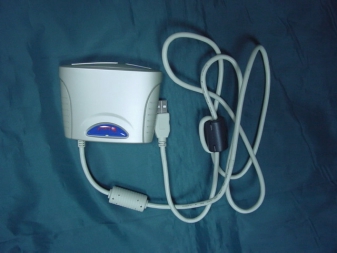

Appearance of Card Reader(Card Reader) Appearance of Card Reader(Card Reader)

FCC ID Label Location

Inside of Card Reader(Card Reader) Appearance of PCB Board(Card Reader) Appearance of PCB Board(Card Reader)

EMC TEST REPORT For Card Reader Model Number: Card Reader Report Number : 130786-DZ/WT Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory Site Location : Bldg. of Metrology &Quality Inspection, Longzhu Road, Shenzhen, Guangdong, China Tel : 0086-755-6941637 Fax : 0086-755-6941635 Report No.:130786-DZ/WT Page 2/21 TABLE OF CONTENTS DescriptionPage Test Report Certification 1.TEST RESULTS ........................................................................................................................... 4 2.GENERAL INFORMATION...................................................................................................... 4 2.1.Description of EUT ...................................................................................................................4 2.2.Tested System Details ..................................................................... Error! Bookmark not defined. 2.3.Test Facility..............................................................................................................................5 3.TEST EQUIPMENT..................................................................................................................... 5 3.1.For Conducted Disturbance Test..............................................................................................5 3.2.For Radiated Disturbance Test .................................................................................................5 4.CONDUCTED DISTURBANCE TEST...................................................................................... 6 4.1.Block Diagram of Test Setup ....................................................................................................6 4.2.Conducted Disturbance Test Standard and Limit.....................................................................6 4.3.Test Procedure..........................................................................................................................6 4.4.Operating Condition of EUT.....................................................................................................7 4.5.Test Data ..................................................................................................................................7 5.RADIATED DISTURBANCE TEST........................................................................................... 8 5.1.Block Diagram of Test Setup ....................................................................................................8 5.2.Test Standard and Limit...........................................................................................................8 5.3.Test Procedure..........................................................................................................................9 5.4.Operating Condition of EUT.....................................................................................................9 5.5.Test Data ..................................................................................................................................9 Appendix I Appendix • Report No.:13486-DZWT Page3/19 CERTIFICATION Applicant : Elelux International Ltd. Address : 3F., No.103 Chow Tze Street(114), Net-Hu District, TaiPei, TaiWan, R.O.C Manufacturer : Anson Factory Address : Bldg.21, BaoYuan Ind. Park Xixiang Town, Shenzhen(518102), Guangdong, China EUT Description : Card Reader MODEL No :Card Reader FCC ID :PY9Card Reader Test Standards: FCC RULES AND REGULATIONS PART 15 :2001 The EUT described above is tested by Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory to determine the maximum emissions from the EUT. Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory is assumed full responsibility for the accuracy of the test results. Also, this report shows that the EUT technically complies with FCC requirements. The test report is valid for above tested sample only and shall not be reproduced in part without written approval of the laboratory. Tested by :Date : (George Luo) Checked by :Date : (Peter Lin) Approved by :Date : (Wilson Huang) Report No.: 130786-DZ/WT Page 4/21 1. TEST RESULTS Table 1 Test Result Test ItemTest Result Conducted DisturbancePass Radiated DisturbancePass 2. GENERAL INFORMATION 2.1. Description of EUT Description : Card Reader Model Number : Card Reader Applicant : Elelux International Ltd. Manufacturer : Anson Factory Singal Line : 1.4m, shielding, Undetachable , USB port 2.2 Tested System Details 2.2.1 PERSONAL COMPUTER Model Number: 6563 • Serial Number: 99YD560 • Manufacturer : • IBM Power cord: • Unshielded, Undetachable, 1.9m 2.2.2 MONITOR Model Number: 0180-05N • Serial Number: 23-A5752 • Manufacturer : • IBM Power cord: • Unshielded, Undetachable, 1.9m Signal Cable: • Shielded, Undetachable, 1.4m 2.2.3 KEYBOARD Model Number: • KB-9910 Serial Number: • 0504729 Manufacturer:IBM Date Cable: • Shielded, Undetachable, 1.8m Report No.: 130786-DZ/WT Page 5/21 2.2.4 MOUSE Model Number: N-SUA-IBM6 • Serial Number: 23-185505 • Manufacturer: IBM • Date Cable: Shielded, Undetachable, 1.8m 2.3 Test Facility Name of Facility : Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory Site Location : Bldg. of Metrology &Quality Inspection, Longzhu Road, Shenzhen, Guangdong, China Site Description • Apr. 17, 2000 file on Federal Communications Commission Registration Number: 97379 Aug. 11, 2000 certificated by TUV Rheinland, Shenzhen. 3 TEST EQUIPMENT 3.1 For Conducted Disturbance Test Table 2 Conducted Disturbance Test Equipment No.EquipmentManufacturerModel No.Last Cal.Cal. Interval HJ293Z EMI Test Receiver Rohde & Schwarz ESCS30Feb.28,011 Year HJ294ZAMN Rohde & Schwarz ESH3-Z5Feb.24,011 Year HJ285ZL.I.S.NKYROTISUKNW-407Feb.24,011 Year 3.2 For Radiated Disturbance Test Table 3 Radiated Disturbance Test Equipment NO.EquipmentManufacturerModel No.Last Cal.Cal. Interval HJ293Z EMI Test Receiver Rohde & Schwarz ESCS30Feb. 28,20011 Year HJ290Z Spectrum …

Text truncated - open the document above for the full version.

Photo 1 Test Setup for Conducted Test (Front View) Photo 2 Test Setup for Conducted Test (Rear View) Photo 3 Test Setup for Radiated Test (Front View) Photo 4 Test Setup for Radiated Test (Rear View)
