PY9OM85MMini RF Optical Mouse

*** USER’S MANUAL *** FCC ID : PY9OM85M The Federal Communication Commission Statement This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: - - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced Radio/TV technician for help. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that change or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: - 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation.
























  !


" # $
%






 "

&'(







"


&'(
 )

"









        *+

"$ ,





*+



 "  -
*+ .

/



0  1
%+
23



4" ,+5

"$

%
    !" # $    % ## &  #

,+5



*+




%
 "


*+
6


,+5








,+5



 "   7"


 "  ' (   &&
"



 "
 "

&'(






"
7


(
"



!






 "
"  "





 "
""

&'(






4"


 ) &   *
7
  8



 "
-



 "






"
 "
-

 "



"
7






 "

"


"


 "

(

6




6






 "



6




 "
 "
 "




"




 "

"

 "










6

"
 +    7
 "







9

*+

,+5


"




/














  ,-.   &&


(
"

 "




/(   &&    0

*"



.

 "
,9
/




 "
 )
"
 " "
2
"




"



: "
!     #  #&  %-  &
-

,9
"

*+
6





   "
 "





! -   က-
/
% 0 " က
က,+5


   က
8


6
 က*
 "   1&&   && 213  &                         !" #                       #                                          # $                   #%                                              # ; &"      # &%           # &                      # &     '  ()    # *           '                     #

76.8 KHz Y2 27.042 MHz Y1 18.432 MHz Y 3 6MHz Y1 26.59 MHz Y2

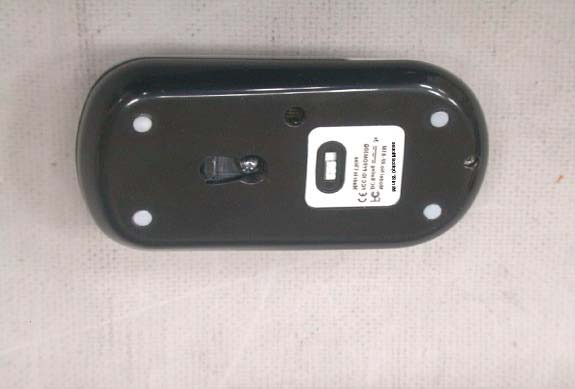

FCC ID: PY9OM85MREPORT NO. :E930218 Page 21 of 23 NVLAP LAB CODE: 200097-0- PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 17. EUT External Photos PHOTO. 1.EUT ( TX )FRONT VIEW PHOTO.2.EUT ( TX )REAR VIEW

FCC ID: PY9OM85M REPORT NO. :E930218 Page 19 of 23 NVLAP LAB CODE: 200097-0- PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 15. FCC ID Label Sample The sample label shown below shall be permanently affixed at a conspicuous location on the device, instruction manual or pamphlet supplied to the user and be readily visible to the purchaser at the time of purchase. However, when the device is so small wherein placement of the label with specified statement is not practicable, only the trade name, model number, and the FCC logo must be displayed on the device per Section 15.19 (b)(2). EUT Label

FCC ID: PY9OM85MREPORT NO. :E930218 NVLAP LAB CODE: 200097-0- PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 EUT Label

FCC ID: PY9OM85MREPORT NO. :E930218 Page 22 of 23 NVLAP LAB CODE: 200097-0- PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 18. EUT Internal Photos PHOTO.3.EUT (TX ) INSIDE VIEW PHOTO.4.EUT (TX ) INSIDE VIEW FCC ID: PY9OM85MREPORT NO. :E930218 Page 23 of 23 NVLAP LAB CODE: 200097-0- PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 PHOTO.5. EUT (TX)COMPONENT SIDE VIEW PHOTO.6. EUT (TX)SOLDERING SIDE VIEW

Operational Description for Mi ni RF Optical Mouse, FCC ID: PY9OM85M Mouse: (1) Once the mouse makes a move, the IRPD will detect the glide signal and transmit the signal to MCU. (2) The MCU converts and modulates the signal using FSK mode. (3) The mouse transmits the modulation signal on frequency of 27.045 MHz. Receiver: (1) Once the receiver receives the modulation signal, it will demodulate the signal through RF circuit and will respond with signal to MCU. (2) The MCU meeting converts the signal into an acceptable format received by PC.

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:26-Aug-2003Sheet of File:D:\layout\lay\MATX-SCH2.ddbDrawn By: 17 16 2 15 3 14 4 13 5 12 6 11 7 10 8 9 1 18 19 20 21 22 23 24 25 26 27 28 U1 MA60H221 116 215 314 413 512 611 710 89 U2 ADNS-2030 C10 104P + C16 4.7UF V+ R7 22 R8 15K R10 0 Y3 18.432M C15 N/A C14 104P + C13 2.2UF LED1 SUPER-RED-LED-5" SCLK PD SDIO R3 1M R4 680K L3 82UH D1 IN5819 R5 240K R6 100K SW5 IDSW + C20 220UF/6*11 C19 104P V+ SW4 ENCODE-11mm R11 N/A R9 0 R2 560 SCLK LED2 BTL-LED-3"RED C24 103 TOUCH-PAD PD C5 56P Y1 27.042M C8 3P C6 12P C4 10P C7 150P ANT SW1L SW3 M R SW2 C3 104P C2 22P R1 10M Y2 76.8K C1 22P SDIO C18 104P + C17 470UF/8*9 3VBAT C12 N/A C13 N/A C11 N/A C25 104P C9 10P

FCC ID: PY9OM85MREPORT NO. :E930218 Page 1 of 23 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 NVLAP LAB CODE: 200097-0- FCC ID TEST REPORT According to FCC Part 15 Subpart C, Intentional Radiators EUT TypeMi ni RF Optical Mouse Transmitter (TX)1) Model No.: RF-81M 2) FCC ID: PY9OM85M Applicant Name: ELELUX INTERNATIONAL LTD. Address See the General Information for details. Test Date :APR.11, 2004Issued Date :APR.19, 2004 Test Engineer : JASON KUNGNVLAP Signature :Peter Kao Peter Kao / Director ΘThe test report shall not be reproduced except in full, without the written approval of the “PEP” ΘThe report must not be used by the client to claim product endorsement by NVLAP or any agency of the United States government. ΘThis report is applicable only for EUT Model which described in page 4 . ΘThe testing result in this report are traceable to national or international standard . PEP TESTING LABORATORY 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. Tel : 886-2-26922097 Fax : 886-2-26956236 FCC ID: PY9OM85MREPORT NO. :E930218 Page 2 of 23 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 NVLAP LAB CODE: 200097-0- Table of Contents 1.GENERAL INFORMATION3 2.PRODUCT INFORMATION4 3.EUT DESCRIPTION AND TEST METHODS5 4.MODIFICATION(S)6 5.TEST SOFTWARE USED6 6.SUPPORT EQUIPMENT USED7 7.DESCRIPTION OF CONDUCTED EMISSIONS TEST8 8.DESCRIPTION OF RADIATED EMISSIONS TEST9 9.CONDUCTED EMISSIONS TEST SETUP PHOTOS12 10.CONDUCTED EMISSIONS TEST DATA12 11.RADIATED EMISSIONS TEST SETUP PHOTOS13 12.RADIATED EMISSIONS TEST DATA14 13.OCCUPIED BANDWIDTH PLOT DATA16 14.LIST OF MEASURED INSTRUMENTS18 15.FCC ID LABEL SAMPLE19 16.INFORMATION TO THE USER20 17.EUT EXTERNAL PHOTOS21 18.EUT INTERNAL PHOTOS22 FCC ID: PY9OM85MREPORT NO. :E930218 Page 3 of 23 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 NVLAP LAB CODE: 200097-0- 1. General Information Measurement of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC Part 2 and 15. Applicant Name/Address: ELELUX INTERNATIONAL LTD. 3F., NO. 103, CHOW TZE STREET, NEI-HU DISTRICT 114, TAIPEI, TAIWAN, R. O. C. Contact Person:WINSTON WU / G.M Phone No.:886-2-26272291Fax No.:886-2-26596726 Manufacturer Name/Address: ANDAH ELECTRONICS (SHEN ZHEN) CO., LTD. CHONG QING ROAD, TONG FUYU INDUSTRIAL PARK, FU YONG TOWN, SHEN ZHEN (518103), GUANG DONG, CHINA — Regulation:FCC Part 2 and 15 — Limitation:Part 15, Section 15.227, 15.207 and 15.209 — Test Procedure:ANSI C63.4-1992 — Place of Test:PEP Testing Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL : 886-2-26922097 FAX : 886-2-26956236 FCC ID: PY9OM85MREPORT NO. :E930218 Page 4 of 23 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 NVLAP LAB CODE: 200097-0- 2. Product Information a.EUT Type:Mi ni RF Optical Mouse b.Transmitter Model:RF-81M c.TX FCC ID:PY9OM85M d. TX Channel No.One e.TX Working Freq. :27.045 MHz f.TX ModulationFSK g. TX Crystal / Osc.76.8 KHz, 18.432 MHz, 27.042MHz h. TX Port(s)N/A i.TX Transmitting PowerDC 3V (1.5V × 2) jTX Power SupplyBattery(Type AAA) j.TX CaseABS k. EUT Condition :ϭPrototypeEngineeringʳ ʳʳʳʳProduction l.EUT Received Date :APR.11, 2004 FCC ID: PY9OM85MREPORT NO. :E930218 Page 5 of 23 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 NVLAP LAB CODE: 200097-0- 3. EUT Description and Test Methods (A) The EUT is Mi ni RF Optical Mouse, FCC ID: PY9OM85M, modelRF-81M. The EUT that comes with a scroll wheel and two buttons is optical wireless mouse. DC 3V from two batteries (size AAA, DC 1.5V) is required to operate EUT. The radio frequency of EUT is 27.045MHz. For more detail information about the EUT, please refer to the user’s manual. (B) Test Method: According to the major function designed, the EUT placement on test table was arranged alone to proceed with test. The test was carried out on EUT operational condition of Tx-On mode: continuous transmission state. The worst-case test result of each test mode was recorded and provided in this report. (C) At the frequencies where the peak values of the emission exceeded the quasi-peak limit, the emissions were also measured with the quasi-peak detectors. The average detector also measured the emission either (A) quasi-peak values were under quasi-peak limit but exceeded average limit, or (B) peak values were under quasi-peak limit but exceeded average limit. FCC ID: PY9OM85MREPORT NO. :E930218 Page 6 of 23 PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 NVLAP LAB CODE: 200097-0- 4. Modification(s): N/A 5. Test Software Used N/A FCC ID: PY9OM85MREPORT NO. :E930218 Page 7 of 23 NVLAP LAB CODE: 200097-0- PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 6. Support Equipment Used N/A FCC ID: PY9OM85MREPORT NO. :E930218 Page 8 of 23 NVLAP LAB CODE: 200097-0- PEPTesting Laboratory 12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih, Taipei Hsien, Taiwan, R. O. C. TEL: 886-2-26922097 FAX: 886-2-26956236 7. Description of Conducted Emissions Test 7.1 Conducted Emissions A 1m x1.5m wooden table 80 cm high is placed 40cm away from the vertical wall. Two AMN are bonded to the grounding plane. The EUT is powered from the designated AMN and th…
