PY9MP868WD001MP3 PLAYER SERIES- WIFI PORTION

Page 1 of 16 USER MANUAL FOR MP3 PLAYER SERIES (MP-868WW) Manufacturer : Andah Electronics (Shenzhen) Ltd Tong Fuyu Industrial Park, Chongqing Road, Fuyong Town, Shenzhen (518103), Guangdong, China Tel. : (86) 755 27329988 Fax. : (86) 755 27329168 Page 2 of 16 User Manual Federal Communications Commission (FCC) Statement.................................3 Preface ............................................................................................................4 Safety Information............................................................................................4 Package Contents............................................................................................4 Functional Modes and Features ......................................................................5 Description of the control .................................................................................5 Basic Functions................................................................................................7 1. Powering On/Off your MP-868WW .......................................................7 2. Charging your MP-868WW ...................................................................7 3. Connect to Computer and Data File Transmission ...............................7 4. Microphone ...........................................................................................7 5. Setting Up the Wi-Fi..............................................................................7 System Menu ...................................................................................................9 1. Main Menu Setup..................................................................................9 2. Internal radio.........................................................................................9 3. Media stream......................................................................................10 4. Music player........................................................................................13 5. FM radio..............................................................................................14 6. System................................................................................................15 Page 3 of 16 NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Federal Communications Commission (FCC) Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful Interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Page 4 of 16 Preface Congratulations on your purchase the MP-868WW. Before operating the unit, please read this manual thoroughly and keep it for future reference. This manual will help you learn to use many of the exciting features of this device and make you experience more enjoyable. This manual contains important safety measurements and operational information, so please read all the information carefully before you use the device in order to avoid any unexpected accidents. Safety Information Read the safety instructions carefully before using your MP-868WW. z Do not use Headphone/Earphones while driving, cycling or operating any motorized vehicle. This may create traffic hazard and may be illegal in some areas. It can also be dangerous to play your Headphones/Earphones at high volume while walking or engaged in other activities. You should exercise extreme cautions and discontinue use the potentially hazardous situations. z Avoid using Headphones/Earphones at high volume. Hearing expert’s advice against continuous loud and extended music play. Keep the volume at a moderate level, so that you are able to hear outside sound, and t o be considerate of the people around you. z Keep your player away form sinks, drinks, bathtub, showers, rain and other sources of moisture. Moisture can cause electric shocks with any electronic device. z Follow these tips to keep your player working well for a long time: Clean your player with a soft lint free cloth used on glass lenses. Do not allow young children to use your player or your computer. Make sure your connectors are the identical shape and size before you connect. Do not disassemble, crush, short-circuit or incinerate your battery as it may cause fire, injury, burns or other hazards. z When transferring files, do not turn the power off or restart this device. No responsibility is provided for any damage to or loss of any program, data, or other information stored on any media or any part of this device serviced hereunder. z Please recharge the device when: A. Battery electricity icon displays no electricity. B. Player refuses to power on. C. Player functions normally, but it quickly powers off automatically. D. There is no response when pressing the keys. Package Contents Your MP-868WW package includes: z MP-868WW Player ×1 z Earphone ×1 z USB Cable ×1 z User Manual ×1 Page 5 of 16 Functional Modes and Features The MP-…

Text truncated - open the document above for the full version.

Block Diagram

1.General Appearance of the EUT (Front View) 2.General Appearance of the EUT (Rear View)

Location for Label Label Location FCC ID Label FCC ID: PY9MP868WD001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation 30 mm 20 mm

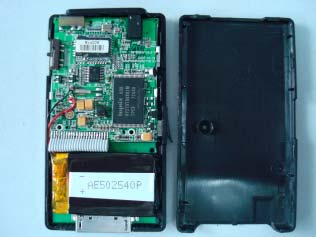

1. Inside of the EUT 2. PCB of the EUT (Front View) 3. PCB of the EUT (Front View) 4. PCB of the EUT (Rear View)

OPERATIONAL DESCRIPTION This device is a Wi-Fi-Mp3 in the 2.4 GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna. The other instruction, please have a look at the users manual.

® Report No.: SUTF0712050 Shenzhen Unitech Technology Co., Ltd. Page 1 of 38 TEST REPORT PRODUCT NAME : MP3 Player Series MODEL NO. : MP-868W, MP-86XX The first “X” behalf of the number 1 to 9 The second “X” behalf of the letter A to Z FCC ID : PY9MP868WD001 APPLICANT : Elelux International Ltd REGULATION : CFR 47, Part 15.247 TEST SITE : SOLID INDUSTRIAL (SHENZHEN) CO., LTD #333, Bulonggong Road, Bantian Village, Longgang District, Shenzhen, China TEST ENGINEER : Wenxiu Liu TEST DATE : December 10-25, 2006 ISSUED DATE : December 25, 2006 REPORT NO. : SUTF0712050 ® Report No.: SUTF0712050 Shenzhen Unitech Technology Co., Ltd. Page 2 of 38 DECLARATION WE HEREBY VERIFY THAT : The E. U. T. listed below has been completed RFI testing by UNITECH at the test site of SOLID INDUSTRIAL (SHENZHEN) CO., LTD .And the Interference emissions can pass FCC CLASS B limitations. The test configurations and the facility comply with the radiated and AC line conducted test site criteria in ANSI C63.4-2003. Any data in this RFI report is “reference” only. APPLICANT : Elelux International Ltd PRODUCT NAME : MP3 Player Series MODEL NO. : MP-868W, MP-86XX FCC ID : PY9MP868WD001 Jimmy Jiang / Manager SHENZHEN UNITECH TECHNOLOGY CO., LTD. 9/F, Daxin Bldg., Nanxin Road, Nanshan District, Shenzhen, Guangdong, P.R.China TEL: +86-755-26087848; FAX: +86-755-26089849 ® Report No.: SUTF0712050 Shenzhen Unitech Technology Co., Ltd. Page 3 of 38 TABLE OF CONTENTS 1. GENERAL ................................................... 4 1.1. General Information:........................................ 4 1.2. Place of Measurement........................................ 4 2. TECHNICAL TEST ............................................ 5 2.1. Summary of Test Results..................................... 5 2.2. Antenna Requirement......................................... 5 3. EUT MODULATIONS ........................................... 6 4. CONDUCTED POWER LINE TEST ................................. 7 4.1. Test equipment.............................................. 7 4.2. Test procedure.............................................. 7 4.3. Test setup.................................................. 7 4.4. Configuration of the EUT.................................... 8 4.5. EUT Operating Condition..................................... 9 4.6. Conducted power line emission limits........................ 9 4.7. Conducted Power Line Test Results.......................... 10 5. FCC PART 15.247 REQUIREMENTS FOR 802.11B/G SYSTEMS ....... 12 5.1. Test Equipment............................................. 12 5.2. Test Procedure............................................. 12 5.3. Test Setup................................................. 12 5.4. Configuration of the EUT................................... 13 5.5. EUT Operating Condition.................................... 13 5.6. Limit...................................................... 13 5.7. Test Result................................................ 13 6. TRANSMITTER SPURIOUS RADIATED EMISSION AT 3 METERS ....... 23 6.1. Test Equipment............................................. 23 6.2. Test Procedure............................................. 23 6.3. Test Setup................................................. 23 6.4. Configuration of the EUT................................... 24 6.5. EUT Operating Condition.................................... 24 6.6. Limit...................................................... 24 6.7. Test Result............................................... 26 7. RF EXPOSURE REQUIREMENTS ................................. 33 7.1. Test equipment............................................. 33 7.2. Limit...................................................... 33 7.3. Test Result................................................ 34 8. PHOTO OF TESTING ......................................... 35 8.1. Conducted Emission Test Photos............................. 35 8.2. Radiated Emission Test Photos.............................. 36 9. TEST EQUIPMENT ........................................... 38 ® Report No.: SUTF0712050 Shenzhen Unitech Technology Co., Ltd. Page 4 of 38 1. General 1.1.General Information: Product Name : MP3 Player Series Model No. : MP-868W, MP-86XX The Model MP-868W is Similar To The Model Of Mp-86XX, They Have No Difference But Appearance. So All The Measurement Are Performed On the Model MP-868W FCC ID : PY9MP868WD001 Applicant : ELELUX INTERNATIONAL LTD 3f.103 Chow Tze Street, Nei-Hu District(114), Taipei Taiwan, R.O.C Manufacturer : Andah Electronics (Shenzhen) Ltd Tong Fuyu Industrial Park, Chongqing Road, Fuyong Town, Shenzhen (518103) Guangdong, China Regulation : CFR 47, Part 15.247 Subpart C 1.2.Place of Measurement Name of Firm : SOLID INDUSTRIAL (SHENZHEN) CO., LTD Site Location : #333, Bulonggong Road, Bantian Village, Longgang District, Shenzhen, China ® Report No.: SUTF0712050 Shenzhen Unitech Technology Co., Ltd. Page 5 of 38 2. Technical Test 2.1.Summary of Test Results The EUT has been tested according to the following specifications: Standard Test Type Result Notes FCC Part 15,Paragraph 15.203 Antenna Requirement PASS Complies FCC Part 15,Paragraph 15.107,15.207 Conducted Test PASS Complies FCC Part 15.205 Radiated Emission (Restricted Band Requirements) PASS Complies FCC Part 15.109,15.209 Radiated Emission (Spurious Emission) PASS Complies FCC Part 15 Subpart C Paragraph 15.247(a)(2) Spectrum Bandwidth (6dB Bandwidth Measurement) PASS Complies FCC Part 15 Subpart C Paragraph 15.247(b)(3) Maximum Peak Power PASS Complies FCC Part 15 Subpart C Paragraph 15.247(c) 100kHz Bandwidth of Frequency Band Edges PASS Complies FCC Part 15 Subpart C Paragraph 15.247(d) Peak Power Spectral Density PASS Complies *The digital circuit porting of the EUT has been tested and verified to comply with FCC Part 15, Subpart B., Class B Digital Devices and the associated Radio Receiver has also been tested and found to comply with FCC Part 15, Subpart B-Radio Receivers…

Text truncated - open the document above for the full version.

(1) Conducted Emission Test Photos (2) Radiated Emission Test Setup Photo (3) Radiated Emission Test Setup Photo (4) Radiated Emission Test Setup Photo
