PZ9-EB418X-WG1UDigital Video Recorder

User Manual V0.4 eDVR DS412 WEBGATE INC. 1 / 1 FCC Compliance Statement Caution : Any changes or modifications in construction of this device which are not expressly approved the party responsible for compliance could void the user's authority to operate the equipment. NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This Device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Disposal of used batteries according to the general recommendations against the environmental pollution. User Manual V0.4 eDVR DS412 Important Notice 1. When using DS412, do not put heavy monitor or others on DS412. 2. DS412 is indoor use and all the communication wirings are limited to inside of building. Therefore you should consider environmental specifications that are included in the manual. For DS412 cleaning, gently wipe the outside with a clean dry cloth. 3. Be sure to use a DC adapter that is provided by Web Gate Inc. Connecting DS412 directly to a AC current, may cause electric damages to DS412. 4. Be cautious of handling DS412. Physical shocks may harm the product. 5. DS412 is made with a metal case. When installing the camera, be sure it is attached securely to avoid any injures. Be careful to locate the camera where children cannot reach it 6. If DS412 does not operate properly, please contact the closest local WebGate distributor for after sales service. In all cases, you are prohibited to disassemble the product. If so, WebGate is not responsible for any malfunction nor service warranty. 7. Security surveillance laws may differ for each country. Therefore, please contact the local region first to avoid any surveillance law violations and to apply for authorized purposes only. WEBGATE INC. 2 / 2 User Manual V0.4 eDVR DS412 EDVR Manual Version : 0.4 Making Date : January, 28, 2003 Revision Date : February, 25, 2003 1. Install & Run 1.1. Descriptions A. Front Panel IEEE1394USB 1235647 1234 890+10ENTER MENU EXIT HELP WEBGATE ALARM DIGITAL VIDEO RECODER AX-100L Function selection button Channel selection button LED Direction/Replay button Remote controller receiver (1) Remote Controller Receiver (2) Channel Selection Button - To select video input channel in monitoring and playback mode (3) LED - PWR : To show power supplying status. “ON” means to supply power. - NET : To show the status of Ethernet and communication. It blinks as many as transmitted frames per second. - REC : To show frame recording status. It blinks as many as recording frame per second. - PLAY : To show playback mode. It blinks as many as replaying frame per second. - ALARM 1~4 (4) Function selection button - SEQ : To show with converting all connected video channels - MULTI : To show multi channels (4-9-16-13 divided screen) - SELECT : To select video channel for PTZ control - ZOOM : To show expanded image via one channel mode WEBGATE INC. 3 / 3 User Manual V0.4 eDVR DS412 - SEARCH : To search the recorded image in Playback mode (5) Direction/Replaying Button - MENU : To set PTZ and configuration menu - ENTER : To confirm the selected menu - HELP : - EXIT : To exit form the selected menu - Arrow key : Replay function or menu moving function B. Rear Panel COM2/RS232 1.RXD 2.TXD 3.GND 4.R+ 5.R- 6.T+ 7.T- 8.GND SENSOR IN ALARM OUTCOM1 RS232 RS422/485S1 S1 S1 S1 12345678 O1 O2 O3 04 +-+-+-+-+-+-+-+- AUDIO MIC LINE VIDEOVIDEO OUTPUTINPUT VCR MONITOR Ch3 Ch1 Ch4 Ch2 75ohm HI-Z 1234 OFF VIDEO NTSC PAL ON CONTROL REMOTE INPUT ETHERNET 10/100 IEEE1394 12 DC12V 3.5A POWER GND ON USB1 USB2 (1) Serial Port & DIO - Serial : RS232 9Pin D-Sub Connector & RS232/422/485 terminal block - Sensor In : 4 sensor inputs - Alarm Out : 4 Alarm Relay outputs (2) Audio In/Output - 1 audio input & 1 output (3) Video Output - 1 monitor output & 1 VCR output (4) Video Input - 4 video inputs (5) Ethernet (6) Power Serial port & DIO Video output Audio input Ethernet Power Video input WEBGATE INC. 4 / 4 User Manual V0.4 eDVR DS412 1.2. Connect Device A. Connect Video B. Connect Monitor C. Connect Ethernet D. Connect Audio E. Connect Power & Run 2. Monitor It is to monitor real time image. Ch. 1~4 are for analogue image input via BNC cable, and Ch. 5~16 are for digital image input of network camera via network. A. View basic screen (quad-split) (1) Supply power. (2) Power LED is on, and DVR starts booting. (3) After booting, basic screen (quad-split) shows. ※ If user password is set, a dialogue for entering password will be indicated. B. View full screen (1) Press the button of channel that user wants to view from multi screen (4/9/16/13). (2) When selecting one between channel 10 and 16, press the [+10] button at first then the other num…

Text truncated - open the document above for the full version.

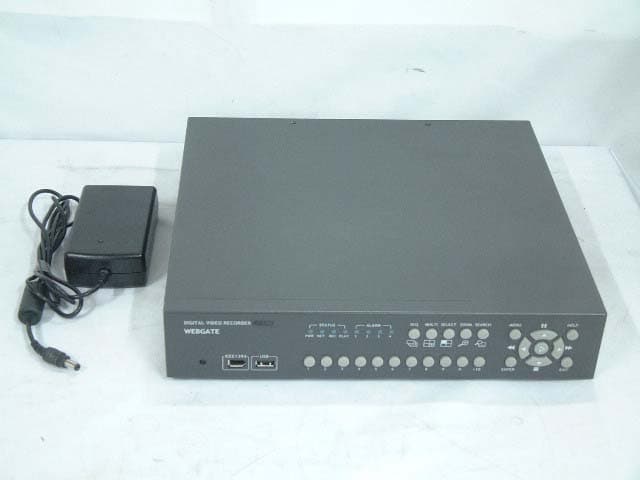

Test report Our reference : KEL03-F03023 Page : B1 of Appendix Issued date : 2003-04-14 Appendix-B : External Photographs of E.U.T <FRONT VIEW OF EUT> <REAR VIEW OF EUT>

Test report Our reference : KEL03-F03023 Page : D1 of Appendix Issued date : 2003-04-14 Appendix-D : FCC ID label location information and Sample - FCC ID label location information The label included following statement will be attached on the bottom side of product. - FCC ID label sample

Test report Our reference : KEL03-F03023 Page : C1 of Appendix Issued date : 2003-04-14 Appendix-C : Internal Photographs of E.U.T <INTERNAL VIEW OF E.U.T> Test report Our reference : KEL03-F03023 Page : C2 of Appendix Issued date : 2003-04-14 <FRONT VIEW OF MAIN BOARD> Test report Our reference : KEL03-F03023 Page : C3 of Appendix Issued date : 2003-04-14 <REAR VIEW OF MAIN BOARD> Test report Our reference : KEL03-F03023 Page : C4 of Appendix Issued date : 2003-04-14 <FRONT VIEW OF PANEL BOARD > Test report Our reference : KEL03-F03023 Page : C5 of Appendix Issued date : 2003-04-14 <REAR VIEW OF PANEL BOARD > Test report Our reference : KEL03-F03023 Page : C6 of Appendix Issued date : 2003-04-14 <FRONT VIEW OF HDD > Test report Our reference : KEL03-F03023 Page : C7 of Appendix Issued date : 2003-04-14 <REAR VIEW OF HDD > Test report Our reference : KEL03-F03023 Page : C8 of Appendix Issued date : 2003-04-14 <FRONT VIEW OF ADAPTER > Test report Our reference : KEL03-F03023 Page : C9 of Appendix Issued date : 2003-04-14 <REAR VIEW OF ADAPTER >

352 Youngduk-Ri, Kihung-Eup, Yongin-City, Kyunggi-Do, Korea 449-908 TEL : (82)31-206-4693 FAX : (82)31-206-3051 http://www.kesilab.com [email protected] http://www.koreaemc.co.kr [email protected] CERTIFICATE OF COMPLIANCE (CLASS B) CERTIFICATION OF COMPLIANCE is hereby issued to the named Applicant and is VALID ONLY for the equipment identified below: Date of Tested : Mar. 19. 2003 Applicant’s Name : WEBGATE INC. Applicant’s Address : 4F, Pika Bldg. 894-20, Hokye 2-dong, Dongan-ku, Anyang-si Kyunggi-do, Korea Manufacturer’s Name : WEBGATE INC. Manufacturer’s Address : 4F, Pika Bldg. 894-20, Hokye 2-dong, Dongan-ku, Anyang-si Kyunggi-do, Korea Declares that the product Product Description : DVR Brand Name : WEBGATE Model Number : DS412 FCC ID : PZ9-EB418X-WG1U Conforms to FCC Rules and Regulations Part 15 Subpart B requirements. This product herewith complies with the requirements of the FCC Rules and Regulations as listed below: Part 15.107: Conducted Emissions. Part 15.109: Radiated Spurious Emissions. TESTED and CERTIFIED by: KOREA EMC LABORATORY 352 Youngduk-Ri, Kihung-Eup, Yongin-Si, Kyunggi-Do, 449-908, KOREA Date :Apr. 14. 2003 Report No :KEL03-F03023 Authorized Signature : M. S. CHO / President Test report Our reference : KEL03-F03023 Page : 2 of 13 Issued date : 2003-04-14 TABLE OF CONTENTS DESCRIPTION Page 0. VERIFICATION OF COMPLIANCE 3 1. GENERAL INFORMATION 1.1 Product Description 4 1.2 Related Submittal(s)/Grant(s) 4 1.3 Tested System Details 4 1.4 System Configuration 4 1.5 General Setup of the test Shield room 5 1.6 Test Facility 5 2. Measurement Procedure 2.1 System test configuration 6 2.1.1 Video mode Justification 6 2.1.2 EUT Exercise S/W 6 2.2 Special Accessories 6 2.3 Equipment Modification 6 2.4 Connected Cable 6 2.5 System Configuration Diagram 6 2.6 Preliminary testing 7 2.7 Shielded Enclosure 7 2.8 Data Reporting Format 7 2.9 Operating Condition 7 2.10 Conditioning of the EUT 7 2.11 Power Line Conducted Emissions 8 2.12 Open field Radiated Emissions Tests 8 3. Measurement Data 3.1 Conducted Emission Data 9 3.2 Conducted Emission Graph 10 3.3 Radiated Emission Data 11 3.4 Summary 12 4. Labeling Requirement 13 Appendix - A : Test set-up Photographs (Conducted and Radiated) - B : External Photographs of E.U.T - C : Internal Photographs of E.U.T - D : FCC ID label location information and sample - E : Block Diagram Korea EMC Laboratory - F : User’s Manual Test report Our reference : KEL03-F03023 Page : 3 of 13 Issued date : 2003-04-14 0 . VERIFICATION OF COMPLIANCE Equipment Under Test : DVR Mo d e l N u m b e r : DS412 Serial Number : Prototype Manufacturer : WEBGATE INC. 4F, Pika Bldg. 894-20, Hokye 2-dong, Dongan-ku, Anyang-si Kyunggi-Do, Korea. Type of Test : FCC CLASS B Report Number : KEL03-F03023 Date Tested : Mar. 19. 2003 Tested By : H.S.CHOI The results show that the sample equipment tested as described in this reports is in compliance with the CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B. Korea EMC Laboratory Test report Our reference : KEL03-F03023 Page : 4 of 13 Issued date : 2003-04-14 1. GENERAL INFORMATION 1.1 PRODUCT DESCRIPTION T h e DS412 is a DVR ma d e b y WE B G A T E I N C . i n K o r e a . R e f e r t o t h e u s e r ' s ma n u a l f o r mo r e i n f o r m a t i o n . ITEM SPECIFICATION CPU 32 bit RISC Processor Flash memory 8 Mbyte MAIN Memory 32 Mbyte Recording Frame Rate 120 fps Dimension 306 X 280 X 167 mm 1.2 Related Submittal(s)/Grant(s) N/A 1.3 Tested System Details Type Model Name FCC ID Serial NO Manufacturer DVR DS412 PZ9-EB418X-WG1U Prototype WEBGATE INC. Adapter LSE9901B1260 Verification A20308210548 Li Shin International Enterprise Corp. NOTE PC SQ10 DoC A82691ET600040 SAMSUNG Adapter AD-4212(K) Verification BA44-30001A SAMSUNG Camera SNC-VL10 DoC NONE SONY CORP. Adapter MPA-AC1 Verification NONE SONY CORP. CCTV Monitor VA242NV DoC NONE Pu Won Co., Ltd. 1.4 System Configuration Korea EMC Laboratory Type Model Name Serial NO Manufacturer Remark MAIN B/D PANEL B/D HDD eDVR FRONT DiamondMax 16 NONE NONE R304CP9E WEBGATE INC. WEBGATE INC. MAXTOR PERIPHERALS(S) PTE., LTD. Korea Korea Singapore Test report Our reference : KEL03-F03023 Page : 5 of 13 Issued date : 2003-04-14 1.5 General Set-up of the Test Shielded Room The EUT was set up in accordance with the suggested configuration given in FCC measurement Procedure ANSI C63.4 2000. The measurement are performed in the shielded room which dimension is 3.0*7.0*2.5(m). The EUT was placed on a non conductive table which is 1.0*1.5(m), 80 cm above an earthed ground plane and is kept at least 1m from any other earthed ground plane except the rear of table top being removed 40 cm from a vertical conducting plane. Power to the EUT was provided through the LISN(ESH3-Z5, Rohde & Schwarz) which has the Impedance vs Frequency Characteristic in accordance with the conducted setup photographs in Appendix-A Impedance Characteristic of LISN. Peripheral equipment required to provide a functional system(support equipment) for EUT testing was powered through another LISN(KNW-407, KYORITSU). Power to the LISN was filtered to eliminate ambient signal interference. A coaxial type connector which provides a 50 Ohm terminating impedance was provided for the test instrument. The excess length of the power cord was wrapped in the two non metallic pegs attached to the top of the LISN. The two pegs are 9 cm high, approximately 2.0 cm in diameter and that are spaced 6 cm on the center apart. 1.6 Test Facility Location: Korea EMC Laboratory 352 Yungduck-Ri Kihung-Eup,Yongin-City Kyungki-Do,Korea Site : - 3/10m Open Fielded Radiated - Indoor Line Conducted Room(Shielded) The Open Field Radiated and Indoor Line Conducted sites are constructed and calibrated to meet the FCC requirements in documents ANSI C63.4 2000. Korea EMC Lab. was refiled in FCC in Feb. 2001. INSTRUMENTATION Description Model ManufacturerSerial No Due Cal. TEST RECEIVER ESVS10 Rohde & Schwarz 825120/0…

Text truncated - open the document above for the full version.

Test report Our reference : KEL03-F03023 Page : A1 of Appendix Issued date : 2003-04-14 Appendix-A : Test Setup Photographs - Conducted Setup Photographs LINE CONDUCTED SETUP PHOTOGRAPH - FRONT VIEW LINE CONDUCTED SETUP PHOTOGRAPH - REAR VIEW Test report Our reference : KEL03-F03023 Page : A2 of Appendix Issued date : 2003-04-14 - Radiated Setup Photograph RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 30 - 300 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 30 - 300 MHz ) Test report Our reference : KEL03-F03023 Page : A3 of Appendix Issued date : 2003-04-14 RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 300- 1000 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 300 - 1000 MHz )
