PZ9-WB106X-WG1KWEB SERVER CAMERA

WebEye B106 Manual Ver 1.1 WebEye B106 User’s Guide * This manual is for WebEye B106 firmware version 1.4.0. If your WebEye has the later version of firmware, please download the last updated user’s guide from WebGate’s homepage (www.webgateinc.com) WebGate Inc. System Requirements nn For WebEye • Network: 10 Base-T LAN (Leased line, xDSL, Cable Modem, ISDN) or PSTN nn For a PC to access WebEye • Processor: Pentium II and above • RAM: 64MB and more • OS: Windows 98/NT/2000 • Screen Resolution: 1024 X 768 pixels and above • Network: 10 Base-T LAN or PSTN • Web Browser: MS Internet Explorer 5.0 and above NS Navigator 4.7 and above WebEye B106WebEye B106 User’s Guide 2 Important Notice 1. WebEye B106 is not weatherproof. Please note the environmental specifications that are included in the manual. For outdoor usage, equip a weatherproof case to protect the WebEye B106 from water, moisture, or extreme temperature changes (higher or lower than the specifications noted below). The WebEye B106 can be cleaned by gently wiping with a clean dry cloth. 2. Be sure to use the DC adapter that is provided by Web Gate Inc. Connecting WebEye B106 directly to an AC current may cause damage to the WebEye. 3. Be cautious in handling WebEye B106 Physical shock such as dropping the unit may damage the WebEye B106 and void warranty. 4 The WebEye B106 is made of aluminum. Be sure that it is fastened tightly during installation to avoid any human injuries. Make sure to place away from the reach of children. 5. If WebEye B106 does not operate properly, please contact your WebGate distributor for after sales service. Unauthorized personnel are prohibited from disassembling the product. Disassembly will automatically result in void of service warranty. 6. Camera surveillance laws may differ for each country and from province to province. Contact the local region representative to avoid any violations and to apply for authorized purposes only. FCC Compliance Statement Caution : Any changes or modifications in construction of this device which are not expressly approved the party responsible for compliance could void the user's authority to operate the equipment. NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Disposal of used batteries according to the general recommendations against the environmental pollution. WebEye B106WebEye B106 User’s Guide 3 CONTENTS I. Introduction.............................................................................................................................5 II. Product Description................................................................................................................6 1. WebEye B106...............................................................................................................................................................6 1) Contents................................................................................................................................................................6 2) WebEye B106 View and Descriptions.............................................................................................................6 3) RS232/RS422/RS485 Descriptions.................................................................................................................7 4) Description on LED of Ethernet Port..............................................................................................................8 5) Descriptions on DIP Switches..........................................................................................................................8 III. WebEye B106 Installation Summary, Connection & Placing................................................9 1. Installation Summary..................................................................................................................................................9 2. Connecting....................................................................................................................................................................9 IV. Installing WebEye B106 Setup Program...............................................................................9 V. Assigning IP Address and Configuring Administrator’s Condition......................................10 1. Connecting WebEye B106 to a PC.........................................................................................................................10 1) Connecting WebEye B106 on Internet or LAN...........................................................................................10 2. Assigning IP address and Configuring administrator’s condition with Setup program.................................11 1) Starting Setup Program for WebEye B106...................................................................................................11 2) Configuring …

Text truncated - open the document above for the full version.

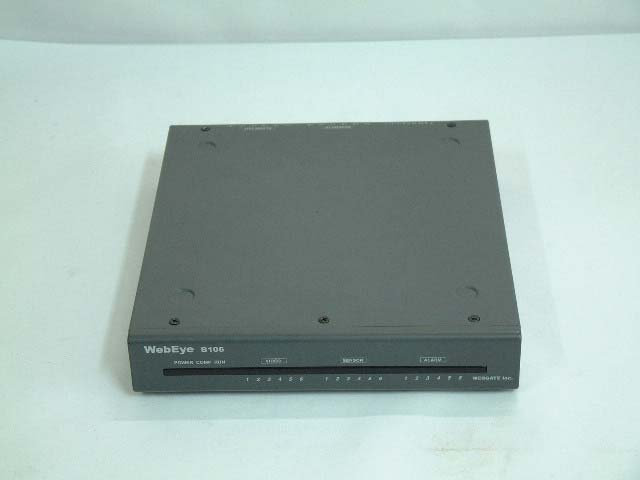

Appendix-B : External Photographs of E.U.T <FRONT VIEW OF EUT> <REAR VIEW OF EUT>

Test report Our reference : KEL02-F02006 Page : D1 of Appendix Issued date : 2002-02-18 Appendix-D : FCC ID label location information and Sample - FCC ID label location information The label included following statement will be attached on the bottom side of product. - FCC ID label sample

Test report Our reference : KEL02-F02006 Page : C1 of Appendix Issued date : 2002-02-18 Appendix-C : Internal Photographs of E.U.T <INTERNAL VIEW OF E.U.T> Test report Our reference : KEL02-F02006 Page : C2 of Appendix Issued date : 2002-02-18 <FRONT VIEW OF MAIN BOARD> <REAR VIEW OF MAIN BOARD>

CERTIFICATE OF COMPLIANCE 352 Youngduk-Ri, Kihung-Eup, Yongin-City, Kyunggi-Do, Korea 449-908 TEL : (82)31-206-4693 FAX : (82)31-206-3051 http://www.kesilab.com [email protected] http://www.koreaemc.co.kr [email protected] (CLASS B) CERTIFICATION OF COMPLIANCE is hereby issued to the named Applicant and is VALID ONLY for the equipment identified below: Date of Tested : Feb. 06. 2002 Applicant’s Name : WebGate Inc. Applicant’s Address : 4F, Pika Bldg. 894-20, Hokye 2-dong, Dongan-ku, Anyang-si Kyunggi-do, Korea Manufacturer’s Name : WebGate Inc. Manufacturer’s Address : 4F, Pika Bldg. 894-20, Hokye 2-dong, Dongan-ku, Anyang-si Kyunggi-do, Korea Declares that the product P ro d u c t D e s c r i p t i o n : Web Server Camera Brand Name : M o d e l N u m b e r : WebEye B106 FCC ID : PZ9-WB106X-WG1K Conforms to FCC Rules and Regulations Part 15 Subpart B requirements. This product herewith complies with the requirements of the FCC Rules and Regulations as listed below: Part 15.107: Conducted Emissions. Part 15.109: Radiated Spurious Emissions. TESTED and CERTIFIED by: KOREA EMC LABORATORY 352 Youngduk-Ri, Kihung-Eup, Yongin-Si, Kyunggi-Do, 449-908, KOREA Date : Feb. 18. 2002 Report No : KEL02-F02006 Authorized Signature : M. S. CHO / President TABLE OF CONTENTS Test report Our reference : KEL02-F02006 Page : 2 of 14 Issued date : 2002-02-18 Korea EMC Laboratory DESCRIPTION Page 0. VERIFICATION OF COMPLIANCE 3 1. GENERAL INFORMATION 1.1 Product Description 4 1.2 Related Submittal(s)/Grant(s) 4 1.3 Tested System Details 4 1.4 System Configuration 4 1.5 General Setup of the test Shield room 5 1.6 Test Facility 5 2. Measurement Procedure 2.1 System test configuration 6 2.1.1 Video mode Justification 6 2.1.2 EUT Exercise S/W 6 2.2 Special Accessories 6 2.3 Equipment Modification 6 2.4 System Configuration Diagram 6 2.5 Preliminary testing 7 2.6 Shielded Enclosure 7 2.7 Data Reporting Format 7 2.8 Operating Condition 7 2.9 Conditioning of the EUT 7 2.10 Power Line Conducted Emissions 8 2.11 Open field Radiated Emissions Tests 8 3. Measurement Data 3.1 Conducted Emission Data 9 3.2 Conducted Emission Graph 10 3.3 Radiated Emission Data 11 3.4 Summary 12 4. Labeling Requirement 13 Appendix - A : Test set-up Photographs (Conducted and Radiated) - B : External Photographs of E.U.T - C : Internal Photographs of E.U.T - D : FCC ID label location information and sample - E : Block Diagram - F : User’s Manual Test report Our reference : KEL02-F02006 Page : 3 of 14 Issued date : 2002-02-18 Korea EMC Laboratory 0 . VERIFICATION OF COMPLIANCE Equipment Under Test : Web Server Camera Model Number : WebEye B106 Serial Number : Prototype Manufacturer : WebGate Inc. 4F, Pika Bldg. 894-20, Hokye 2-dong, Dongan-ku, Anyang-si Kyunggi-do, Korea Type of Test : FCC CLASS B Report Number : KEL02-F02006 Date Tested : Feb. 06. 2002 Tested By : S. J. KIM The results show that the sample equipment tested as described in this reports is in compliance with the CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B. Test report Our reference : KEL02-F02006 Page : 4 of 14 Issued date : 2002-02-18 Korea EMC Laboratory 1. GENERAL INFORMATION 1.1 PRODUCT DESCRIPTION The WebEye B106 is a Web Server Camera made by WebGate Inc. in Korea. Refer to the user's manual for more information. ITEM SPECIFICATION Resolution 720 x 486 Performance Transfer Rate Max. 120fps (With 3KB image) Max. 30fps(NTSC) / 25 fps(PAL) (on 360X243) Decoding Rate 2 ~ 30fps Local Compression rate Max. 30fps/1Ch, 6fps/6Ch Dimension (LxWxH) 40 x 220 x 240 mm 1.2 Related Submittal(s)/Grant(s) N/A 1.3 Tested System Details Type Model Name FCC ID Serial NO Manufacturer Web Server Camera WebEye B106 PZ9-WB106X-WG1K P r o t o t y p e WebGate Inc. Adapter PW118 KA1202F52 AULT INC. PC VECTRA VL 400MT DoC SG05005352 HP Monitor G790 GSS19001 M885200416 ViewSonic Corp. K e y b o a r d S E M - D T 3 5 ITEUECUM550P 3 T 0 3 6 3 2 2 S A M SUNG Mouse UM520 P9J17346 Hyunju Network Camera Server We b E y e E 1 0 0 NONE WebGate Inc. Adapter A41275G NONE SINO American 1.4 System Configuration Type Model Name Serial NO Manufacturer Remark Main B/D B106 NONE WebGate Inc. Korea Test report Our reference : KEL02-F02006 Page : 5 of 14 Issued date : 2002-02-18 Korea EMC Laboratory 1.5 General Set-up of the Test Shielded Room The EUT was set up in accordance with the suggested configuration given in FCC measurement Procedure ANSI C63.4, 1992. The measurement are performed in the shielded room which dimension is 3.0*7.0*2.5(m). The EUT was placed on a non conductive table which is 1.0*1.5(m), 80cm above an earthed ground plane and is kept at least 1m from any other earthed ground plane except the rear of table top being removed 40cm from a vertical conducting plane. Power to the EUT was provided through the LISN(3725/2,EMCO) which has the Impedance vs Frequency Characteristic in accordance with the Fig.1 Impedance Characteristic of LISN. Peripheral equipment required to provide a functional system(support equipment) for EUT testing was powered through another LISN(NSLK8128,Schwarzbeck). Power to the LISN was filtered to eliminate ambient signal interference. A coaxial type connector which provides a 50 Ohm terminating impedance was provided for the test instrument. The excess length of the power cord was wrapped in the two non metallic pegs attached to the top of the LISN. The two pegs are 9cm high, approximately 2.0cm in diameter and that are spaced 6cm on the center apart. 1.6 Test Facility Location: Korea EMC Laboratory 352 Yungduck-Ri Kihung-Eup,Yongin-City Kyungki-Do,Korea Site : - 3/10m Open Fielded Radiated - Indoor Line Conducted Room(Shielded) The Open Field Radiated and Indoor Line Conducted sites are constructed and calibrated to meet the FCC requirements in documents ANSI C63.4 1992. Korea EMC Lab. was refiled in FCC in Feb. 2001. INSTRUMENTATION Description Model Manufacturer Serial No Due Cal. TEST RECEIVER SPECTRUM ANALYZER ESVS10 ESH-2 ESP…
