Test report Our reference : KEL03-F07042 Page : B1 of Appendix Issued date : 2003-08-20 Appendix-B : External Photographs of E.U.T <FRONT VIEW OF EUT> Korea EMC Laboratory <REAR VIEW OF EUT>

Test report Our reference : KEL03-F07042 Page : D1 of Appendix Issued date : 2003-08-20 Appendix-D : FCC ID label location information and Sample - FCC ID label location information The label included following statement will be attached on the bottom side of product. - FCC ID label sample

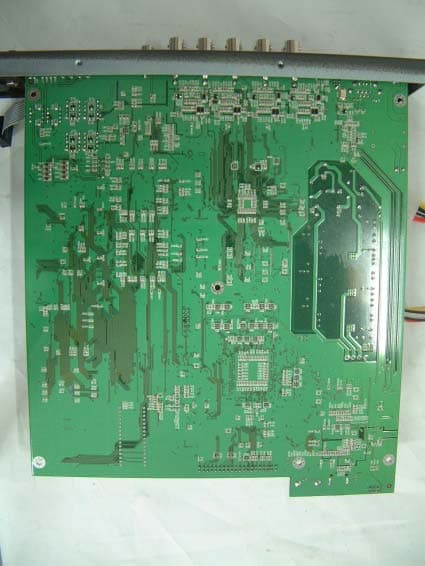

Test report Our reference : KEL03-F07042 Page : C1 of Appendix Issued date : 2003-08-20 Appendix-C : Internal Photographs of E.U.T <INTERNAL VIEW OF E.U.T> Korea EMC Laboratory Test report Our reference : KEL03-F07042 Page : C2 of Appendix Issued date : 2003-08-20 <FRONT VIEW OF MAIN BOARD> Korea EMC Laboratory Test report Our reference : KEL03-F07042 Page : C3 of Appendix Issued date : 2003-08-20 <REAR VIEW OF MAIN BOARD> Korea EMC Laboratory Test report Our reference : KEL03-F07042 Page : C4 of Appendix Issued date : 2003-08-20 <FRONT VIEW OF PANEL BOARD > Korea EMC Laboratory Test report Our reference : KEL03-F07042 Page : C5 of Appendix Issued date : 2003-08-20 <REAR VIEW OF PANEL BOARD > Korea EMC Laboratory Test report Our reference : KEL03-F07042 Page : C6 of Appendix Issued date : 2003-08-20 <FRONT VIEW OF HDD > Korea EMC Laboratory Test report Our reference : KEL03-F07042 Page : C7 of Appendix Issued date : 2003-08-20 <REAR VIEW OF HDD > Korea EMC Laboratory Test report Our reference : KEL03-F07042 Page : C8 of Appendix Issued date : 2003-08-20 <FRONT VIEW OF ADAPTER > Korea EMC Laboratory Test report Our reference : KEL03-F07042 Page : C9 of Appendix Issued date : 2003-08-20 <REAR VIEW OF ADAPTER > Korea EMC Laboratory

352 Youngduk-Ri, Kihung-Eup, Yongin-City, Kyunggi-Do, Korea 449-908 TEL : (82)31-206-4693 FAX : (82)31-206-3051 http://www.kesilab.com [email protected] http://www.koreaemc.co.kr [email protected] CERTIFICATE OF COMPLIANCE (CLASS B) CERTIFICATION OF COMPLIANCE is hereby issued to the named Applicant and is VALID ONLY for the equipment identified below: Date of Tested : Aug. 18. 2003 Applicant’s Name : WEBGATE Inc. Applicant’s Address : 6F, Hanlim Venture Town B/D, 689-6 Geumjeong-Dong, Gunpo-si, Gyeonggi-do, Korea. (435-862) Manufacturer’s Name : WEBGATE Inc. Manufacturer’s Address : 6F, Hanlim Venture Town B/D, 689-6 Geumjeong-Dong, Gunpo-si, Gyeonggi-do, Korea. (435-862) Declares that the product Product Description : DVR Brand Name : WEBGATE Model Number : DS800 FCC ID : PZ9-EB808X-WG1U Conforms to FCC Rules and Regulations Part 15 Subpart B requirements. This product herewith complies with the requirements of the FCC Rules and Regulations as listed below: Part 15.107: Conducted Emissions. Part 15.109: Radiated Spurious Emissions. TESTED and CERTIFIED by: KOREA EMC LABORATORY 352 Youngduk-Ri, Kihung-Eup, Yongin-Si, Kyunggi-Do, 449-908, KOREA Date :Aug. 20. 2003 Report No :KEL03-F07042 Authorized Signature : M. S. CHO / President Test report Our reference : KEL03-F07042 Page : 2 of 13 Issued date : 2003-08-20 TABLE OF CONTENTS DESCRIPTION Page 0. VERIFICATION OF COMPLIANCE 3 1. GENERAL INFORMATION 1.1 Product Description 4 1.2 Related Submittal(s)/Grant(s) 4 1.3 Tested System Details 4 1.4 System Configuration 4 1.5 General Setup of the test Shield room 5 1.6 Test Facility 5 2. Measurement Procedure 2.1 System test configuration 6 2.1.1 Video mode Justification 6 2.1.2 EUT Exercise S/W 6 2.2 Special Accessories 6 2.3 Equipment Modification 6 2.4 Connected Cable 6 2.5 System Configuration Diagram 6 2.6 Preliminary testing 7 2.7 Shielded Enclosure 7 2.8 Data Reporting Format 7 2.9 Operating Condition 7 2.10 Conditioning of the EUT 7 2.11 Power Line Conducted Emissions 8 2.12 Open field Radiated Emissions Tests 8 3. Measurement Data 3.1 Conducted Emission Data 9 3.2 Conducted Emission Graph 10 3.3 Radiated Emission Data 11 3.4 Summary 12 4. Labeling Requirement 13 Appendix - A : Test set-up Photographs (Conducted and Radiated) - B : External Photographs of E.U.T - C : Internal Photographs of E.U.T - D : FCC ID label location information and sample - E : Block Diagram Korea EMC Laboratory - F : User’s Manual Test report Our reference : KEL03-F07042 Page : 3 of 13 Issued date : 2003-08-20 0 . VERIFICATION OF COMPLIANCE Equipment Under Test : DVR Mo d e l N u m b e r : DS800 Serial Number : Prototype Manufacturer : WEBGATE Inc. 6F, Hanlim Venture Town B/D, 689-6 Geumjeong-Dong, Gunpo-si, Gyeonggi-do, Korea. (435-862). Type of Test : FCC CLASS B Report Number : KEL03-F07042 Date Tested : Aug. 18. 2003 Tested By : Y.H.KIM The results show that the sample equipment tested as described in this reports is in compliance with the CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B. Korea EMC Laboratory Test report Our reference : KEL03-F07042 Page : 4 of 13 Issued date : 2003-08-20 1. GENERAL INFORMATION 1.1 PRODUCT DESCRIPTION T h e DS800 is a DVR ma d e b y WE B G A T E I n c . i n K o r e a . R e f e r t o t h e u s e r ' s ma n u a l f o r mo r e i n f o r m a t i o n . ITEM SPECIFICATION Power DC 12 V CPU 32 bit RISC Processor Flash Memory 8 MB MAIN Memory 64 MB Refreshing performance Max. 60 ips Dimension 306 X 280 X 60 mm 1.2 Related Submittal(s)/Grant(s) N/A 1.3 Tested System Details Type Model Name FCC ID Serial NO Manufacturer DVR DS800 PZ9-EB808X-WG1U Prototype WEBGATE Inc. Adapter LSE9901B1260 Verification A20308210548 Li Shin International Enterprise Corp. NOTE PC SQ10 DoC A82691ET600040 SAMSUNG Adapter AD-4212(K) Verification BA44-30001A SAMSUNG Camera MCC4041ND DoC NONE Mythos Adapter DR-12300 Verification NONE Dream CRT VA242NV DoC NONE Pu Won Co., Ltd. 1.4 System Configuration Korea EMC Laboratory Type Model Name Serial NO Manufacturer Remark MAIN B/D PANEL B/D HDD DS800 DS800 FRONT DiamondMax 16 NONE NONE R30BVEJE WEBGATE Inc. WEBGATE Inc. Maxtor Corp. Korea Korea Singapore Test report Our reference : KEL03-F07042 Page : 5 of 13 Issued date : 2003-08-20 1.5 General Set-up of the Test Shielded Room The EUT was set up in accordance with the suggested configuration given in FCC measurement Procedure ANSI C63.4 2000. The measurement are performed in the shielded room which dimension is 3.0*7.0*2.5(m). The EUT was placed on a non conductive table which is 1.0*1.5(m), 80 cm above an earthed ground plane and is kept at least 1m from any other earthed ground plane except the rear of table top being removed 40 cm from a vertical conducting plane. Power to the EUT was provided through the LISN(NSLK8128, SCHWARZBECK) which has the Impedance vs Frequency Characteristic in accordance with the conducted setup photographs in Appendix-A Impedance Characteristic of LISN. Peripheral equipment required to provide a functional system(support equipment) for EUT testing was powered through another LISN(KNW-407, KYORITSU). Power to the LISN was filtered to eliminate ambient signal interference. A coaxial type connector which provides a 50 Ohm terminating impedance was provided for the test instrument. The excess length of the power cord was wrapped in the two non metallic pegs attached to the top of the LISN. The two pegs are 9 cm high, approximately 2.0 cm in diameter and that are spaced 6 cm on the center apart. 1.6 Test Facility Location: Korea EMC Laboratory 352 Yungduck-Ri Kihung-Eup,Yongin-City Kyungki-Do,Korea Site : - 3/10m Open Fielded Radiated - Indoor Line Conducted Room(Shielded) The Open Field Radiated and Indoor Line Conducted sites are constructed and calibrated to meet the FCC requirements in documents ANSI C63.4 2000. Korea EMC Lab. was refiled in FCC in Feb. 2001. INSTRUMENTATION Description Model Manufacturer Serial No Due Cal. TEST RECEIVER ESVS1…

Text truncated - open the document above for the full version.

Test report Our reference : KEL03-F07042 Page : A1 of Appendix Issued date : 2003-08-20 Appendix-A : Test Setup Photographs - Conducted Setup Photographs LINE CONDUCTED SETUP PHOTOGRAPH - FRONT VIEW LINE CONDUCTED SETUP PHOTOGRAPH - REAR VIEW Korea EMC Laboratory Test report Our reference : KEL03-F07042 Page : A2 of Appendix Issued date : 2003-08-20 - Radiated Setup Photograph RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 30 - 300 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 30 - 300 MHz ) Test report Our reference : KEL03-F07042 Page : A3 of Appendix Issued date : 2003-08-20 RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 300- 1000 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW Korea EMC Laboratory ( 300 - 1000 MHz )
