Q2O-N150AWSMPAmplified Wireless Streaming Music Player

                                ဆငစဆ             2 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS FOR LATER USE FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE AUDIO EQUIPMENT. 1.Read instructions - All the safety and operating instructions should be read before the product is operated. 2.Retain instructions - The safety and operating instructions should be retained for future reference. 3.Heed Warnings - All warnings on the product and in the operating instructions should be adhered to. 4.Follow Instructions - All operating and use instructions should be followed. 5.Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Clean only with dry cloth. 6.Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards. 7.Water and Moisture - Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. 8.Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. 9.A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 10.Ventilation - Slots and openings in the cabinet are provided for ventilation an to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. 11.Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. The primary method of isolating the amplifier from the mains supply is to disconnect the mains plug. Ensure that the mains plug remains accessible at all times. Unplug the AC power cord from the AC outlet if the unit will not be used for several months or more. The socket-outlet shall be installed near the equipment and shall be easily accessible. 12.Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. 13.Power Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. 3 IMPORTANT SAFETY INSTRUCTIONS 14.Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. 15.Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power line surges. 16.Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 17.Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 18.Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. WARNING: THE APPARATUS SHOULD NOT BE EXPOSED TO DRIPPING OR SPLASHING, AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THE APPARATUS. AS WITH ANY ELECTRONIC PRODUCTS, USE CARE NOT TO SPILL LIQUIDS INTO ANY PART OF THE SYSTEM. LIQUIDS CAN CAUSE A FAILURE AND/OR A FIRE HAZARD. 19.Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: aWhen the power supply cord or plug is damaged. bIf liquid has been spilled, or objects have fallen into the product. cIf the product has been exposed to rain or water. dIf the product does not operate normally by following the operating instructions. Adjust o…

Text truncated - open the document above for the full version.

FCC ID: Q2O-N150AWSMP

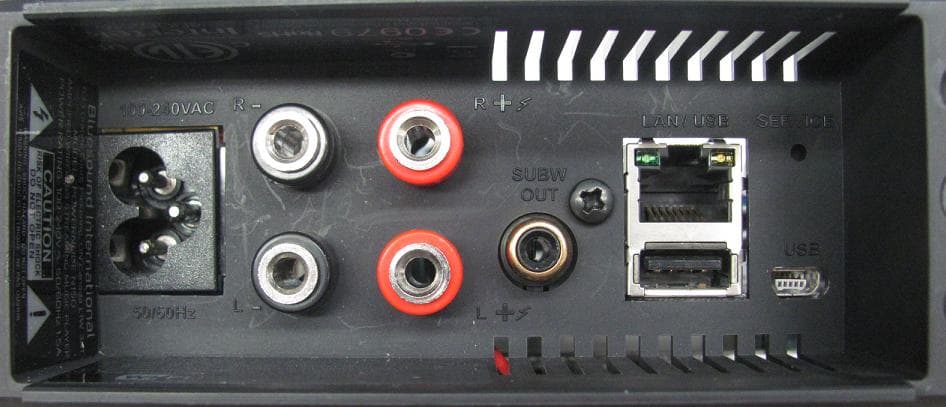

INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B- N150AWSMP Equipment Photographs Model : POWERNODE N150 (External) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B- N150AWSMP Equipment Photographs Model : POWERNODE N150 (External)

10 IDENTIFICATION OF CONTROLS Labels location

INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal) INTERTEK TESTING SERVICE Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Equipment Photographs Model: POWERNODE N150 (Internal)

INTERTEK TESTING SERVICES Report No.: HK12090489-1 Sample No.: 1/1 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass/Fail) 802.11b (DSSS, 11Mbps) Lower bandedge = 100.6 – 40.4 = 60.2 dBμV/m @3m < 74dBuV/m @3m (Peak spurious limit) Lower bandedge = 70.4 – 40.4 = 30.0 dBμV/m @3m < 54dBuV/m @3m (Average spurious limit) 802.11b (DSSS, 11Mbps) Upper bandedge = 102.5 – 47.8 = 54.7 dBμV/m @3m < 74dBuV/m @3m (Peak spurious limit) Upper bandedge = 71.4 – 47.8 = 23.6 dBμV/m @3m < 54dBuV/m @3m (Average spurious limit) INTERTEK TESTING SERVICES Report No.: HK12090489-1 Sample No.: 1/1 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass/Fail) 802.11g (OFDM, 54Mbps) Lower bandedge = 100.2 – 37.3 = 62.9 dBμV/m @3m < 74dBuV/m @3m (Peak spurious limit) Lower bandedge = 70.2 – 37.3 = 32.9 dBμV/m @3m < 54dBuV/m @3m (Average spurious limit) 802.11g (OFDM, 54Mbps) Upper bandedge = 101.5 – 43.1 = 58.4 dBμV/m @3m < 74dBuV/m @3m (Peak spurious limit) Upper bandedge = 70.6 – 43.1 = 27.5 dBμV/m @3m < 54dBuV/m @3m (Average spurious limit) INTERTEK TESTING SERVICES Report No.: HK12090489-1 Sample No.: 1/1 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass/Fail) 802.11n (OFDM, 65Mbps, 20MHz) Lower bandedge = 98.6 – 38.9 = 59.7 dBμV/m @3m < 74dBuV/m @3m (Peak spurious limit) Lower bandedge = 64.8 – 38.9 = 25.9 dBμV/m @3m < 54dBuV/m @3m (Average spurious limit) 802.11n (OFDM, 65Mbps, 20MHz) Upper bandedge = 100.8 – 45.3 = 55.5 dBμV/m @3m < 74dBuV/m @3m (Peak spurious limit) Upper bandedge = 68.4 – 45.3 = 23.1 dBμV/m @3m < 54dBuV/m @3m (Average spurious limit)

INTERTEK TESTING SERVICES Report No.: HK12090489-1 Sample No.: 1/1 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Tx (worse case) EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 159 kHz 59.69 L1 -5.82 2 CISPR Average159 kHz 39.70 L1 -15.81 1 Quasi Peak 231 kHz 53.41 N -8.99 2 CISPR Average231 kHz 33.71 N -18.69 1 Quasi Peak 312 kHz 42.72 N -17.19 1 Quasi Peak 429 kHz 29.89 L1 -27.37 2 CISPR Average843 kHz 35.62 N -10.37 2 CISPR Average2.5305 MHz 34.61 N -11.38 1 Quasi Peak 4.218 MHz 36.22 N -19.77 2 CISPR Average4.218 MHz 36.34 N -9.65 1 Quasi Peak 7.593 MHz 42.35 L1 -17.64 2 CISPR Average7.593 MHz 42.34 L1 -7.65 1 Quasi Peak 9.276 MHz 39.57 L1 -20.42 2 CISPR Average10.968 MHz 45.78 L1 -4.21 1 Quasi Peak 14.343 MHz 47.13 L1 -12.86 2 CISPR Average14.343 MHz 46.29 L1 -3.70 2 CISPR Average19.4055 MHz 46.81 L1 -3.18 1 Quasi Peak 20.2515 MHz 48.31 L1 -11.68 2 CISPR Average25.314 MHz 45.43 N -4.56 1 Quasi Peak 28.689 MHz 48.89 N -11.10 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Conducted Plot – Pursuant to FCC Part 15 Requirement (Pass/Fail)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12090489-1 Lenbrook Industries Limited Application For Certification (Original Grant) (FCC ID: Q2O-N150AWSMP) (IC: 152B-N150AWSMP) Transceiver Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: December 24, 2012 INTERTEK TESTING SERVICES Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP i GENERAL INFORMATION Lenbrook Industries Limited BRAND NAME: Bluesound, MODEL: POWERNODE N150 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Grantee: Lenbrook Industries Limited Grantee Address: Room D, 11 th Floor, Wing Cheong Commercial Building, 19-25 Jervois Street, Central, Hong Kong. Contact Person: Jes Arcenal Tel: 852-2517 8292 Fax: 852-2517 4404 e-mail: [email protected] Manufacturer: Dongguan Kwan Hong Electronics Co., Ltd. Manufacturer Address: KwanHong Building, Xiao Bian 2 nd Industrial Zone, ChangAn, DongGuan, China. Brand Name: Bluesound Model: POWERNODE N150 Type of EUT: Transceiver Description of EUT: Amplified Wireless Streaming Music Player Serial Number: N/A FCC ID / IC: Q2O-N150AWSMP / 152B-N150AWSMP Date of Sample Submitted: September 17, 2012 Date of Test: October 10, 2012 Report No.: HK12090489-1 Report Date: December 24, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP ii SUMMARY OF TEST RESULT Lenbrook Industries Limited BRAND NAME: Bluesound, MODEL: POWERNODE N150 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.6 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 Pass Transmitter Field Strength 15.227 / RSS-310 3.8 N/A Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Emissions 15.109 / RSS-210 2.5 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 2 1.3 Test Methodology ......................................................................................... 2 1.4 Test Facility .................................................................................................. 2 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 3 2.4 Equipment Modification................................................................................. 3 2.5 Measurement Uncertainty ............................................................................. 3 2.6 Support Equipment List and Descr…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: POWERNODE N150 INTERTEK TESTING SERVICE Report No: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) Model: POWERNODE N150 INTERTEK TESTING SERVICE Report No: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model: POWERNODE N150

INTERTEK TESTING SERVICE Report No: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: POWERNODE N150 HK12090489-1 POWERNODE N150 Side A INTERTEK TESTING SERVICE Report No: HK12090489-1 FCC ID: Q2O-N150AWSMP IC: 152B-N150AWSMP Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: POWERNODE N150 HK12090489-1 POWERNODE N150 Side B
