ENGL ISH Owner’s Manual BSW150 Network Powered Subwoofer IMPORTANT SAFETY INSTRUCTIONS • Read instructions - All the safety and operating instructions should be read before the product is operated. • Retain instructions - The safety and operating instructions should be retained for future reference. • Heed Warnings - All warnings on the product and in the operating instructions should be adhered to. • Follow Instructions - All operating and use instructions should be followed. • Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning. • Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards. • Water and Moisture - Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. • Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. • Cart - A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. • Ventilation - Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. • Power Sources - This product should be operated only from the type of power source indicated on the marking label and connected to a MAINS socket outlet with a protective earthing connection. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. • Power–Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. • Mains Plug - Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. • Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. • Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. • Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. • Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. • Flame Sources - No naked flame sources, such as lighted candles, should be placed on the product. • Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. • Headphones - Excessive sound pressure form earphones and headphones can cause hearing loss. • Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: – When the power-supply cord or plug is damaged. – If liquid has been spilled, or objects have fallen into the product. – If the product has been exposed to rain or water. – If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. – If the product has been dropped or damaged in any way. – When the product exhibits a distinct change in performance-this indicates a need for service. • Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. • Battery Disposal - When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country or area. • Safety Check - Upon completion of any service or repairs to this product, ask the service t…

Text truncated - open the document above for the full version.

WIRELESS POWERED SUBWOOFER OWNER’S MANUAL WELCOME TO #LIVINGHIFI Included Accessessories Thank you for purchasing your PULSE SUB+. It’s the perfect addition to your wireless or wired Bluesound system. Created to be a modern, robust, and integral part of your listening experience, the SUB+ brings deep, tight, and expressive musicality to any Bluesound setup. JUST ADD BASS. It’s really that simple. Use the BluOS App to quickly setup and pair the SUB+. With BluOS onboard, you benefit from letting the world’s leading hi-res multiroom system help you connect your SUB+ wirelessly to any other Bluesound Player, with simple and intuitive App controls for volume, crossover, and phase delay. Easy software control means better options and more precision as you dial in the best settings for your ideal listening experience. PLACE IT ANYWHERE. We truly believe that a subwoofer doesn’t have to be as large as the furniture you sit on. The SUB+ is a from-scratch design created to pair practicality and performance in one elegant product. The design approach focuses on maximum output from minimal footprint, built to blend into any room and any décor. The result is a sleek, compact, and incredibly versatile product that satisfies in both performance and aesthetics. ADD IT ALL UP. When you add up the BluOS smarts, the 8” driver, the 150W Smart DSP Amplifer, and the versatility in placement and connection options, it’s not hard to see the SUB+ as a fundamental addition to your entertainment setup. With tight, dynamic power and a depth that evokes pure emotion, listening to your favorite music, movies, shows, and videos has never felt so good. This Owner’s Manual will provide you a more detailed overview of PULSE SUB+ features. It also includes some troubleshooting tips and tricks and networking best practices. The Quick Setup Guide included with your SUB+ will help you get it on the network and paired with another Player. If you need more help or information, please visit support.bluesound.com or send us an email at [email protected] Magnetic Rubber Feet Wall Mount Bracket 2 IMPORTANT SAFETY INSTRUCTIONS • Read instructions - All the safety and operating instructions should be read before the product is operated. • Retain instructions - The safety and operating instructions should be retained for future reference. • Heed Warnings - All warnings on the product and in the operating instructions should be adhered to. • Follow Instructions - All operating and use instructions should be followed. • Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning. • Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards. • Water and Moisture - Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. • Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. • Cart - A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. • Ventilation - Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. • Power Sources - This product should be operated only from the type of power source indicated on the marking label and connected to a MAINS socket outlet with a protective earthing connection. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. • Power–Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. • Mains Plug - Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. • Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. • Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. • Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touch…

Text truncated - open the document above for the full version.

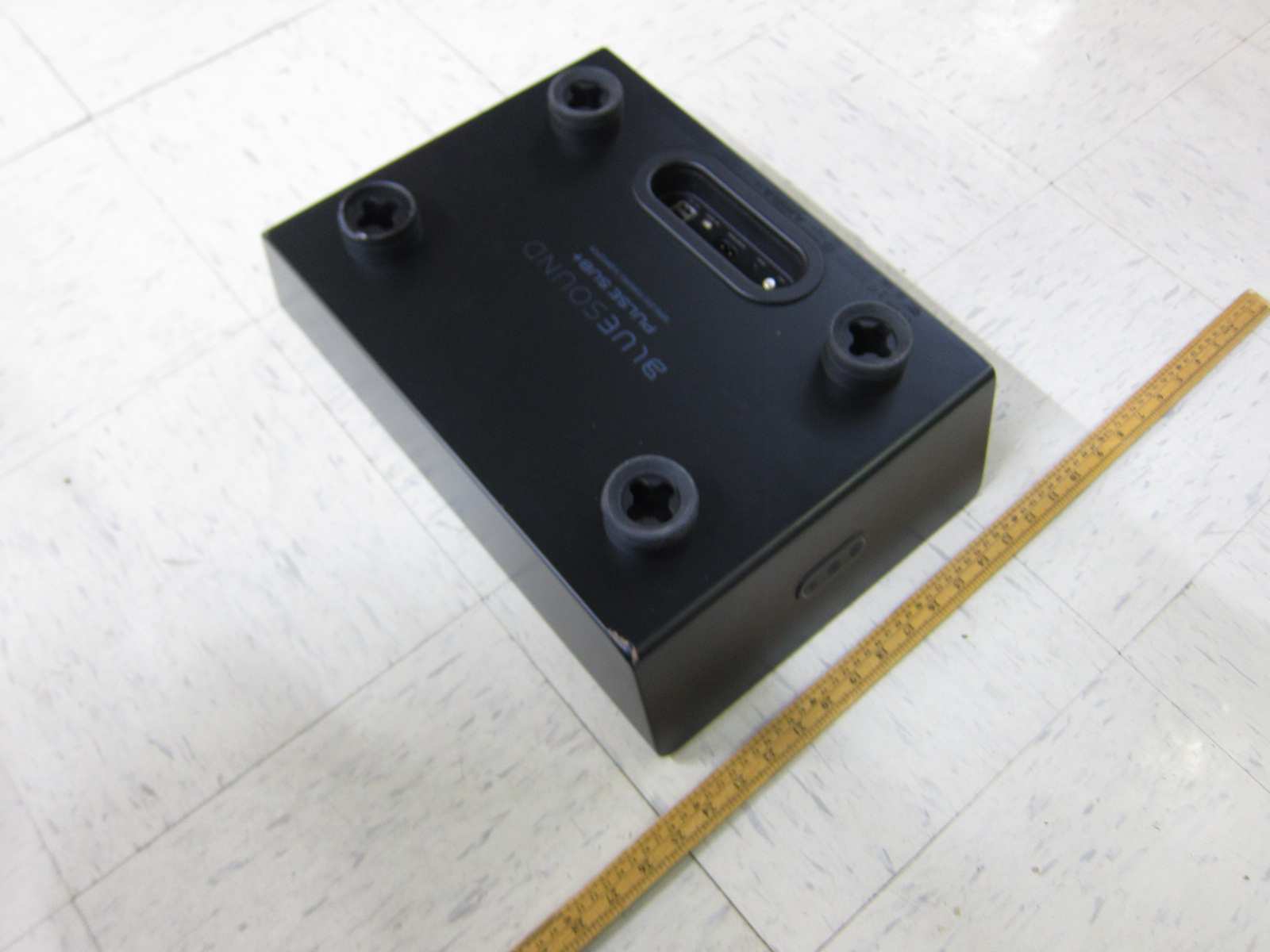

INTERTEK TESTING SERVICE Report No.: HK20080597 Equipment Photographs (External)

447mm 285mm 447mm 285mm

INTERTEK TESTING SERVICE Report No.: HK20080597 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20080597 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20080597 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20080597 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20080597 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20080597 Equipment Photographs (Internal)

INTERTEK TESTING SERVICE FCC ID: Q2O-PSUBPBSW150 IC: 152B-PSUBPBSW150 MPE Analysis Report The Equipment Under Test (EUT) is WIRELESS POWERED SUBWOOFER (Model/HVIN: PULSE SUB+) which contains a WLAN (WiFi) module for networking and control. The EUT has internal power amplifiers and loudspeaker. For Maximum Permissible Exposure (MPE) evaluation of the unit, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the 2.4GHz WiFi portion of the unit, the measured powers among all the measured channels were within its production tolerance. The antenna gain is 2 dBi = 1.58 (num gain) and its maximum source-based time-averaging duty factor is 100%. From these data and its operating configuration, the exposed power density at a distance (R) of 20 cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The EIRP radiated power = conducted power (with maximum tolerance) + antenna gain = (12.8 + 3) + 2 dBm = 17.8 dBm (60.3 mW) The radiated (EIRP) source-based time-averaging output power = (60.3 * 1) mW = 60.3 mW The power density at 20 cm from the antenna = EIRP / 4 πR^2 = 0.012 mW cm-2 For the 5GHz WiFi portion of the unit, the measured powers among all the measured channels were within its production tolerance. The antenna gain is 2 dBi = 1.58 (num gain) and its maximum source-based time-averaging duty factor is 100%. From these data and its operating configuration, the exposed power density at a distance (R) of 20 cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The EIRP radiated power = conducted power (with maximum tolerance) + antenna gain = (9.2 + 3) + 2 dBm = 14.2 dBm (26.3 mW) The radiated (EIRP) source-based time-averaging output power = (26.3 * 1) mW = 26.3 mW The power density at 20 cm from the antenna = EIRP / 4 πR^2 = 0.0052 mW cm-2 INTERTEK TESTING SERVICE FCC ID: Q2O-PSUBPBSW150 IC: 152B-PSUBPBSW150 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm-2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the unit at least 20cm from nearby persons.”

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 52 TEST REPORT Report No.: 20080597HKG‐002R1 Lenbrook Industries Limited Application for Original Grant of 47 CFR Part 15 Certification New Family of RSS‐247 Issue 2 Equipment This report contains the data of 5GHz WLAN (WiFi) portion only FCC ID: Q2O‐PSUBPBSW150 IC: 152B‐PSUBPBSW150 This report supersedes previous report with report number 20080597HKG‐002 dated November 16, 2020. Please refer ICT‐S20‐0021 Letter issued on December 17, 2020 for amendment/ supersede notification. Prepared and Checked by: Approved by: Signed On File Chan Hin Man, Oscar Assistant Engineer Lee Shui Tim, Tim Assistant Supervisor Date: December 17, 2020 TEST REPORT Lenbrook Industries Limited Intertek Report No: 20080597HKG‐002R1 Page 2 of 52 GENERAL INFORMATION Applicant Name: Lenbrook Industries Limited Applicant Address: 633 Granite Court, Pickering, ON Canada L1W 3K1 FCC Specification Standard: FCC Part 15, October 1, 2019 Edition FCC ID: Q2O‐PSUBPBSW150 FCC Model(s): PULSE SUB+, BSW150 IC Specification Standard: RSS‐247 Issue 2, February 2017 RSS‐Gen Issue 5 Amendment 1, March 2019 IC: 152B‐PSUBPBSW150 PMN: PULSE SUB+, BSW150 HVIN: PULSE SUB+, BSW150 Type of EUT: Spread Spectrum Transmitter Description of EUT: WIRELESS POWERED SUBWOOFER (PULSE SUB+), NETWORK POWERED SUBWOOFER (BSW150) Serial Number: N/A Sample Receipt Date: October 01, 2020 Date of Test: October 01, 2020 to November 16, 2020 Report Date: December 17, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 / RSS‐247 Issue 2 Certification. TEST REPORT Lenbrook Industries Limited Intertek Report No: 20080597HKG‐002R1 Page 3 of 52 AMENDMENT HISTORY Report No. Issued Date Content 20080597HKG‐002 November 16, 2020 Original Report 20080597HKG‐002R1 December 17, 2020 P.26‐44: update data TEST REPORT Lenbrook Industries Limited Intertek Report No: 20080597HKG‐002R1 Page 4 of 52 TABLE OF CONTENTS 1.0 Test Results Summary & Statement of Compliance.............................................................. 5 1.1 Summary of Test Results..................................................................................................... 5 1.2 Statement of Compliance.................................................................................................... 5 2.0 General Description............................................................................................................... 6 2.1 Product Description............................................................................................................ 6 2.2 Test Methodology .............................................................................................................. 8 2.3 Test Facility......................................................................................................................... 8 2.4 Related Submittal(s) Grants................................................................................................. 8 3.0 System Test Configuration..................................................................................................... 9 3.1 Justification......................................................................................................................... 9 3.2 EUT Exercising Software.................................................................................................... 10 3.3 Details of EUT and Description of Accessories ................................................................... 11 3.4 Measurement Uncertainty................................................................................................ 11 4.0 Test Results......................................................................................................................... 12 4.1 Maximum Conducted Output Power at Antenna Terminals............................................... 12 4.2 Minimum 6dB RF Bandwidth............................................................................................. 17 4.3 26 dB Bandwidth & Occupied Bandwidth.......................................................................... 19 4.4 Maximum Power Spectral Density..................................................................................... 21 4.5 Field Strength Calculation.................................................................................................. 25 4.6 Transmitter Radiated Emissions in Restricted Bands and Spurious Emissions .................... 26 4.6.1 Radiated Emission Configuration Photograph................................................................. 26 4.6.2 R…

Text truncated - open the document above for the full version.

FCC 15.407 A Mode UNII-1 Summary Test Frequency (MHz) Nominal Power (dBm) Nominal Bandwidth (MHz) Result Emission Bandwidth 26 dB 5180.000 20.0 20.000000 PASS RF output power 5180.000 20.0 20.000000 PASS Power Spectral Density 5180.000 20.0 20.000000 PASS Minimum Emission Bandwidth 6 dB 5180.000 20.0 20.000000 PASS Occupied Channel Bandwidth 99% 5180.000 20.0 20.000000 PASS Band Edge low 5180.000 20.0 20.000000 PASS Emission Bandwidth 26 dB 5200.000 20.0 20.000000 PASS RF output power 5200.000 20.0 20.000000 PASS Power Spectral Density 5200.000 20.0 20.000000 PASS Minimum Emission Bandwidth 6 dB 5200.000 20.0 20.000000 PASS Occupied Channel Bandwidth 99% 5200.000 20.0 20.000000 PASS Emission Bandwidth 26 dB 5240.000 20.0 20.000000 PASS RF output power 5240.000 20.0 20.000000 PASS Power Spectral Density 5240.000 20.0 20.000000 PASS Minimum Emission Bandwidth 6 dB 5240.000 20.0 20.000000 PASS Occupied Channel Bandwidth 99% 5240.000 20.0 20.000000 PASS FCC 15.407 Emission Bandwidth 26 dB (5180 MHz; 20.000 dBm; 20 MHz) Test according to FCC title 47 part 15 §15.407(a),(e), KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 and ANSI C63.10 26 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5180.000000 20.000000 --- --- 5169.500000 5189.500000 (continuation of the "26 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 5180.000000 0.5 PASS -40 -30 -20 -10 0 5 5160 5170 5180 5190 5200 Level in dBm Frequency in MHz 20.000 MHz Bandwidth FCC 15.407 Measurement Setting Instrument Value Target Value Start Frequency 5.16000 GHz 5.16000 GHz Stop Frequency 5.20000 GHz 5.20000 GHz Span 40.000 MHz 40.000 MHz RBW 200.000 kHz ~ 200.000 kHz VBW 1.000 MHz >= 600.000 kHz SweepPoints 200 ~ 200 Sweeptime 28.443 μs AUTO Reference Level 10.000 dBm 10.000 dBm Attenuation 30.000 dB AUTO Detector MaxPeak MaxPeak SweepCount 200 200 Filter 3 dB 3 dB Trace Mode Max Hold Max Hold Sweeptype FFT AUTO Preamp off off Stablemode Trace Trace Stablevalue 0.30 dB 0.30 dB Run 23 / max. 150 max. 150 Stable 5 / 5 5 Max Stable Difference 0.12 dB 0.30 dB FCC 15.407 RF output power (5180 MHz; 20.000 dBm; 20 MHz) Test according to FCC title 47 part 15 §15.407(a), KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 and ANSI C63.10 Result DUT Frequency (MHz) Gated RMS (dBm) Limit Max (dBm) Gated EIRP (dBm) DutyCycle (%) Result 5180.000000 8.9 24.0 8.9 94.465 PASS -20 -10 0 10 20 29 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0.9 Level in dBm Time in s Gated TraceOverallLimit 8.919 dBm FCC 15.407 Power Spectral Density (5180 MHz; 20.000 dBm; 20 MHz) Customized settings. Test according to FCC title 47 part 15 §15.407(a), KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 and ANSI C63.10 Result DUT Frequency (MHz) Frequency (MHz) PSD (dBm) Limit Max (dBm) Result 5180.000000 5178.811881 -1.646 17.0 PASS Ports Port Duty Cycle (%) 1 94.321 -20 -10 0 10 20 5170 5175 5180 5185 5190 Level in dBm Frequency in MHz LimitSum LevelPSD Measurement Setting Instrument Value Target Value Start Frequency 5.17000 GHz 5.17000 GHz Stop Frequency 5.19000 GHz 5.19000 GHz Span 20.000 MHz 20.000 MHz RBW 1.000 MHz <= 1.000 MHz VBW 3.000 MHz >= 3.000 MHz SweepPoints 101 ~ 40 Sweeptime 2.020 s 2.020 s Reference Level 0.000 dBm 0.000 dBm Attenuation 20.000 dB AUTO Detector RMS RMS SweepCount 30 30 Filter 3 dB 3 dB Trace Mode Max Hold Max Hold Sweeptype Sweep AUTO Preamp off off Stablemode Trace Trace Stablevalue 0.30 dB 0.30 dB FCC 15.407 Run 1 / max. 1 max. 1 Stable 0 / 1 1 Max Stable Difference 0.00 dB 0.30 dB FCC 15.407 Minimum Emission Bandwidth 6 dB (5180 MHz; 20.000 dBm; 20 MHz) Customized settings. Test according to FCC title 47 part 15 §15.407(a),(e), KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 and ANSI C63.10 6 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5180.000000 15.300000 --- --- 5172.350000 5187.650000 (continuation of the "6 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 5180.000000 -0.7 PASS -50 -40 -30 -20 -10 0 5 5160 5170 5180 5190 5200 Level in dBm Frequency in MHz 15.300 MHz Measurement Setting Instrument Value Target Value Start Frequency 5.16000 GHz 5.16000 GHz Stop Frequency 5.20000 GHz 5.20000 GHz Span 40.000 MHz 40.000 MHz RBW 100.000 kHz ~ 100.000 kHz VBW 300.000 kHz ~ 300.000 kHz SweepPoints 400 ~ 400 Sweeptime 56.886 μs AUTO Reference Level 0.000 dBm 0.000 dBm Attenuation 20.000 dB AUTO Detector MaxPeak MaxPeak SweepCount 200 200 Filter 3 dB 3 dB Trace Mode Max Hold Max Hold Sweeptype FFT AUTO Preamp off off Stablemode Trace Trace FCC 15.407 Stablevalue 0.30 dB 0.30 dB Run 12 / max. 150 max. 150 Stable 1 / 1 1 Max Stable Difference 0.17 dB 0.30 dB FCC 15.407 Occupied Channel Bandwidth 99% (5180 MHz; 20.000 dBm; 20 MHz) Customized settings. Test according to FCC title 47 part 15 §15.407(a),(e), KDB 789033 D02 General U-NII Test Procedures New Rules v02r01 and ANSI C63.10 99 % Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5180.000000 16.200000 --- --- 5171.900000 5188.100000 (continuation of the "99 % Bandwidth" table from column 6 ...) DUT Frequency (MHz) Result 5180.000000 PASS -40 -30 -20 -10 0 5 5160 5170 5180 5190 5200 Level in dBm Frequency in MHz 16.200 MHz Measurement Setting Instrument Value Target Value Start Frequency 5.16000 GHz 5.16000 GHz Stop Frequency 5.20000 GHz 5.20000 GHz Span 40.000 MHz 40.000 MHz RBW 200.000 kHz <= 200.000 kHz VBW 1.000 MHz >= 600.000 kHz SweepPoints 200 ~ 200 Sweeptime 28.443 μs AUTO Reference Level 0.000 dBm 0.000 dBm Attenuation 20.000 dB AUTO Detector MaxPeak MaxPeak SweepCount 200 200 Filter 3 dB 3 dB Trace Mode Max Hold Max Hold Sweeptype FFT AUTO Preamp off off Stablemode Trace Trace Stablevalue 0.30 dB 0.30 dB Run 10 / max. 150 max. 150 FCC 15.407 Stable 1 / 1 …

Text truncated - open the document above for the full version.

FCC 15.407 A Mode UNII-3 Summary Test Frequency (MHz) Nominal Power (dBm) Nominal Bandwidth (MHz) Result Emission Bandwidth 26 dB 5745.000 20.0 20.000000 PASS RF output power 5745.000 20.0 20.000000 PASS Power Spectral Density 5745.000 20.0 20.000000 PASS Minimum Emission Bandwidth 6 dB 5745.000 20.0 20.000000 PASS Occupied Channel Bandwidth 99% 5745.000 20.0 20.000000 PASS Band Edge low 5745.000 20.0 20.000000 PASS Emission Bandwidth 26 dB 5785.000 20.0 20.000000 PASS RF output power 5785.000 20.0 20.000000 PASS Power Spectral Density 5785.000 20.0 20.000000 PASS Minimum Emission Bandwidth 6 dB 5785.000 20.0 20.000000 PASS Occupied Channel Bandwidth 99% 5785.000 20.0 20.000000 PASS Emission Bandwidth 26 dB 5825.000 20.0 20.000000 PASS RF output power 5825.000 20.0 20.000000 PASS Power Spectral Density 5825.000 20.0 20.000000 PASS Minimum Emission Bandwidth 6 dB 5825.000 20.0 20.000000 PASS Occupied Channel Bandwidth 99% 5825.000 20.0 20.000000 PASS Band Edge high 5825.000 20.0 20.000000 PASS FCC 15.407 Emission Bandwidth 26 dB (5745 MHz; 20.000 dBm; 20 MHz) Test according to FCC title 47 part 15 §15.407(a),(e), KDB 789033 D02 General U-NII Test Procedures New Rules v02r01and ANSI C63.10 26 dB Bandwidth DUT Frequency (MHz) Bandwidth (MHz) Limit Min (MHz) Limit Max (MHz) Band Edge Left (MHz) Band Edge Right (MHz) 5745.000000 20.200000 --- --- 5734.500000 5754.700000 (continuation of the "26 dB Bandwidth" table from column 6 ...) DUT Frequency (MHz) Max Level (dBm) Result 5745.000000 0.4 PASS -40 -30 -20 -10 0 5 57255730 5740 5750 57605765 Level in dBm Frequency in MHz 20.200 MHz Bandwidth FCC 15.407 Measurement Setting Instrument Value Target Value Start Frequency 5.72500 GHz 5.72500 GHz Stop Frequency 5.76500 GHz 5.76500 GHz Span 40.000 MHz 40.000 MHz RBW 200.000 kHz ~ 200.000 kHz VBW 1.000 MHz >= 600.000 kHz SweepPoints 200 ~ 200 Sweeptime 28.443 μs AUTO Reference Level 10.000 dBm 10.000 dBm Attenuation 30.000 dB AUTO Detector MaxPeak MaxPeak SweepCount 200 200 Filter 3 dB 3 dB Trace Mode Max Hold Max Hold Sweeptype FFT AUTO Preamp off off Stablemode Trace Trace Stablevalue 0.30 dB 0.30 dB Run 25 / max. 150 max. 150 Stable 5 / 5 5 Max Stable Difference 0.18 dB 0.30 dB FCC 15.407 RF output power (5745 MHz; 20.000 dBm; 20 MHz) Test according to FCC title 47 part 15 §15.407(a), KDB 789033 D02 General U-NII Test Procedures New Rules v02r01and ANSI C63.10 Result DUT Frequency (MHz) Gated RMS (dBm) Limit Max (dBm) Gated EIRP (dBm) DutyCycle (%) Result 5745.000000 9.2 30.0 9.2 99.120 PASS -20 -10 0 10 20 30 35 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Level in dBm Time in s Gated TraceOverallLimit 9.157 dBm FCC 15.407 Power Spectral Density (5745 MHz; 20.000 dBm; 2…

Text truncated - open the document above for the full version.
