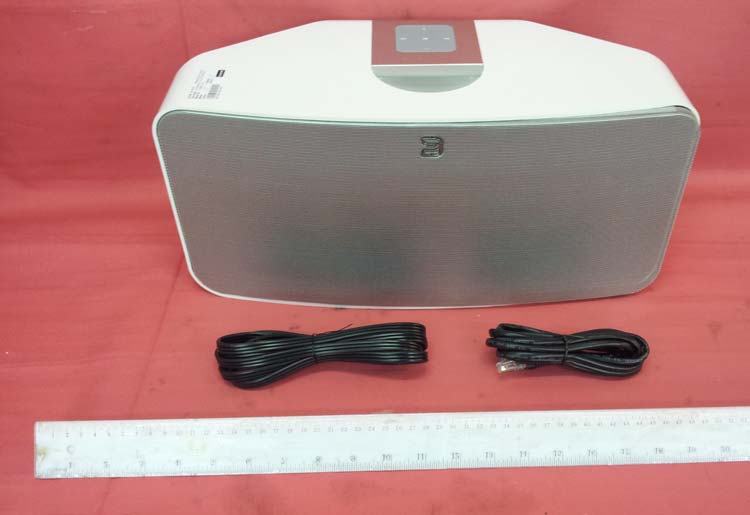

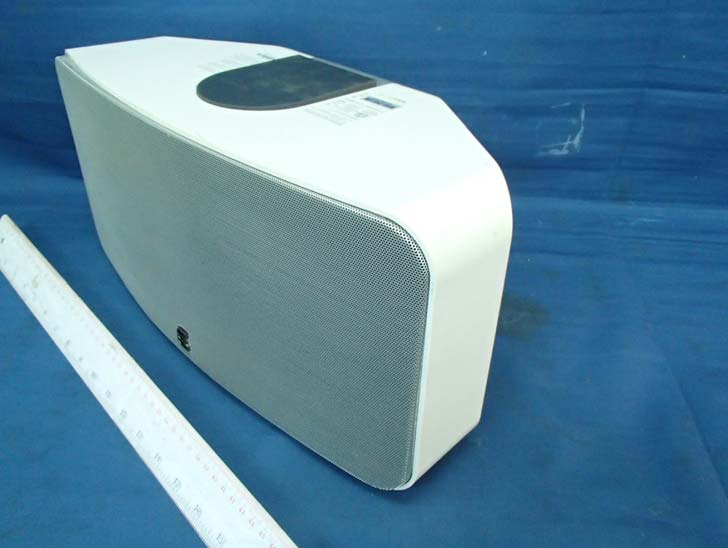

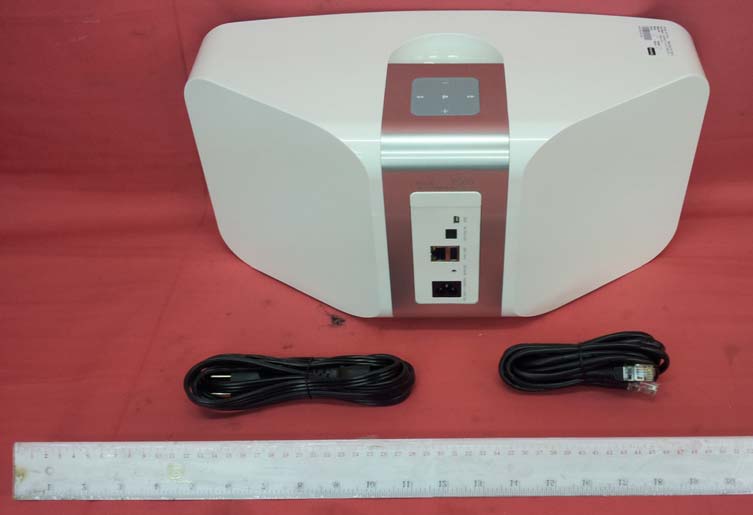

INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model : PULSE P300 (External) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model : PULSE P300 (External) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model : PULSE P300 (External)

P300 Cabinet Artwork Jan 15, 2013 P300-3001-A DEVELOPMENT HIGH GLOSS TOOL PANTONE COOL GRAY 8C - Black Cabinet PANTONE BLACK 6C - White Cabinet OCTOBER 15, 2012 P300 Cabinet Artwork P300 Cab Artwork_121015.cdr NAD NAD ELECTRONICS INT’L 633 GRANITE COURT, PICKERING ONTARIO L1W 3K1, CANADA TEL : (905) 831 63333 NAD DESIGN ALL RIGHTS RESERVED COPYRIGHT 2011 LENBROOK GROUP ALLOWABLE TOLERANCE LINEAR ANGULAR ± 0.15° .0 = +0.1 .00 = +0.05 .000= +0.01 O U TP U T P R IN T D O N O T S C A LE R E V IS E O N LY O N C A D S Y S TE M PROJECT MANAGER :DESIGNED BY : MODEL - ARTWORK-ISSUE Number SCALE UNITS ST ATUS FINISH PRINTING PRINTING TOOL NUMBER DA TE MODEL PART NAME CAD FILE NAME OEM PART NUMBER ISSUE NO.REVISION HISTOR YREV NO.DA TEBY 1 : 1 Millimeters jes_arcenal Torben Sonderskov S S P R E PA R ATIO N - R IG H T R E A D IN G E M U LS IO N S ID E U P Bluesound International is a division of Lenbrook Industries Limited. 2013 Bluesound, All Rights Reserved The and are trademarks of Bluesound International. All other trademarks are the property of their respective owners. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CONFORMS TO ANSI/UL STD.60065 CERTIFIED TO CAN/CSA STD. C22.2 No. 60065 4006236 DC5V 500mA Bluesound International 633 Granite Court, Pickering, ON Canada L1W 3K1 Model : PULSE P300 WIRELESS STREAMING MUSIC SYSTEM Power Rating : 100-240V 50/60Hz 1.2A Designed and Engineered in Canada, Custom Manufactured in China MAC Address CAN ICES-3 (B)/NMB-3(B) FCC ID : Q20-P300WSMS IC : 152B-P300WSMS

INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal) INTERTEK TESTING SERVICE Report No.: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Equipment Photographs Model: PULSE P300 (Internal)

Analysis Report Report No.:13020016HKG-002 The Equipment Under Test (EUT) is an Amplified Wireless Streaming Music System, equipped with a 2.4GHz WiFi transceiver (SG901) which is operating in the frequency range between 2412MHz and 2462MHz (11 channels with 5 MHz channel spacing). The EUT can accept digitized audio signal from LAN network, USB port and wireless WiFi. The EUT has built-in digital power amplifiers driving internal stereo loudspeaker and mono subwoofer. The mini-USB port is for factory maintenance only and not accessible by end-user. The EUT is powered by 100-240VAC (universal input with earth pin). In 802.11b mode, the EUT employs Direct-Sequence Spread Spectrum (DSSS) modulation with maximum bit rate 11Mbps. In 802.11g mode, the EUT employs Orthogonal Frequency Division Multiplexing (OFDM) modulation with maximum bit rate 54Mbps. In 802.11n mode, the EUT employs modulation type according to MCSn (Modulation and Coding Scheme) setting where n is 0 to 7, with maximum bit rate 65Mbps at n=7. The EUT can only support 20MHz bandwidth modulation in 802.11n mode. The RF output power is below +10dBm for all types of modulation during test. Antenna Type: Internal, Integral (2412MHz – 2462MHz, 11 channels, 5MHz spacing) Antenna Gain: 0dBi Nominal rated field strength: 103.2dBμV/m at 3m (maximum at 802.11b) Maximum allowed field strength of production tolerance: +1dB / -4dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 104.2dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 8mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 8mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.462) mW = 9.56 mW Since the above conducted output power is below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13020016HKG-002 i FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Lenbrook Industries Limited BRAND NAME: Bluesound, MODEL: PULSE P300 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Grantee: Lenbrook Industries Limited Grantee Address: Room D, 11 th Floor, Wing Cheong Commercial Building, 19-25 Jervois Street, Central, Hong Kong. Contact Person: Jes Arcenal Tel: 852-2517 8292 Fax: 852-2517 4404 e-mail: [email protected] Manufacturer: Dongguan Kwan Hong Electronics Co., Ltd. Manufacturer Address: KwanHong Building, Xiao Bian 2 nd Industrial Zone, ChangAn, DongGuan, China. Brand Name: Bluesound Model: PULSE P300 Type of EUT: Transceiver Description of EUT: Wireless Streaming Music System Serial Number: N/A FCC ID / IC: Q2O-P300WSMS / 152B-P300WSMS Date of Sample Submitted: February 01, 2013 Date of Test: April 29, 2013 Report No.: 13020016HKG-002 Report Date: May 08, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13020016HKG-002 ii FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT Lenbrook Industries Limited BRAND NAME: Bluesound, MODEL: PULSE P300 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 Pass Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 Pass Receiver / Digital Device Radiated Emissions 15.109 / RSS-210 2.5 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 3, December 2010 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 13020016HKG-002 iii FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 2 1.3 Test Methodology ......................................................................................... 2 1.4 Test Facility .................................................................................................. 2 2.0 System Test Configuration ............................................................................ 3 2.1 Justification................................................................................................... 3 2.2 EUT Exercising Software .............................................................................. 3 2.3 Special Accessories...................................................................................... 3 2.4 Equipment Modification................................................................................. 3 2.5 Measurement Uncertainty ............................................................................. 4 2.6 Support Equipment List and Description........................................................ 4 3.0 Emission Results........................................................................................... 5 3.1 Field Strength Calculation ............................................................................. 5 3.2 Radiated Emission Configuration Photograph ............................................... 6 3.3 Radiated Emission Data ............................................................................... 6 3.4 Conducted Emission Configuration Photograph ............................................ 6 3.5 Conducted Emission Data............................................................................. 6 4.0 Equipm…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: 13020016HKG-002 Sample No.: 1/1 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) WiFi playing audio EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 154.5 kHz 58.01 L1 -7.73 2 CISPR Average 154.5 kHz 37.70 L1 -18.04 1 Quasi Peak 231 kHz 45.84 L1 -16.56 1 Quasi Peak 307.5 kHz 40.27 L1 -19.76 2 CISPR Average 564 kHz 31.90 L1 -14.09 2 CISPR Average 1.122 MHz 32.09 N -13.90 2 CISPR Average 1.6845 MHz 29.47 N -16.53 1 Quasi Peak 2.841 MHz 33.74 L1 -22.25 1 Quasi Peak 4.029 MHz 34.84 L1 -21.15 1 Quasi Peak 4.2225 MHz 35.29 L1 -20.70 1 Quasi Peak 7.791 MHz 44.64 L1 -15.35 2 CISPR Average 7.9485 MHz 33.62 L1 -16.37 2 CISPR Average 8.3715 MHz 33.29 L1 -16.70 1 Quasi Peak 8.52 MHz 46.36 L1 -13.63 1 Quasi Peak 12.174 MHz 36.92 L1 -23.07 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Conducted Plot – Pursuant to FCC Part 15 Requirement (Pass/Fail)

INTERTEK TESTING SERVICE Report No: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: PULSE P300 13020016HKG-002 PULSE P300 Side A INTERTEK TESTING SERVICE Report No: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: PULSE P300 13020016HKG-002 PULSE P300 Side B

INTERTEK TESTING SERVICE Report No: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: PULSE P300 INTERTEK TESTING SERVICE Report No: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS ii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) Model: PULSE P300 INTERTEK TESTING SERVICE Report No: 13020016HKG-002 FCC ID: Q2O-P300WSMS IC: 152B-P300WSMS iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model: PULSE P300
