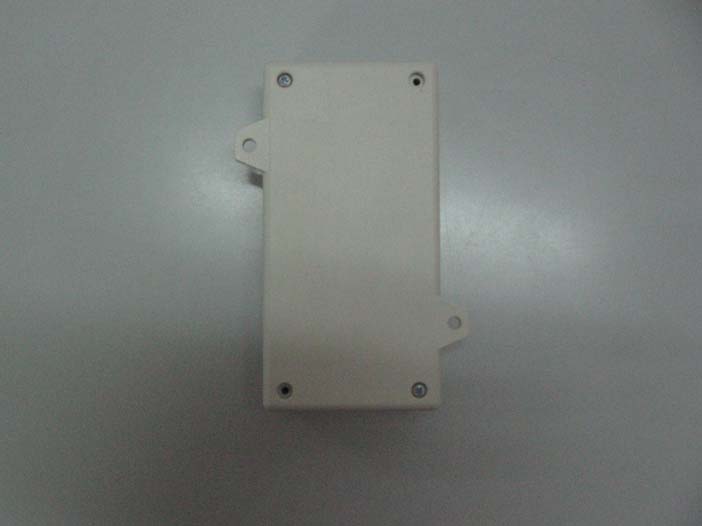

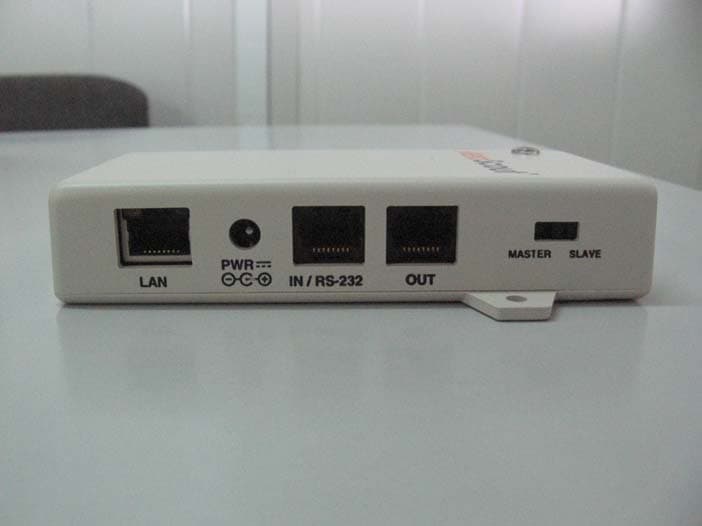

External Photographs of Tested E.U.T. Figure 1 Front View Figure 2 Rear View Figure 3 Side View

10 Oppenheimer St. Park Tamar, Rehovot, Israel, 76701 Tel: 972-8-936-3136 Fax: 972-8-936-5977 www.aeroscout.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: The AeroScout Exciter (EX-3200) FCC ID Q3H EX3200 label is too small to include the statement as specified in FCC part 15 Sub-part A section 15.19(a)(3): "This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation." Due to this reason we used the provisions of FCC Part 15 Sub-part A Section 15.19 (a)(5) and we placed this statement in a prominent location in the users manual. Sincerely, Leonid Gnusin Hardware Engineer Aeroscout, Ltd Signature: Date: 11/20/2006

Internal Photographs of Tested E.U.T. Figure 1 PCB in Cover Figure 2 PCB Print Side Figure 3 PCB Component Side Figure 4 PCB Side Connectors

Theory of Operation The Exciter is a 125 kHz transmitter, powered from 230VAC. The Exciter can be connected to another Exciter for chaining or programming or can act as standalone Exciter with no connection to the server. The Exciter is a 125 kHz ASK modulated beacon, which transmits the same message in a preprogrammed transmission interval. The messages transmitted by Exciter cause the AeroScout Tag to wakeup and transmit a reply message to the AeroScout location receivers.

Cert. No. 1152.01 Electrical (EMC) Test Report E69400.01 AeroScout Ltd. Page 1 of 40 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 26 December 2006 I.T.L. (PRODUCT TESTING) LTD. FCC EMC/Radio Test for AeroScout Ltd. Equipment under test: Exciter EX-3200 Written by: _____________________________ D. Shidlowsky, Documentation Approved by: _____________________________ Y. Mordukhovitch, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Cert. No. 1152.01 Electrical (EMC) Test Report E69400.01 AeroScout Ltd. Page 2 of 40 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for AeroScout Ltd. Exciter EX-3200 FCC ID:Q3H EX3200 26 December 2006 This report concerns: Original Grant x Class II change Class B verification Class A verification Class I change Equipment type: Low Power Transmitter Below 1705kHz Request Issue of Grant: x Immediately upon completion of review Limits used: CISPR 22 Part 15 x Measurement procedure used is ANSI C63.4-2003. Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaishou Raz Reuven Amsalem ITL (Product Testing) Ltd. AeroScout Ltd. Kfar Bin Nun 10 Oppenheimer St. Park Tamar D.N. Shimshon 99780 Rechovot 76701 Israel Israel e-mail [email protected] Tel: +972-8 -9363136 Fax: +972-8-9365977 e-mail: [email protected] Test Report E69400.01 AeroScout Ltd. Page 3 of 40 FCC ACC M Ver 1.1 05Mayl 2000 TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 4 1.1 Administrative Information.................................................................................4 1.2 List of Accreditations .........................................................................................5 1.3 Product Description ...........................................................................................6 1.4 Test Methodology..............................................................................................6 1.5 Test Facility .......................................................................................................6 1.6 Measurement Uncertainty .................................................................................6 2. PRODUCT LABELING ------------------------------------------------------------------------------------ 7 3. SYSTEM TEST CONFIGURATION--------------------------------------------------------------------- 8 3.1 Justification........................................................................................................8 3.2 EUT Exercise Software .....................................................................................8 3.3 Special Accessories ..........................................................................................8 3.4 Equipment Modifications ...................................................................................8 3.5 Configuration of Tested System ........................................................................9 4. BLOCK DIAGRAM-----------------------------------------------------------------------------------------10 4.1 Schematic Block/Connection Diagram............................................................10 4.2 Theory of Operation ........................................................................................10 5. CONDUCTED AND RADIATED MEASUREMENT PHOTOS ----------------------------------11 6. CONDUCTED EMISSION DATA-----------------------------------------------------------------------14 6.1 Test Specification ............................................................................................14 6.2 Test Procedure................................................................................................14 6.3 Measured Data................................................................................................14 6.4 Test Instrumentation Used, Conducted Measurement ...................................19 7. RADIATED EMISSION, 9 KHZ – 30 MHZ -----------------------------------------------------------20 7.1 Test Specification ............................................................................................20 7.2 Test Procedure................................................................................................20 7.3 Measured Data................................................................................................20 7.4 Test Instrumentation Used, Radiated Measurements ....................................23 7.5 Field Strength Calculation ...............................................................................24 8. RADIATED EMISSION, 30 MHZ –1 GHZ ------------------------------------------------------------25 8.1 Test Specification ............................................................................................25 8.2 Test Procedure................................................................................................25 8.3 Measured Data................................................................................................26 8.4 Test Instrumentation Used, Radiated Measurements ....................................31 8.5 Field Strength Calculation ...............................................................................32 9. PHOTOGRAPHS OF TESTED E.U.T. ----------------------------------------------------------------33 10. APPENDIX A - CORRECTION FACTORS ----------------------------------------------------------37 10.1 Correction factors for CABLE .........................................................................37 10.2 Correction factors for LOG PERIODIC ANTENNA........................................38 10.3 Correction factors for BICONICAL ANTENNA...............................................39 10.4 Correction factors for ACTIVE LOOP ANTENNA..............…

Text truncated - open the document above for the full version.

Test Setup Photos Figure 1. Conducted Emission Test Front Figure 2. Conducted Emission Test Side Figure 3. Radiated Emission Test Front Figure 4. Radiated Emission Front Figure 5. Radiated Emission Test Side
