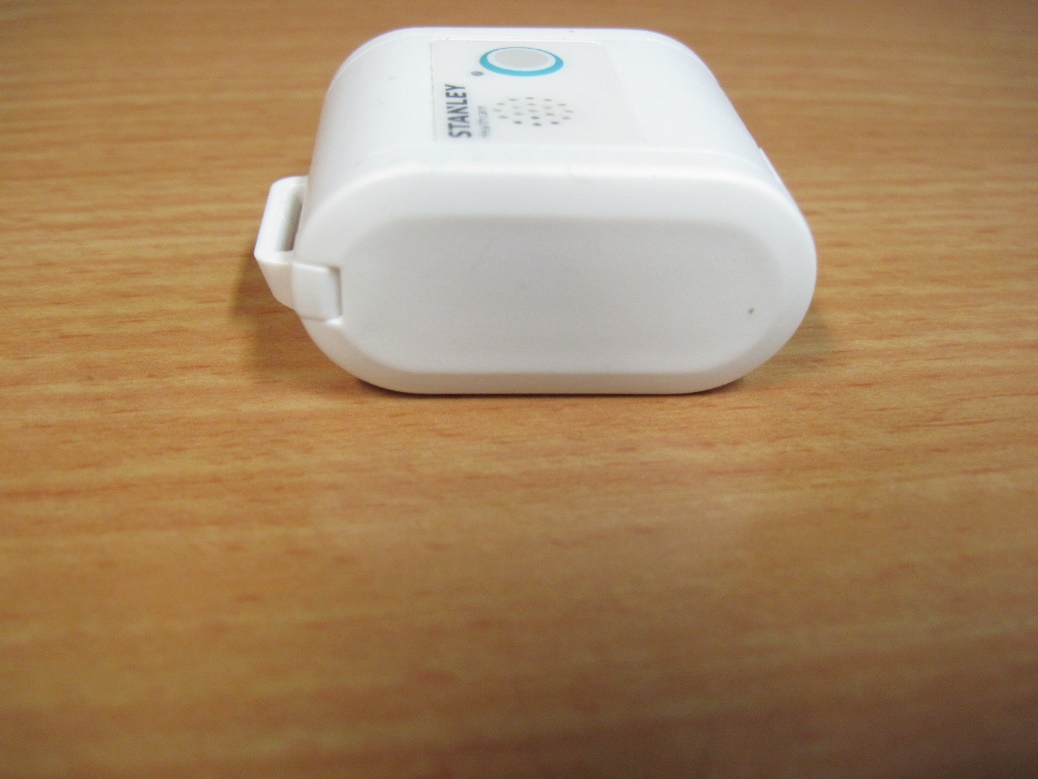

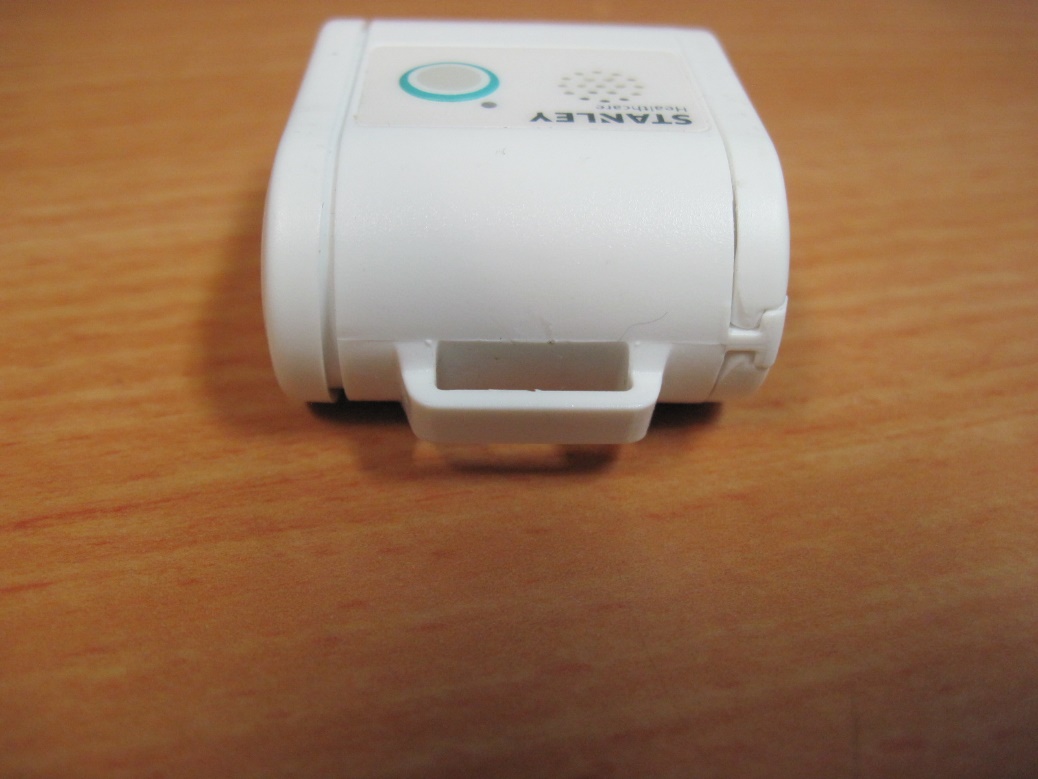

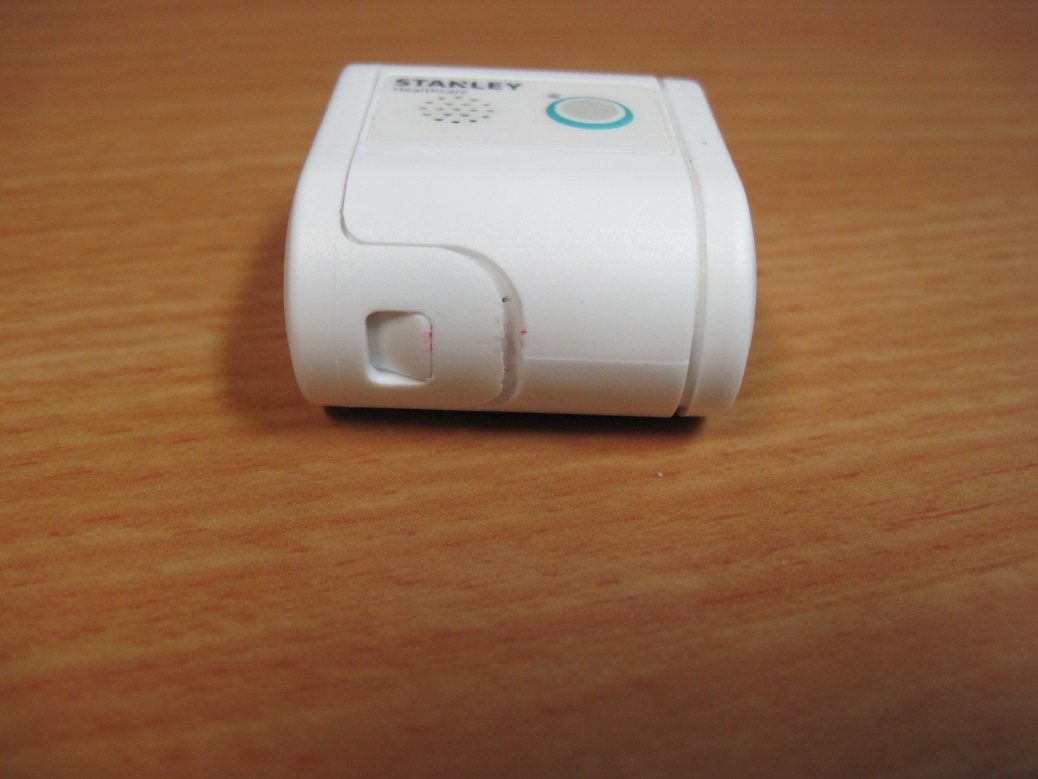

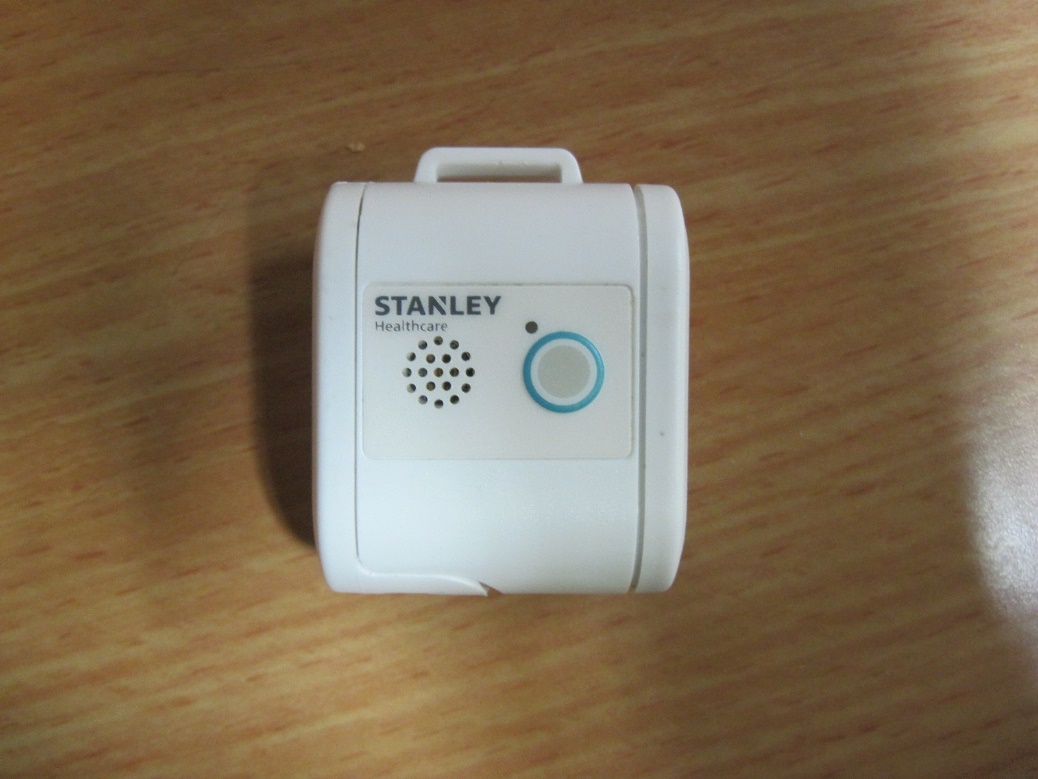

T12s Asset Tag Deployment & User Guide 0981-xxx-000 REV A Published: Draft6 FOR EVALUTION PURPOSES ONLY This document is still being edited and reviewed CAUTION AND WARNINGS Electromagnetic radiation emitted from AeroScout Tags may interfere with critical care equipment. Please refer to the equipment manufacturer's user manuals for electromagnetic immunity guidance, and for separation distance recommendations, if applicable. Use this link, https://www.stanleyhealthcare.com/support, to locate our published specifications for STANLEY Healthcare/AeroScout tag transmission frequencies and output power, or contact STANLEY Healthcare Technical Support at +1-800-380-8883 for assistance. Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in Improper operation. If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally. Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 1 cm to any part of the ME Equipment or ME System, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result. Disclaimer The information and know-how included in this document are the exclusive property of STANLEY Healthcare and are intended for the use of the addressee or the user alone. The addressees shall not forward to another their right of using the information, know-how or document forwarded herewith, in whole or in part in all matters relating or stemming from or involved therein, whether for consideration or without consideration, and shall not permit any third party to utilize the information, know-how or the documents forwarded herewith or copies or duplicates thereof, unless at the company’s consent in advance and in writing. Any distribution, advertisement, copying or duplication in any form whatsoever is absolutely prohibited. The Company reserves the right to sue the addressee, user and/or any one on their behalves, as well as third parties, in respect to breaching its rights pertaining to the intellectual rights in particular and its rights of whatever kind or type in the information, know-how or the documents forwarded by them herewith in general, whether by act or by omission. This document is confidential and proprietary to STANLEY Healthcare and is not to be distributed to any persons other than licensed AeroScout Visibility System users or other persons appointed in writing by STANLEY Healthcare. Trademark Acknowledgements AeroScout is a trademark of Stanley Black & Decker, Inc. or its affiliates. Other brand products and service names are trademarks or registered trademarks of their respective holders. Below is a partial listing of other trademarks or registered trademarks referenced herein: Cisco™ is a trademark of Cisco Systems, Inc. Sun, Sun Microsystems, the Sun Logo, Java, JRE and all other Sun trademarks, logos, product names, service names, program names and slogans that are referred to or displayed in this document are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries. This product includes software developed by the Apache Software Foundation (http://www.apache.org/). This product includes code licensed from RSA Data Security. Skype, SkypeIn, SkypeOut, Skype Me, the Skype Logo and the S logo and other marks indicated on Skype’s website are trademarks of Skype Limited or other related companies. Esper is a trademark of EsperTech, Inc. Jboss is a trademark of Red Hat Middleware, LLC. Oracle 10G is a registered trademark of Oracle Corporation and/or its affiliates. MS SQL Server is a registered trademark of Microsoft Corporation in the United States and/or other countries. JasperSoft, the JasperSoft Logo, JasperReports, the JasperReports logo, JasperIntelligence, JasperDecisions, JasperAnalysis, Scope Center, Scope Designer, and JasperServer are trademarks or registered trademarks of JasperSoft, Inc. in the United States and other countries. iCloud Drive, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store® is a service mark of Apple Inc., registered in the U.S. and other countries. ©2020 STANLEY Healthcare. All rights reserved. Doc: 0981-xxx-000 REV A. Published: Draft6. KB Article: xxxxx. T12s Asset Tag Deployment & User Guide 3 Ta b l e of Contents Introduction ...................................................................................... 5 What’s in the Box?...................................................................................................................... 5 Reference Documentation ...................................................................................................... 6 T12s Asset Tag Features ............................................................... 7 Key Features .................................................................................................................................. 7 Tag Descriptions .............................................................................. 9 Mounting the Tag ......................................................................... 10 Mounting Using the Cradle ...................................................................................................10 Mounting Without a Cradle .................................................................................................. 14 The Tamper Proof Mechanism ................................................. 15 Mounting with a Tamper ....................................................................................................... 16 Option 1 – Mounting a Tamper with a Cradle and Tie Wraps ............................................ 17 Option 2 – Mounting a Tamper with a Cradle and Screws ..................................................18 Option 3 - Mounting a Tam…
Text truncated - open the document above for the full version.
Label Location
Test Report E207951.01 AeroScout Ltd. Page 1 of 66 FCC ACC M Ver 1.2 28 February 2011 DATE: 15 March 2020 I.T.L. (PRODUCT TESTING) LTD. FCC/IC Radio Test Report for AeroScout Ltd. Equipment under test: T12s Asset Tag T12s Tested by: ________________________ M. Zohar Approved by: _________________________ D. Shidlowsky This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E207951.01 AeroScout Ltd. Page 2 of 66 FCC 15.247 DTS Conducted Ver 1 25.11.2018 Measurement/Technical Report for AeroScout Ltd. T12s Asset Tag T12s FCC ID: Q3HTAG1200S IC: 5115A-TAG1200S This report concerns: Original Grant: X Class I Change: Class II Change: Equipment type: FCC: (DTS) Digital Transmission System IC: Spread Spectrum Digital Device (2400- 2483.5) Limits used: 47CFR15 Section 15.247 RSS 247, Issue 2, February 2017, Section 5 RSS-Gen, Issue 5, April 2018 Measurement procedure used is KDB 558074 D01 v05r02, ANSI C63.10:2013 and RSS Gen, Issue 5: 2018 Application for Certification Applicant for this device: prepared by: (different from "prepared by") R. Pinchuck Reuven Amsallem ITL (Product Testing) Ltd. AeroScout 1 Bat Sheva Street 2 Ilan Ramon St., Science Park Lod, 7120101 Ness-Ziona, 7403635, Israel Israel Tel: +972-8-936-9393 e-mail [email protected] Fax: +972-8-936-5977 e-mail: [email protected] Test Report E207951.01 AeroScout Ltd. Page 3 of 66 FCC 15.247 DTS Conducted Ver 1 25.11.2018 TABLE OF CONTENTS 1. GENERAL INFORMATION --------------------------------------------------------------------------------- 5 1.1 Administrative Information ............................................................................... 5 1.2 List of Accreditations ....................................................................................... 6 1.3 Product Description ......................................................................................... 7 1.4 Test Methodology ............................................................................................ 7 1.5 Test Facility ..................................................................................................... 7 1.6 Measurement Uncertainty ................................................................................ 8 2. SYSTEM TEST CONFIGURATION ---------------------------------------------------------------------- 9 2.1 Justification ...................................................................................................... 9 2.2 EUT Exercise Software ................................................................................... 9 2.3 Special Accessories ...................................................................................... 10 2.4 Equipment Modifications ............................................................................... 10 2.5 Configuration of Tested System .................................................................... 10 3. CONDUCTED & RADIATED MEASUREMENT TEST SET-UP PHOTOS ------------------ 11 4. 6 DB MINIMUM BANDWIDTH --------------------------------------------------------------------------- 14 4.1 Test Specification .......................................................................................... 14 4.2 Test Procedure .............................................................................................. 14 4.3 Test Limit ....................................................................................................... 14 4.4 Test Results .................................................................................................. 15 4.5 Test Equipment Used; 6dB Bandwidth .......................................................... 19 5. MAXIMUM CONDUCTED OUTPUT POWER ------------------------------------------------------- 20 5.1 Test Specification .......................................................................................... 20 5.2 Test Procedure .............................................................................................. 20 5.3 Test Limit ....................................................................................................... 20 5.4 Test Results .................................................................................................. 21 5.5 Test Equipment Used; Maximum Peak Power Output ................................... 25 6. BAND EDGE SPECTRUM -------------------------------------------------------------------------------- 26 6.1 Test Specification .......................................................................................... 26 6.2 Test Procedure .............................................................................................. 26 6.3 Test Limit ....................................................................................................... 26 6.4 Test Results .................................................................................................. 27 6.5 Test Equipment Used; Band Edge ................................................................ 30 7. TRANSMITTED POWER DENSITY -------------------------------------------------------------------- 31 7.1 Test Specification .......................................................................................... 31 7.2 Test Procedure .............................................................................................. 31 7.3 Test Limit ....................................................................................................... 31 7.4 Test Results .................................................................................................. 32 7.5 Test Equipment Used; Transmitted Power Density ....................................... 36 8. OCCUPIED BANDWIDTH -------------------------------------------------------------------------------- 37 8.1 Test Specification ....................................................................................…
Text truncated - open the document above for the full version.
Test Report E207951.01 AeroScout Ltd. Page 31 of 66 FCC 15.247 DTS Conducted Ver 1 25.11.2018 7. Transmitted Power Density 7.1 Test Specification FCC, Part 15, Subpart C, Section 247(e) RSS 247, Issue 2, Section 5.2(b) 7.2 Test Procedure (Temperature (20°C)/ Humidity (52%RH)) The E.U.T operation mode and test set-up are as described in Section 2 of this report. The E.U.T. antenna terminal was connected to the Spectrum Analyzer through an external attenuator and an appropriate coaxial cable (total loss= 21.5dB). Special attention was taken to prevent Spectrum Analyzer RF input overload. The spectrum analyzer was set to 3 kHz RBW. 7.3 Test Limit For digitally modulated systems, the power spectral density conducted from the intentional radiator to the antenna shall not be greater than 8 dBm in any 3 kHz band during any time interval of continuous transmission. Test Report E207951.01 AeroScout Ltd. Page 32 of 66 FCC 15.247 DTS Conducted Ver 1 25.11.2018 7.4 Test Results Protocol Type Operation Frequency PSD Reading Limit Margin (MHz) (dBm) (dBm) (dB) Wi-fi/b(1Mbit/s) 2412.0 -14.0 8.0 -22.0 2437.0 -15.1 8.0 -23.1 2462.0 -14.8 8.0 -22.8 Wi-fi/b(11Mbit/s) 2412.0 -16.3 8.0 -24.3 2437.0 -16.6 8.0 -24.6 2462.0 -16.9 8.0 -24.9 Wi-fi/g(6Mbit/s) 2412.0 -14.7 8.0 -22.7 2437.0 -14.6 8.0 -22.6 2462.0 -15.5 8.0 -23.5 Wi-fi/g(54Mbit/s) 2412.0 -21.7 8.0 -29.7 2437.0 -21.3 8.0 -29.3 2462.0 -22.2 8.0 -30.2 Wi-fi/n(6.5Mbit/s) 2412.0 -14.2 8.0 -22.2 2437.0 -12.8 8.0 -20.8 2462.0 -15.1 8.0 -23.1 Wi-fi/n(65Mbit/s) 2412.0 -20.3 8.0 -28.3 2437.0 -21.5 8.0 -29.5 2462.0 -13.9 8.0 -21.9 Figure 63 Test Results JUDGEMENT: Passed by 20.8dB For additional information see Figure 64 to Figure 81. Test Report E207951.01 AeroScout Ltd. Page 33 of 66 FCC 15.247 DTS Conducted Ver 1 25.11.2018 Figure 64. 2412.0 MHz, Wi-fi/b(11Mbit/s)Figure 65. 2412.0 MHz, Wi-fi/b(1Mbit/s) Figure 66. 2437.0 MHz, Wi-fi/b(11Mbit/s)Figure 67. 2437.0 MHz, Wi-fi/b(1Mbit/s) Figure 68. 2462.0 MHz, Wi-fi/b(11Mbit/s)Figure 69. 2462.0 MHz, Wi-fi/b(1Mbit/s) Test Report E207951.01 AeroScout Ltd. Page 34 of 66 FCC 15.247 DTS Conducted Ver 1 25.11.2018 Figure 70. 2412.0 MHz, Wi-fi/g(6Mbit/s)Figure 71. 2412.0 MHz, Wi-fi/g(54Mbit/s) Figure 72. 2437.0 MHz, Wi-fi/g(6Mbit/s)Figure 73. 2437.0 MHz, Wi-fi/g(54Mbit/s) Figure 74. 2462.0 MHz, Wi-fi/g(6Mbit/s)Figure 75. 2462.0 MHz, Wi-fi/g(54Mbit/s) Test Report E207951.01 AeroScout Ltd. Page 35 of 66 FCC 15.247 DTS Conducted Ver 1 25.11.2018 Figure 76. 2412.0 MHz, Wi-fi/n(65Mbit/s)Figure 77. 2412.0 MHz, Wi-fi/n(6.5Mbit/s) Figure 78. 2437.0 MHz, Wi-fi/n(65Mbit/s)Figure 79. 2437.0 MHz, Wi-fi/n(6.5Mbit/s) Figure 80. 2462.0 MHz, Wi-fi/n(65Mbit/s)Figure 81. 2462.0 MHz, Wi-fi/n(6.5Mbit/s) Test Report E207951.01 AeroScout Ltd. Page 36 of 66 FCC 15.247 DTS Conducted Ver 1 25.11.2018 7.5 Test Equipment Used; Transmitted Power Density Instrument Manufacturer Model Serial No. Last Calibration Date Next Calibration Due Spectrum Analyzer R&S FSL6 100194 March 24, 2019 March 31, 2020 20dB Attenuator Microwave Midwest ATT-0217-20- NNN-02 - December 24, 2019 March 31, 2020 RF cable Huber Suner Sucofelex 27502/4PEA December 24, 2019 March 31, 2020 Figure 82 Test Equipment Used Test Report E207951.01 AeroScout Ltd. Page 37 of 66 FCC 15.247 DTS Conducted Ver 1 25.11.2018 8. Occupied Bandwidth 8.1 Test Specification FCC, Part 2, Sub part J, Section 2.1049 RSS-Gen, Issue 5: 2014, Section 6.6 8.2 Test Procedure (Temperature (21°C)/ Humidity (53%RH)) The E.U.T. operation mode and test set-up are as described in Section 2 of this report. The E.U.T. antenna terminal was connected to the Spectrum Analyzer through an external attenuator and an appropriate coaxial cable (total loss= 21.5dB). Special attention was taken to prevent Spectrum Analyzer RF input overload. The RBW set to the range of 1% to 5% of the OBW. The span was set between 1.5 to 5 times of the OBW. 99% occupied bandwidth function was set on. 8.3 Test Limit N/A Test Report E207951.01 AeroScout Ltd. Page 38 of 66 FCC 15.247 DTS Conducted Ver 1 25.11.2018 8.4 Test Results Protocol Type Operation Frequency Reading (MHz) (MHz) Wi-fi/b(1Mbit/s) 2412.0 14.2 2437.0 14.0 2462.0 13.9 Wi-fi/b(11Mbit/s) 2412.0 14.4 2437.0 14.4 2462.0 14.4 Wi-fi/g(6Mbit/s) 2412.0 17.6 2437.0 17.7 2462.0 17.6 Wi-fi/g(54Mbit/s) 2412.0 17.4 2437.0 17.4 2462.0 17.4 Wi-fi/n(6.5Mbit/s) 2412.0 18.5 2437.0 18.5 2462.0 18.4 Wi-fi/n(65Mbit/s) 2412.0 18.3 2437.0 18.4 2462.0 18.4 Figure 83. Bandwidth Test Results JUDGEMENT: N/A See additional information in Figure 84 to Figure 101. Test Report E207951.01 AeroScout Ltd. Page 39 of 66 FCC 15.247 DTS Conducted Ver 1 25.11.2018 Occupied Bandwidth E.U.T Description T12s Asset Tag Model Numbe rT12s Part Number: 2 Figure 84. 2412.0 MHz, Wi-fi/b(11Mbit/s)Figure 85. 2412.0 MHz, Wi-fi/b(1Mbit/s) Figure 86. 2437.0 MHz, Wi-fi/b(11Mbit/s)Figure 87. 2437.0 MHz, Wi-fi/b(1Mbit/s) Test Report E207951.01 AeroScout Ltd. Page 40 of 66 FCC 15.247 DTS Conducted Ver 1 25.11.2018 Figure 88. 2462.0 MHz, Wi-fi/b(11Mbit/s)Figure 89. 2462.0 MHz, Wi-fi/b(1Mbit/s) Figure 90. 2412.0 MHz, Wi-fi/g(6Mbit/s)Figure 91. 2412.0 MHz, Wi-fi/g(54Mbit/s) Figure 92. 2437.0 MHz, Wi-fi/g(6Mbit/s)Figure 93. 2437.0 MHz, Wi-fi/g(54Mbit/s) Test Report E207951.01 AeroScout Ltd. Page 41 of 66 FCC 15.247 DTS Conducted Ver 1 25.11.2018 Figure 94. 2462.0 MHz, Wi-fi/g(6Mbit/s)Figure 95. 2462.0 MHz, Wi-fi/g(54Mbit/s) Figure 96. 2412.0 MHz, Wi-fi/n(65Mbit/s)Figure 97. 2412.0 MHz, Wi-fi/n(6.5Mbit/s) Figure 98. 2437.0 MHz, Wi-fi/n(65Mbit/s)Figure 99. 2437.0 MHz, Wi-fi/n(6.5Mbit/s) Test Report E207951.01 AeroScout Ltd. Page 42 of 66 FCC 15.247 DTS Conducted Ver 1 25.11.2018 Figure 100. 2462.0 MHz, Wi-fi/n(65Mbit/s)Figure 101. 2462.0 MHz, Wi-fi/n(6.5Mbit/s) 8.5 Test Equipment Used; Bandwidth Instrument Manufacturer Model Serial No. Last Calibration Date Next Calibration Due Spectrum Analyzer R&S FSL6 100194 March 24, 2019 March 31, 2020 20dB Attenuator Microwave Midwest ATT-0217-20- NNN-02 - December 24, 2019 March 31, 2020 RF Cable…
Text truncated - open the document above for the full version.
Test Set-Up Photos Conducted Test Set-Up Radiated Emission Test, 0.009-30MHz Radiated Emission Test, 30-200MHz Radiated Emission Test, 200-1000MHz Radiated Emission Test, 1-18GHz
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.41 GHz - 2.46 GHz | 76.00 mW |
