Q3HTAG2300AEROSCOUT T2s TAG

AeroScout T2 User Guide AeroScout T2s Tag T2S-UGUG-080910-01 Disclaimer The information and know-how included in this document are the exclusive property of AeroScout Inc. and are intended for the use of the addressee or the user alone. The addressees shall not forward to another their right of using the information, know-how or document forwarded herewith, in whole or in part in all matters relating or stemming from or involved therein, whether for consideration or without consideration, and shall not permit any third party to utilize the information, know-how or the documents forwarded herewith or copies or duplicates thereof, unless at the company’s consent in advance and in writing. Any distribution, advertisement, copying or duplication in any form whatsoever is absolutely prohibited. The Company reserves the right to sue the addressee, user and/or any one on their behalves, as well as third parties, in respect to breaching its rights pertaining to the intellectual rights in particular and its rights of whatever kind or type in the information, know- how or the documents forwarded by them herewith in general, whether by act or by omission. This document is confidential and proprietary to AeroScout Inc. and is not to be distributed to any persons other than licensed AeroScout Visibility System users or other persons appointed in writing by AeroScout Inc. Trademark Acknowledgements AeroScout™ is a trademark of AeroScout, Inc. Other brand products and service names are trademarks or registered trademarks of their respective holders. Below is a partial listing of other trademarks or registered trademarks referenced herein: Cisco™ is a trademark of Cisco Systems, Inc. Sun, Sun Microsystems, the Sun Logo, Java, JRE and all other Sun trademarks, logos, product names, service names, program names and slogans that are referred to or displayed in this document are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries. This product includes software developed by the Apache Software Foundation (http://www.apache.org/). This product includes code licensed from RSA Data Security Skype, SkypeIn, SkypeOut, Skype Me, the Skype Logo and the S logo and other marks indicated on Skype’s website are trademarks of Skype Limited or other related companies. ESper is a trademark of EsperTech, Inc. Jboss is a trademark of Red Hat Middleware, LLC. Oracle 10G is a registered trademark of Oracle Corporation and/or its affiliates. MS SQL Server 2005 is a registered trademarks of Microsoft Corporation in the United States and/or other countries. JasperSoft, the JasperSoft Logo, JasperReports, the JasperReports logo, JasperIntelligence, JasperDecisions, JasperAnalysis, Scope Center, Scope Designer, and JasperServer are trademarks or registered trademarks of JasperSoft, Inc. in the United States and other countries. Copyright 2010 AeroScout Inc. All rights reserved. AeroScout T2s Tag Table of Contents 3 Table of Contents Introduction ......................................................................................................................... 5 T2s Tag Features ................................................................................................................. 6 Tag Mounting ...................................................................................................................... 8 Removing Tags ................................................................................................................. 13 Tag Management .............................................................................................................. 14 Tag Maintenance .............................................................................................................. 14 T2s Tag Models ................................................................................................................. 16 Tag Accessory Models ..................................................................................................... 17 Specifications ..................................................................................................................... 18 Safety and Warnings ........................................................................................................ 20 Limited Warranty ............................................................................................................. 21 AeroScout T2s Tag Document History 4 REVISION HISTORY Revision Date Comments Author 1 08 September 2010 New Document E Prigat Introduction Introduction The AeroScout T2s Tag is a key component of the AeroScout Visibility System. The T2s Tag is a small Wi-Fi and active RFID device that enables the wireless network infrastructure to locate assets not connected to a wireless network. The tag can be to people and to a variety of equipment, such as medical devices, containers, manufacturing equipment and vehicles. This enables tagged items to be accurately located in real-time and in any environment open outdoor spaces such as parking lots. There is an option of the T2s Tag with a tamper proof design and there is an option for an embedded Ultrasound receiver. Figure 1. AeroScout T2s Tag AeroScout T2s Tag The AeroScout T2s Tag is a key component of the AeroScout Visibility System. The T2s Fi and active RFID device that enables the wireless network infrastructure to locate assets not connected to a wireless network. The tag can be to people and to a variety of equipment, such as medical devices, containers, manufacturing equipment and vehicles. This enables tagged items to be accurately located time and in any environment – from tight indoor locations such as hospital floors open outdoor spaces such as parking lots. There is an option of the T2s Tag with a tamper proof design and there is an option for an embedded Ultrasound receiver. AeroScout T2s Tag 5 The AeroScout T2s Tag is a key component of the AeroScout Visibility System. The T2s F…

Text truncated - open the document above for the full version.

Date: 5/10/2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: (place FCC ID here). Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: CONF APPENDIX TAG-2300-CUT BlkDia.pdf CONF APPENDIX TAG-2300-CUT LF Schem.pdf CONF APPENDIX TAG-2300-CUT RF Schem.pdf CONF APPENDIX TAG-2300-CUT Tamper Schem.pdf CONF APPENDIX TAG-2300-CUT LF Board PartsLst.xls CONF APPENDIX TAG-2300-CUT RF Board PartsLst.xls CONF APPENDIX TAG-2300-CUT Tamper Board PartsLst.xls The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Reuven Amsalem VP R&D AeroScout Ltd.

Date: 5/10/2010 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to sign FORM 731 on our behalf for the following application: Model TAG-2300-CUT FCC ID: Q3HTAG2300 Thank you, Sincerely, Reuven Amsalem VP R&D AeroScout Ltd.

Date: 5/10/2010 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to act on our behalf regarding the FCC ID Certification Process for the following application: Model TAG-2300-CUT FCC ID: Q3HTAG2300 Thank you, Sincerely, Reuven Amsalem VP R&D AeroScout Ltd.

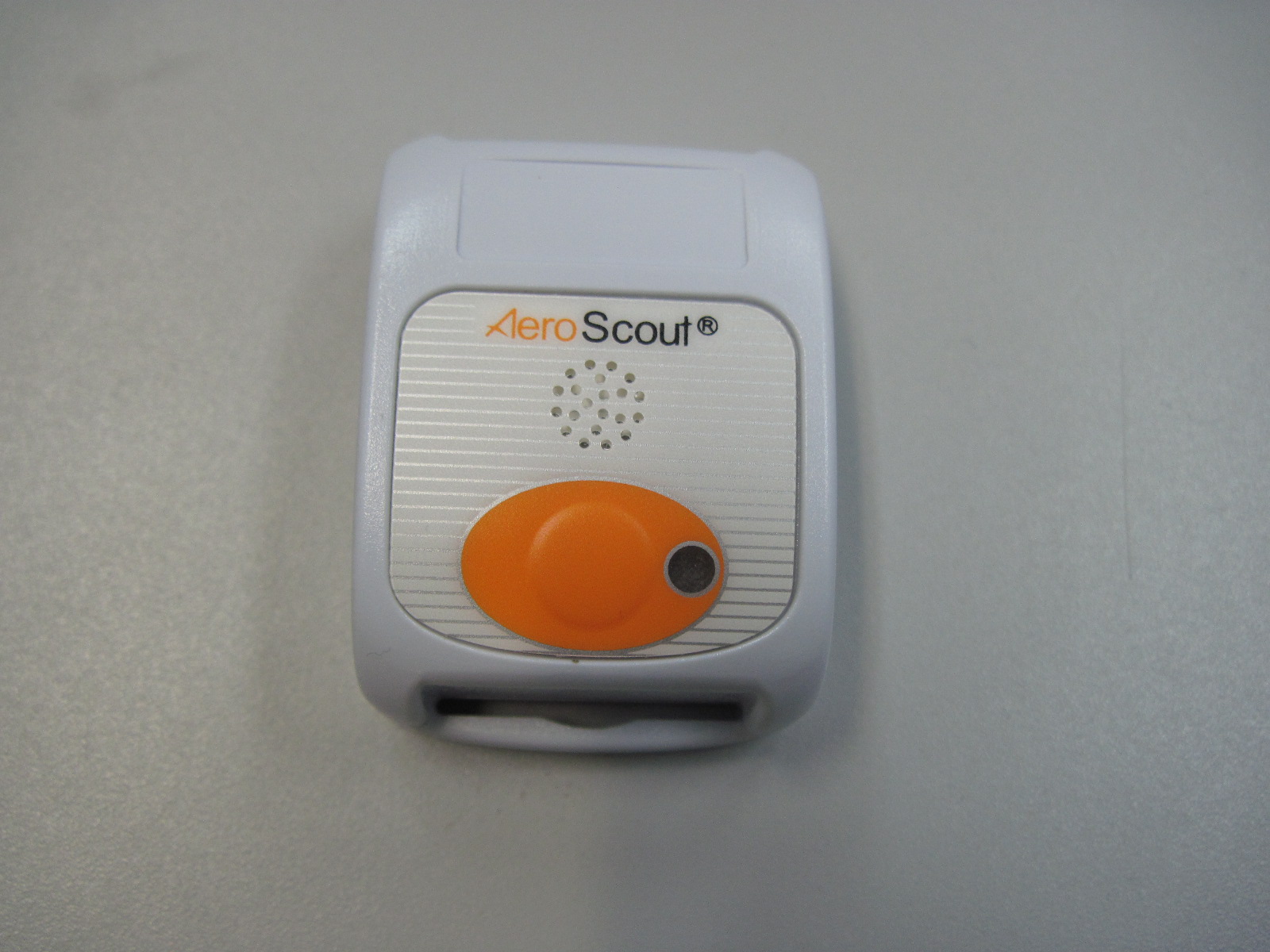

Date: 5/10/2010 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: The T2s Tag, M/N TAG-2300-CUT, FCC ID: Q3HTAG2300, and label are so small that it cannot include the statement specified in FCC Part 15 Sub-part A, Section 15.19 (a) (3) “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation." Due to this reason, we are using the provisions of Part 15 Sub-part A, Section 15.19 (a) (5) and this statement appears in a prominent location in the user manual. Please contact me if there is any information you may need. Sincerely, Reuven Amsalem VP R&D AeroScout Ltd.

Each Tag has its own MAC address. Before any transmission the Tag sniffs the air interface in order to detect 802.11b transmissions (RSSI detection). If the air is free, the Tag transmits its preprogrammed 802.11b message.

R.F Exposure/Safety for TAG-2300-CUT Typical uses of the E.U.T. are tracking of children in amusement parks, security personnel in enterprises, hospital patients, and many more. The E.U.T. is typically worn on a wristband. The typical distance between the E.U.T. and the user in the worst case application, is 1 cm. Calculation of Maximum Permissible Exposure (MPE) Based on Section 1.1307(b)(1) Requirements 2 1 cm mW (a) FCC limits at 2437 MHz is: Using table 1 of Section 1.1310 limit for general population/uncontrolled exposures, the above level is an average over 30 minutes. (b) The power density produced by the E.U.T. is 2 4R GP S tt π = P t - Transmitted Power 17.7 dBm (peak) = 58.9 mW G T - Antenna Gain,-4 dBi R- Distance from Transmitter using 1 cm worst case (c) The duty cycle of transmission in actual worst case is 500μsec every 1 second (500μsec\100msec<1%). The average power source is: P AV 589.001.09.58=×=mW (d) The peak power density (time averaging) of the E.U.T. is: 2 cm mW 019.0 4 4.0589.0 S AV = × = π (e) This is below the FCC limit.

Test Report E99200.01 AeroScout Ltd. Page 1 of 63 DATE: 10 October 2010 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for AeroScout Ltd. Equipment under test: T2s Tag TAG-2300-CUT* * See customer’s declaration on page 6 for additional models covered by this report. Written by: _____________________________ D. Shidlowsky, Documentation Approved by: _____________________________ E. Ever, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. FCC ACC M Ver 1.1 05Mayl 2000 Test Report E99200.01 AeroScout Ltd. Page 2 of 63 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for AeroScout Ltd. T2s Tag TAG-2300-CUT FCC ID: Q3HTAG2300 IC: 5115A-TAG2300 This report concerns: Original Grant: x Class I change: Class II change: Equipment type: Part 15 Digital Transmission System 47CFR15 Section 15.247 Measurement procedure used is ANSI C63.4-2003. Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaishou Raz Reuven Amsalem ITL (Product Testing) Ltd. 3 Pekris St. Park Tamar Kfar Bin Nun Rechovot 76702 D.N. Shimshon 99780 Israel Israel Tel: +972-8-936-3136 e-mail [email protected] Fax: +972-8-936-5977 e-mail: [email protected] TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information ................................................................................. 5 1.2 List of Accreditations ......................................................................................... 7 1.3 Product Description ........................................................................................... 8 1.4 Test Methodology .............................................................................................. 8 1.5 Test Facility ....................................................................................................... 8 1.6 Measurement Uncertainty ................................................................................. 8 2. SYSTEM TEST CONFIGURATION --------------------------------------------------------------------- 9 2.1 Justification ........................................................................................................ 9 2.2 EUT Exercise Software ..................................................................................... 9 2.3 Special Accessories .......................................................................................... 9 2.4 Equipment Modifications ................................................................................... 9 2.5 Configuration of Tested System ...................................................................... 10 3. TEST SET-UP PHOTOS ----------------------------------------------------------------------------------11 4. DUTY CYCLE -----------------------------------------------------------------------------------------------12 4.1 Test procedure ................................................................................................ 12 4.2 Duty Cycle Calculation .................................................................................... 14 4.3 Test Equipment Used. ..................................................................................... 14 5. 6 DB MINIMUM BANDWIDTH --------------------------------------------------------------------------15 5.1 Test procedure ................................................................................................ 15 5.2 Results............................................................................................................. 17 5.3 Test Equipment Used. ..................................................................................... 18 6. MAXIMUM TRANSMITTED PEAK POWER OUTPUT -------------------------------------------19 6.1 Test procedure ................................................................................................ 19 6.2 Results............................................................................................................. 21 6.3 Test Equipment Used. ..................................................................................... 21 7. PEAK POWER OUTPUT OUT OF 2400-2483.5 MHZ BAND ----------------------------------22 7.1 Test procedure ................................................................................................ 22 7.2 Results............................................................................................................. 34 7.3 Test Equipment Used. ..................................................................................... 35 8. BAND EDGE SPECTRUM -------------------------------------------------------------------------------36 8.1 Test procedure ................................................................................................ 36 8.2 Results............................................................................................................. 37 8.3 Test Equipment Used. ..................................................................................... 38 9. RADIATED EMISSION, 9 KHZ – 30 MHZ -----------------------------------------------------------39 9.1 Test Specification ............................................................................................ 39 9.2 Test Procedure ................................................................................................ 39 9.3 Test Data ......................................................................................................... 39 9.4 Test Instrumentation Used, Radiated Measurements .................................... 40 9.5 Field Strength Calculation ............................................................................... 40 10. SPURIOUS RADIATED EMISSION 30 MHZ – 25 GHZ ------…

Text truncated - open the document above for the full version.
