Q3HTAG3000AeroScout T3 Tag

AeroScout AeroScout AeroScout AeroScout T3 T3T3 T3 tag tagtag tag User Guide T3-UG-010507-01 Disclaimer The information and know-how included in this document are the exclusive property of AeroScout Inc. and are intended for the use of the addressee or the user alone. The addressees shall not forward to another their right of using the information, know-how or document forwarded herewith, in whole or in part in all matters relating or stemming from or involved therein, whether for consideration or without consideration, and shall not permit any third party to utilize the information, know-how or the documents forwarded herewith or copies or duplicates thereof, unless at the company’s consent in advance and in writing. Any distribution, advertisement, copying or duplication in any form whatsoever is absolutely prohibited. The Company reserves the right to sue the addressee, user and/or any one on their behalves, as well as third parties, in respect to breaching its rights pertaining to the intellectual rights in particular and its rights of whatever kind or type in the information, know-how or the documents forwarded by them herewith in general, whether by act or by omission. This document is confidential and proprietary to AeroScout Inc. and is not to be distributed to any persons other than licensed AeroScout T3 tag users or other persons appointed in writing by AeroScout Inc. Trademark Acknowledgements AeroScout™ is a trademark of AeroScout Inc. Other brand products and service names are trademarks or registered trademarks of their respective holders. Copyright 2007 AeroScout Inc. All rights reserved. Table of Contents | 3 Table of Contents Introduction........................................................................................................ 5 T3 Tag Features................................................................................................ 5 Tag Mounting .................................................................................................... 7 Single Hanger .............................................................................................................7 No Hanger...................................................................................................................7 Tag Management .............................................................................................. 7 Replacing the Internal Battery .....................................................................................8 Tag Specifications ........................................................................................... 10 Performance..............................................................................................................10 Physical and Mechanical...........................................................................................10 Radio.........................................................................................................................10 Environmental Specifications ....................................................................................10 Electrical....................................................................................................................10 Certification ...............................................................................................................10 Warranty.......................................................................................................... 13 Introduction | 5 Introduction The AeroScout T3 tag is a key component of the AeroScout Visibility System. The T3 tag is a small, flat, Wi-Fi, active RFID device that enables the wireless network infrastructure to locate assets not connected to a wireless network. The tag can be attached to mobile equipment such as vehicles in parking lots, inventory in a manufacturing line, containers, forklifts and medical equipment in hospitals. The tag can also be used to track people - security personnel hospital patients, and many more. Figure 1. AeroScout T3 tag T3 Tag Features Flat-Form Factor The AeroScout T3 tag is lightweight, flat device that can easily be incorporated into existing equipment and concealed, and can be comfortably carried by people. Flexible Mounting and Usage Options The tag is supplied with a variety of mounting options. It can be mounted on flat hard surfaces using special holes for screws, adhesive tape or Velcro. It can be mounted on cylindrical forms (such as poles) using tie-wraps. It can be hanged on a pocket using a badge clip, or on the carrier’s neck using a band. An optional cradle is also available, enabling the indirect mounting of the tag on various assets. Call Buttons T3 tags include two call buttons, a large one and a small one, that can be configured to send standard tag messages when the buttons are pressed or released. 6 | T3 Tag Features The tag can be configured to send different data depending on how the buttons are pressed: different messages can be associated with a long push of the buttons and with short, successive pushes. Each call button can be configured to serve a different purpose according to the organization’s needs. Motion Sensing T3 tags are shipped with on-board motion sensors that report when it starts to move and whether it is in motion or not. The motion sensor can be used to define tag behavior when in motion or when at rest. Temperature Sensing T3 tags can optionally be equipped with temperature sensors that can report the temperature measured in the vicinity of the tag. Temperature can also be reported if the temperature exceeds pre-defined thresholds. Long Battery Life A powerful, replaceable battery provides power for a period of up to 4 years (depending on the tag’s transmission interval). The tag periodically provides a report on the battery level so that when the battery level runs low, it can be replaced efficiently with minimum down time. Replacing the battery is simple and done using a special battery compartment remo…

Text truncated - open the document above for the full version.

10 Oppenheimer St. Park Tamar, Rehovot, Israel, 76701 Tel: 972-8-936-3136 Fax: 972-8-936-5977 www.aeroscout.com Date : 20/05/07 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q3HTAG3000. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: TAG-3000 Confidential BlkDia.pdf TAG-3000 Confidential PartsLst.pdf TAG-3000 Confidential Schem.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Yuval Uziel Hardware Manager AeroScout, Ltd Signature: Date: 20/05/2007

10 Oppenheimer St. Park Tamar, Rehovot, Israel, 76701 Tel: 972-8-936-3136 Fax: 972-8-936-5977 www.aeroscout.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: The AeroScout tag T3 model number TAG-3000 FCC ID Q3HTAG3000 is too small and can't include the statement as specified in FCC part 15 Sub-part A section 15.19(a)(3): "This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation." Due to this reason we used the provisions of FCC Part 15 Sub-part A Section 15.19 (a)(5) and we placed this statement in a prominent location in the users manual. Sincerely, Yuval Uziel Hardware Manager AeroScout, Ltd Signature: Date: 20/05/2007

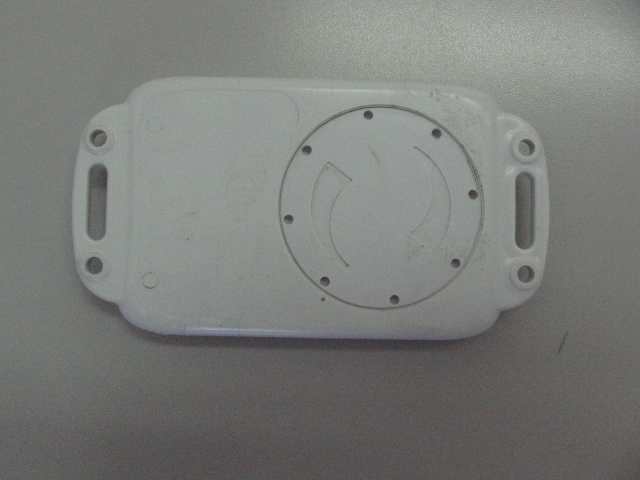

Figure 1 Rear Cover With Battery Figure 2 Rear Cover Without Battery Figure 3 PCB In Cover Figure 4 PCB Side 1 Figure 5 Side 2

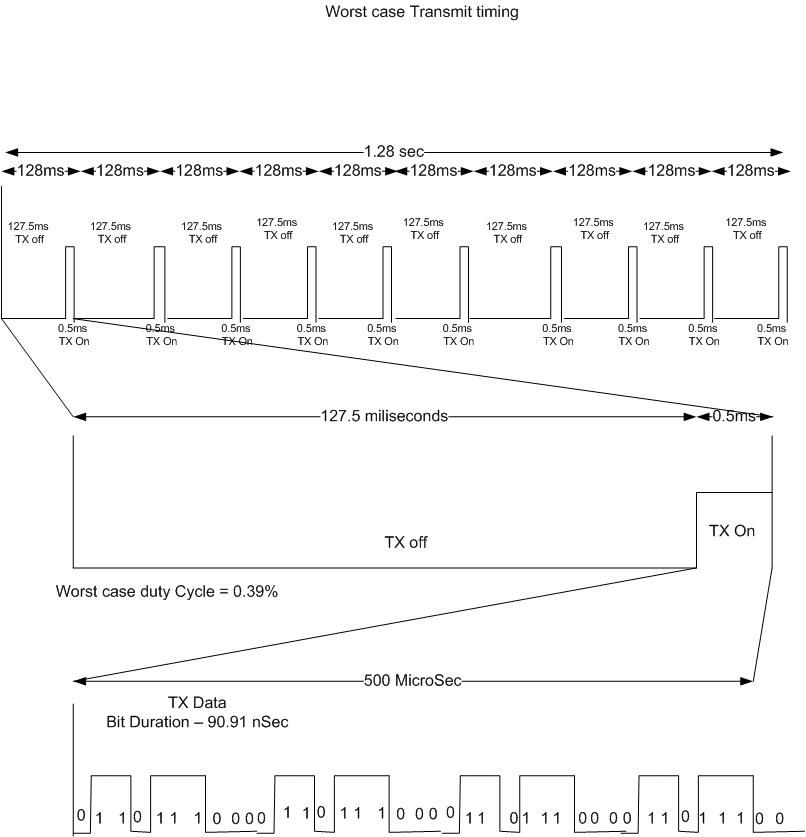

10 Oppenheimer St. Park Tamar, Rehovot, Israel, 76701 Tel: 972-8-936-3136 Fax: 972-8-936-5977 www.aeroscout.com Theory of Operation The AeroScout™ T3 Tags are a component of the AeroScout™ Location System. These dedicated battery-powered Tags send Wi-Fi compatible messages at pre-defined intervals and can be attached to non-Wi-Fi assets in order to locate them. Tags send messages with their unique ID number that are detected by Location Receivers and used to estimate the Tag’s location. In the typical operation the Tag wakes up every predefined interval and sniffs the air interface in order to detect 802.11b transmissions (RSSI detection). If the air is free, the Tag transmits its preprogrammed 802.11b message (1 Mbps, DBPSK modulation). The Tag includes a low frequency magnetic receiver for remote control activation or detection by Exciter in programmable pre-defined range.

Cert. No. 1152.01 Electrical (EMC) Test Report E73081.01 AeroScout Ltd. Page 1 of 71 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 27 June 2007 I.T.L. (PRODUCT TESTING) LTD. FCC EMC/Radio Test Report for AeroScout Ltd. Equipment under test: AeroScout T3 Tag TAG-3000 Written by: _____________________________ D. Shidlowsky, Documentation Approved by: _____________________________ E. Pitt, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Cert. No. 1152.01 Electrical (EMC) Test Report E73081.01 AeroScout Ltd. Page 2 of 71 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for AeroScout Ltd. AeroScout T3 Tag TAG-3000 FCC ID: Q3HTAG3000 27 June 2007 This report concerns: Original Grant x Class II change Class B verification Class A verification Class I change Equipment type: Digital Transmission System Request Issue of Grant: x Immediately upon completion of review Limits used: CISPR 22 Part 15 x Measurement procedure used is ANSI C63.4-2003. Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaishou Raz Reuven Amsalem ITL (Product Testing) Ltd. AeroScout Ltd. Kfar Bin Nun 10 Oppenheimer St. Park Tamar D.N. Shimshon 99780 Rechovot 76701 Israel Israel e-mail [email protected] Tel: +972-8 -9363136 Fax: +972-8-9365977 e-mail: [email protected] Test Report E73081.00 AeroScout Ltd. Page 3 of 71 FCC ACC M Ver 1.1 05Mayl 2000 TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information.................................................................................5 1.2 List of Accreditations .........................................................................................6 1.3 Product Description ...........................................................................................7 1.4 Test Methodology..............................................................................................7 1.5 Test Facility .......................................................................................................7 1.6 Measurement Uncertainty .................................................................................7 2. PRODUCT LABELING ------------------------------------------------------------------------------------ 8 3. SYSTEM TEST CONFIGURATION--------------------------------------------------------------------- 9 3.1 Justification........................................................................................................9 3.2 EUT Exercise Software .....................................................................................9 3.3 Special Accessories ..........................................................................................9 3.4 Equipment Modifications ...................................................................................9 3.5 Configuration of Tested System ......................................................................10 4. BLOCK DIAGRAM-----------------------------------------------------------------------------------------11 4.1 Schematic Block/Connection Diagram............................................................11 4.2 Theory of Operation ........................................................................................11 5. RADIATED MEASUREMENT TEST SET-UP PHOTOS -----------------------------------------12 6 SPURIOUS RADIATED EMISSION IN THE RESTRICTED BAND, BELOW 1 GHZ -----13 6.1 Test Specification ............................................................................................13 6.2 Test Procedure................................................................................................13 6.3 Test Data .........................................................................................................14 6.4 Test Instrumentation Used, Radiated Measurements ....................................17 6.5 Field Strength Calculation ...............................................................................18 7 SPURIOUS RADIATED EMISSION IN THE RESTRICTED BAND, ABOVE 1 GHZ -----19 7.1 Radiated Emission Above 1 GHz....................................................................19 7.2 Test Data .........................................................................................................20 7.3 Test Instrumentation Used, Radiated Measurements Above 1 GHz ..............25 8 MAXIMUM TRANSMITTED PEAK POWER OUTPUT -------------------------------------------26 8.1 Test procedure ................................................................................................26 8.2 Results table....................................................................................................28 8.3 Test Equipment Used......................................................................................29 9 PEAK POWER OUTPUT OUT OF 2400-2483.5 MHZ BAND ----------------------------------30 9.1 Test procedure ................................................................................................30 9.2 Results table....................................................................................................46 9.3 Test Equipment Used......................................................................................47 10 6 DB MINIMUM BANDWIDTH --------------------------------------------------------------------------48 10.1 Test procedure ................................................................................................48 10.2 Results table....................................................................................................50 10.3 Test Equipment Used......................................................................................50 11 BAND EDGE SPECTRUM ---------------------------------…

Text truncated - open the document above for the full version.

Radiated Measurement Test Set-up Photos Figure 1. Radiated Emission Test Figure 2. Radiated Emission Test
