Q3HTAG3100AEROSCOUT T3i TAG

AeroScout T3100 Integration Tag User Guide T2-UG-150307-01 Disclaimer The information and know-how included in this document are the exclusive property of AeroScout Inc. and are intended for the use of the addressee or the user alone. The addressees shall not forward to another their right of using the information, know-how or document forwarded herewith, in whole or in part in all matters relating or stemming from or involved therein, whether for consideration or without consideration, and shall not permit any third party to utilize the information, know-how or the documents forwarded herewith or copies or duplicates thereof, unless at the company’s consent in advance and in writing. Any distribution, advertisement, copying or duplication in any form whatsoever is absolutely prohibited. The Company reserves the right to sue the addressee, user and/or any one on their behalves, as well as third parties, in respect to breaching its rights pertaining to the intellectual rights in particular and its rights of whatever kind or type in the information, know-how or the documents forwarded by them herewith in general, whether by act or by omission. This document is confidential and proprietary to AeroScout Inc. and is not to be distributed to any persons other than licensed AeroScout T2 Tag users or other persons appointed in writing by AeroScout Inc. Trademark Acknowledgements AeroScout™ is a trademark of AeroScout Inc. Other brand products and service names are trademarks or registered trademarks of their respective holders. This product includes code licensed from RSA Data Security. Sun, Sun Microsystems, the Sun Logo, Java, JRE and all other Sun trademarks, logos, product names, service names, program names and slogans that are referred to or displayed in this document are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries. This product includes software developed by the Apache Software Foundation (http: //www.apache.org/). Copyright 2007 AeroScout Inc. All rights reserved. Table of Contents | 3 Table of Contents Introduction....................................................................................................5 T2 Tag Features ............................................................................................5 Connectors and Motion Sensor ......................................................................7 Tag Management...........................................................................................8 Tag Specifications..........................................................................................9 Warranty......................................................................................................11 Introduction | 5 Introduction The T3100 integration tag has been especially designed for technology partners who wish to embed the power of the AeroScout location technology into their own products. T3100 is the most advanced Wi-Fi based Active RFID tag on the market, manufactured by a market leader and the original creators of the Wi-Fi- based Active RFID technology. It provides accurate location, improved asset tracking and expanded communication capabilities for a more diverse solution offering. Utilizing the core of the AeroScout T3 tag, the latest model in the AeroScout line of tags, the advantages are already recognized by industries such as healthcare, manufacturing and logistics. Tracking high-value assets and people in real time, in any environment – from tight indoor locations to open outdoor areas – gives enterprises proven positive results and ROI. T2 Tag Features Compact Board Design The T3100 is a PCB that functions in the same way as the AeroScout T3 tag does. it is the smallest and most feature-rich model in the AeroScout Tag family, and thanks to its compact design it can be easily embedded into product enclosures. Single Streamlined Power Source The T3100 is powered by the product’s own power source, which eliminates complicated dual power maintenance. 6 | T2 Tag Features Call button interface The tag includes a call button interface for physical interfaces that can transmit specific data loads coming from the integrated product. In addition, the tag includes another I/O which can be customized for external control for multiple purposes Serial interface for telemetry A serial interface connector is integrated for connecting with a host unit for telemetry transmission, or for extracting one of 15 x 15 byte stored messages in the tag’s memory. Indoor-Outdoor Reliability Both RSSI (Received Signal Strength Indication) and TDOA (Time Difference of Arrival) location is available, with the ability for both to function seamlessly and accurately in any environment. This means that the same tag can track and manage assets in real time across a variety of industries and needs, from aerospace manufacturers tracking parts in an aircraft hangar, to hospitals locating patients across an indoor/outdoor campus, to automotive distributors tracking cars in large parking lots. Simple Board Management The T3100 can be programmed via a wireless interface and in batches of up to 50 units at a time, using Tag Activator. The Tag Manager software allows for easy and efficient tag configuration, activation, deactivation and programming. Compatibility and Non-Interference AeroScout T3 Tags are 802.11-compatible, and feature the lowest impact on the Wi-Fi network of any tag on the market. The Tag’s channel sensing techniques avoid interference with over-the-air Wi-Fi data. The use of the 2.4GHz frequency band at low power levels ensures no interference with other wireless equipment and virtually no measurable impact on network traffic. AeroScout Tags have received EMI certification, making them safe for use with sensitive equipment such as medical devices in a hospital. Choke-Point Detection Capabilities Using the AeroScout Exciter, distinct tag presence can be automatically detected and behavior …

Text truncated - open the document above for the full version.

10 Oppenheimer St. Park Tamar, Rehovot, Israel, 76701 Tel: 972-8-936-3136 Fax: 972-8-936-5977 www.aeroscout.com Subject: Equipment Modifications to the AeroScout T3i Tag M/N TAG-3100 To whom it may Concern, I herby attest that the equipment modifications applied to the AeroScout T3i Tag M/N TAG-3100 will be included in the final manufactured units before marketing for use. Regards Yuval Uziel HW Manager AeroScout, Ltd Signature: Date: 04/19/2007

10 Oppenheimer St. Park Tamar, Rehovot, Israel, 76701 Tel: 972-8-936-3136 Fax: 972-8-936-5977 www.aeroscout.com Date : 05/16/07 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q3H TAG3100. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram, Schematics, part list . TAG-3100 Additional BLOCK DIAGRAM Confidential BlkDia.pdf TAG-3100 Additional Schematics Confidential Schem.pdf TAG-3100 Confidential BlkDia.pdf TAG-3100 Confidential PartsLst.pdf TAG-3100 Confidential Schem.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Yuval Uziel Hardware Manager AeroScout, Ltd Signature:

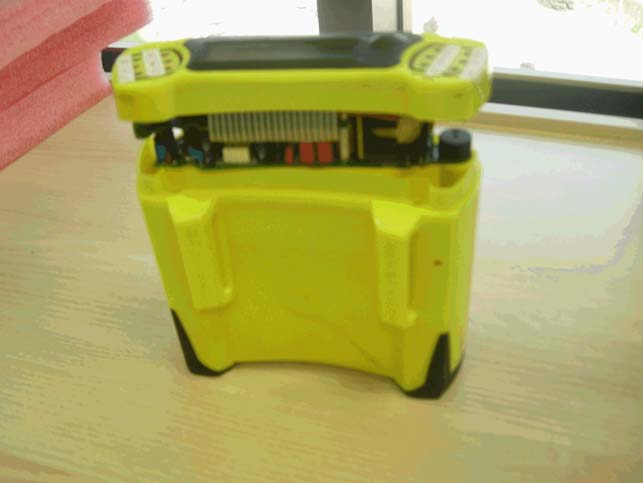

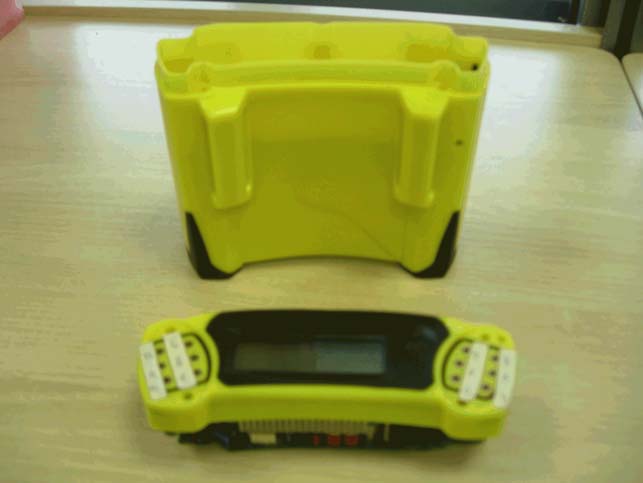

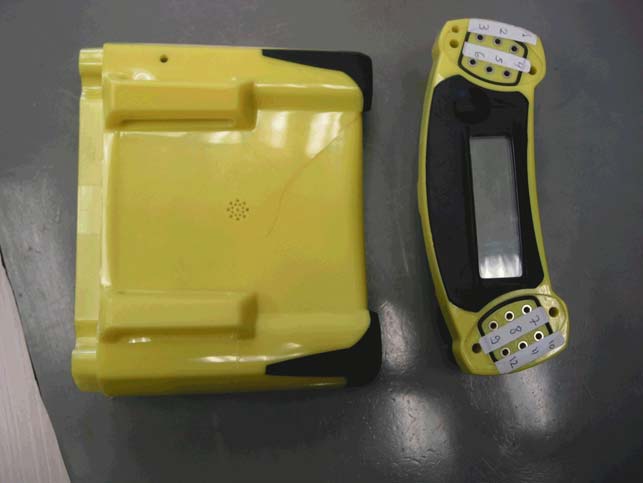

Photographs of Tested E.U.T. Figure 1 PCB Component Side Figure 2 PCB Print Side Note: In the above picture (Figure 2) on the lower left is a crystal oscillator. It is an electronic part – not a shield. It cannot be removed.

ACX Advanced Ceramic X AT7020 Series Multilayer Chip Antenna Features ™ Monolithic SMD with small, low-profile and light-weight type. ™ Wide bandwidth Applications ™2.4GHz WLAN, Home RF, Bluetooth Modules, etc. Specifications Part Number Frequency Range (MHz) Peak Gain (dBi typ.) Average Gain (dBi typ.) VSWR Impedance AT7020 -B2R4HAA_ 2400~2500 2.0 (XZ-V) 0.5 (XZ-V) 2 max. 50 Ω Q’ty/Reel (pcs) : 1,000 pcs Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : -40 ~ +85 o C Power Capacity : 3W max. Part Number AT 7020 - B 2R4 HAA ‡ dc efgh c Type AT : Antenna d Dimensions ( L × W ) 7.0× 2.0 mm e Material Code B f Frequency Range 2R4=2400MHz g Specification Code HAA h Packaging T: Tape & Reel B: Bulk Terminal Configuration No. Terminal Name No. Terminal Name c Feeding Point d NC d c ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Unit : mm a W T Mark L W T a Dimensions 7.0±0.2 2.0±0.2 1.2+ 0.1/-0.2 0.5±0.3 *Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. Typical Electrical Characteristics (T=25 o C) ™Test Board * * * 2.0 5.5 8.0 1.0 (Matching circuit and component values will be different, depending on PCB layout) Antenna No Ground Ground 20mm 19mm 40mm 9.5mm L 50Ω Feed Line ACX c X Advanced Ceramiic X ™Return Loss ACX Advanced Ceramic X ™Radiation Patterns XY cut @2.45GHz Vertical Horizontal XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal XY-V/XY-H Z 180 o XZ-V/XZ-H YZ-V/YZ-H 270 o X 0 o 90 o Y XY-cut scanning direction Y 180 270 o 0 o X Z XZ-cut scanning direction Y X 0 o 270 Z YZ-cut scanning direction 180 90 o 90 o

Theory of Operation The AeroScout™ T3i Tags are a component of the AeroScout™ Location System. These dedicated battery-powered Tags send Wi-Fi compatible messages at pre-defined intervals and can be attached to non-Wi-Fi assets in order to locate them. Tags send messages with their unique ID number that are detected by Location Receivers and used to estimate the Tag’s location. In the typical operation the Tag wakes up every predefined interval and sniffs the air interface in order to detect 802.11b transmissions (RSSI detection). If the air is free, the Tag transmits its preprogrammed 802.11b message (1 Mbps, DBPSK modulation). The Tag includes a low frequency magnetic receiver for remote control activation or detection by Exciter in programmable pre-defined range.

Cert. No. 1152.01 Electrical (EMC) Test Report E70780.01 AeroScout Ltd. Page 1 of 70 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 27 March 2007 I.T.L. (PRODUCT TESTING) LTD. FCC EMC/Radio Test Report for AeroScout Ltd. Equipment under test: AeroScout T3i Tag TAG-3100 Written by: _____________________________ D. Shidlowsky, Documentation Approved by: _____________________________ E. Pitt, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Cert. No. 1152.01 Electrical (EMC) Test Report E70780.01 AeroScout Ltd. Page 2 of 70 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for AeroScout Ltd. AeroScout T3i Tag TAG-3100 FCC ID: Q3H TAG3100 27 March 2007 This report concerns: Original Grant x Class II change Class B verification Class A verification Class I change Equipment type: Radio Telemetry Transmitter Request Issue of Grant: x Immediately upon completion of review Limits used: CISPR 22 Part 15 x Measurement procedure used is ANSI C63.4-2003. Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaishou Raz Reuven Amsalem ITL (Product Testing) Ltd. AeroScout Ltd. Kfar Bin Nun 10 Oppenheimer St. Park Tamar D.N. Shimshon 99780 Rechovot 76701 Israel Israel e-mail [email protected] Tel: +972-8 -9363136 Fax: +972-8-9365977 e-mail: [email protected] Test Report E70780.00 AeroScout Ltd. Page 3 of 70 FCC ACC M Ver 1.1 05Mayl 2000 TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information.................................................................................5 1.2 List of Accreditations .........................................................................................6 1.3 Product Description ...........................................................................................7 1.4 Test Methodology..............................................................................................7 1.5 Test Facility .......................................................................................................7 1.6 Measurement Uncertainty .................................................................................7 2. PRODUCT LABELING ------------------------------------------------------------------------------------ 8 3. SYSTEM TEST CONFIGURATION--------------------------------------------------------------------- 9 3.1 Justification........................................................................................................9 3.2 EUT Exercise Software .....................................................................................9 3.3 Special Accessories ..........................................................................................9 3.4 Equipment Modifications ...................................................................................9 3.5 Configuration of Tested System ......................................................................10 4. BLOCK DIAGRAM-----------------------------------------------------------------------------------------11 4.1 Schematic Block/Connection Diagram............................................................11 4.2 Theory of Operation ........................................................................................11 5. RADIATED MEASUREMENT TEST SET-UP PHOTOS -----------------------------------------12 6 SPURIOUS RADIATED EMISSION IN THE RESTRICTED BAND, BELOW 1 GHZ -----13 6.1 Test Specification ............................................................................................13 6.2 Test Procedure................................................................................................13 6.3 Test Data .........................................................................................................14 6.4 Test Instrumentation Used, Radiated Measurements ....................................19 6.5 Field Strength Calculation ...............................................................................20 7 SPURIOUS RADIATED EMISSION IN THE RESTRICTED BAND, ABOVE 1 GHZ -----21 7.1 Radiated Emission Above 1 GHz....................................................................21 7.2 Test Data .........................................................................................................22 7.3 Test Instrumentation Used, Radiated Measurements Above 1 GHz ..............27 8 MAXIMUM TRANSMITTED PEAK POWER OUTPUT -------------------------------------------28 8.1 Test procedure ................................................................................................28 8.2 Results table....................................................................................................30 8.3 Test Equipment Used......................................................................................31 9 PEAK POWER OUTPUT OUT OF 2400-2483.5 MHZ BAND ----------------------------------32 9.1 Test procedure ................................................................................................32 9.2 Results table....................................................................................................48 9.3 Test Equipment Used......................................................................................49 10 6 DB MINIMUM BANDWIDTH --------------------------------------------------------------------------50 10.1 Test procedure ................................................................................................50 10.2 Results table....................................................................................................52 10.3 Test Equipment Used......................................................................................52 11 BAND EDGE SPECTRUM ----------------------------…

Text truncated - open the document above for the full version.

Test Set-up Photos Figure 1. Radiated Emission Test Figure 2. Radiated Emission Test
