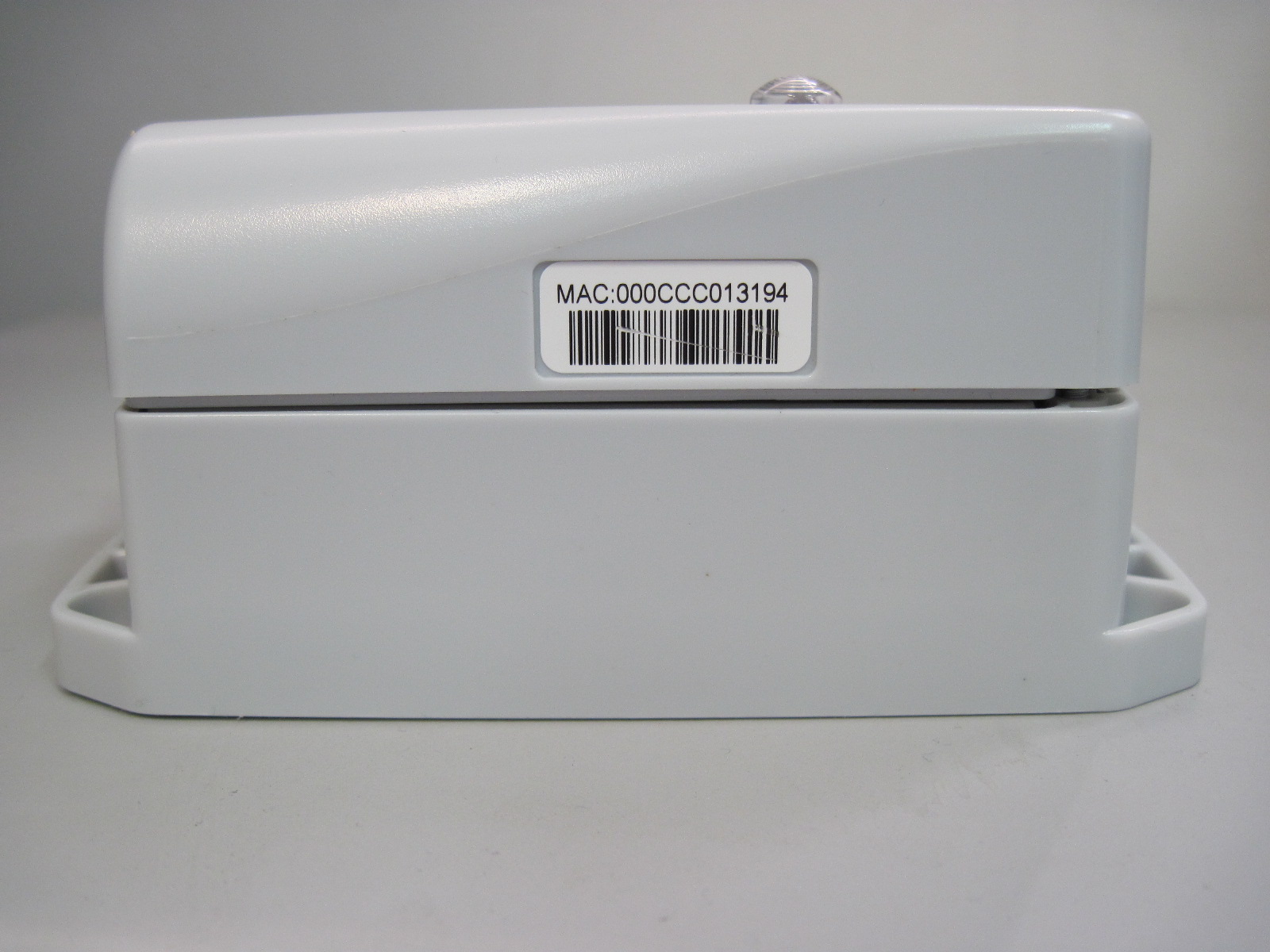

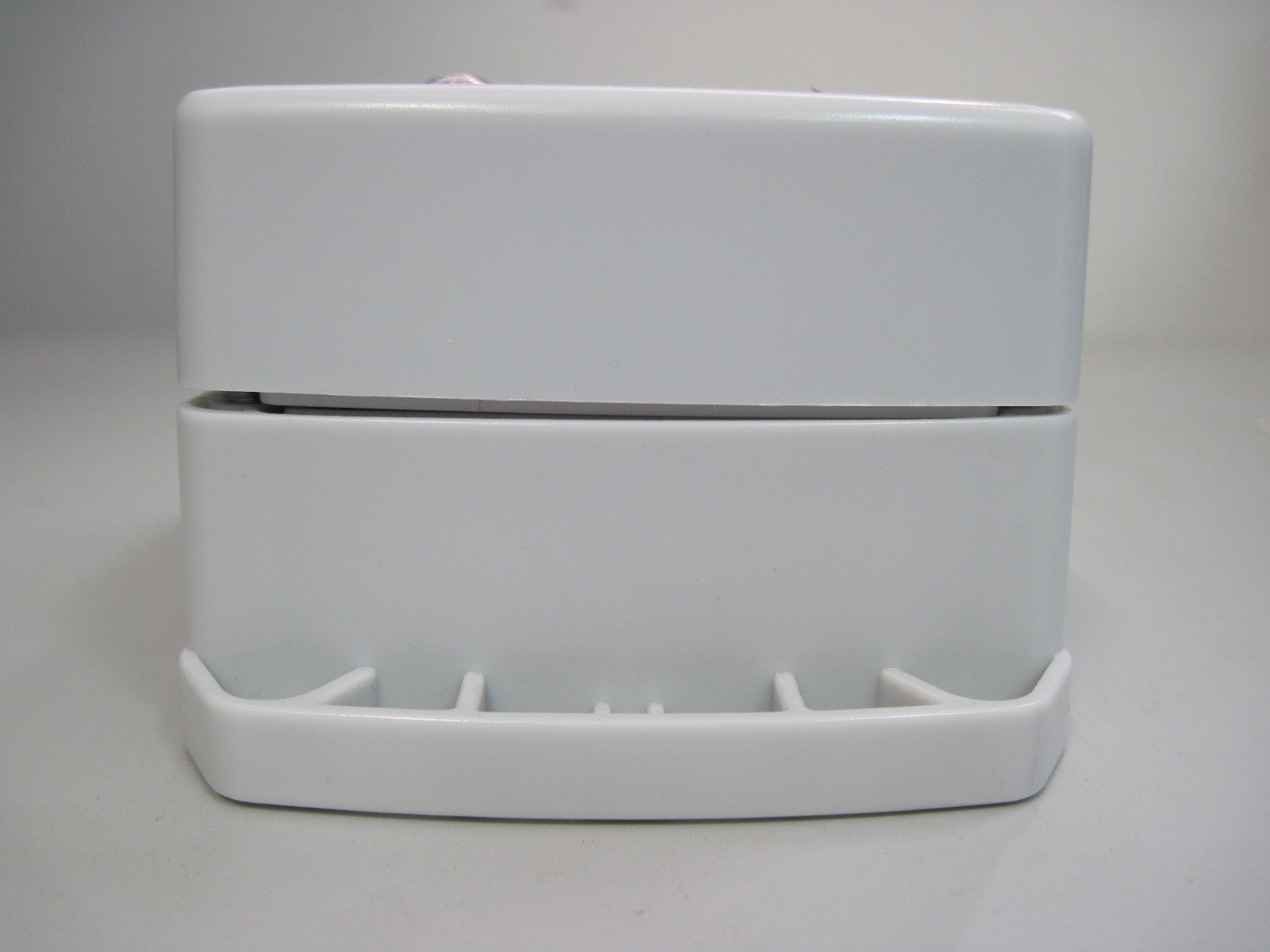

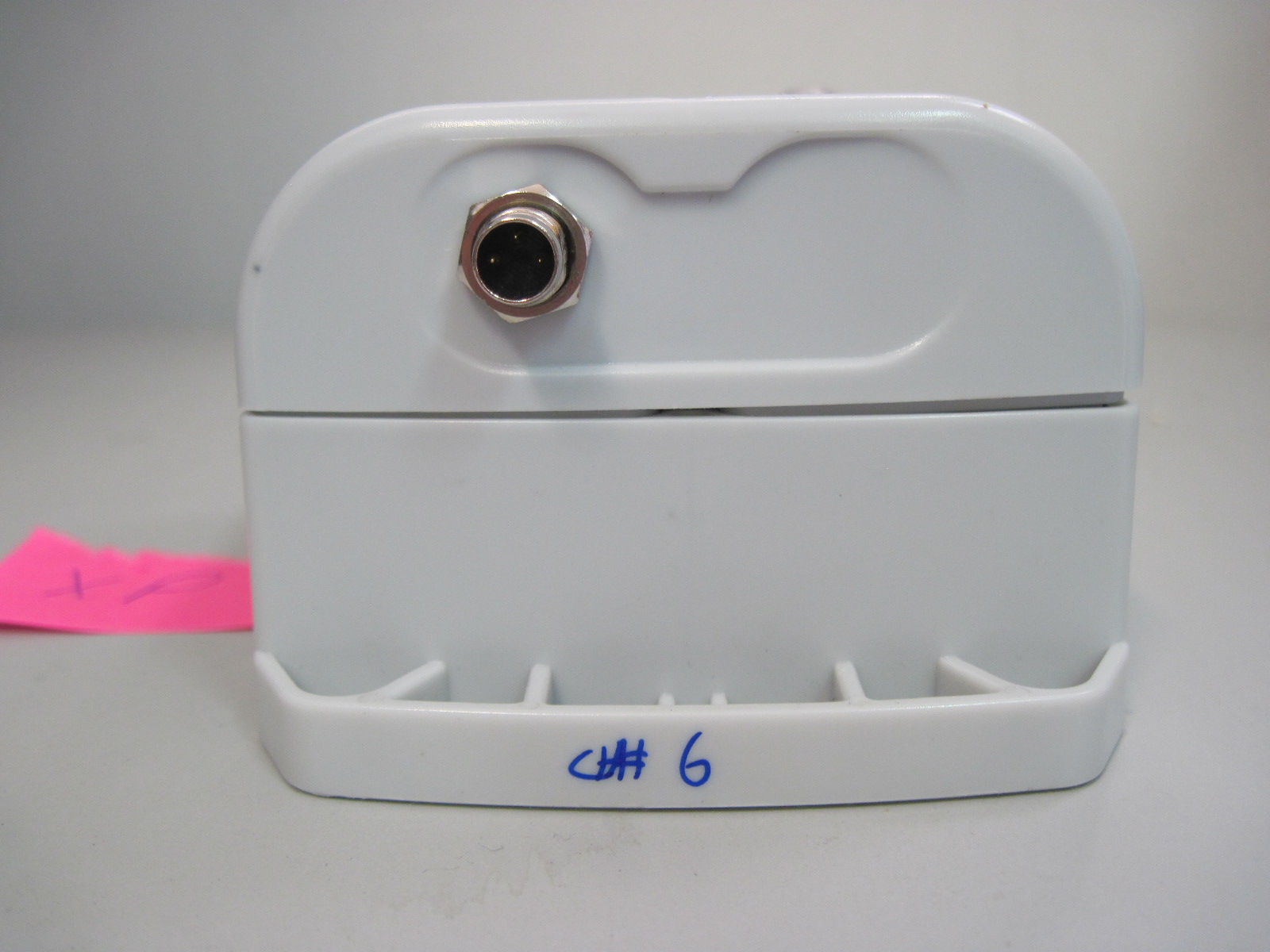

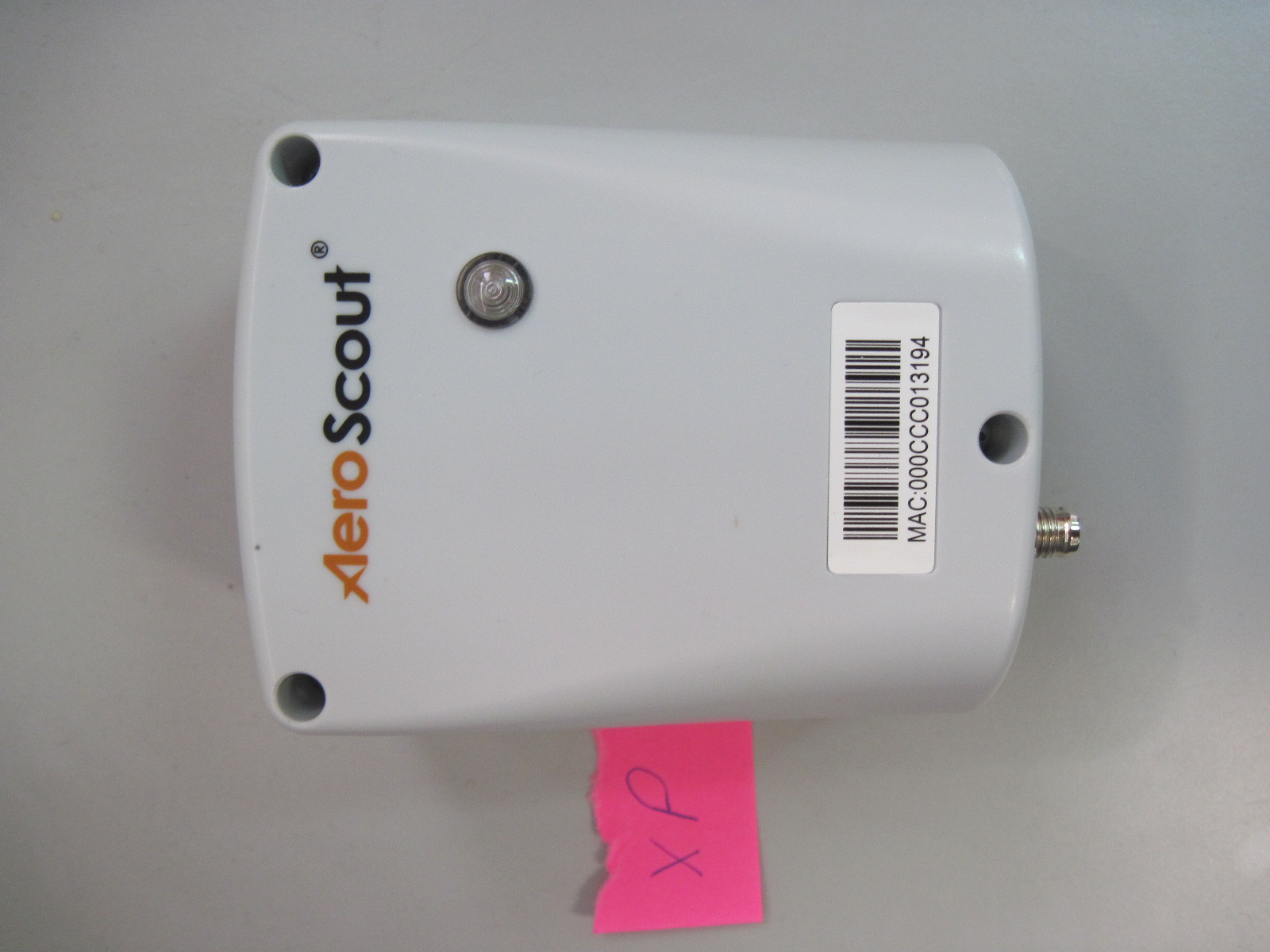

Q3HTAG6000AEROSCOUT TAG 6000, TAG-6000-XP-X1, TAG-6000-BP-X1

AeroScout T6 GPS Tag User Guide T6GPS-UG-090113-06 Disclaimer The information and know-how included in this document are the exclusive property of AeroScout Inc. and are intended for the use of the addressee or the user alone. The addressees shall not forward to another their right of using the information, know-how or document forwarded herewith, in whole or in part in all matters relating or stemming from or involved therein, whether for consideration or without consideration, and shall not permit any third party to utilize the information, know-how or the documents forwarded herewith or copies or duplicates thereof, unless at the company’s consent in advance and in writing. Any distribution, advertisement, copying or duplication in any form whatsoever is absolutely prohibited. The Company reserves the right to sue the addressee, user and/or any one on their behalves, as well as third parties, in respect to breaching its rights pertaining to the intellectual rights in particular and its rights of whatever kind or type in the information, know- how or the documents forwarded by them herewith in general, whether by act or by omission. This document is confidential and proprietary to AeroScout Inc. and is not to be distributed to any persons other than licensed AeroScout Visibility System users or other persons appointed in writing by AeroScout Inc. Trademark Acknowledgements AeroScout™ is a trademark of AeroScout, Inc. Other brand products and service names are trademarks or registered trademarks of their respective holders. Below is a partial listing of other trademarks or registered trademarks referenced herein: Cisco™ is a trademark of Cisco Systems, Inc. Sun, Sun Microsystems, the Sun Logo, Java, JRE and all other Sun trademarks, logos, product names, service names, program names and slogans that are referred to or displayed in this document are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries. This product includes software developed by the Apache Software Foundation (http://www.apache.org/). This product includes code licensed from RSA Data Security Skype, SkypeIn, SkypeOut, Skype Me, the Skype Logo and the S logo and other marks indicated on Skype’s website are trademarks of Skype Limited or other related companies. ESper is a trademark of EsperTech, Inc. Jboss is a trademark of Red Hat Middleware, LLC. Oracle 10G is a registered trademark of Oracle Corporation and/or its affiliates. MS SQL Server 2005 is a registered trademarks of Microsoft Corporation in the United States and/or other countries. JasperSoft, the JasperSoft Logo, JasperReports, the JasperReports logo, JasperIntelligence, JasperDecisions, JasperAnalysis, Scope Center, Scope Designer, and JasperServer are trademarks or registered trademarks of JasperSoft, Inc. in the United States and other countries. Copyright 2009 AeroScout Inc. All rights reserved. AeroScout T6 GPS Tag Table of Contents 3 Table of Contents Introduction ......................................................................................................................... 5 T6 Tag Features ................................................................................................................... 5 Tag Mounting ...................................................................................................................... 9 Tag Management .............................................................................................................. 11 Tag Management via MobileView ................................................................................. 11 Tag Maintenance .............................................................................................................. 12 T6 Tag Models ................................................................................................................... 16 Tag Accessory Models ..................................................................................................... 16 Tag Specifications ............................................................................................................. 18 Safety and Warnings ........................................................................................................ 20 Limited Warranty ............................................................................................................. 21 AeroScout T6 GPS Tag Document History 4 REVISION HISTORY Revision Date Comments Author 1 2 September 2009 New format M Sharon 2 03 Jan 2009 Maintenance warranty sections Update Itai R 3 23 February 2012 External Power Option Refael Blanca 4 11 September 2012 New battery P/N Tal Marcus 5 09 January 2013 New battery P/N Tal Marcus 6 15 May 2013 Intrinsic safe option Ohad Yahalom AeroScout T6 GPS Tag 5 Introduction The AeroScout T6 GPS Tag is a key component of the AeroScout Visibility System. The AeroScout T6 GPS Tag is a first of its kind solution that combines GPS and Wi-Fi to improve operations in large, outdoor environments. The tag is a battery-powered, wireless device that uses GPS to determine location and standard Wi-Fi to transport asset location and other valuable information to the customer’s 802.11b/g-compatible Wi-Fi network. The T6 GPS Tag provides an ideal solution for organizations that need accurate location information for asset management in outdoor areas with minimal or basic Wi-Fi coverage. The tags help customers improve productivity and operational efficiency, while leveraging Wi-Fi infrastructure to keep total costs low. Figure 1: AeroScout T6 Tag T6 Tag Features GPS Location The innovative tag combines GPS and Wi-Fi to enable accurate asset management. Equipped with a built-in GPS receiver and attached to outdoor assets, the tag can deliver location reports based on GPS signals. Bidirectional Communication Other than the standard AeroScout unidirectional beacons transmitted by the tag periodically, the T6 Tag are capable of bidirectio…

Text truncated - open the document above for the full version.

10 Oppenheimer St. Park Tamar, Rehovot, Israel, 76701 Tel: 972-8-936-3136 Fax: 972-8-936-5977 www.aeroscout.com Date: 25/11/2013 Ref: FCC ID: Q3HTAG6000 Confidentiality Request To: Federal Communications Commission Confidentiality Request regarding application for certification of FCC ID: Q3HTAG6000 Models: TAG-6000-XP-X1, TAG-6000-BP-X1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: a. CONF APPENDIX TAG6000 Schem.pdf b. CONF APPENDIX TAG6000 Revised Schem.pdf c. CONF APPENDIX TAG6000 PartsLst.pdf d. CONF APPENDIX TAG6000 BlkDia.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Signature: Reuven Amsalem VP HW R&D

10 Oppenheimer St. Park Tamar, Rehovot, Israel, 76701 Tel: 972-8-936-3136 Fax: 972-8-936-5977 www.aeroscout.com Date: 14/11/2013 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to act on our behalf regarding the FCC Certification Process for the following application: Model: TAG-6000-XP-X1, TAG-6000-BP-X1 FCC ID: Q3HTAG6000 Thank you, Signature: Reuven Amsalem VP HW R&D

10 Oppenheimer St. Park Tamar, Rehovot, Israel, 76701 Tel: 972-8-936-3136 Fax: 972-8-936-5977 www.aeroscout.com Date: 14/11/2013 To: Timco Engineering Inc. To Whom It May Concern We hereby authorize Mr. Shaike Raz of I.T.L. (Product Testing) Ltd (ITL) to sign FORM 731 on our behalf for the following application: Model: TAG-6000-XP-X1, TAG-6000-BP-X1 FCC ID: Q3HTAG6000 Thank you, Signature: Reuven Amsalem VP HW R&D

Integral Antenna

GPS GPS Integral Antenna

TAG-6000-BP/XP-X1 – GPS Tag The AeroScout T6 GPS Tag is a key component of the AeroScout Visibility System. The AeroScout T6 GPS Tag is a first of its kind solution that combines GPS and Wi-Fi to improve operations in large, outdoor environments. The tag is a battery-powered, wireless device that uses GPS to determine location and standard Wi-Fi to transport asset location and other valuable information to the customer’s 802.11b/g-compatible Wi-Fi network. The T6 GPS Tag provides an ideal solution for organizations that need accurate location information for asset management in outdoor areas with minimal or basic Wi-Fi coverage. The tags help customers improve productivity and operational efficiency, while leveraging Wi-Fi infrastructure to keep total costs low. T6 Tag Features GPS Location The innovative tag combines GPS and Wi-Fi to enable accurate asset management. Equipped with a built-in GPS receiver and attached to outdoor assets, the tag can deliver location reports based on GPS signals. Bidirectional Communication Other than the standard AeroScout unidirectional beacons transmitted by the tag periodically, the T6 Tag are capable of bidirectional Wi-Fi communication with full network association and authentication. The tag can operate with up to 5 different network SSIDs in secure or non-secure mode. Visual Indications The tag includes a Bi-color LED. The LED indication can be activated from the network to provide acknowledgement for various events such as entering a zone. Motion Sensing T6 Tags are shipped with on-board motion sensors that report when it starts to move and whether it is in motion or not. The motion sensor can be used to define tag behavior when in motion or when it is stationary. Active RFID Functionality Using the AeroScout Exciter, the tag sends out specific location reports upon arrival at chokepoints or gateways. The tag behavior can also be automatically modified while passing through a chokepoint such as a doorway or gate. This includes activating/deactivating tags or changing the tags’ transmission rate to accommodate different usage patterns. Compatibility and Non-interference AeroScout Tags are 802.11b compatible. The tag’s clear channel sensing techniques avoid interference with Wi-Fi networks. The use of the unlicensed 2.4GHz frequency band at low power levels ensures no interference with other wireless equipment. Rugged Performance AeroScout Tags are designed to function in harsh work environments and weather conditions. The tag enclosure is water-resistant (IP-67) and designed to withstand significant physical shocks. Intrinsic Safe option AeroScout offers an intrinsically safe (IS), explosion proof version of the T6 GPS Tag, which is specifically built to deliver high-value asset tracking, while meeting strict international regulatory certifications ensuring safety in hazardous environments. External Power Input An external power input option is available for the T6 IS GPS Tags. When connected to an external power source the Tag will not consume power from the battery. Once the external power source is disconnected the Tag will automatically revert to the battery power source. Figure 1: TAG-6000-XP-X1

10 Oppenheimer St. Park Tamar, Rehovot, Israel, 76701 Tel: 972-8-936-3136 Fax: 972-8-936-5977 www.aeroscout.com Date: 14/11/2013 Ref: FCC ID: Q3HTAG6000 Tune up procedure To: Federal Communications Commission Subject: TAG-6000-XP-X1, TAG-6000-BP-X1 FCC ID: Q3HTAG6000 - Tune up procedure No manual tune-up procedure required. Thank you, Signature: Printed Name: Reuven Amsalem VP HW R&D AeroScout Ltd.

Test Report E132330.01 AeroScout Ltd. Page 1 of 64 FCC ACC M Ver 1.2 28 February 2011 DATE: 14 October 2013 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for AeroScout Ltd. Equipment under test: Tag 6000 TAG-6000-BP-X1, TAG-6000-XP-X1* Written by: _____________________________ R. Pinchuck, Documentation Approved by: _____________________________ A. Sharabi, Test Engineer Approved by: _____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. *See Customer’s Declaration on Page 6 Test Report E132330.01 AeroScout Ltd. Page 2 of 64 FCC ACC M Ver 1.2 28 February 2011 Measurement/Technical Report for AeroScout Ltd. Tag 6000 TAG-6000-BP-X1, TAG-6000-XP-X1 FCC ID: Q3HTAG6000 IC: 5115A-TAG6000 14 October 2013 This report concerns: Original Grant: X Class I Change: Class II Change: Equipment type: Spread Spectrum/Digital Device 2400-2483.5 MH Limits used: 47CFR15 Section 15.247, Section 15.209 Measurement procedure used is KDB 558074 D01 April 9, 2013 and ANSI C63.4- 2003. Application for Certification Applicant for this device: prepared by: (different from "prepared by") Ishaishou Raz Reuven Amsalem ITL (Product Testing) Ltd. 3 Pekeris St., Einstein Entrance Kfar Bin Nun Rechovot 76702 D.N. Shimshon 99780 Israel Israel Tel: +972-8-936-9393 e-mail [email protected] Fax: +972-8-936-5977 e-mail: [email protected] Test Report E132330.01 AeroScout Ltd. Page 3 of 64 FCC ACC M Ver 1.2 28 February 2011 TABLE OF CONTENTS 1. GENERAL INFORMATION ------------------------------------------------------------------------------- 5 1.1 Administrative Information ................................................................................. 5 1.2 List of Accreditations ......................................................................................... 7 1.3 Product Description ........................................................................................... 8 1.4 Test Methodology .............................................................................................. 8 1.5 Test Facility ....................................................................................................... 8 1.6 Measurement Uncertainty ................................................................................. 8 2. SYSTEM TEST CONFIGURATION --------------------------------------------------------------------- 9 2.1 Justification ........................................................................................................ 9 2.2 EUT Exercise Software ..................................................................................... 9 2.3 Special Accessories .......................................................................................... 9 2.4 Equipment Modifications ................................................................................... 9 2.5 Configuration of Tested System ...................................................................... 10 3. CONDUCTED AND RADIATED MEASUREMENT TEST SET-UP PHOTO ----------------11 4. CONDUCTED EMISSION FROM AC MAINS -------------------------------------------------------14 4.1 Test Specification ............................................................................................ 14 4.2 Test Procedure ................................................................................................ 14 4.3 Measured Data ................................................................................................ 14 4.4 Test Instrumentation Used, Conducted Measurement ................................... 18 6. 6 DB MINIMUM BANDWIDTH --------------------------------------------------------------------------19 6.1 Test procedure ................................................................................................ 19 6.2 Results table .................................................................................................... 21 6.3 Test Equipment Used. ..................................................................................... 22 7. 26 DB MINIMUM BANDWIDTH-------------------------------------------------------------------------23 7.1 Test procedure ................................................................................................ 23 7.2 Results table .................................................................................................... 25 7.3 Test Equipment Used. ..................................................................................... 26 8. MAXIMUM TRANSMITTED PEAK POWER OUTPUT -------------------------------------------27 8.1 Test procedure ................................................................................................ 27 8.2 Results table .................................................................................................... 29 8.3 Test Equipment Used. ..................................................................................... 30 10. BAND EDGE SPECTRUM -------------------------------------------------------------------------------31 10.1 Test procedure ................................................................................................ 31 10.2 Results table .................................................................................................... 32 10.3 Test Equipment Used. ..................................................................................... 33 11. RADIATED EMISSION, 9 KHZ – 30 MHZ -----------------------------------------------------------34 11.1 Test Specification ............................................................................................ 34 11.2 Test Procedure ................................................................................................ 34 11.3 Measured Data ................................................................................................ 34 11.4 Test I…

Text truncated - open the document above for the full version.
