Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: Q3Z3200G Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: System Schematics System Block Diagram WLAN Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application.

Power of Attorney To whom it may concern: We, the undersigned Averatec Inc. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you!

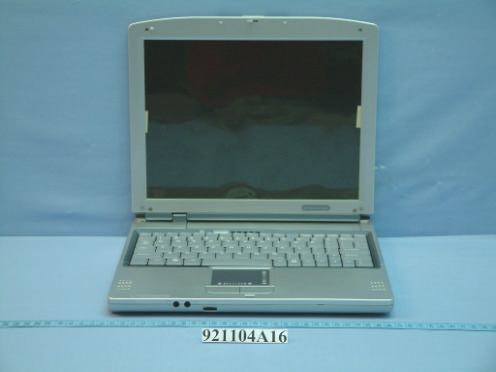

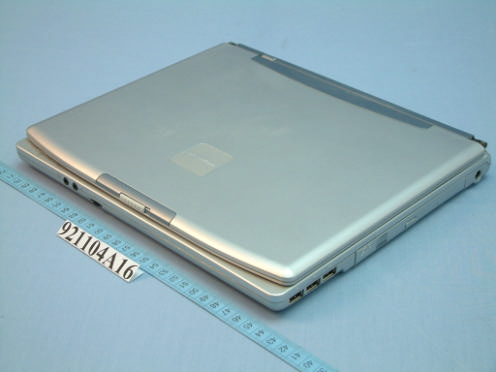

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: Q3Z3200G FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Corporation Design Color Requirement: P FCC Label 3200 Series Wen Fu Chieng 1 : 1 1 1 12 / 17 03' 0 63-040119-00 116.5 9 9 . 5 C2.5 R2X3 63-040119-00 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA FOR HOME OR OFFICE USE FCC Standards Tested To Comply With Background: Silver Text: Pantone 446C PC , Thickness 0.5mm Draw No.: C3838 MODEL NO. : 3200 Series IC:4812A-3200 0984 .. .. C US LISTED 6K51 E141662 I.T.E. FCC ID:Q3Z3200 R31567 DC 19 20V 3 3.16A

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22

Page 23 Page 24 Page 25 Page 26 Page 27 Page 28 Page 29 Page 30 Page 31 Page 32 Page 33 Page 34 Page 35 Page 36 Page 37

FCC ID: Q3Z3200G Report No.: RF930102A071Issued: Jan. 28, 2004 Operational Description The transmitter of the EUT (802.11g mini PCI Module) is powered by host equipment. Each antenna type used in this product is IFA type built-in inside host on the up left and up right of Notebook panel. It provide hardware diversity support; Transmit and receive on main and auxiliary antenna connectors. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is operates in the 2.4GHz band, the maximum data rate could be up to 54MHz which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. .

FCC ID: Q3Z3200G Report No: 930102A07 1 RF EXPOSURE REPORT REPORT NO.: RF930102A04 MODEL NO.: 3200 Series ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AVERATEC Inc. ADDRESS: 80 ICON FOOTHILL RANCH, CA 92610 USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: Q3Z3200G Report No: 930102A07 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q3Z3200G Report No: 930102A07 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: Q3Z3200G Report No: 930102A07 4 6. Test Results 6.1 Antenna Gain The EUT has two inverted F antenna built-in the left up and right up the LCD panel. The antenna gains are left up (0.83dBi) and right up (-0.19dBi). Both were pre-tested and the worst emission level was found when tested with antenna left up (0.83dBi). Therefore only this left up antenna was used for the test. The maximum Gain measured in Fully Anechoic Chamber is 0.83dBi or 1.21(numeric). 6.2 Output Power Into Antenna & RF Exposure at Distance 20cm: For Part 802.11b (CCK technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.920.0081.0 6243731.770.0081.0 11246232.060.0081.0 For Part 802.11g (OFDM technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241232.660.0081.0 6243732.210.0081.0 11246232.060.0081.0

FCC ID: Q3Z3200G Report No.: RF930102A071Issued: Jan. 27, 2004 FCC TEST REPORT REPORT NO.:RF930102A07 MODEL NO.:3200 Series RECEIVED:Jan. 2, 2004 TESTED:Jan. 5 ~ 11, 2004 APPLICANT: AVERATEC Inc. ADDRESS: 80 ICON FOOTHILL RANCH, CA 92610 USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 74 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0528 ILAC MRA FCC ID: Q3Z3200G Report No.: RF930102A072Issued: Jan. 27, 2004 Table of Contents 1CERTIFICATION............................................................................................. 4 2SUMMARY OF TEST RESULTS .................................................................... 5 3GENERAL INFORMATION ............................................................................. 6 3.1GENERAL DESCRIPTION OF EUT ................................................................6 3.2DESCRIPTION OF TEST MODES ..................................................................7 3.3DESCRIPTION OF APPLIED STANDARDS....................................................8 3.4DESCRIPTION OF SUPPORT UNITS ............................................................8 4TEST TYPES AND RESULTS ........................................................................ 9 4.1CONDUCTED EMISSION MEASUREMENT...................................................9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ................................9 4.1.2 TEST INSTRUMENTS...................................................................................10 4.1.3 TEST PROCEDURE......................................................................................10 4.1.4 DEVIATION FROM TEST STANDARD.......................................................... 11 4.1.5 TEST SETUP................................................................................................. 11 4.1.6 EUT OPERATING CONDITIONS .................................................................. 11 4.1.7 TEST RESULTS ............................................................................................12 4.2RADIATED EMISSION MEASUREMENT......................................................18 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...................................18 4.2.2 TEST INSTRUMENTS...................................................................................19 4.2.3 TEST PROCEDURE......................................................................................20 4.2.4 DEVIATION FROM TEST STANDARD..........................................................20 4.2.5 TEST SETUP.................................................................................................21 4.2.6 EUT OPERATING CONDITIONS ..................................................................21 4.2.7 TEST RESULTS ............................................................................................22 4.36dB BANDWIDTH MEASUREMENT .............................................................36 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..........................................36 4.3.2 TEST INSTRUMENTS...................................................................................36 4.3.3 TEST PROCEDURE......................................................................................36 4.3.4 DEVIATION FROM TEST STANDARD..........................................................36 4.3.5 TEST SETUP.................................................................................................37 4.3.6 EUT OPERATING CONDITION.....................................................................37 4.3.7 TEST RESULTS ............................................................................................38 4.4MAXIMUM PEAK OUTPUT POWER.............................................................46 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .............46 4.4.2 TEST INSTRUMENTS...................................................................................46 4.4.3 TEST PROCEDURE......................................................................................46 4.4.4 DEVIATION FROM TEST STANDARD..........................................................46 4.4.5 TEST SETUP.................................................................................................47 4.4.6 EUT OPERATING CONDITION.....................................................................47 4.4.7 TEST RESULTS ............................................................................................48 4.5POWER SPECTRAL DENSITY MEASUREMENT ........................................50 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT......................50 FCC ID: Q3Z3200G Report No.: RF930102A073Issued: Jan. 27, 2004 4.5.2 TEST INSTRUMENTS...................................................................................50 4.5.3 TEST PROCEDURE......................................................................................50 4.5.4 DEVIATION FROM TEST STANDARD..........................................................50 4.5.5 TEST SETUP.................................................................................................51 4.5.6 EUT OPERATING CONDITION.....................................................................51 4.5.7 TEST RESULTS ............................................................................................52 4.6BAND EDGES MEASUREMENT ..................................................................60 4.6.1 LIMITS OF BAND EDGES MEASUREMENT ...........................................…

Text truncated - open the document above for the full version.

FCC ID: Q3Z3200G Report No.: RF930102A0741Issued: Jan. 27, 2004 CH11 FCC ID: Q3Z3200G Report No.: RF930102A0742Issued: Jan. 27, 2004 EUT Notebook PC with 802.11b/g Wireless LAN MODEL 3200 Series MODULATION MODE OFDM INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20deg. C, 60%RH, 1005hPa TESTED BY: Jamison Chan CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1241216.320.5PASS 6243716.320.5PASS 11246216.320.5PASS FCC ID: Q3Z3200G Report No.: RF930102A0743Issued: Jan. 27, 2004 CH1 FCC ID: Q3Z3200G Report No.: RF930102A0744Issued: Jan. 27, 2004 CH6 FCC ID: Q3Z3200G Report No.: RF930102A0745Issued: Jan. 27, 2004 CH11 FCC ID: Q3Z3200G Report No.: RF930102A0746Issued: Jan. 27, 2004 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until ROHDE & SCHWARZ Spectrum Analyzer FSP 40100035Apr. 14. 2004 ROHDE & SCHWARZ Signal Generator SMR40100231Apr. 07. 2004 Tektronix OscilloscopeTDS 220B047470Mar. 05, 2004 Narda Detector4503AFSCM99899NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.4.3 TEST PROCEDURE 1. A detector was used on the output port of the EUT. An oscilloscope was used to read the peak response of the detector. 2. Replaced the EUT by the signal generator. The center frequency of the S.G. was adjusted to the center frequency of the measured channel. 3. Adjusted the power to have the same peak reading on oscilloscope. Record the power level. 4.4.4 DEVIATION FROM TEST STANDARD No deviation. FCC ID: Q3Z3200G Report No.: RF930102A0747Issued: Jan. 27, 2004 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITION Same as Item 4.3.6. EUT or S.G.OSCILLOSCOPE Detector FCC ID: Q3Z3200G Report No.: RF930102A0748Issued: Jan. 27, 2004 4.4.7 TEST RESULTS EUT Notebook PC with 802.11b/g Wireless LAN MODEL 3200 Series MODULATION MODE CCK INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20deg. C, 60%RH, 1005hPa TESTED BY: Jamison Chan CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241215.0430PASS 6243715.0230PASS 11246215.0630PASS FCC ID: Q3Z3200G Report No.: RF930102A0749Issued: Jan. 27, 2004 EUT Notebook PC with 802.11b/g Wireless LAN MODEL 3200 Series MODULATION MODE OFDM INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20deg. C, 60%RH, 1005hPa TESTED BY: Jamison Chan CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241215.1430PASS 6243715.0830PASS 11246215.0630PASS FCC ID: Q3Z3200G Report No.: RF930102A0750Issued: Jan. 27, 2004 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSP 40100035Apr. 14. 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3kHz RBW and 30kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3KHz for a full response of the mixer in the spectrum analyzer. 4.5.4 DEVIATION FROM TEST STANDARD No deviation. FCC ID: Q3Z3200G Report No.: RF930102A0751Issued: Jan. 27, 2004 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITION Same as Item 4.3.6. EUT SPECTRUM ANALYZER FCC ID: Q3Z3200G Report No.: RF930102A0752Issued: Jan. 27, 2004 4.5.7 TEST RESULTS EUT Notebook PC with 802.11b/g Wireless LAN MODEL 3200 Series MODULATION MODE CCK INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20deg. C, 60%RH, 1005hPa TESTED BY: Jamison Chan CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3kHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-10.418PASS 62437-10.338PASS 112462-12.578PASS FCC ID: Q3Z3200G Report No.: RF930102A0753Issued: Jan. 27, 2004 CH1 FCC ID: Q3Z3200G Report No.: RF930102A0754Issued: Jan. 27, 2004 CH6 FCC ID: Q3Z3200G Report No.: RF930102A0755Issued: Jan. 27, 2004 CH11

FCC ID: Q3Z3200G Report No.: RF930102A0756Issued: Jan. 27, 2004 EUT Notebook PC with 802.11b/g Wireless LAN MODEL 3200 Series MODULATION MODE OFDM INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20deg. C, 60%RH, 1005hPa TESTED BY: Jamison Chan CHANNEL CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3kHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-14.858PASS 62437-16.638PASS 112462-16.568PASS FCC ID: Q3Z3200G Report No.: RF930102A0757Issued: Jan. 27, 2004 CH1 FCC ID: Q3Z3200G Report No.: RF930102A0758Issued: Jan. 27, 2004 CH6 FCC ID: Q3Z3200G Report No.: RF930102A0759Issued: Jan. 27, 2004 CH11 FCC ID: Q3Z3200G Report No.: RF930102A0760Issued: Jan. 27, 2004 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSP 40100035Apr. 14. 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW (1MHz) and VBW (1kHz) of spectrum analyzer to with suitable frequency span including 100MHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation. 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6. FCC ID: Q3Z3200G Report No.: RF930102A0761Issued: Jan. 27, 2004 4.6.6 TEST RESULTS The spectrum plots are attached on the following 2 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). MODULATION MODE: CCK NOTE 1: The band edge emission plot on the following first page shows 53.56dB delta between carrier maximum power and local maximum emission in restrict band (2.3886GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 103.01dBuV/m, so the maximum field strength in restrict band is 103.01- 53.56=49.45dBuV/m which is under 54dBuV/m limit. NOTE 2: The band edge emission plot on the following second page shows 53.80dB delta between carrier maximum power and local maximum emission in restrict band (2.4849Hz). The emission of carrier strength list in the test result of channel 11 e at the item 4.2.7 is 101.90dBuV/m, so the maximum field strength in restrict band is 101.90- 53.80=48.10dBuV/m which is under 54dBuV/m limit. FCC ID: Q3Z3200G Report No.: RF930102A0762Issued: Jan. 27, 2004 FCC ID: Q3Z3200G Report No.: RF930102A0763Issued: Jan. 27, 2004

FCC ID: Q3Z3200G Report No.: RF930102A0764Issued: Jan. 27, 2004 MODULATION MODE: OFDM NOTE 1: The band edge emission plot on the following first page shows 51.12dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 99.68dBuV/m, so the maximum field strength in restrict band is 99.68- 51.12=48.56dBuV/m which is under 54dBuV/m limit. NOTE 2: The band edge emission plot on the following second page shows 51.04dB delta between carrier maximum power and local maximum emission in restrict band (2.4835Hz). The emission of carrier strength list in the test result of channel 11 e at the item 4.2.7 is 99.89dBuV/m, so the maximum field strength in restrict band is 99.89- 51.04=48.85dBuV/m which is under 54dBuV/m limit. FCC ID: Q3Z3200G Report No.: RF930102A0765Issued: Jan. 27, 2004 FCC ID: Q3Z3200G Report No.: RF930102A0766Issued: Jan. 27, 2004 FCC ID: Q3Z3200G Report No.: RF930102A0767Issued: Jan. 27, 2004 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 4.7.2 ANTENNA CONNECTED CONSTRUCTION For 802.11b, the antenna type used in this product is Inverted-F two antennas built inside Notebook PC, located up right and left of LCD panel. The maximum Gain of this antennas are 0.83dBi (left-up) and -0.19dBi (right-up). FCC ID: Q3Z3200G Report No.: RF930102A0768Issued: Jan. 27, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q3Z3200G Report No.: RF930102A0769Issued: Jan. 27, 2004 RADIATED EMISSION TEST FCC ID: Q3Z3200G Report No.: RF930102A0770Issued: Jan. 27, 2004 6 APPENDIX I – MEASUREMENT OF CONDUCTED SPURIOUS EMISSION FOR THE 10 TH HARMONIC CCK TECHNIQUE - CH1 FCC ID: Q3Z3200G Report No.: RF930102A0771Issued: Jan. 27, 2004 CCK TECHNIQUE - CH11 FCC ID: Q3Z3200G Report No.: RF930102A0772Issued: Jan. 27, 2004 OFDM TECHNIQUE - CH1 FCC ID: Q3Z3200G Report No.: RF930102A0773Issued: Jan. 27, 2004 OFDM TECHNIQUE - CH11 FCC ID: Q3Z3200G Report No.: RF930102A0774Issued: Jan. 27, 2004 7 APPENDIX II - INFORMATION ON THE TESTING LABORATORIES We, ADT Corp., were founded in 1988 to provide our best service in EMC and Safety consultation. Our laboratories are accredited and approved by the following approval agencies according to ISO/IEC 17025, Guide 25 or EN 45001: USA FCC, NVLAP, UL Germany TUV Rheinland Japan VCCI New Zealand MoC Norway NEMKO Canada INDUSTRY CANADA R.O.C. CNLA, BSMI Copies of accreditation certificates of our laboratories obtained from approval agencies can be downloaded from our web site: www.adt.com.tw/index.5/phtml. If you have any comments, please feel free to contact us at the following: Lin Kou EMC Lab: Tel: 886-2-26052180 Fax: 886-2-26052943 Hsin Chu EMC Lab: Tel: 886-35-935343 Fax: 886-35-935342 Lin Kou Safety Lab: Tel: 886-2-26093195 Fax: 886-2-26093184 Lin Kou RF & Telecom Lab. Tel: 886-3-3270910 Fax: 886-3-3270892 Email: [email protected] Web Site: www.adt.com.tw The address and road map of all our labs can be found in our web site also.

FCC ID: Q3Z3200G Report No.: RF930102A0768Issued: Jan. 27, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q3Z3200G Report No.: RF930102A0769Issued: Jan. 27, 2004 RADIATED EMISSION TEST
