Q4EUSHR-800NIBi-directional Amplifier

OPISYS, INC USHR-800NI Installation and Operations Manual 06/2003 OPISYS, INC. 9201 Irvine blvd Irvine, California Tel: (949) 916 5283 Fax: (949) 916 5285 Email: [email protected] Web: www.opisys.com 2 Table of Contents 1. General Information 1.1 Introduction 1.2 Specifications 1.3 Description 2 Installation 2.1 Introduction 2.2 Unpacking and Inspection 2.3 Preparation for Use 2.4 Before Installation 2.5 Antenna Installation 2.6 Bi-directional Amplifier Installation 2.7 Connectors 2.8 Installation Example 3 Operation 3.1 Introduction 3.2 Operating Instructions 4 Trouble Shooting 5 Drawings 3 1. General Information 1.1 Introduction This manual provides information pertaining to the installation and operation of OPISYS’s USHR-800NI “Ultra Slim Home Bi-Directional Amplifier”. This unit is used at 806 ~ 866 MHz frequencies as shown in Table 1-1. <Table 1-1: USHR-800NI Repeater > Model Number Down Link* Frequencies Up Link** Frequencies USHR-800NI 851~ 866MHz 806 ~ 821 MHz * Down Link (= Forward Path) is from base station to mobile ** Up Link ( = Reverse Path) is from mobile to base station 4 1.2 Specifications <Table 1-2: USHR-800NI Specifications> PARAMETER SPECIFICATION Down Link 851 ~ 866 MHz Frequency Up Link 801 ~ 821 MHz Output Power + 7 dBm ( 5 mW ) Input Power - 43 dBm max Linear Gain 50 dB Gain Flatness 7 dB max 1 dB Compression + 14 dBm 3 rd Order Intercept + 24 dBm Forward/ Reverse Shutdown +10 dBm ( ±1dB) Noise Figure 8 dB max Propagation Delay 1 μs max VSWR 2 :1 max Impedance 50 Ω Status LED GREEN ON : Power Normal RED ON : Forward or Reverse Fail Power Consumption 5.2 V / 500 mA Input Voltage AC/DC Adaptor, DC 5.2 V / 1A, 5.2 W RF Connectors Type SMA Female Operating -20 °C to 50 °C Temperature Storage -30 °C to 60 °C Dimensions( W x H x D , inch) 3.10” x 3.80” x 1.54” Weight ( Pound ) 1.1 lb 5 1.3 Description This product is designed for offices, hotel rooms, small parking lots, garages or small buildings, helping to improve 806 ~ 866 MHz communications signal and coverage by extending the coverage of a base station. Outdoor antenna receives signal between 806 MHz and 821 MHz , then USHR- 800NI amplifier amplifies the signal. After amplification, the signal is passed through to the indoor antennas. Conversely, signals from handsets are amplified and retransmitted to the base station. 2. Installation 2.1 Introduction This section provides information for the installation and setup of the USHR-800NI amplifier. The information consists of procedures for unpacking, inspection and preparation for the installation, as well as the actual installation and the setup. 2.2 Unpacking and Inspection Examine the shipping carton for damage before unpacking the unit. If the shipping carton is damaged, try to have the carrier’s agent present when the equipment is unpacked. If visual inspection reveals physical damage(s) to the equipment, you should send it back for replacement. Verify that the equipment is complete, as listed under packing slip. Contact OPISYS with any missing component. 2.3 Preparation for Use 2.3.1 Power Requirements The power supply of the USHR-800NI accepts 5.1 VDC. Power consumption of the USHR-800NI is approximately 2.6 Watts. 2.3.2 Operating Environment The USHR-800NI is intended for indoor use only. Do not install it where it might be exposed to the outside elements as this could result in destruction of the unit and other hazards. For normal operations, the environmental conditions should be as follow: Temperature range: –20 °C to 50 °C, Maximum Humidity: 95 % 6 2.4 Before Installation You will need to determine the following before beginning the USHR-800NI installation: a. Base station location b. Location where the outdoor antenna is to be installed c. Location where the indoor antenna is to be installed d. Location where the USHR-800NI is to be installed e. Length and type of coaxial cable needed to connect from the outdoor antenna to the repeater unit f. Length and type of coaxial cable needed to connect from the repeater unit to the indoor antenna 2.5 Antenna Installation 2.5.1 Outdoor Antenna Select a site for your outdoor antenna, making sure you have enough signal strength at that location. Using coax cable, connect the antenna to the repeater. If you are using a directional antenna such as a Yagi type, the antenna should be installed so that it is in line of sight of the base station. Then, align the directional antenna toward that direction, and secure the antenna using provided mounting hardware. Use of a lightning arrester is highly recommended. By installing a lightning arrester between the outside antenna and the repeater, you can protect the repeater unit from electrical surge from lightning. 2.5.2 Indoor Antenna Install the indoor antenna at a convenient location. It should be free of metallic obstruction in order to have an effective coverage. Depending on the circumstance of the installation, either one or a combination of following antennas can be used: Ceiling mount patch antenna, Wall mount patch antenna, Corner reflector 2.6 Bi-Directional Amplifier Installation USHR-800NI is an indoor amplifier. Accordingly, the environment of the intended installation site needs to be considered. The repeater must be shielded from moisture, such as rain, and excessive temperatures. The operating temperatures should be between -20 °C and 50 °C. 7 2.6.1 Turn-On Procedure Verify all RF connectors are tightened and cables and antennas are secured. Connect AC/DC Adaptor on the repeater’s DC IN connector. The Power indicator LED should be green. Make sure that no other LED is illuminated. If any other LED is lit, consult the trouble shooting page of this manual, or “2.6.2 Antenna Isolation and Alignment” section. 2.6.2 Antenna Isolation and Alignment USHR-800NI is equipped with an over drive protection circuit. If the output power level of reverse path(=Up Link) exceeds prescribed limit, then reverse path is disconnected and the FAIL LED (RED) is on. Bi-Directional ampl…

Text truncated - open the document above for the full version.

USHR-800NI Block Diagram BPF DUPLEXER Down 869 - 894 MHz RSSI MICOM PIC12C508 CONTROLLER LOGIC COMPARATOR LM2903 LED GREEN POWER LED YELLOW Forward Over Power LED RED Reverse Over Power BTS Mobile SGA- 4586 +5.4 V BPF Power Det. SW 2SJ132- Z RSSI Down 869 - 894 MHz Up 824 - 849 MHz Up 824 - 849 MHz Power Det. SGA- 3486 RF SAW RF SAW AG403- 89 SGA- 4586 SGA- 3486 AG403- 89 DUPLEXER

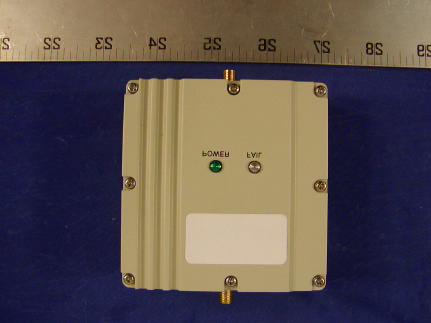

OPISYS Incorporated FCC ID: Q4EUSHR-800NI EXHIBIT C - EUT PHOTOGRAPHS EUT – Top View EUT – Bottom View

EXHIBIT A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Bottom View of the EUT / Proposed Label Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: Q4EUSHR-800 FCC ID: Q4EUSHR-800NI

OPISYS Incorporated FCC ID: Q4EUSHR-800NI EUT - Board and Housing View EUT – Main Board Component View OPISYS Incorporated FCC ID: Q4EUSHR-800NI EUT – Main Board Solder View Adapter View

1 Model :USHR-800NI Bi-directional Amplifier’s Technical Description JUN-03-2003 OPISYS, INC. 9201 Irvine blvd Irvine, California Tel: (949) 916 5283 Fax: (949) 916 5285 Email: [email protected] Web: www.opisys.com 2 FCC Part 2.983(d) Technical Description (d)(1) Type or types of emission (a) TDMA : DXW (b) AMPS(FM) : F1X (d)(2) Frequency Range (a) TDMA Forward : 851 - 866 MHz Reverse : 806 - 821 MHz (b) AMPS Forward : 851 - 866 MHz Reverse : 806 - 821 MHz (d)(3) Range of Operating Power Levels, and description of any means provided for variation of operating power - 43 dBm to + 7dBm ( 5 mW) (Gain : 50 dB) (d)(4) Maximum power rating as defined in the applicable parts of the FCC rules 24.232(a) : Maximum Peak output power for base station transmitters should not exceed 100 Watts. 24.232(b) : Mobile/Portable stations are limited to 2 Watts EIRP peak power. (d)(5) The dc voltages applied to and dc currents into the several elements of the final radio frequency amplifying device for normal operation over the power range 4.8 VDC at 60 mA on A3 and A6 (d) (6) Function of each electron tube or semiconductor or other active circuit device Refer to Attachment : Data Sheet 3 (d)(7) Complete circuit diagram Refer to Attachment : Circuit Diagram (d)(8) Instruction books or installation manual Refer to Attachment : Installation and Operations Manual (d) (9) Tune-up procedure over the power range, or at specific operating power levels Refer to Attachment : Installation and Operations Manual (d)(10) A description of all circuitry and devices provided for determining and stabilizing frequency N/A (d)(11) A description of any circuits or devices employed for suppression of spurious radiation Duplexer : F1, F3 Band Pass Filters : F2, F4 SAW Filters : SO1, SO2 (d)(11) A description of any circuits or devices employed for limiting modulation N/A (d)(11) A description of any circuits or devices employed for limiting power If the output power level of reverse path(=Up Link) exceeds prescribed limit, then reverse path is disconnected and the FAIL LED (RED color) is on. Bi-directional amplifier automatically checks output power level every one minute of a 5 minute cycle when reverse path has over power . If reverse path still exceeds level then shut down mode continues for another 10 minutes. After 10 minutes, reverse path is switched on again and it checks output power level again. (Repeats the process) Forward path procedure is same as reverse path. 4 (d)(12) For equipment employing digital modulation techniques, a detailed description of the modulation of the modulation system to be used, including the response characteristics ( Frequency, phase, and amplitude) of any filters provided, and a description of the modulating wavetrain, shall be submitted for the maximum rated conditions under which the equipment will be operated. N/A (e) The data required by 2.985 through 2.997, inclusive, measured in accordance with the procedures set out in 2.999 **** Provided by FCC Approval Company after the tests. **** (f) A photograph or drawing of the equipment identification plate or label showing the information to be placed thereon. **** Provided by FCC Approval Company after the tests. **** (g) E.U.T 8 x 10 photographs **** Provided by FCC Approval Company after the tests. ****

USHR-800NI Specifications PARAMETER SPECIFICATION Down Link 851 ~ 866 MHz Frequency Up Link 801 ~ 821 MHz Output Power + 7 dBm ( 5 mW ) Input Power - 43 dBm max Linear Gain 50 dB Gain Flatness 7 dB max 1 dB Compression + 14 dBm 3 rd Order Intercept + 24 dBm Forward/ Reverse Shutdown +10 dBm ( ±1dB) Noise Figure 8 dB max Propagation Delay 1 μs max VSWR 2 :1 max Impedance 50 Ω Status LED GREEN ON : Power Normal RED ON : Forward or Reverse Fail Power Consumption 5.2 V / 500 mA Input Voltage AC/DC Adaptor, DC 5.2 V / 1A, 5.2 W RF Connectors Type SMA Female Operating -20 °C to 50 °C Temperature Storage -30 °C to 60 °C Dimensions( W x H x D , inch) 3.10” x 3.80” x 1.54” Weight ( Pound ) 1.1 lb

Part List ( USHR-800NI ) No Description Model Number Type Manufacture Q'ty 1 PCB(TX) 67.8x68, 0.8T,(Gold Plating) FR-4 Leaders Electonics 1 2 PCB(RX) 67.8x68, 0.8T,(Gold Plating) FR-4 Leaders Electonics 1 3 MMIC PA SGA-4586 SMD Stanford 2 4 MMIC PA AG-30386 SMD WJ 2 5 MMIC PA AG-40389 SMD WJ 2 6 NPN TRANSISTOR KTC3875(ALY) SOT-23 KEC 1 7 DUPLEXER AMG0813J0858S15AR(RX) SMD ABSOLTECH 1 8 DUPLEXER AMG0813J0858S15A(TX) SMD ABSOLTECH 1 9 BPF AMF8RJ0813S15A(RX) SMD ABSOLTECH 1 10 BPF AMF8RJ0858S15A (TX) SMD ABSOLTECH 1 11 RF SAW F8152(RX) SMD ITF 1 12 RF SAW F8602(TX) SMD ITF 1 13 POTENTIOMETER 3266W-10K DIP BOURNS 1 14 SHOCTKEY DIODE HSMS2812 SMD AGILENT 4 15 COMPARATOR JRC2903 SOP-8 JRC 1 16 MICROCONTROLLER PIC12C508- 04/SM SOP-8 MICROCHIP 1 17 MOSFET 2SJ132-Z SMD TOSHIBA 1 18 Air-Core CHIP INDUCTOR 1008CS-330XJ_BC:33nH 2012 KORA 8 19 CHIP INDUCTOR 3.9 nH, 1608GC2TN3N9#00 BC 0603 PILKOR 2 20 CHIP INDUCTOR 5.6 nH, 1608GC2TN5N6#00 0603 PILKOR 2 21 CHIP RESISTOR 24 ohm , 0.25W, +/- 2% 3216 ROHM 2 22 CHIP RESISTOR 30 ohm , 0.25W , +/- 2% 3216 ROHM 2 23 CHIP RESISTOR 62 ohm , 0.25W , +/- 2% 3216 ROHM 2 24 CHIP RESISTOR 51 ohm, 0.1W, +/- 5% 0603 ROHM 1 25 CHIP RESISTOR 68 ohm, 0.1W, +/- 5% 0603 ROHM 4 26 CHIP RESISTOR 180 ohm, 0.1W, +/- 5% 0603 ROHM 2 27 CHIP RESISTOR 330 ohm, 0. 1W, +/- 5% 0603 ROHM 3 28 CHIP RESISTOR 1Kohm, 0.1W, +/- 5% 0603 ROHM 5 29 CHIP RESISTOR 4.7 Kohm, 0. 1W, +/- 10% 0603 ROHM 1 30 CHIP RESISTOR 15 Kohm, 0.1W, +/- 10% 0603 ROHM 2 31 CHIP RESISTOR 10 Mohm, 0.1W, +/- 20% 0603 ROHM 2 32 CHIP TANTALUM CAPACITOR 10uF/ 10V, TCFGA1A106M 3216(A) NEC 1 33 CHIP CAPACITOR 0.5 pF, +/ - 0.25 pF 0603 PILKOR 3 34 CHIP CAPACITOR 5 pF, +/ - 0.25 pF 0603 PHILIPS 2 35 CHIP CAPACITOR 68 pF, +/ - 5 pF 0603 PILKOR 6 36 CHIP CAPACITOR 100 pF, +/- 5 pF 0603 PILKOR 30 37 CHIP CAPACITOR 1000 pF, +/ - 15 pF 0603 PILKOR 9 38 CHIP CAPACITOR I uF, GRM40COG105Z50 2012 MURATA 3 39 Power Jack 5V / 1.5 A SMD WOOYOUNG 1 40 LED SG3517: GREEN 3mm ROHM 1 41 LED SR3517: RED 3mm ROHM 1 42 LED Supporter 5x7mm Myungsung 2 43 Pin Header A1x6 (2mm) 2mm Myungsung 1 44 CONNECTOR MINI RF pin J4R Kuemkang 2 45 BTS CONNECTOR SMA 4Hole SHINA 1 46 Mobile CONNECTOR SMA 4Hole SHINA 1 47 HOUSING KSD 6759-A6061 Kyungdo System 1 48 UP COVER KSD 6759-A6061 Kyungdo System 1 49 DOWN COVER KSD 6759-A6061 Kyungdo System 1 50 MOUNTING PLATE KSD 6759-A6061 Kyungdo System 1 51 SHIELD COVER 1 KSD 5201-C2680 Gwangen Tech 2 52 SHIELD COVER 3 KSD 5201-C2680 Gwangen Tech 1 53 SHIELD COVER 4 KSD 5201-C2680 Gwangen Tech 1 54 SHIELD CLIP 7-V2004-115AA AUTOSPLICE 21 55 STICKER1 DAESUNG 1 56 STICKER2 DAESUNG 1 57 LOGO STICKER 1 DAESUNG 1 58 LOGO STICKER 2 DAESUNG 1 59 CARTON BOX DW 1 Seoul 1 60 GIFT BOX SW 1 Seoul 1 61 PAD SW Seoul 1/1 62 PE PAD P.E WOOSUNG 1 63 Circle Type Bolt M2.0X0.4pX4.0L SUS YOUNGPOONG BOLT 28 64 Circle Type Bolt M2.3X0.4pX5.0L SUS YOUNGPOONG BOLT 8 65 Circle Type Bolt M2.6X0.45pX6.0L SUS YOUNGPOONG BOLT 12 66 Flat Type Bolt M2.6X0.45pX6.0L SUS YOUNGPOONG BOLT 18 67 END CAP SMA Type DONGBANG Silicon 2

RF EXPOSURE According to §15.247(b)(4) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for Occupational Population/Controlled Exposure 0.3-3.06141.63*(100)6 3.0-301824/f4.89/f*(900/f 2 )6 30-30061.40.1631.06 300-1500//f/3006 1500-100,000//56 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 6.99 (dBm) Maximum peak output power at antenna input terminal: 5.0 (mW) Prediction distance: 20 (cm) Predication frequency: 800 (MHz) Antenna Gain (typical): 34 (dBi) antenna gain: 2511.89 (numeric) Power density at predication frequency at 20 cm: 2.5 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 2.67 (mW/cm 2 ) Test Result The EUT is a mobile device. Its power density level at 20 cm is 2.5 mW/cm², which is below the uncontrolled exposure limit of 2.67mW/cm² at 800 MHz.

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 90 EMI MEASUREMENT AND TEST REPORT For OPISYS Incorporated 9201 Irvine Blvd. Irvine, CA 92618 FCC ID: Q4EUSHR-800NI 2003-06-23 This Report Concerns: Original Report Equipment Type: Bi-Directional Amplifier Test Engineer:Benjamin Jing / Report No.:R0306102 Test Date:2003-06-18 Reviewed By:Hans Mellberg / Prepared By:Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 2 of 40FCC Part 90 Type Approval report TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).........................................................................................3 1.2 OBJECTIVE................................................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S)......................................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................................3 1.5 TEST FACILITY.........................................................................................................................................................................3 1.6 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................................4 1.7 EXTERNAL I/O CABLING LIST AND DETAILS......................................................................................................................4 2 - SYSTEM TEST CONFIGURATION..................................................................................................................................5 2.1 JUSTIFICATION.........................................................................................................................................................................5 2.2 SCHEMATICS/BLOCK DIAGRAM............................................................................................................................................5 2.3 TEST SETUP BLOCK DIAGRAM..............................................................................................................................................5 2.4 EQUIPMENT MODIFICATIONS.................................................................................................................................................5 3 - SUMMARY OF TEST RESULTS........................................................................................................................................6 4 – CONDUTED OUTPUT POWER..........................................................................................................................................7 4.1 APPLICABLE STANDARD.........................................................................................................................................................7 4.2 TEST PROCEDURE....................................................................................................................................................................7 4.3 TEST EQUIPMENT.....................................................................................................................................................................7 4.4 TEST RESULTS..........................................................................................................................................................................7 5 - EMISSION BANDWIDTH.....................................................................................................................................................8 5.1 APPLICABLE STANDARDS.......................................................................................................................................................8 5.2 TEST PROCEDURE....................................................................................................................................................................8 5.3 TEST EQUIPMENT....................................................................................................................................................................8 5.4 PLOTS OF OCCUPIED BANDWIDTH........................................................................................................................................8 6 – SPURIOUS EMISSIONS AT ANTENNA TERMINALS...........................................................................................21 6.1 APPLICABLE STANDARDS.....................................................................................................................................................21 6.2 TEST PROCEDURE..................................................................................................................................................................21 6.3 TEST RESULTS........................................................................................................................................................................21 6.4 PLOTS OF OUT-OF-BAND EMISSIONS AT ANTENNA TERMINAL.....................................................................................21 7 - TWO-TONE TEST.........................................................................…

Text truncated - open the document above for the full version.

OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 21 of 40FCC Part 90 Type Approval report 6 – SPURIOUS EMISSIONS AT ANTENNA TERMINALS 6.1 Applicable Standards Per FCC §2.1051and FCC §90.210 On any frequency removed from the center of the assigned channel by more than 250 percent at least: 43 + 10 log(P) dB 6.2 Test Procedure The RF output of the amplifier was connected to a spectrum analyzer through appropriate attenuation. The resolution bandwidth of the spectrum analyzer was set at 1 MHz. Sufficient scans were taken to show any out of band emissions up to 10 th harmonic. 6.3 Test Results ModulationModeChannel Frequency MHz Measured Low855< -13dBm Mid860< -13dBm Forward (Down-link) High865< -13dBm Low810< -13dBm Mid815< -13dBm TDMA Reverse (Up-link) High820< -13dBm 6.4 Plots of Out-of-Band Emissions at Antenna Terminal Please refer to plots hereinafter. OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 22 of 40FCC Part 90 Type Approval report OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 23 of 40FCC Part 90 Type Approval report OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 24 of 40FCC Part 90 Type Approval report OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 25 of 40FCC Part 90 Type Approval report OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 26 of 40FCC Part 90 Type Approval report OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 27 of 40FCC Part 90 Type Approval report OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 28 of 40FCC Part 90 Type Approval report 7 - TWO-TONE TEST 7.1 Applicable Standards According to IS-138A (3.4.4), Intermodulation products must be attenuated below the rated power of the EUT by at least 43 +10log (P), equivalent to –13 dBm. 7.2 Test Procedure The RF output of the EUT was connected to a spectrum analyzer through appropriate attenuation. The resolution bandwidth of the spectrum analyzer was set at 1 MHz. Sufficient scans were taken to show any out of band emissions up to 10 th harmonic. Two input signals are equal in level (and can be raised equally), were send to the EUT. 7.3 Test Equipment Hewlett Packard HP8565EC Spectrum Analyzer, Cal. Due Date: 2005-01-22 Rohde & Schwarz SMIQ03B Signal Generator, Cal. Due Date: 2003-07-05 Rohde & Schwarz AMIQ I/Q Modulation Generator, Cal. Due Date: 2003-07-05 7.4 Test Results ModulationModeChannelMeasured Low< -13dBm Mid< -13dBm Forward (Down-link) High< -13dBm Low< -13dBm Mid< -13dBm TDMA Reverse (Up-link) High< -13dBm 7.5 Plots of Two-Tone Test Result Please refer to plots hereinafter. OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 29 of 40FCC Part 90 Type Approval report OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 30 of 40FCC Part 90 Type Approval report OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 31 of 40FCC Part 90 Type Approval report OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 32 of 40FCC Part 90 Type Approval report OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 33 of 40FCC Part 90 Type Approval report OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 34 of 40FCC Part 90 Type Approval report OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 35 of 40FCC Part 90 Type Approval report 8 – RADIATED SPURIOUS EMISSION 8.1 Test Procedure Per FCC §2.1051and FCC §90.210 On any frequency removed from the center of the assigned channel by more than 250 percent at least: 43 + 10 log(P) dB 8.2 Test Procedure The amplifier was placed on a wooden turntable, and it was transmitting into a non-radiating load which was also placed on the turntable. The measurement antenna was placed at a distance of 3 meters from the EUT. During the tests, the antenna height and polarization as well as EUT azimuth were varied in order to identify the maximum level of emissions from the EUT. The test was performed by placing the EUT on 3-orthogonal axis. The frequency range up to tenth harmonic of the fundamental frequency was investigated. Remove the EUT and replace it with substitution antenna. A signal generator was connected to the substitution antenna by a non-radiating cable. The absolute levels of the spurious emissions were measured by the substitution. Spurious emissions in dB = 10 lg (TXpwr in Watts/0.001) – the absolute level Spurious attenuation limit in dB = 43 + 10 Log 10 (power out in Watts) 8.3 Test Equipment Com-Power AL-100 Antenna, Cal. Due Date: 2004-05-01 Com-Power AB-100 Antenna, Cal. Due Date: 2004-05-01 Com-Power AB-900 Antenna, Cal. Due Date: 2004-05-01 HP 8564E Spectrum Analyzer, Cal. Due Date: 2003-08-01 A.H.System SAS-200 Antenna, Cal. Due Date: 2004-05-31 HP 8449B Preamplifiers, Cal. Due Date: 2004-03-14 Rohde & Schwarz SICQ03 Generator, Cal. Due Date: 2003-07-05 8.4 Test Result Up-link: Low Frequency: -37.9 dBm at 1620 MHz Middle Frequency: -37.5 dBm at 1630 MHz High Frequency: -37.9 dBm at 1640 MHz Down-link: Low Frequency: -38.3 dBm at 1710 MHz Middle Frequency: -37.6 dBm at 1720 MHz High Frequency: -38.9 dBm at 1730 MHz OPISYS Incorporated FCC ID: Q4EUSHR-800NI Report # R0306102RptPage 36 of 40FCC Part 90 Type Approval report Up-Link, Low Channel at 810 MHz EUTGenerator Standard IndicatedTableTest AntennaSubstitutionAntennaCable AbsoluteFCC FCC FrequencyAmpl.AngleHeightPolarFrequencyLevelPolar H/VGainLossLevelLimitMargin MHzdBuV/mDegreeMeterH/VMHzdBmCorrecteddBmdBdBmDBm 810101.3151.2v8105.4v00.35.1 810100.32101.5h8104.7h00.34.4 162054.1301.2v1620-57.2v6.80.5-50.9-13-37.9 243048.61101.5v2430-61.3v7.60.7-54.4-13-41.4 162048.7901.5h1620-61.8h6.80.5-55.5-13-42.5 243043.91601.2h2430-63.7h7.60.7-56.8-13-43.8 Up-link, Mid. Channel at 815 MHz EUTGenerator Standard IndicatedTableTest AntennaSubstitutionAntennaCableAbsoluteFCCFCC FrequencyAmpl.AngleHeightPolarFrequencyLevelPolar H/VGainLoss LevelLimit Margin MHzdBuV/mDegreeMeterH/…

Text truncated - open the document above for the full version.

OPISYS Incorporated FCC ID: Q4EUSHR-800NI EXHIBIT B - TEST SETUP PHOTOGRAPHS Radiated Emission - Front View Radiated Emission - Rear View
