Q5S-SS28WiFi Phone

User manual Version: 1.2 M/N:FX28,SS28,SS58 FCC ID: Q5S-SS28 CE 0678 Thank you for your purchase of WIFI SIP PHONE Product Name / WIFI SIP PHONE Notice regards WLAN electromagnetic waves Users with artificial heart pacemaker implants should not make use of this device. This device emits radio waves, which could interfere with the correct functionality of such medial devices, and be potentially harmful to their users. Do not use this device near any medical equipment. Do not use this device a near microwave ovens. Electromagnetic waves generated by appliances such as microwave ovens could interfere with functionality of this device. Notice regarding 2.4GHZ WLAN Electromagnetic ware interference The bandwidth of this device is identical to the bandwidth for RFID readers using in factory production line (wireless transmission station permit required), low-power wireless transmission stations (wireless transmission station permit required). Before using this device, please ensure that there are no RFID, specific low-power wireless transmission stations, or amateur wireless transmission stations nearby. If this device is interfering with RFID readers, please change bandwidth or stop use immediately, and contact your sales representative. The names of other products and brand names mentioned herein may be trade names, service marks, or trademarks that belong to their respective registered owners. Operation Safety Guide Safety-related precautions The following are some safety-related precautions. Please read carefully. ¾Please follow the instructions and procedures in this document to perform the operations properly. ¾Please be sure to follow this product’s and this manual’s precaution items. Omitting these items can cause bodily harm or damage to the device. ¾Do not operate the device in methods not stated in this manual. ¾For questions regarding this product or this manual, please inquire the place of purchase or the sales clerk. ¾This manual contains precaution items that may need further review. It does not guarantee it contains all the situations that might occur. ¾It is recommended to not only follow the instructions contained in this document, but to handle the product carefully at all times. ¾The safety related precaution items are listed below. They include “ Warnings” “Cautions “ and “Notes”. This precaution signal is utilized in titles and safety related situations, to enhance attention ¾Indicates that if not handle carefully, can lead to an imminently hazardous situation, which might result in death or serious injury. Danger!! ¾Indicates a potentially hazardous situation, which if not avoided, could result in death or serious injury. Warning!! ¾Indicates a potentially hazardous situation, which if not avoided, may result in minor or moderate injury. Caution!! Notice Provides important information unrelated to security. Operation Safety Guide Safety related general precaution items: Danger ȺGeneralȻ Always use the original AC adapter or charger unit that comes with your phone Danger!! Always use the AC adapter or charger unit delivered with your phone. Liquid leakage, fire, excessive heat, rupture, or damage to the phone could occur as a result of the use of an unauthorized and incompatible AC adapter. DangerȺBattery PackȻ Do not dispose battery in a fire Do not dispose the battery in a fire for it may explode. Always immediately remove your phone away from the vicinity of any open flame to prevent battery liquid leakage, generation of excessive heat, rupture, or phone damage. Never attempt to disassemble or make any modification to the battery Danger!! Do not dispose the battery in a fire for it may explode. Always immediately remove your phone away from the vicinity of any open flame to prevent battery liquid leakage, generation of excessive heat, rupture, or phone damage. Keep away from metallic objects Danger!! Never attempt to disassemble, repair, or make any modification to the battery. Disassembly, modification or any attempt at repair could cause battery liquid leakage, ignition, generation of excessive heat, or rupture, leading to bodily injury or damage to the phone itself. Do not force the battery into the battery compartment Danger!! Please ensure the proper direction of the battery before installing it. Do not force the battery into the battery compartment as it may result in battery liquid leakage, ignition, excessive heat, rupture, or damage to the phone. Do not rub eyes if battery liquid comes in contact with eyes Danger!! Never touch any fluid that might leak from the battery. Should the liquid come into contact with the eyes, irrigate the eyes thoroughly with clean water, and immediately seek medical attention. The battery liquid could cause sight loss. Never stick metallic objects into your phone, and never hit it with a hammer Danger!! Never stick metallic objects such as nails into your phone, and never hit it with a hammer. These actions could cause battery liquid leakage, generation of excess heat or fire, rupture, and even lead to device malfunction. Operation Safety Guide Warning ȺGeneralȻ Never place the phone in heating devices such as a microwave oven or inside any high-pressure container. Warning!! Do not place the battery, phone, charger (AC adapter and charging cradle unit) in heating devices, such as a microwave oven, or inside high-pressure containers, for it may result in battery liquid leakage, ignition, excessive heat, smoke, rupture, as well as damage to the phone. Prevent severe shock Warning!! Never subject the phone to severe shock for it may cause battery liquid leakage, excessive heat or fire, rupture, as well as damage to the phone. Keep away from high-risk fire areas Warning!! Never use the phone in high-risk fire areas such as gas stations, refueling points, or areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Using the phone in such areas could cause an explosion. Do not place in unstabl…

Text truncated - open the document above for the full version.

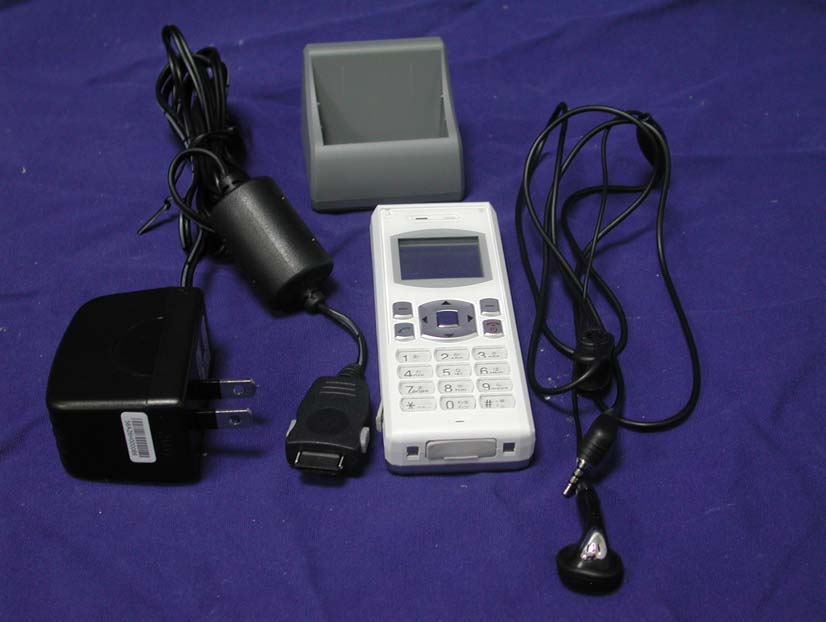

Report No.: 064L030-RF-US-P05V01 Page : 1 of 17 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Fi Win, Inc FCC ID.: Q5S-SS28 8F, NO.10,Prosperity Rd.1, Science Park, HsinChu, Taiwan 300 . Tel : 886-3-6668688#6302 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Report No.: 064L030-RF-US-P05V01 Page : 3 of 17 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 064L030-RF-US-P05V01 Page : 4 of 17 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 064L030-RF-US-P05V01 Page : 5 of 17 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 064L030-RF-US-P05V01 Page : 6 of 17 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 064L030-RF-US-P05V01 Page : 7 of 17 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 064L030-RF-US-P05V01 Page : 8 of 17 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 064L030-RF-US-P05V01 Page : 9 of 17 Version:1.0 (17) EUT Photo (18) EUT Photo Report No.: 064L030-RF-US-P05V01 Page : 10 of 17 Version:1.0 (19) EUT Photo (20) EUT Photo Report No.: 064L030-RF-US-P05V01 Page : 11 of 17 Version:1.0 (21) EUT Photo (22) EUT Photo Report No.: 064L030-RF-US-P05V01 Page : 12 of 17 Version:1.0 (23) EUT Photo (24) EUT Photo Report No.: 064L030-RF-US-P05V01 Page : 13 of 17 Version:1.0 (25) EUT Photo (26) EUT Photo Report No.: 064L030-RF-US-P05V01 Page : 14 of 17 Version:1.0 (27) EUT Photo (28) EUT Photo Report No.: 064L030-RF-US-P05V01 Page : 15 of 17 Version:1.0 (29) EUT Photo (30) EUT Photo Report No.: 064L030-RF-US-P05V01 Page : 16 of 17 Version:1.0 (31) EUT Photo (32) EUT Photo Report No.: 064L030-RF-US-P05V01 Page : 17 of 17 Version:1.0 (33) EUT Photo

Report No. 064L030-RF-US-P05V01 Page: 6 of 41 Version:1.0 1.2. Operational Description The EUT is a Wi-Fi Phone with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps. The device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b) The device adapts direct sequence spread spectrum modulation. The antenna was Connector provides diversity function to improve the receiving function. This Wi-Fi Phone, compliant with IEEE 802.11b is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Wi-Fi Phone Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b

Report No： 064L030-HP-US-P09V01 Page: 1 of 24 Version:1.0 SAR Test Report Product Name：Wi-Fi Phone Model No. ：FX28, SS28, SS58 Applicant ：Fi Win, Inc Address ：8F, NO.10,Prosperity Rd.1, Science Park, HsinChu, Taiwan 300 Date of Receipt：2006/03/30 Issued Date ：2006/04/13 Report No. ：064L030-HP-US-P09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. SAR test report is for production unit. Report No： 064L030-HP-US-P09V01 Page: 2 of 24 Version:1.0 Test Report Certification Issued Date: 2006/04/13 Report No. :064L030-HP-US-P09V01 Product Name ： Wi-Fi Phone Applicant ： Fi Win, Inc Address ： 8F, NO.10,Prosperity Rd.1, Science Park, HsinChu, Taiwan 300 Manufacturer ： Fi Win, Inc Model No. ： FX28, SS28, SS58 Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 RSS-102 Issue 2 Test Result ： Max. SAR Measurement (1g) Head 802.11b: 0.272 W/kg Body 802.11b: 0.141 W/kg Application Type Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： ( Rita Huang ) Tested By ： (Shine Hsu) Approved By ： (Gene Chang) Report No： 064L030-HP-US-P09V01 Page: 3 of 24 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information........................................................................................... 4 1.1 EUT Description ............................................................................................................4 1.2 Test Environment ...........................................................................................................4 2. SAR Measurement System.............................................................................. 5 2.1 ALSAS-10U System Description .................................................................................. 5 2.1.1 Applications ................................................................................................................ 5 2.1.2 Area Scans................................................................................................................... 5 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 6 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 6 2.2 Isotropic E-Field Probe .................................................................................................. 6 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 8 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 8 2.4 Daq-Paq (Analog to Digital Electronics) ....................................................................... 9 2.5 Axis Articulated Robot .................................................................................................. 9 2.6 ALSAS Universal Workstation.................................................................................... 10 2.7 Universal Device Positioner......................................................................................... 10 2.8 Phantom Types............................................................................................................. 10 2.8.1 APREL SAM Phantoms ........................................................................................... 11 2.8.2 APREL Laboratories Universal Phantom ................................................................. 11 3. Tissue Simulating Liquid............................................................................... 12 3.1 The composition of the tissue simulating liquid .......................................................... 12 3.2 Tissue Calibration Result ............................................................................................. 12 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 13 4. SAR Measurement Procedure...................................................................... 14 4.1 SAR System Validation................................................................................................ 14 4.1.1 Validation Dipoles..................................................................................................... 14 4.1.2 Validation Result ....................................................................................................... 14 4.2 Arrangement Assessment Setup ................................................................................... 14 4.2.1 Test Positions of Device Relative to Head................................................................ 14 4.2.1.1 Definition of the “Cheek” Position ........................................................................ 15 4.2.1.2 Definition of the “Tilted” Position......................................................................... 16 4.2.2 Test Positions for body-worn.................................................................................... 17 4.3 SAR Measurement Procedure ...................................................................................... 17 5. SAR Exposure Limits...................................................................................... 19 6. Test Equipment List......................................................................................... 19 7. Measurement Uncertainty.............................................................................. 21 8. Test Results........................................................................................................ 22 8.1 SAR Test Results Summary ......................................................................................... 22 Appendix A. SAR System Validation Data...............................................…

Text truncated - open the document above for the full version.

Report No. 064L030-RF-US-P05V01 Page: 1 of 41 Version:1.0 Test Report Applicant Fi Win, Inc Address 8F, NO.10,Prosperity Rd.1, Science Park, HsinChu, Taiwan 300 Date of Receipt Mar. 30, 2006 Issued Date Apr. 13, 2006 Report No. 064L030-RF-US-P05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Wi-Fi Phone Model No. FX28, SS28, SS58 FCC ID Q5S-SS28 Report No. 064L030-RF-US-P05V01 Page: 2 of 41 Version:1.0 Test Report Certification Issued Date: Apr. 13, 2006 Report No.: 064L030-RF-US-P05V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Wi-Fi Phone Applicant Fi Win, Inc Address 8F, NO.10,Prosperity Rd.1, Science Park, HsinChu, Taiwan 300 Manufacturer Fi Win, Inc Model No. FX28, SS28, SS58 Rated Voltage AC 120V/60Hz Working Voltage DC 5.5V Trade Name Fi Win Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2005 CISPR 22 Edition 4.1: 2004 ANSI C63.4: 2003 Test Result Complied Documented By : ( Rita Huang ) Tested By : ( Tom Hsieh ) Approved By : ( Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 0914 Report No. 064L030-RF-US-P05V01 Page: 3 of 41 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of Test System ........................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Uncertainty ..................................................................................................................................14 3.5. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................16 4.1. Test Equipment............................................................................................................................16 4.2. Test Setup ....................................................................................................................................16 4.3. Limits ..........................................................................................................................................17 4.4. Test Procedure .............................................................................................................................18 4.5. Uncertainty ..................................................................................................................................18 4.6. Test Result of Radiated Emission................................................................................................19 5. Band Edge ..................................................................................................................................25 5.1. Test Equipment............................................................................................................................25 5.2. Test Setup ....................................................................................................................................25 5.3. Limits .......................................................…

Text truncated - open the document above for the full version.

Report No.: 064L030-RF-US-P05V01 Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 064L030-RF-US-P05V01 Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 064L030-RF-US-P05V01 Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
