Q5SWM68802.11b/g Wireless Lan Card (Mini PCI)

The 802.11g Wireless LAN Card User’s Manual User Instruction Manual for Windows 98 SE / ME / 2000 / XP Table of Contents Chapter 1 Introduction ...................................................................................3 About This Manual ............................................................................................4 Product Overview ..............................................................................................5 802.11g Wireless LAN Card Features...............................................................6 System Requirements .......................................................................................6 Installation Overview .........................................................................................6 Chapter 2 Wireless Network Concepts .........................................................7 Wireless LAN Network Modes...........................................................................8 Planning Your New Wireless Network.............................................................11 Chapter 3 Installation ...................................................................................14 Chapter 4 Configuration & Operation .........................................................16 Wireless LAN Configuration for Windows 98 SE / ME / 2000.........................17 The WLAN Management Utility (Windows 98 SE / ME / 2000) .......................18 Wireless LAN Configuration for Windows XP ..................................................36 Chapter 5 Uninstall .......................................................................................51 Uninstall the WLAN Utility ...............................................................................51 Chapter 6 Troubleshooting ..........................................................................53 Common Installation Problems........................................................................53 Frequently Asked Questions ...........................................................................54 Appendix A Hardware Specifications..................................................................................57 Appendix B Glossary ..........................................................................................................58 Appendix C FCC Class B Radio Frequency Interference Statement.............................60 3 Chapter 1 Introduction Congratulations on your decision to use wireless networking. The 802.11g Wireless LAN Card is a high performance, IEEE Standard 802.11g compatible, wireless networking card that installs into your PC’s slot to support wireless LAN communications at speeds up to 54Mbps with other PC’s located hundreds of feet apart. Figure 1 Typical Wireless LAN Network The 802.11g Wireless LAN Card allows reliable, secure and untethered access to your data providing you with exciting new ways to adapt to your lifestyle and needs. Without the limitations of wires, true mobility and data access is seamless in your office or home office. 4 Data access from work, streaming audio MP3’s from a notebook to a stereo, downloading Internet content wirelessly from a broadband connection, watching TV on a notebook, are all possibilities with the 802.11g Wireless LAN Card. About This Manual This manual provides you with all the information necessary to successfully install and use your new 802.11g Wireless LAN Card. The manual is divided into six chapters and two appendices as follows: • Chapter 1- Introduction. This chapter provides a brief overview of the 802.11g Wireless LAN Card and the installation process. • Chapter 2-Wireless Networking Concepts. This chapter introduces the major terms and explains the various concepts associated with configuring wireless LANs. • Chapter 3-Installation. Provides hardware installation and software setup procedures to prepare your PC for Wireless LAN Card operation. You will also need to perform the LAN configuration procedures described in Chapter 4. • Chapter 4-Configuration & Operation. This chapter provides operating instructions for the Wireless LAN Card and provides procedures for configuring your wireless LAN after completion of installation and initial setup. • Chapter 5-Uninstalltion. This chapter details how to uninstall the WLAN Management Utility. • Chapter 6-Troubleshooting. This chapter provides some good tips to follow in case you are having difficulties with the Wireless LAN Card after completing the installation procedure. 5 • Appendix A- Hardware Specifications. This appendix provides hardware specifications for the Wireless LAN Card. • Appendix B-Glossary. Defines various terminology associated with Wireless LANs. Product Overview The 802.11g Wireless LAN Card gives you the freedom of secure high-speed communications with other PCs without the need for interconnecting wires. You can even connect in to other LAN infrastructures such as your company’s internal Ethernet LAN or your own home network. The antenna and design of the Wireless LAN Card gives you unmatched sensitivity which means your system will remain connected to other wireless PCs at high speeds for longer distances. The Wireless LAN Card operates according to the IEEE 802.11g Wireless LAN specification, for wireless data communications at speeds up to 54Mbps (Megabits per second). IEEE 802.11g operates on frequencies in the 2.4GHz range using OFDM (Orthogonal Frequency Division Multiplexing) technology. Backed by international standards and the IEEE organization, IT departments and end-users alike benefit from the reliability and interoperability of products based on these standards. From an investment point of view, it makes good business sense investing in technology that will be support worldwide for many years to come (unlike technologies not backed by international communications standards). Whether you are running a company or a home office, the Wireless LAN Card reduces, or eliminates in some cases, the ne…

Text truncated - open the document above for the full version.

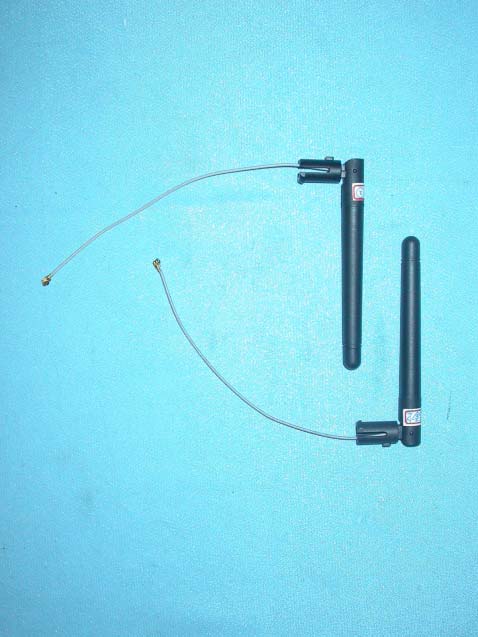

Transmitter Modular Approval Letter Date: Dec 31/2003 Federal Communications Commission Re: Application Modular Approval Certification for FCC ID: Q5SWM68 Gentlemen: The following attestation addresses the eight requirements to support Modular approval as required by the FCC Public Notice DA 00-1407” Part 15 Unlicensed Modular Transmitter Approval” 1 The modular transmitter has its own RF shielding.(Refer to “Internal Photograph Exhibit”) 2 The modular transmitter has buffered modulation/data inputs. All inputs to the modules are buffered through the radio circuitry. (Refer to “Block Diagram and Schematics Exhibit”) 3 The modular transmitter has its own power supply regulator.(Refer to “Block Diagram and Schematics Exhibit ”and Bill of Materials Exhibit”) 4 The modular transmitter has an antenna that complies with section 15.203 of the FCC rules. It has a UFL type of connector at the transmitter end and is soldered to the antenna (depending on OEM configuration). Also the antenna will be internal in the OEM host equipment and inaccessible to the user.(Refer to “Operational Description Exhibit” and “Antenna Specification Exhibit”) 5 The modular transmitter was tested outside of a host desktop computer using a PCI extender card. The PCI extender card allows the transmitter to be placed outside of the chassis of the host desktop computer.(Refer to “Test Configuration”in Ecom Sertech Corp. test report and to “External Photograph Exhibit”) 6 The modular transmitter will be labeled with it own FCC ID. Also, the OEM host computer manufacturer will be informed to display a label referring to the enclosed module. The exterior habel will read as follows: “Contains Transmitter Module FCC ID: Q5SWM68 ” or “Contains TXFCCID: Q5SWM68 ” (Refer to “Label Information Exhibit”) 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations.(Refer to“User’s Guide Exhibit) 8 The modular transmitter meets the MPE calculations of 47 CFR 1.1307(b)(1) (Refer to “RF Exposure Exhibit”. Also, SAR data is available if necessary.

Company : Fi Win, Inc. Page : 1 of 2 Product : 802.11b/g Wireless Lan Card (Mini PCI) Model : WM68 Company : Fi Win, Inc. Page : 2 of 2 Product : 802.11b/g Wireless Lan Card (Mini PCI) Model : WM68

Company : Fi Win, Inc. Model: WM68 Product : 802.11b/g Wireless Lan Card (Mini PCI) 802.11b/g Wireless Lan Card (Mini PCI) Model No: WM68 FCC IDQ5SWM68 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

Company : Fi Win, Inc. Page : 1 of 3 Product : 802.11b/g Wireless Lan Card (Mini PCI) Model : WM68 Company : Fi Win, Inc. Page : 2 of 3 Product : 802.11b/g Wireless Lan Card (Mini PCI) Model : WM68 Company : Fi Win, Inc. Page : 1 of 3 Product : 802.11b/g Wireless Lan Card (Mini PCI) Model : WM68

57 Appendix A Hardware Specifications Product Model Description IEEE802.11g 2.4 GHz 54Mbps Mini-PCI Wireless Network Interface Card, backward compatible with IEEE802.11b. Standard Compliance IEEE802.11b, IEEE802.11g, IEEE802.11d Chip Intersil PRISM® GT Frisbee chipset Transmission Rate OFDM: 6, 9, 12, 18, 24, 36, 48, 54 Mbps CCK: 5.5, 11 Mbps DSSS: 1, 2 Mbps Security 64/128-bit WEP Encryption Voltage 3.3 VDC +/- 5% LED Link status Power TX power consumption: <450mA RX power consumption < 390mA Sleep Mode power consumption <45mA Software Support Windows 98/ME/2000/XP Network Architecture Supports ad-hoc (peer-to-peer) and infrastructure (communications through Access Point) RF Output Power 17dBm typical @ 54M Antenna Two Ceramic antennas Operating Channels CH1~CH11 (2.412GH~2.462GHz) FCC CH1~CH13 (2.412GHz~2.472GHz) ETSI CH1~CH14 (2.412GHz~2.483GHz) TELEC 58 Modulation OFDM with BPSK, QPSK, 16QAM, 64QAM (11g) DBPSK, DQPSK, CCK (11b) Sensitivity 11g; PER < 10% 11b; PER < 8% 54 Mbps -69 dBm 11 Mbps -84 dBm 48 Mbps -68 dBm 5.5 Mbps -88 dBm 36 Mbps -74 dBm 2 Mbps -89 dBm 24 Mbps -79 dBm 1 Mbps -93 dBm 18 Mbps -82 dBm 12 Mbps -84 dBm 9 Mbps -87 dBm 6 Mbps -88 dBm Temperature 0 ~ 60 (Operating), -20 ~ 65 (Storing) Humidity 20 - 80% (non-condensing) Warranty 1 year Size and Weight 118.0mmL*54.1mmW*5.0mmH, <50g

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：Q5SWM68 Report No.：ER03-12-045FRF Page 1 of 64 TEST REPORT Product Name ： 802.11b/g Wireless Lan Card (Mini PCI) Model Number ： WM68 Applicant ： Fi Win, Inc. Address ： 8F, No. 10, Prosperity Rd., Science-Based Industrial Park, Hsin Chu, Taiwan 300. Received Date ： Dec. 19, 2003 Tested Date ： Dec. 19~24, 2003 Notes ： 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to testing, and be invalid as seperately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：Q5SWM68 Report No.：ER03-12-045FRF Page 2 of 64 Test Report Certification Product Name : 802.11b/g Wireless Lan Card (Mini PCI) Model Number : WM68 Applicant : Fi Win, Inc. Measurement Standard : 47 CFR Part 15, Subpart B and Subpart C (Section 15.247), ANSI C63.4-2001 WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：Q5SWM68 Report No.：ER03-12-045FRF Page 3 of 64 TABLE OF CONTENTS TITLE PAGE NO. 1. GENERAL INFORMATION........................................................................................................ 5 1.1 General Statement ....................................................................................................................... 5 1.2 General Description of EUT & Power ........................................................................................ 5 1.3 Description of Peripherals........................................................................................................... 6 1.4 EUT & Peripherals Setup Diagram.............................................................................................6 1.5 EUT Operating Condition........................................................................................................... 7 1.6 Description of Test Site .............................................................................................................. 8 1.7 Summary of Test Results ............................................................................................................ 8 2. CONDUCTED POWERLINE TEST ........................................................................................... 9 2.1 Test Equipments ......................................................................................................................... 9 2.2 Test Setup ................................................................................................................................... 9 2.3 Conducted Power Line Emission Limit ...................................................................................... 10 2.4 Test Procedure ............................................................................................................................ 10 2.5 Uncertainty of Conducted Emission ........................................................................................... 10 2.6 Conducted RF Voltage Measurement ......................................................................................... 11-12 2.7 Photos of Conduction Test.......................................................................................................... 13 3. RADIATED EMISSION TEST..................................................................................................... 14 3.1 Test Equipments ......................................................................................................................... 14 3.2 Test Setup ................................................................................................................................... 14 3.3 Radiation Limit ........................................................................................................................... 15 3.4 Test Procedures........................................................................................................................... 16 3.5 Uncertainty of Radiated Emission .............................................................................................. 16 3.6 Radiated RF Noise Measurement ............................................................................................... 17-42 3.7 Photos of Open Site .................................................................................................................... 43-44 4. 6dB BANDWIDTH MEASUREMENT........................................................................................ 45 4.1 Test Equipments ......................................................................................................................... 45 4.2 Test Setup ................................................................................................................................... 45 4.3 Limits of 6dB Bandwidth Measurement ..................................................................................... 45 4.4 Test Procedure ...............................................................................................................…

Text truncated - open the document above for the full version.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：Q5SWM68 Report No.：ER03-12-045FRF Page 13 of 64 2.7 Photos of Conduction Test Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：Q5SWM68 Report No.：ER03-12-045FRF Page 43 of 64 3.7 Photos of Open Site Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：Q5SWM68 Report No.：ER03-12-045FRF Page 44 of 64
