Q5SWM7154Mbps 802.11g Wireless LAN MiniPCI Card

54Mbps 802.11g Wireless LAN MiniPCI Card User’s Manual User Instruction Manual for Windows 98 SE / ME / 2000 / XP Table of Contents Chapter 1 Introduction ...................................................................................3 About This Manual ............................................................................................4 Product Overview ..............................................................................................5 802.11g Wireless LAN Card Features...............................................................6 System Requirements .......................................................................................6 Installation Overview .........................................................................................6 Chapter 2 Wireless Network Concepts .........................................................8 Wireless LAN Network Modes...........................................................................9 Planning Your New Wireless Network.............................................................11 Chapter 3 Installation ...................................................................................15 Chapter 4 Configuration & Operation .........................................................18 Wireless LAN Configuration for Windows 98 SE / ME / 2000.........................18 The WLAN Management Utility (Windows 98 SE / ME / 2000) .......................19 Wireless LAN Configuration for Windows XP ..................................................35 Chapter 5 Uninstall .......................................................................................51 Uninstall the WLAN Utility ...............................................................................51 Appendix A Glossary ..........................................................................................................53 3 Chapter 1 Introduction Congratulations on your decision to use wireless networking. The 802.11g Wireless LAN Card is a high performance, IEEE Standard 802.11g compatible, wireless networking card that installs into your PC’s slot to support wireless LAN communications at speeds up to 54Mbps with other PC’s located hundreds of feet apart. Figure 1 Typical Wireless LAN Network The 802.11g Wireless LAN Card allows reliable, secure and untethered access to your data providing you with exciting new ways to adapt to your lifestyle and needs. Without the limitations of wires, true mobility and data access is seamless in your office or home office. 4 Data access from work, streaming audio MP3’s from a notebook to a stereo, downloading Internet content wirelessly from a broadband connection, watching TV on a notebook, are all possibilities with the 802.11g Wireless LAN Card. About This Manual This manual provides you with all the information necessary to successfully install and use your new 802.11g Wireless LAN Card. The manual is divided into six chapters and two appendices as follows: • Chapter 1- Introduction. This chapter provides a brief overview of the 802.11g Wireless LAN Card and the installation process. • Chapter 2-Wireless Networking Concepts. This chapter introduces the major terms and explains the various concepts associated with configuring wireless LANs. • Chapter 3-Installation. Provides hardware installation and software setup procedures to prepare your PC for Wireless LAN Card operation. You will also need to perform the LAN configuration procedures described in Chapter 4. • Chapter 4-Configuration & Operation. This chapter provides operating instructions for the Wireless LAN Card and provides procedures for configuring your wireless LAN after completion of installation and initial setup. • Chapter 5-Uninstalltion. This chapter details how to uninstall the WLAN Management Utility. 5 • Appendix A-Glossary. Defines various terminology associated with Wireless LANs. Product Overview The 802.11g Wireless LAN Card gives you the freedom of secure high-speed communications with other PCs without the need for interconnecting wires. You can even connect in to other LAN infrastructures such as your company’s internal Ethernet LAN or your own home network. The antenna and design of the Wireless LAN Card gives you unmatched sensitivity which means your system will remain connected to other wireless PCs at high speeds for longer distances. The Wireless LAN Card operates according to the IEEE 802.11g Wireless LAN specification, for wireless data communications at speeds up to 54Mbps (Megabits per second). IEEE 802.11g operates on frequencies in the 2.4GHz range using OFDM (Orthogonal Frequency Division Multiplexing) technology. Backed by international standards and the IEEE organization, IT departments and end-users alike benefit from the reliability and interoperability of products based on these standards. From an investment point of view, it makes good business sense investing in technology that will be support worldwide for many years to come (unlike technologies not backed by international communications standards). Whether you are running a company or a home office, the Wireless LAN Card reduces, or eliminates in some cases, the need to setup wired LAN networks in the office or home office, eliminating costs associated with wiring rooms and buildings. 6 802.11g Wireless LAN Card Features • Up to 54Mbps data transfer rates for high-speed access to data • Compatible with 802.11g Wi-Fi CERTIFIED equipment (2.4GHz operating range) • Plug-and-play with Microsoft Windows operating systems • Secure data access, up to 128-bit WEP encryption protection • Driver requires minimal memory footprint and CPU support • Easy upgrades via software driver, no firmware to upgrade • Provides seamless connectivity to Wireless and hardwired LANs System Requirements • PC with Windows 98 SE, Windows 2000, Windows ME, or Windows XP Operating Systems • One (1) available Slot • CD-ROM drive (for the drivers and configuration software) Installation Over…

Text truncated - open the document above for the full version.

FCC ID: Q5SWM71 Report No. RF940127H02 Modular Approval Request Letter Advance Data Technology March 18, 2005 Dear Application Examiner, Fi Win, lnc’s 54Mbps 802.11g Wireless LAN MiniPCI Card, FCC ID: Q5SWM71, would like to have your authorization as a modular approval specific to the Notebook Computer, Access Point..etc. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip IPN2220. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 3.0VDC and powered. The miniPCI interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator are AME8801BEEV. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: Q5SWM71 Report No. RF940127H02 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

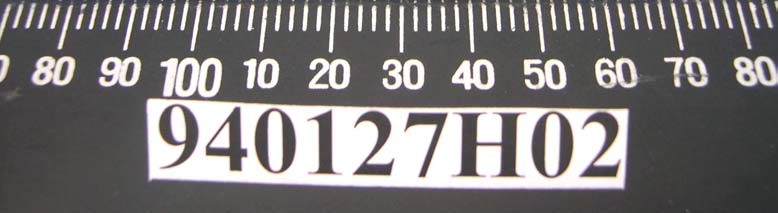

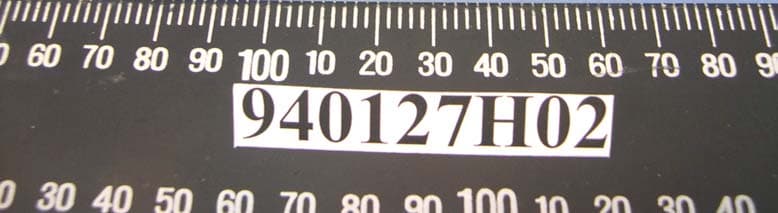

Page 1 CONSTRUCTION PHOTOS OF EUT EUT with Antenna 1 Page 2 EUT with Antenna 2 (Cable: 32cm) Page 3 EUT with Antenna 2 (Cable: 16cm) Page 4 EUT with Antenna 3 Page 5 EUT with Antenna 4 (Cable: 32cm) Page 6 EUT with Antenna 4 (Cable: 16cm) Page 7 EUT with Antenna 5 (Cable: 16cm) Page 8 EUT with Antenna 5 (Cable: 32cm) Page 9 EUT with Antenna 6 (Cable: 32cm) Page 10 EUT with Antenna 6 (Cable: 16cm) Page 11

FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label (Fig. 1) FCC ID: Q5SWM71

Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Antenna 1 Page 19 Antenna 2 Page 20 Antenna 3 Page 21 Antenna 4 Page 22 Antenna 5 Page 23 Antenna 6

FCC ID: Q5SWM71 Report No. RF940127H02 Operational Description This device is a 54Mbps 802.11g Wireless LAN MiniPCI Card, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (54Mbps 802.11g Wireless LAN MiniPCI Card) is powered by host equipment. The antenna type used in this product are Swivel antenna with IPEX connector and 1/4λ Dipole antenna with I-PEX and Reverse SMA Plug Connector. The other instruction, please have a look at the users manual.

FCC ID: Q5SWM71 Report No.: SA940127H021Issued: Mar. 18, 2005 RF EXPOSURE REPORT REPORT NO.: SA940127H02 MODEL NO.: WM71 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:Fi Win, lnc ADDRESS:8F.No.10 ,Prosperity Rd.1,Science-Based Industrial Park,Hsin chu,Taiwan 300 ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: Q5SWM71 Report No.: SA940127H022Issued: Mar. 18, 2005 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q5SWM71 Report No.: SA940127H023Issued: Mar. 18, 2005 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device FCC ID: Q5SWM71 Report No.: SA940127H024Issued: Mar. 18, 2005 6 Test Results 6.1 Antenna Gain Antenna 1: The maximum Gain of the antenna is 2dBi or 1.58489(numeric) Antenna 2: The maximum Gain of the antenna is 5dBi or 3.16228(numeric) 5. Output Power Into Antenna & RF Exposure value at distance 20cm : 802.11b: Antenna 1: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241227.415741720.0086442861.0 6243728.64177970.009030861.0 11246226.121613540.0082362431.0 Antenna 2: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241227.415741720.0172476181.0 6243728.64177970.0180189351.0 11246226.121613540.0164334641.0 802.11g: Antenna 1: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241218.492686190.0058308131.0 6243719.275249130.0060775581.0 11246218.113400930.0057112231.0 Antenna 2: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241218.492686190.0116340021.0 6243719.275249130.0121263231.0 11246218.113400930.0113953881.0

FCC ID: Q5SWM71 Report No.: RF940127H021Report Format Version 2.0.1 FCC TEST REPORT REPORT NO.:RF940127H02 MODEL NO.:WM71 RECEIVED:Jan. 27, 2005 TESTED:Jan. 28 to Feb. 02, 2005 ISSUED: Feb. 03, 2005 APPLICANT:Fi Win, lnc ADDRESS:8F.No.10 ,Prosperity Rd.1,Science-Based Industrial Park,Hsin chu,Taiwan 300 ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 68 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: Q5SWM71 Report No.: RF940127H022Report Format Version 2.0.1 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST ........................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 14 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 14 4.2.2TEST INSTRUMENTS ................................................................................ 15 4.2.3TEST PROCEDURES................................................................................. 16 4.2.4TEST SETUP .............................................................................................. 17 4.2.5EUT OPERATING CONDITIONS................................................................ 17 4.2.6TEST RESULTS (ANTENNA 1)................................................................... 18 4.2.7TEST RESULTS (ANTENNA 2)................................................................... 19 4.2.8TEST RESULTS (ANTENNA 1 – DSSS)..................................................... 20 4.2.9TEST RESULTS (ANTENNA 2 – DSSS)..................................................... 23 4.2.10 TEST RESULTS (ANTENNA 1 –OFDM) ..................................................... 26 4.2.11 TEST RESULTS (ANTENNA 2 –OFDM) ..................................................... 29 4.36DB BANDWIDTH MEASUREMENT.......................................................... 32 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT ....................................... 32 4.3.2TEST INSTRUMENTS ................................................................................ 32 4.3.3TEST PROCEDURE ................................................................................... 33 4.3.4TEST SETUP .............................................................................................. 33 4.3.5EUT OPERATING CONDITIONS................................................................ 33 4.3.6TEST RESULTS – DSSS ............................................................................ 34 FCC ID: Q5SWM71 Report No.: RF940127H023Report Format Version 2.0.1 4.3.7TEST RESULTS – OFDM ........................................................................... 37 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 40 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 40 4.4.2TEST INSTRUMENTS ................................................................................ 40 4.4.3TEST PROCEDURES................................................................................. 41 4.4.4TEST SETUP .............................................................................................. 41 4.4.5EUT OPERATING CONDITIONS................................................................ 41 4.4.6TEST RESULTS - DSSS............................................................................. 42 4.4.7TEST RESULTS - OFDM ............................................................................ 43 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 44 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 44 4.5.2TEST INSTRUMENTS ................................................................................ 44 4.5.3TEST PROCEDURE ................................................................................... 45 4.5.4TEST SETUP .............................................................................................. 45 4.5.5EUT OPERATING CONDITIONS................................................................ 45 4.5…

Text truncated - open the document above for the full version.

Report No. 940127H02 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 27, 2005 High pass filter 2.4G WHK3.1/18G- 10SS SN4Jun. 08, 2005 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 940127H02 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 940127H02 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 940127H02 4 Ch1 Report No. 940127H02 5 Ch11 Report No. 940127H02 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 940127H02 7 Ch1 Report No. 940127H02 8 Ch11

FCC ID: Q5SWM71 Report No.: RF940127H0262Report Format Version 2.0.1 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q5SWM71 Report No.: RF940127H0263Report Format Version 2.0.1 FCC ID: Q5SWM71 Report No.: RF940127H0264Report Format Version 2.0.1 RADIATED EMISSION TEST (With Antenna 1) FCC ID: Q5SWM71 Report No.: RF940127H0265Report Format Version 2.0.1 FCC ID: Q5SWM71 Report No.: RF940127H0266Report Format Version 2.0.1 RADIATED EMISSION TEST (With Antenna 2) FCC ID: Q5SWM71 Report No.: RF940127H0267Report Format Version 2.0.1
