WLAN Card User Manual Version: 1.0 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Fi Win declared that WP18 is limited in CH1~11 by specified firmware controlled in USA. 3 Table of Contents 1. Introduction..........................................................................................................................4 2. Installation............................................................................................................................4 2.1 OVERVIEW......................................................................................................................4 2.1.1 WLAN Driver/Utility Installation..............................................................................5 2.1.2 INSTALL the WLAN CARD ...................................................................................9 2.2 UTILITY STARTUP CONFIGURATION DETAILS.........................................................10 2.2.1. Setting.................................................................................................................10 2.2.2. WLAN Management Utility Introduction..............................................................11 2.2.3. Using the Windows XP Configuration Tool........................................................25 2.3 UNINSTALL THE WLAN UTILITY / DRIVER.................................................................27 3. Troubleshooting................................................................................................................30 a. Check the Various Properties of the Card...........................................................31 b. Plug the device first then install the Driver/Utility..................................................31 4 1. Introduction WLAN Management Utility supports the following: 802.11b WLAN Configuration Windows 98SE / ME / 2000 (In Windows XP, we use its default WLAN Utility) PCMCIA / USB / Mini-PCI Bus Interface 2. Installation 2.1 Overview To establish your wireless network connection, the following steps should be executed. 1. Install the software using the installation CD. 2. Insert the Wireless LAN card. This product is designed for Windows 98SE, Millennium, 2000, and XP. The installation procedure for each platform is similar. Please follow the installation wizard that provided by your system install the software. 5 2.1.1 WLAN Driver/Utility Installation 1. Insert the installation CD into your CD-ROM drive. The setup program will start automatically. 6 2. Click “Next” to go to next screen. 3. Select the destination folder. To install to the default folder as shown below, click “Next” to go to the next screen. 7 4. During installation, Driver and Utility files will be copied to your system directory. 5. Select “No” and then click “Finish” to complete the installation (You must select “Yes” for Windows 98 and ME). 8 6. The shortcut will appear on your desktop. By click this icon, you can run the Utility program. You will also find a shortcut “WLAN Manager” at Start\Programs\Startup Menu as shown below: 7. After click the shortcut, an inverse red pyramid-like icon will appear on the bottom right of the screen. Right click that icon and select open, the WLAN Utility will pop-up on the screen. 9 2.1.2 Install the WLAN card The WLAN driver and utilities are included on the accompanying installation CD. Please follow the installation procedures in Section 2.2. (Your WLAN card will not work properly if the driver and utilities are not installed correctly). Make sure that there is an empty WLAN slot (for example PCMCIA, USB, mini-PCI) for WLAN card. Insert the WLAN Card and the installation will start automatically. When the WLAN card setup task is completed, you can run the WLAN Utility. 10 2.2 Utility Startup Configuration Details WLAN Card has its own management software. Users can control all functions provided by the application named WLAN Utility. The Utility icon will appear on the working bar by double clicking the WLAN Utility shortcut on your desktop. Three colors are used to describe the status of connection and it is shown on the right of working bar. Gre…

Text truncated - open the document above for the full version.

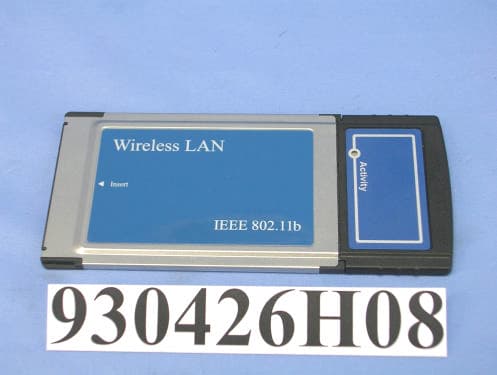

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: Q5SWP18 LABEL LOCATION Label

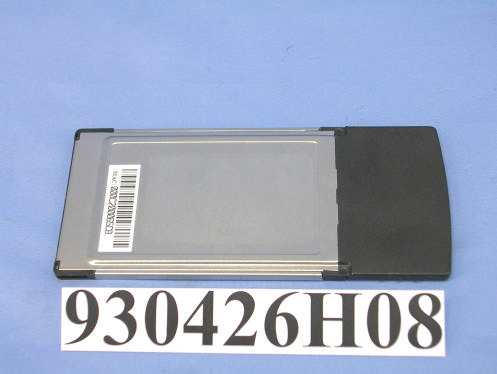

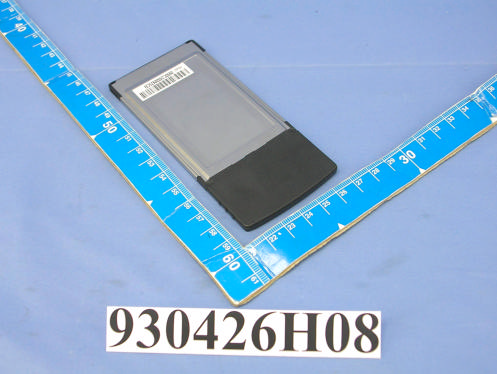

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC ID: Q5SWP18 ADT No. 930426H08 Operational Description This device is a 802.11b Wireless PCMCIA Card which operates in 2.4 GHz band with DSSS technique. The transmitter of the EUT is powered by host equipment. The antenna is PCB antenna without connector. Under normal use condition, the user has to keep at least 2.5 cm separation distance between radiator and the body of the user. For more detailed instruction, please refer to the user’s manual. DSSS Information Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

Report No. 930426H08 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 27, 2005 High pass filter 2.4G WHK3.1/18G- 10SS SN4Jun. 12, 2004 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE 2.5GHz~13GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable and a high pass filter. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 13GHz~25GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 930426H08 2 4. TEST SETUP 2.5GHz~13GHz: 13GHz~25GHz: 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER EUT SPECTRUM ANALYZER HIGH PASS FILTER Report No. 930426H08 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930426H08 4 Ch1 Report No. 930426H08 5 Ch11

FCC ID: Q5SWP18 Report No.: RF930426H081 Issued: May 11, 2004 FCC TEST REPORT REPORT NO.: RF930426H08 MODEL NO.: WP18 RECEIVED: Apr. 26, 2004 TESTED: Apr. 30 to May 06, 2004 APPLICANT: Fi Win, lnc. ADDRESS: 8F.No.10 , Prosperity Rd.1, Science-Based Industrial Park, Hsin chu,Taiwan 300 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 44 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA FCC ID: Q5SWP18 Report No.: RF930426H082 Issued: May 11, 2004 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 3.5CONFIGURATION OF SYSTEM UNDER TEST.................................................8 4TEST TYPES AND RESULTS................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.......................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................9 4.1.2TEST INSTRUMENTS.............................................................................................9 4.1.3TEST SETUP..........................................................................................................10 4.1.4EUT OPERATING CONDITIONS........................................................................11 4.1.5TEST RESULTS......................................................................................................12 4.2Radiated Emission Measurement........................................................................14 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................14 4.2.2TEST INSTRUMENTS...........................................................................................15 4.2.3TEST PROCEDURES...........................................................................................16 4.2.4TEST SETUP..........................................................................................................17 4.2.5EUT OPERATING CONDITIONS........................................................................17 4.2.6TEST RESULTS......................................................................................................18 4.2.7TEST RESULTS......................................................................................................19 4.36dB BANDWIDTH MEASUREMENT..................................................................22 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................22 4.3.2TEST INSTRUMENTS...........................................................................................22 4.3.3TEST PROCEDURE..............................................................................................23 4.3.4TEST SETUP..........................................................................................................23 4.3.5EUT OPERATING CONDITIONS........................................................................23 4.3.6TEST RESULTS......................................................................................................24 4.4MAXIMUM PEAK OUTPUT POWER..................................................................28 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............28 4.4.2TEST INSTRUMENTS...........................................................................................28 4.4.3TEST PROCEDURES...........................................................................................29 4.4.4TEST SETUP..........................................................................................................29 FCC ID: Q5SWP18 Report No.: RF930426H083 Issued: May 11, 2004 4.4.5EUT OPERATING CONDITIONS........................................................................29 4.4.6TEST RESULTS......................................................................................................30 4.5POWER SPECTRAL DENSITY MEASUREMENT...........................................31 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.......................31 4.5.2TEST INSTRUMENTS...........................................................................................31 4.5.3TEST PROCEDURE..............................................................................................32 4.5.4TEST SETUP..........................................................................................................32 4.5.5EUT OPERATING CONDITIONS........................................................................32 4.5.6TEST RESULTS......................................................................................................33 4.6BAND EDGES MEASUREMENT.........................................................................37 4.6.1LIMITS OF BAND EDGES MEASUREMENT....................................................37 4.6.2TEST INSTRUMENTS...........................................................................................37 4.6.3TEST PROCEDURE........…

Text truncated - open the document above for the full version.

FCC ID: Q5SWP18 Report No.: RF930426H0842 Issued: May 11, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q5SWP18 Report No.: RF930426H0843 Issued: May 11, 2004 RADIATED EMISSION TEST
