Q5SWF18802.11b Wireless CF Card

WLAN Card User Manual Version: 0.1 2 FCC Class B Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/television technician for help. The user should not modify or change this equipment without written approval from Fi Win, Inc. Modification could void authority to use this equipment. Notice 1: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Notice 2: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. 3 Table of Contents 1. Introduction.......................................................................................................................3 2. Installation.........................................................................................................................3 2.1 OVERVIEW...................................................................................................................3 2.1.1 INSTALL THE WLAN UTILITY/DRIVER.............................................................4 2.1.2 INSTALL WLAN CARD ......................................................................................8 2.2 UTILITY STARTUP CONFIGURATION DETAILS........................................................9 2.2.1. Setting................................................................................................................9 2.2.2. WLAN Management Utility Introduction............................................................10 2.3 UNINSTALL THE WLAN UTILITY / DRIVER.............................................................. 25. 3. Troubleshooting ..............................................................................................29 a. Check the Various Properties of the Card..........................................................29 b. Plug the device first then install the Driver/Utility..................................................31 c. If your notebook or PC has default WLAN card, it cannot configure WiFi WLAN card..........................................................................................................31 4 1. Introduction WLAN Management Utility supports the following: 802.11b WLAN Configuration Windows 98SE / ME / 2000 (In Windows XP, we use its default WLAN Utility) PCMCIA / USB / Mini-PCI Bus Interface 2. Installation 2.1 Overview To establish your wireless network connection, the following steps should be executed. 1. Install the software using the installation CD. 2. Insert the Wireless LAN card. This product is designed for Windows 98SE, Millennium, 2000, and XP. The installation procedure for each platform is similar. Please follow the installation wizard that provided by your system install the software. 5 2.1.1 WLAN Driver/Utility Installation 1. Insert the installation CD into your CD-ROM drive. The setup program will start automatically. 6 2. Click “Next” to go to next screen. 3. Select the destination folder. To install to the default folder as shown below, click “Next” to go to the next screen. 7 4. During installation, Driver and Utility files will be copied to your system directory. 5. Select “No” and then click “Finish” to complete the installation (It is recommended to select “Yes” for Windows 98). 8 6. The shortcut will appear on your desktop. By click this icon, you can run the Utility program. You will also find a shortcut “WLAN Manager” at Start\Programs\Startup Menu as shown below: 9 7. After click the shortcut, an inverse red pyramid-like icon will appear on the bottom right of the screen. Right click that icon and select open, the WLAN Utility will pop-up on the screen. 10 2.1.2 Install the WLAN card The WLAN driver and utilities are included on the accompanying installation CD. Please follow the installation procedures in Section 2.2. (Your WLAN card will not work properly if the driver and utilities are not installed correctly). Make sure that there is an empty WLAN slot (for example PCMCIA, USB, mini-PCI) for WLAN card. Insert the WLAN Card and the installation will start automatically. When the WLAN card setup task is completed, you can run the WLAN Utility. 11 2.2 Utility Startup Configuration Details WLAN Card has its own management software. Users can control all functions provided by the application named WLAN Utility. The Utility icon will appear on the working bar by double clicking the WLAN Utility shortcut on your desktop. Three colors are used to describe the status of connection and it is shown on the right of working bar. Green indicates excellent connection. Yellow indicates the connection has poor quality (Yellow) and Red means no connection. Double click the icon and the WLAN utility will be opened. WLAN Utility contains five major functions. Each function…

Text truncated - open the document above for the full version.

TCB Q and A.txt From: S. S. Liou [[email protected]] Sent: September042003Monday 12:48 AM To: Mike Kuo Subject: Re: Fi Win Inc, FCC ID:Q5SWF18, AN03T3218 Hi Mike, Please refer to attched file for explaining the channel operation. Best regards, ================================ S. S. Liou Engineer / EMC Dep. II ETC ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "Will Yauo (E-mail)" <[email protected]>; "ETC/Iris (E-mail)" <[email protected]>; "'S. S. Liou'" <[email protected]> Sent: Wednesday, September 03, 2003 5:48 AM Subject: FW: Fi Win Inc, FCC ID:Q5SWF18, AN03T3218 > > > -----Original Message----- > From: CERTADM > Sent: Tuesday, September 02, 2003 1:46 PM > To: '[email protected]' > Subject: Fi Win Inc, FCC ID:Q5SWF18, AN03T3218 > > > Notice_content > ------------- > Second Notices: > > Question #1: Based upon revised operational description and page 14 of user > manual, this 802.11b device is capable of operating up to 14 channels. > Based upon recent FCC policy, for the device is capable of transmitting > beyond authorized frequency band, the manufacturer has to ensure the device > when sold in the U.S. under above FCC ID number, can only capable of > transmitting authorized frequency band ( 11 channel for this application ). > Please provide information to justify how manufacturer will ensure 11 > channel will be used in the U.S. FCC policy states : > > User Selectable Frequencies by Country > > At this time, the FCC will not authorize transmitters that have the > capability to allow the end user to choose various frequency bands that may > be valid for other countries but are not in accordance with the frequency > bands permitted by the FCC rules for use in the USA. This includes > transmitters that use active or passive listening techniques on these > non-USA frequencies. These transmitters must have these end user options > disabled. > > Section 15.15(b) prohibits adjustments of any control by the user that will > cause operation of a device in violation of the regulations. Accordingly, > any proposal to allow the end user to choose extended channels on Page 1 TCB Q and A.txt > frequencies outside of an allowable frequency band in the USA is not > acceptable. For example, a WLAN device operating according to Section > 15.247 on channels 1-11 between 2.4 - 2.483.5 GHz must not have any user > controls or software to allow the device to operate on channels 12 and 13 > which are outside of the allowed USA band. This issue may be addressed in a > future rulemaking. > Joe Dichoso > 7-1-03 > > > > Best Regards > > Mike Kuo > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 30 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. Page 2

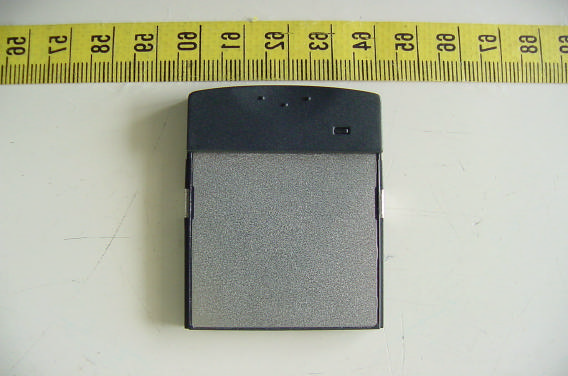

ETC Report No. : ET92R-08-081 FCC ID.: Q5SWF18 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT ETC Report No. : ET92R-08-081 FCC ID.: Q5SWF18 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT

ETC Report No. : ET92R-08-081 FCC ID.: Q5SWF18 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Component View of Main PCB ETC Report No. : ET92R-08-081 FCC ID.: Q5SWF18 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Main PCB Solder View of Main PCB

802.11b Wireless CF Card Software Enhanced Site Survey for optimal connectivity profile definition & selection complete user diagnostic. Dual External Antennas Equipped with auto fullback data rate for noisy environment conditions. Technical Specifications: Model WF18 Description 2.4 GHz Direct Sequence Spread Spectrum (DSSS) Wireless CF+card, Compact Flash V1.4 CF+ TYPE II Compliant. Interoperability Interoperable with Wi-Fi(WECA) certified products(AP, card etc.) Host Compact Flash V1.4 , CF+ I/O interface, type II Chip Intersil Prism 3.0 Data 11, 5.5, 2 and 1 Mbps per channel, Auto Full-Back Memory Size 128Kx16 SRAM, 128Kx8 flash ROM Voltage 3.3 VDC +/- 5% LED Link status Power TX power consumption 250mA(average), 270mA(max) power190mA(average), 210mA(max) Sleep Mode power consumption 17mA(average) OS Support Windows 98SE/2000/ME/XP WinCE 3.0/4.0/4.1/..... Linux Network Architecture Supports ad-hoc (peer-to-peer) and infrastructure (communications to wired networks via Access Points), roaming (standard IEEE 802.11b compliant) RF Output Power 13dBm Antenna PIFA antenna Operating Channels 11 N. America, 14 Japan, 13 Europe (ETSI), 2 Spain, 4 France Sensitivity @PER< 8% 11Mbps : --81dBm (+/- 3dBm), 5.5Mbps : -86 dBm(max.) 2 Mbps : -89 dBm(max.), 1 Mbps : -93 dBm(max.) Modulation CCK (11Mbps, 5.5Mbps), QPSK (2Mbps), BPSK (1Mbps) Warranty One Year Limited Warranty Humidity 5~90% (non-condensing) Operating Frequency 2.412-2.462 GHz (N. America) 2.412-2.484 GHz (Japan) 2.412-2.472 GHz (Europe ETSI) 2.457-2.462 GHz (Spain) 2.457-2.472 GHz (France) Temperature 0 ~ 55 (Operating), -20 ~ 80 (Storing) Size and Weight 60mmL*42.8mmW*5.0mmH Fi Win, Inc. 8F, NO 10, Prosperity Rd.1, Scienced-Based Industrial Park Hsin Chu, Taiwan 300 Phone: +886-3-6668688 Fax: +886-3-6668061 E-mail : [email protected]

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : 802.11b Wireless LAN Card FCC ID. : Q5SWF18 MODEL : WF18 for APPLICANT : Fi Win Inc ADDRESS : 8F, No.10, Prosperity Rd.1, Science-Based Industrial Park, Hsin Chu, Taiwan 300 Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : ET92R-08-081 ETC Report No. : ET92R-08-081 FCC ID.: Q5SWF18 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Fi Win Inc 8F, No.10, Prosperity Rd.1, Science-Based Industrial Park, Hsin Chu, Taiwan 300 Manufacturer : Fi Win Inc 8F, No.10, Prosperity Rd.1, Science-Based Industrial Park, Hsin Chu, Taiwan 300 Description of EUT : a) Type of EUT : 802.11b Wireless LAN Card b) Trade Name : Fi Win c) Model No. : WF18 d) Power Supply : From Notebook PC Regulation Applied : FCC Rules and Regulations Part 15 Subpart B & C (2002) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Aug. 27, 2003 Test Engineer : ( Falcon Shi ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET92R-08-081 FCC ID.: Q5SWF18 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION.......................................................................................................1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device................................................................................................................1 1.3 Test Methodology..........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 PROVISIONS APPLICABLE.......................................................................................................2 2.1 Definition........................................................................................................................................2 2.2 Requirement for Compliance...........................................................................................................3 2.3 Restricted Bands of Operation........................................................................................................5 2.4 Labeling Requirement.....................................................................................................................5 2.5 User Information............................................................................................................................6 3. SYSTEM TEST CONFIGURATION...........................................................................................7 3.1 Justification.....................................................................................................................................7 3.2 Devices for Tested System.............................................................................................................7 4 RADIATED EMISSION MEASUREMENT..............................................................................8 4.1 Applicable Standard.......................................................................................................................8 4.2 Measurement Procedure.................................................................................................................8 4.3 Measuring Instrument...................................................................................................................10 4.4 Radiated Emission Data................................................................................................................11 4.4.1 RF Portion...............................................................................................................................11 4.4.2 Radiated Eimssion of Restricted bands......................................................................................14 4.4.3 Other Emission........................................................................................................................16 4.5 Field Strength Calculation.............................................................................................................16 4.6 Photos of Radiation Measuring Setup............................................................................................17 5 CONDUCTED EMISSION MEASUREMENT........................................................................18 5.1 Standard Applicable.....................................................................................................................18 5.2 Measurement Procedure...............................................................................................................18 5.3 Conducted Emission Data.............................................................................................................19 5.4 Result Data Calculation.................................................................................................................20 5.5 Conducted Measurement Equipment.............................................................................................21 5.6 Photos of Conduction Measuring Setup........................................................................................22 6 ANTENNA REQUIREMENT..............................…

Text truncated - open the document above for the full version.

ETC Report No. : ET92R-08-081 FCC ID.: Q5SWF18 Rev. No 2.0 Photos of Radiation Measuring Setup ETC Report No. : ET92R-08-081 FCC ID.: Q5SWF18 Rev. No 2.0 Photos of Conduction Measuring Setup
