Q5TBT007EX0510Bluetooth Class1 EDR USB Adapter

BT007Ex / BT009Ex Enhanced Data Rate (EDR) Bluetooth USB Adapter B L U E T A K E User Manual BLUETAKE BT007Ex/BT009Ex Bluetooth USB Adapter – User Manual DECLARATION No part of this User Manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of Bluetake Technology Co., Ltd. Product warranty or service will not be extended if: (1) the product is repaired, modified or alt ered, unless such repair, modification of alteration is authorized in writing by Bluetake ; or (2) the serial number of the warranty card is defaced or missing. Bluetake provides this User Manual “as is” without warranty of any kind, either express or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall Bluetake, its directors, officers, employees or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of use or data, interruption of business and the like), even if Bluetake has been advised of the possibility of such damages arising from any defect or error in this User Manual or product. Products and corporate names appearing in this User Manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owner’s benefit, without intent to infringe. Copyright ® 2005 Bluetake Technology Co., Ltd. All Rights Reserved. Trademark(s) TM and Registered Trademark(s)® BLUETAKE and the BLUETAKE logo are trademarks of BLUTAKE Technology Co., Ltd. The Bluetooth trademark is owned by the Bluetooth SIG, Inc., and used by BLUETAKE under license. Microsoft, Windows, and Outlook are registered trademarks of Microsoft Corporation. Other brand and products names may be registered trademarks or trademarks of their respective holders. Rev. 3.03.10C - 09 - 05 1 BLUETAKE BT007Ex/BT009Ex Bluetooth USB Adapter – User Manual Contents Getting Start...............................................................3 Package Checklist.......................................................3 1. Introduction...............................................4 1.1 Safety Precautions.................................................................5 1.2 System Requirements.............................................................5 1.3 Product Specification.............................................................6 2. Bluetooth Software Installation....................8 2.1 Install the Software................................................................8 3. Toshiba Bluetooth Utility Contents..............10 3.1 Bluetooth Functions..........................................................10 3.2 Introduction of the Bluetooth Utility Contents..........................12 4. Toshiba Bluetooth Stack Console................16 4.1 Toshiba Bluetooth setting...................................................16 4.2 Express mode Setup............................................................17 4.3 Custom Mode Setup.............................................................24 2 BLUETAKE BT007Ex/BT009Ex Bluetooth USB Adapter – User Manual Getting Start Thank you for purchasing this versatile Bluetooth ® wireless communication product manufactured by Bluetake Technology Co., Ltd. Before starting, please read this User Manual carefully to understand how to properly setup and use this product. Package Checklist Please check all items included in product package with the list below. If there is any component damaged or missing, please contact your local distributor to get necessary support. Package list: - Bluetooth EDR USB Adapter x 1 - Utility CD x 1 . Bluetooth software/driver for Windows XP/2000/ME/98SE . User Manual (English version) . Quick Setup Guide (Multi-language version) - Quick Setup Guide x 1 - Warranty Card x 1 3 BLUETAKE BT007Ex/BT009Ex Bluetooth USB Adapter – User Manual 1. Introduction Bluetooth ® Technology The Bluetooth ® wireless technology is a short-range radio technology being developing by Ericsson, Intel, 3Com, Nokia, Toshiba, and other well-known companies. The Bluetooth ® wireless technology is a low-cost and short-range radio link system which connects devices such as: desktops, laptops, telephones, printers, PDAs, fax machines, keyboards, and other similar digital products, without the hassle of cable wires. Meanwhile, it can easily simplify both communication and synchronization between devices. Any digital device that utilizes the Bluetooth ® wireless technology will be able to take advantage of this technology. BLUETAKE BT007Ex/BT009Ex Bluetooth EDR USB Adapter The BLUETAKE BT007Ex/BT009Ex Bluetooth EDR USB Adapter is a compact and multipurpose product providing an efficient and easy solution for wireless applications. The built-in Bluetooth ® v2.0 and Enhanced Data Rate (EDR) technology enables the BT007Ex/BT009Ex - installed computer to communicate with other Bluetooth-enabled devices freely, effortlessly, and faster. Additionally, the BT007Ex/BT009Ex Bluetooth USB Adapter also bundles Bluetooth software for performing wireless applications such as file transfer, network access, dial-up networking and so on. Moreover, the innovative Bluetooth® profiles “Advance Audio Distribution Profile (A2DP)＂, “Audio Video Remote Control Profile (AVRCP)＂, and “Basic Image Profile (BIP)＂ are included to enable your computer to use Bluetooth® stereo headphone with remote control function, and received pictures from Bluetooth mobile phones directly. . 4 BLUETAKE BT007Ex/BT009Ex Bluetooth USB Adapter – User Manual 1.1 Safety Precautions Please follow the safety precautions carefully before you use the “Bluetooth EDR USB Adapter” device and t…

Text truncated - open the document above for the full version.

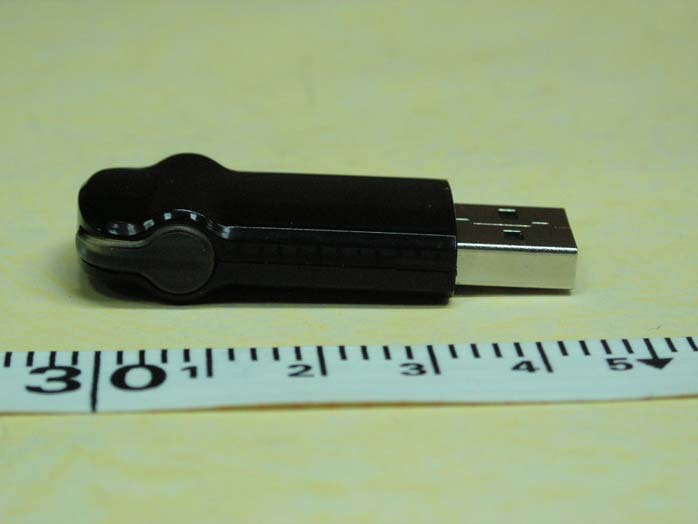

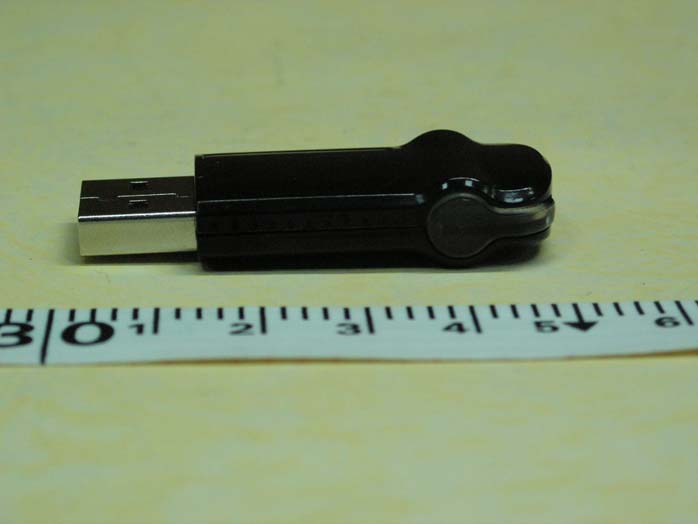

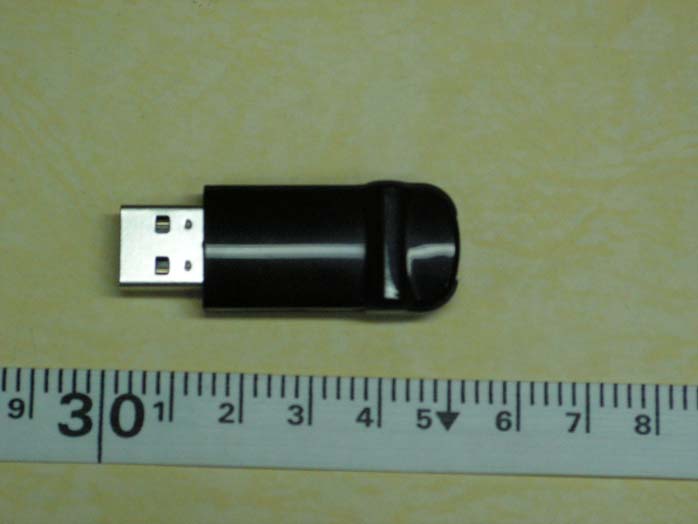

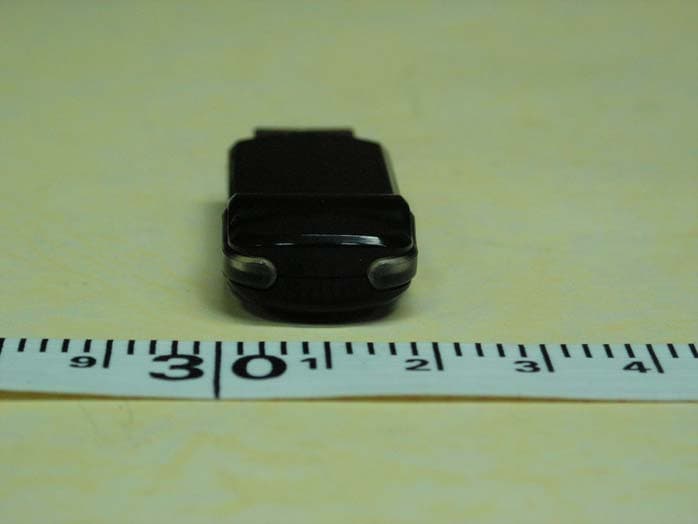

SPORTON International Inc. PAGE NUMBER : A1 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2005 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2005 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A4 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 10, 2005 FAX : 886-2-2696-2255

Operation Description EUT is a Bluetooth Class1 v2.0+EDR USB Dongle with 79 channels (2402~2480MHz, Space 1MHz). General Operational Description: 1. Time base of the transmission frequency: For IF and RF frequency, Crystal is a clock reference. 2. Synthesizer: Synthesizer inside Bluetooth IC operates at 2.4GHz ISM Band. Internal voltage controlled oscillator (VCO) provides the desired LO signal based on the phase-locked loop (PLL) with a relatively wide tuning range. 3. Transmission: Bluetooth IC uses FHSS (GFSK) modulation. Digital data signals are converted to analog (TX IQ) signals through DAC, TX IQ passes through low pass filter. TX I/Q signals use direct conversion (zero-IF) architecture converter to generate carrier frequency signals. An external power amplifier is required to magnify output power. 4. Receiver: Reverse direction isolation of LNA inside Bluetooth IC suppresses unwanted radiation. Then the RF signals will be directly down to IF signals (RX IQ) and high frequency spurious emissions are suppressed by LPF. At last RX IQ signals will be demodulated to digital data signals. 5. Base band Processing: Channel hopping: Automatic hopping channel is controlled by Bluetooth IC. Data Modulation: FHSS (GFSK) modulation is implemented by Bluetooth IC. Power Control Level: Bluetooth IC with the power table is calibrated by manufacturer to limit RF output power. Transmit/Receive Switch: To switch between TX and RX paths. Data Link Layer: It supports BlueCore Serial Protocol (BCSP) and Dynamic UART configuration. Interface: USB 6. Power: Input 5VDC is from PC through USB port and is regulated by the external regulator to supply the Bluetooth IC.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw FCC RADIO TEST REPORT Applicant’s company Bluetake Technology Co., Ltd. Applicant Address 5F, No.27, Lane 155, Sec.3, Pei-shen road, Shen-keng Shiang, Taipei, Taiwan 222 FCC ID Q5TBT007EX0510 Manufacturer’s company Bluetake Technology Co., Ltd. Manufacturer Address 5F, No.27, Lane 155, Sec.3, Pei-shen road, Shen-keng Shiang, Taipei, Taiwan 222 Product Name Bluetooth Class1 EDR USB Adapter Brand Name BLUETAKE Model Name BT007Ex Test Rule Part(s) 47 CFR Part 15 Subpart C. 15.247 Test Freq. Range 2400 ~ 2483.5MHz Receive Date Nov. 4, 2005 Test Date Nov. 9, 2005 Submission Type Original Equipment Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR5O2623 FCC ID: Q5TBT007EX0510 Page No. : i of ii Issued Date : Nov. 10, 2005 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Table for Filed Antenna.......................................................................................................................................................................3 3.3. Table for Carrier Frequencies .............................................................................................................................................................3 3.4. Table for Test Modes ...........................................................................................................................................................................4 3.5. Table for Testing Locations..................................................................................................................................................................4 3.6. Table for Supporting Units ...................................................................................................................................................................4 3.7. Table for Parameters of Test Software Setting .....................................................................................................................................4 3.8. Test Configurations .............................................................................................................................................................................5 4. TEST RESULT ..................................................................................................................................................... 7 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................7 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................11 4.3. Hopping Channel Separation Measurement ...................................................................................................................................13 4.4. Number of Hopping Frequency Measurement.................................................................................................................................18 4.5. Dwell Time Measurement..................................................................................................................................................................20 4.6. Radiated Emissions Measurement ....................................................................................................................................................27 4.7. Band Edge Emissions Measurement .................................................................................................................................................39 4.8. Antenna Requirements .....................................................................................................................................................................42 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 43 6. SPORTON COMPANY PROFILE ........................................................................................................................ 45 6.1. Test Location.....................................................................................................................................................................................45 7. CERTIFICATE OF NVLAP ACCREDITATION ......................................................................................................... 46 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A5 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B4…

Text truncated - open the document above for the full version.

Report No.: FR5O2623 FCC ID: Q5TBT007EX0510 Page No. : 1 of 4 Appendix B. Test Photos Report No.: FR5O2623 FCC ID: Q5TBT007EX0510 Page No. : 2 of 4 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR5O2623 FCC ID: Q5TBT007EX0510 Page No. : 3 of 4 Report No.: FR5O2623 FCC ID: Q5TBT007EX0510 Page No. : 4 of 4 2. Photographs of Radiated Emissions Test Configuration FRONT VIEW REAR VIEW
