Q5TBT430TX0511ABluetooth Stereo Headphone

BLUETOOTH STEREO DONGLE P/N: BT430Tx QUICK SETUP GUIDE BLUETAKE BLUETOOTH STEREO DONGLE–QUICK SETUP GUIDE Bluetooth ® Stereo Dongle BT430Tx Quick Setup Guide Page Index English............................................................2 Trademarks "Bluetake" name and logo are trademarks of Bluetake Technology Co., Ltd. “Bluetooth” word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Bluetake Technology Co., Ltd. is under license. Copyrights © Copyright 2005 Bluetake Technology Co., Ltd. All Rights Reserved. English 1 BLUETOOTH STEREO DONGLE–QUICK SETUP GUIDE [Turn On / Off ] < If this is the first time you use the i-PHONO PLUS Bluetooth Stereo Dongle (P/N: BT430Tx), please FULLY charge the device in advance. > Turn On / Off: Sliding the power switch to turn on / off the i-PHONO PLUS Stereo Dongle. Charge Socket Status Indictor Pairing Button 3.5mm (1/8 in.) Stereo Plug Power Switch Function Pairing Button Status Indicator Turn on / Active - Blinking Blue Pairing mode Press and Hold for 3 sec. Red/Blue alternately Low Battery - Blinding Red every 3 sec Charging - Constant Red Note: When the stereo dongle fully charged, the status indictor will switch off all light. [ Pairing ] Step-1: Turn off both the stereo dongle and the headphone (i-PHONO mini headphone or i-PHONO PLUS headphone) in advance, and then put the headphone in the pairing mode. Step-2: Afterward, put the stereo dongle in the pairing mode. Press and hold the Power/Pairing Button of stereo dongle until its Status Indicator flashes Blue and Red alternately. Step-3: Once the stereo dongle is putting in the pairing mode, it will begin to search and pair with the headphone automatically. After the pairing is completed, both the Status Indicators of headphone and stereo will flash Blue regularly. Notice: z Please go to (http://www.bluetake.com/products/BT450Rx.htm) to know more information about i-PHONO mini headphone. z Please go to (http://www.bluetake.com/products/BT420Rx.htm) to know more information about i-PHONO PLUS headphone. English 2 BLUETOOTH STEREO DONGLE–QUICK SETUP GUIDE [ Using Bluetooth Stereo Dongle with General Music Player ] You can enjoy the stereo music transmitted wirelessly from the music player which is installed the i-PHONO PLUS Bluetooth Stereo Dongle (P/N: BT430Tx) , the music player can be a CD Player, MP3 Player, Mini Hi-Fi system, Handheld Game Condole, Portable Media Player, Non-Bluetooth supported computer, etc. Step-1: Pair the stereo dongle with the stereo headphone (i-PHONO mini headphone or i-PHONO PLUS headphone) in advance. Step-2: Install the stereo dongle to the music player. The installation is effortless and no driver or software is necessary. You only need to connect the Stereo Plug of the i-PHONO PLUS stereo dongle to the 3.5mm (1/8 in.) stereo out jack of the music player. 3.5mm (1/8 in.) Stereo-out jack Stereo Plug Pairing Button Status Indictor Power Switch Step-3: Play Music. Notice Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. English 3 4 FCC Statement The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation . Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This dongle must not be co-located or operating in conjunction with any other antenna or dongle. CE and European Union Regulatory Notice This product complies with the following EU Directives: z CE R&TTE RF Test: EN 300 328-1 z CE R&TTE EMC Test: EN 301 489-1 & 17 z CE R&TTE LVD Test: EN 60950

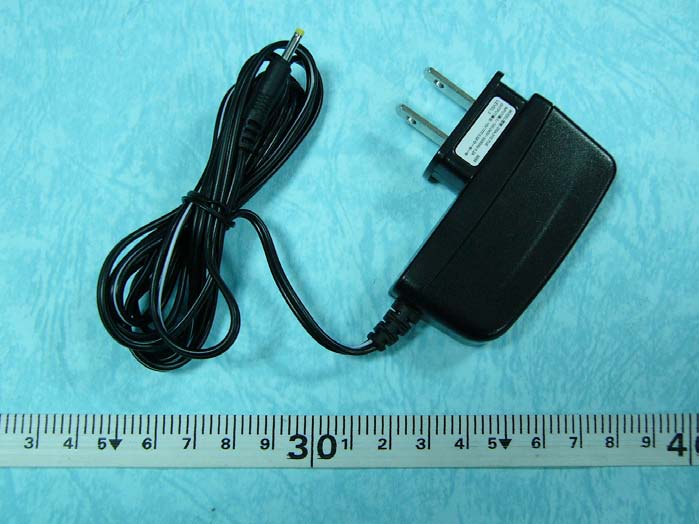

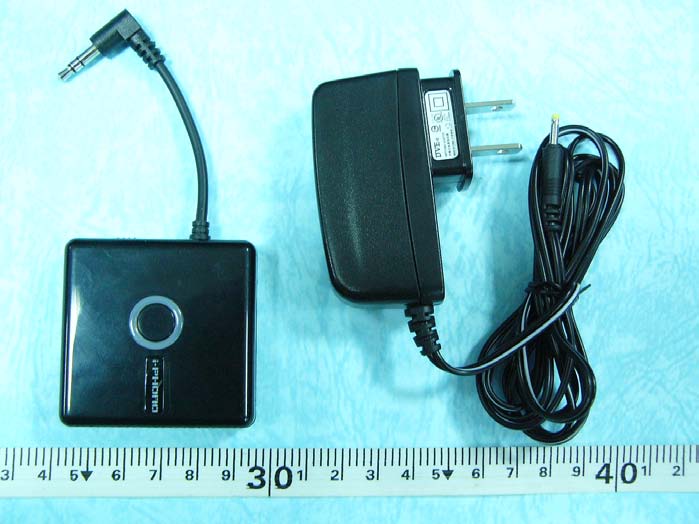

SPORTON International Inc. PAGE NUMBER : A1 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 25, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 25, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 25, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 25, 2006 FAX : 886-2-2696-2255

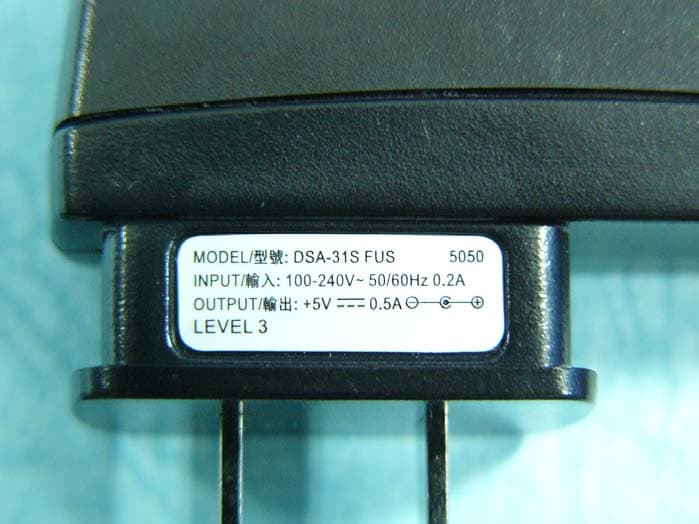

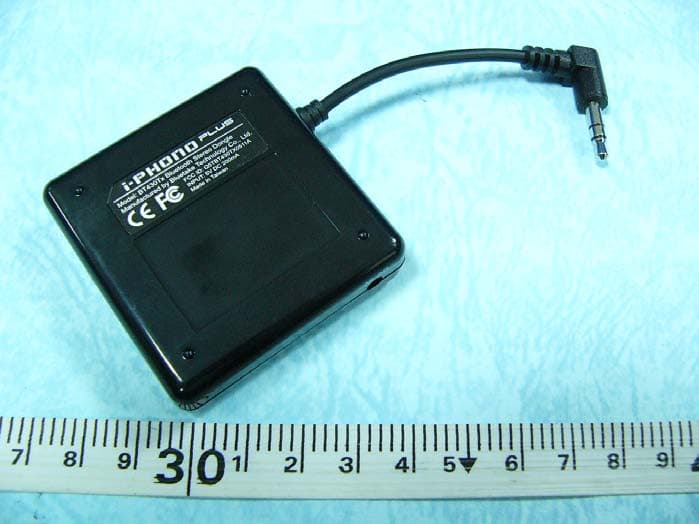

Label & Label location

SPORTON International Inc. PAGE NUMBER : A3 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 25, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 25, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 25, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 25, 2006 FAX : 886-2-2696-2255

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.247-2006-01-10-c FCC RADIO TEST REPORT Applicant’s company Bluetake Technology Co., Ltd. Applicant Address 5F, NO. 27, Lane 155, Sec. 3, Pei shen Road, Shen Keng Shiang, Taipei, Taiwan 222 FCC ID Q5TBT430TX0511A Manufacturer’s company Bluetake Technology Co., Ltd. Manufacturer Address 5F, NO. 27, Lane 155, Sec. 3, Pei shen Road, Shen Keng Shiang, Taipei, Taiwan 222 Product Name Bluetooth Stereo Headphone Brand Name BLUETAKE Model Name BT430Tx Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Receive Date Jan. 18, 2006 Test Date Jan. 25, 2006 Submission Type Original Equipment Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR611801 Report Format Version: RF-15.247-2006-01-10-c Page No. : i of ii FCC ID: Q5TBT430TX0511A Issued Date : Jan. 25, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 3 3.3. Table for Filed Antenna ............................................................................................................................................................................. 3 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 4 3.5. Table for Test Modes .................................................................................................................................................................................. 4 3.6. Table for Testing Locations........................................................................................................................................................................ 4 3.7. Table for Supporting Units ......................................................................................................................................................................... 5 3.8. Table for Parameters of Test Software Setting ....................................................................................................................................... 5 3.9. Test Configurations..................................................................................................................................................................................... 5 4. TEST RESULT........................................................................................................................................................... 7 4.1. AC Power Line Conducted Emissions Measurement ........................................................................................................................... 7 4.2. Maximum Peak Output Power Measurement..................................................................................................................................... 11 4.3. Hopping Channel Separation Measurement ...................................................................................................................................... 13 4.4. Number of Hopping Frequency Measurement................................................................................................................................... 18 4.5. Dwell Time Measurement........................................................................................................................................................................ 20 4.6. Radiated Emissions Measurement......................................................................................................................................................... 27 4.7. Band Edge Emissions Measurement...................................................................................................................................................... 39 4.8. Antenna Requirements ........................................................................................................................................................................... 43 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................... 44 6. SPORTON COMPANY PROFILE .......................................................................................................................... 46 6.1. Test Location ............................................................................................................................................................................................. 46 7. NVLAP CERTIFICATE OF A…

Text truncated - open the document above for the full version.

Report No.: FR611801 FCC ID: Q5TBT430TX0511A Page No. : 1 of 4 Appendix B. Test Photos Report No.: FR611801 FCC ID: Q5TBT430TX0511A Page No. : 2 of 4 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR611801 FCC ID: Q5TBT430TX0511A Page No. : 3 of 4 2. Photographs of Radiated Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR611801 FCC ID: Q5TBT430TX0511A Page No. : 4 of 4 NEAR VIEW
