Q5TBT009SXBluetooth Class 2 EDR USB Adapter

Few contents of software CD are different according to particular product user purchased. 1. Please insert the Utility CD into your CD-ROM drive, and then follow the instruction below to install Bluetooth software: (Note! DO NOT plug the USB Dongle/Adapter into the USB port before software installation) Note: If the Auto-Run function of CD-ROM is enabled (in Windows, the default setting of this function is usually enabled), then installation program will start automatically. If not, you can utilize the Windows Explorer to browse CD content and execute autorun.exe manually. 2. Follow the directions on your screen to install the software. 1. Choose setup language 2. Initiate and follow up the setup processes 3. Finish the setup and reset the computer 3. As prompted, when software installation is complete, restart your computer. Insert BT007SX / BT009SX [Windows XP/2000 operating system] Software Installation 1. After the computer is restarted, you can see the shortcut icon of BlueSoleil is added and the main window of BlueSoleil is opened on the Windows desktop. Then, the message popped up at the Windows toolbar will notify you to insert the Bluetooth USB adapter. 2. Insert the USB adapter into the USB port of your computer. 3. The Found New Hardware Wizard will automatically start. Select “Install the software automatically (Recommended)” and then follow the wizard to install the Bluetooth USB adapter’s drivers. [Windows XP SP2 operating system] 1. After the computer is restarted, you can see the shortcut icon of BlueSoleil is added and the main window of BlueSoleil is opened on the Windows desktop. Then, the message popped up at the Windows toolbar will notify you to insert the Bluetooth USB adapter. 2. Insert the USB adapter into the USB port of your computer. 3. The Hardware Update Wizard will automatically start and install the BT007SX / 009SX driver, after driver is installed, a “Bluetooth started” screen will shown on your task bar. FCC Statement You are cautioned that cha nges or modifications not expressly approv ed by the part responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an exp erienced radio/TV technician for help. Operation is subject to the following two conditions: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1) this device may not cause interference and 2) this device must accept any interference, including interferencehat may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. BT007SX Class I EDR USB Adapter BT009SX Class II EDR USB Adapter www.bluetake.com Quick Setup Guide Taiwan Headquarter Tel: +886-2-2664-7199 E-mail: [email protected] USA, California Tel: +1-626-369-9888 E-mail: [email protected] Mexico Tel: +52-55-3096-5321 E-mail: [email protected] Japan, Tokyo Tel: +81-424-42-8268 E-mail: [email protected] Sxngapore Tel: +65-6743-2300 E-mail: [email protected] Hong Kong Tel: +852-9777-8785 E-mail: [email protected] - For more detailed description of Bluetooth products application, please refer to the User Manual that locates in Utility CD.

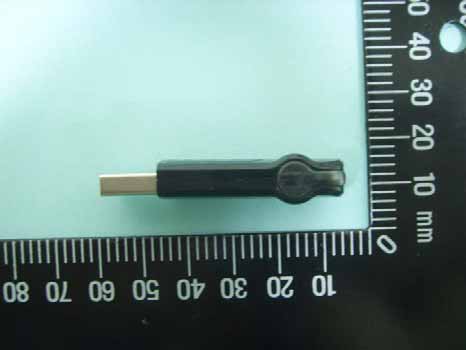

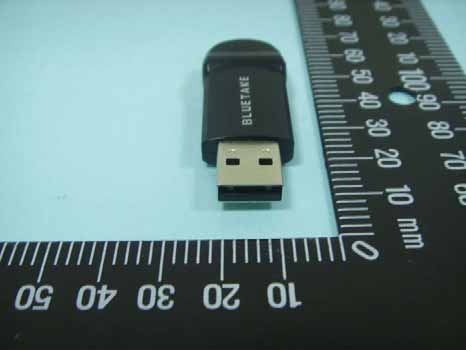

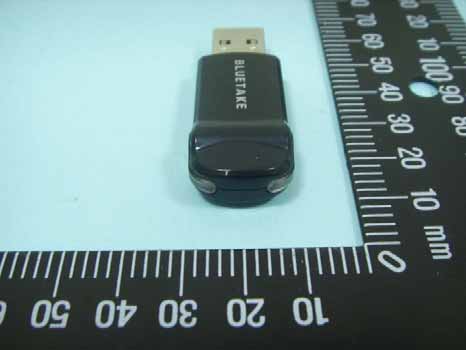

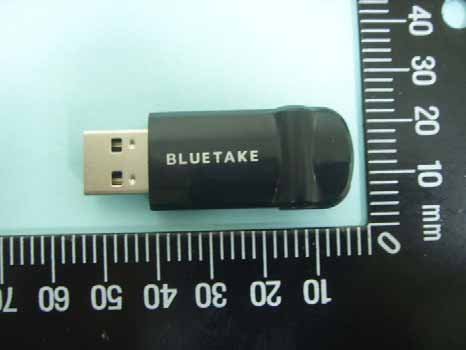

SPORTON International Inc. PAGE NUMBER : A1OFA 3 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 13, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2OFA 3 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 13, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3OFA3 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 13, 2006 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 13, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 13, 2006 FAX : 886-2-2696-2255

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886- 3-327-0973 / www.sporton.com.tw FCC RADIO TEST REPORT Applicant’s company Bluetake Technology Co., Ltd. Applicant Address 4F, No. 29, Lane 155, Sec. 3, Pei Shen Road, Shen Keng Shiang, Taipei 222, Taiwan FCC ID Q5TBT009SX Manufacturer’s company Bluetake Technology Co., Ltd. Manufacturer Address 4F, No. 29, Lane 155, Sec. 3, Pei Shen Road, Shen Keng Shiang, Taipei 222, Taiwan Product Name Bluetooth Class 2 EDR USB Adapter Brand Name BLUETAKE Model Name BT009SX Test Rule Part(s) 47 CFR Part 15 Subpart C 15.247 Test Freq. Range 2400 ~ 2483.5MHz Receive Date Oct. 25, 2005 Test Date Nov. 07, 2005 Submission Type Original Equipment Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in AANSI C63.4-2003 and 447 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR5O2520-03 FCC ID: Q5TBT009SX Page No. : i of ii Issued Date : Oct. 13, 2006 Table of Contents 1.CERTIFICATE OF COMPLIANCE.........................................................................................................................1 2.SUMMARY OF THE TEST RESULT......................... .................................................................................................2 3.G ENERAL INFORMATION..................................................................................................................................3 3.1.Product Details....................................................................................................................................................................................3 3.2.Accessories .........................................................................................................................................................................................3 3.3.Table for Filed Antenna.......................................................................................................................................................................3 3.4.Table for Carrier Frequencies .............................................................................................................................................................3 3.5.Table for Test Modes ...........................................................................................................................................................................4 3.6.Table for Testing Locations..................................................................................................................................................................4 3.7.Table for Multiple Listing......................................................................................................................................................................4 3.8.Table for Supporting Units ...................................................................................................................................................................4 3.9.Table for Parameters of Test Software Setting .....................................................................................................................................5 3.10. Test Configurations .............................................................................................................................................................................5 4.TEST RESULT.....................................................................................................................................................7 4.1.AC Power Line Conducted Emissions Measurement...........................................................................................................................7 4.2.Maximum Peak Output Power Measurement ...................................................................................................................................11 4.3.Hopping Channel Separation Measurement ...................................................................................................................................13 4.4.Number of Hopping Frequency Measurement.................................................................................................................................18 4.5.Dwell Time Measurement..................................................................................................................................................................20 4.6.Radiated Emissions Measurement ....................................................................................................................................................27 4.7.Band Edge Emissions Measurement .................................................................................................................................................39 4.8.Antenna Requirements .....................................................................................................................................................................42 5.LIST OF MEASURING EQUIPMENTS...................................................................................................................43 6.SPORTON COMPANY PROFILE.............................. ..........................................................................................45 6.1.Test Location.....................................................................................................................................................................................45 7.CERTIFICATE OF NVLAP ACCREDITATION..................................…

Text truncated - open the document above for the full version.

Report No.: FR5O2520-03 FCC ID: Q5TBT009SX Page No. : 1 of 6 Appendix B. Test Photos Report No.: FR5O2520-03 FCC ID: Q5TBT009SX Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR5O2520-03 FCC ID: Q5TBT009SX Page No. : 3 of 6 2. Photographs of Radiated Emissions Test Configuration 9kHz ~1GHz FRONT VIEW REAR VIEW Report No.: FR5O2520-03 FCC ID: Q5TBT009SX Page No. : 4 of 6 FRONT VIEW REAR VIEW Report No.: FR5O2520-03 FCC ID: Q5TBT009SX Page No. : 5 of 6 Above 1GHz FRONT VIEW REAR VIEW Report No.: FR5O2520-03 FCC ID: Q5TBT009SX Page No. : 6 of 6 NEAR VIEW
