Q6G-AP225WAP225W

WatchGuard Technologies, Inc. WatchGuard AP AP225W HW Model: W-118 Quick Start Guide 23 ACTIVATE YOUR AP CONTENTS 1 English Wall mount Insert four anchors 132 4 56 GO TO: watchguard.com/activate AP225W Mounting Bracket Mo unting Screws Optional Accessories 45 Wa ount Pole mount 2 INSTALL THE MOUNTING BRACKET Wall Plate No Wall Plate 67 Wa ount Pole mount 3 CONNECT THE AP BOTTOM PANEL REAR PANEL DC iN PASS LAN3 LAN2 LAN1 RESET THROUGH PSE WAN (Uplink) PASS THROUGH 89 4 MOUNT THE AP Power Off: Powered off Green: Operation at full power (PoE+ DC) Flashing: Cannot connect to Wi-Fi Cloud or controller Amber: Operation at reduced power (PoE) Flashing: No IP address received from DHCP 2.4 GHz, 5 GHz, Third Radio Off: Wireless radio inactive Green: Wireless radio active Uplink (WAN) Off: No Ethernet link Green: Connected to network 5 CHECK AP STATUS Align grooves and slide AP on to bracket LAN Interfaces Off: No Ethernet link Green: Connected to network 1011 Manage APs with WatchGuard Wi-Fi Cloud Manage APs with your WatchGuard Firebox (Fireware v12.6 or higher) GO TO: watchguard.com/start 6 C ONFIGURE THE AP NOTICES: All WatchGuard products are designed and tested to meet strict safety requirements. These requirements include product safety approvals and other global compliance standards. Please read these instructions carefully before operating the product, and refer to them as needed to ensure the continued safe operation of your product. For a dditional information, see the Hardware Guide for this device located on the WatchGuard website: https://www.watchguard.com/wgrd-help/documentation/hardware-guides FCC CERTIFICATION This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 1213 * FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The device is for indoor use only. Supported in 2412-2462, 5180~5240, 5260~5320, 5500~5700, 5745~5825MHz and operation in the 2412-2462, 5180~5240, 5260~5320, 5500~5700, 5745~5825MHz band are restricted to indoor usage only. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 23cm between the radiator & your body. INDUSTRY CANADA CERTIFICATION This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Caution: (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) where applicable, antenna type(s), antenna models(s), and worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in section 6.2.2.3 shall be clearly indicated. Avertissement: Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions précises sur les restrictions susmentionnées, notamment : (i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; (ii) lorsqu’il y a lieu, les types d’antennes (s’il y en a plusieurs), les numéros de modèle de l’antenne et les pires angles d’inclinaison nécessaires pour rester conforme à l’exigence de la p.i.r.e. applicable au masque d’élévation, énoncée à la section 6.2.2.3, doivent être clairement indiqués Radiation Exposure Statement: This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with greater than 27cm between the radiator & your body. Déclaration d’exposition aux radiations: Cet équipement est conforme aux limites d’exposition aux rayonnements ISED établies pour un environnement non c…

Text truncated - open the document above for the full version.

WatchGuard Technologies, Inc. 505 Fifth Avenue South, Suite 500 Seattle WA United States 98104 Date: 2019-11-05 FCC ID: Q6G-AP225W To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Adam Witthuhn / Technical Program Manager Tel: +1 206.521.3579 E-mail: [email protected]

WatchGuard Technologies, Inc. 505 Fifth Avenue South, Suite 500 Seattle WA United States 98104 Date: 2019-11-05 FCC ID: Q6G-AP225W A U T H O R I Z A T I O N L E T T E R To Whom It May Concern: WatchGuard Technologies, Inc. hereby authorizes Andrea Hsia / Supervisor of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Andrea Hsia / Supervisor of BV CPS Taoyuan on WatchGuard Technologies, Inc.’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------------------- Adam Witthuhn / Technical Program Manager WatchGuard Technologies, Inc. Tel: +1 206.521.3579 E-mail: [email protected]

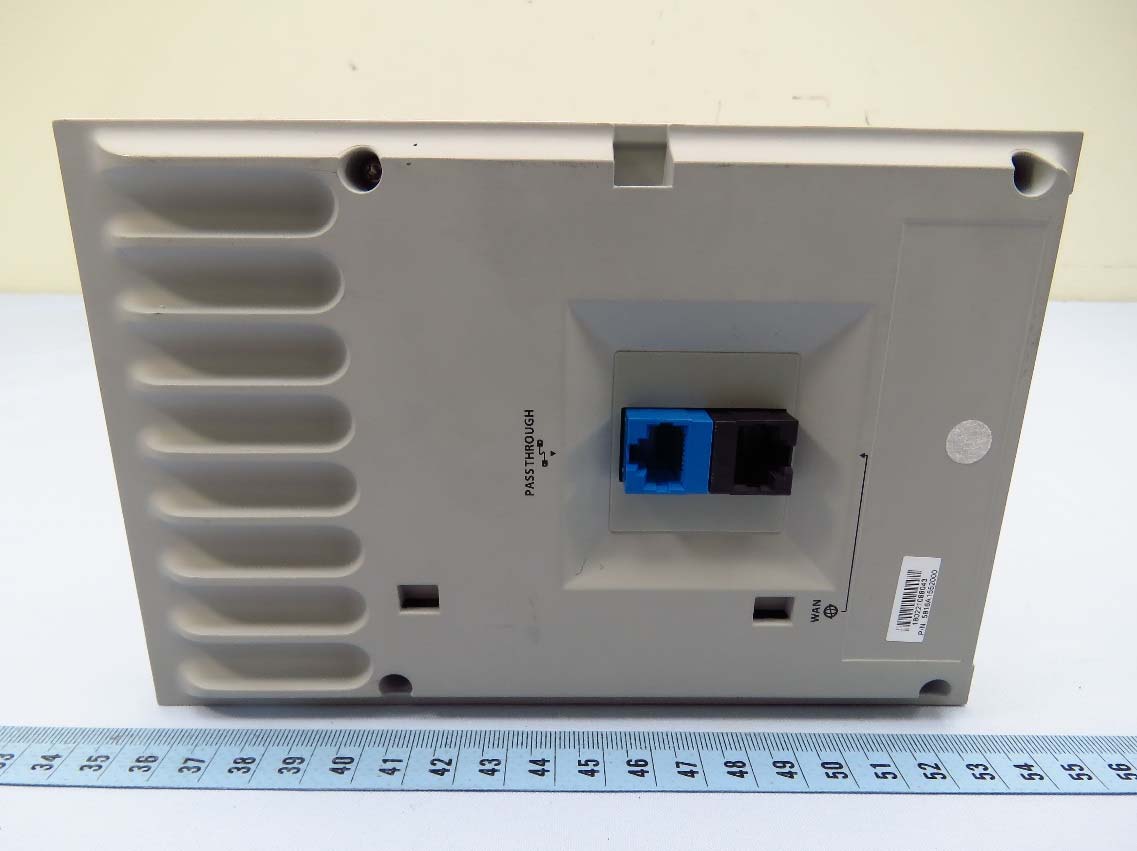

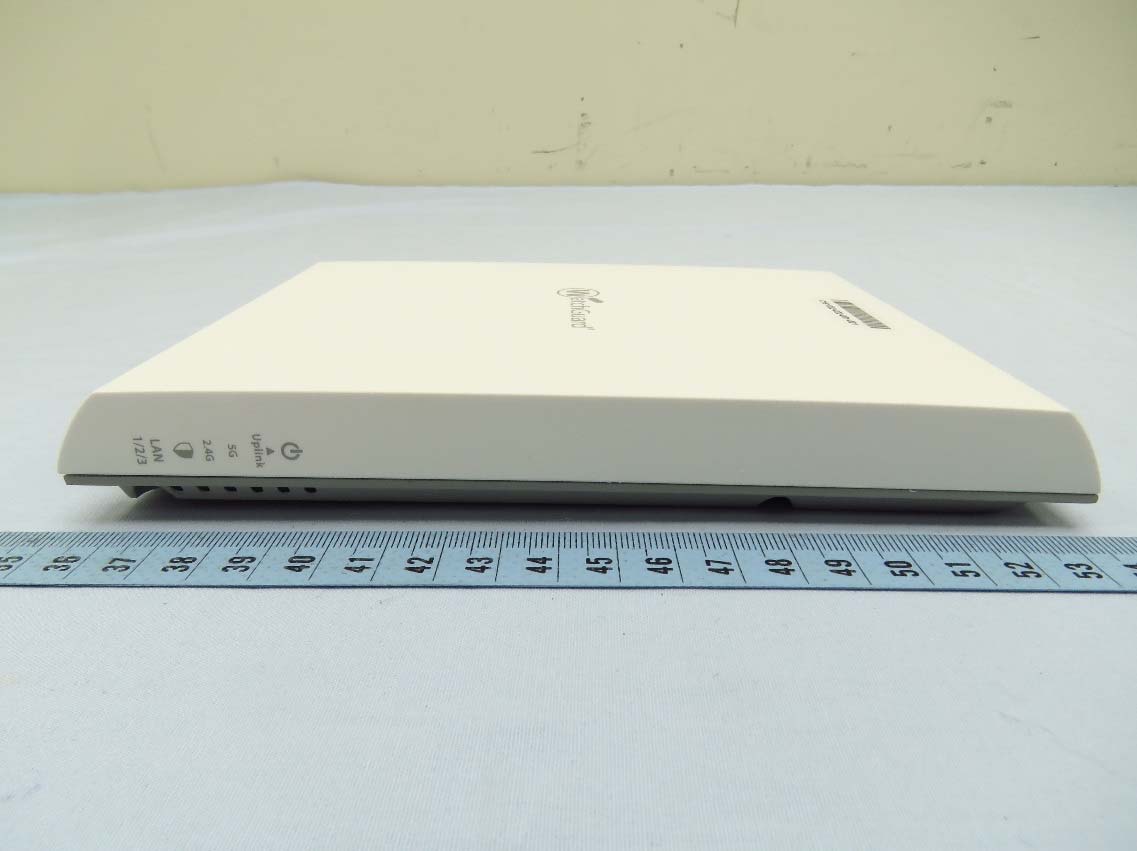

Reference No.: 191018C13-1 Page No. 1 / 3 CONSTRUCTION PHOTOS OF EUT Reference No.: 191018C13-1 Page No. 2 / 3 Reference No.: 191018C13-1 Page No. 3 / 3

Label Location FCC ID: Q6G-AP225W IC: 4657AAP225W

Reference No.: 191018C13-2 Page No. 1 / 10 CONSTRUCTION PHOTOS OF EUT Ant. 6 Ant. 5 Ant. 1 Ant. 2 Ant. 3 Ant. 4 BT/Zigbee Ant. Reference No.: 191018C13-2 Page No. 2 / 10 Ant. 2 Ant. 1 Ant. 4 Ant. 3 Reference No.: 191018C13-2 Page No. 3 / 10 Reference No.: 191018C13-2 Page No. 4 / 10 Radio 1, 2 Chip Ant. 2 Ant. 1 Ant. 3 Ant. 4 Reference No.: 191018C13-2 Page No. 5 / 10 Reference No.: 191018C13-2 Page No. 6 / 10 Radio 3 Chip BT LE/ Zigbee Chip Ant. 6 Ant. 5 Reference No.: 191018C13-2 Page No. 7 / 10 BT/Zigbee Ant. Reference No.: 191018C13-2 Page No. 8 / 10 Reference No.: 191018C13-2 Page No. 9 / 10 Reference No.: 191018C13-2 Page No. 10 / 10

Report No.: RF180108C15D-3 Page No. 1 / 117 Report Format Version:6.1.2 Reference No.: 191018C13 FCC Test Report Report No.: RF180108C15D-3 FCC ID: Q6G-AP225W Test Model: W-118 Received Date: Jan. 08, 2018 Test Date: Oct. 25 ~ Nov. 04, 2019 Issued Date: Nov. 11, 2019 Applicant: WatchGuard Technologies, Inc. Address: 505 Fifth Avenue South, Suite 500 Seattle WA United States 98104 Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number: 788550 / TW0003 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF180108C15D-3 Page No. 2 / 117 Report Format Version:6.1.2 Reference No.: 191018C13 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................... 9 3.2.1 Test Mode Applicability and Tested Channel Detail ........................................................................... 10 3.3 Duty Cycle of Test Signal .................................................................................................................. 12 3.4 Description of Support Units ............................................................................................................. 14 3.4.1 Configuration of System under Test .................................................................................................. 14 3.5 General Description of Applied Standards ........................................................................................ 15 4 Test Types and Results ...................................................................................................................... 16 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 16 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 16 4.1.2 Test Instruments ................................................................................................................................ 17 4.1.3 Test Procedures ................................................................................................................................. 18 4.1.4 Deviation from Test Standard ............................................................................................................ 18 4.1.5 Test Setup .......................................................................................................................................... 19 4.1.6 EUT Operating Conditions ................................................................................................................. 20 4.1.7 Test Results ....................................................................................................................................... 21 4.2 Conducted Emission Measurement .................................................................................................. 65 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 65 4.2.2 Test Instruments ................................................................................................................................ 65 4.2.3 Test Procedures .............................................................................................…

Text truncated - open the document above for the full version.

Report No.: RF180108C15D Page No. 1 / 8 PHOTOGRAPHS OF THE TEST CONFIGURATION Conducted Emission Test (Adapter Mode) Report No.: RF180108C15D Page No. 2 / 8 Conducted Emission Test (PoE Mode) Report No.: RF180108C15D Page No. 3 / 8 Radiated Emission below 1GHz Test (WLAN: Test Mode A) Report No.: RF180108C15D Page No. 4 / 8 Radiated Emission below 1GHz Test (WLAN: Test Mode B) Report No.: RF180108C15D Page No. 5 / 8 Radiated Emission below 1GHz Test (WLAN: Test Mode C & BT, Zigbee: Test Mode A) Report No.: RF180108C15D Page No. 6 / 8 Radiated Emission below 1GHz Test (WLAN: Test Mode D & BT, Zigbee: Test Mode B) Report No.: RF180108C15D Page No. 7 / 8 Radiated Emission above 1GHz Test (WLAN: Test Mode A) Report No.: RF180108C15D Page No. 8 / 8 Radiated Emission above 1GHz Test (WLAN: Test Mode C & BT, Zigbee)
