Q6G-FS2AE5WFirebox T20-W

WatchGuard Technologies, Inc.
Firebox T20-W - FCC ID Q6G-FS2AE5W - WatchGuard Technologies, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
May 14, 2020
Application Purpose
Original Equipment
Date of Application
May 14, 2020
Equipment Note
Firebox T20-W
Frequency Range
2422.00000000 - 2452.00000000
Company
WatchGuard Technologies, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Guide de démarrage rapide Kurzanleitung Guía Rápida Guia de início rápido 快速設定手冊 Quick Start Guide Firebox ® T20 / T20-W HW Models: FS2AE5, FS2AE5W Guida introduttiva WatchGuard® Technologies, Inc. DRAFT 23 Activate Your Device 1.Go to www.watchguard.com/activate 2.Log in to your WatchGuard account, or create a new account*. *If you create a new account, return to www.watchguard.com/activate after you finish the account creation process. 3.Type the serial number for your device. 4.During activation, select your setup method: •RapidDeploy QuickStart – Automatically download and apply a QuickStart configuration file to your device, pre-configured with security settings recommended by WatchGuard. •Classic Activation – Use the Web Setup Wizard to create a basic configuration file for your device. 5.Use the setup directions in this guide that match the method you selected. English DRAFT 45 RapidDeploy QuickStart Setup 1.Connect Your Device and Power it On Make sure the computers on your network are configured to use DHCP. When you install your Firebox, it will assign an IP address on the 10.0.1.0/24 network. English Your Network Internet Computer Internet 2.Connect to the Web UI A.Go to https://10.0.1.1:8080 B.You can safely ignore any certificate warnings you see because the device uses a self-signed certificate. C.Log in with the user account admin and the Admin (readwrite) passphrase you set during activation. Your device has a basic configuration: •Allows outbound TCP, UDP, and ping traffic •Blocks all unrequested traffic from the external network •Includes optimized security settings •Uses licensed security services to protect the trusted and optional networks Classic Activation Setup 1.Connect Your Device and Power it On Make sure your computer is configured to use DHCP. When you connect to the Firebox, it will assign an IP address on the 10.0.1.0/24 network. 2.Connect to the Web UI A.Go to https://10.0.1.1:8080 B.You can safely ignore certificate warnings, because the device uses a self-signed certificate. C.Log in with the user name admin and the passphrase readwrite. D.Follow the directions in the Web Setup Wizard to create a basic configuration file for a new device. Click More Information if you have questions. E.When the Wizard completes, log in to the Web UI with the admin user account and the Admin (readwrite) passphrase you set during the Wizard. F.Install the Firebox in your network. Your device has a basic configuration: •Allows outbound TCP, UDP, and ping traffic •Blocks all unrequested traffic from the external network •Inspects outgoing FTP, HTTP, and HTTPS traffic •Uses licensed security services to protect the trusted and optional networks DRAFT 67 About the Device Status Lights Fail Over – Lights when there is a WAN failover from the primary external interface to the backup interface. WAP - (Wireless models only) Lights when the device is activated as a wireless access point or as a wireless client. Network interface status indicators – The Firebox T35 has five network interfaces. There are two status indicators for each interface. IndicatorIndicator colorInterface Status 1000YellowLink speed: 1000 Mbps Blinks*Data sent and received 10/100GreenLink speed: 10 Mbps or 100 Mbps Blinks*Data sent and received * Blink speed increases as the data flow increases Status – Shows when there is a management connection to the device. The Status indicator is lit for 30 seconds after you connect to the device with the Fireware Web UI or the command line interface. It is also lit when the device is polled by WatchGuard System Manager. Mode – Shows the status of the external network connection. If the device can connect to the external network and send traffic, the indicator is green. The indicator flashes if the device cannot connect to the external network and send traffic. Attn – Lights when you start the device with the Reset button pressed. Power ( ) – The power indicator is lit when the device is on. English Next Steps Congratulations! You have finished basic setup of your Firebox. You can use the Web UI to view and edit your configuration and to manage and monitor your Firebox. Or, you can download and install WatchGuard System Manager (WSM) and use Policy Manager and the WSM suite of management and monitoring tools. Here are some recommendations to help you get started: Verify your Internet connectivity • With your Firebox installed in your network, make sure that your users can successfully browse the Internet. Get the latest software To upgrade the Firebox OS: 1. Log in to Fireware Web UI. 2. Select System > Upgrade OS. To get the latest version of WSM, WatchGuard Dimension, VPN clients, and other software for your Firebox: 1. Go to www.watchguard.com/support and click Download Software. 2. Find the software downloads page for the Firebox T35 and select the software you want to install. Explore the Features and Functions of Your Firebox Browse the Web UI or the tools in WatchGuard System Manager and click Help on any page or dialog box to learn more about the management, monitoring, and security features of your Firebox. DRAFT 89 Reset the Firebox to Factory-Default Settings If you ever need to, you can restore your Firebox to its factory-default settings. For example, if you do not know your administrator account passphrase or you want to start over with RapidDeploy QuickStart, you can reset your device. For more information, see the Hardware Guide for your Firebox, available at: www.watchguard.com/help/documentation/hardware.asp 简体中文 激活设备 1. 转到 www.watchguard.com/activate 2. 登录到您的 WatchGuard 帐户,或者创建一个新帐户*。 *如果创建新帐户,请在完成帐户创建过程之后返回到 www.watchguard.com/activate 。 3. 输入设备的序列号。 4. 在激活期间,选择安装方法: • 快速部署 – 自动下载快速部署配置文件并将其应用到您的设备,其中预配置了 WatchGuard 推荐的安全设置。 • 常规激活 – 使用网页安装向导为您的设备创建基本配置。 5. 请根据您的实际安装方法选择本手册中对应的安装说明。 DRAFT 1011 简体中文 快速部署安装向导 1. 将您的设备连接好网线后开启电源 确保网络中的电脑被配置为使用 DHCP方式自动获取IP地址。在启动 Firebox 设备后,它将在 10.0.1.0/24 网络上分配一个 IP 地址。 您的网络 Internet 2. 连接到网页管理界面 A. 在浏览器地址栏输入https://10.0…

Text truncated - open the document above for the full version.

Users Manual

Firebox ® T20,T20-W HardwareGuide Firebox ® T20,T20-W FS2AE5,FS2AE5W AboutThisGuide Informationinthisguideissubjecttochangewithoutnotice.Companies,names,anddatausedin exampleshereinarefictitiousunlessotherwisenoted.Nopartofthisguidemaybereproducedor transmittedinanyformorbyanymeans,electronicormechanical,foranypurpose,withouttheexpress writtenpermissionofWatchGuardTechnologies,Inc. Guiderevised:1/24/2020 Copyright,Trademark,andPatentInformation Copyright©1998–2020WatchGuardTechnologies,Inc.Allrightsreserved.Alltrademarksortradenames mentionedherein,ifany,arethepropertyoftheirrespectiveowners. Completecopyright,trademark,patent,andlicensinginformationcanbefoundintheCopyrightand LicensingGuide,availableonlineathttps://www.watchguard.com/wgrd-help/documentation/overview. AboutWatchGuard WatchGuard®Technologies,Inc.isagloballeaderinnetwork security,providingbest-in-classUnifiedThreatManagement,Next GenerationFirewall,secureWi-Fi,andnetworkintelligence productsandservicestomorethan75,000customersworldwide. Thecompany’smissionistomakeenterprise-gradesecurity accessibletocompaniesofalltypesandsizesthroughsimplicity, makingWatchGuardanidealsolutionforDistributedEnterprises andSMBs.WatchGuardisheadquarteredinSeattle,Washington, withofficesthroughoutNorthAmerica,Europe,AsiaPacific,and LatinAmerica.Tolearnmore,visitWatchGuard.com. Foradditionalinformation,promotionsandupdates,follow WatchGuardonTwitter,@WatchGuardonFacebook,oronthe LinkedInCompanypage.Also,visitourInfoSecblog,Secplicity, forreal-timeinformationaboutthelatestthreatsandhowtocope withthematwww.secplicity.org. Address 505FifthAvenueSouth Suite500 Seattle,WA98104 Support www.watchguard.com/support U.S.andCanada+877.232.3531 AllOtherCountries+1.206.521.3575 Sales U.S.andCanada+1.800.734.9905 AllOtherCountries+1.206.613.0895 WatchGuardTechnologies,Inc.i Contents WatchGuardFireboxT20/T20-WHardwareGuideiv FirewareOSiv AboutYourHardwareiv HardwareSpecificationsiv InterfaceSpecificationsv EnvironmentalRequirementsv HardwareDescriptionvi Frontvi Rearvii ACPowerAdapterix WallMountingPlateix RestoreFactory-DefaultSettingsx Noticesxi ProductSafetyCertificationxi SafetyWarningxi Disclaimerxi HinweiseZurSicherheitxi Sicherheitshinweisxii AvisoDeSeguridadxii Certificacióndeseguridaddelproductoxii Advertenciadeseguridadxii FederalCommunicationsCommissionInterferenceStatementxiii IMPORTANTNOTE:xiii FCCRadiationExposureStatement:(Wireless)xiii Europe–EUDeclarationofConformity(Wireless)xiii CENoticexiv iiWatchGuardTechnologies,Inc. RoHSStatementxiv WEEEStatementxiv REACHxv IndustryCanadaStatementxv Caution: (Wireless)xvi Avertissement:xvi ForMobileDeviceUsage(Wireless)xvi RadiationExposureStatementxvi Déclarationd’expositionauxradiations:xvi France(Wireless)xvi JapanVCCINotice(ClassAITE)xvi TaiwanRoHS(T20)xvii TaiwanClassANoticexvii TaiwanNCCxvii MexicoNoticexviii LimitedHardwareWarrantyxviii DeclarationofConformityxx WatchGuardTechnologies,Inc.iii WatchGuard Firebox T20/T20-W Hardware Guide WatchGuard® Firebox security appliances deliver unparalleled unified threat management, superior performance, ease of use, and value for your small organization or branch office. Our security subscriptions give you fully integrated protection from spyware, spam, viruses, worms, trojans, web-based exploits, and blended threats. From firewall and VPN protection to secure remote access, WatchGuard Firebox appliances support a broad range of network environments. This guide introduces the Firebox T20 RoHS-compliant (lead-free) hardware product. The Firebox T20 network security appliance is designed for small organizations and branch offices. Fireware OS The Firebox T20 supports WatchGuard’s next generation UTM OS—Fireware® OS. Each Firebox appliance includes Fireware OS and delivers exceptional protection against today's sophisticated threats to make sure that your business stays connected. For more information on the features of Fireware OS, see Fireware Help. About Your Hardware Hardware Specifications Processor NXP LS1023A, 1.0GHz, 2-Core MemoryDDR4 2GB with ECC StorageeMMC 4GB Power Supply Input Ratings: 100-240V AC, MAX 1.2A, 50-60Hz Output: 12V DC Dimensions D = 205.5 mm (8") W = 217 mm (8.5") H = 43 mm (1.7") WeightT20: 0.88 kg (1.94 lbs) T20–W: 0.9 kg (1.98 lbs) WatchGuard Firebox T20/T20-W Hardware Guide ivWatchGuard Technologies, Inc. WatchGuardFireboxT20/T20-WHardwareGuide InterfaceSpecifications NetworkInterfaces 5RJ45connectors,1000Base-TX(10/100/1000Mbps) T20-WiscompliantwiththeIEEE802.11ACwave1standard. RadioTypeandFrequencyBand (T20–W) Asingle3x3:3radiothatcanoperateononeofthesebands: n2.4GHz802.11b/g/n n5GHz802.11a/n/ac I/OInterfaces2xUSB3.0,Type-A 1RJ45SerialPort EnvironmentalRequirements TosafelyinstallyourFirebox,werecommendthatyou: nInstallitindoors. nPutitinasecurearea,suchasalockedroom,toblockthedevicefrompeoplewhodonothave permissiontouseit. nConnectittoaconditionedpowersupplytopreventdamagefromsuddenpowerchanges. Otherenvironmentalrequirements: nOperatingtemperature:0°to40°C(32°to104°F) nOperatinghumidity:5%to90%non-condensing nNon-operatingtemperature:–25°to75°C(-13°to167°F) nNon-operatinghumidity:0%to95%non-condensing WatchGuardTechnologies,Inc.v Hardware Description Front Front view of the Firebox: Failover The Failover indicator is lit when there is a WAN failover from the primary external interface to the backup interface. After the external interface connection fails back to the primary external interface, the indicator is not lit. WAP On the Firebox T20-W model, the WAP indicator is lit when the appliance is activated as a wireless access point or a wireless client. The color indicates the active wireless radio band. The light blinks when data is sent and received. The speed of the blink increases as the data flow increases. IndicatorIndicator ColorWireless Band WAP Yellow2.4 GHz radio band Green5 GHz radio band WatchGuard Firebox T20/T20-W Hardware Guide viWatchGuard Technologies, Inc. WatchGuardFireboxT20/T20-WHardwareGuide NetworkInter…

Text truncated - open the document above for the full version.

Cover Letter(s)

Longterm Confidentiality Request Letter Longterm Confidentiality Request regarding application for certification of FCC ID: Q6G-FS2AE5W and IC: 4657A-FS2AE5W Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, and IC RSP-100, Section 10, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Block Diagram, Schematics, Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Adam Witthuhn

Cover Letter(s)

Number: MS-0004558 Version: 2.1 Page: 1 of 1 Printed: April 27, 2020 Approved Documents Valid 2 Days Verify as current revision when invalid. This document is issued in strict confidence and shall not be reproduced, copied, or otherwise used without the expressed written consent of the Management of TÜ V Rheinland Industrial Solutions, Inc. WatchGuard Technologies, Inc. The following is a sample Agency Request letter, which needs to be completed on company letterhead, signed by an authorized Applicant/Agent, and submitted to TÜ V Rheinland. Authority to Act as Agent Date: 2020-04-27 TUV Rheinland of North America, Inc. 1279 Quarry Ln., Ste. A Pleasanton, CA 94566 To Whom It May Concern: I appoint TUV Taiwan to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with WatchGuard Technologies, Inc., 505 Fifth Avenue South, Suite 500, Seattle, Washington For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____( 12 months)_____ By: __________________________ Adam Witthuhn (Signature) (Print name) Title: Hardware Sustainment Coordinator Telephone (206) 521-3579 On behalf of: __WatchGuard Technologies, Inc.___ (Company Name)

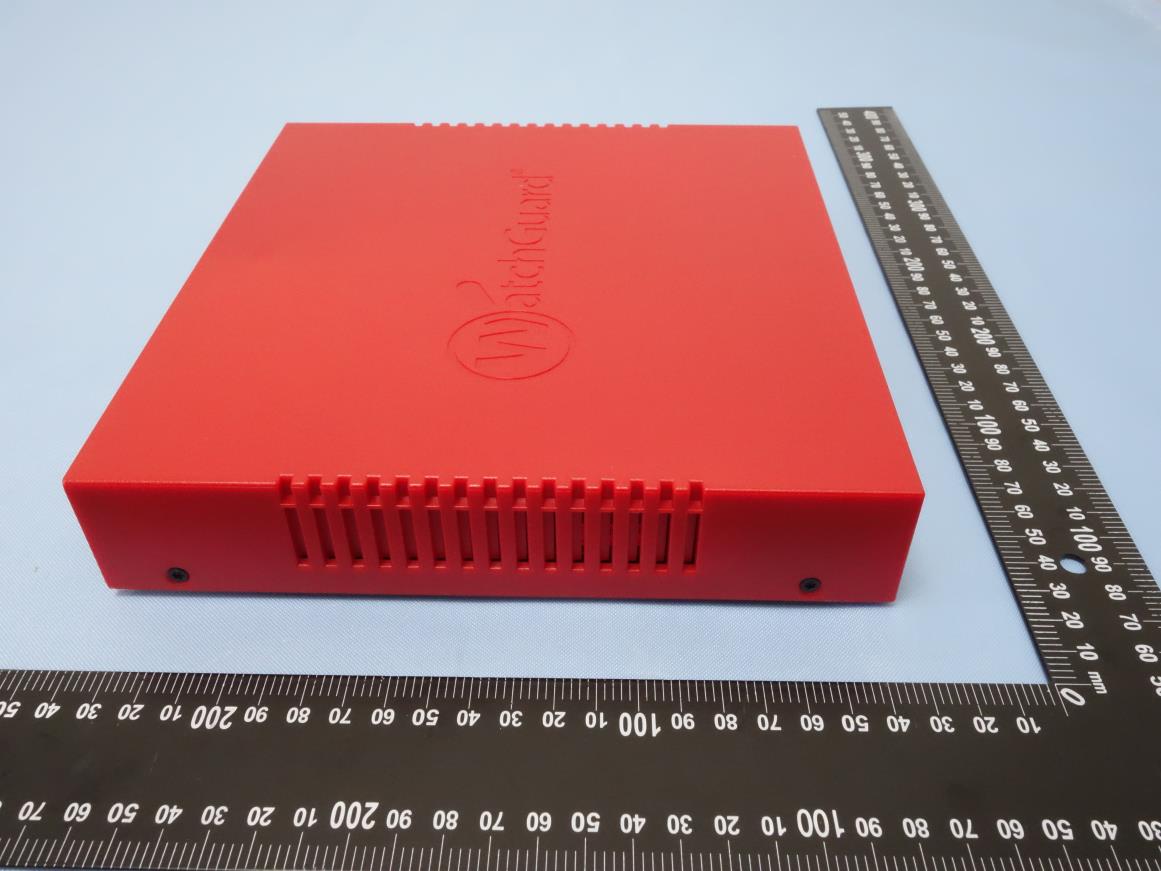

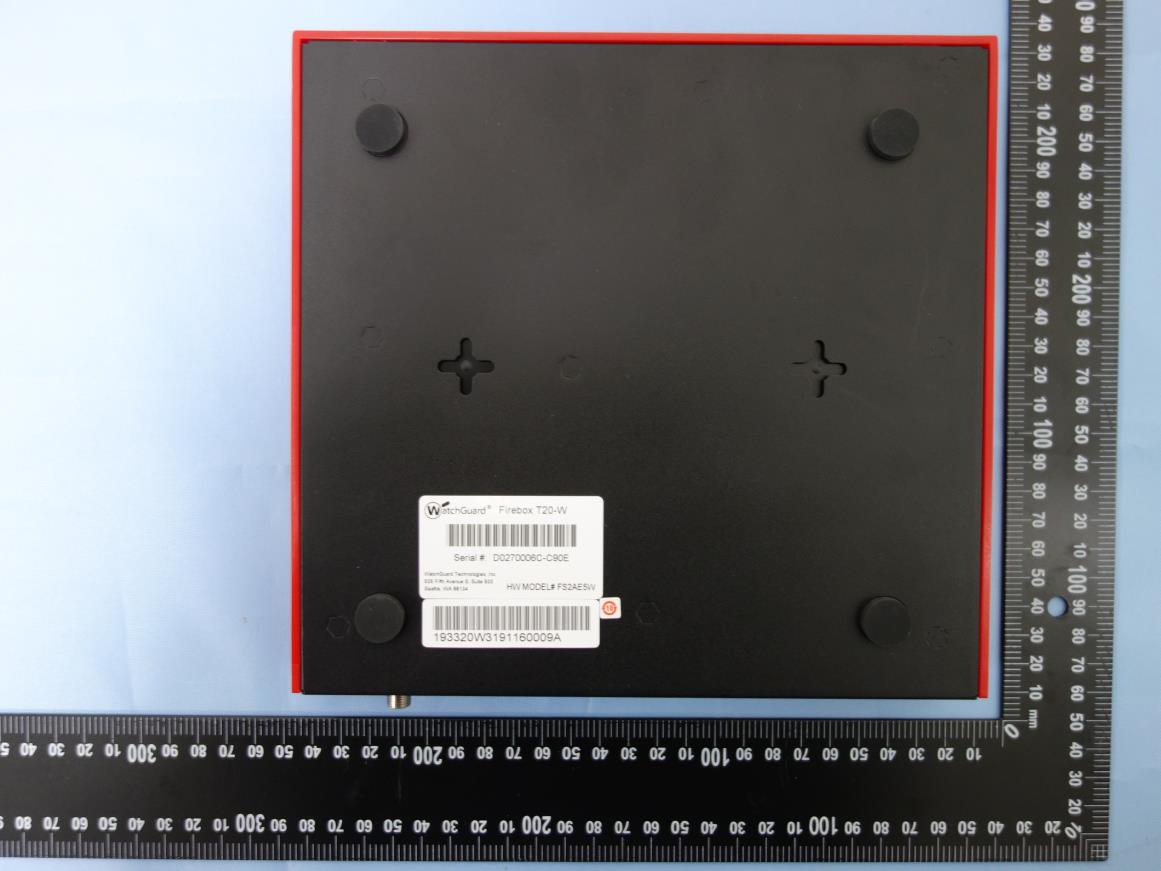

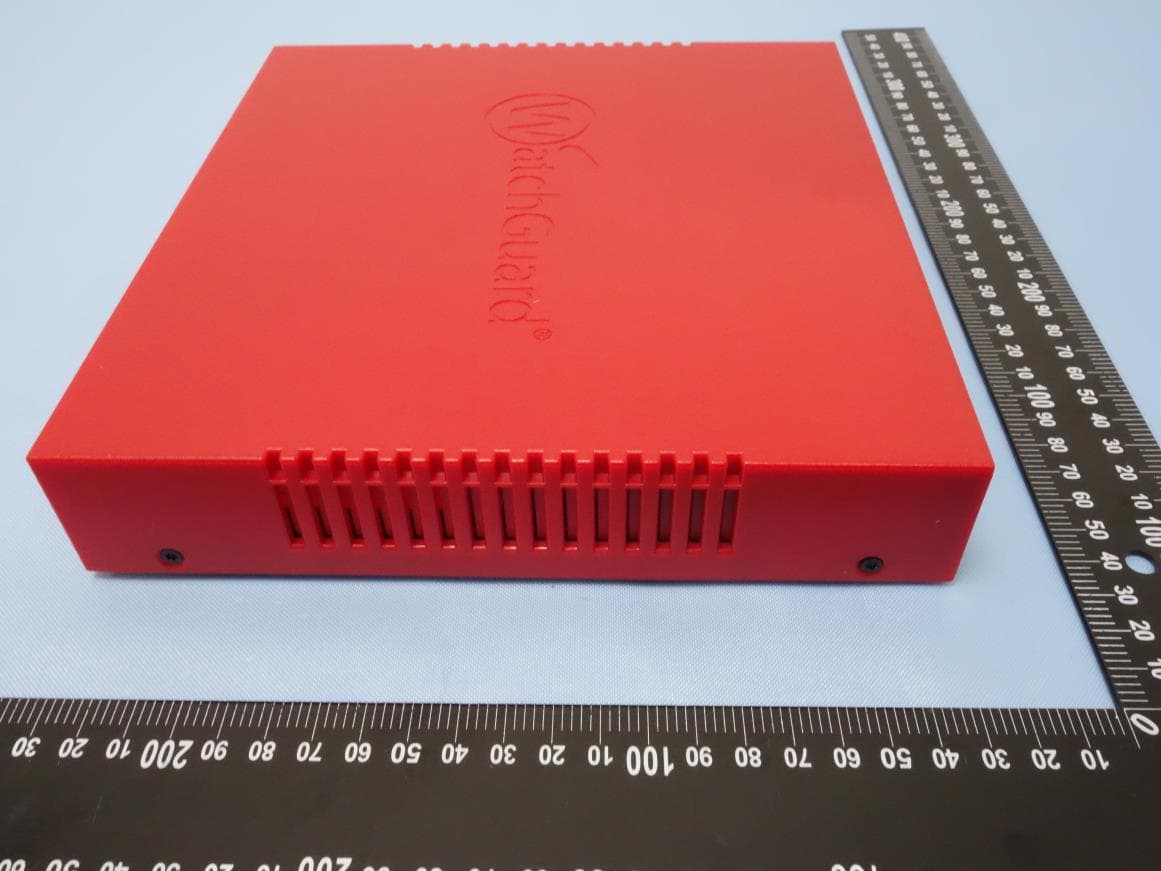

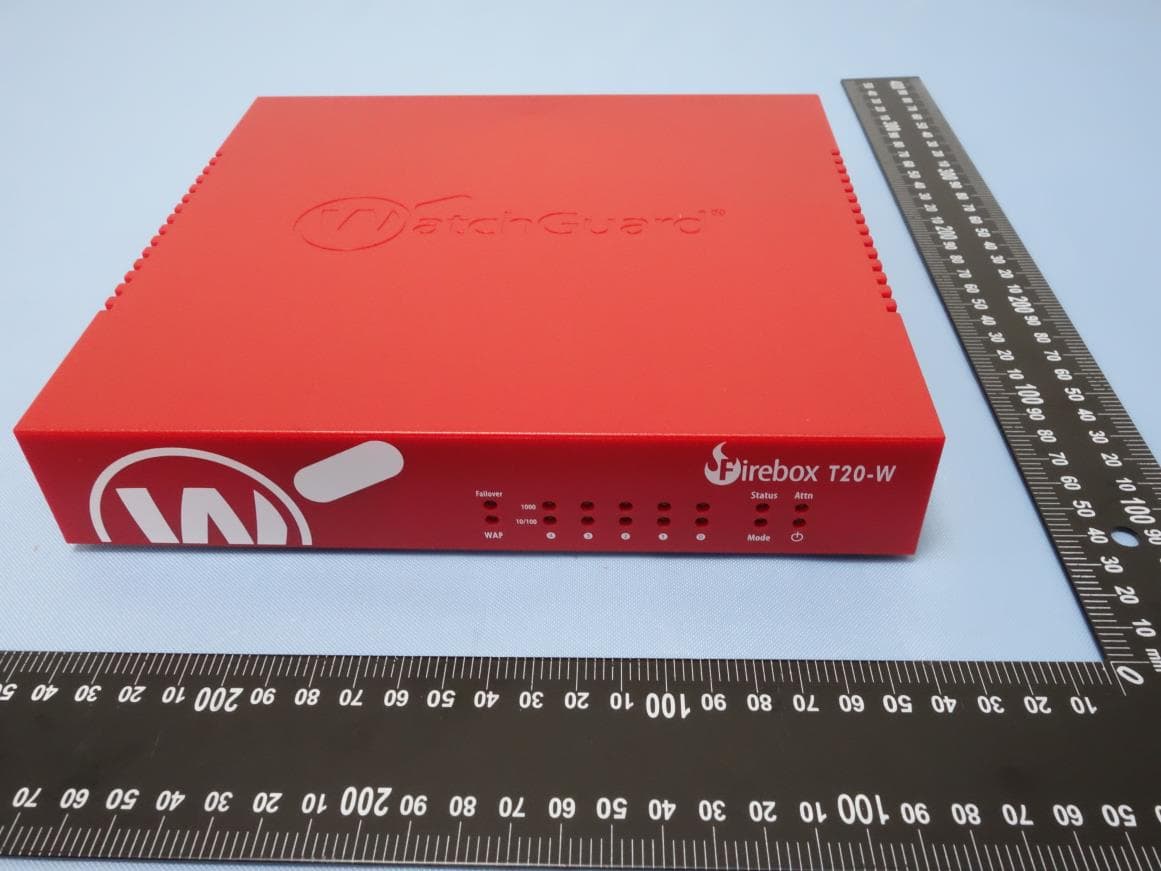

External Photos

Appendix P Photo Documentation Page 1 of 8 50335250 001, 50335252 001 50338512 001, 50338515 001 Product: Firebox Type Identification: Firebox T20-W Appendix P Photo Documentation Page 2 of 8 50335250 001, 50335252 001 50338512 001, 50338515 001 Product: Firebox Type Identification: Firebox T20-W Appendix P Photo Documentation Page 3 of 8 50335250 001, 50335252 001 50338512 001, 50338515 001 Product: Firebox Type Identification: Firebox T20-W Appendix P Photo Documentation Page 4 of 8 50335250 001, 50335252 001 50338512 001, 50338515 001 Product: Firebox Type Identification: Firebox T20-W Appendix P Photo Documentation Page 5 of 8 50335250 001, 50335252 001 50338512 001, 50338515 001 Product: Firebox Type Identification: Firebox T20-W

Internal Photos

Appendix P Photo Documentation Page 6 of 8 50335250 001, 50335252 001 50338512 001, 50338515 001 Product: Firebox Type Identification: Firebox T20-W Appendix P Photo Documentation Page 7 of 8 50335250 001, 50335252 001 50338512 001, 50338515 001 Product: Firebox Type Identification: Firebox T20-W Appendix P Photo Documentation Page 8 of 8 50335250 001, 50335252 001 50338512 001, 50338515 001 Product: Firebox Type Identification: Firebox T20-W

RF Exposure Info

Produkte Products Prü fbericht - Nr.: Test Report No. 50335250 001 Seite 88 von 93 Page 88 of 93 6. Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC CFR 47 Part 2 Subpart J Section 2.1091 Separation distance is more than 20 cm, thus mobile device exposure limits can be applied. FCC Maximum Exposure: Maximum Exposure: Power to Antenna (mW) 660.69mW Power to Antenna (dBm) 28.2dBm Antenna Gain5.19dBi Power+Ant Gain2182.7mW Distance20cm S= 0.434mW/cm^2 Limit FCC: 1500-100,000 MHz 1.0 mW/cm 2 ---End---

Test Report

Test Report No.50335250 002 Appendix D: Radiated and Mains Spurious Emission Data (File: 50335250 002 Appendix D) Contents Spurious Emissions, Band Edges ............................................................................................................... 2 Spurious Emissions, TX Mode, 9kHz-30MHz ......................................................................................... 50 Spurious Emissions, TX Mode, 30MHz-1GHz ........................................................................................ 52 Spurious Emissions, TX Mode, 1GHz-26.5GHz ...................................................................................... 54 Spurious Emissions, AC Mains ................................................................................................................ 78 2 Spurious Emissions, Band Edges 802.11b 3 4 5 6 7 8 9 10 11 12 13 14 802.11g 15 16 17 18 19 20 21 22 23 24 25 26 802.11n HT20 27 28 29 30 31 32 33 34 35 36 37 38 802.11n HT40 39 40 41 42 43 44 45 46 47 48 49 50 Spurious Emissions, TX Mode, 9kHz-30MHz 802.11g_2437MHz

Test Report

      ! " # #$ %&''%(%&&&( )*+, - " # #. /01234562 789:82;<6060 => ? @ABAB CDDEDF GHI " @ " " #$ JKL )*+,*M -  = /N/NOPQ<O/326 )*++ GHI "$ RS:TUQSVWX8T<;Y;Z98[\]<^ _3__:TL8<Q87\7Q9:8_33\78S::Y8\RL6123N016/\`7L ++D,*D  I a$ b9V8c;d eFDD+fghi j "I@I=I "Kk! " # #$ b9V8c;dX/3OR )*+,lD*m -  " "$ bnnoSV:2_nX8[:V8p;V:qR9r9/^NUs +Dm*+  ! I@I=I "$ bnnN5nbtoSV:2_.7QcpSV:n78:9;<2_^/N5 u*DD+*D+,*M v=  @=a!H   I!$ 2_2_OJ;O/326 M,  =a!H " $ L3323/_00/O33/ L3323/_00/O33330 F*M  I">! I 30OPS<O/3/3w2_OPS<O/3/3 xD+ H=  @ I">$ yznKtb{Sc;VS:;V|XS9p89 m**M  I">H=} = k$ X`~tT89<YS<WXS9S<{:W^ +D,€    H$ oS[[ i‚D ƒI „ }k}k$ PS…†^n^nTS<Z +DM+‚D = ‡ Iˆ }k}k$ LV9<†; ‰*M3N3NOzS|O/3/3 v= $ ‰*M3N3NOzS|O/3/3 v= $ ŠmmD+K II "$ oV;‹8:zS<SZ8V ŠmmD+D+K II "$ ~98U8<8VSYzS<SZ8V ŠD,+,f-‡ XT8:8[:V8p;V:J;^_300_/_33329[V8pYS8Wc|:T9[<8:8[:V8p;V:J;^_300_/_333/r;VSWW8WtŒRK~ŒR;< pSZ814^ X8[:V8p;V:J;^_300_/_3332c8;8[9<SY9W[9<8/3/3O3_3_O3N^ Ž,*D,++D,*D,)DmD+ G " II " @‡  I a= HIƒ k oVrQ[:8V;YY[:<W9ZQ<WQ<c8[TW9Z:  I a a!H  ="  " =a=> ‘{8Z8<W82’[8TVZQ:/’ZQ:0’c8rV98W9Z8<WN’SQ[V89T8<W_’S<Z8YTSr: oqS[[s’8<:[pV9T:;^Z^Z^oVrZVQ<WYSZ8q<sbqS9Ys’8<:[pV9T:<9T:;^Z^oVrZVQ<WYSZ8q<s JKL’<9T:S<8<WcSVJKX’<9T:Z8:8[:8: “ > " $?”ƒ k> •”> B”=I@= k–” @@II "—”! ˜=™”!= =#a# ! I@I=I "˜™š˜=IH™”@=IH =#a# ! I@I=I "˜™›œ”" =!!HI=}H ›œ”"   ‰,F,D**,+M,D*DžDM+D+,mmD *,F+,Ÿ,‚‚m m+ŸD‰,e+DF¡ŸDD+D,FD, ‡I  !  "Hk H=  ‡ =#a# =a!H #¢I‡ ! aII " @‡   " ‡I  ! I" ! aI  }  !HI= I" £ =#‡I  !  "  "IH  = k="k a= ¤# X`~tT89<YS<WXS9S<{:W^22b^\J;^5_1\78^N\ŒSW8tW^\XS9p8923_\XS9S<\t^¥^n^          ¦ ! › # %&''%(%&&&( Š(‚D§' => • @AB   g ̈ŠgŠ©ªª)E« %¬¬­) g ̈)E ̈®©lE ̈ª ̈g­ ¦ ̄°±“$­ = ­ %¬(­ ̈)Cx©g©gxu ̈E­ ¦ ̄°±“$­ = ­ %¬'­² ‰ee)‰ul‰g³­ ¦ ̄°±“$­ = ­ %¬ ́­ xu ̈E‰ ̈Šlg«­ ¦ ̄°±“$­ = ­ %¬%­μ x‰©μg ̈‰Š©Elx©Š ̈ªlŠŠlxŠ)‰¶E ̈®© ̈μ«e)‰ ̈‰ž ̈ª ̈)Š©E ̈‰l ¬&&C³Že)‰ul‰g³­ ¦ ̄°±“$­ = ­ %¬²­Š ©Elx©Š ̈ªlŠŠlx­ ¦ ̄°±“$­ = ­ %¬·­ª )lŠμx‰©μg ̈‰ ̈ªlŠŠlxŠ­ ¦ ̄°±“$­ = ­ ²¬¬­ ̈ ̧ ̈μgExª)ž ̈glμ¶l ̈ ̧‰Š­ ¦ ̄°±“$­ = ­           ¦ ! › # %&''%(%&&&( Š'‚D§' => B @AB   μDD, ¬­ ž ̈ ̈E) ̧E ̈ª)ECŠ%­ ¬¬­ μ xª ̧ ̈ª ̈g)E«ª)g ̈El) ̧Š%­ ¬(­ ‰ ̈μlŠlxE© ̧ ̈x¶μx¶xEªlg«%­ (­ g ̈ŠgŠlg ̈в­ (¬­ g ̈Šg ̧)exE)gxE«²­ (¬­ g ̈Šg¶)μl ̧lg«²­ ((­ ̧ lŠgx¶g ̈Šg)‰ª ̈)Š©E ̈ª ̈glŠgE©ª ̈gŠ·­ ('­ g E)μ ̈)el ̧lg«¹­ ( ́­ μ ) ̧leE)glx¹­ (%­ ª ̈)Š©E ̈ª ̈g©μ ̈Eg)lg«¹­ '­ ž ̈ ̈E) ̧Ex‰©μgl¶xEª)glx§­ '¬­  Ex‰©μg¶©μglx)‰lg ̈‰ ̈‰©Š ̈§­ '(­ Š«Šg ̈ª‰ ̈g)l ̧Š)‰E)glžŠ§­ ''­ l ‰ ̈ ̈‰ ̈gx ̈E)glxªx‰ ̈Ь&­ ' ́­  xlŠ ̈ž ̈ ̈E)glž)‰xlŠ ̈Š©E ̈ŠŠlž)EgЬ&­ '%­ Š ©eªlgg ̈‰‰x쩪 ̈gЬ&­ ́­ g ̈ŠgŠ ̈g©)‰x ̈E)glxªx‰ ̈Ь¬­ ́¬­  Elμl ̧ ̈x¶μx¶lž©E)glxŠ ̈ ̧ ̈μglx¬¬­ ́(­ g ̈Šgx ̈E)glx)‰g ̈ŠgŠx¶gu)E ̈¬(­ ́'­ Š  ̈μl) ̧)μμ ̈ŠŠxEl ̈Š)‰)©ºl ̧l)E« ̈®©lª ̈g¬'­ ́ ́­ μ x©g ̈Eª ̈)Š©E ̈Šgx)μ³l ̈¡ ̈ ̈ªμμxª ̧l)μ ̈¬'­ ́%­ g ̈ŠgŠ ̈g©‰l)žE)ª¬'­ %­ g ̈ŠgE ̈Š© ̧gЬ%­ %¬­ g E)Šªlgg ̈EE ̈®©lE ̈ª ̈g»g ̈ŠgŠ©lg ̈Ь%­ —#?#?­" ""=¦ ¼ I a "################################################################################################################?—­ —#?#•­ =¤- !  „ ##############…

Text truncated - open the document above for the full version.

Test Setup Photos

Produkte Products Prü fbericht - Nr.: Test Report No. 50335250 001 Seite 89 von 93 Page 89 of 93 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View 1) Photograph 2: Set-up for Spurious Emissions (Front View 2) Produkte Products Prü fbericht - Nr.: Test Report No. 50335250 001 Seite 90 von 93 Page 90 of 93 Photograph 3: Set-up for Spurious Emissions (Back View 1) Photograph 4: Set-up for Spurious Emissions (Back View 2) Produkte Products Prü fbericht - Nr.: Test Report No. 50335250 001 Seite 91 von 93 Page 91 of 93 Photograph 5: Set-up for Spurious Emissions (Back View 3) Photograph 6: Set-up for Mains Conducted testing (Front View) Produkte Products Prü fbericht - Nr.: Test Report No. 50335250 001 Seite 92 von 93 Page 92 of 93 Photograph 7: Set-up for Mains Conducted testing (Back View)

Test Setup Photos

Activation de votre appliance Firebox 1. Rendez-vous à l’adresse www.watchguard.com/activate 2. Connectez-vous à votre compte WatchGuard ou créez un nouveau compte. Si vous créez un nouveau compte, retournez à l’adresse www.watchguard.com/ activate à la fin du processus de création du compte. Branchement et mise sous tension de votre appliance Firebox Assurez-vous que votre ordinateur est configuré pour utiliser le protocole DHCP. Lorsque vous connectez votre appliance Firebox, elle attribue une adresse IP sur le réseau 10.0.1.0/24. Connexion à l’interface utilisateur Web 1. Rendez-vous à l’adresse https://10.0.1.1:8080 Votre appliance Firebox utilisant un certificat auto-signé, vous pouvez, sans risque, ignorer les avertissements liés aux certificats. 2. Connectez-vous avec le nom d’utilisateur admin et le mot de passe readwrite. 3. Suivez les instructions de l’Assistant de configuration Web pour configurer votre appliance Firebox. 4. Installez l’appliance Firebox sur votre réseau. Pour plus d'informations, rendez-vous sur www.watchguard.com/start Active su Firebox 1. Visite www.watchguard.com/activate 2. Inicie sesión con su cuenta de WatchGuard o cree una cuenta nueva. Si usted crea una cuenta nueva, regrese a www.watchguard.com/activate luego de finalizar el proceso. Conecte su Firebox y Enciéndalo Asegúrese de que su equipo esté configurado para usar DHCP. Cuando se conecte a su Firebox, este le asignará una dirección IP en la red 10.0.1.0/24. Conéctese a la Interfaz de Usuario Web 1. Visite https://10.0.1.1:8080 De manera segura, puede ignorar cualquier certificado de advertencia debido a que el Firebox usa un certificado con firma automática. 2. Inicie sesión con el nombre de usuario admin y la frase de contraseña readwrite. 3. Siga las directivas en el asistente de instalación web para configurar su Firebox. 4. Instale el Firebox en su red. Para más información, vaya a www.watchguard.com/start Guía RápidaGuide de démarrage rapide Quick Start Guide Firebox ® T20 / T20-W HW Models: FS2AE5 & FS2AE5W FRANÇAIS Activate Your Firebox 1. Go to www.watchguard.com/activate 2. Log in to your WatchGuard account, or create a new account. If you create a new account, return to www.watchguard.com/activate after you finish the account creation process. Connect Your Firebox and Power It On Make sure your computer is configured to use DHCP. When you connect to the Firebox, it will assign an IP address on the 10.0.1.0/24 network. Connect to the Web UI 1. Go to https://10.0.1.1:8080 You can safely ignore certificate warnings, because the Firebox uses a self-signed certificate. 2. Log in with the user name admin and the passphrase readwrite. 3. Follow the directions in the Web Setup Wizard to configure your Firebox. 4. Install the Firebox in your network. For more information, www.watchguard.com/start ENGLISH ESPANOL Equipo Computer Internet Internet Internet Ordinateur IMPORTANT NOTES CE Notice: The CE symbol on your WatchGuard Technologies equipment indicates that it is in compliance with the Electromagnetic Compatibility (EMC) directive and the Low Voltage Directive (LVD) of the European Union (EU). Europe – EU Declaration of Conformity (Wireless) This device complies with the essential requirements of the RED 2014/53/ EU. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the RED 2014/53/EU: • EN 60950-1 - Safety of Information Technology Equipment • EN 50385 - Generic standard to demonstrate the compliance of electronic and electrical apparatus with the basic restrictions related to human exposure to electromagnetic fields (0 Hz - 300 GHz) • EN 300 328 - Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the RED Directive • EN 301 893 - Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering essential requirements of article 3.2 of the RED Directive • EN 301 489-1 - Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements • EN 301 489-17 - Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2.4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment • EN 62368-1:2014+A11:2017 This device is a 5GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. RoHS Statement The memb…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jay Lindenauer(Vice President of Product Delivery Operations)
[email protected]2068768103Fax: 2065211400

Technical Contact

WatchGuard Technologies, IncAdam Witthuhn
[email protected]206 521 3579

505 Fifth Avenue · Seattle, Washington · United States

Test Firm

TUV Rheinland Taiwan Ltd. Taipei Testing Lab.Kenji Lin
[email protected]+886-2-2172-7000Fax: +886-2-2172-1322

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz287.70 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is the maximum combined conducted output power. Device is a 3x3 router in a Spatial Multiplexing MIMO configuration. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter within a device, except in accordance with accepted multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
