Q6G-PCE3302Module

WatchGuard Technologies, Inc.
Module - FCC ID Q6G-PCE3302 - WatchGuard Technologies, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Aug 25, 2014
Application Purpose
Original Equipment
Date of Application
Aug 25, 2014
Equipment Note
Module
Frequency Range
2412.00000000 - 2462.00000000
Company
WatchGuard Technologies, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗
↗

External Photos

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

WatchGuard Technologies, Inc. PCE3302AN user manual v01 Confidential Page 1 Product Specification PCE3302AN V. 0.1 Author: Charlie Chen Revision History Version Date Revision Description 0.1 2014/02/13 Preliminary WatchGuard Technologies, Inc. PCE3302AN user manual v01 Confidential Page 2 PRODUCT DESCRIPTION The PCE3302AN based on Qualcomm Atheros AR9582 solution which targets enterprise-class applications. It operates in the 2.4GHz and 5GHz frequency band by utilizing Dual-Band Front-End-Modules. Note: Photo may not represent actual product PRODUCT SPECIFICATION General information Chipset Atheros AR9582-AR1A FEM SE2595L Interface PCIe Operating voltage PCIe Slot : DC 3.3 V ± 5% with Advanced DC Power management support Antenna connectors 2x I-PEX connectors Temperature range 0°C to + 55 °C (Operating temperature) -45°C to + 85°C (Storage temperature) Security WPA, WPA2, 64/128 bit WEP, TKIP, and AES. hardware-based IEEE 802.11i encryption engine Data rates 802.11b:1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: 20MHz bandwidth:  1Nss: 65Mbps @ 800ns GI; 72.2Mbps @ 400ns GI (Max);  2Nss: 130Mbps @ 800ns GI; 144.44Mbps @ 400ns GI (Max); 802.11n: 40MHz bandwidth:  1Nss: 135Mbps @ 800ns GI; 150Mbps @ 400ns GI (Max.);  2Nss: 270Mbps @ 800ns GI; 300Mbps @ 400ns GI (Max.); Tx channel width support 20MHz / 40MHz Standard/Compliance WECA (Wi-Fi & Wi-Fi5 compliance), IEEE802.11,a/b/g/n, RoHS and WEEE Regulation Certifications PCB dimension L x W : 58 x 31mm WatchGuard Technologies, Inc. PCE3302AN user manual v01 Confidential Page 3 Preliminary Radio Specification Channel Data rate Tx Power (dBm, Combined 2Tx) RX Sensitivity (dBm, Combined 2Rx) 802.11b (2.4Ghz) 1 Mbps 22 -93 11 Mbps 22 -90 802.11g (2.4Ghz) 6 Mbps 22 -92 9~12 Mbps 22 18~24 Mbps 22 36~54 Mbps 19 -76 802.11n HT20 (2.4Ghz) MCS 0 / 8 21 -90 MCS 1 / 9 21 MCS 2 / 10 21 MCS 3 / 11 21 MCS 4 / 12 19 MCS 5 / 13 19 MCS 6 / 14 18 MCS 7 / 15 18 -73 802.11n HT40 (2.4Ghz) MCS 0 / 8 20 -88 MCS 1 / 9 20 MCS 2 / 10 20 MCS 3 / 11 20 MCS 4 / 12 18 MCS 5 / 13 18 MCS 6 / 14 17 MCS 7 / 15 17 -70 802.11a (5Ghz) 6 Mbps 19 -90 9 Mbps 19 12 Mbps 19 18 Mbps 19 24 Mbps 19 36~48 Mbps 13 54 Mbps 12 -77 802.11n HT20 (5Ghz) MCS 0 / 8 17 -88 MCS 1 / 9 17 MCS 2 / 10 17 WatchGuard Technologies, Inc. PCE3302AN user manual v01 Confidential Page 4 MCS 3 / 11 17 MCS 4 / 12 14 MCS 5 / 13 13 MCS 6 / 14 12 MCS 7 / 15 12 -76 802.11n HT40 (5Ghz) MCS 0 / 8 16 -86 MCS 1 / 9 15 MCS 2 / 10 15 MCS 3 / 11 15 MCS 4 / 12 13 MCS 5 / 13 13 MCS 6 / 14 12 MCS 7 / 15 12 -72 RF Specification Tolerance: ± 1.5dBm Current consumption information Tx current consumption (without Jump wire) Continuous TX (99% duty) Operate at 2.4G: TBD Operate at 5G: TBD Sleep Current Sleep mode ≦ 100 mA OS support Windows 2000/XP/Vista, Linux WatchGuard Technologies, Inc. PCE3302AN user manual v01 Confidential Page 5 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. WatchGuard Technologies, Inc. PCE3302AN user manual v01 Confidential Page 6 This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. 3) The module can be used for indoor application only. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in de…

Text truncated - open the document above for the full version.

Attestation Statements

WatchGuard Technologies, Inc. 505 Fifth Avenue South, Suite 500, Seattle, WA 98104, United States Declaration for no non-US channel operation Date: 2014/8/5 To whom it may concern: We, WatchGuard Technologies, Inc., declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID: Q6G-PCE3302 If you have any questions regarding the authorization, please do not hesitate to contact us. Thank you! Sincerely yours, ----------------------------------------------------- Denny Lim / Hardware Engineer TEL: 206 613-6600 FAX: 206 521-1400 E-Mail: [email protected]

Cover Letter(s)

WatchGuard Technologies, Inc. 505 Fifth Avenue South, Suite 500, Seattle, WA 98104, United States Date: 2014/8/20 FCC ID: Q6G-PCE3302 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------------------------- Denny Lim / Hardware Engineer TEL: 206 613-6600 FAX: 206 521-1400 E-Mail: [email protected]

Cover Letter(s)

WatchGuard Technologies, Inc. 505 Fifth Avenue South, Suite 500, Seattle, WA 98104, United States Date: 2014/8/20 FCC ID: Q6G-PCE3302 AGENCY AUTHORIZATION LETTER We, the undersigned WatchGuard Technologies, Inc., hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC Part 15C and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ----------------------------------------------------- Denny Lim / Hardware Engineer TEL: 206 613-6600 FAX: 206 521-1400 E-Mail: [email protected]

Cover Letter(s)

FCC ID: Q6G-PCE3302 Report No.: RF140625C09 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch August 15, 2014 Dear Application Examiner, WatchGuard Technologies, Inc., It’s a Module, FCC ID: Q6G-PCE3302 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR9582B. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is AR9582B. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: Q6G-PCE3302 Report No.: RF140625C09 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Robert Huang Senior Engineer Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

ID Label/Location Info

Label location

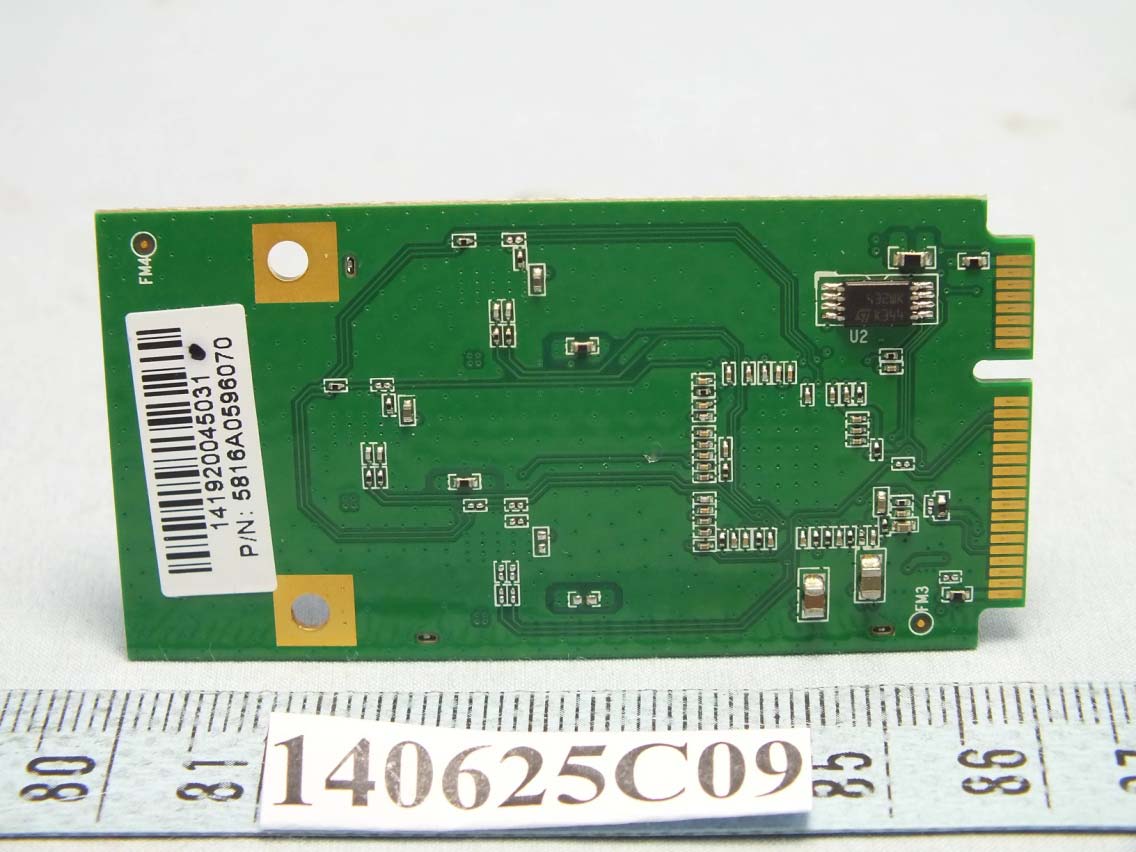

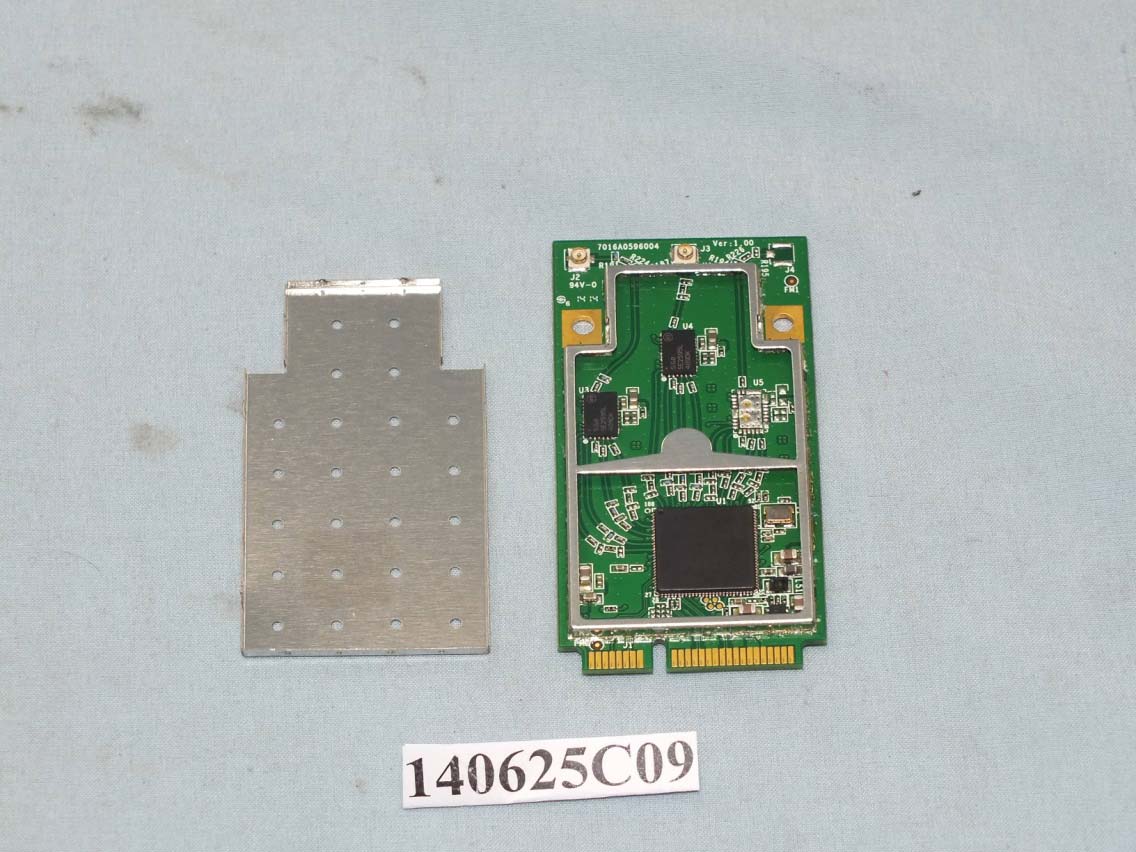

Internal Photos

Page 4 Page 5

RF Exposure Info

Report No.: SA140625C09 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA140625C09 MODEL NO.: PCE3302AN FCC ID: Q6G-PCE3302 RECEIVED: Jun. 25, 2014 TESTED: Jul. 01 ~ Jul. 10, 2014 ISSUED: Jul. 31, 2014 APPLICANT: WatchGuard Technologies, Inc. ADDRESS: 505 Fifth Avenue South, Suite 500, Seattle, WA 98104, United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA140625C09 2 of 6 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................. 4 2. RF EXPOSURE ............................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................... 5 2.3 CLASSIFICATION ........................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .................................. 6 Report No.: SA140625C09 3 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA140625C09 Original release. Jul. 31, 2014 Report No.: SA140625C09 4 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Module MODEL: PCE3302AN BRAND: WatchGuard APPLICANT: WatchGuard Technologies, Inc. TESTED: Jul. 01 ~ Jul. 10, 2014 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) KDB 447498 D03 IEEE C95.1 The above equipment (Model: PCE3302AN) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE : Jul. 31, 2014 Ivy Lin / Specialist APPROVED BY : , DATE : Jul. 31, 2014 Ken Liu / Senior Manager Report No.: SA140625C09 5 of 6 Report Format Version 5.0.0 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA140625C09 6 of 6 Report Format Version 5.0.0 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 28.72 8.21 20 0.981 1 5180-5240 20.49 8.71 20 0.165 1 5745-5825 19.35 9.21 20 0.143 1 *The 2.4GHz and 5GHz cannot transmit simultaneously. NOTE: 2.4GHz Band: Directional gain = 5.2dBi + 10log(2) = 8.21dBi 5180-5240MHz Band: Directional gain = 5.7dBi + 10log(2) = 8.71dBi 5745-5825 MHz Band: Directional gain = 6.2dBi + 10log(2) = 9.21dBi

Test Report

Report No.: RF140625C09 1 of 58 Report Format Version 5.2.1 FCC TEST REPORT (15.247) REPORT NO.: RF140625C09 MODEL NO.: PCE3302AN FCC ID: Q6G-PCE3302 RECEIVED: Jun. 25, 2014 TESTED: Jul. 01 ~ Jul. 08, 2014 ISSUED: Jul. 31, 2014 APPLICANT: WatchGuard Technologies, Inc. ADDRESS: 505 Fifth Avenue South, Suite 500, Seattle, WA 98104, United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF140625C09 2 of 58 Report Format Version 5.2.1 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 4 1. CERTIFICATION ............................................................................................................................ 5 2. SUMMARY OF TEST RESULTS ................................................................................................... 6 2.1 MEASUREMENT UNCERTAINTY ................................................................................................ 6 3. GENERAL INFORMATION ............................................................................................................ 7 3.1 GENERAL DESCRIPTION OF EUT .............................................................................................. 7 3.2 DESCRIPTION OF TEST MODES ................................................................................................ 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ................................................ 9 3.3 DUTY CYCLE OF TEST SIGNAL ................................................................................................ 11 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................ 12 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ......................................................................... 12 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................. 13 4. TEST TYPES AND RESULTS ..................................................................................................... 14 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ..................................................... 14 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................... 14 4.1.2 TEST INSTRUMENTS ................................................................................................................. 15 4.1.3 TEST PROCEDURES ................................................................................................................. 16 4.1.4 DEVIATION FROM TEST STANDARD ....................................................................................... 16 4.1.5 TEST SETUP ............................................................................................................................... 17 4.1.6 EUT OPERATING CONDITIONS ................................................................................................ 18 4.1.7 TEST RESULTS .......................................................................................................................... 19 4.2 CONDUCTED EMISSION MEASUREMENT .............................................................................. 32 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................................... 32 4.2.2 TEST INSTRUMENTS ................................................................................................................. 32 4.2.3 TEST PROCEDURES ................................................................................................................. 33 4.2.4 DEVIATION FROM TEST STANDARD ....................................................................................... 33 4.2.5 TEST SETUP ............................................................................................................................... 33 4.2.6 EUT OPERATING CONDITIONS ................................................................................................ 33 4.2.7 TEST RESULTS .......................................................................................................................... 34 4.3 6dB BANDWIDTH MEASUREMENT .......................................................................................... 36 4.3.1 LIMITS OF 6dB BANDWIDTH …

Text truncated - open the document above for the full version.

Test Report

Report No.: RF140625C09-1 1 of 58 Report Format Version 5.3.0 FCC TEST REPORT (15.407) REPORT NO.: RF140625C09-1 MODEL NO.: PCE3302AN FCC ID: Q6G-PCE3302 RECEIVED: Jun. 25, 2014 TESTED: Jul. 02 ~ Jul. 10, 2014 ISSUED: Jul. 31, 2014 APPLICANT: WatchGuard Technologies, Inc. ADDRESS: 505 Fifth Avenue South, Suite 500, Seattle, WA 98104, United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF140625C09-1 2 of 58 Report Format Version 5.3.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................................. 4 1. CERTIFICATION .................................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................................ 6 2.1 MEASUREMENT UNCERTAINTY ......................................................................................... 6 3. GENERAL INFORMATION ..................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ....................................................................................... 7 3.2 DESCRIPTION OF TEST MODES ......................................................................................... 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................................ 9 3.3 DUTY CYCLE OF TEST SIGNAL ........................................................................................ 11 3.4 DESCRIPTION OF SUPPORT UNITS ................................................................................. 12 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST .................................................................. 12 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ...................................................... 13 4. TEST TYPES AND RESULTS .............................................................................................. 14 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .............................................. 14 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ........................... 14 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS ....................... 14 4.1.3 TEST INSTRUMENTS ......................................................................................................... 15 4.1.4 TEST PROCEDURES .......................................................................................................... 16 4.1.5 DEVIATION FROM TEST STANDARD ................................................................................ 16 4.1.6 TEST SETUP ........................................................................................................................ 17 4.1.7 EUT OPERATING CONDITION ........................................................................................... 18 4.1.8 TEST RESULTS ................................................................................................................... 19 4.2 CONDUCTED EMISSION MEASUREMENT ....................................................................... 36 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................................... 36 4.2.2 TEST INSTRUMENTS ......................................................................................................... 36 4.2.3 TEST PROCEDURES .......................................................................................................... 37 4.2.4 DEVIATION FROM TEST STANDARD ................................................................................ 37 4.2.5 TEST SETUP ........................................................................................................................ 37 4.2.6 EUT OPERATING CONDITIONS ......................................................................................... 37 4.2.7 TEST RESULTS ................................................................................................................... 38 4.3 TRANSMIT POWER MEASUREMENT................................................................................ 40 4.3.1 LIMITS OF TRANSMIT POWER MEASUREMENT ............................................................. 40 4.3.2 TEST SETUP .......................…

Text truncated - open the document above for the full version.

Test Setup Photos

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TE 2 3 RADIATED EMISSION TEST 4

Contact Information

Applicant

Jay Lindenauer(Vice President of Product Delivery Operations)
[email protected]2068768103Fax: 2065211400

Test Firm

Bureau Veritas CPS (H.K.) Ltd., Taoyuan BranchRichard Chen
[email protected]+886-3-2600884Fax: +886-3-2115834

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz744.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Power listed is the maximum combined conducted output power. Single Modular Approval for mobile RF Exposure condition. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation in accordance with FCC multi-transmitter product guidelines. Approval is limited to OEM installation only. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter.
