Q6U-YTL110-112-12EYE1 (Black or White)

Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only.

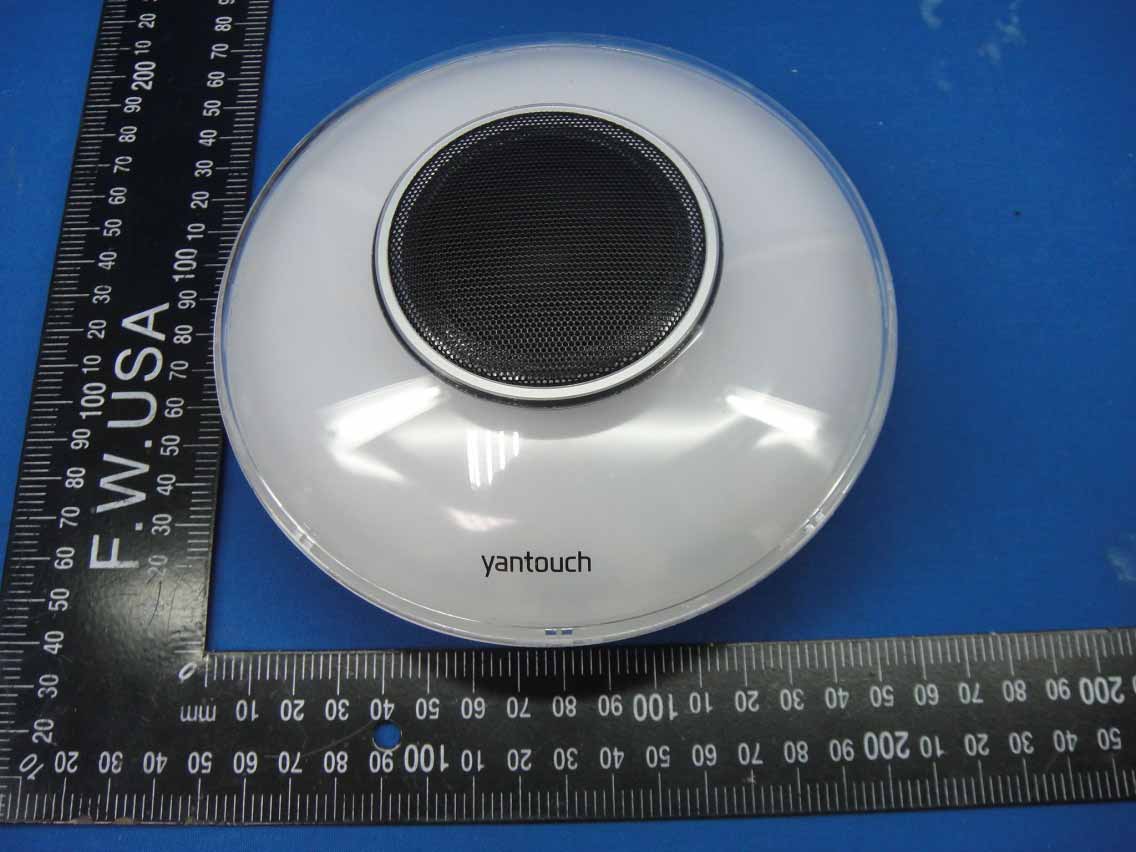

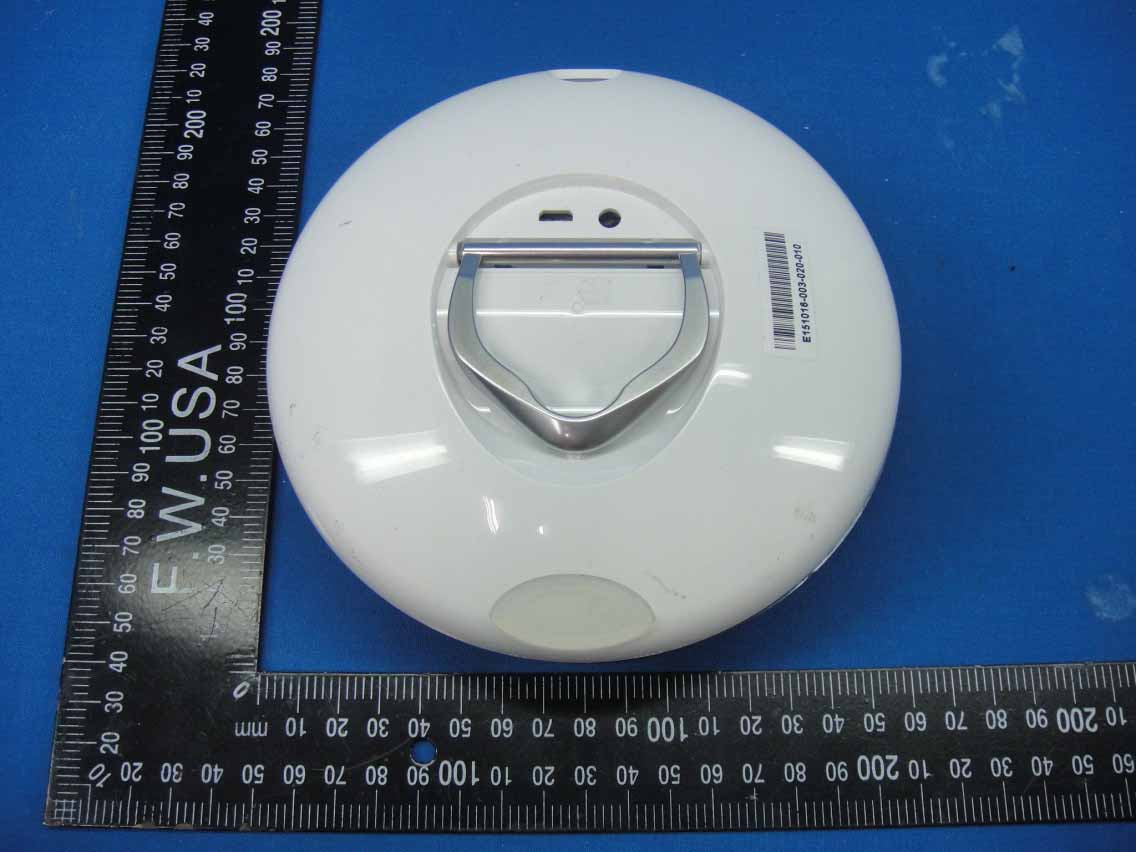

Report No.: 151016E06 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 151016E06 Page 2 Report No.: 151016E06 Page 3 Report No.: 151016E06 Page 4

Product Name：Bluetooth Speaker Product No.：YTL110W Manufacturer Country：Taiwan Manufacturer：Yantouch Corporation Rating：10W Input：DC5V 2A Serial No.：Lxxxxxxxxxxx Eye Speaker R43761 MSIP-CMI-M09-YTL096 CCAIXXLPXXXXXX CMIIT ID : 2013DJ8462 FCC ID : Q6U-YTL110-112-12 Product Name：Bluetooth Speaker Product No.：YTL110B Manufacturer Country：Taiwan Manufacturer：Yantouch Corporation Rating：10W Input：DC5V 2A Serial No.：Lxxxxxxxxxxx Eye Speaker R43761 MSIP-CMI-M09-YTL096 CCAIXXLPXXXXXX CMIIT ID : 2013DJ8462 FCC ID : Q6U-YTL110-112-12

Report No.: 151016E06 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 151016E06 Page 2 Report No.: 151016E06 Page 3 Report No.: 151016E06 Page 4 Report No.: 151016E06 Page 5 Report No.: 151016E06 Page 6 Report No.: 151016E06 Page 7

Operational Description The UUT is a Bluetooth speaker with built-in 2.4GHz Bluetooth V4.0 transceiver support A2DP, SPP, TWS. The number of the channels is 79 in 2402-2480MHz for Bluetooth Enhanced Data Rate (EDR) and channels is 39 in 2402-2480MHz for Bluetooth Low Energy (BLE). The device adapts the frequency hopping spread spectrum modulation. The antenna is printed on PCB and maximum peak gain is -1dBi. The system receivers have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shift frequencies in synchronization with the transmitted signals. Frequency hopping spread spectrum systems are not required to employ all available hopping channels during each transmission. The transmitter is presented with a continuous data stream. In addition, a system employing short transmission bursts must comply with the definition of a frequency hopping system and must distribute its 79 channels and over the minimum number of hopping channels (75 channels). The incorporation of intelligence within a frequency hopping spread spectrum system that permits the system to recognize other users within the spectrum band so that it individually and independently chooses and adapts its hopsets to avoid hopping on occupied channels is permitted. The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. This device modulation function is support GFSK (1Mbps),π/4 DQPSK (2Mbps) and 8DPSK(3Mbps) for Bluetooth EDR, GFSK (1Mbps) for Bluetooth Low Energy. The UUT powered by 3.7VDC (2600mAH Li-ion polymer battery) or USB charged.

Report No.: SA151016E06 Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report Report No.: SA151016E06 FCC ID: Q6U-YTL110-112-12 Test Model: YTL110W Series Model: YTL110B Received Date: Oct. 16, 2015 Test Date: Nov. 04, 2015 Issued Date: Dec. 09, 2015 Applicant: Yantouch Corporation Address: Rm. 303, 4F-1., No.5, Xin’an Rd., Hsinchu Science Park, Hsinchu City 300, Taiwan (R.O.C.) Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan R.O.C. Test Location (1): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. Report No.: SA151016E06 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits For Maximum Permissible Exposure (MPE) ............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 2.4 Antenna Gain ...................................................................................................................................... 6 2.5 Calculation Result of Maximum Conducted Power ............................................................................. 6 Report No.: SA151016E06 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA151016E06 Original release. Dec. 09, 2015 Report No.: SA151016E06 Page No. 5 / 6 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits For Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA151016E06 Page No. 6 / 6 Report Format Version: 6.1.1 2.4 Antenna Gain The antenna provided to the EUT, please refer to the following table: Brand Model Antenna Type Antenna Connector Gain (dBi) Frequency (GHz to GHz) Airoha mono PCB NA -1 2.4~2.4835 2.5 Calculation Result of Maximum Conducted Power Frequency Band (MHz) Max Power (mW) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2402-2480 7.178 -1 20 0.00113 1 --- END ---

Report No.: RF151016E06 Page No. 1 / 46 Report Format Version: 6.1.1 Reference No.: FCC Test Report Report No.: RF151016E06 FCC ID: Q6U-YTL110-112-12 Test Model: YTL110W Series Model: YTL110B Received Date: Oct. 16, 2015 Test Date: Nov. 02 to Dec. 03, 2015 Issued Date: Dec. 09, 2015 Applicant: Yantouch Corporation Address: Rm. 303, 4F-1., No.5, Xin’an Rd., Hsinchu Science Park, Hsinchu City 300, Taiwan (R.O.C.) Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan R.O.C. Test Location (1): E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan R.O.C. Test Location (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF151016E06 Page No. 2 / 46 Report Format Version: 6.1.1 Reference No.: Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT (BT-EDR) ................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................... 8 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................. 9 3.3 Description of Support Units .............................................................................................................. 11 3.3.1 Configuration of System under Test ................................................................................................... 11 3.4 General Description of Applied Standards ........................................................................................ 12 4 Test Types and Results ...................................................................................................................... 13 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 13 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 13 4.1.2 Test Instruments ................................................................................................................................ 14 4.1.3 Test Procedures ................................................................................................................................. 16 4.1.4 Deviation from Test Standard ............................................................................................................ 16 4.1.5 Test Setup .......................................................................................................................................... 17 4.1.6 EUT Operating Conditions ................................................................................................................. 17 4.1.7 Test Results ....................................................................................................................................... 18 4.2 Conducted Emission Measurement .................................................................................................. 25 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 25 4.2.2 Test Instruments ................................................................................................................................ 25 4.2.3 Test Procedures ................................................................................................................................. 26 4.2.4 Deviat…

Text truncated - open the document above for the full version.

Report No.: 140717E01A-1 1 of 3 Reference No.: 140805E09 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 140717E01A-1 2 of 3 Reference No.: 140805E09 RADIATED EMISSION TEST – Below 1GHz Report No.: 140717E01A-1 3 of 3 Reference No.: 140805E09 RADIATED EMISSION TEST – Above 1GHz
