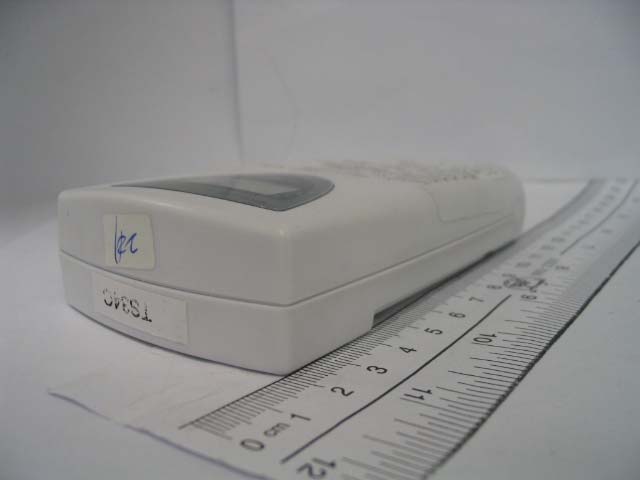

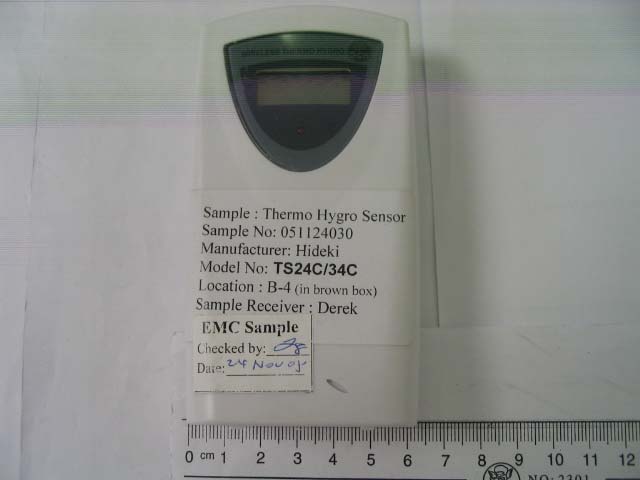

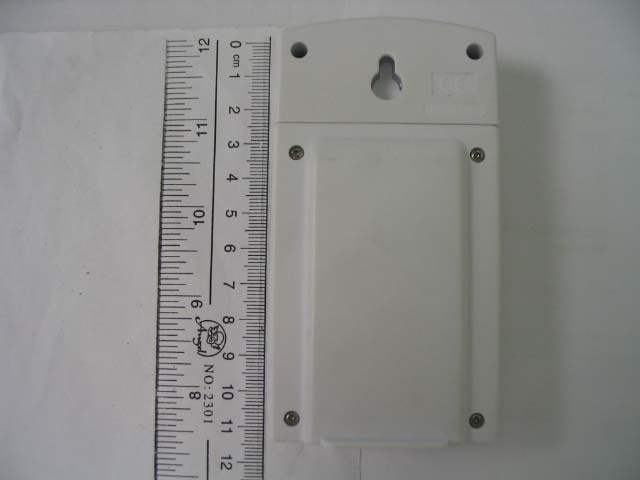

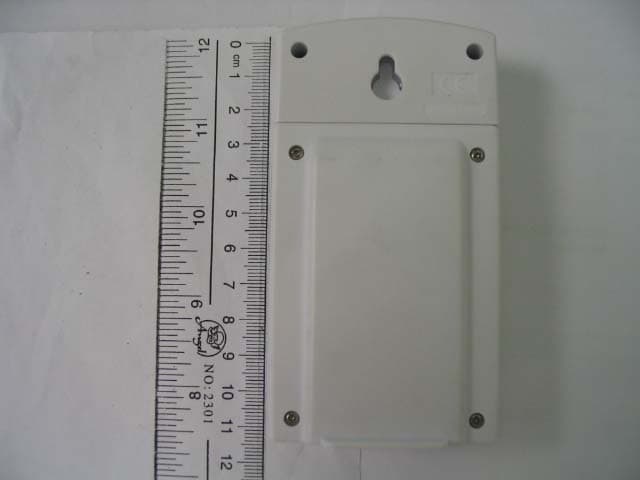

Q9PTS24C-34CThermo-Hygrometer Sensor

www.tuv.com Appendix 7 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 1 von 12 Page 1 of 12 www.tuv.com Appendix 7 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 2 von 12 Page 2 of 12 www.tuv.com Appendix 7 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 3 von 12 Page 3 of 12 www.tuv.com Appendix 7 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 4 von 12 Page 4 of 12 www.tuv.com Appendix 7 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 5 von 12 Page 5 of 12 www.tuv.com Appendix 7 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 6 von 12 Page 6 of 12 www.tuv.com Appendix 7 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 7 von 12 Page 7 of 12 www.tuv.com Appendix 7 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 8 von 12 Page 8 of 12 www.tuv.com Appendix 7 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 9 von 12 Page 9 of 12 www.tuv.com Appendix 7 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 10 von 12 Page 10 of 12 www.tuv.com Appendix 7 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 11 von 12 Page 11 of 12 www.tuv.com Appendix 7 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 12 von 12 Page 12 of 12

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 1 von 3 Page 1 of 3 www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 2 von 3 Page 2 of 3 www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 3 von 3 Page 3 of 3

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 1 von 2 Page 1 of 2 www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 2 von 2 Page 2 of 2

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 1 von 3 Page 1 of 3 www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 2 von 3 Page 2 of 3 www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 3 von 3 Page 3 of 3

www.tuv.com Test Report No.: 14012168 002 Date: 14.06.2006 Page 2 of 12 Test Summary Periodic Operation Device Result: Pass Radiated Emission of Carrier Frequency Result: Pass Spurious Radiated Emissions Result: Pass Bandwidth Measurement Result: Pass www.tuv.com Test Report No.: 14012168 002 Date: 14.06.2006 Page 3 of 12 Contents List of Test and Measurement Instruments.............................................................4 General Product Information ....................................................................................5 Product Function and Intended Use..................................................................................................5 Ratings and System Details ...............................................................................................................5 Independent Operation Modes...........................................................................................................6 Submitted Documents ........................................................................................................................6 Related Submittal(s) Grants ...............................................................................................................6 Test Set-up and Operation Mode .............................................................................7 Principle of Configuration Selection .................................................................................................7 Test Operation and Test Software .....................................................................................................7 Special Accessories and Auxiliary Equipment ................................................................................7 Countermeasures to achieve EMC Compliance...............................................................................7 Test Methodology ......................................................................................................8 Radiated Emission ..............................................................................................................................8 Field Strength Calculation ..................................................................................................................8 Test Results ...............................................................................................................9 Periodic Operation Device.....................Section 15.231(e)......................................................9 Radiated Emission of Carrier Frequency....Section 15.231(b) ....................................................10 Spurious Radiated Emissions...................Section 15.231(b) .....................................................11 Bandwidth Measurement.....................Section 15.231(c)......................................................12 Appendix 1: Test Results Appendix 2: Test Setup Appendix 3: EUT External Photo Appendix 4: EUT Internal Photo Appendix 5: FCCID Label and Label Location Appendix 6: Block Diagram, Schematics and BOM Appendix 7: User Manual Appendix 8: Operational Description www.tuv.com Test Report No.: 14012168 002 Date: 14.06.2006 Page 4 of 12 List of Test and Measurement Instruments Kind of Equipment Manufacturer Type S/N Test Receiver Rohde & Schwarz ESVS30 842807/009 Biconical Antenna Rohde & Schwarz HK116 841489/015 Log.-Periodic Antenna Rohde & Schwarz HL223 841516/017 Double Ridge Horn Antenna EMCO 3115 9002-3347 Spectrum Analyzer Rohde & Schwarz FSP30 1093.4495K30 Active Loop Antenna EMCO 6502 9107-2651 www.tuv.com Test Report No.: 14012168 002 Date: 14.06.2006 Page 5 of 12 General Product Information Product Function and Intended Use The equipment under test (EUT) is a weather station transmitter operating at 433.9 MHz. The EUT senses and transmits the information of temperature and humidity to the associated weather station receiver. The transmitter meets the requirement on periodic transmission as specified in Part 15.231 (e). For details, refer to Appendix 1. FCCID: Q9PTS24C-34C Models Product descriptions TS24C Remote Thermometer Sensor without LCD Display TS34C Remote Thermometer Sensor with LCD Display The models TS24C and TS34C are identical in construction including schematic and PCB, except the change in housing design and removed LCD display. Model TS34C was chosen as representative model for the testing in this report. Ratings and System Details Transmitter Operated Frequency : 433.9 MHz Type of antenna : Integral antenna Power supply : Battery operated 3.0V (AA battery x 2) Ports : none www.tuv.com Test Report No.: 14012168 002 Date: 14.06.2006 Page 6 of 12 Independent Operation Mode The basic operation mode : - transmits weather information of temperature and humidity to the associated weather station receiver. For further information refer to User Manual Submitted Documents The submitted documents are listed as follow: - Circuit diagram - Block diagram - User manual - FCC ID label Related Submittal(s) Grants This is a single application for certification of the transmitter. www.tuv.com Test Report No.: 14012168 002 Date: 14.06.2006 Page 7 of 12 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The test mode was configured on the equipment under test (EUT) to obtain the maximum emission. Test Operation and Test Software Test operation should refer to test methodology. - There was no special software to exercise the device. Special Accessories and Auxiliary Equipment The product has been tested together with the following additional accessories: - none Countermeasures to achieve EMC Compliance - none www.tuv.com Test Report No.: 14012168 002 Date: 14.06.2006 Page 8 of 12 Test Methodology Radiated Emission The radiated emission measurements were performed according to the procedures in ANSI C63.4-2003. The equipment under test (EUT) was placed at the middle of the 80 cm height turntable, and the turntable is 3 meters far from the meas…

Text truncated - open the document above for the full version.

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 1 von 6 Page 1 of 6 Ref -20 dBm -134 kHz Att 10 dB -134 kHz A -134 kHz Center 433.886 MHz -134 kHz Span 1 MHz -134 kHz 100 kHz/ -134 kHz * -134 kHz RBW 100 kHz -134 kHzVBW 300 kHz-134 kHz SWT 2.5 ms -134 kHz 1 PK -134 kHz MAXH -134 kHz-134 kHz-134 kHz-134 kHz-134 kHz-134 kHz-134 kHz-134 kHz-134 kHz-134 kHz -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -134 kHz 1 Marker 1 [T1 ] -51.34 dBm 433.886000000 MHz 2 Delta 2 [T1 ] -19.80 dB 132.000000000 kHz 3 Delta 3 [T1 ] -19.81 dB -134.000000000 kHz DELTA MARKER 3 -134 kHz Date: 26.APR.2006 15:00:08 - Bandwidth measurement: 20dB bandwidth = 134kHz + 132kHz =266kHz www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 2 von 6 Page 2 of 6 Ref -20 dBm 43.08 s Att 10 dB 43.08 s A 43.08 s RBW 100 kHz 43.08 sVBW 300 kHz 43.08 s 43.08 s 43.08 s 43.08 s 43.08 s 43.08 s 43.08 s 43.08 s 43.08 s 43.08 s Center 433.886 MHz 43.08 s 6 s/ 43.08 s SWT 60 s 43.08 s SGL 43.08 s 1 PK 43.08 s MAXH 43.08 s -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 43.08 s 1 Marker 1 [T1 ] -44.37 dBm 14.640000 s 2 Delta 2 [T1 ] -0.00 dB 43.080000 s DELTA MARKER 2 43.08 s Date: 26.APR.2006 15:52:20 www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 3 von 6 Page 3 of 6 Ref -20 dBm 373 ms Att 10 dB 373 ms A 373 ms RBW 100 kHz 373 msVBW 300 kHz 373 ms Center 433.886 MHz 373 ms 50 ms/ 373 ms SWT 500 ms 373 ms MAXH 373 ms 1 PK 373 ms 373 ms 373 ms 373 ms 373 ms 373 ms 373 ms 373 ms 373 ms 373 ms -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 373 ms 1 Marker 1 [T1 ] -56.16 dBm 27.000000 ms 2 Delta 2 [T1 ] -0.17 dB 373.000000 ms DELTA MARKER 2 373 ms Date: 26.APR.2006 16:02:46 Part 15.231 (e) requirement Measured time (second(s)) Limit (second(s)) Duration of each transmission 0.373 ≤ 1 Duration of silent period 43.08-0.373 =42.707 ≥ 30 x 0.373 = 11.19, and ≥ 10 (shall be in any circumstances) www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 4 von 6 Page 4 of 6 Ref -25 dBm 49.1 ms Att 10 dB 49.1 ms * 49.1 ms A 49.1 ms * 49.1 ms Center 433.886 MHz 49.1 ms 10 ms/ 49.1 ms RBW 3 MHz 49.1 msVBW 10 MHz 49.1 ms SWT 100 ms 49.1 ms 1 AP 49.1 ms VIEW 49.1 ms 49.1 ms 49.1 ms 49.1 ms 49.1 ms 49.1 ms 49.1 ms 49.1 ms 49.1 ms 49.1 ms -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 49.1 ms 1 Marker 1 [T1 ] -50.69 dBm 28.700000 ms 2 Delta 2 [T1 ] -0.12 dB 49.100000 ms DELTA MARKER 2 49.1 ms Date: 12.MAY.2006 14:54:46 - The graph shows the pattern of coding during the signal transmission. - Within the pulse train, there are 26 short and 13 long ‘on’ signals. www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 5 von 6 Page 5 of 6 Ref -20 dBm 940 μs Att 10 dB 940 μs A 940 μs RBW 3 MHz 940 μsVBW 10 MHz 940 μs Center 433.886 MHz 940 μs 1 ms/ 940 μs SWT 10 ms 940 μs MAXH 940 μs SGL 940 μs 1 PK 940 μs 940 μs 940 μs 940 μs 940 μs 940 μs 940 μs 940 μs 940 μs 940 μs -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 940 μs 1 Marker 1 [T1 ] -42.79 dBm 5.220000 ms 2 Delta 2 [T1 ] 1.13 dB 940.000000 μs DELTA MARKER 2 940 μs Date: 3.JUL.2006 19:02:22 - The duration of long ‘on’ signal indicates 940us. www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 6 von 6 Page 6 of 6 Ref -20 dBm 420 μs Att 10 dB 420 μs A 420 μs RBW 3 MHz 420 μsVBW 10 MHz 420 μs Center 433.886 MHz 420 μs 1 ms/ 420 μs SWT 10 ms 420 μs MAXH 420 μs SGL 420 μs 420 μs 420 μs 420 μs 420 μs 420 μs 420 μs 420 μs 420 μs 420 μs 1 PK 420 μs -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 420 μs 1 Marker 1 [T1 ] -41.66 dBm 3.780000 ms 2 Delta 2 [T1 ] 0.09 dB 420.000000 μs DELTA MARKER 2 420 μs Date: 3.JUL.2006 19:03:30 - The duration of short ‘on’ signal indicates 420us. - Therefore, the total ‘on’ time of one successful period (0.94ms x 13) + (0.42ms x 26) = 23.14ms. - Average factor: 20 log (23.14/100)=12.71dB

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 1 von 2 Page 1 of 2 Set up of radiated emission test Set up of radiated emission test www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 14012168 002 Seite 2 von 2 Page 2 of 2 Set up of radiated emission test
