Q9S02041688PORTABLE FM UHF PTT RADIO TRANSCEIVER

1 Forward Manual Scope This manual is intended for use by experienced technicians familiar with similar types of communication equipment. It contains all service information required for the equipment and is current as of the publication data. 2 Product Safety and RF Exposure for Portable Two-Way Radios Compliance with RF Energy Exposure Standards NOTICE: This radio is intended for use in occupational/controlled applications where users have been made aware of the potential for exposure and can exercise control over their exposure. This radio device is NOT authorized for general population, consumer or similar use. BEFORE USING THIS RADIO, READ THE TRAINING MATERIAL BELOW WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. Federal Communication Commission (FCC) Regulations The FCC has established limits for safe exposure to radio frequency (RF) emissions from portable two-way radios. The FCC requires manufacturers to demonstrate compliance with RF exposure limits before portable two-way radios can be marketed in the U.S. When two-way radios are approved for occupational/controlled environment exposure limits, the FCC requires users to be fully aware of, and exercise control over, their exposure. Awareness and control of RF exposure can be accomplished by the use of labels, or by education and training through appropriate means, such as information and instructions in user manuals or safety booklets. Your Advanced Wireless two-way radio has an RF exposure information label in the battery compartment. The training material below includes useful information about RF exposure and helpful instructions on how to control your RF exposure. Your Advanced Wireless two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to RF electromagnetic energy. In terms of measuring RF energy for compliance with FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. Compliance and Control Guidelines and Operating Instructions for Portable Two-Way Radios To control your exposure and ensure compliance with the occupational/controlled environment exposure limits, always adhere to the following procedures: * Transmit no more than 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time or less is important since the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance). *Hold the radio in a vertical position in front of the face with the microphone positioned at least one inch (2.5 cm) away from the lips. Keeping the radio at the proper distance is important since RF exposure decreases with increasing distance from the antenna. * For body-worn operation, always use the radio with the AWC Belt-Clip Part No.: 420855203393. AWC-approved accessories, antennas, and device combinations have been tested and comply with the occupational/controlled environment RF exposure limits. The use of non–AWC approved accessories may result in exposure levels that exceed the RF exposure limits for the occupational/controlled environment. * If you are not using a body-worn accessory and are not using the radio held in front of the face, ensure the radio is kept a minimum of 0.7 cm from the body when transmitting. 3 Keeping the radio at a proper distance is important since RF exposure decreases with increasing distance from the antenna. FCC license Information Your Advanced Wireless Communications radio operates on communications frequencies which are subject to FCC (Federal Communications Commission) Rules & Regulations. FCC Rules require that all operators using Private Land Mobile radio frequencies obtain a radio license before operating their equipment. Application for license must be made on FCC form 601, and schedules D, E, and G. FAX: Forms can be obtained by fax from the FCC Fax-On-Demand system. Call 1-202-418-0177 from your fax machine and request document number 000600 for the form, schedules, and instructions. MAIL: Forms can be ordered by telephone, and will be sent to you by first class mail. Call the FCC Forms Hotline at 1-800-418-FORM (1-800-418-3676). INTERNET: Form 601 and instructions can be downloaded from the FCC Forms website at: http://www.fcc.gov/Forms/Form601/601.html Before filling out your Form 601 application Technical Data section, you must decide which frequency (or frequencies) you will operate on. Refer to the frequency chart on page 26. Questions? Call the FCC for license application questions at 1-888-CALL-FCC (1-888-225-5322). If you have any questions, call Advanced Wireless Communications: 1-800-475-5852 Notices to The User This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. 4 SAFETY INFORMATION: Your wireless portable two-way radio has been designed using a low power transmitter. When the PTT switch is pressed, the radio generates radio frequency (RF) electromagnetic energy (EME). This radio is designed to comply with the FCC Report and Order FCC 96-326 (August, 1996). User Safety Informa…

Text truncated - open the document above for the full version.

1 THANK YOU! We are grateful for your purchase of AWC product. We believe this easy–to-use radio will provide you with dependable and reliable communications. This AWC portable two-way radio is a precision device. Treat it with care, and you will enjoy years of reliable operation. MODELS COVERED IN THIS MANUAL AWR1688: 461.0375-469.5625MHz 2 Contents User Safety Information Product Inspection Battery Information Accessory Installation Getting Started LCD Display Features and Operations Turning On/Off the Radio Setting the Clock Setting the Alarm Setting Channels Operations In Standby Mode Entering Menu Mode Troubleshooting Guide Care and Cleaning 3 Product Safety and RF Exposure for Portable Two-Way Radios Compliance with RF Energy Exposure Standards NOTICE: This radio is intended for use in occupational/controlled applications where users have been made aware of the potential for exposure and can exercise control over their exposure. This radio device is NOT authorized for general population, consumer or similar use. BEFORE USING THIS RADIO, READ THE TRAINING MATERIAL BELOW WHICH CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. Federal Communication Commission (FCC) Regulations The FCC has established limits for safe exposure to radio frequency (RF) emissions from portable two-way radios. The FCC requires manufacturers to demonstrate compliance with RF exposure limits before portable two-way radios can be marketed in the U.S. When two-way radios are approved for occupational/controlled environment exposure limits, the FCC requires users to be fully aware of, and exercise control over, their exposure. Awareness and control of RF exposure can be accomplished by the use of labels, or by education and training through appropriate means, such as information and instructions in user manuals or safety booklets. Your Advanced Wireless two-way radio has an RF exposure information label in the battery compartment. The training material below includes useful information about RF exposure and helpful instructions on how to control your RF exposure. Your Advanced Wireless two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to RF electromagnetic energy. In terms of measuring RF energy for compliance with FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. Compliance and Control Guidelines and Operating Instructions for Portable Two-Way Radios To control your exposure and ensure compliance with the occupational/controlled environment exposure limits, always adhere to the following procedures: * Transmit no more than 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time or less is important since the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance). *Hold the radio in a vertical position in front of the face with the microphone positioned at least one inch (2.5 cm) away from the lips. Keeping the radio at the proper distance is important since RF exposure decreases with increasing distance from the antenna. * For body-worn operation, always place the radio in an AWC approved belt-clip or similar accessory that contains no metallic components and provides a minimum separation distance of 0.7 cm between the back of the radio and the user’s body. AWC-approved accessories, antennas, and device combinations have been tested and comply with the occupational/controlled environment RF exposure limits. The use of non–AWC approved accessories may result in exposure levels which may exceed the FCC’s occupational/controlled environment RF exposure limits. * If you are not using a body-worn accessory and are not using the radio held in front of the face, 4 ensure the radio is kept a minimum of 0.7 cm from the body when transmitting. Keeping the radio at a proper distance is important since RF exposure decreases with increasing distance from the antenna. FCC license Information Your Advanced Wireless Communications radio operates on communications frequencies which are subject to FCC (Federal Communications Commission) Rules & Regulations. FCC Rules require that all operators using Private Land Mobile radio frequencies obtain a radio license before operating their equipment. Application for license must be made on FCC form 601, and schedules D, E, and G. FAX: Forms can be obtained by fax from the FCC Fax-On-Demand system. Call 1-202-418-0177 from your fax machine and request document number 000600 for the form, schedules, and instructions. MAIL: Forms can be ordered by telephone, and will be sent to you by first class mail. Call the FCC Forms Hotline at 1-800-418-FORM (1-800-418-3676). INTERNET: Form 601 and instructions can be downloaded from the FCC Forms website at: http://www.fcc.gov/Forms/Form601/601.html Questions? Call the FCC for license application questions at 1-888-CALL-FCC (1-888-225-5322). If you have any questions, call Advanced Wireless Communications: 1-800-475-5852 Notices to The User This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this e…

Text truncated - open the document above for the full version.

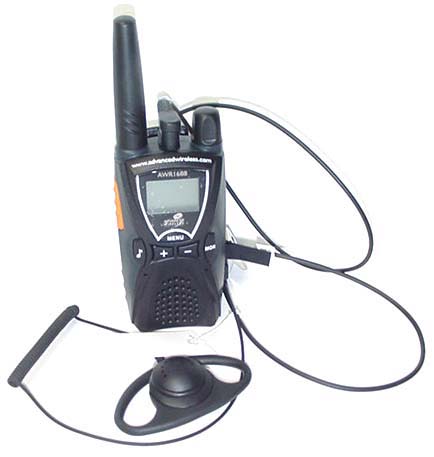

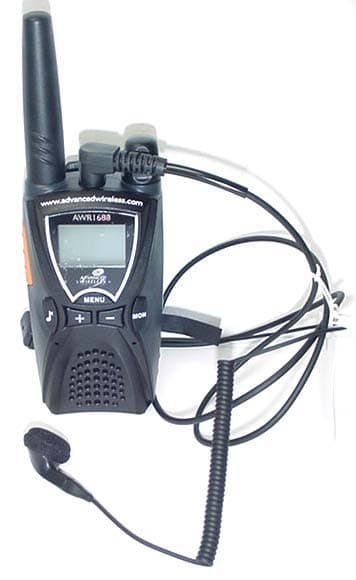

© 2004 Celltech Labs Inc. Advanced Wireless Communications FCC ID: Q9S02041688 AWR1688 Portable FM UHF PTT Radio Transceiver (461-470 MHz) Front of DUT Back of DUT with Belt-Clip Back of DUT EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. Advanced Wireless Communications FCC ID: Q9S02041688 AWR1688 Portable FM UHF PTT Radio Transceiver (461-470 MHz) EXTERNAL DUT PHOTOGRAPHS Top of DUT Bottom of DUT © 2004 Celltech Labs Inc. Advanced Wireless Communications FCC ID: Q9S02041688 AWR1688 Portable FM UHF PTT Radio Transceiver (461-470 MHz) Left Side of DUT Right Side of DUT Belt-Clip Accessory EXTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. Advanced Wireless Communications FCC ID: Q9S02041688 AWR1688 Portable FM UHF PTT Radio Transceiver (461-470 MHz) DUT Battery Compartment EXTERNAL DUT PHOTOGRAPHS NiCd Battery Pack (P/N: AWB1688) © 2004 Celltech Labs Inc. Advanced Wireless Communications FCC ID: Q9S02041688 AWR1688 Portable FM UHF PTT Radio Transceiver (461-470 MHz) DUT with Ear-Bud Accessory (P/N: 420855203041) DUT with Ear-Loop Accessory (P/N: 420855203065) EXTERNAL DUT PHOTOGRAPHS

© 2004 Celltech Labs Inc. ADVANCED WIRELESS CORPORATION FCC ID: Q9S02041688 AWR1688 Portable FM UHF PTT Radio Transceiver (461-470 MHz) TRSN: 011604-462Q9S FCC ID LABEL & LOCATION LABELING REQUIREMENTS PER §2.925 The label shall be permanently affixed at a conspicuous location on the device

© 2004 Celltech Labs Inc. Advanced Wireless Communications FCC ID: Q9S02041688 AWR1688 Portable FM UHF PTT Radio Transceiver (461-470 MHz) INTERNAL DUT PHOTOGRAPHS Mainboard with Shield Removed Mainboard with LCD Removed

© 2004 Celltech Labs Inc. Advanced Wireless Communications FCC ID: Q9S02041688 AWR1688 Portable FM UHF PTT Radio Transceiver (461-470 MHz) INTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. Advanced Wireless Communications FCC ID: Q9S02041688 AWR1688 Portable FM UHF PTT Radio Transceiver (461-470 MHz) INTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. Advanced Wireless Communications FCC ID: Q9S02041688 AWR1688 Portable FM UHF PTT Radio Transceiver (461-470 MHz) INTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. Advanced Wireless Communications FCC ID: Q9S02041688 AWR1688 Portable FM UHF PTT Radio Transceiver (461-470 MHz) INTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. Advanced Wireless Communications FCC ID: Q9S02041688 AWR1688 Portable FM UHF PTT Radio Transceiver (461-470 MHz) INTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. Advanced Wireless Communications FCC ID: Q9S02041688 AWR1688 Portable FM UHF PTT Radio Transceiver (461-470 MHz) INTERNAL DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. Advanced Wireless Communications FCC ID: Q9S02041688 AWR1688 Portable FM UHF PTT Radio Transceiver (461-470 MHz) INTERNAL DUT PHOTOGRAPHS

© 2004 Celltech Labs Inc. 1 of 20 Test Report S/N: 011604-462Q9S Test Date(s): February 6, 2004 Test Type: FCC/IC SAR Evaluation Performed By: Spencer Watson Compliance Technologist Celltech Labs Inc. Reviewed By: Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the Occupational / Controlled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information Northfield Telecommunications, Inc. d/b/a Advanced Wireless Communications 20809 Kensington Blvd Lakeville, MN 55044 FCC IDENTIFIER: Q9S02041688 IC IDENTIFIER: 4651A-AWR1688 Model(s): AWR1688 Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Classification: Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Description: Portable UHF PTT Radio Transceiver Modulation: FM (UHF) Tx Frequency Range: 461 - 470 MHz Max. RF Output Power Tested: 225 mW (ERP) Antenna Type(s) Tested: Fixed Stubby Battery Type(s) Tested: NiCd 3.6 V, 800 mAh (P/N: AWB1688) Body-Worn Accessories: Plastic Belt-Clip with Metal Spring (P/N: 420855203393) Ear-Bud (P/N: 420855203041) Ear-Loop (P/N: 420855203065) Max. SAR Levels Evaluated: Face-held: 0.159 W/kg (50% Duty Cycle) Body-worn: 0.297 W/kg (50% Duty Cycle) © 2004 Celltech Labs Inc. 2 of 20 Test Report S/N: 011604-462Q9S Test Date(s): February 6, 2004 Test Type: FCC/IC SAR Evaluation TABLE OF CONTENTS 1.0INTRODUCTION.....................................................................3 2.0DESCRIPTION OF DUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM................................................ 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 6 7.0SYSTEM PERFORMANCE CHECK............................................. 7 8.0SIMULATED EQUIVALENT TISSUES.......................................... 8 9.0SAR SAFETY LIMITS............................................................... 8 10.0ROBOT SYSTEM SPECIFICATIONS........................................... 9 11.0PROBE SPECIFICATION.......................................................... 10 12.0PLANAR PHANTOM................................................................. 10 13.0VALIDATION PHANTOM........................................................... 10 14.0DEVICE HOLDER.................................................................... 10 15.0TEST EQUIPMENT LIST............................................................ 11 16.0MEASUREMENT UNCERTAINTIES............................................. 12-13 17.0REFERENCES.........................................................................14 APPENDIX A - SAR MEASUREMENT DATA............................................... 15 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA............................ 16 APPENDIX C - SYSTEM VALIDATION PROCEDURES................................. 17 APPENDIX D - PROBE CALIBRATION...................................................... 18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................... 19 APPENDIX F - SAR TEST SETUP PHOTOGRAPHS...............>>>>>>........... 20 © 2004 Celltech Labs Inc. Advanced Wireless Communications FCC ID: Q9S02041688 3 of 20 AWR1688 Portable FM UHF PTT Radio Transceiver (461-470 MHz) Test Report S/N: 011604-462Q9S Test Date(s): February 6, 2004 Test Type: FCC/IC SAR Evaluation This measurement report demonstrates compliance of the Advanced Wireless Communications Model: AWR1688 Portable UHF PTT Radio Transceiver FCC ID: Q9S02041688 with the SAR (Specific Absorption Rate) RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]), and Health Canada’s Safety Code 6 (see reference [2]) for the Occupational / Controlled Exposure environment. The measurement procedures described in FCC OET Bulletin 65, Supplement C (Edition 01-01) (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product, operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. FCC Rule Part(s) 47 CFR §2.1093 IC Rule Part(s) RSS-102 Issue 1 (Provisional) Test Procedure(s) FCC OET Bulletin 65, Supplement C (01-01) Device Type Portable UHF PTT Radio Transceiver FCC IDENTIFIER Q9S02041688 IC IDENTIFIER 4651A-AWR1688 Model(s) AWR1688 Serial No. 03D04C0013 Production Unit Modulation FM (UHF) Tx Frequency Range 461- 470 MHz Max. RF Output Power Test…

Text truncated - open the document above for the full version.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ADVANCED WIRELESS COMMUNICATIONS FCC ID: Q9S02041688 REPORT #: A\ADVANCED WIRELESS_Q9S\188AUT4\188AUT4TestReport.doc COVER SHEET Test Report Product Name: PORTABLE PTT RADIO FCC ID: Q9S02041688 Applicant: ADVANCED WIRELESS COMMUNICATIONS 20809 KENSINGTON BLVD. LAKEVILLE, MINNESOTA 55044 Date Receipt: FEBRUARY 16, 2004 Date Tested: JULY 19, 2004 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ADVANCED WIRELESS COMMUNICATIONS FCC ID: Q9S02041688 REPORT #: A\ADVANCED WIRELESS_Q9S\188AUT4\188AUT4TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: ADVANCED WIRELESS COMMUNICATIONS FCC ID: Q9S02041688 TEST REPORT: PAGE 1............GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2............TECHNICAL DESCRIPTION CONTINUED RF POWER OUTPUT PAGE 3............MODULATION CHARACTERISTICS AUDIO FREQUENCY RESPONSE GRAPH PAGE 4............MODULATION LIMITING GRAPH PAGE 5............AUDIO LOW PASS FILTER PAGE 6-7..........OCCUPIED BANDWIDTH PAGE 8............OCCUPIED BANDWIDTH PLOT PAGE 9............SPURIOUS EMISSIONS AT ANTENNA TERMINALS FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 10...........METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 11...........FREQUENCY STABILITY PAGE 12-13........TRANSIENT FREQUENCY RESPONSE PAGE 14...........TRANSIENT FREQUENCY RESPONSE PLOTS PAGE 15-18........LIST OF TEST EQUIPMENT TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ADVANCED WIRELESS COMMUNICATIONS FCC ID: Q9S02041688 REPORT #: A\ADVANCED WIRELESS_Q9S\188AUT4\188AUT4TestReport.doc Page 1 of 18 GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033(c)(1)(2) ADVANCED WIRELESS COMMUNICATIONS will sell the FCC ID: Q9S02041688 VHF transceiver in quantity, for use under FCC RULES PART 90. ADVANCED WIRELESS COMMUNICATIONS 20809 KENSINGTON BLVD. LAKEVILLE, MINNESOTA 55044 2.1033(c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included in the exhibits. 2.1033(c) (4) Type of Emission: 8K4F3E 90.209 Bn = 2M + 2DK M = 2200 D = 2000 Bn = 2(2200)+2(2000) = 8.4k 90.217 (b) Authorized Bandwidth 12.5 kHz 2.1033(c)(5) Frequency Range: 460 - 470 MHz 90.209 2.1033(c)(6)(7) Power Output shall not exceed 59 Watts into a 50 ohm 90.205 resistive load. There are no user power controls. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: POWER INPUT: FINAL AMPLIFIER ONLY Vce = 3.6 Volts IC = 0.48 A Pin = 1.728 WATTS (9) Tune-up procedure. The tune-up procedure is given in the exhibits. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ADVANCED WIRELESS COMMUNICATIONS FCC ID: Q9S02041688 REPORT #: A\ADVANCED WIRELESS_Q9S\188AUT4\188AUT4TestReport.doc Page 2 of 18 2.1033 (10) Complete Circuit Diagrams: The circuit diagram and block diagram are included in the exhibits. (11) Function of each electron tube or semiconductor device or other active circuit device: See the exhibits. (12) Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description in the instruction manual. 2.1033(c)(13) A photo or drawing of the equipment identification label is shown in the exhibits. 2.1033(c)(14) Photographs of the equipment of sufficient clarity to reveal equipment construction and layout and label location are shown in the exhibits. 2.1033(c)(15) Digital Modulation is not allowed. 2.1033(c)(16) The data required for 2.1046 through 2.1057 is submitted below. 2.1046(a) RF POWER OUTPUT RF power is measured as ERP as the antenna is permanently attached. The substitution method was used. With a nominal battery voltage of 3.6 VDC, and the transmitter properly adjusted the RF output measures: OUTPUT POWER: HIGH - 0.219 Watts ERP LOW - 0.182 Watts ERP TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ADVANCED WIRELESS COMMUNICATIONS FCC ID: Q9S02041688 REPORT #: A\ADVANCED WIRELESS_Q9S\188AUT4\188AUT4TestReport.doc Page 3 of 18 2.1047(a)(b) Modulation characteristics : AUDIO FREQUENCY RESPONSE The audio frequency response was measured in accordance with TIA/EIA Specification 603. The audio frequency response curve is shown below. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. AUDIO FREQUENCY RESPONSE PLOT Audio Frequency Response Plot -4 +8 -2 +0 +2 +4 +6 d B 100 3k 200 300 400 500 700 1k 2k Hz TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ADVANCED WIRELESS COMMUNICATIONS FCC ID: Q9S02041688 REPORT #: A\ADVANCED WIRELESS_Q9S\188AUT4\188AUT4TestReport.doc Page 4 of 18 2.1047(b) Audio input versus modulation The audio input level needed for a particular percentage of modulation was measured in accordance with TIA/EIA Specification 603. The audio input curves versus modulation are shown below. Curves are provided for audio input frequencies of 300, 1000, and 2500 Hz. Modulation Limiting Plots: 2.5KHz (Green), 1.0KHz (Blue), 300Hz (Yellow) 2.0 k H z -25 +20-20 -15 -10-5+0+5+10 +15 dBu TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: ADVANCED WIRELESS COMMUNICATIONS FCC ID: Q9S02041688 REPORT #: A\ADVANCED WIRELESS_Q9S\188AUT4\188AUT4TestReport.doc Page 5 of 18 Post Limiter Filter The filter must be between the modul…
