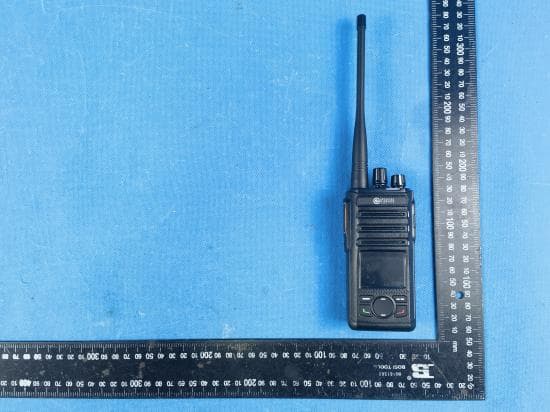

External Photos of the EUT

Internal Photos of the EUT

Page: 1 of 25 TEST REPORT Report No. ...................................... : CHTEW23020051 Report vertification: Project No. ...................................... : SHT2212063206EW FCC ID ............................................. : Q9SAWRD5500 Applicant’s name ........................... : Northfield Telecommunications, Inc. d/b/a Advanced Wireless Communications Address ............................................. : 20809 Kensington Blvd, Lakeville, Minnesota, United States 55044 Test item description .................... : Two Way Radio Trade Mark ....................................... : AWC Model/Type reference ....................... : AWR-D5500 Listed Model(s) ................................. : - Standard ......................................... : FCC 47 CFR Part2.1093 IEEE Std C95.1, 1999 Edition IEEE 1528: 2013 Date of receipt of test sample.........: Jan. 04, 2023 Date of testing.............................: Jan. 05, 2023- Feb. 07, 2023 Date of issue...............................: Feb. 08, 2023 Result .................. ........................: PASS Compiled by ( position+printed name+signature) .. : File administrators: Silvia Li Supervised by ( position+printed name+signature) .. : Test Engineer: Weiyang Xiang Approved by ( position+printed name+signature) .. : Manager: Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW23020051 Page: 2 of 25 Issued: 2023-02-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2021-12) Contents 1. Statement of Compliance 3 2. Test Standards and Report version 4 2.1. Test Standards 4 2.2. Report version 4 3. Summary 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Test frequency list 6 3.5. Testing Laboratory Information 7 3.6. Environmental conditions 7 4. Equipments Used during the Test 8 5. Measurement Uncertainty 9 6. SAR Measurements System Configuration 10 6.1. SAR Measurement Set-up 10 6.2. DASY5 E-field Probe System 11 6.3. Phantoms 12 6.4. Device Holder 12 7. SAR Test Procedure 13 7.1. Scanning Procedure 13 7.2. Data Storage and Evaluation 15 8. Position of the wireless device in relation to the phantom 17 8.1. Front-of-face 17 8.2. Body Position 17 9. Dielectric Property Measurements & System Check 18 9.1. Tissue Dielectric Parameters 18 9.2. SAR System Validation 19 9.3. System Check 19 10. SAR Exposure Limits 22 11. Radiated Power Measurement Results and Tune-up 23 12. SAR Measurement Results 24 13. Test Setup Photos 25 14. External and Internal Photos of the EUT 25 Report No.: CHTEW23020051 Page: 3 of 25 Issued: 2023-02-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2021-12) 1. Statement of Compliance Maximum Reported SAR (W/kg @1g) RF Exposure Conditions TNF Front-of-face (Dist.= 25mm) 2.456 Body-worn(Dist.= 0mm) 4.482 Note: 1. This device is in compliance with Specific Absorption Rate (SAR) for occupational/controlled exposure limits (8 W/kg) specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEE C95.1-1992. 2. This device had been tested in accordance with the measurement methods and procedures specified in IEEE 1528 and FCC KDB publications. Report No.: CHTEW23020051 Page: 4 of 25 Issued: 2023-02-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2021-12) 2. Test Standards and Report version 2.1. Test Standards The tests were performed according to following standards: FCC 47 Part 2.1093: Radiofrequency Radiation Exposure Evaluation:Portable Devices IEEE Std C95.1, 1999 Edition: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. FCC published RF exposure KDB procedures: KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documentation Considerations KDB 447498 D04 Interim General RF Exposure Guidance v01: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 643646 D01:SAR Test for PTT Radios v01r03: SAR Test Reduction Considerations for Occupational PTT Radios TCB workshop: April, 2019; Page 19, Tissue Simulating Liquids (TSL) 2.2. Report version Revision No. Date of issue Description N/A 2023-02-08 Original Report No.: CHTEW23020051 Page: 5 of 25 Issued: 2023-02-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V04 (2021-12) 3. Summary 3.1. Client Information Applicant: Northfield Telecommunications, Inc. d/b/a Advanced Wireless Communications Address: 20809 Kensington Blvd, Lakeville, Minnesota, United States 55044 Manufacturer: Northfield Telecommunications, Inc. d/b/a Advanced Wireless Communications Address: 20809 Kensington Blvd, Lakeville, Minnesota, United States 55044 3.2. Product Description Main unit Name of EUT: Two Way Radio Trade Mark: AWC Model No.: AWR-D5500 Listed Model(s): - Power supply: DC7.4V …

Text truncated - open the document above for the full version.

Page: 1 of 39 TEST REPORT Report No. ....................................... : CHTEW23020049 Report verification: Project No. ................................. : SHT2212063205EW FCC ID ............................................. : Q9SAWRD5500 Applicant’s name ........................... : Northfield Telecommunications, Inc. d/b/a Advanced Wireless Communications Address ............................................ : 20809 Kensington Blvd, Lakeville, Minnesota, United States 55044 Test item description ..................... : Two Way Radio Trade Mark ....................................... : AWC Model/Type reference ...................... : AWR-D5500 Listed Model(s) ................................. : - Standard .......................................... : FCC CFR Title 47 Part 90 Date of receipt of test sample.........: Jan. 04, 2023 Date of testing.............................: Jan. 05, 2023- Feb. 07, 2023 Date of issue...............................: Feb. 08, 2023 Result ................. ........................: PASS Compiled by (Position - Printed name - Signature): File administrators Silvia Li Supervised by (Position - Printed name - Signature): Project Engineer Weiyang Xiang Approved by (Position - Printed name - Signature): RF Manager Hans Hu Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................ : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW23020049 Page: 2 of 39 Issued: 2023-02-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1 T E ST S T A N D A R D S A N D R E P OR T V E R S I O N 3 1.1. Test Standards 3 1.2. Report revised information 3 2 T E S T D E S C R I P T I O N 4 3 S U M M A R Y 5 3.1 Client Information 5 3.2 Product Description 5 3.3 Radio Specification Description 5 3.4 Testing Laboratory Information 6 4 T E S T C O N F I G U R A T I O N 7 4.1 Test frequency list 7 4.2 Operation mode 7 4.3 Support unit used in test configuration and system 8 4.4 Environmental conditions 9 4.5 Measurement uncertainty 9 4.6 Equipment used during the testing 10 5 T E S T C O N D I T I O N S A N D R E S U L T S 12 5.1 Conducted Carrier Output Power 12 5.2 99% Occupied Bandwidth & 26dB Bandwidth 13 5.3 Emission Mask 15 5.4 Modulation Limit 17 5.5 Audio Frequency Response 18 5.6 Frequency stability VS Temperature 20 5.7 Frequency stability VS Voltage 21 5.8 Transmitter Frequency Behavior 22 5.9 Transmit Conducted Spurious Emission 24 5.10 Transmitter Radiated Spurious Emission 25 6 T E S T S E T U P P H O T O S 34 7 E X T E R N A L A N D I N T E R N AL P H O T O S 35 7.1 External Photos of the EUT 35 7.2 Internal Photos of the EUT 37 8 A P P E N D I X R E P O R T 39 Report No.: CHTEW23020049 Page: 3 of 39 Issued: 2023-02-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1 TEST STANDARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: FCC Rules Part 2: Frequency allocations and radio treaty matters; General rules and regulations FCC Rules Part 90: Private land mobile radio services. ANSI C63.26-2015: American National Standard for Compliance Testing of Transmitters Used in Licensed Radio Services ANSI/TIA-603-E(2016): Land Mobile FM or PM Communications Equipment and Performance Standards ANSI C63.4-2014: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz 1.2. Report revised information Revised No. Date of issued Description N/A 2023-02-08 Original Report No.: CHTEW23020049 Page: 4 of 39 Issued: 2023-02-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2 TEST DESCRIPTION Test Item Section in CFR 47 Result Test Engineer Conducted Carrier Output Power Part 90.205 Part 2.1046(a) Pass Chunshui Gu 99% Occupied Bandwidth & 26dB bandwidth Part 90.209 & 210 Part 2.1049 Pass Chunshui Gu Emission Mask Part 90.209 & 210 Part 2.1049 Pass Chunshui Gu Modulation Limit Part 2.1047(b) Pass Chunshui Gu Audio Frequency Response Part 2.1047(a) Pass Chunshui Gu Frequency Stability VS Temperature Part 90.213 Part 2.1055 Pass Chunshui Gu Frequency Stability VS Voltage Part 90.213 Part 2.1055 Pass Chunshui Gu Transient Frequency Behavior Part 90.214 Pass Chunshui Gu Transmit Conducted Spurious Emission Part 90.210 Part 2.1051 Pass Chunshui Gu Transmit Radiated Spurious Emission Part 90.210 Part 2.1053 Pass Jianquan Wu Report No.: CHTEW23020049 Page: 5 of 39 Issued: 2023-02-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3 SUMMARY 3.1 Client Information Applicant: Northfield Telecommunications, Inc. d/b/a Advanced Wireless Communications Address: 20809 Kensington Blvd, Lakeville, Minnesota, United States 55044 Manufacturer: Northfield Telecommunications, Inc. d/b/a Advanced Wireless Communications Address: 20809 Kensington Blvd, Lakeville, Minnesota, United States 55044 3.2 Product Description Name of EUT: Two Way Radio Trade mark: AWC Model/Type reference: AWR-D5500 Listed model(s): - Power supply: DC7.4V from battery Battery information: Model:AWB-D5000/5500 7.4V d.c., 2200mA/16Wh Hardware version: V5 Software version: V2.02.06 3.3…

Text truncated - open the document above for the full version.

Appendix Report FCC PART 90 Test Form QRE315 V 3.1 (2019-11) Project No. SHT2212063205EW Test sample No. YPHT22120632002 Model No. AWR-D5500 Start test date 2023/1/5 Finish date 2023/1/29 Temperature 22.7 °C Humidity 53% Test EngineerAuditor Appendix clause Test Item Test Result (PASS/FAIL) AMaximum Transmitter PowerPASS BOccupied BandwidthPASS CEmission MaskPASS DModulation LimitPASS EAudio Frequency ResponsePASS FFrequency Stability Test & TemperaturePASS GFrequency Stability Test & VoltagePASS HTransmitter Frequency BehaviorPASS ISpurious Emission On Antenna PortPASS Appendix Page:1 of 27 Project No.:SHT2212063205EW Appendix A:Maximum Transmitter Power Operation Mode Modulation Type Test Channel Measured Power (dBm) Measured Power(W) Rated Power(W) Percentage (%) Limit (%) Result TX-DNH4FSK CH L 35.6 3.63 4.50 -19.3 ±20PASS TX-DNH4FSK CH M 35.6 3.63 4.50 -19.3 ±20PASS TX-DNH4FSK CH H 35.6 3.63 4.50 -19.3 ±20PASS TX-DNL4FSK CH L 31.7 1.48 1.50 -1.3 ±20PASS TX-DNL4FSK CH M 31.5 1.41 1.50 -6.0 ±20PASS TX-DNL4FSK CH H 31.0 1.26 1.50 -16.0 ±20PASS TX-ANHFM CH L 36.1 4.06 4.50 -9.8 ±20PASS TX-ANHFM CH M 36.0 3.95 4.50 -12.2 ±20PASS TX-ANHFM CH H 36.2 4.17 4.50 -7.3 ±20PASS TX-ANLFM CH L 31.2 1.30 1.50 -13.3 ±20PASS TX-ANLFM CH M 31.0 1.24 1.50 -17.3 ±20PASS TX-ANLFM CH H 31.2 1.31 1.50 -12.7 ±20PASS Appendix Page:2 of 27 Project No.:SHT2212063205EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel Occupied Bandwidth 99% Limit(kHz) Result 99%(kHz)26dB(kHz) TX-DNH4FSK CH L 7.586 9.728 ≤ 11.25PASS TX-DNH4FSK CH M 7.582 9.545 ≤ 11.25PASS TX-DNH4FSK CH H 7.586 9.770 ≤ 11.25PASS TX-DNL4FSK CH L 7.377 9.438 ≤ 11.25PASS TX-DNL4FSK CH M 7.548 9.795 ≤ 11.25PASS TX-DNL4FSK CH H 7.709 9.698 ≤ 11.25PASS TX-ANHFM CH L 5.149 5.257 ≤ 11.25PASS TX-ANHFM CH M 5.147 5.256 ≤ 11.25PASS TX-ANHFM CH H 5.159 5.240 ≤ 11.25PASS TX-ANLFM CH L 5.158 5.250 ≤ 11.25PASS TX-ANLFM CH M 5.153 5.254 ≤ 11.25PASS TX-ANLFM CH H 5.160 5.241 ≤ 11.25PASS Appendix Page:3 of 27 Project No.:SHT2212063205EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test ChannelTEST PLOT RESULT TX-DNH4FSKCH L TX-DNH4FSKCH M TX-DNH4FSKCH H Appendix Page:4 of 27 Project No.:SHT2212063205EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test ChannelTEST PLOT RESULT TX-DNL4FSKCH L TX-DNL4FSKCH M TX-DNL4FSKCH H Appendix Page:5 of 27 Project No.:SHT2212063205EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test ChannelTEST PLOT RESULT TX-ANHFMCH L TX-ANHFMCH M TX-ANHFMCH H Appendix Page:6 of 27 Project No.:SHT2212063205EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test ChannelTEST PLOT RESULT TX-ANLFMCH L TX-ANLFMCH M TX-ANLFMCH H Appendix Page:7 of 27 Project No.:SHT2212063205EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSKCH L TX-DNH4FSKCH L TX-DNH4FSKCH M Appendix Page:8 of 27 Project No.:SHT2212063205EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSKCH M TX-DNH4FSKCH H TX-DNH4FSKCH H Appendix Page:9 of 27 Project No.:SHT2212063205EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL4FSKCH L TX-DNL4FSKCH L TX-DNL4FSKCH M Appendix Page:10 of 27 Project No.:SHT2212063205EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL4FSKCH M TX-DNL4FSKCH H TX-DNL4FSKCH H Appendix Page:11 of 27 Project No.:SHT2212063205EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFMCH L TX-ANHFMCH L TX-ANHFMCH M Appendix Page:12 of 27 Project No.:SHT2212063205EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFMCH M TX-ANHFMCH H TX-ANHFMCH H Appendix Page:13 of 27

Project No.:SHT2212063205EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANLFMCH L TX-ANLFMCH L TX-ANLFMCH M Appendix Page:14 of 27 Project No.:SHT2212063205EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANLFMCH M TX-ANLFMCH H TX-ANLFMCH H Appendix Page:15 of 27 Project No.:SHT2212063205EW Appendix D:Modulation Limit Operation Mode Modulation Type Test Channel Modulation Level (dB) Peak frequency deviation (kHz) Limit (kHz) Result 300Hz 1004Hz1500Hz2500 Hz TX-ANHFM CH M -200.4770.2220.3190.4512.5PASS TX-ANHFM CH M -150.1360.3720.5240.7722.5PASS TX-ANHFM CH M -100.2050.6250.9051.2972.5PASS TX-ANHFM CH M -50.3231.0691.4321.4552.5PASS TX-ANHFM CH M 00.5661.5511.5691.5472.5PASS TX-ANHFM CH M 50.9821.7751.6211.6192.5PASS TX-ANHFM CH M 101.4351.8571.6371.6452.5PASS TX-ANHFM CH M 151.6191.8931.6411.6392.5PASS TX-ANHFM CH M 201.7041.8951.6411.6332.5PASS Appendix Page:16 of 27 Project No.:SHT2212063205EW Appendix D:Modulation Limit TEST PLOT RESULT Appendix Page:17 of 27 Project No.:SHT2212063205EW Appendix E:Audio Frequency Response Operation Mode Modulation Type Test Channel Frequency (Hz) Audio Frequency Response (dB) Lower LimitUpper LimitResult TX-ANHFM CH M 100-32.86 PASS TX-ANHFM CH M 200-32.68 PASS TX-ANHFM CH M 300-10.80 -17.84 -9.42 PASS TX-ANHFM CH M 400-8.76 -12.86 -6.93 PASS TX-ANHFM CH M 500-6.54 -9.00 -5.00 PASS TX-ANHFM CH M 600-4.50 -7.42 -3.42 PASS TX-ANHFM CH M 700-3.17 -6.09 -2.09 PASS TX-ANHFM CH M 800-1.97 -4.93 -0.93 PASS TX-ANHFM CH M 900-0.98 -3.91 0.09 PASS TX-ANHFM CH M 1000-0.04 -3.00 1.00 PASS TX-ANHFM CH M 12001.54 -1.42 2.58 PASS TX-ANHFM CH M 14002.85 -0.09 3.91 PASS TX-ANHFM CH M 16003.93 1.07 5.07 PASS TX-ANHFM CH M 18004.72 2.09 6.09 PASS TX-ANHFM CH M 20005.02 3.00 7.00 PASS TX-ANHFM CH M 21005.11 3.42 7.42 PASS TX-ANHFM CH M 22005.19 3.83 7.83 PASS TX-ANHFM CH M 23005.27 4.21 8.21 PASS TX-ANHFM CH M 24005.27 4.58 8.58 PASS TX-ANHFM CH M 25005.54 4.93 8.93 PASS TX-ANHFM CH M 26005.76 4.59 9.27 PASS TX-ANHFM CH M 27005.97 4.27 9.60 PASS TX-ANHFM CH M 28006.09 3.95 9.91 PASS TX-ANHFM CH M 29006.02 3.65 10.22 PASS TX-ANHFM CH M 30005.53 3.35 10.51 PASS TX-ANHFM CH M 3500-22.46 PASS TX-ANHFM CH M 4000-32.65 PASS TX-ANHFM CH M 4500-32.47 PASS TX-ANHFM CH M 5000-32.78 PASS Appendix Page:18 of 27 Project No.:SHT2212063205EW Appendix E:Audio Frequency Response TEST PLOT RESULT Appendix Page:19 of 27 Project No.:SHT2212063205EW Appendix F:Frequency Stability Test & Temperature Operation Mode Modulation Type Test ConditionsFrequency error (ppm) Limit (ppm) Result VoltageTemperatureCH L CH M CH H TX-DNH 4FSK VN-30-0.833 -0.731 -0.698 ±5.0PASS TX-DNH 4FSK VN-20-0.824 -0.785 -0.731 ±5.0PASS TX-DNH 4FSK VN-10-0.823 -0.783 -0.731 ±5.0PASS TX-DNH 4FSK VN0-0.821 -0.725 -0.707 ±5.0PASS TX-DNH 4FSK VN10-0.801 -0.775 -0.726 ±5.0PASS TX-DNH 4FSK VN20-0.769 -0.723 -0.687 ±5.0PASS TX-DNH 4FSK VN30-0.806 -0.752 -0.754 ±5.0PASS TX-DNH 4FSK VN40-0.794 -0.738 -0.725 ±5.0PASS TX-DNH 4FSK VN50-0.832 -0.772 -0.721 ±5.0PASS TX-DNL 4FSK VN-30-0.786 -0.724 -0.678 ±5.0PASS TX-DNL 4FSK VN-20-0.790 -0.744 -0.663 ±5.0PASS TX-DNL 4FSK VN-10-0.821 -0.753 -0.685 ±5.0PASS TX-DNL 4FSK VN0-0.812 -0.763 -0.682 ±5.0PASS TX-DNL 4FSK VN10-0.791 -0.736 -0.691 ±5.0PASS TX-DNL 4FSK VN20-0.777 -0.709 -0.654 ±5.0PASS TX-DNL 4FSK VN30-0.811 -0.755 -0.712 ±5.0PASS TX-DNL 4FSK VN40-0.819 -0.732 -0.664 ±5.0PASS TX-DNL 4FSK VN50-0.853 -0.765 -0.691 ±5.0PASS TX-ANH FM VN-300.084 0.057 0.012 ±5.0PASS TX-ANH FM VN-200.084 0.053 0.012 ±5.0PASS TX-ANH FM VN-100.086 0.058 0.011 ±5.0PASS TX-ANH FM VN00.085 0.054 0.011 ±5.0PASS TX-ANH FM VN100.086 0.055 0.012 ±5.0PASS TX-ANH FM VN200.080 0.053 0.011 ±5.0PASS TX-ANH FM VN300.086 0.054 0.012 ±5.0PASS TX-ANH FM VN400.083 0.055 0.012 ±5.0PASS TX-ANH FM VN500.084 0.056 0.012 ±5.0PASS TX-ANL FM VN-300.075 0.040 0.035 ±5.0PASS TX-ANL FM VN-200.081 0.040 0.035 ±5.0PASS TX-ANL FM VN-100.080 0.041 0.035 ±5.0PASS TX-ANL FM VN00.076 0.041 0.034 ±5.0PASS TX-ANL FM VN100.080 0.041 0.035 ±5.0PASS TX-ANL FM VN200.074 0.038 0.034 ±5.0PASS TX-ANL FM VN300.080 0.040 0.034 ±5.0PASS TX-ANL FM VN400.075 0.041 0.037 ±5.0PASS TX-ANL FM VN500.077 0.042 0.036 ±5.0PASS Appendix Page:20 of 27 Project No.:SHT2212063205EW Appendix G:Frequency Stability Test & Voltage Operation Mode Modulation Type Test ConditionsFrequency error (ppm) Limit (ppm) Result VoltageTemperatureCH L CH M CH H TX-DNH4FSKVNTN-0.769 -0.723 -0.687 ±5.0PASS TX-DNH4FSKVLTN-0.775 -0.728 -0.701 ±5.0PASS TX-DNH4FSKVHTN-0.788 -0.737 -0.723 ±5.0PASS TX-DNL4FSKVNTN-0.777 -0.709 -0.654 ±5.0PASS TX-DNL4FSKVLTN-0.786 -0.714 -0.664 ±5.0PASS TX-DNL4FSKVHTN-0.816 -0.729 -0.664 ±5.0PASS TX-ANHFMVNTN0.080 0.053 0.011 ±5.0PASS TX-ANHFMVLTN0.081 0.054 0.011 ±5.0PASS TX-ANHFMVHTN0.081 0.055 0.011 ±5.0PASS TX-ANLFMVNTN0.074 0.038 0.034 ±5.0PASS TX-ANLFMVLTN0.075 0.038 0.034 ±5.0PASS TX-ANLFMVHTN0.078 0.039 0.035 ±5.0PASS Appendix Page:21 of 27 Project No.:SHT2212063205EW Appendix H:Transmitter Frequency Behavior Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSKCHM TX-DNH4FSKCHM TX-ANHFMCHM Appendix Page:22 of 27 Project No.:SHT2212063205EW Appendix H:Transmitter Frequency Behavior Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFMCHM Appendix Page:23 of 27 Project No.:SHT2212063205EW Appendix I:Spurious Emission On Antenna Port Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSKCHL TX-DNH4FSKCHL TX-DNH4FSKCHM Appendix Page:24 of 27 Project No.:SHT2212063205EW Appendix I:Spurious Emission On Antenna Port Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSKCHM TX-DNH4FSKCHH TX-DNH4FSKCHH Appendix Page:25 of 27 Project No.:SHT2212063205EW Appendix I:Spurious Emission On Antenna Port Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFMCHL TX-ANHFMCHL TX-ANHFMCHM Appendix Page:26 of 27 Project No.:SHT2212063205EW Appendix I:Spurious Emission On Antenna Port Operation Mode Mo…
