User Manual AWR-DM7700 DMR Digital Two-Way Radio Thank you for purchasing this AWR-DM7700 DMR Digital two- way radio by Advanced Wireless Communications (AWC). The AWR-DM7700 delivers the latest technology, has the most stable components, and has the most advanced production technology. The AWR-DM7700 mobile radio will provide you with the reliable performance and high quality you demand. This manual should be read to ensure that the user understands the operation of the AWR-DM7700. Please read the Safety Instructions before use. Thank you! User Instructions Please carefully read this manual before attempting to deploy the repeater. The instructions will explain the various features of this repeater. Please retain these instructions for future reference. Safety Instructions Please observe the following safety instructions to prevent fire, accidents, personal injury, or equipment damage. • Do not modify the radio in any way. • Do not expose the radio to direct sunlight for extended periods of time, locate near heaters or other heat sources. • Do not store or use unprotected radio for prolonged periods in areas of high dust or excessive moisture. • Users may experience signal interference if the unit is used near devices such as televisions or electric generators. • Do not attempt to configure or program the radio while driving. • If the radio emits smoke or a strange smell, immediately turn off the power, and send it to the closets repair station. • Use of the radio while driving may be against local traffic laws. Pleas verify and observe regulations in your area. • The radio contains high power components that are not user serviceable or should be tampered with. • It is not uncommon for the body of the radio to be slightly warm during operation. This is normal and the radio may continue to be used. • Do not operate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or an antenna specifically authorized by the manufacturer for use with this radio, and the antenna gain shall not exceed 3.9 dBi by the manufacturer declared. • Do not transmit for more than 50% of total radio use time, more than 50% of the time can cause RF exposure compliance requirements to be exceeded. Hazards and Hazardous Environments • When in areas of explosive atmospheres (gases, dust, fumes, etc.), the radio shall be turned off. This includes when taking on fuel or while parked at a fueling facility. Hazards and Hazardous Environments (continued) • The radio shall not be operated in or around locations that are using blasting devices or detonators. The radio shall be turned off in the area where blasting is in progress and in areas with signage stating that blasting is occurring. If transporting such materials, they shall be secured in an approved container to prevent inadvertent detonation from the radio. • During transmissions, your radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. Do not operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. • Physical exposure to radio frequency transmissions requires that the user or bystander cannot touch the radio while it is transmitting. A distance of at least three feet (90 cm) shall be maintained during transmission. The separation distance between user and the antenna will ensure that there is sufficient distance from a properly installed externally-mounted antenna to satisfy the RF exposure requirements. If there are any problems with the radio, please contact AWC or your local distributor. Product Safety and RF Exposure This equipment is intended for use in occupational / controlled applications where users have been made aware of the potential for exposure and can exercise control over their exposure. This radio device is NOT authorized for the general population, consumer or similar use cases. BEFORE USING THIS RADIO DEVICE, READ ALL RELATIVE MATERIALS IN THIS MANUAL FOR IMPORTANT OPERATION INSTRUCTIONS FOR SAFE USAGE, RF ENERGY AWARENESS, AND CONTROL INFORMATION FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL STANDARDS. Federal Communication Commission (FCC) Regulations The FCC has established limits for safe exposure to radio frequency (RF) emissions from radio devices. The FCC requires manufacturers to demonstrate compliance with RF exposure limits before radio devices may be marketed in the U.S. When two-way radios and repeaters are approved for occupational / controlled environment exposure limits, the FCC requires users to be fully aware of, and exercise control over, their exposure. Awareness and control of RF exposure can be accomplished using labels, or by education and training through appropriate means such as information and instructions in user manuals or safety booklets. Your Advanced Wireless Communications’ two-way radio or repeater has an RF exposure information label on the device. The training material below includes useful information about RF exposure and helpful instructions. Your Advanced Wireless Communications two-way radio devices are designed and tested to comply with several national and international standards and guidelines regarding human exposure to RF electromagnetic energy. In terms of measuring RF energy for compliance with FCC exposure guidelines, your radio device radiates measurable RF energy only while transmitting, not when it is receiving, or in stand-by mode. WARNING As the qualified end-user of this radio device you must control the exposure conditions in the area to ensure the minimum separation distance is maintained between the antenna and nearby persons for satisfying RF Exposure compliance. The operation of this transmitter must…

Text truncated - open the document above for the full version.

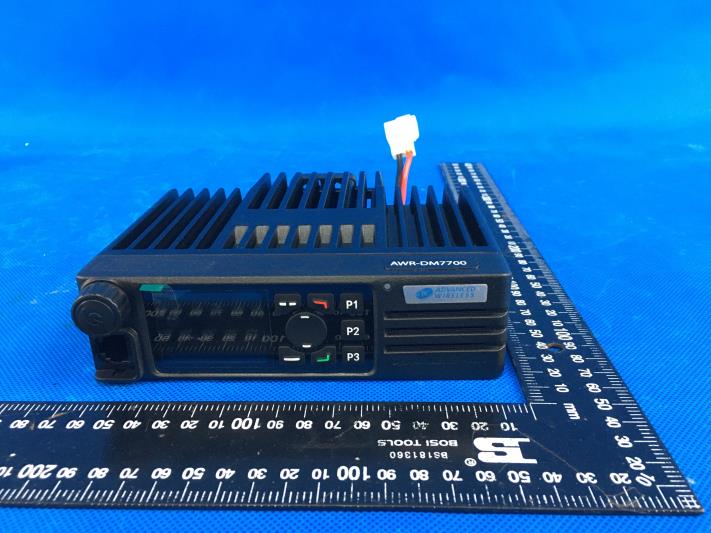

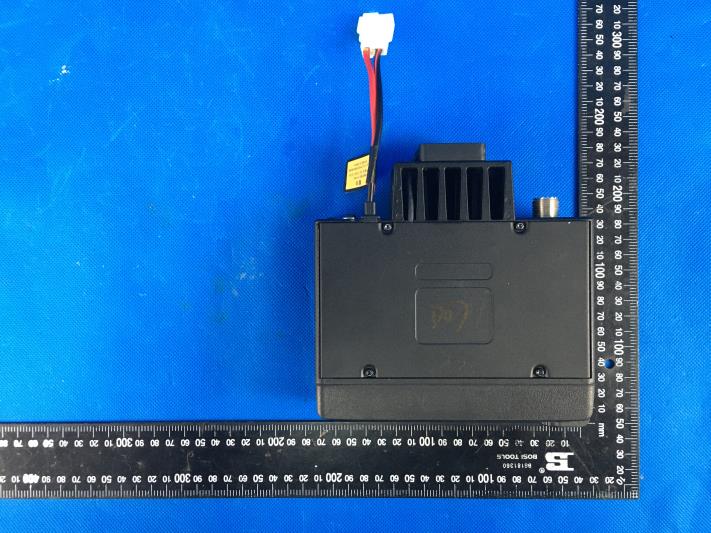

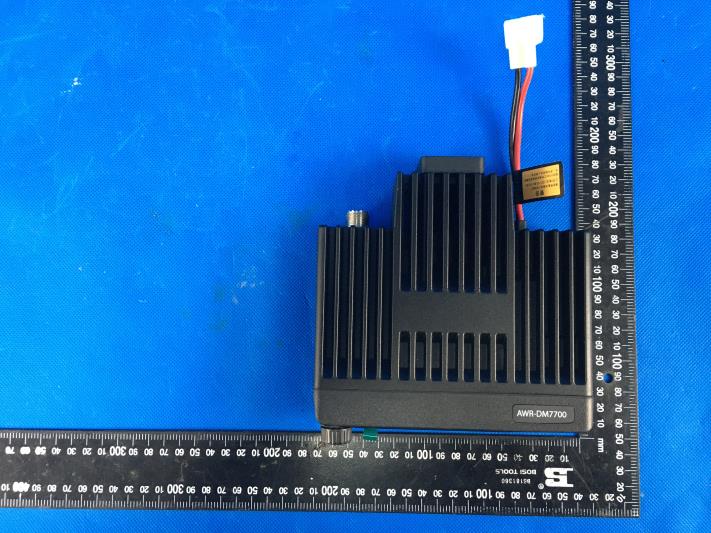

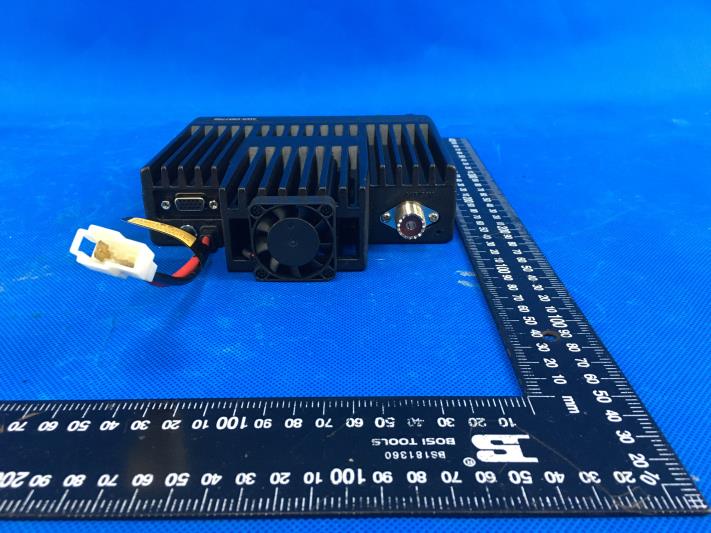

External Photos of the EUT

Label Label Location

Internal Photos of the EUT

Page 1 of 10 MPE TEST REPORT Report No. ....................................... : CHTEW1912019601 Report verification : Project No. ................................. : SHT1911026501EW FCC ID ............................................. : Q9SAWR-DM7700 Applicant’s name ........................... : Northfield Telecommunications, Inc. d/b/a Advanced Wireless Communications Address ............................................. : 20809 Kensington Blvd, Lakeville, Minnesota, United States 55044 Manufacturer.....................................: ABELL INDUSTRIES CO.,LTD. Address..............................................: 2/F, Bldg. 14, ZhongXing Industrial City, NanShan Dist. ShenZhen, P.R. China Test item description .................... : Digital Mobile Radio Trade Mark ....................................... : AWC Model/Type reference ....................... : AWR-DM7700 Listed Model(s) ................................. : - Standard ......................................... : FCC Per 47 CFR 2.1091(b)；KDB447498 v05r02 Date of receipt of test sample...........: Nov.29, 2019 Date of testing..............................: Nov.29, 2019- Dec.25, 2019 Date of issue.................................: Dec.26, 2019 Result .................. ........................: PASS Compiled by ( position+printed name+signature) .. : File administrators Echo Wei Supervised by ( position+printed name+signature) .. : Project Engineer Gaosheng Pan Approved by ( position+printed name+signature) .. : RF Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No : CHTEW1912019601 Page 2 of 10 Issued: 2019-12-26 Report Template Version: H00 (2016-08) Contents 1. S U M M A R Y 3 1.1. Client Information 3 1.2. Report version information 3 1.3. Product Description 4 1.4. Test frequency list 5 1.5. EUT operation mode 5 1.6. EUT configuration 5 1.7. Modifications 5 2. T E S T E N V I R O N M E N T 6 2.1. Address of the test laboratory 6 2.2. Environmental conditions 6 2.3. Statement of the measurement uncertainty 6 3. M E T H O D O F M E A S U R E M E NT 7 3.1. Applicable Standard 7 3.2. Limit 7 3.3. MPE Calculation Method 7 3.4. Antenna Information 8 3.5. Measurement Procedure 8 3.6. Test Results 9 3.7. Conclusion 9 3.8. Test Setup Photos of the EUT 10 Report No : CHTEW1912019601 Page 3 of 10 Issued: 2019-12-26 Report Template Version: H00 (2016-08) 1. SUMMARY 1.1. Client Information Applicant: Northfield Telecommunications, Inc. d/b/a Advanced Wireless Communications Address: 20809 Kensington Blvd, Lakeville, Minnesota, United States 55044 Manufacturer: ABELL INDUSTRIES CO.,LTD. Address: 2/F, Bldg. 14, ZhongXing Industrial City, NanShan Dist. ShenZhen, P.R. China 1.2. Report version information Revision No. Date of issue Description N/A 2019-12-26 Original Report No : CHTEW1912019601 Page 4 of 10 Issued: 2019-12-26 Report Template Version: H00 (2016-08) 1.3. Product Description Name of EUT: Digital Mobile Radio Trade mark: AWC Model/Type reference: AWR-DM7700 Listed model(s): - Power supply: DC 13.8V Battery information: - Charger information: - Adapter information: - Hardware version: SV4 Software version: V1.01.01 RF Specification Support Frequency Range: 400MHz~470MHz Permitted frequency range: * 1 400MHz~406MHz, 406.1MHz~470MHz Rated Output Power: High Power: 50W Mid Power: 25W Low Power: 5W Modulation Type: Analog: FM Digital : 4FSK Supported Digital Protocol: * 2 DMR Channel Separation: Analog: 12.5kHz Digital : 12.5kHz Emission Designator: * 3 Analog: 11K0F3E Digital: 7K60FXW, 7K60FXD Support data rate: 9.6kbps Antenna Type: External Antenna Report No : CHTEW1912019601 Page 5 of 10 Issued: 2019-12-26 Report Template Version: H00 (2016-08) 1.4. Test frequency list Frequency Bands (MHz) Test Frequency (MHz) 400MHz ~ 406MHz CH L 400.0125 CH M1 405.9875 406.1MHz ~470MHz CH M2 406.1125 CH M3 438.0125 CH H 469.9875 1.5. EUT operation mode Test mode Transmitting Analog 12.5kHz TX1 √ √ √: is operation mode. 1.6. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ○ Power Cable Length (m) : / Shield : Unshielded Detachable : Undetachable ○ Multimeter Manufacturer : / Model No. : / 1.7. Modifications No modifications were implemented to meet testing criteria. Report No : CHTEW1912019601 Page 6 of 10 Issued: 2019-12-26 Report Template Version: H00 (2016-08) 2. T E S T E N V I R O N M E N T 2.1. Address of the test laboratory 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Phone: 86-755-26748019 Fax: 86-755-26748089 The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 (2009) and CISPR Publication 22. 2.2. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 950-1050mbar 2.3. Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for al…

Text truncated - open the document above for the full version.

Page: 1 of 46 TEST REPORT Report No. ....................................... : CHTEW19120196 Report verification : Project No. ................................. : SHT1911026501EW FCC ID ............................................. : Q9SAWR-DM7700 Applicant’s name ........................... : Northfield Telecommunications, Inc. d/b/a Advanced Wireless Communications Address ............................................ : 20809 Kensington Blvd, Lakeville, Minnesota, United States 55044 Manufacturer.....................................: ABELL INDUSTRIES CO.,LTD. Address.............................................: 2/F, Bldg. 14, ZhongXing Industrial City, NanShan Dist. ShenZhen, P.R. China Test item description ..................... : Digital Mobile Radio Trade Mark ....................................... : AWC Model/Type reference ...................... : AWR-DM7700 Listed Model(s) ................................. : - Standard .......................................... : FCC CFR Title 47 Part 2 FCC CFR Title 47 Part 90 Date of receipt of test sample.........: Nov.29, 2019 Date of testing.............................: Nov.29, 2019- Dec.25, 2019 Date of issue...............................: Dec.26, 2019 Result ................. ........................: PASS Compiled by ( position+printed name+signature) . : File administrators Echo Wei Supervised by ( position+printed name+signature) . : Project Engineer Gaosheng Pan Approved by ( position+printed name+signature) . : RF Manager Hans Hu Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................ : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW19120196 Page: 2 of 46 Issued: 2019-12-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) Contents 1 T E S T S T A N D A R D S A N D RE P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report revised information 3 2 T E S T D E S C R I P T I O N 4 3 S U M M A R Y 5 3.1 Client Information 5 3.2 Product Description 5 3.3 Test frequency list 6 3.4 Operation mode 7 3.5 EUT configuration 8 4 T E S T E N V I R O N M E N T 9 4.1 Address of the test laboratory 9 4.2 Test Facility 9 4.3 Environmental conditions 10 4.4 Statement of the measurement uncertainty 10 4.5 Equipments Used during the Test 11 5 T E S T C O N D I T I O N S A N D R E S U L T S 13 5.1 Conducted Carrier Output Power 13 5.2 99% Occupied Bandwidth & 26dB Bandwidth 14 5.3 Emission Mask 16 5.4 Modulation Limit 18 5.5 Audio Frequency Response 19 5.6 Frequency stability VS Temperature 21 5.7 Frequency stability VS Voltage 22 5.8 Transmitter Frequency Behavior 23 5.9 Transmit Conducted Spurious Emission 25 5.10 Transmitter Radiated Spurious Emission 26 6 T E S T S E T U P P H O T O S O F T H E E U T 39 7 E X T E R N A L A N D I N T E R N AL P H O T O S O F T H E E U T 41 8 A P P E N D I X R E P O R T 46 Report No.: CHTEW19120196 Page: 3 of 46 Issued: 2019-12-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) 1 TEST STANDARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: FCC Rules Part 2: Frequency allocations and radio treaty matters; General rules and regulations FCC Rules Part 90: Private land mobile radio services. ANSI C63.26-2015: American National Standard for Compliance Testing of Transmitters Used in Licensed Radio Services ANSI/TIA-603-E(2016): Land Mobile FM or PM Communications Equipment and Performance Standards FCC Part 15 Subpart B: Unintentional Radiators. ANSI C63.4-2014: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz 1.2. Report revised information Revised No. Date of issued Description N/A 2019-12-26 Original Report No.: CHTEW19120196 Page: 4 of 46 Issued: 2019-12-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) 2 TEST DESCRIPTION Test Item Section in CFR 47 Result Test Engineer Conducted Carrier Output Power Part 90.205 Part 2.1046(a) Pass Linshuang Chen 99% Occupied Bandwidth & 26dB bandwidth Part 90.209 & 210 Part 2.1049 Pass Linshuang Chen Emission Mask Part 90.209 & 210 Part 2.1049 Pass Linshuang Chen Modulation Limit Part 2.1047(b) Pass Linshuang Chen Audio Frequency Response Part 2.1047(a) Pass Linshuang Chen Frequency Stability VS Temperature Part 90.213 Part 2.1055 Pass Linshuang Chen Frequency Stability VS Voltage Part 90.213 Part 2.1055 Pass Linshuang Chen Transient Frequency Behavior Part 90.214 Pass Linshuang Chen Transmit Conducted Spurious Emission Part 90.210 Part 2.1051 Pass Linshuang Chen Transmit Radiated Spurious Emission Part 90.210 Part 2.1053 Pass Linshuang Chen Report No.: CHTEW19120196 Page: 5 of 46 Issued: 2019-12-26 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V01 (2018-01) 3 SUMMARY 3.1 Client Information Applicant: Northfield Telecommunications, Inc. d/b/a Advanced Wireless Communications Address: 20809 Kensington Blvd, Lakeville, Minnesota, United States 55044 Manufacturer: ABELL INDUSTRIES CO.,LTD. Address: 2/F, Bldg. 14, ZhongXing Industrial City, NanShan Dist. ShenZhen, P.R. China 3.2 Product Description Name of EUT: Digital Mobile Radio Trade…

Text truncated - open the document above for the full version.

Project No.:SHT1911026501EW Appendix A:Maximum Transmitter Power Operation Mode Modulation Type Test Channel Measured Power(dBm) Measured Power(W) Rated Power(W) Percentage (%) Limit (%)Result TX-DNH4FSK CH L 47.657.5450.0015.1±20PASS TX-DNH4FSK CH M1 47.758.8850.0017.8±20PASS TX-DNH4FSK CH M2 47.758.8850.0017.8±20PASS TX-DNH4FSK CH M3 47.556.2350.0012.5±20PASS TX-DNH4FSK CH H 47.556.2350.0012.5±20PASS TX-DNM4FSK CH L 44.326.9225.007.7±20PASS TX-DNM4FSK CH M1 44.528.1825.0012.7±20PASS TX-DNM4FSK CH M2 44.528.1825.0012.7±20PASS TX-DNM4FSK CH M3 44.226.3025.005.2±20PASS TX-DNM4FSK CH H 44.528.1825.0012.7±20PASS TX-DNL4FSK CH L 37.55.625.0012.5±20PASS TX-DNL4FSK CH M1 37.75.895.0017.8±20PASS TX-DNL4FSK CH M2 37.75.895.0017.8±20PASS TX-DNL4FSK CH M3 37.15.135.002.6±20PASS TX-DNL4FSK CH H 37.25.255.005.0±20PASS TX-ANHFM CH L 46.948.7550.00-2.5±20PASS TX-ANHFM CH M1 46.949.4350.00-1.1±20PASS TX-ANHFM CH M2 46.949.2050.00-1.6±20PASS TX-ANHFM CH M3 46.848.3150.00-3.4±20PASS TX-ANHFM CH H 46.847.8650.00-4.3±20PASS TX-ANMFM CH L 43.723.5025.00-6.0±20PASS TX-ANMFM CH M1 43.824.1525.00-3.4±20PASS TX-ANMFM CH M2 43.824.1025.00-3.6±20PASS TX-ANMFM CH M3 43.723.1725.00-7.3±20PASS TX-ANMFM CH H 43.623.0125.00-7.9±20PASS TX-ANLFM CH L 37.05.045.000.7±20PASS TX-ANLFM CH M1 37.15.135.002.6±20PASS TX-ANLFM CH M2 37.05.015.000.2±20PASS TX-ANLFM CH M3 36.84.795.00-4.3±20PASS TX-ANLFM CH H 36.74.685.00-6.5±20PASS Appendix Page:1 to 31 Project No.:SHT1911026501EW Appendix B:Occupied Bandwidth 99%(kHz)26dB(kHz) TX-DNH4FSK CH L 7.1969.380 ≤11.25 PASS TX-DNH4FSK CH M1 7.2569.471 ≤11.25 PASS TX-DNH4FSK CH M2 7.0949.510 ≤11.25 PASS TX-DNH4FSK CH M3 6.9599.341 ≤11.25 PASS TX-DNH4FSK CH H 6.8369.328 ≤11.25 PASS TX-DNL4FSK CH L 7.2429.358 ≤11.25 PASS TX-DNL4FSK CH M1 7.1319.388 ≤11.25 PASS TX-DNL4FSK 7.3009.688 ≤11.25 PASS TX-DNL4FSK CH M3 7.1699.468 ≤11.25 PASS TX-DNL4FSK CH H 6.9889.301 ≤11.25 PASS TX-ANHFM CH L 5.1657.649 ≤11.25 PASS TX-ANHFM CH M1 5.1587.664 ≤11.25 PASS TX-ANHFM CH M2 5.1557.663 ≤11.25 PASS TX-ANHFM CH M3 5.1627.640 ≤11.25 PASS TX-ANHFM CH H 5.1767.665 ≤11.25 PASS TX-ANLFM CH L 5.1667.646 ≤11.25 PASS TX-ANLFM CH M1 5.1567.664 ≤11.25 PASS TX-ANLFM CH M2 5.1597.662 ≤11.25 PASS TX-ANLFM CH M3 5.1677.637 ≤11.25 PASS TX-ANLFM CH H 5.1777.662 ≤11.25 PASS Operation Mode Test Channel Occupied Bandwidth 99% Limit(kHz) Result Modulation Type Appendix Page:2 to 31 Project No.:SHT1911026501EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TX-DNH4FSK CH L TX-DNH4FSK CH M1 TX-DNH4FSK CH M2 TEST PLOT RESULT Appendix Page:3 to 31 Project No.:SHT1911026501EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSK CH M3 TX-DNH4FSK CH H TX-DNL4FSK CH L Appendix Page:4 to 31 Project No.:SHT1911026501EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL4FSK CH M1 TX-DNL4FSK CH M2 TX-DNL4FSK CH M3 Appendix Page:5 to 31 Project No.:SHT1911026501EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL4FSK CH H TX-ANHFM CH L TX-ANHFM CH M1 Appendix Page:6 to 31 Project No.:SHT1911026501EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFM CH M2 TX-ANHFM CH M3 TX-ANHFM CH H Appendix Page:7 to 31 Project No.:SHT1911026501EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANLFM CH L TX-ANLFM CH M1 TX-ANLFM CH M2 Appendix Page:8 to 31 Project No.:SHT1911026501EW Appendix B:Occupied Bandwidth Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANLFM CH M3 TX-ANLFM CH H Appendix Page:9 to 31 Project No.:SHT1911026501EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSK CH L TX-DNH4FSK CH M1 TX-DNH4FSK CH M2 Appendix Page:10 to 31 Project No.:SHT1911026501EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSK CH M3 TX-DNH4FSK CH H TX-DNL4FSK CH L Appendix Page:11 to 31 Project No.:SHT1911026501EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL4FSK CH M1 TX-DNL4FSK CH M2 TX-DNL4FSK CH M3 Appendix Page:12 to 31 Project No.:SHT1911026501EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNL4FSK CH H TX-ANHFM CH L TX-ANHFM CH M1 Appendix Page:13 to 31 Project No.:SHT1911026501EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFM CH M2 TX-ANHFM CH M3 TX-ANHFM CH H Appendix Page:14 to 31 Project No.:SHT1911026501EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANLFM CH L TX-ANLFM CH M1 TX-ANLFM CH M2 Appendix Page:15 to 31 Project No.:SHT1911026501EW Appendix C:Emission Mask Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANLFM CH M3 TX-ANLFM CH H Appendix Page:16 to 31 Project No.:SHT1911026501EW Appendix D:Modulation Limit 300Hz1004Hz1500Hz2500 Hz TX-ANHFM CH M2 -200.6520.2340.3190.4972.5PASS TX-ANHFM CH M2 -150.1570.3570.5130.8252.5PASS TX-ANHFM CH M2 -100.2140.5730.8631.3962.5PASS TX-ANHFM CH M2 -50.3270.9861.3761.5972.5PASS TX-ANHFM CH M2 00.5311.4671.5141.6642.5PASS TX-ANHFM CH M2 50.8351.6061.5531.7342.5PASS TX-ANHFM CH M2 101.1371.6851.5511.7572.5PASS TX-ANHFM CH M2 151.3851.7321.5771.7592.5PASS TX-ANHFM CH M2 201.5431.7911.5851.7672.5PASS Limit (kHz) Result Operation Mode Modulation Type Test Channel Modulation Level (dB) Peak frequency deviation (kHz) Appendix Page:17 to 31 Project No.:SHT1911026501EW Appendix D:Modulation Limit TEST PLOT RESULT 0 0.5 1 1.5 2 2.5 3 -20-15-10-505101520 Modulation Limit for 12.5KHz Limit (kHz) 300Hz 1004Hz 1500Hz 2500 Hz Modulation Level (dB) Peak Deviation Appendix Page:18 to 31 Project No.:SHT1911026501EW Appendix E:Aduio Frequency Response Operation Mode Modulation Type Test Channel Frequency (Hz) Audio Frequency Response (dB) Lower LimitUpper LimitRe…

Text truncated - open the document above for the full version.

Project No.:SHT1911026501EW Appendix I:Spurious Emission On Antenna Port Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSKCHL 30MHz~1GHz TX-DNH4FSKCHL 1GHz~10th Harmonic TX-DNH4FSKCHM1 30MHz~1GHz Appendix Page:25 to 31 Project No.:SHT1911026501EW Appendix I:Spurious Emission On Antenna Port Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSKCHM1 1GHz~10th Harmonic TX-DNH4FSKCHM2 30MHz~1GHz TX-DNH4FSKCHM2 1GHz~10th Harmonic Appendix Page:26 to 31 Project No.:SHT1911026501EW Appendix I:Spurious Emission On Antenna Port Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSKCHM3 30MHz~1GHz TX-DNH4FSKCHM3 1GHz~10th Harmonic TX-DNH4FSKCHH 30MHz~1GHz Appendix Page:27 to 31 Project No.:SHT1911026501EW Appendix I:Spurious Emission On Antenna Port Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-DNH4FSKCHH 1GHz~10th Harmonic TX-ANHFMCHL 30MHz~1GHz TX-ANHFMCHL 1GHz~10th Harmonic Appendix Page:28 to 31 Project No.:SHT1911026501EW Appendix I:Spurious Emission On Antenna Port Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFMCHM1 30MHz~1GHz TX-ANHFMCHM1 1GHz~10th Harmonic TX-ANHFMCHM2 30MHz~1GHz Appendix Page:29 to 31 Project No.:SHT1911026501EW Appendix I:Spurious Emission On Antenna Port Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFMCHM2 1GHz~10th Harmonic TX-ANHFMCHM3 30MHz~1GHz TX-ANHFMCHM3 1GHz~10th Harmonic Appendix Page:30 to 31 Project No.:SHT1911026501EW Appendix I:Spurious Emission On Antenna Port Operation Mode Modulation Type Test Channel TEST PLOT RESULT TX-ANHFMCHH 30MHz~1GHz TX-ANHFMCHH 1GHz~10th Harmonic ----End of Report---- Appendix Page:31 to 31

TEST SETUP PHOTOS OF THE EUT Transmitter Radiated Spurious Emission: Frequency Stability:
