Q9STB208450-470MHz UHF TRANSCEIVER

Version: 1, Issue Date: July 20, 2007 Page 1 of 10 MODEL: TB208USL USER MANUAL CONTENTS Introduction .....................................................................................................................2 Getting Acquainted............................................................................................................2 1. Contents of Pack ...................................................................................... ...........................2 2. Radio View............................................................................................... ...............................2 Safety and Care Instructions ................................................................................ ............................4 1. Safety Precautions.................................................................................... .. ...........................4 2. Caring for this Product ................................................................................ ............................4 3. Caution ....................................................................................................... ............................4 Getting Started .................................................................................. ................. ...........................4 1. Installing/Removing the Battery ...................................................................................4 2. Installing Belt Clip ....................................................................................... ...........................5 3. Installing Earphone.............................................................. ...........................6 Features and Operation.......................................................................... ............................6 1. Turn the unit ON/OFF ................................................................................. ...........................6 2. Volume Adjustment.................................................................................. ...............................6 3. Keypad Lock .............................................................................................. ............................6 4. Reset .......................................................................................................... ...........................7 5. Talk to another Transceiver ................................................................. .........................7 6. Select a Channel or CTCSS/DCS .. ........................................................ ...........................7 Auxiliary Functions................................................................................ ...........................8 Troubleshooting .................................................................................................... ...........................8 Specifications ....................................................................................................... ............................9 About AWC............................................................................................................ ............................9 Appendix............................................................................................................ ............................10 Version: 1, Issue Date: July 20, 2007 Page 2 of 10 INTRODUCTION Thank you for selecting TB208 as your product of choice. This product is a portable, easy-to-use two-way radio transceiver that you can use to contact your family and friends at shopping malls, amusement parks, sporting events, beaches, forests and so on. You can also use it as a vital communications tool in a neighborhood watch. The transceiver has Max 16 and CTCSS (Continuous Tone Coded Squelch System) or DCS codes. CTCSS has 38 channels and DCS has 83 codes. If someone else is using the same channel as you, you can select another channel or use the CTCSS feature. Talk with another person if you are both tuned to the same channel and/or CTCSS code. Please note that the use of this item is subject to applicable regulations of the country where used. GETTING ACQUAINTED 1. CONTENTS OF PACK 1. Transceiver 2. Earphone 3. Desktop charger 4. 4.2V/1050mA Li-on Battery pack. 5. Power adapter 2. TRANSCEIVER RADIO VIEW Drawing of Earphone Drawing of Power adaptor Drawing of Batt. TOP View of Radio unit 1 2 6 4 7 5 3 Version: 1, Issue Date: July 20, 2007 Page 3 of 10 O Front View: 1. Antenna build-in Used to transmit/receive signals 2. LED indicator Following table indicates LED indication and corresponding radio status Radio status LED indication (normal voltage) LED indication (Low voltage) Transmitting Red LED Receiving busy Green LED Receiving standby Green LED slowly flashes (5s:0.1s) Red LED flash (1s:0.1s) 3. PTT (Push to talk) Button Press and hold PTT, radio operates in transmit mode. Release PTT, radio returns to receive mode 4. VOL UP/Power Button Press and hold more than 3 seconds, Turn the unit On /Off While radio power on, press button to increase volume 5. VOL DOWN Button Press button to decrease volume 6. CH UP Button Press to increase channel no. 7. CH DOWN Button Press to decrease channel no. Back View: 1. Battery door battery compartment 2. Battery pack Lithium 4.2V /1050mAH rechargeable battery pack. 3. Belt Clip Used to clip the radio on your belt Top View: 1. Earphone Jack Earphone can be connected for hands-free communication 2. D2.5mm Jack Used for ext. speaker Version: 1, Issue Date: July 20, 2007 Page 4 of 10 SAFETY AND CARE INSTRUCTIONS 1. SAFETY PRECAUTIONS Please observe the following safety precautions when setting up and using this product. • Heat sources – Keep the product away from heat sources such as radiators, stoves, heaters, and other heat-generating products. • Water and moisture – Do not use the product in or near water or in high moisture areas such as a bathroom. Indoor use only. 2. CARING FOR THIS PRO…

Text truncated - open the document above for the full version.

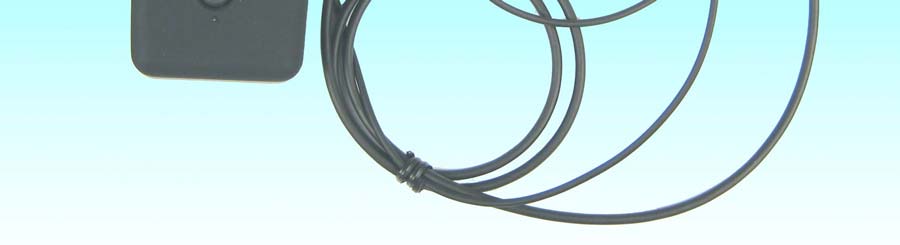

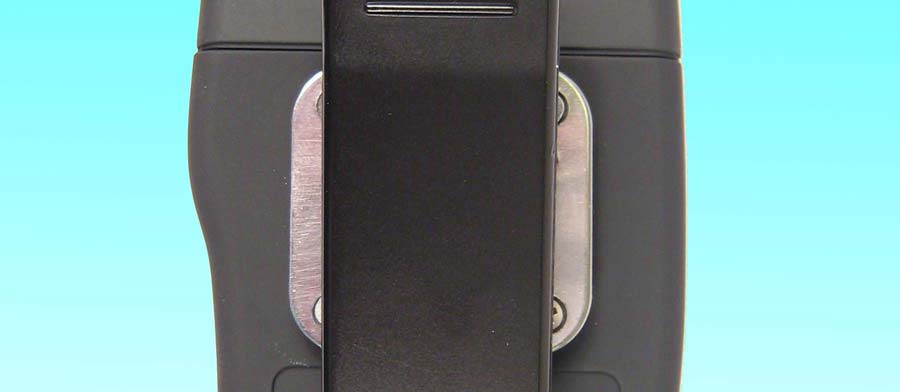

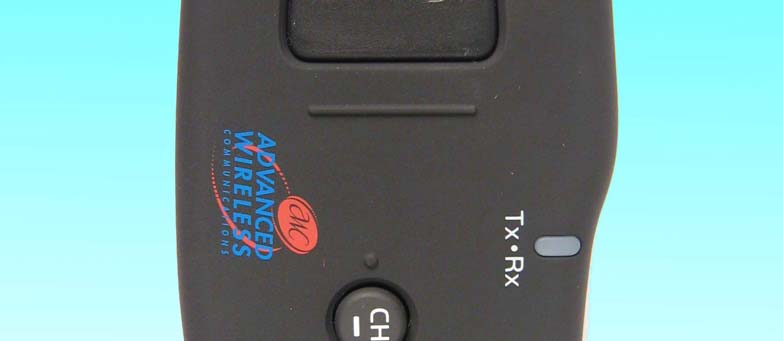

APPLICANT: ADVANCED WIRELESS COMMUNICATIONS FCC ID: Q9STB208 EXTERNAL PHOTOS FRONT VIEW FRONT AND HEADSET REAR VIEW CHARGER – FRONT VIEW CHARGER – REAR VIEW

TB208 Li Danna 03-SEP-2007 081L002044-015 Rating label for unit Serial no. form: 0 7 G A 0001 3rd digits letter of years G=2007, H=2008, I=2009, J=2010 4th digits letter is Radio series 5-8th digits of serial no. (Start from 0001) 1st &2nd digit Week No. REV: 1 1 OF 1 35.6mm 32.0mm R2mm TB208 Rating label Scale 1:1 TB208 Rating label Scale 2:1 Color: Logo use multicolor printing,Text use Black printing. Size: 35.8x35xR2mm Material: 50# Polyester film silver with PP coating Recycle material. AWC Logo Pantone 193C ADVANCED... Logo Pantone 647C Frequency:450-470MHz Made In China 800.475.5852 www.advancedwireless.com MODEL: I-RAD FCC ID: Q9STB208 IC: 4651A-TB208 This device complies with part 15 of the FCC rules.Operation is subject to the condition that this device does not cause harmful interference. Frequency:450-470MHz Made In China 800.475.5852 www.advancedwireless.com MODEL: I-RAD FCC ID: Q9STB208 IC: 4651A-TB208 This device complies with part 15 of the FCC rules.Operation is subject to the condition that this device does not cause harmful interference.

ADVANCED WIRELESS COMMUNICATIONS FCC ID: Q9STB208 INTERNAL PHOTOS MAIN UNIT – TOP VIEW MAIN UNIT – BOTTOM VIEW MAIN UNIT – BOTTOM VIEW – SHIELD REMOVED CHARGER – BOTTOM VIEW CHARGER – TOP VIEW

ReferenceTypeFunction U11IL34119DAudio power amplifier U12XC61CN2702MRReset IC for MAIN MCU U13AK2346AF&CTCSS Amplifier U14AT24C16ANEEPROM U15EM78P567AQMAIN MCU U16XC6204B292MR2.8V Regulator U17XC6204B292MR2.8V Regulator U19W588A020-7652HCHANNEL REPORTER processer U40NJM324Voperation amplifier U101TL431IDBVRRegulator n. U102S324operation amplifier U201TL431IDBVRRegulator n. U202S324operation amplifier U301XC221A1100MRAUTO RF POWER CONTROL AMPLIFIER U302BA4116FVIF AMPLIFIER & DEMODULATOR U303KB8825PLL IC Q1PDTC143ZEGeneral SW transistor Q2MMBT3904LT1MIC MUTE CONTROLLER Q3PDTC143ZEAF MUTE CONTROLLER Q4PDTA143ZETX SW Q5PDTA143ZEPOWER ON/OFF CONTROLLER Q6PDTC143ZEGREEN ,RED BI LED CONTROLLER Q7PDTC143ZEGREEN ,RED BI LED CONTROLLER Q8PDTC143ZESPEAKER MUTE CONTROLLER Q9PDTC143ZEGeneral SW transistor Q172SK1824SW FOR Frequence of crystal selection Q18MPS8550SSPEAKER MUTE CONTROLLER Q102MMBT3904LT1General SW transistor Q103MMBT3904LT1General SW transistor Q104MMBT3904LT1General SW transistor Q105MMBT3904LT1General SW transistor Q106MMBT3904LT1General SW transistor Q107MMBT3904LT1General SW transistor TB208USL Function of Devices Page: 1 of 2 ReferenceTypeFunction TB208USL Function of Devices Q1082SB772-PGeneral SW transistor Q202MMBT3904LT1General SW transistor Q203MMBT3904LT1General SW transistor Q204MMBT3904LT1General SW transistor Q205MMBT3904LT1General SW transistor Q206MMBT3904LT1General SW transistor Q207MMBT3904LT1General SW transistor Q2082SB772-PGeneral SW transistor Q301PDTA143ZETX VCO SW Q3023SK318RF Amplifier Q3033SK318MIXER Q304PDTA143ZEPLL DA/NW Q305PDTA143ZERX SW Q3062SC4901YK1ST IF Amplifier Q3072SC4901YKTX RF Amplifier Q3082SC4901YKTX RF Amplifier Q309PDTA143ZERX VCO SW Q3102SC4901YKAmplifier Q3112SC4901YKAmplifier Q314RQA0008AQS#H1TX POWER Amplifier Q315RQA0004PXDQSTX POWER Amplifier Q3162SC5066VCO Q3172SC5066VCO Page: 2 of 2

Company: Advanced Wireless Communications FCC ID: Q9STB208 IC ID: 4651A-TB208 Model(s): I-Rad DUT Type: Body-worn FM UHF PTT Radio Transceiver 450.025 - 469.9875 MHz 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 33 Date(s) of Evaluation September 20, 2007 Test Report Serial No. 091807Q9S-T851-S90U Test Report Revision No. Revision 1.0 Test Report Issue Date October 03, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 SAR TEST REPORT R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E APPLICANT ADVANCED WIRELESS COMMUNICATIONS PRODUCT BODY-WORN FM UHF PTT RADIO TRANSCEIVER MODEL(S) I-Rad IDENTIFIER(S) FCC ID: Q9STB208 IC ID: 4651A-TB208 APPLICATION TYPE New Certfication FCC 47 CFR §2.1093 STANDARD(S) APPLIED Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (01-01) PROCEDURE(S) APPLIED Industry Canada RSS-102 Issue 2 FCC DEVICE CLASSIFICATION Licensed Non-Broadcast Transmitter Worn on Body (TNT) IC DEVICE CLASSIFICATION Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) RF EXPOSURE CATEGORY General Population / Uncontrolled Exposure TEST REPORT SERIAL NO. 091807Q9S-T851-S90U TEST REPORT REVISION NO. Revision 1.0 (Initial Release) TEST REPORT ISSUE DATE October 03, 2007 Testing and Test Report ByTest Report Reviewed By TEST REPORT SIGNATORIES Cheri Frangiadakis Celltech Labs Inc. Jonathan Hughes Celltech Labs Inc. Celltech Compliance Testing and Engineering Lab TEST LAB AND LOCATION 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 Fax: 250-765-7645 TEST LAB CONTACT INFO. [email protected] www.celltechlabs.com TEST LAB ACCREDITATION(S) Certificate No. 2470.01 Company: Advanced Wireless Communications FCC ID: Q9STB208 IC ID: 4651A-TB208 Model(s): I-Rad DUT Type: Body-worn FM UHF PTT Radio Transceiver 450.025 - 469.9875 MHz 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 33 Date(s) of Evaluation September 20, 2007 Test Report Serial No. 091807Q9S-T851-S90U Test Report Revision No. Revision 1.0 Test Report Issue Date October 03, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna B.C. V1X 7R8 Canada Name ADVANCED WIRELESS COMMUNICATIONS Company Information Address 20809 Kensington Blvd. Lakeville MN 55044 United States FCC47 CFR §2.1093 Standard(s) Applied IC Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (Edition 01-01) Procedure(s) Applied IC RSS-102 Issue 2 Device RF Exposure Category Portable General Population / Uncontrolled Exposure FCC Licensed Non-Broadcast Transmitter Worn on Body (TNT) Device Classification(s) IC Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) FCC ID: Q9STB208 IC: 4651A-TB208 Model(s) I-Rad Serial No. 20070730002 (Identical Prototype) Device Identifier(s) Part No. 420855102108 Device Description Body-worn FM UHF PTT Radio Transceiver Modulation Type(s) FM UHF Transmit Frequency Range(s) 450.025 - 469.9875 MHz 0.309 Watts 24.9 dBm 450 MHz ERP 0.275 Watts 24.4 dBm 460 MHz ERP Max. RF Output Power Tested 0.513 Watts 27.1 dBm 470 MHz ERP Antenna Type(s) Tested Internal Battery Type(s) Tested Lithium-ion 3.7 V 1050 mAh P/N: 420855207452 Body-worn Accessories Tested Belt-Clip assembly (contains metal components) P/N: None Audio Accessories Tested Flexible Earloop P/N: 420855207490 Max. SAR Level(s) Evaluated Body 0.824 W/kg 1g50% Duty Cycle ANSI/IEEE Limit1.6 W/kg 1g average Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6 for the General Population / Uncontrolled exposure environment. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 2. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Test Report Approved By Sean JohnstonCelltech Labs Inc. Company: Advanced Wireless Communications FCC ID: Q9STB208 IC ID: 4651A-TB208 Model(s): I-Rad DUT Type: Body-worn FM UHF PTT Radio Transceiver 450.025 - 469.9875 MHz 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 33 Date(s) of Evaluation September 20, 2007 Test Report Serial No. 091807Q9S-T851-S90U Test Report Revision No. Revision 1.0 Test Report Issue Date October 03, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION ________________________________________________________________________________ 4 2.0 SAR MEASUREMENT SYSTEM ___________________________________________________________________ 4 3.0 SAR MEASUREMENT SUMMARY _________________________________________________________________ 5 4.0 DETAILS OF SAR EVALUATION _…

Text truncated - open the document above for the full version.

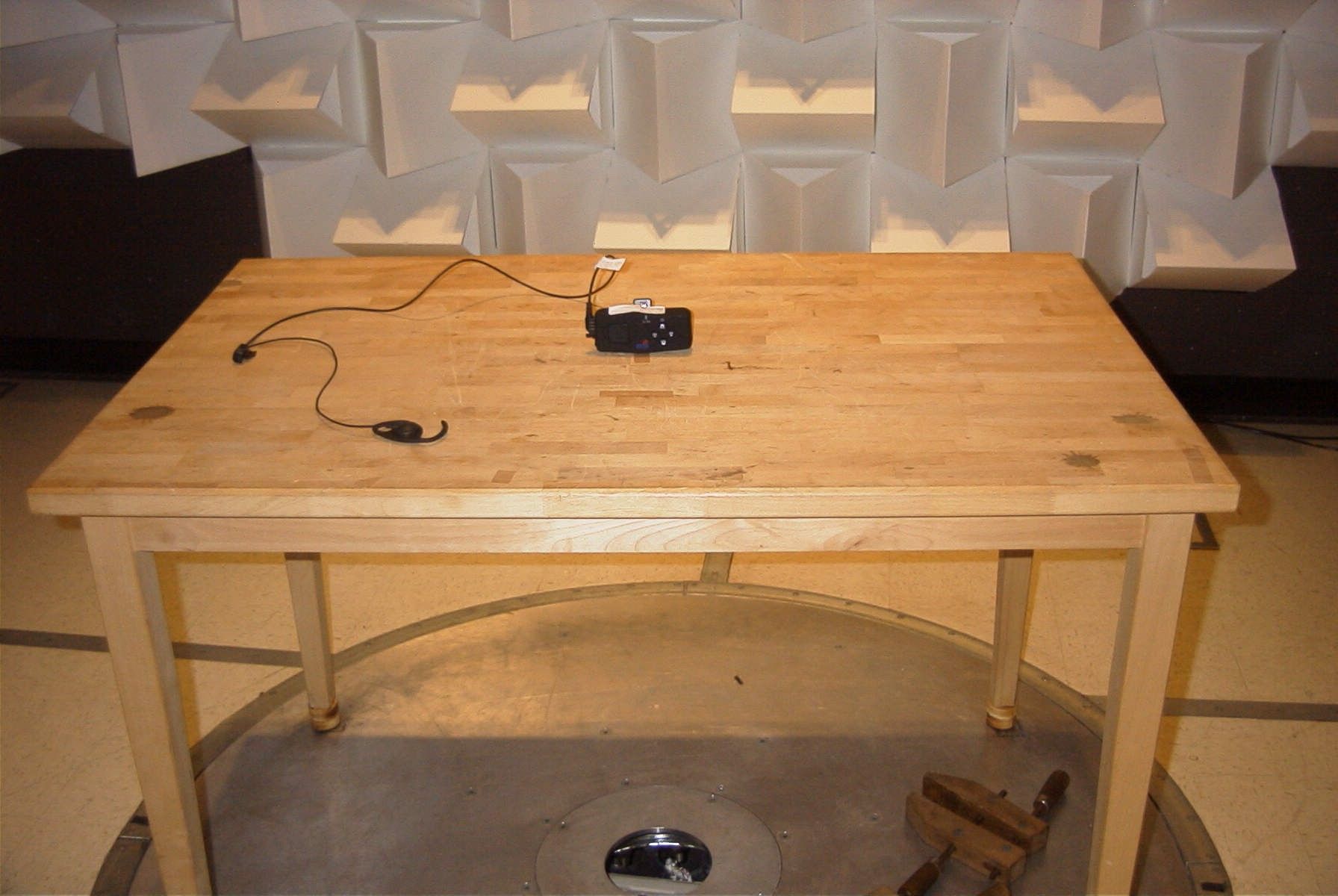

FCC PART 90 TEST REPORT APPLICANT ADVANCED WIRELESS COMMUNICATIONS 20809 KENSINGTON BLVD. LAKEVILLE MINNESOTA 55044 USA FCC ID Q9STB208 MODEL NUMBER TB208 PRODUCT DESCRIPTION FM UHF PTT RADIO TRANSCEIVER WITH FRS DATE SAMPLE RECEIVED 8/7/2007 DATE TESTED 8/22/2007 TESTED BY Richard Block APPROVED BY Mario de Aranzeta TIMCO REPORT NO. 2770AUT7TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: ADVANCED WIRELESS COMMUNICATIONS FCC ID: Q9STB208 Report: A\AdvancedWireless\2770AUT7\2770AUT7TestReport.doc Page 2 of 27 TABLE OF CONTENTS ATTESTATIONS ......................................................................................................... 3 GENERAL INFORMATION .......................................................................................... 4 TEST EQUIPMENT LIST............................................................................................. 5 TEST PROCEDURES ................................................................................................. 6 RF POWER OUTPUT .................................................................................................. 7 OTHER MODULATION CHARACTERISTICS ............................................................... 8 MODULATION CHARACTERISTICS............................................................................ 9 VOICE MODULATED COMMUNICATION EQUIPMENT ............................................. 11 AUDIO INPUT VERSUS MODULATION ..................................................................... 12 OCCUPIED BANDWIDTH ......................................................................................... 14 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED)........................... 17 FIELD STRENGTH OF SPURIOUS EMISSIONS......................................................... 18 FIELD STRENGTH OF SPURIOUS EMISSIONS - RX ................................................. 20 FREQUENCY STABILITY.......................................................................................... 22 TEST SETUP PHOTOGRAPH .................................................................................... 27 Applicant: ADVANCED WIRELESS COMMUNICATIONS FCC ID: Q9STB208 Report: A\AdvancedWireless\2770AUT7\2770AUT7TestReport.doc Page 3 of 27 ATTESTATIONS The device under test does fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. Certificate # 0955-01 All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Mario de Aranzeta Signature: <Mario de Aranzeta> Function: Engineer/Lab Supervisor Date: 8/22/2007 Tested by: Richard Block Signature: on file Function: Test Technician Applicant: ADVANCED WIRELESS COMMUNICATIONS FCC ID: Q9STB208 Report: A\AdvancedWireless\2770AUT7\2770AUT7TestReport.doc Page 4 of 27 GENERAL INFORMATION DUT Specification The test results relate only to the items tested. DUT Description FM UHF PTT RADIO RECEIVER FCC ID Q9STB208 Model Number TB208 Operating Frequency 450.0250 – 469.9875 MHz No. of Channels 22 Type of Emission 11K2F3E, 16K0F3E Modulation FM 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Prototype Pre-Production Test Item Production Fixed Mobile Type of Equipment Portable Antenna Internal Antenna Connector N/A Test Condition: The DUT was tested in the laboratory in an environment with normal temperature and humidity. The temperature was 26ºC with a relative humidity of 50%. Modifications: None Test Exercise: The DUT was placed in continuous transmit mode of operation. Applicable Standards: ANSI/TIA 603-C:2004, FCC CFR 47 Part 90, 95A, 95B, ANSI C63.4:2003, IC RSS-119 No. of Channels 22 Applicant: ADVANCED WIRELESS COMMUNICATIONS FCC ID: Q9STB208 Report: A\AdvancedWireless\2770AUT7\2770AUT7TestReport.doc Page 5 of 27 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/05 12/7/07 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Analyzer Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 CAL 12/8/05 12/8/07 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/05 12/8/07 3-Meter Semi- Anechoic Chamber Panashield N/A N/A LISTED 5/11/07 5/10/10 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 6/20/07 6/20/09 Antenna: Log-Periodic Electro- Metrics LPA-25 1122 CAL 12/1/06 12/1/08 LISN Electro- Metrics ANS-25/2 2604 CAL 10/5/06 10/5/08 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 3/15/07 3/15/09 Applicant: ADVANCED WIRELESS COMMUNICATIONS FCC ID: Q9STB208 Report: A\AdvancedWireless\2770AUT7\2770AUT7TestReport.doc Page 6 of 27 TEST PROCEDURES Power Line Conducted Interference: The procedure used was ANSI/TIA 603-C:2004 using a 50uH LISN. Both lines were observed with the DUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: The RF power output was measure…

Text truncated - open the document above for the full version.
