QAM002915MHz Short Range Device

moljbqeb^k=áåÅ= 8601 Dunwoody Place, Suite 108, Atlanta, GA 30350 ACTIVboard 78 User Guide USA Edition TP 1513 Issue 1 All rights reserved All information contained in this document is subject to change without notice. Any use of the contents of this User Manual other than for the purpose intended requires express written permission of Promethean Inc. All trademarks noted with the ™ mark are the properties of their respective companies. NOTE: All utility and driver software provided to operate the ACTIVboard system is the property of Promethean. Use of this software is granted for the purpose of installation, set up and operation of the ACTIVboard system and its standard feature set outlined in this guide. Promethean does not encourage or authorize any other use. Additional application software is provided from time to time as a service to our customers. This software is licensed to the end user by the supplier. Use, possession and upgrades are the responsibility of that supplier. Registered owners of Promethean product should contact those suppliers directly for support. © Copyright Promethean Inc 2004 ACTIVboard User Guide iii Table of Contents Introduction .....................................................................................................1 About this guide .................................................................................................... 1 Getting Help .......................................................................................................... 1 User Group Forum............................................................................................ 1 Online Help....................................................................................................... 1 Support and Information ................................................................................... 2 Health and Safety Precautions .......................................................................3 Hazardous Material ............................................................................................... 3 Power Supply ........................................................................................................ 3 Environmental Considerations ........................................................................3 Mains Electrical Supply...................................................................................3 Compliance.....................................................................................................4 Installation ......................................................................................................5 Safety Notices ....................................................................................................... 5 Installation Options................................................................................................ 5 Wall Mounting................................................................................................... 5 Portable Stand.................................................................................................. 7 Software Installation.............................................................................................. 7 Electrical Connections........................................................................................... 7 Extending the Interface Cable............................................................................... 7 Serial ................................................................................................................ 7 USB .................................................................................................................. 7 Operation ........................................................................................................8 Safety Notices ....................................................................................................... 8 Projector................................................................................................................ 9 Recommendations............................................................................................ 9 Preparation ....................................................................................................... 9 Framing the Screen Image ............................................................................... 9 Additional LCD Projector Adjustment ............................................................... 9 ACTIVpen............................................................................................................ 10 Changing the ACTIVpen tip............................................................................ 10 Calibrating the ACTIVboard ..........................................................................11 Maintenance & Cleaning...............................................................................12 ACTIVboard User Guide iv ACTIVboard User Guide 1 Introduction About this guide This user guide will help you install, set up and operate your ACTIVboard system. Should you require information about installing your software or making electrical connections, refer to the Quick Start Guide. Other documentation and text files relating to your system are included on your installation CD in PDF format. In order to view this documentation you must install the Adobe Acrobat reader, which is also available on the installation CD. Getting Help User Group Forum http://www.activboard.com/forum.htm The User Group forum allows you to post discussion topics and share information surrounding the use of the ACTIVboard system with other users. You will be asked to register your details to become a member when you visit the forum. You are encouraged to join and visit the forum regularly for news about updates to the ACTIV range of products, software and resources. Online Help The software applications include complete documentation in an accessible online help system. Thi…

Text truncated - open the document above for the full version.

1 26 th May 2004 Agent Authorisation Letter BABT 34 Molesey Road Walton on Thames Surrey KT12 4RQ Dear Sir or Madam: We, TDS Promethean Ltd, Blackburn UK, hereby authorize TÜV Product Service Limited, Segensworth Road, Fareham, Hampshire, United Kingdom, PO15 5RH, to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. This authorization expires on 26 th May 2005. Sincerely Andrew Oakley, Engineering Manager, TDS Promethean Ltd. 26 th May 2004 Telephone Number +44 (0)1254 676921 Fax Number +44 (0)1254 673902 TDS Promethean Ltd TDS House, Lower Philips Rd Blackburn, Lancashire. BB1 5TH Tel +44(0)1254 676921 Fax +44(0)1254673902 TDS Promethean Ltd Registered Office: TDS House, Lower Philips Rd, Blackburn, Lancashire, BB1 5 TH UK Registered No. 1308938

1 Confidentiality Request Letter BABT 34 Molesey Road Walton on Thames Surrey KT12 4RQ Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Technical Description, Bill of Materials, Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Andrew Oakley, Engineering Manager, TDS Promethean Ltd. 26 th May 2004 Telephone Number +44 (0)1254 676921 Fax Number +44 (0)1254 673902 TDS Promethean Ltd TDS House, Lower Philips Rd Blackburn, Lancashire. BB1 5TH Tel +44(0)1254 676921 Fax +44(0)1254673902 TDS Promethean Ltd Registered Office: TDS House, Lower Philips Rd, Blackburn, Lancashire, BB1 5 TH UK Registered No. 1308938

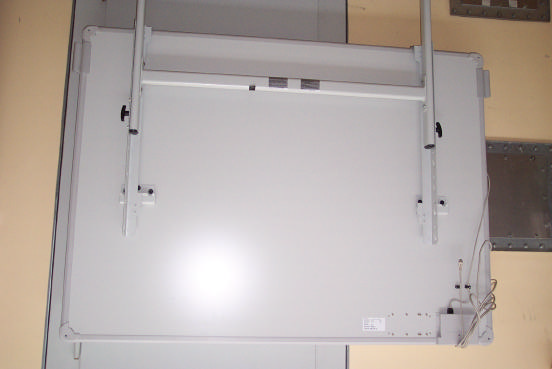

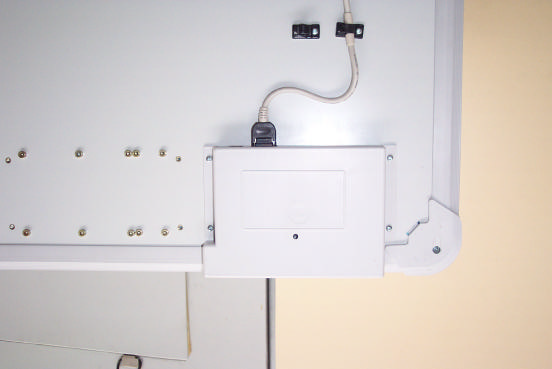

FCC ID QAM002 © Not to be reproduced without the permission of TÜV Product Service Limited. Page 1 of 3 PHOTOGRAPHS OF EQUIPMENT FOR PROMETHEAN ACTIVBOARD PHOTOGRAPHS OF EQUIPMENT ActivBoard – Front View FCC ID QAM002 © Not to be reproduced without the permission of TÜV Product Service Limited. Page 2 of 3 PHOTOGRAPHS OF EQUIPMENT ActivBoard – Rear View FCC ID QAM002 © Not to be reproduced without the permission of TÜV Product Service Limited. Page 3 of 3 PHOTOGRAPHS OF EQUIPMENT ActivBoard – External View Radio Section

FCC ID QAM002 PHOTOGRAPHS OF EQUIPMENT FOR PROMETHEAN ACTIVBOARD PHOTOGRAPHS OF EQUIPMENT ActivBoard – External View – PCB Cover © Not to be reproduced without the permission of TÜV Product Service Limited. Page 1 of 9 FCC ID QAM002 PHOTOGRAPHS OF EQUIPMENT SRD Radio IC Antenna Tracks ActivBoard PCB – Front Internal View © Not to be reproduced without the permission of TÜV Product Service Limited. Page 2 of 9 FCC ID QAM002 PHOTOGRAPHS OF EQUIPMENT ActivBoard PCB – Rear Internal View © Not to be reproduced without the permission of TÜV Product Service Limited. Page 3 of 9 FCC ID QAM002 PHOTOGRAPHS OF EQUIPMENT SRD Radio IC ActivBoard PCB – SRD Radio Module © Not to be reproduced without the permission of TÜV Product Service Limited. Page 4 of 9 FCC ID QAM002 PHOTOGRAPHS OF EQUIPMENT Antenna Track Antenna Track SRD Radio IC ActivBoard PCB – SRD Antenna Locations © Not to be reproduced without the permission of TÜV Product Service Limited. Page 5 of 9 FCC ID QAM002 PHOTOGRAPHS OF EQUIPMENT ActivBoard PCB – Close up Vie w 1 © Not to be reproduced without the permission of TÜV Product Service Limited. Page 6 of 9 FCC ID QAM002 PHOTOGRAPHS OF EQUIPMENT ActivBoard PCB – Close up Vie w 2 © Not to be reproduced without the permission of TÜV Product Service Limited. Page 7 of 9 FCC ID QAM002 PHOTOGRAPHS OF EQUIPMENT ActivBoard PCB – Close up Vie w 3 © Not to be reproduced without the permission of TÜV Product Service Limited. Page 8 of 9 FCC ID QAM002 © Not to be reproduced without the permission of TÜV Product Service Limited. Page 9 of 9 PHOTOGRAPHS OF EQUIPMENT ActivBoard PCB – Close up Vie w 4

REPORT ON Limited FCC CFR 47: Parts 15 C Testing in support of an Application for Grant of Equipment Authorisation of a Promethean ActivBoard FCC ID: QAM002 Report No OR612169/02 Issue 2 July 2004 BABT, Segensworth Road, Fareham, Hampshire, PO15 5RH, United Kingdom Tel: +44 (0)1329 443300 Website: www.tuvps.co.uk Report No OR612169/02 Issue 2Page 1 of 37 REPORT ONLimited FCC CFR 47: Part 15 Testing in support of an Application for Grant of Equipment Authorisation of a Promethean ActivBoard FCC ID: QAM002 Report No OR612169/02 Issue 2 July 2004 PREPARED FORPromethean Limited TDS House Lower Phillips Road Blackburn BB1 5TH PREPARED BY J Holcombe EMC Engineer APPROVED BY J J Adams UKAS Signatory DATED 28 th July 2004 DISTRIBUTIONPrometheanCopy 1 BABTCopy 2 Copy No ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47: Parts 15 B & C. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineers; T GuyJ HolcombeG Lawler FCC ID: QAM002 Report No OR612169/02 Issue 2Page 2 of 37 CONTENTS SectionPage No 1REPORT SUMMARY 1.1Status..................................................................................................................................4 1.2Introduction and Declaration of Build Status ......................................................................6 1.3Brief Summary of Results...................................................................................................8 1.4Opinions and Interpretations ..............................................................................................9 1.5Product information............................................................................................................10 1.6Test Conditions (Configuration)..........................................................................................10 1.7Deviations from the Standard.............................................................................................10 1.8Modification Record............................................................................................................10 2TEST DETAILS 2.1Spurious Radiated Emissions Receive ..............................................................................12 2.2Spurious Radiated Emissions Transmit .............................................................................14 2.3Maximum Carrier Field Strength ........................................................................................17 2.4Spurious Radiated Emissions ............................................................................................18 2.5Spurious Radiated Emissions Transmit Co-located...........................................................22 2.6Power Line Conducted Emissions......................................................................................24 3TEST EQUIPMENT USED 3.1Table of Test Equipment Used ...........................................................................................31 3.2Measurement Uncertainty ..................................................................................................33 4ACCREDITATION, DISCLAIMERS AND COPYRIGHT 4.1Accreditation, Disclaimers And Copyright.................................................................................35 APPENDICES ATitchfield FCC Site Compliance Letter. ............................................................................... 37 FCC ID: QAM002 Report No OR612169/02 Issue 2Page 3 of 37 SECTION 1 REPORT SUMMARY Limited FCC CFR 47: Part 15 Testing in support of an Application for Grant of Equipment Authorisation of a Promethean ActivBoard Report OR612169-02 Issue 2 replaced Report OR612169-02 Issue 1. Issue 2 contains typographical corrections and additional test results. FCC ID: QAM002 Report No OR612169/02 Issue 2Page 4 of 37 1.1STATUS EQUIPMENT UNDER TESTPromethean ActivBoard OBJECTIVETo undertake measurements to determine the Equipment Under Test's (EUT's) compliance with the specification. NAME AND ADDRESS OF CLIENTPromethean Limited TDS House Lower Phillips Road Blackburn BB1 5TH TYPE NUMBERPRM-AB2-02 / TDS-AB2-02 SERIAL NUMBER4043409001 HARDWARE VERSION525206105 DECLARED VARIANTSPRM-AB2B-02 / TDS-AB2B-02 PRM-AB2P-02 / PRM-AB2P-02 PRM-AB2BP-02 / TDS-AB2BP-02 PRM-AB260-02 / TDS-AB260-02 PRM-AB260B-02 / TDS-AB260B-02 PRM-AB260P-02 / TDS-AB260P-02 PRM-AB260BP-02 / TDS-AB260BP-02 PRM-AB248-02 / TDS-AB248-02 PRM-AB248B-02 / TDS-AB248B-02 PRM-AB248P-02 / TDS-AB248P-02 PRM-AB248BP-02 / TDS-AB248BP-02 TEST SPECIFICATION / ISSUE / DATE FCC CFR 47: Part 15 B and C August 2002 NUMBER OF ITEMS TESTEDOne SECURITY CLASSIFICATION OF EUT Commercial In Confidence INCOMING RELEASEDeclaration of Build Status DATE21 st May 2004 DISPOSALHeld pending disposal REFERENCE NUMBERNot Applicable DATENot Applicable ORDER NUMBERPE1515 DATE16 th March 2004 FCC ID: QAM002 Report No OR612169/02 Issue 2Page 5 of 37 START OF TEST5 th March 2004 FINISH OF TEST17 th July 2004 RELATED DOCUMENTSANSI C63.4 2001. Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. FCC Public Notice document (DA 00-705 released 30 March 2000) FCC ID: QAM002 Report No OR612169/02 Issue 2Page 6 of 37 1.2INTRODUCTION The information contained within this report is intended to show limited verification of compliance of the Promethean ActiveBoard SRD Radio Module to the requirements of FCC Specification Parts 15.109, 15.207, 15.209 and 15.249. Testing was carried out in support of an application for Grant of Equipment Authorisation in the name of Promethean Limited. FCC ID: QAM002 Report No OR612169/02 Issue 2Page 7 of 37 1.2.1DECLARATION OF BUILD STATUS ManufacturerTDS Promethean Ltd Country of originUnited Kingdom UK AgentTDS Promethean DescriptionACT…

Text truncated - open the document above for the full version.

FCC ID: QAM002 © Not to be reproduced without the permission of TÜV Product Service Limited.Page 1 of 2 SET UP PHOTOGRAPHS FOR PROMETHEAN ACTIVBOARD Radiated Emissions Set Up Photograph FCC ID: QAM002 © Not to be reproduced without the permission of TÜV Product Service Limited.Page 2 of 2 Conducted Emissions Set Up Photograph
