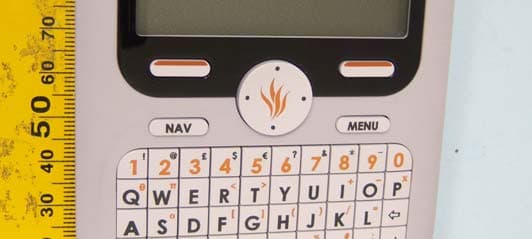

QAM014ActivExpression2 Student Response Unit

Startup Guide ActivExpression 2 Startup Guide ActivExpression 2 2 Copyright Information TP1817EN Issue 1 ©2011 Promethean Limited. All rights reserved. All software, resources, drivers and documentation supplied with the product are copyright Promethean Ltd 2011. Promethean is owner of a number of trademarks in several jurisdictions across the world. The Promethean products documented in this guide include aspects which are protected under their respective patent, copyright,design copyright, registered design and trademark laws. Windows, the Windows logo and Excel are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. All other trademarks remain the property of their respective owners. This guide is distributed with the product. It may only be reproduced for use within the institution in which the product is used. For use outside of your institution, no part of this guide may be reproduced, transmitted, stored in a retrieval system or translated into any other language without the prior permission of Promethean Ltd. Please note that the content in this guide is protected under copyright law. Although every care has been taken in the compilation of this guide, Promethean Ltd accepts no responsibility for errors or omissions, or for damages resulting from the use of information contained within the following pages. Contents Startup Guide ActivExpression 2 3 ActivExpression 2 About this guide 4 Overview 4 What’s included? 5 What do you need? 5 Installation and setup 6 Registration 12 Voting 17 Voting Results 24 More information 25 Compliance 26 4 ActivExpression 2 Startup Guide ActivExpression 2 About this guide This guide describes how to set up and use ActivExpression 2 devices in voting sessions with ActivInspire or Promethean ActivOffice. It takes you through setup, device registration, voting sessions from both the teacher’s and learner’s perspectives, as well as voting results. The guide is in five parts. 1 — what is activexpression 2? This section briefly introduces the product and its key features, as well as what’s included in the kit and what else you may need. 2 — quick start guide This section is for teachers who want to use ActivExpression 2 devices in the classroom. This section: • Provides information on: • How to connect the device batteries on new devices • How to change device batteries • The ActivHub and how to connect it • Why it’s important to regularly check device firmware and where you can get upgrades • How to change the device language to something other than English • Shows how to register mobile devices in ActivInspire and Promethean ActivOffice. • Introduces the different types of voting sessions available: • ExpressPoll for ad-hoc questions. • Prepared questions for structured learning. • Self-Paced questions for tests or individual journeys of discovery. • Briefly describes ways to display voting results. 3 — device guide This section is for teachers and learners who want to familiarise themselves with how to enter and send answers with the ActivExpression 2 device. 4 — more information This section provides links to additional information, help and support available from Promethean. 5 — compliance This section contains important information about the international standards with which ActivExpression 2 devices and ActivHubs conform. Startup Guide ActivExpression 2 5 6 ActivExpression 2 Startup Guide ActivExpression 2 What is ActivExpression 2? ActivExpression 2 is the newest addition to the Promethean family of Learner Response System (LRS) devices. This response device is equally at home in the classroom, boardroom, lecture theatre or workshop. The device includes all the features you appreciate from earlier ActivExpression devices, plus: • A contemporary look and ergonomic feel • A full keypad with European, Cyrillic or Arabic keys • A new menu system that provides: • Cursor keys to navigate menu items • Context specific Hotkeys to select an option, send a response, or return to the previous menu • A 5.5cm x 3.8cm backlit display • A mathematical equation editor • The ability to display both questions and answers on the device • A Multifunction key to switch focus from questions to answers and back, to allow scrolling through longer entries Users can: • Send answers of up to 255 characters, or equations that fill the display. • Express themselves through words, numbers, symbols, Likert scales and more. Self-Paced Learning functionality allows teachers to enable learners to work at their own pace and level. Startup Guide ActivExpression 2 7 ActivExpression 2 allows every student to express themselves in words, phrases, and even natural math equations. With a new keyboard no message is too complex to communicate. Power On/Off Key Press and hold for 1 second to power device on/off Menu Key Press to access Settings Multifunction Key Press to change focus between question and answer, display different views of a question set, or launch an app Backspace Key Press to delete preceding character New Line Key Hotkeys Function depends on circumstances Super-/Subscript Control Key (Equation Editor) Shift Key Press to change case Symbol Key Press and hold to launch symbol table Numeric/Voting Keys Press to enter numbers or answer multiple choice questions FractionControl Key (Equation Editor) Cursor Control Key Press to navigate up, down and sideways You can can switch device backlighting on and off, and control length and intensity of lighting from within ActivInspire. 8 ActivExpression 2 Startup Guide ActivExpression 2 what ’ s included? ActivExpression 2 devices are available in kits of 32 devices. All devices are supplied with three AA batteries inserted, ready to use. Your kit includes: * • ActivExpression 2 devices • Soft hangable carrying case • Security screwdriver • 2.4 GHz ActivHub • ActivHub holder and 1.8m USB extension cable • ActivInspire 1.6 Professional Edition International DVD • Promethean ActivOffice…

Text truncated - open the document above for the full version.

Startup Guide ActivExpression 2 26 Compliance Statements for ActivExpression 2 and ActivHub United States of America These devices comply with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. These devices may not cause harmful interference. 2. These devices must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this equipment not expressly approved by Promethean may void the user’s authority to operate this equipment. For non-intentional radio parts, this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected . • Consult the dealer or an experienced radio/TV technician for help. Canada These devices comply with RSS-210 of Industry Canada and are subject to the following two conditions: 1. These devices may not cause harmful interference. 2. These devices must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this equipment not expressly approved by Promethean may void the user’s authority to operate this equipment. This Class B digital apparatus complies with Canadian ICES-003. Europe Declaration of Conformity Promethean hereby declare that the devices are in compliance with the essential requirements of the RTTE directive 1999/5/EC. Please contact Promethean for a copy of the Declaration of Conformity if required. Radio Interface The radio interface on these products is intended for use with other Promethean radio devices for operation in the following countries: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia, Spain, Sweden, Switzerland, United Kingdom Waste Electrical and Electronic Equipment (WEEE) For more information concerning the correct disposal of these products, please contact your Promethean reseller.

PAR T HOLE CRS.GEN. TOL. MATERIAL PROJECT DRAWN Amendment record FINISH APPROVED SCALE REVSHT OF DIAMETERFLATNESSSTRAIGHTNESS SQUARENESS Ø ANGULARITY TOLERANCES UNLESS OTHERWISE STATED + - 1.00 0.250.250.25 THIRD ANGLE PROJECTION IN ACCORDANCE WITH BS308. DIMENSIONS IN MILLIMETRES. DO NOT SCALE DRAWING. REMOVE ALL SHARP EDGES CHECKED DRG. NO. STATUS + - 0.25 + - 0.25 ALAN PEEL 11/04/11 1:1 ActivExpression 2 Device Compliance Label POLYESTER FILM HTYL75 597 1 597 3001 NOTED 1 of 1 RELEASED R ALAN PEELB LOF THOUSE 11/04/1112/04/11 Activlab Philips Road Blackburn Lancs BB1 5SN Tel 01254 676921 Fax 01254 581574 Promethean Ltd A4 + - 0.25 LABEL SIZE : LENGTH = 53.7mm x WIDTH (MAX) = 45.1mm CUTTING LINE: See line on artwork above (A4 print). BACKGROUND COLOUR: Rev erse print Dark Grey Pantone 433 TEXT AND SYMBOLS: Flood Light Grey Pantone 428 SERIAL / BARCODE PRINT: This is shown for reference only. SERIAL NO: Should start at 0C000000 and increment in hexadecimal to 0CFFFFFF NOTES: LABEL MUST BE ROHS COMPLIANT LABEL TO BE PRODUCED BY A UL APPROVED SUPPLIER IS SUE 01 PRODUCTION RELEASE 11/04/11 Model PRM-AE2-01 TM and ©2011 Promethean Ltd. All rights reserved. Designed in the UK. Made in China F5. www.prometheanworld.com This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device must not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation. FCC ID: QAM014 IC 5459A-014 ActivExpression2 SLIDE COVER TO REMOVE Serial Number: 0CFFFFFF

RADIO FREQUENCY RADIATION EXPOSURE MPE calculation: Test setup1: EUTTRLUH281 Formula: S=EIRP/ 4π R 2 S = Power Density (mW/cm 2 ) EIRP = Radiated power (mW) R = distance for body (cm) Calculation: S =3.24mW/ 4 π 0.51mW/cm 2 S = 0.99127 mW/cm 2 Notes: 1.The unit will be mounted at least0.51cm away from the body. 2.The carrier power EIRP 3.24mWwas theworst case peak level measured. 3.Antenna Gain of 0dBi stated by manufacturer. Limit The limit of Powerdensity for the General Population/ Uncontrolled Exposure is 1 mW/cm 2 . Result The EUT meet the 1 mW/cm 2 limit.

Test Report for Promethean Ltd on ActivExpression2 Document No: TTR-005317-02-W-US1 Total number of pages: 78 TRaC Wireless Test Report : TTR-005317-02-W-US1 Applicant : Promethean Ltd Apparatus : ActivExpression2 Specification(s) : CFR47 Part 15.247, June 2011 FCCID : FCC QAM014 Purpose of Test : Certification Authorised by : : Radio Product Manager Issue Date :14 th July 2011 Authorised Copy Number : PDF TRaC Global Test Report: TTR-005317-02-W-US1 Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Notes Relating to the Assessment 7 1.7 Deviations from Test Standards 7 Section 2: Measurement Uncertainty 8 2.1 Application of Measurement Uncertainty 8 2.2 Measurement Uncertainty Values 9 Section 3: Modifications 11 3.1 Modifications Performed During Assessment 11 Appendix A: Formal Emission Test Results 12 A1 Transmitter Peak Output Power 13 A2 RF Antenna Conducted Spurious Emissions 14 A3 Radiated Electric Field Emissions within the Restricted Bands of 15.205 16 A4 20 dB Bandwidth and Carrier Frequency Separation 19 A5 Hopping frequencies 20 A6 Channel Occupancy 21 A7 Antenna Gain 22 A8 Unintentional Radiated Electric Field Emissions - 15.109 23 Appendix B: Supporting Graphical Data 24 Appendix C: Additional Test and Sample Details 67 C1 Test samples 68 C2 EUT operating mode during testing 69 C3 EUT Configuration Information 70 C4 List of EUT Ports 71 C5 Details of Equipment Used 72 Appendix D: Additional Information 73 Appendix E: Calculation of the duty cycle correction factor 74 Appendix F: Photographs and Figures 75 3 Radio Test Report: TTR-005317-02-W-US1 Section 1: Introduction 1.1 General This report contains an a ssessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: Daniel Winstanley Report author: Daniel Winstanley This report must not be reproduced except in full without prior written permission from TRaC Global. 4 Radio Test Report: TTR-005317-02-W-US1 1.2 Tests Requested By The testing in this report was requested by: Promethean Ltd Promethean House Lower Philips Road Whitebirk Industrial Estate Blackburn BB1 5TH Lancs, England 1.3 Manufacturer Same as above 1.4 Apparatus Assessed The followin g apparatus was assessed between 22 nd June 2011 and 1 st July 2011: ActivExpression2 The above unit consists of an FHSS transmitter operating in the 2400 MHz - 2483.5 MHz ISM band. 5 Radio Test Report: TTR-005317-02-W-US1 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Regulation Measurement standard Result Radiated spurious emissions (Restricted bands) Title 47 of the CFR: Part 15 Subpart (c) 15.247 ANSI C63.10 Pass Conducted spurious emissions (Non-restricted bands) Title 47 of the CFR: Part 15 Subpart (c) 15.247 ANSI C63.10 Pass AC Power conducted emissions Title 47 of the CFR: Part 15 Subpart (c) 15.207 ANSI C63.10 N/A 20dB Bandwidth and Channel Spacing Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1)(i) ANSI C63.10 Pass Conducted Carrier Power Title 47 of the CFR : Part 15 Subpart (c) 15.247(b)(2) ANSI C63.10 Pass Hopping Frequencies Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1) ANSI C63.10 Pass Channel Occupancy Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1)(i) ANSI C63.10 Pass Unintentional Radiated Spurious Emissions Title 47 of the CFR: Part 15 Subpart (b) 15.109 ANSI C63.10 Pass Abbreviations used in the above table: Mod : Modification CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions 6 Radio Test Report: TTR-005317-02-W-US1 1.6 Notes Relating to the Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature : 17 to 23 C Humidity : 45 to 75 % Barometric Pressure : 86 to 106 kPa All dates used in this report are in the format dd/mm/yy. This assessment has been performed in accordance with the requirements of ISO/IEC 17025. 1.7 Deviations from Test Standards There were no deviations from the standards test ed to. 7 Radio Test Report: TTR-005317-02-W-US1 Section 2: Measure…
