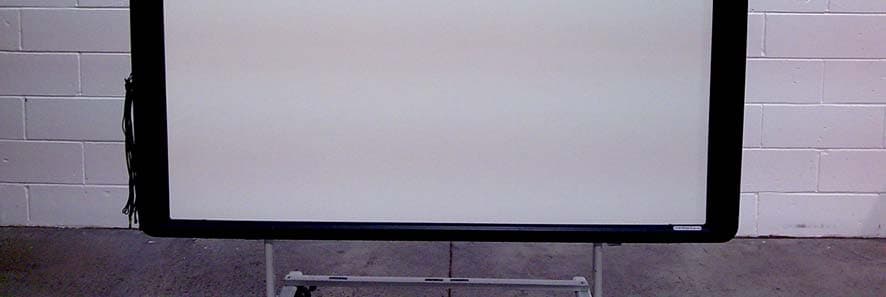

QAM016500 Pro Series Interactive Whiteboard

 e ActivClassroom by PROMETHEAN User Guide ActivBoard 500 PRO TP 1796 Issue 1 © 2010 Promethean Limited. All rights reserved.  is guide may only be reproduced for use within the institution in which the product is used. For use outside of your institution, no part of this guide may be reproduced, transmitted, stored in a retrieval system or translated into any other language without the prior permission of Promethean Limited. Please note that the content in this guide is protected under copyright law. Although every care has been taken in the compilation of this guide, Promethean Limited accepts no responsibility for errors or omissions, or for damages resulting from the use of information contained within the following pages. Welcome Safety information Set Up Calibration Getting started Compliance 4 4 5 5 6 8 4 install onto building structure before use. promethean recommend the activboard pro is installed by an approved ﹙promethean﹚ certified installer. full details of certified installers can be found through your authorised promethean distributor. Welcome Safety information  ank you for purchasing an ActivBoard from Promethean. We recommend using our ActivBoard with our latest software, ActivInspire Professional Edition, which can be downloaded from www.prometheanplanet.com/activinspire Acquire thousands of great lessons, resources and teaching ideas from our free online community, Promethean Planet. While you’re there, enroll in one of our ActivLearning courses. Just create a user account and you will have access to a wealth of teaching resources and courses that will help you achieve your teaching and learning goals. www.prometheanplanet.com/activlearning Part of the Activclassroom, your Activboard along with ActivInspire software, was designed to be an innovative and integrated whole group learning environment which encourages active student participation in lessons. For more information on the ActivClassroom by Promethean and other products available please visit www.prometheanworld.com.  e ActivBoard 500 Pro range is powered by a power supply unit branded Promethean and type DPS-90GB A or 153413.  is is the only approved power supply unit. Do not connect any other power supply unit to the ActivBoard 500 Pro range.  e power supply unit is supplied with a suitable mains input lead specifi c to your country.  e socket outlet shall be installed near the equipment and shall be easily accessible.  e power supply unit may also be supplied with more than one mains input lead, to accommodate countries with more than one type of mains outlet socket. Only use the mains lead which is compatible with your mains outlet socket. Do not attempt to modify the mains lead. If you are unsure of the electrical compatibility of your equipment, please contact Promethean or an authorised Promethean service agent before attempting to connect the power supply unit to the mains supply.  e power supply unit does not contain any user serviceable parts and must not be opened. If you suspect that the power supply unit is faulty, you should contact an authorised Promethean service agent to obtain a replacement. Additional support and information on Promethean products can be found on Promethean’s knowledgebase. www.prometheankb.com Inspect the power supply unit for physical damage to the casing before use. If damage is apparent, take care to avoid contact with any potentially live parts. Disconnect the power supply unit from the mains supply at the wall socket and contact an authorised Promethean service agent for advice.  e ActivBoard does not contain any user serviceable parts. You should not attempt, under any circumstances, to gain access to internal parts of the unit. environmental considerations Operating Temperature Range: 0°C to +40°C (32°F to 104°F) Storage Temperature Range: -20°C to +60°C (-4°F to 140°F) Storage Humidity: 10% to 90% (non-condensing) 5 Set Up DPS-90GB A or 153413 DPS-90GB A or 153413 42-50kg 98-112lb  is section describes how you can check if your ActivBoard needs calibrating. When using an ActivBoard, you may need to re- calibrate if the whiteboard or projector have been moved for any reason. Calibration aligns the tip of the ActivPen to the cursor on the screen. does your activboard need calibrating? With both the ActivBoard and the computer switched on, hold the ActivPen lightly on the ActivBoard, without pushing in the ActivPen nib.  e cursor, on the ActivBoard, should line up with the tip of the ActivPen. If it does not, you need to calibrate the ActivBoard. three ways to calibrate your activboard How you calibrate the ActivBoard depends on the type of ActivBoard. method  Hover the ActivPen over the Calibration light in the top-left corner of the ActivBoard for a few seconds. Follow the on-screen instructions. method  Right-click on the ActivManager icon in the bottom right-hand corner of the display. Select Calibrate. Follow the on-screen instructions. Check that the tip of your ActivPen lines up with the cursor on the ActivBoard. If it does not, try Method 3. method  On your computer: Right-click on the ActivManager icon in the bottom right-hand corner of the screen. Select Calibrate. Once the calibration program starts, move to the board and follow the on-screen instructions. After calibrating, check that the tip of your ActivPen lines up with the cursor on the ActivBoard. If it does not, reset the board by switching it off for thirty seconds.  en switch it on and try calibrating again, or contact technical support. Calibration 6 Getting started www.prometheanplanet.com/activinspire 7 1 34 4 56565656 10 0 1010101010 02 03 04 05 06 070 0808 88 09 00 100 110111111 1211212012 0 130 140 150 5050 00 102 34 56 1002 03 04 05 06 07 08 09 0 100 110 120 130 140 150 2 1 3 1 2 2 1 8 united states of america  is device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1.  is device may not cause harmful interference. 2.  is …

Text truncated - open the document above for the full version.

ActivBoard Model PRM-AB487-01 Label (drawing ref 588 3076) Activboard 500 Pro Series Model Number PRM-AB487-01 FCC ID QAM018 Label Position

RADIO FREQUENCY RADIATION EXPOSURE MPE calculation: Test setup1: EUT222TRLUH281 Formula: S=EIRP/ 4π R 2 S = Power Density (mW/cm 2 ) EIRP = Radiated power (mW) R = distance for body (cm) Calculation: S =3.63mW/ 4 π 0.54mW/cm 2 S = 0.990mW/cm 2 Notes: 1.The unit will be mounted at least0.54cm away from the body. 2.The carrier power EIRP 3.63mWwas theworst case peak level measured. 3.Antenna Gain of 0dBi stated by manufacturer. Limit The limit of Powerdensity for the General Population/ Uncontrolled Exposure is 1 mW/cm 2 . Result The EUT meet the 1 mW/cm 2 limit.

Total number of pages : 78 grepbl.doc Ver: g01/10 "TTR-002152WUS1.doc" TRaC RadioTest Report:TTR-002152WUS1 Applicant:Promethean Ltd Apparatus:ActivBoardModel Number PRM-AB487-01 FCC ID: QAM016 Authorised by: :Radio Product Manager Issue Date:6 th December 2010 Authorised Copy Number: PDF Radio Test Report: TTR-002152WUS1 2 Contents Section 1:Introduction3 1.1General3 1.2Tests Requested By4 1.3Manufacturer4 1.4Apparatus Assessed4 1.6Notes Relating To The Assessment6 1.7Deviations from Test Standards6 Section 2:Measurement Uncertainty7 2.1Measurement Uncertainty Values7 Section 3:Modifications9 3.1Modifications Performed During Assessment9 Appendix A:Formal Emission Test Results10 A1Conducted Fundamental Carrier Power11 A2RF Antenna Conducted Spurious Emissions12 A3Radiated Electric Field Emissions Within The Restricted Band 15.20513 A4Power Line Conducted Emissions24 A520 dB Bandwidth and Channel Spacing26 A6Hopping frequencies27 A7Channel Occupancy28 A8Antenna Gain29 Appendix B:Supporting Graphical Data30 Appendix C:Additional Test and Sample Details62 Appendix D:Additional Information68 Appendix E:Calculation of the duty cycle correction factor69 Appendix F:Photographs and Figures70 Radio Test Report TTR-002152-00WUS1 3 Section 1:Introduction 1.1General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Tests performed by: S Hodgkinson, Radio Test Engineer TRaC Telecoms & Radio Unit 1, Pendle Place Skelmersdale, West Lancs, WN8 9PN, UK Telephone:+44 (0) 1695 556666 Fax:+44 (0) 1695 577077 Email:[email protected] Web site:http://www.tracglobal.com Tests performed by:S Hodgkinson, Radio Test Engineer Report author:S Hodgkinson, Radio Test Engineer This report must not be reproduced except in full without prior written permission from TRaC Telecoms & Radio. Radio Test Report TTR-002152-00WUS1 4 1.2Tests Requested By This testing in this report was requested by : Promethean Ltd Promethean House Lower Philips Road Blackburn Lancashire BB1 5TH 1.3Manufacturer Promethean Ltd Promethean House Lower Philips Road Blackburn Lancashire BB1 5TH 1.4Apparatus Assessed The following apparatus was assessed between: 12 th – 20 th October 2010 The equipment was an ActivBoardModel Number PRM-AB487-01 FCC ID: QAM016 The Promethean,87” ActivBoardModel Number PRM-AB487-01hasthe following features: Stereo Amplifier Stereo Loudspeakers USB Hub USB Port 2.4GHz Radio Link 2 Pen Frequencies 18.0Vdc Power supply unit, model number DPS-90GB - A The cables for the Loudspeakers are pre installed into the outer case of the boards. The Michelangelo wipeboard, testing was carried out with the audio amplifier and USB Hub and USB port exercised, and connected to the PC via a USB lead. When required the testing was carried out with all of the boards connected to the PC via the 2.4GHz radio link. Radio Test Report TTR-002152-00WUS1 5 1.5EXAMINATIONS REQUIRED Full details of test results are contained within Appendix A. The following table summarises the assessment. EQUIPMENT TEST / EXAMINATIONS REQUIRED TEST/EXAMINATIONRULE PARTDETECTORAPPLICABILITY Intentional Emission Frequency:15.247PeakYes Intentional Emission Field Strength:--No Intentional Emission Band Occupancy:15.247(a)1PeakYes Intentional Emission EIRP (mW):15.247(b)1PeakYes Spurious Emissions – Conducted:--No Spurious Emissions – Conducted:15.247PeakYes Spurious Emissions – Radiated <1000MHz:15.209 ,15.247Quasi PeakYes Spurious Emissions – Radiated >1000MHz: 15.247 15.209 Peak average Yes Transmitter Carrier Frequency Separation:15.247(a)(1)PeakYes Transmitter Maximum Peak Power Output Power:15.247(b)(1)PeakYes Transmitter Band Edge Conducted Emissions:15.247(c)PeakYes Transmitter Band Edge Radiated Emission:15.247(c)PeakYes Extrapolation Factor:15.31(f)-Yes Maximum Frequency of Search:15.33-Yes Antenna Arrangements Integral:15.203-Yes Antenna Arrangements External Connector:15.204-Yes Restricted Bands:15.205-Yes Mod: Modification CFR: Code of Federal RegulationsANSI: American National Standards Institution REFE: Radiated Electric Field EmissionsPLCE: Power Line Conducted Emissions Radio Test Report TTR-002152-00WUS1 6 1.6Notes Relating To The Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methodsand susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature: 18 to 20C Humidity : 48 to 55 % All dates used in thisreport are in the format dd/mm/yy. 1.7Deviations from Test Standards There were no deviations from the standards tested to. Radio Test Report TTR-002152-00WUS1 7 Section 2:Measurement Uncertainty 2.1Measurement UncertaintyValues The following page contains the measurement uncertainties for measurements All statements of uncertainty are expanded standard uncertainty using a coverage factor of 1.96 to give a 95% confidence where no required test level exists. [1] Adjacent Channel Power Uncertainty in test result = 1.86dB [2] Carrier Power Uncertainty in test result (Equipment - TRLUH12…

Text truncated - open the document above for the full version.

Radio Test Report TTR-002152-00WUS1 71 Photograph 1Test Setup 72 Photograph 2Test SetupAC powerline
