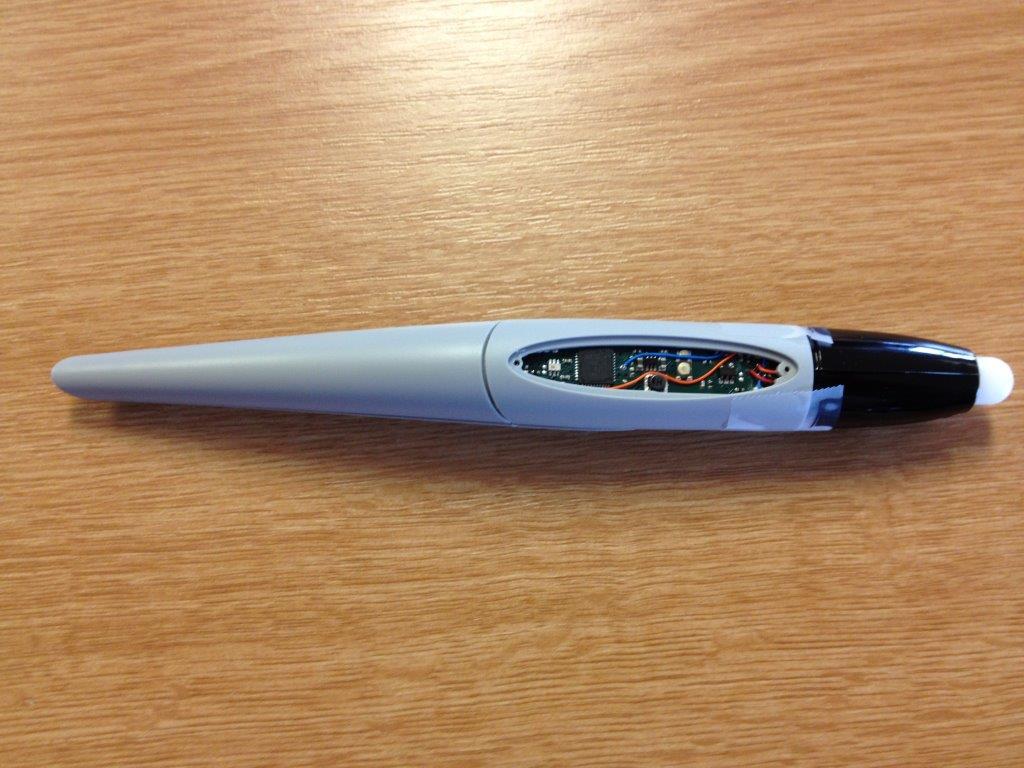

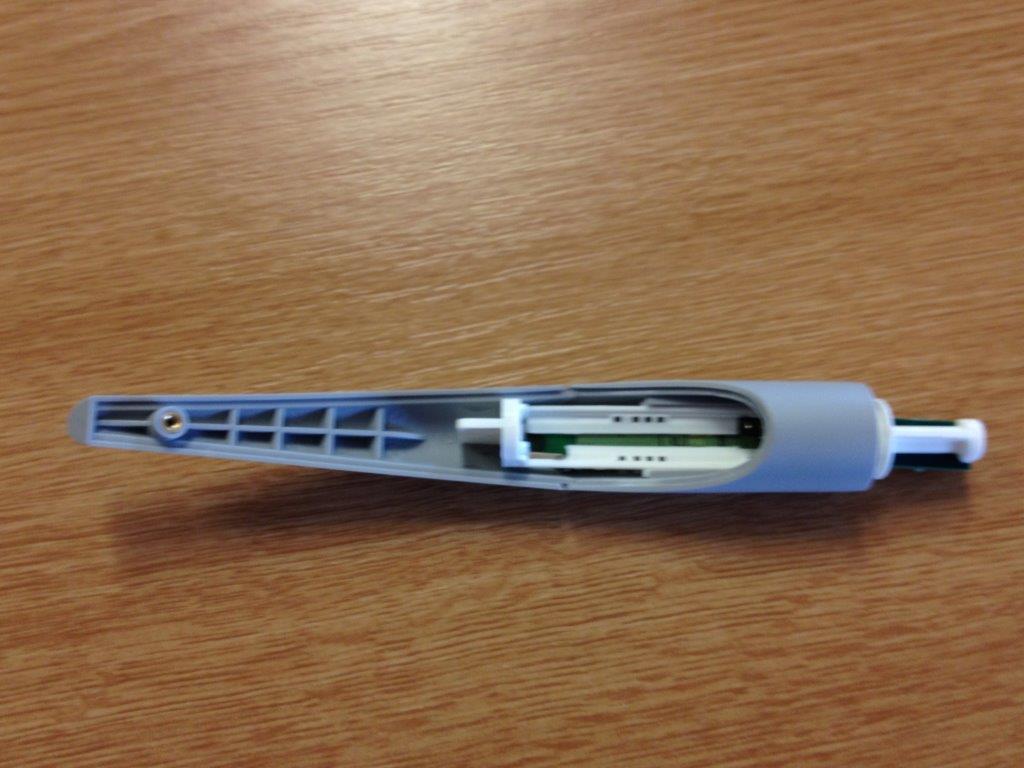

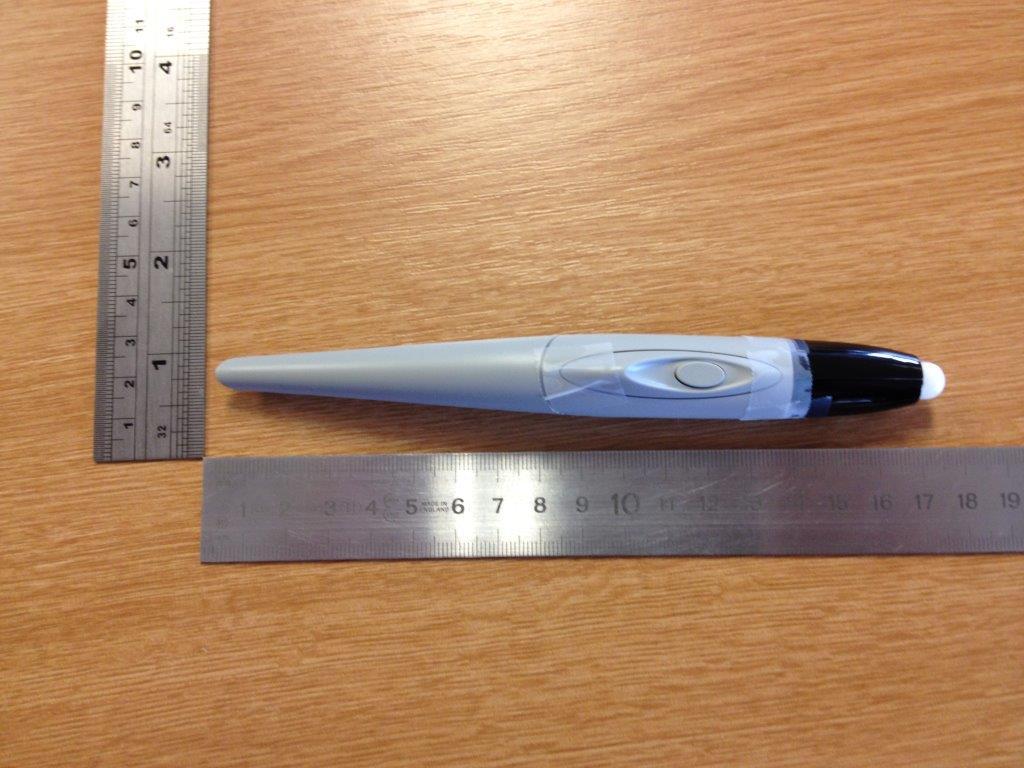

QAM017ActivBoard Pen

User Guide TP-1932-V01 Safety Information 3 Box Contents 3 Getting Started 4 Attaching and Storing the Pen 6 Using With ActivInspire 7 Maintenance 7 Compliance 8 Contents x1 x1 x1 x2 Safety Information Box Contents WARNING: Choke hazard - contains small parts Battery Safety Do not place in a fire. Do not short circuit Replace only with same or equivalent type. Observe local regulations for disposal. Do not heat Do not attempt to charge Do not disassemble Do not swallow A A A Environmental Considerations Temperature:Humidity: Operating0°C to 40°CNon-Condensing10% to 90% Storage-20°C to 60°C For further information and support about the installation and safe use of this product, please contact your local Promethean reseller or visit www.prometheankb.com ActivBoard Pen User Guide 3 Getting Started Before You Start Install the latest ActivDriver from www.prometheanplanet.com. Install the latest version of ActivInspire from www.prometheanplanet.com. Installing the Battery Binding the Digital Pen 1 2 3 4 5 4 ActivBoard Pen User Guide Binding the Digital Pen Getting Started 1 2 3 3 4 5 NOTE: The digital pen can be recognised when it is held near to the board. Do NOT put the pen close to the board when using touch. Pen and Touch can not be used at the same time. ActivBoard Pen User Guide 5 Attaching and Storing the Pen NOTE: When fitting the holder the Promethean logo is to the back. The pen MUST be stored in the supplied holder when not in use to preserve battery life. Locate the pen in the holder as shown. 6 ActivBoard Pen User Guide Using with ActivInspire Maintenance 1 4 5 6 Replacing the Nib 1 2 3 2 3 ActivBoard Pen User Guide 7 Compliance This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this equipment not expressly approved by Promethean may void the user’s authority to operate this equipment. For non-intentional radio parts, this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installations. If this equipment does cause harmful interference to radio or television. Which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. E242827 I.T.E This device complies with RSS-210 of Industry Canada and is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this equipment not expressly approved by Promethean may void the user’s authority to operate this equipment. This Class B digital apparatus complies with Canadian ICES-003. Français Ces équipements sont conformes à la norme CNR-210 d’Industrie Canada. Leur utilisation est subordonnée aux deux conditions suivantes: • Ces appareils ne doivent pas causer d’interférence dommageable. • Ces appareils doivent pouvoir accepter toute interférence reçue, y compris les interférences susceptibles de compromettre le fonctionnement des dispositifs. Toute modification apportée à ce dispositif sans l’autorisation expresse de Promethean pourrait annuler la licence d’utilisation accordée à l’utilisateur. Ce dispositif numérique de la classe B est conforme à la norme NMB-003 du Canada. Declaration of Conformity Promethean hereby declare that the device is in compliance with the essential requirements of the R&TTE directive 1999/5/ EC. Please contact Promethean for a copy of the Declaration of Conformity if required. Radio Interference The Radio interface on this product is intended for use with other Promethean radio devices for operation in the following countries: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovak Republic, Spain, Sweden, Switzerland, United Kingdom. Waste Electrical and Electronic Equipment (WEEE). For more information concerning the correct disposal of this product and its battery, please contact your Promethean reseller. United States of America Canada United Kingdom Model Type: PRM-AS1- 01 ©2014 Promethean Ltd. All Rights Reserved. Products are subject to availability by country. Product Specifications are subject to change without notice. TP-1932-V01 8 ActivBoard Pen User Guide

1 1 2 2 3 3 4 4 5 5 6 6 AA BB CC DD DRAWN CHECKED APPROVED PROJ DRG. NO. TITLE MATERIAL FINISH PROMETHEAN LTD Promethean House Lower Philips Road Blackburn Lancs BB1 5TH www.prometheanworld.com www.prometheanplanet.com STATUS SHEET of REV SCALE DO NOT SCALE DRAWING IF IN DOUBT ASK REMOVE ALL SHARP CORNERS TOLERANCE UOS M. MARTINDALEB. CANNON N/A PICASSO PEN ARTWORK SEE ARTWORK P.008 P 1 PROTOTYPE 11/11/1411/11/14 1:1 1 612 3007 T: +44 (0 ) 1254 290858 F: +44 (0 ) 1254 851874 REVIS IO N HISTORY ECR NoREVDESCRIPTIONDATEAPPROVED 1 NPI-10151FIRST ISSUE 11/11/14 M. Martindale ±0.50 1 01/15 Made in China PRINTING INFORMATION UL LOGO WIDTH = 8.7mm HEIGHT = 11.1mm GREY: PANTONE 428C PROMETHEAN LOGO LENGTH: 26mm HEIGHT: 4mm GREY: PANTONE 428C MANUFACTURING DATE MONTH No. / YEAR FONT: CENTURY GOTHIC 5pt GREY: PANTONE 428C MODEL No. FONT: CENTURY GOTHIC 5pt GREY: PANTONE 428C  VIEWS SHOW PRINTING ON FINISHED ASSEMBLED PEN 612 2001 VIEW SHOWS PRINTING  ON PART 612 2017  VIEW SHOWS PRINTING ON PART 612 2015 2 NO CHANGES 13/11/14 M. Martindale NPI-10151 3 DIMS ADDED 13/11/14 M. Martindale 28.0 58.0 Model: PRM-AS1-01 FCC ID: QAM017 IC: 5459A-017 E242827 ITE 01/15 Made in China Model: PRM-AS1-01 FCC ID: QAM017 IC: 5459A-017 E242827 ITE Model: PRM-AS1-01 01/15 Made in China FCC ID: QAM017 IC: 5459A-017 E242827 ITE ORIGIN, FCC ID No., IC No. E24287 ITE FONT: CENTURY GOTHIC 5pt GREY: PANTONE 428C NPI-101644 Triangle removed, text added 10/12/14 M. Martindale 01/15 Made in China Model: PRM-AS1-01 FCC ID: QAM017 IC: 5459A-017 E242827 ITE 1.5 3.3 5.3 15.0 17.0 19.0 21.0 23.0 Z Z (2:1) NPI-10170 P.005 All century gothic font was arial font 17/12/14 M. Martindale NPI-10170 P.006 57.0 WAS 58.0, Model: added next to PRM-AS-01 18/12/14 M. Martindale NPI-10170 P.007 Model: added and font size spec. for PRM-AS-01 changed in printing info 19/12/14 M. Martindale NPI-10170 P.007 Model: PRM-AS1-01 was Model: PRM-AS-01 12/01/15 M. Martindale

TRaC Global Test Report: TRA-020152-06-47-00C Appendix F:MPE Calculation Prediction of MPE limit at a given distance For purposes of these requirements mobile devices are defined by the Industry Canada as transmitters designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between radiating structures and the body of the user or nearby persons. These devices are normally evaluated for exposure potential with relation to the MPE limits. As the 20cm separation specified under Industry Canada rules may not be achievable under normal operation of the EUT, an RF exposure calculation is needed to show the minimum distance required to be less than 10W/m 2 power density limit, as required under Industry Canada rules. Equation from IEEE C95.1 Where: S = power density R = distance to the centre of radiation of the antenna EIRP = EUT Maximum power Result Prediction Frequency (MHz) Maximum EIRP (W) Power density limit (S) (W/m 2 ) Distance (R) cm required to be less than 10W/m 2 24020.00006100.0007 SS4 arranged-re 4 2 S EIRP R R EIRP S 39

TRaC Global Test Report: TRA-020152-06-47-00C Appendix G:General SAR test reduction and exclusion guidance KDB 447498 Section 4.3 General SAR test reduction and exclusion guidance For Standalone SAR exclusion consideration, when SAR Exclusion Threshold requirement in KDB 447498 is satisfied, standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. The SAR Test Exclusion Threshold for operation in the 2400 – 2483.5 MHz band will be determined as follows SAR Exclusion Threshold (SARET) SAR Exclusion Threshold=Step 1 + Step 2 Step 1 NT =[ (MP/TSD A  ¥I GHz ] NT=Numeric Threshold (3.0 for 1-g SAR and 7.5 for 10-g SAR) MP =Max Power of channel (mW) (inc tune up) TSD A =Min Test separation Distance or 50mm (whichever is lower) = 5mm (in this case) We can transpose this formula to allow us to find the maximum power of a channel allowed and compare this to the measured maximum power. =[(NT x TSD A ¥I GHz ] For Distances Greater than 50 mm Step 2 applies Step 2 (TSD B – 50mm) * 10} Where: TSD B =Min Test separation Distance (mm) = 50 Note: Step 2 is not required here as the TSD A is 5mm. 40 TRaC Global Test Report: TRA-020152-06-47-00C Operating Frequency 2.402 GHz SARET=[(3.0 x 5 ¥2.402] SARET=9.68mW Operating Frequency 2.426 GHz SARET=[(3.0 x 5 ¥2.426] SARET=9.63mW Operating Frequency 2.480 GHz SARET=[(3.0 x 5 ¥2.480] SARET=9.53mW Channel Frequency (MHz) EIRP (mW) SAR Exclusion Threshold (mW) SAR Evaluation 24020.069.68Not Required 24260.069.63Not Required 24800.049.53Not Required Therefore standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. 41

A Radio Test Report FOR Promethean Ltd ON ActivBoard Pen Model No. PRM-AS1-01 Document No. TRA-020152-06-47-00C TRaC Wireless Test Report : TRA-020152-06-47-00C Applicant : Promethean Ltd Apparatus : ActivBoard Pen (Model No. PRM-AS1-01) Specification(s) : FCC CFR47 Part 15.249 & RSS-210 Issue 8 Purpose of Test : Certification FCC ID : QAM017 IC ID : 5459A-017 Authorised by : : Radio Product Manager Issue Date : 22 nd January 2015 Authorised Copy Number : PDF Total number of pages: 42 TRaC Global Test Report: TRA-020152-06-47-00C Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Notes relating to the assessment 7 1.7 Deviations from Test Standards 7 Section 2: Measurement Uncertainty 8 2.1 Measurement Uncertainty Values 8 Section 3: Modifications 10 3.1 Modifications Performed During Assessment 10 Section 4 General Test Procedures 11 4.1 Radiated Test Setup and Procedures 11 4.2 AC Powerline Conducted Emissions Test Setup and Procedures 12 4.3 Antenna Port Conducted Emissions 12 4.4 Power Supply Variation 13 4.5 Thermal Variation 13 4.6 Time Domain Measurements 13 Appendix A: Formal Emission Test Results 14 A1 Transmitter Intentional Emission Radiated 15 A2 Transmitter Bandwidth 16 A3 Radiated Electric Field Emissions 17 A4 Unintentional Radiated Emissions - Standby 20 Appendix B: Supporting Graphical Data 22 Appendix C: Additional Test and Sample Details 30 C1 Test samples 31 C2 EUT operating mode during testing 32 C3 EUT Configuration Information 33 C4 List of EUT Ports 34 C5 Details of Equipment Used 35 Appendix D: Additional Information 36 Appendix E: Photographs and Figures 37 Appendix F: MPE Calculation 39 Appendix G: General SAR test reduction and exclusion guidance 40 3 TRaC Global Test Report: TRA-020152-06-47-00C Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: A Tosif Report author: A Tosif This report must not be reproduced except in full without prior written permission from TRaC Global Ltd. 4 TRaC Global Test Report: TRA-020152-06-47-00C 1.2 Tests Requested By This testing in this report was requested by: Promethean Ltd Promethean House Lower Philips Road Blackburn BB1 5SN 1.3 Manufacturer As above 1.4 Apparatus Assessed The following apparatus was assessed between: 2 nd December 2014 and 19 th December 2014 • ActivBoard Pen (Model No. PRM-AS1-01) ActivBoard Pen is a 2.4GHz Bluetooth LE (transmitter only) device whose primary function is to interact with ActiveBoard 6 Touch and ActivPanel 2 5 TRaC Global Test Report: TRA-020152-06-47-00C 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type FCC Regulation IC Regulation Measurement standard Result Spurious Emissions Radiated Title 47 of the CFR: Part 15 Subpart (c) 15.249(a)(d) RSS-210 Issue 8 December 2010 Annex 2 A2.9 ANSI C63.10 Pass Unintentional Radiated Spurious Emissions Title 47 of the CFR: Part 15 Subpart (b) 15.109 RSS-Gen Issue 4 November 2014 Section 7.1.2 ANSI C63.10 Pass AC Power conducted emissions Title 47 of the CFR: Part 15 Subpart (c) 15.207 RSS-Gen Issue 4 November 2014 Section 8.8 ANSI C63.10 N/A * Intentional Emission Frequency Title 47 of the CFR: Part 15 Subpart (c) 15.249 (a) RSS-210 Issue 8 December 2010 Annex 2 A2.9 ANSI C63.10 Pass Intentional Emission Field Strength Title 47 of the CFR: Part 15 Subpart (c) 15.249 (a) RSS-210 Issue 8 December 2010 Annex 2 A2.9 ANSI C63.10 Pass Intentional Emission Band Occupancy Title 47 of the CFR: Part 15 Subpart (c) 15.215 (c) RSS-Gen Issue 4 November 2014 Section 4.6.1 ANSI C63.10 Pass * EUT is a battery powered device Abbreviations used in the above table: CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions 6 TRaC Global Test Report: TRA-020152-06-47-00C 1.6 Notes relating to the assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature : 20 to 22 °C Humidity : 45 to 75 % All dates used in this report are in the format…

Text truncated - open the document above for the full version.

TRaC Global Test Report: TRA-020152-06-47-00B Appendix E:Photographs and Figures The following photographs were taken of the test samples: 1.Radiated electric field emissions arrangement: overview 2.Radiated electric field emissions arrangement: close up 37 TRaC Global Test Report: TRA-020152-06-47-00B Photograph 1 Photograph 2 38
