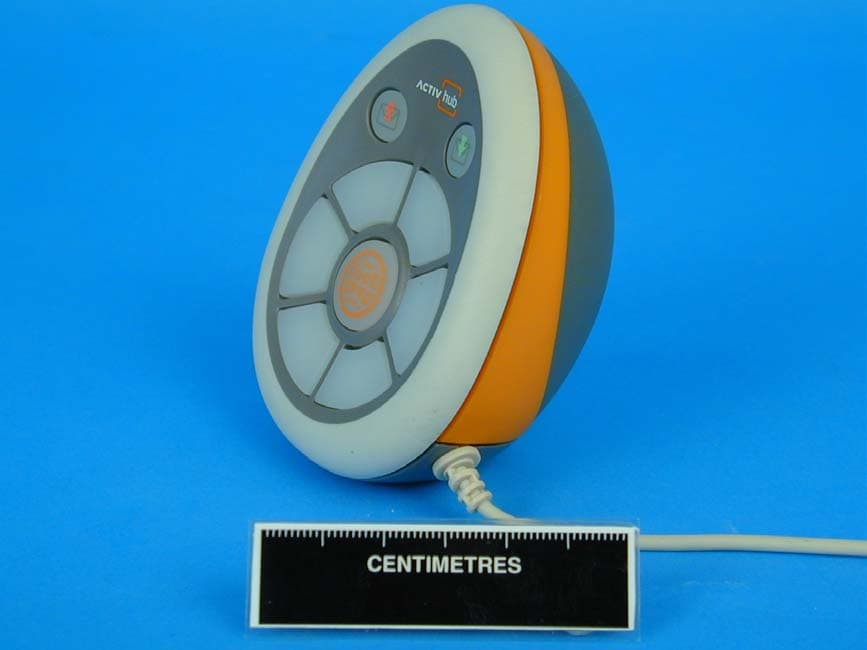

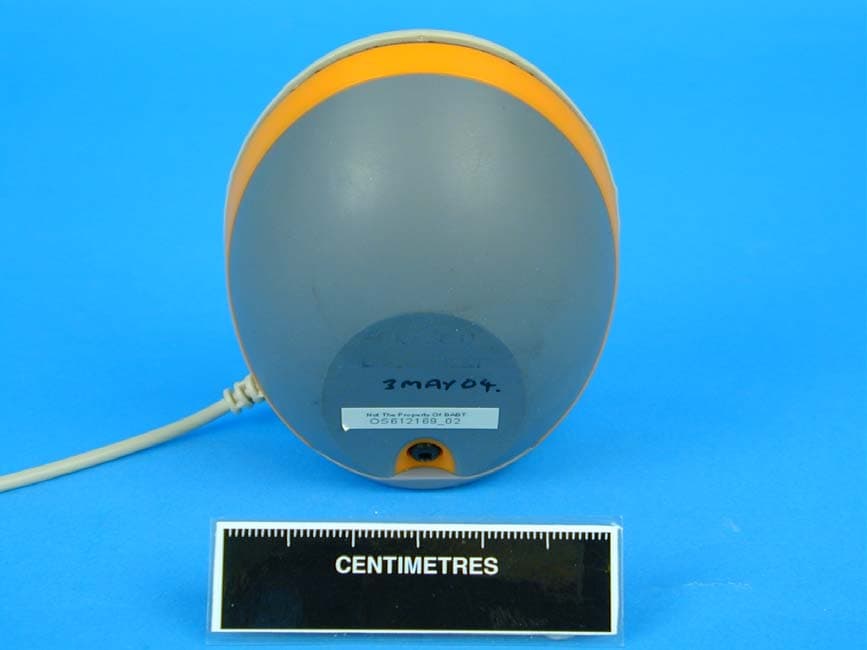

PHOTOGRAPHS OF EQUIPMENT FOR PROMETHEAN ACTIVHUB PHOTOGRAPHS OF EQUIPMENT ActivHub – Front View PHOTOGRAPHS OF EQUIPMENT ActivHub – Rear View PHOTOGRAPHS OF EQUIPMENT ActivHub – Side View

FCC ID QAM005 INTERNAL PHOTOGRAPHS OF EQUIPMENT FOR PROMETHEAN ACTIVHUB PHOTOGRAPHS OF EQUIPMENT ActivHub – Internal Front View © Not to be reproduced without the permission of TÜV Product Service Limited. Page 1 of 2 FCC ID QAM005 PHOTOGRAPHS OF EQUIPMENT SRD ANTENNA TRACKS SRD IC ActivHub – Internal Rear View © Not to be reproduced without the permission of TÜV Product Service Limited. Page 2 of 2

REPORT ON Limited FCC CFR 47: Parts 15 C Testing in support of an Application for Grant of Equipment Authorisation of a Promethean ActivHub FCC ID: QAM005 Report No OR612169/04 Issue 2 July 2004 BABT, Segensworth Road, Fareham, Hampshire, PO15 5RH, United Kingdom Tel: +44 (0)1329 443300 Website: www.tuvps.co.uk Report No OR612169/04 Issue 2Page 1 of 27 REPORT ONLimited FCC CFR 47: Part 15 Testing in support of an Application for Grant of Equipment Authorisation of a Promethean ActivHub FCC ID: QAM005 Report No OR612169/04 Issue 2 July 2004 PREPARED FORPromethean Limited TDS House Lower Phillips Road Blackburn BB1 5TH PREPARED BY J Holcombe EMC Engineer APPROVED BY J J Adams EMC Signatory DATED 28 th July 2004 DISTRIBUTIONPrometheanCopy 1 BABTCopy 2 Copy No ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47: Parts 15 B & C. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineers; T GuyJ Holcombe FCC ID: QAM005 Report No OR612169/04 Issue 2Page 2 of 27 CONTENTS SectionPage No 1REPORT SUMMARY 1.1Status..................................................................................................................................4 1.2Introduction and Declaration of Build Status ......................................................................5 1.3Brief Summary of Results...................................................................................................7 1.4Opinions and Interpretations ..............................................................................................8 1.5Product information............................................................................................................9 1.6Test Conditions (Configuration)..........................................................................................9 1.7Deviations from the Standard.............................................................................................9 1.8Modification Record............................................................................................................9 2TEST DETAILS 2.1Spurious Radiated Emissions Receive ..............................................................................11 2.2Spurious Radiated Emissions Transmit .............................................................................13 2.3Maximum Carrier Field Strength ........................................................................................16 2.4Spurious Radiated Emissions ............................................................................................17 3TEST EQUIPMENT USED 3.1Table of Test Equipment Used ...........................................................................................22 3.2Measurement Uncertainty ..................................................................................................23 4ACCREDITATION, DISCLAIMERS AND COPYRIGHT 4.1Accreditation, Disclaimers And Copyright.................................................................................25 APPENDICES ATitchfield FCC Site Compliance Letter. ............................................................................... 27 FCC ID: QAM005 Report No OR612169/04 Issue 2Page 3 of 27 SECTION 1 REPORT SUMMARY Limited FCC CFR 47: Part 15 Testing in support of an Application for Grant of Equipment Authorisation of a Promethean ActivHub Report OR612169-04 Issue 2 replaced Report OR612169-04 Issue 1. Issue 2 contains typographical corrections and additional test results. FCC ID: QAM005 Report No OR612169/04 Issue 2Page 4 of 27 1.1STATUS EQUIPMENT UNDER TESTPromethean ActivHub OBJECTIVETo undertake measurements to determine the Equipment Under Test's (EUT's) compliance with the specification. NAME AND ADDRESS OF CLIENTPromethean Limited TDS House Lower Phillips Road Blackburn BB1 5TH TYPE NUMBERPRM-AH1-02 / TDS-AH1-02 SERIAL NUMBERUnserialised HARDWARE VERSION537300003 DECLARED VARIANTSNone TEST SPECIFICATION / ISSUE / DATE FCC CFR 47: Part 15 C August 2002 NUMBER OF ITEMS TESTEDOne SECURITY CLASSIFICATION OF EUT Commercial In Confidence INCOMING RELEASEDeclaration of Build Status DATE21 st May 2004 DISPOSALHeld pending disposal REFERENCE NUMBERNot Applicable DATENot Applicable ORDER NUMBERPE1515 DATE15 th March 2004 START OF TEST5 th March 2004 FINISH OF TEST17 th July 2004 RELATED DOCUMENTSANSI C63.4 2001. Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. FCC Public Notice document (DA 00-705 released 30 March 2000) FCC ID: QAM005 Report No OR612169/04 Issue 2Page 5 of 27 1.2INTRODUCTION The information contained within this report is intended to show limited verification of compliance of the Promethean ActivHub to the requirements of FCC Specification Parts 15.109, 15.209 and 15.249. Testing was carried out in support of an application for Grant of Equipment Authorisation in the name of Promethean Limited. FCC ID: QAM005 Report No OR612169/04 Issue 2Page 6 of 27 1.2.1DECLARATION OF BUILD STATUS ManufacturerTDS Promethean Ltd Country of originUnited Kingdom UK AgentTDS Promethean DescriptionACTIVHub Model NoPRM-AH1-02 / TDS-AH1-02 Part NoPRM-AH1-02 / TDS-AH1-02 Serial NoUnserialised Hardware Version537300003 Build Status0 Software Issue401-000-00 SignatureAndrew Oakley Date21 st May 2004 D of B S Serial NoY612169-02 Note:This document has been prepared to enable manufacturers with no mechanism for producing their own Declaration of Build Status, to declare the build state of the equipment submitted for test. No responsibility will be accepted by TUV Product Service as to the accuracy of the information declared in this document by the manufacturer. BABT Limited formally certifies that the manufacturer's declaration as reproduced in this rep…

Text truncated - open the document above for the full version.

FCC ID: QAM005 © Not to be reproduced without the permission of TÜV Product Service Limited.Page 1 of 1 SET UP PHOTOGRAPH FOR PROMETHEAN ACTIVBOARD WITH BLUETOOTH Radiated Emissions Set Up Photograph
