QAM008ACTIVote PRM-AV3-01

Activote 2.4Ghz Quick Start Guide TP1667 Issue 1 All rights reserved All information contained in this document is subject to change without notice. Any use of the contents of this User Manual other than for the purpose intended requires express written permission of Promethean Technologies Group Ltd. All trademarks noted with the ™ mark are the properties of their respective companies. NOTE: All utility and driver software provided to operate Activ products is the property of Promethean. Use of this software is granted for the purpose of installation, set up and operation of Activ products and the standard feature set outlined in this guide. Promethean does not encourage or authorise any other use. Additional application software is provided from time to time as a service to our customers. This software is licensed to the end user by the supplier. Use, possession and upgrades are the responsibility of that supplier. Registered owners of Promethean product should contact those suppliers directly for support. © Copyright Promethean Technologies Group Ltd 2006 Activote 2.4Ghz Quick Start Guide Table of Contents Compliance United States of America 2 Canada 2 Europe 3 About this Guide 3 User Group Forum 3 Updates 3 1. Installing the software 4 On a Windows Based Computer 4 On a Macintosh™ Based Computer 4 2. Access the Activote programs 5 Connecting the Activhub 5 On a Windows Based Computer 5 On a Macintosh Based Computer 5 Choose an Activote Program 6 3. Register Devices 7 4. Allocate Devices 8 5. Vote with Adhoc questions 9 6. Vote with Prepared questions 9 Prepare your questions 9 Start voting with prepared questions 10 1 Activote 2.4Ghz Quick Start Guide Compliance Statements for the Activhub and Activote (United States of America, Canada and Europe) United States of America This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this equipment not expressly approved by Promethean may void the user’s authority to operate this equipment. For non-intentional radio parts, this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Canada This device complies with RSS-210 of Industry Canada and is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this equipment not expressly approved by Promethean may void the user’s authority to operate this equipment. 2 Activote 2.4Ghz Quick Start Guide This Class B digital apparatus complies with Canadian ICES-003. Europe The radio interface on this product is intended for use with other Promethean radio devices for operation in the following Countries: Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovak Republic, Slovenia, Spain, Sweden, Switzerland, United Kingdom For more information about Activ products, consult the documentation which can be found on the Product CD. About this Guide This Quick Start Guide takes you through the process of setting up and using the Activote devices and their associated programs. If you are using Activote VR, refer instead to its separate Quick Start Guide. Promethean recommends that you read the User Guides supplied on the CD for full information about using Activote. If you experience any difficulties with using Activote, contact our Technical Support team using the contact details below:- Americas UK & Europe T: 1-888-652-2848 T: +44 (0) 870 165 2210 E: [email protected] E: [email protected] W: http://us.prometheankb.com W: http://uk.prometheankb.com User Group Forum This is an online forum and we would like to invite new users to join and contribute to our growing online community. www.prometheanworld.com/common/html/vb_forum/index.php Updates Please visit the Promethean website frequently to check for updated drivers, software, user guides and flipchart resources www.prometheanworld.com 3 Activote 2.4Ghz Quick Start Guide 1. Installing the Software Existing customers need the v4 Activdriver. This can be identified by the logo in the system tray. Users with an earlier Activdriver with this logo, ,need to uninstall this through the Control Panel & Add & Remove Programs. Install the driver before connecting the Activhub to the computer. On a Windows Based Computer a. Place the application CD into the CD ROM drive If Auto Play is enabled, the main menu screen will automatically appear. If Auto Play is not enabled, choose Start > Run. In the Run dialog box, type the drive letter that contains the CD and type \menu.exe. For …

Text truncated - open the document above for the full version.

RADIO FREQUENCY RADIATION EXPOSURE MPE calculation: Test setup 1: EUT 222 TRLUH281 Formula: S=EIRP / 4π R 2 S = Power Density (mW/cm 2 ) EIRP = Radiated power (mW) R = distance for body (cm) Calculation: S = 3.96 / 4 π 0.6 2 mW/cm 2 S = 0.875 mW/cm 2 Notes: 1. The unit will be mounted at least 0.6 cm away from the body. 2. The carrier power EIRP of 3.96 mW was the worst case peak level measured. 3. Antenna Gain of 0dBi stated by manufacturer. Limit The limit of Power density for the General Population/ Uncontrolled Exposure is 1 mW/cm 2 . Result The EUT meet the 1 mW/cm 2 limit.

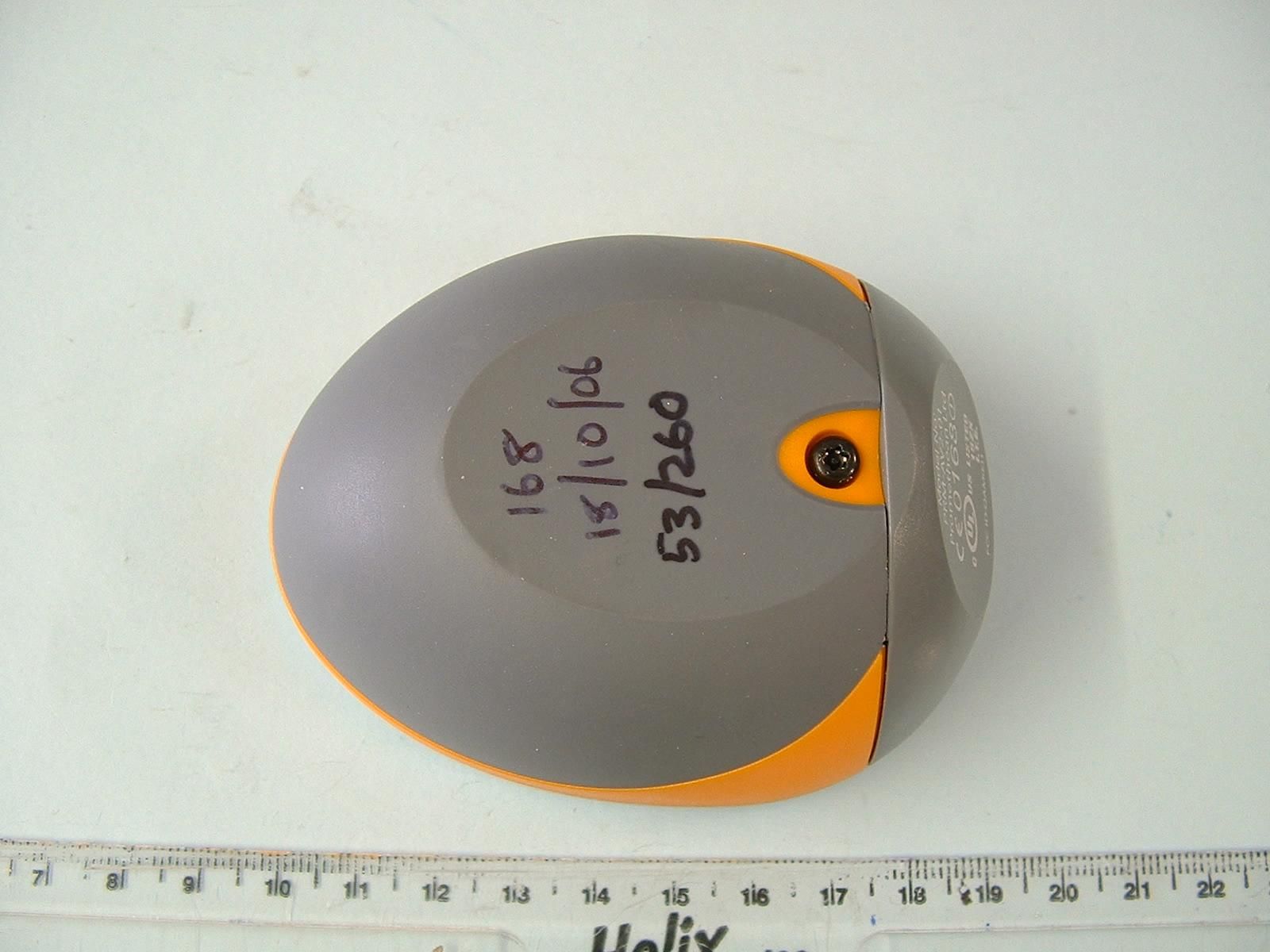

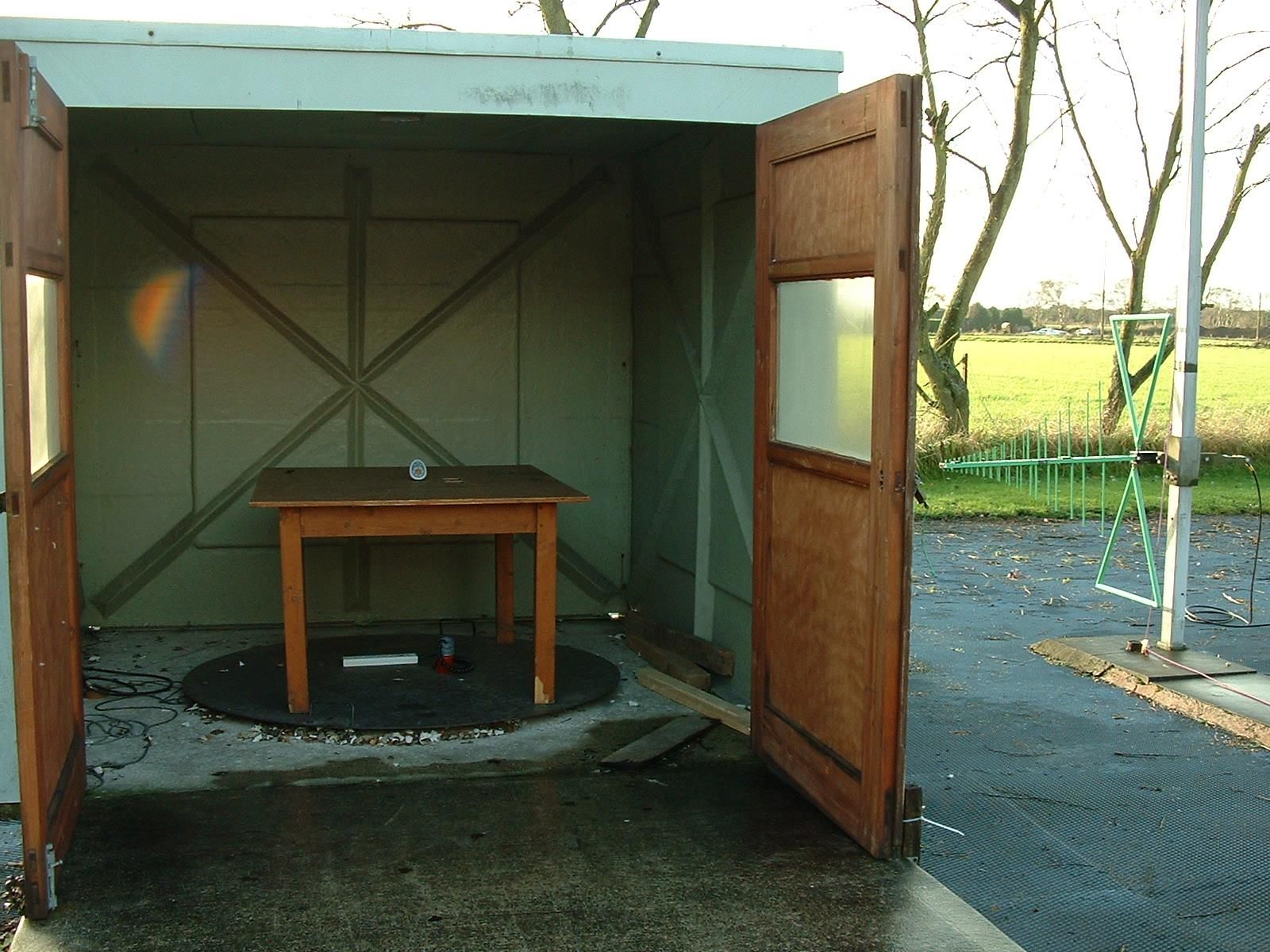

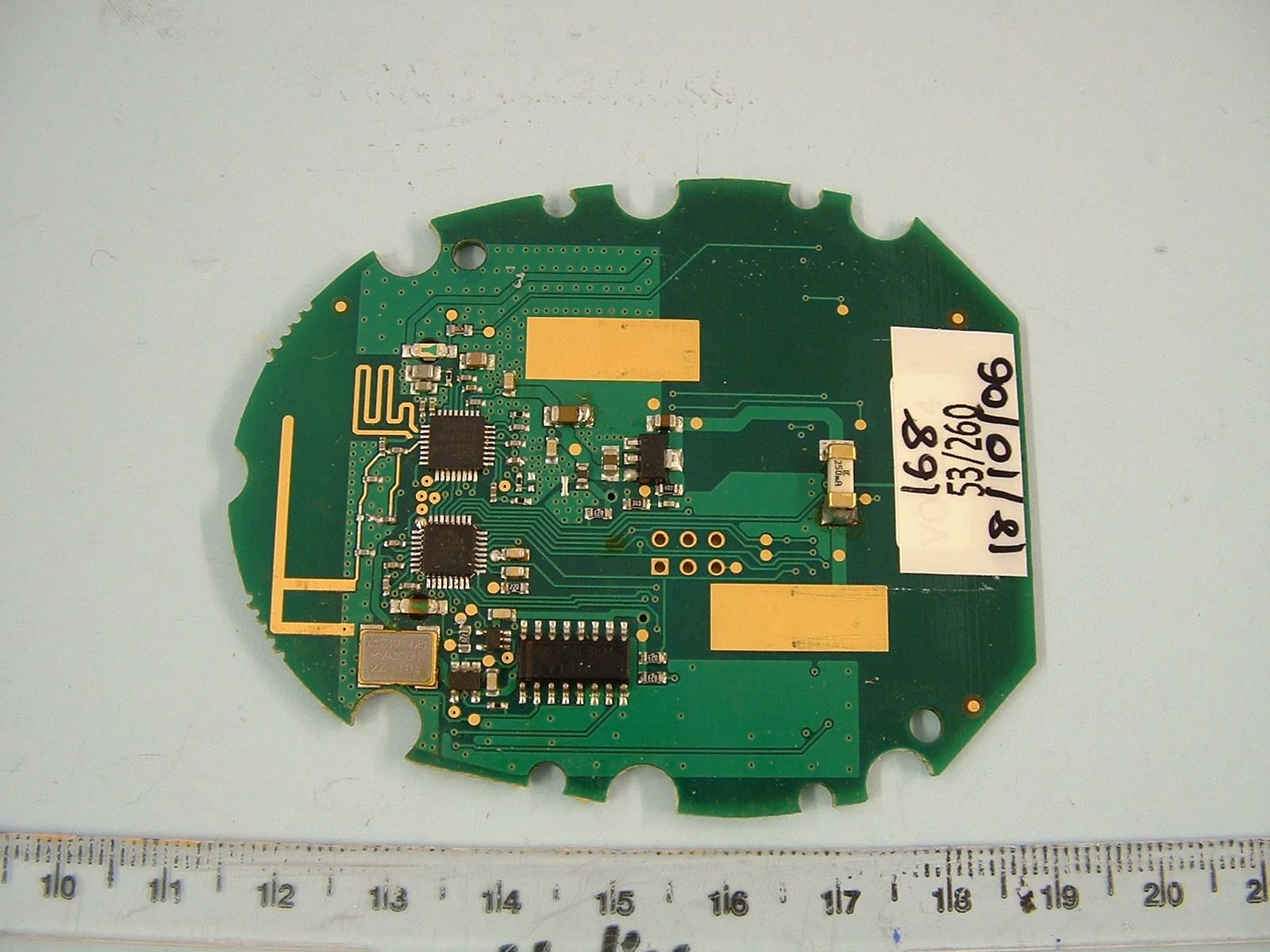

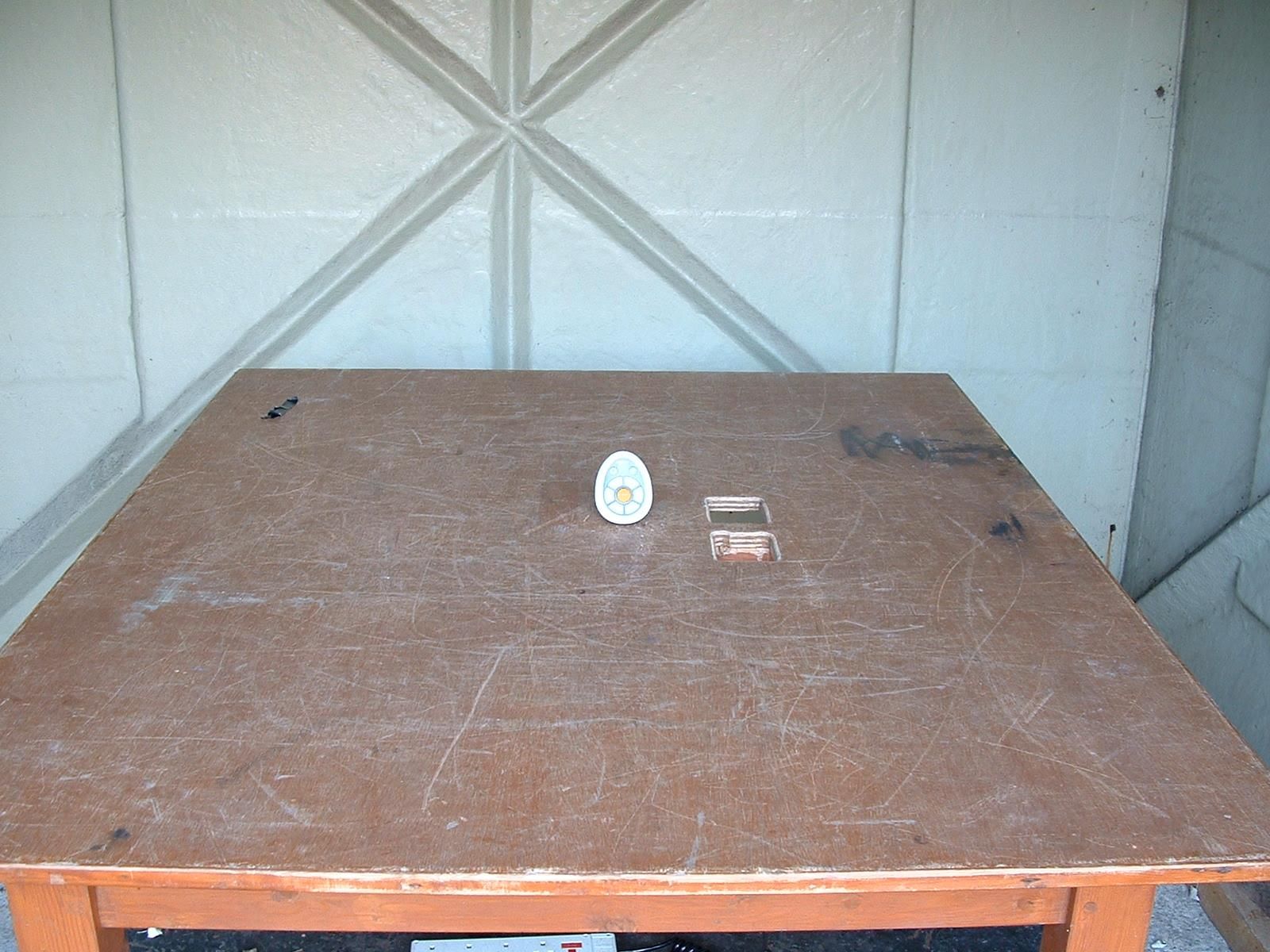

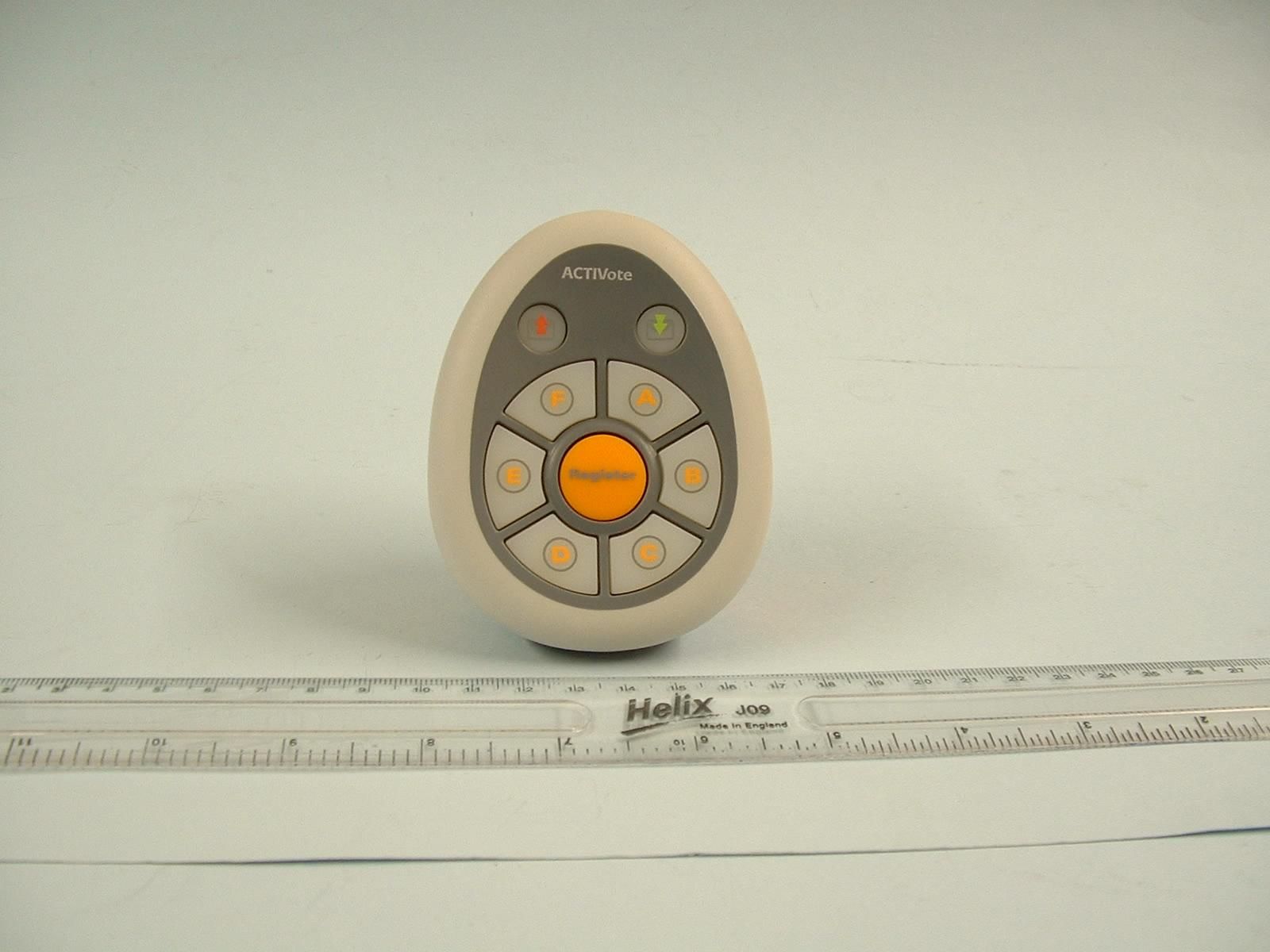

TRL COMPLIANCE LTD M OSS VIEW NIPE LANE UP HOLLAND WEST LANCASHIRE WN8 9PY UNITED KINGDOM T ELEPHONE +44 (0)1695 556666 FAX +44 (0)1695 557077 E-MAIL [email protected] www.trlcompliance.com 0728 FS 503099 TEST REPORT NO: RU1267/7273 COPY NO: 2 ISSUE NO: 1 FCC ID: QAM008 REPORT ON THE CERTIFICATION TESTING OF A PROMETHEAN TECHNOLOGIES Ltd ACTIVote MODEL NUMBER PRM-AV3-01 WITH RESPECT TO FCC RULES CFR 47, PART 15.247 August 2006 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 23 rd – 25 th October 2006 TESTED BY: D WINSTANLEY APPROVED BY: p.p. J CHARTERS RADIO SECTION LEADER DATE: 11 th December 2006 Distribution: Copy Nos: 1. Promethean Technologies Ltd 2. FCC EVALUATION LABORATORIES 3. TRL Compliance Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1267/7273 Page 2 of 58 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6 – 15 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1&2: Test setup. PHOTOGRAPH No. 3: Avtivote in protective cover. PHOTOGRAPH No. 4: Activote with battery compartment removed. PHOTOGRAPH No. 5: Top view with keymat removed. PHOTOGRAPH No. 6: Top view of pcb. PHOTOGRAPH No. 7:Underside view of pcb. APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B TEST EQUIPMENT CALIBRATION C CARRIER FREQUENCY SEPARATION D NUMBER OF HOPPING CHANNEL E 20dB BANDWIDTH F AVERAGE TIME OF OCCUPANCY G PEAK POWER CONDUCTED H CONDUCTED BANDEDGE COMPLIANCE I CONDUCTED SPURIOUS EMISSIONS J RADIATED BANDEDGE COMPLIANCE K MEASUREMENT UNCERTAINTY L Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RU1267/7273 Page 3 of 58 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: QAM008 PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 15.247 August 2006 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: ACTIVote ITU: EMISSION CODE: 1M55F7D EQUIPMENT TYPE: Response Monitor PRODUCT USE: Voting System CARRIER EMISSION: 0.00396 mW eirp ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not Applicable BAND OF OPERATION: 2400 MHz – 2483.5 MHz CHANNEL SPACING: 1.73 MHz NUMBER OF CHANNELS: 46 FREQUENCY GENERATION: SAW Resonator [ ] Crystal [ ] Synthesiser [X] MODULATION METHOD: Amplitude [ ] Digital [X] Angle [ ] POWER SOURCE(s): +4.5 Vdc TEST DATE(s): 23 rd – 25 th October 2006 ORDER No(s): P17597 & P18421 APPLICANT: Promethean Technologies Ltd ADDRESS: TDS House Lower Philips Road Whitebirk Ind. Estate Blackburn BB1 5TH TESTED BY: D WINSTANLEY APPROVED BY: p.p. J CHARTERS RADIO SECTION LEADER RU1267/7273 Page 4 of 58 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): ACTIVote EQUIPMENT TYPE: Response Monitor PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15.247 August 2006 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): P17597 & P18421 APPLICANT’S CONTACT PERSON(s): Mr B Lofthouse E-mail address: [email protected] APPLICANT: Promethean Technologies Ltd ADDRESS: TDS House Lower Philips Road Whitebirk Ind. Estate Blackburn BB1 5TH TEL: +44 (0) 1254 298 598 FAX: +44 (0) 1254 581 574 EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL Compliance Ltd UKAS ACCREDITATION No: 0728 TEST DATE(s): 23 rd – 25 th October 2006 TEST REPORT No: RU1267/7273 RU1267/7273 Page 5 of 58 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART DETECTOR APPLICABILITY Intentional Emission Frequency: 15.247 Peak Yes Intentional Emission Field Strength: - - No Intentional Emission Band Occupancy: 15.247(a)1 Peak Yes Intentional Emission EIRP (mW): 15.247(b)1 Peak Yes Spurious Emissions – Conducted: - - No Spurious Emissions – Conducted: 15.247 Peak Yes Spurious Emissions – Radiated <1000MHz: 15.209 ,15.247 Quasi Peak Yes Spurious Emissions – Radiated >1000MHz: 15.247 15.209 Peak average Yes Transmitter Carrier Frequency Separation 15.247(a)(1) Peak Yes Transmitter Maximum Peak Power Output Power 15.247(b)(1) Peak Yes Transmitter Band Edge Conducted Emissions 15.247(c) Peak Yes Transmitter Band Edge Radiated Emission 15.247(c) Peak Yes Extrapolation Factor 15.31(f) - Yes Maximum Frequency of Search: 15.33 - Yes Antenna Arrangements Integral: 15.203 - Yes Antenna Arrangements External Connector: 15.204 - Yes Restricted Bands 15.205 - Yes 2. Product Use : Voting System 3. Temperatures: Ambient (Tnom) 20 o C 4. Supply Voltages: Vnom +4.5Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] 5. Equipment Category: Multi-channel [X] Narrowband [ ] 6. Channel spacing: Wideband [X] RU1267/7273 Page 6 of 58 TRANSMITTER TESTS TRANSMITTER CARRIER FREQUENCY SEPARATION – CONDUCTED – Part 15.247(a)(1) Ambient temperature = 21 o C Relative humidity = 55% Conditions = Conducted –Radio Lab Supply voltage = +4.5Vdc Transmitter Carrier Frequency Separation (MHz) 1.730 MHz LIMIT SPECIFIED IN 15.247 (A)(1): The channels should be separated by at least 25kHz or two thirds of the 20dB bandwidth of a hoping channel which ever is greater. See spectrum analyser plot – Annex D See note 1 Notes: 1 20dB Bandwidth of one carrier is 1.55MHz therefore carrier frequency separation must be greater than 1.04MHz. 2 Conducted measurements were performed with a temporary antenna connector provided by the client. 3 For analyser setting see scan data Annex D. Test Method: 1 Test method as per 15.247 and public notice DA 00-705. 2 With the unit operating in hopping mode with maximum data rate a graphical plot of two adjacent channels was taken. 3 Delta marker function was used to measure the difference be…

Text truncated - open the document above for the full version.
