RADIO FREQUENCY RADIATION EXPOSURE MPE calculation: Test setup 1: EUT 222 TRLUH281 Formula: S=EIRP / 4π R 2 S = Power Density (mW/cm 2 ) EIRP = Radiated power (mW) R = distance for body (cm) Calculation: S = 8.95 / 4 π 0.9 2 mW/cm 2 S = 0.879 mW/cm 2 Notes: 1. The unit will be mounted at least 0.9 cm away from the body. 2. The carrier power EIRP of 8.95 mW was the worst case peak level measured. 3. Antenna Gain of 4.1dBi stated by manufacturer. Limit The limit of Power density for the General Population/ Uncontrolled Exposure is 1 mW/cm 2 . Result The EUT meet the 1 mW/cm 2 limit.

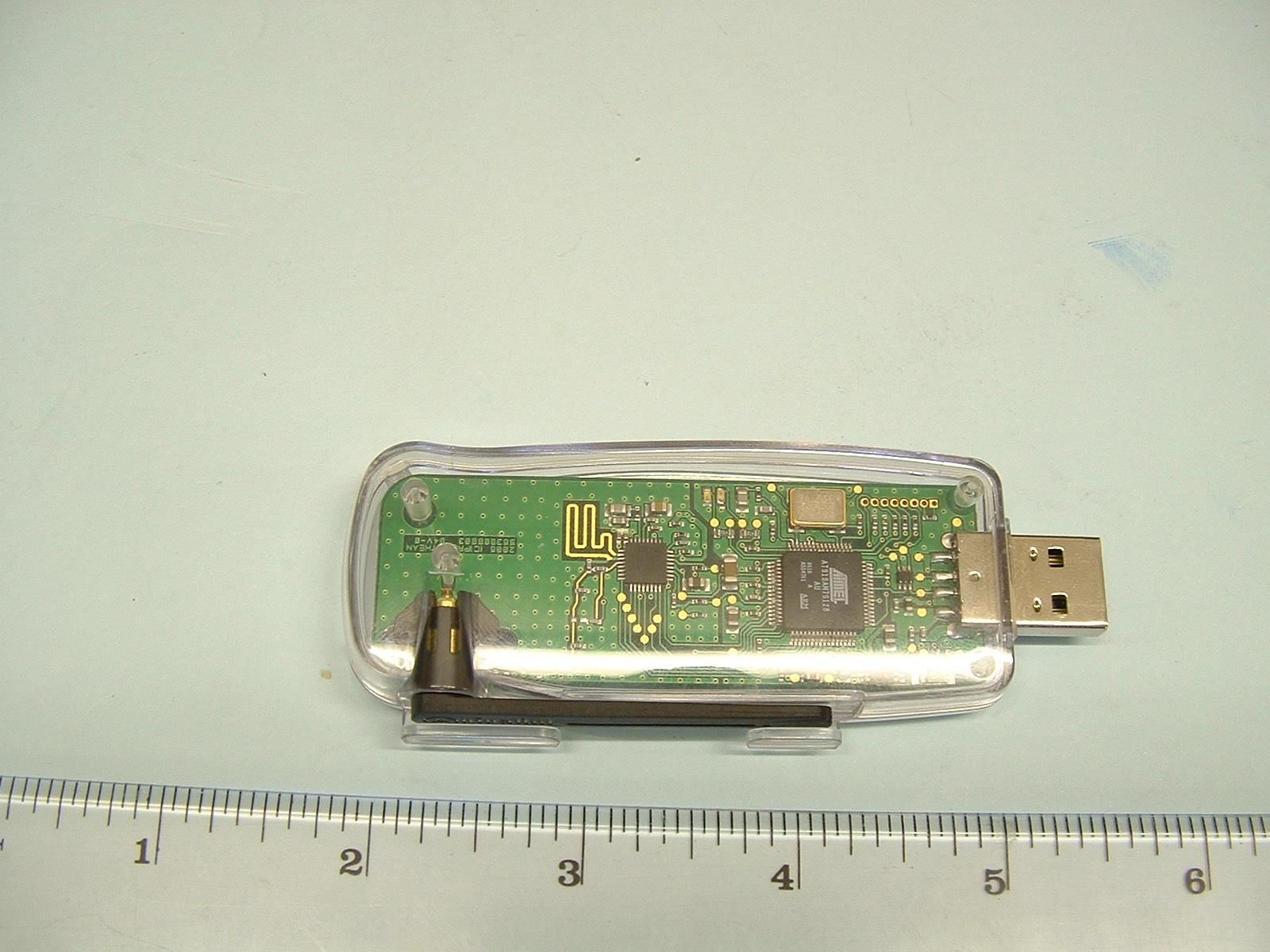

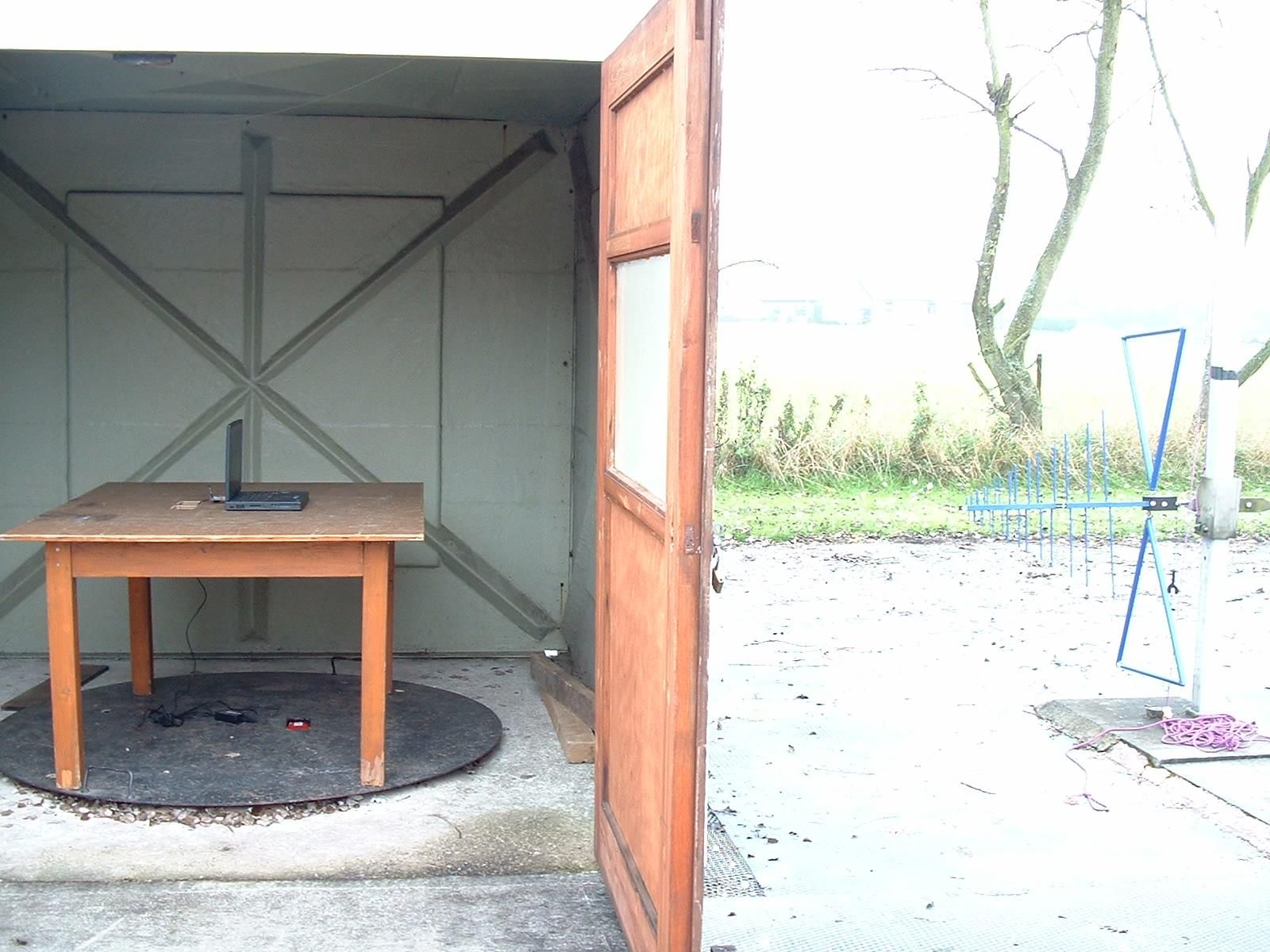

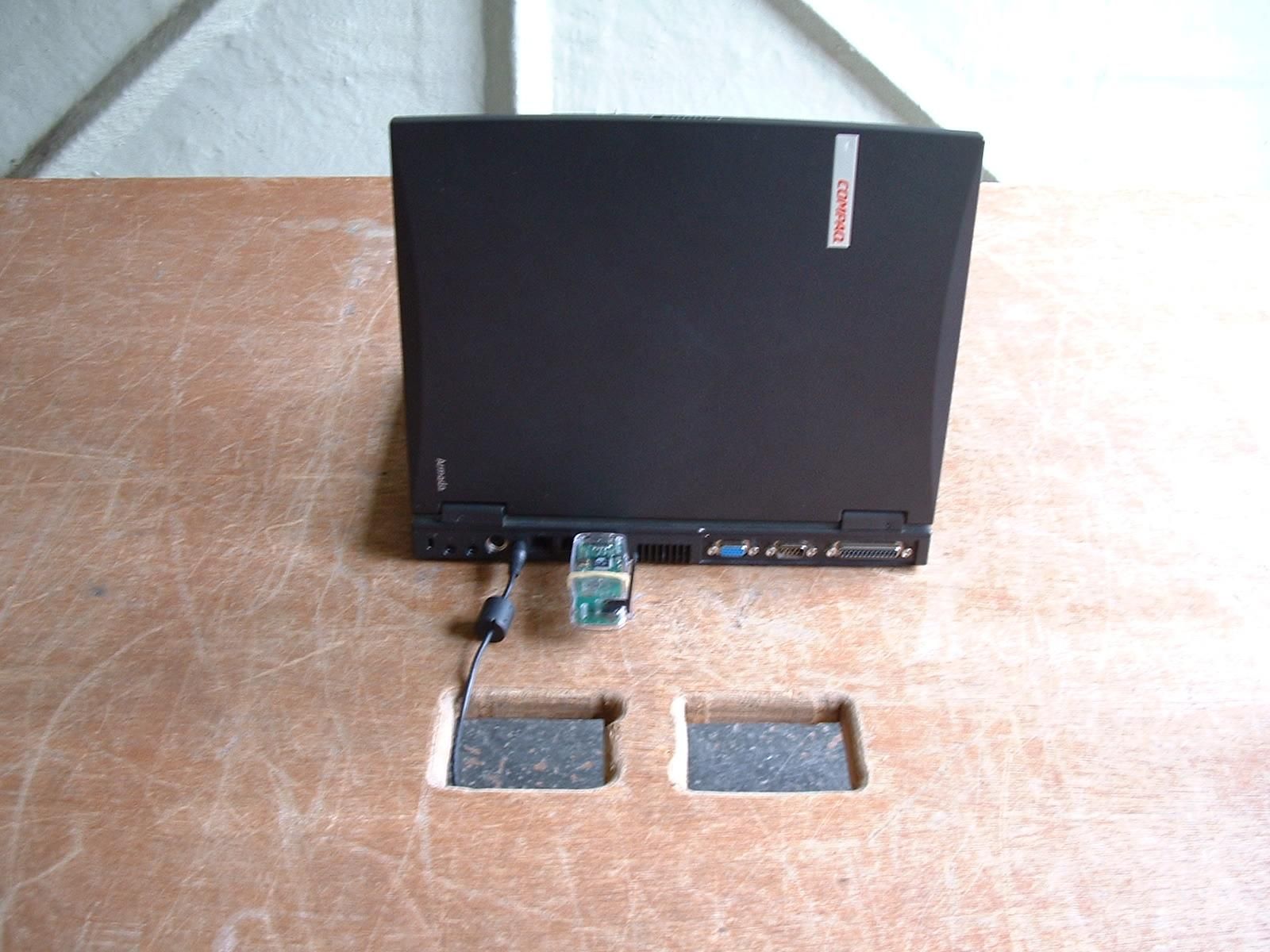

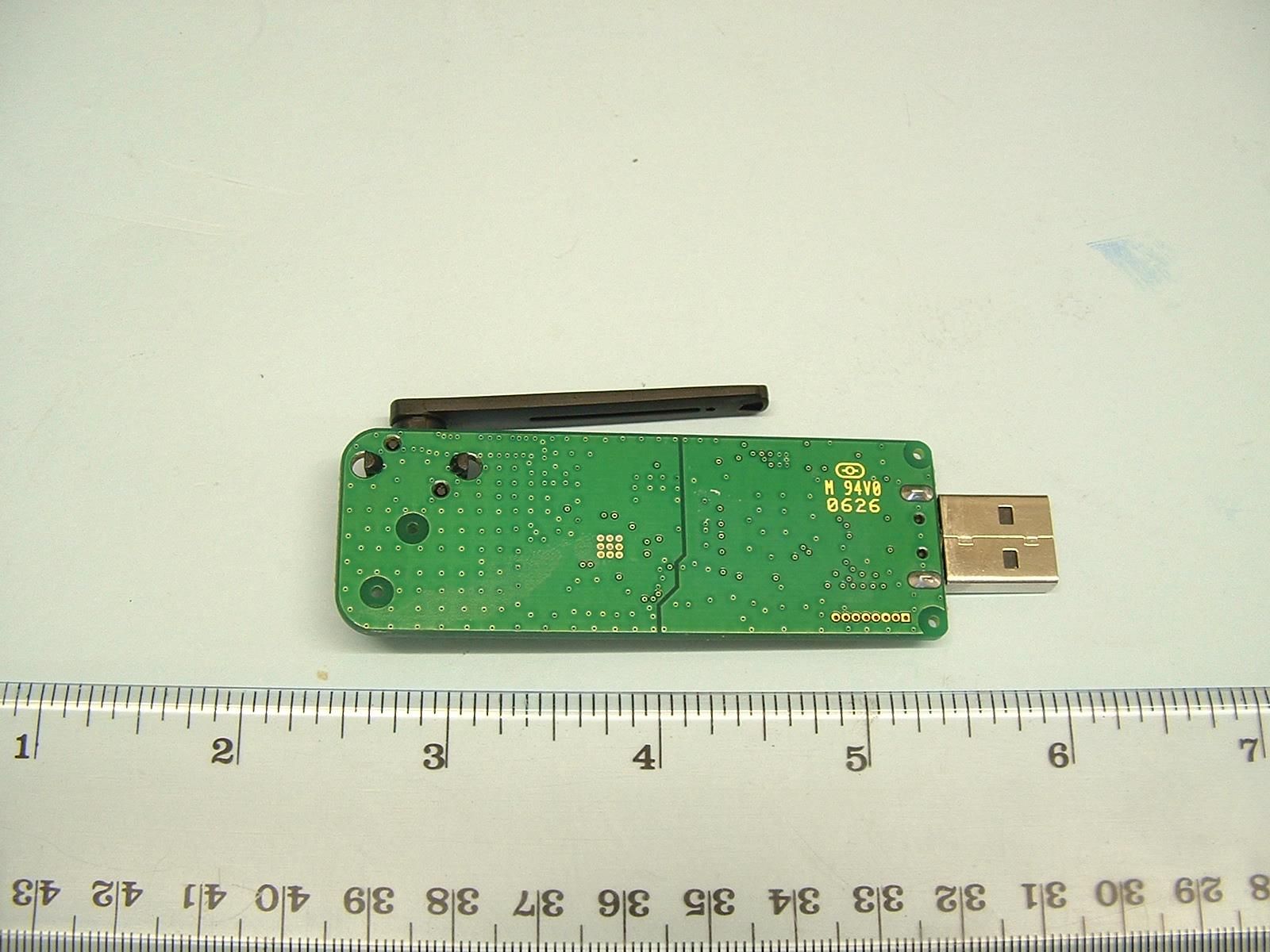

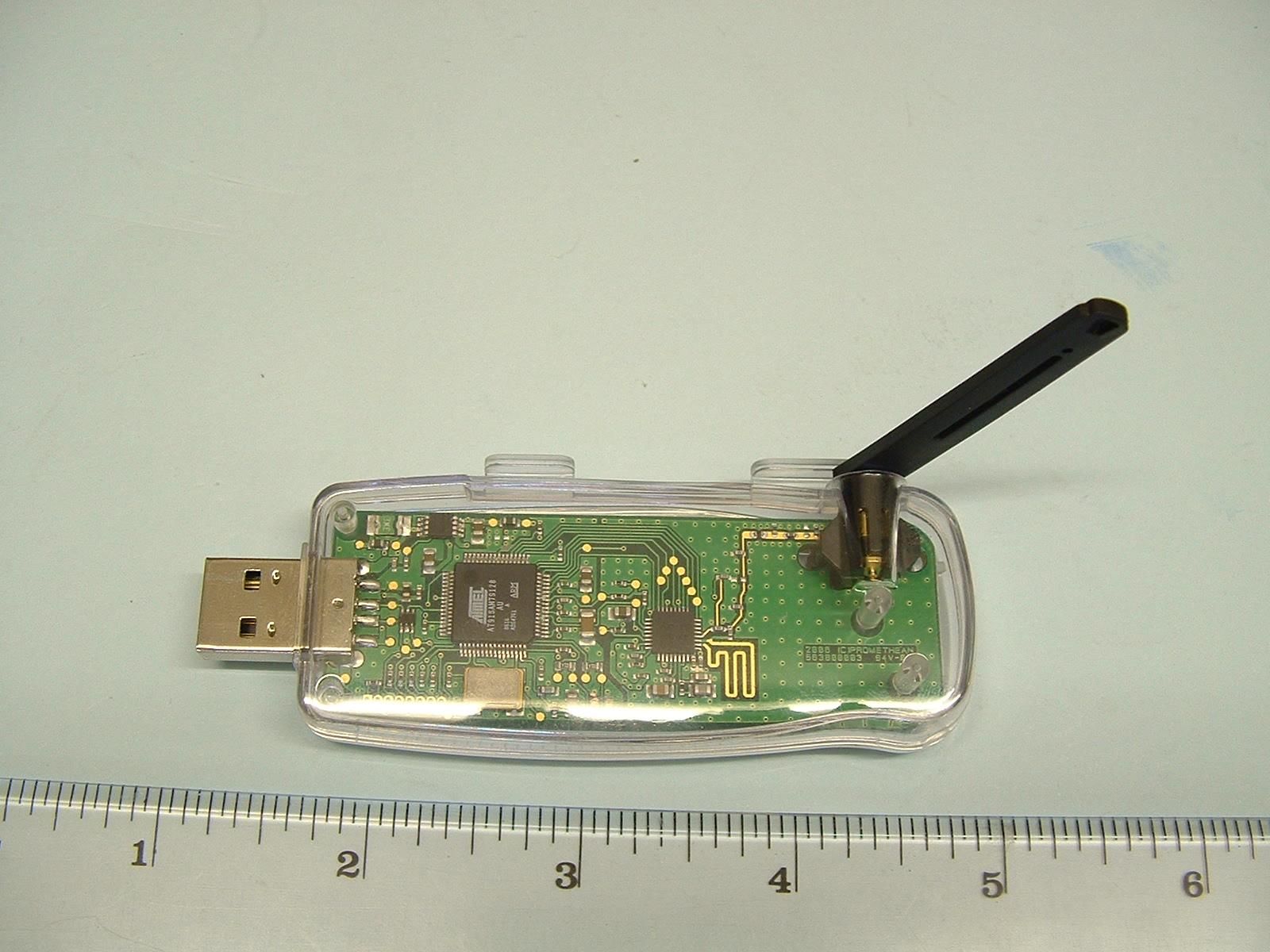

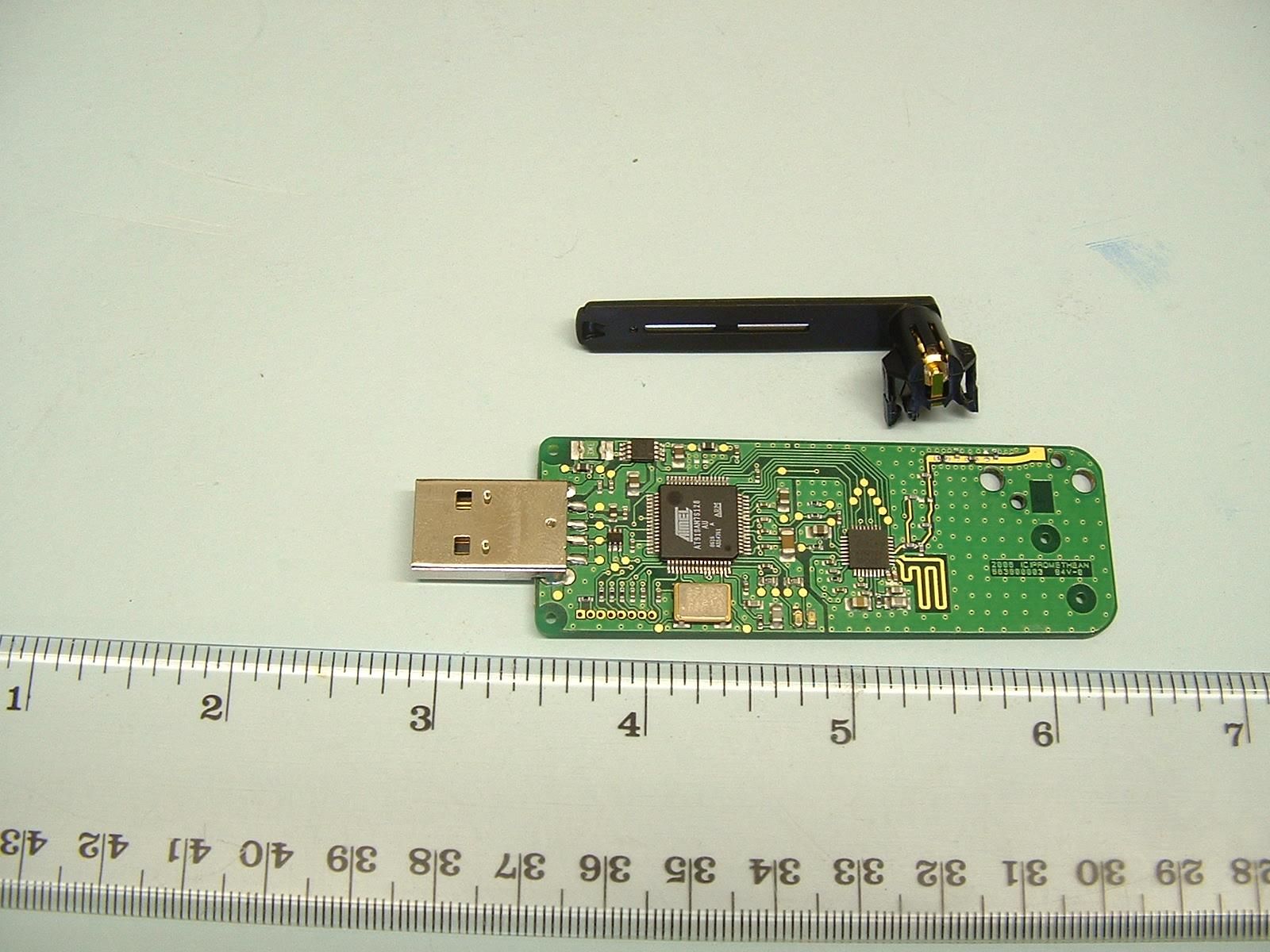

TRL COMPLIANCE LTD M OSS VIEW NIPE LANE UP HOLLAND WEST LANCASHIRE WN8 9PY UNITED KINGDOM T ELEPHONE +44 (0)1695 556666 FAX +44 (0)1695 557077 E-MAIL [email protected] www.trlcompliance.com 0728 FS 503099 TEST REPORT NO: RU1267/7257 COPY NO: 2 ISSUE NO: 1 FCC ID: QAM009 REPORT ON THE CERTIFICATION TESTING OF A PROMETHEAN TECHNOLOGIES Ltd ACTIVHub MODEL NUMBER PRM-AH2-01 WITH RESPECT TO THE FCC RULES CFR 47, PART 15.247 August 2006 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 7 th – 28 th September 2006 TESTED BY: S HODGKINSON APPROVED BY: p.p. J CHARTERS RADIO SECTION LEADER DATE: 11 th December 2006 Distribution: Copy Nos: 1. Promethean Technologies Ltd 2. FCC EVALUATION LABORATORIES 3. TRL Compliance Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1267/7257 Page 2 of 61 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6 -17 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Overview Antenna Lowered PHOTOGRAPH No. 3: Overview Antenna Raised PHOTOGRAPH No. 4: Transmitter PCB Component side PHOTOGRAPH No. 5: Transmitter PCB Track side APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B TEST EQUIPMENT CALIBRATION C POWERLINE CONDUCTIONS GRAPH(s) D CARRIER FREQUENCY SEPARATION E NUMBER OF HOPPING CHANNEL F 20dB BANDWIDTH G AVERAGE TIME OF OCCUPANCY H PEAK POWER CONDUCTED I CONDUCTED BANDEDGE COMPLIANCE J CONDUCTED SPURIOUS EMISSIONS K RADIATED BANDEDGE COMPLIANCE L MEASUREMENT UNCERTAINTY M Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RU1267/7257 Page 3 of 61 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: QAM009 PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 15.247 August 2006 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: ACTIVHub ITU: EMISSION CODE: 1M73F7D EQUIPMENT TYPE: Local area network hub PRODUCT USE: PC Hub CARRIER EMISSION: 8.95 mW eirp ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not Applicable BAND OF OPERATION: 2400 MHz – 2483.5 MHz CHANNEL SPACING: 1.73 MHz NUMBER OF CHANNELS: 46 FREQUENCY GENERATION: SAW Resonator [ ] Crystal [ ] Synthesiser [X] MODULATION METHOD: DSSS [ ] FHSS [X] POWER SOURCE(s): +4.5Vdc Via USB TEST DATE(s): 7 th – 28 th September 2006 ORDER No(s): P17597 APPLICANT: Promethean Technologies Ltd ADDRESS: TDS House Lower Philips Road Whitebirk Ind Estate Blackburn BB1 5TH TESTED BY: S HODGKINSON APPROVED BY: p.p. J CHARTERS RADIO SECTION LEADER RU1267/7257 Page 4 of 61 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): ACTIVHub EQUIPMENT TYPE: Response Monitor PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15.247 August 2006 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): P17597 APPLICANT’S CONTACT PERSON(s): Mr B Lofthouse E-mail address: [email protected] APPLICANT: Promethean Technologies Ltd ADDRESS: TDS House Lower Philips Road Whitebirk Ind Estate Blackburn BB1 5TH TEL: +44 (0) 1254 298 598 FAX: +44 (0) 1254 581 574 EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL Compliance Ltd UKAS ACCREDITATION No: 0728 TEST DATE(s): 7 th – 28 th September 2006 TEST REPORT No: RU1267/7257 RU1267/7257 Page 5 of 61 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART DETECTOR APPLICABILITY Intentional Emission Frequency: 15.247 Peak Yes Intentional Emission Field Strength: - - No Intentional Emission Band Occupancy: 15.247(a)1 Peak Yes Intentional Emission EIRP (mW): 15.247(b)1 Peak Yes Spurious Emissions – Conducted: 15.207 Quasi Peak Average Yes Spurious Emissions – Conducted: 15.247 Peak Yes Spurious Emissions – Radiated <1000MHz: 15.209 15.247 15.109 Quasi Peak Yes Spurious Emissions – Radiated >1000MHz: 15.247 15.209 15.109 Peak Average Yes Transmitter Carrier Frequency Separation 15.247(a)(1) Peak Yes Transmitter Maximum Peak Power Output Power 15.247(b)(1) Peak Yes Transmitter Band Edge Conducted Emissions 15.247(c) Peak Yes Transmitter Band Edge Radiated Emission 15.247(c) Peak Yes Extrapolation Factor 15.31(f) - Yes Maximum Frequency of Search: 15.33 - Yes Antenna Arrangements Integral: 15.203 - Yes Antenna Arrangements External Connector: 15.204 - Yes Restricted Bands 15.205 - Yes 2. Product Description : The AVTIVHub is a hub to receive data from a personal voting system. It connects via USB to a PC. 3. Temperatures: Ambient (Tnom) 21 o C 4. Supply Voltages: Vnom +4.5Vdc Via USB Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] 5. Equipment Category: Multi-channel [X] Narrowband [ ] 6. Channel spacing: Wideband [X] RU1267/7257 Page 6 of 61 TRANSMITTER TESTS TRANSMITTER CONDUCTED EMISSIONS – AC POWER LINE Part 15.207 Ambient temperature = 22 o C(<1GHz), Relative humidity = 48%(<1GHz), Conditions = Power Line Laboratory Supply voltage = 110V AC Supply Frequency = 60Hz SIGNIFICANT EMISSIONS FREQUENCY (MHz) MEASUREMENT RECEIVER READING (dBμV) DETECTOR CONDUCTOR (L or N) LIMIT (dBμV) 0.18 39.14 Average Live 54.49 0.24 35.74 Average Live 52.10 Notes: 1 See attached plot annex D. 2 EUT is to transmit in its normal hopping operating mode. 3 The EUT is connected to the Mains Via a PC. 4 Only emissions within 20 dB of the limit are recorded. Test Method: 1 As per Radio – Noise Emissions, ANSI C63.4: 1992 The test equipment used for the Transmitter Conducted Emissions – AC Power Line Part 15.207 test was: TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED RECEIVER ROHDE & SCHWARZ ESHS20 837960/003 237 LI…
