QAM010ActivSlate Wireless Mini Board

activslate Quick Start Guide TP-1692-UK Issue 2 PC and Mac activslate Quick Start Guide TP-1692-UK Issue 2 PC and Mac All rights reserved All information contained in this doc ument is subject to change without notice. Any use of the contents of this Us er Manual other than for the purpose intended requires express writt en permission of Promethean Ltd. All trademarks noted with the ™ mark are the properties of their respective companies. NOTE: All utility and driver software pr ovided to operate Activ products is the property of Promethean. Use of th is software is granted for the purpose of installation, set up and operation of Activ products and the standard feature set outlined in this guide. Promethean does not encourage or authorise any other use. Additional application software is provided from time to time as a service to our customers. This software is licens ed to the end user by the supplier. Use, possession and upgrades are the re sponsibility of that supplier. Registered owners of Promethean produc t should contact those suppliers directly for support. © Copyright Promethean Ltd 2007 All rights reserved All information contained in this doc ument is subject to change without notice. Any use of the contents of this Us er Manual other than for the purpose intended requires express writt en permission of Promethean Ltd. All trademarks noted with the ™ mark are the properties of their respective companies. NOTE: All utility and driver software pr ovided to operate Activ products is the property of Promethean. Use of th is software is granted for the purpose of installation, set up and operation of Activ products and the standard feature set outlined in this guide. Promethean does not encourage or authorise any other use. Additional application software is provided from time to time as a service to our customers. This software is licens ed to the end user by the supplier. Use, possession and upgrades are the re sponsibility of that supplier. Registered owners of Promethean produc t should contact those suppliers directly for support. © Copyright Promethean Ltd 2007 Activslate Quick Start Guide 1 Table of Contents Safety Inst ructi ons ................................................................................... 2 Environmental C onsiderat ions ................................................................. 3 Complianc e .............................................................................................. 3 For More In formati on ............................................................................... 5 Technical Support web/ema il: ............................................................ 5 Technical Suppor t tel ephone: ............................................................. 5 Updates .............................................................................................. 5 About This Guide ..................................................................................... 5 1. Installing the Software................................................................... 6 On a Windows Bas ed Comput er ........................................................ 6 On a Macintosh™ Based Com puter ................................................... 6 2. Prepare the Activsl ate Syst em...................................................... 7 Connect the Ac tivhub ......................................................................... 7 Switch on the Activslat e...................................................................... 8 3. Launch the Activslat e Contro ller ................................................... 9 On a Windows Bas ed Comput er ........................................................ 9 On a Macintosh Ba sed Com puter ...................................................... 9 4. Register your Activslat e .............................................................. 10 5. Enable your Ac tivslat e ................................................................ 11 Activslate Quick Start Guide 1 Table of Contents Safety Inst ructi ons ................................................................................... 2 Environmental C onsiderat ions ................................................................. 3 Complianc e .............................................................................................. 3 For More In formati on ............................................................................... 5 Technical Support web/ema il: ............................................................ 5 Technical Suppor t tel ephone: ............................................................. 5 Updates .............................................................................................. 5 About This Guide ..................................................................................... 5 1. Installing the Software................................................................... 6 On a Windows Bas ed Comput er ........................................................ 6 On a Macintosh™ Based Com puter ................................................... 6 2. Prepare the Activsl ate Syst em...................................................... 7 Connect the Ac tivhub ......................................................................... 7 Switch on the Activslat e...................................................................... 8 3. Launch the Activslat e Contro ller ................................................... 9 On a Windows Bas ed Comput er ........................................................ 9 On a Macintosh Ba sed Com puter ...................................................... 9 4. Register your Activslat e .............................................................. 10 5. Enable your Ac tivslat e ................................................................ 11 Activslate Quick Start Guide 2 Safety Instructions This Activslate is supplied with a univers al voltage input Power…

Text truncated - open the document above for the full version.

20 August 2007 Letter of Agent Authorization To whom it may concern: We Promethean Limited hereby authorise TRL Compliance Limited to act on our behalf in all matters relating to application for equipment authorizations of the product Activslate FCC ID QAMO10. We also hereby certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no patty, as defined in 47 CFR 1.2002(b), to the application, is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention in these matters. Sincerdy, Bryan Lofthouse Compliance Engineer Phone: +44 (0) 1254 29081 8 Email: [email protected] PROMETHEAN LTD, PROMETHEAN HOUSE, LOWER PHILIPS ROAD, BLACKBURN, LANCASHIRE BB7 5TH. U.K. TEL:+44(0) 1254 298 598 FAX: +44 (0) 1254 581 574 WW.PRalu4iETHEANWORLD.COM REL NO.t308938 SOUTHERN SALES OFFICE : PROMETHEAN HOUSE, TERRACE ROAD SOUTH. BINFIELD. BRACKNELL, R642 4BH

PAD PRINTING ART WORKS T O BE POSITI ONED AS SHO WN B ELOW. COL OUR OF P AD P RINTING TO BE WHITE. WORK TO ART WORK S SUPPLIED NOTE : F ACT ORY ID MUST BE CHANGED A CCOR DING T O THE PRODUCT MANUF ACT URING FACILI TY. PROMETHE AN TECH NOL OGY (SHENZHEN ) C OMP ANY LIMIT ED : F2 PROMETHE AN LIMITED (UK) : F1 PART MA TER IAL PROJECT DRA WN Amendmen t record FIN ISH APPROVED SCALE STA TUS SHT OF 2.4GHz PROMETHEAN AC TIVS LATE PAD PRINTIN G DETAILS RELEASED CHECK ED DRG. NO. 1OF1 570 300 0 S2 1 3.11.06 S B ISCOMB 3 1:1 P REV TDS House Lower Philips Road Black bu rn Lancs BB1 5T H Tel 012 54 676921 Fax 0 1254 581574 Promethean Technologies Group Ltd 570 COM PONENT MUST BE ROH S COMPLIANT h F2 ISSUE 2APPROV ALS R EMOVED. SB 22.1.06. ISSUE 3RELEASED FOR PR ODUCTION. SB 5.4 .07. 4.4.07 S B ISCOMB 4.4.07 S B ISCOMB ISSUE 04ADDED UL , CE MAR KS, FCC, IC 5V 0.4A WA S 6V 0.6 A CR XXX X HG 22 .06 .07 5V 0.4A FCC ID: QAM010 F4 IDA - XXXXXXXXXX SIRM - XXXXXXXXXX R XXXXXXXXXX IC: 5459A-010 KZ 7500071

RADIO FREQUENCY RADIATION EXPOSURE MPE calculation: Test setup 1: EUT 222 TRLUH281 Formula: S=EIRP / 4π R 2 S = Power Density (mW/cm 2 ) EIRP = Radiated power (mW) R = distance for body (cm) Calculation: S = 3.84 / 4 π 0.4 2 mW/cm 2 S = 0.848 mW/cm 2 Notes: 1. The unit will be mounted at least 0.4 cm away from the body. 2. The carrier power EIRP of 3.84 mW was the worst case peak level measured. 3. Antenna Gain of 0dBi stated by manufacturer. Limit The limit of Power density for the General Population/ Uncontrolled Exposure is 1 mW/cm 2 . Result The EUT meet the 1 mW/cm 2 limit.

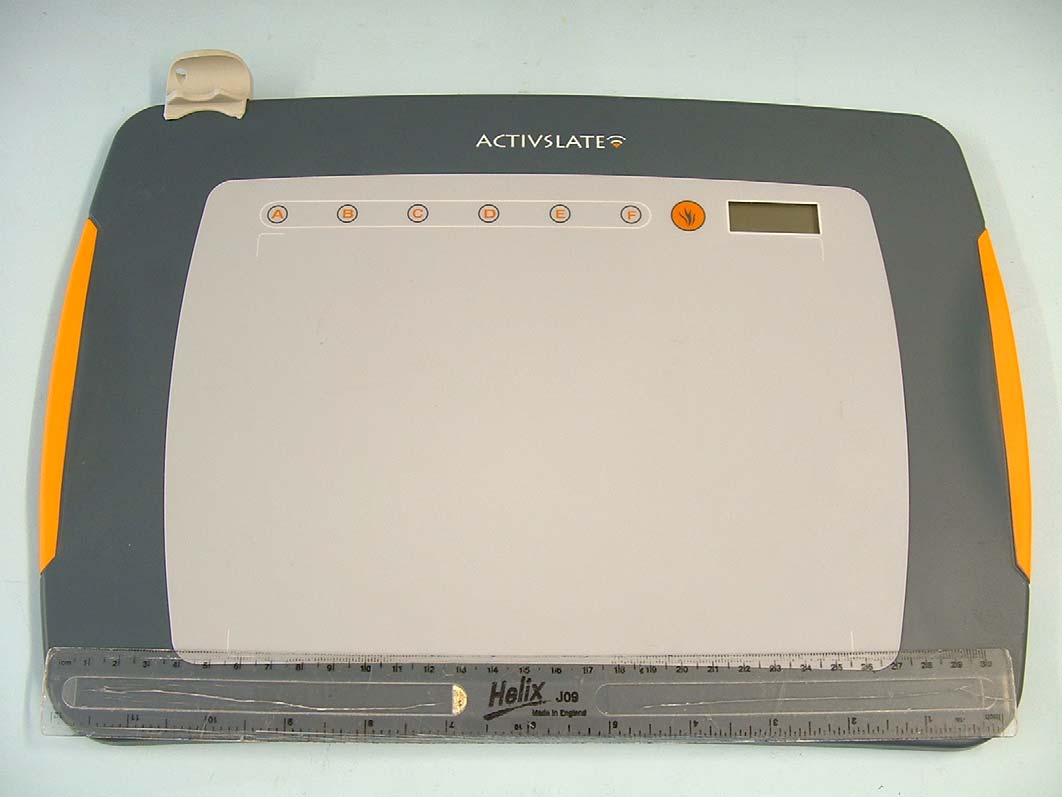

REPORT ON THE CERTIFICATION TESTING OF A PROMETHEAN LIMITED ACTIVSLATE WITH RESPECT TO THE FCC RULES CFR 47, PART 15.247 May 2007 INTENTIONAL RADIATOR SPECIFICATION TEST REPORT NO: RU1362/8028 COPY NO: 2 ISSUE NO: 1 FCC ID: QAM010 REPORT ON THE CERTIFICATION TESTING OF A PROMETHEAN LIMITED ACTIVSLATE WITH RESPECT TO THE FCC RULES CFR 47, PART 15.247 May 2007 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 31 st July – 13 th August 2007 TESTED BY: D WINSTANLEY APPROVED BY: J CHARTERS RADIO SECTION LEADER DATE: 30 th August 2007 Distribution: Copy Nos: 1. Promethean Limited 2. FCC EVALUATION LABORATORIES 3. TRL Compliance Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1362/8028 Page 3 of 64 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 4 APPLICANT’S SUMMARY 5 EQUIPMENT TEST CONDITIONS 6 TESTS REQUIRED 6 TEST RESULTS 7 - 19 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter PCB track side PHOTOGRAPH No. 5: Transmitter PCB component side PHOTOGRAPH No. 6: RF Close Up Can Removed APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B TEST EQUIPMENT CALIBRATION C POWERLINE CONDUCTIONS GRAPH(s) D CARRIER FREQUENCY SEPARATION E NUMBER OF HOPPING CHANNEL F 20dB BANDWIDTH G AVERAGE TIME OF OCCUPANCY H PEAK POWER CONDUCTED I CONDUCTED BANDEDGE COMPLIANCE J CONDUCTED SPURIOUS EMISSIONS K RADIATED BANDEDGE COMPLIANCE L MEASUREMENT UNCERTAINTY M Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RU1362/8028 CERTIFICATE OF CONFORMITY & COMPLIANCE CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: QAM010 PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 15.247 May 2007 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: ACTIVSLATE ITU: EMISSION CODE: 1M44F7D EQUIPMENT TYPE: Wireless Mini Board PRODUCT USE: Wireless LAN CARRIER EMISSION: 0.00384 Watts e.i.r.p. ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not Applicable BAND OF OPERATION: 2400 MHz – 2483.5 MHz CHANNEL SPACING: 1.73 MHz NUMBER OF CHANNELS: 46 FREQUENCY GENERATION: SAW Resonator [ ] Crystal [ ] Synthesiser [X] MODULATION METHOD: FHSS [X] DSSS [ ] Other [ ] POWER SOURCE(s): +3.7Vdc or +5Vdc External Power Supply (FW7605L/05) TEST DATE(s): 31 st July – 13 th August 2007 ORDER No(s): P21473 APPLICANT: Promethean Limited ADDRESS: Promethean House Lower Philips Road Blackburn BB1 5TH TESTED BY: D WINSTANLEY APPROVED BY: J CHARTERS RADIO SECTION LEADER RU1362/8028 Page 5 of 64 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): ACTIVSLATE EQUIPMENT TYPE: Wireless Mini Board PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15.247 May 2007 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): P21473 APPLICANT’S CONTACT PERSON(s): Mr Bryan Lofthouse E-mail address: [email protected] APPLICANT: Promethean Limited ADDRESS: Promethean House Lower Philips Road Blackburn BB1 5TH TEL: +44(0)1254 298598 FAX: +44(0)1254 581574 EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL Compliance Ltd UKAS ACCREDITATION No: 0728 TEST DATE(s): 31 st July – 13 th August 2007 TEST REPORT No: RU1362/8028 RU1362/8028 Page 6 of 64 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART DETECTOR APPLICABILITY Intentional Emission Frequency: 15.247 Peak Yes Intentional Emission Field Strength: - - No Intentional Emission Band Occupancy: 15.247(a)1 Peak Yes Intentional Emission EIRP (mW): 15.247(b)1 Peak Yes Spurious Emissions – Conducted: 15.207 Quasi Peak Average Yes Spurious Emissions – Conducted: 15.247 Peak Yes Spurious Emissions – Radiated <1000MHz: 15.209 ,15.247 Quasi Peak Yes Spurious Emissions – Radiated >1000MHz: 15.247 15.209 Peak average Yes Transmitter Carrier Frequency Separation: 15.247(a)(1) Peak Yes Transmitter Maximum Peak Power Output Power: 15.247(b)(1) Peak Yes Transmitter Band Edge Conducted Emissions: 15.247(c) Peak Yes Transmitter Band Edge Radiated Emission: 15.247(c) Peak Yes Extrapolation Factor: 15.31(f) - Yes Maximum Frequency of Search: 15.33 - Yes Antenna Arrangements Integral: 15.203 - Yes Antenna Arrangements External Connector: 15.204 - Yes Restricted Bands: 15.205 - Yes 2. Product Description : Wireless Mini Board 3. Temperatures: Ambient (Tnom) 22 o C 4. Supply Voltages: Vnom +3.7Vdc or +5Vdc External Power Supply (FW7605L/05) Note: +3.7Vdc voltages are as stated above unless otherwise shown on the test report page Single channel [ ] 5. Equipment Category: Multi-channel [X] Narrowband [ ] 6. Channel spacing: Wideband [X] RU1362/8028 Page 7 of 64 TRANSMITTER TESTS TRANSMITTER CONDUCTED EMISSIONS – AC POWER LINE Part 15.207 Ambient temperature = 21 o C(<1GHz), Relative humidity = 56%(<1GHz), Conditions = Power Line Laboratory Supply voltage = 110V AC Supply Frequency = 60Hz SIGNIFICANT EMISSIONS FREQUENCY (MHz) MEASUREMENT RECEIVER READING (dBμV) DETECTOR CONDUCTOR (L or N) LIMIT (dBμV) 0.275 43.35 Average Neutral 50.97 0.310 33.49 Average Live 49.97 Notes: 1 See attached plot annex D 2 EUT tested without 2.4GHz communication and no pen present 3 EUT tested with 2.4GHz communication and pen present Test Method: 1 As per Radio – Noise Emissions, ANSI C63.4: 2003 The test equipment used for the Transmitter Conducted Emissions – AC Power Line Part 15.207 test was: TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED RECEIVER ROHDE & SCHWARZ ESHS 10 830051/001 UH03 LISN/AMN ROHDE & SCHWARZ ESH3-Z5 863906/018 UH05 RECEIVER ROHDE & SCHWARZ ESHS 10 841429/012 UH187 X L…

Text truncated - open the document above for the full version.

REPORT ON THE CERTIFICATION TESTING OF A PROMETHEAN LIMITED ACTIVSLATE WITH RESPECT TO THE FCC RULES CFR 47, PART 15.247 May 2007 INTENTIONAL RADIATOR SPECIFICATION TEST REPORT NO: RU1362/8028 COPY NO: 2 ISSUE NO: 1 FCC ID: QAM010 REPORT ON THE CERTIFICATION TESTING OF A PROMETHEAN LIMITED ACTIVSLATE WITH RESPECT TO THE FCC RULES CFR 47, PART 15.247 May 2007 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 31 st July – 13 th August 2007 TESTED BY: D WINSTANLEY APPROVED BY: J CHARTERS RADIO SECTION LEADER DATE: 30 th August 2007 Distribution: Copy Nos: 1. Promethean Limited 2. FCC EVALUATION LABORATORIES 3. TRL Compliance Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1362/8028 Page 3 of 64 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 4 APPLICANT’S SUMMARY 5 EQUIPMENT TEST CONDITIONS 6 TESTS REQUIRED 6 TEST RESULTS 7 - 19 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter PCB track side PHOTOGRAPH No. 5: Transmitter PCB component side PHOTOGRAPH No. 6: RF Close Up Can Removed APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B TEST EQUIPMENT CALIBRATION C POWERLINE CONDUCTIONS GRAPH(s) D CARRIER FREQUENCY SEPARATION E NUMBER OF HOPPING CHANNEL F 20dB BANDWIDTH G AVERAGE TIME OF OCCUPANCY H PEAK POWER CONDUCTED I CONDUCTED BANDEDGE COMPLIANCE J CONDUCTED SPURIOUS EMISSIONS K RADIATED BANDEDGE COMPLIANCE L MEASUREMENT UNCERTAINTY M Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RU1362/8028 CERTIFICATE OF CONFORMITY & COMPLIANCE CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: QAM010 PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 15.247 May 2007 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: ACTIVSLATE ITU: EMISSION CODE: 1M44F7D EQUIPMENT TYPE: Wireless Mini Board PRODUCT USE: Wireless LAN CARRIER EMISSION: 0.00384 Watts e.i.r.p. ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not Applicable BAND OF OPERATION: 2400 MHz – 2483.5 MHz CHANNEL SPACING: 1.73 MHz NUMBER OF CHANNELS: 46 FREQUENCY GENERATION: SAW Resonator [ ] Crystal [ ] Synthesiser [X] MODULATION METHOD: FHSS [X] DSSS [ ] Other [ ] POWER SOURCE(s): +3.7Vdc or +5Vdc External Power Supply (FW7605L/05) TEST DATE(s): 31 st July – 13 th August 2007 ORDER No(s): P21473 APPLICANT: Promethean Limited ADDRESS: Promethean House Lower Philips Road Blackburn BB1 5TH TESTED BY: D WINSTANLEY APPROVED BY: J CHARTERS RADIO SECTION LEADER RU1362/8028 Page 5 of 64 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): ACTIVSLATE EQUIPMENT TYPE: Wireless Mini Board PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15.247 May 2007 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): P21473 APPLICANT’S CONTACT PERSON(s): Mr Bryan Lofthouse E-mail address: [email protected] APPLICANT: Promethean Limited ADDRESS: Promethean House Lower Philips Road Blackburn BB1 5TH TEL: +44(0)1254 298598 FAX: +44(0)1254 581574 EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL Compliance Ltd UKAS ACCREDITATION No: 0728 TEST DATE(s): 31 st July – 13 th August 2007 TEST REPORT No: RU1362/8028 RU1362/8028 Page 6 of 64 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART DETECTOR APPLICABILITY Intentional Emission Frequency: 15.247 Peak Yes Intentional Emission Field Strength: - - No Intentional Emission Band Occupancy: 15.247(a)1 Peak Yes Intentional Emission EIRP (mW): 15.247(b)1 Peak Yes Spurious Emissions – Conducted: 15.207 Quasi Peak Average Yes Spurious Emissions – Conducted: 15.247 Peak Yes Spurious Emissions – Radiated <1000MHz: 15.209 ,15.247 Quasi Peak Yes Spurious Emissions – Radiated >1000MHz: 15.247 15.209 Peak average Yes Transmitter Carrier Frequency Separation: 15.247(a)(1) Peak Yes Transmitter Maximum Peak Power Output Power: 15.247(b)(1) Peak Yes Transmitter Band Edge Conducted Emissions: 15.247(c) Peak Yes Transmitter Band Edge Radiated Emission: 15.247(c) Peak Yes Extrapolation Factor: 15.31(f) - Yes Maximum Frequency of Search: 15.33 - Yes Antenna Arrangements Integral: 15.203 - Yes Antenna Arrangements External Connector: 15.204 - Yes Restricted Bands: 15.205 - Yes 2. Product Description : Wireless Mini Board 3. Temperatures: Ambient (Tnom) 22 o C 4. Supply Voltages: Vnom +3.7Vdc or +5Vdc External Power Supply (FW7605L/05) Note: +3.7Vdc voltages are as stated above unless otherwise shown on the test report page Single channel [ ] 5. Equipment Category: Multi-channel [X] Narrowband [ ] 6. Channel spacing: Wideband [X] RU1362/8028 Page 7 of 64 TRANSMITTER TESTS TRANSMITTER CONDUCTED EMISSIONS – AC POWER LINE Part 15.207 Ambient temperature = 21 o C(<1GHz), Relative humidity = 56%(<1GHz), Conditions = Power Line Laboratory Supply voltage = 110V AC Supply Frequency = 60Hz SIGNIFICANT EMISSIONS FREQUENCY (MHz) MEASUREMENT RECEIVER READING (dBμV) DETECTOR CONDUCTOR (L or N) LIMIT (dBμV) 0.275 43.35 Average Neutral 50.97 0.310 33.49 Average Live 49.97 Notes: 1 See attached plot annex D 2 EUT tested without 2.4GHz communication and no pen present 3 EUT tested with 2.4GHz communication and pen present Test Method: 1 As per Radio – Noise Emissions, ANSI C63.4: 2003 The test equipment used for the Transmitter Conducted Emissions – AC Power Line Part 15.207 test was: TYPE OF EQUIPMENT MAKER/ SUPPLIER MODEL No SERIAL No TRL No ACTUAL EQUIPMENT USED RECEIVER ROHDE & SCHWARZ ESHS 10 830051/001 UH03 LISN/AMN ROHDE & SCHWARZ ESH3-Z5 863906/018 UH05 RECEIVER ROHDE & SCHWARZ ESHS 10 841429/012 UH187 X L…

Text truncated - open the document above for the full version.
